Beko RCSA360K21PT Instruction Manual

Refrigerator-Freezer type I
Hladnjak-Zamrzivač tipa I
Холодильник-Морозильник типу I
Külmik-Sügavkülmik I tüüpi
Frizidera-Frezer tip I
Хладилник и Фризер Тип I
Холодильник-Морозильник типа I
Instruction of use
Upute za uporabu
Інструкція з експлуатації
Kasutusjuhend
Uputstvo za upotrebu
Инструкции за употреба
Руководство по эксплуатации
RCSA360K21PT
ENIHRIУKPIESTISRIБГIРУС

WARNING!
In order to ensure a normal operation of your refrigerating appliance, which uses a completely environmentally friendly
refrigerant the R600a (flammable only under certain conditions) you must observe the following rules:
Do not hinder the free circulation of the air around the appliance.
Do not use mechanical devices in order to accelerate the defrosting, others than the ones recommended by the
manufacturer.
Do not destroy the refrigerating circuit.
Do not use electric appliances inside the food keeping compartment, other than those that might have been recommended
by the manufacturer.
UPOZORENJE!
Da biste osigurali normalan rad Vašeg hladnjaka, koji koristi potpuno po okoliš neškodljivu tvar za hlađenje R600a (zapaljiv
samo pod određenim uvjetima), morate se držati sljedećih pravila:
Nemojte sprječavati slobodan protok zraka oko uređaja.
Nemojte koristiti mehaničke uređaje da biste ubrzali odmrzavanje, osim onih koje je preporučio proizvođač.
Ne uništavajte sklop za zamrzavanje.
Ne koristite električne uređaje u odjeljku za hranu, osim onih koje je preporučio proizvođač.
УВАГА!
Для того, щоб забезпечити нормальну роботу Вашого холодильника, в якому використовується охолоджуючий
реагент R600a, абсолютно нешкідливий для навколишнього середовища (займається лише за певних умов), Вам
Необхідно дотримуватися наступних правил..
Не створюйте перепон для вільної циркуляції повітря навколо холодильника.
Не користуйтесь жодними механічними пристроями та інструментами для видалення льоду під час розморожування
холодильника, окрім тих, що рекомендовані виробником.
Не допускайте пошкодження охолоджуючого контура.
Не встановлюйте всередину холодильного відділення, де зберігаються продукти, жодних електричних пристроїв,
окрім тих, що рекомендовані виробником.
HOIATUS!
Et külmutusseade, mis kasutab igati keskkonnasõbralikku külmutusagensit R600a (tuleohtlik ainult teatavatel tingimustel),
töötaks normaalselt, peate järgima järgmisi eeskirju:
Ärge blokeerige õhu vaba ringlust seadme ümbruses.
Ärge püüdke sulamist kiirendada mehaaniliste abivahenditega, mida tootja ei ole soovitanud.
Ärge kahjustage külmutusagensikontuuri.
Ärge kasutage toiduainete hoiukambrites elektriseadmeid, mida tootja ei ole soovitanud.
UPOZORENJE!
Da biste obezbedili normalan rad Va.eg fri.idera, koji koristi ekolo.ki rashlađivač R600a (a koji je zapaljiv samo pod
određenim okolnostima) morate po.tovati sledeća pravila:
Nemojte ometati slobodan protok vazduha oko uređaja.
Nemojte koristiti druga mehanička sredstva osim onih koje predviđa proizvođač, da biste ubrzali odmrzavanje.
Nemojte uni.titi jedinicu za hlađenje.
Nemojte koristiti električne uređaje u odeljku za čuvanje hrane, osim onih koje preporučuje proizvođač.
ВНИМАНИЕ!
Вашия апарат съдържа хладилна течност R600a (запалим само при определени условия) газ от естествен произход
който е силно съвместим със изискванията за опазване на околната среда. За да осигурите нормална работа на
Вашият уред моля спазвайте следните правила:
Осигурете нормална вентилация на уреда.
Не използвайте механични устройства за размразяване на уреда, освен тези препоръчни от производителя.
Не наранявайте хладилната верига.
Не използвайте електрически уреди вътре в апарата.
ВНИМАНИЕ
Для того, чтобы обеспечить нормальную работу Вашего холодильника в котором используется охлаждающий реагент
R600a, совершенно безвредный для окружающей среды (воспламеняющийся только в определенных условиях), Вам
следует соблюдать следующие правила.
Не создавайте препятствий для свободной циркуляции воздуха вокруг холодильника.
Не пользуйтесь никакими механическими приспособлениями и инструментами для удаления льда при
размораживании холодильника, коме тех, которые рекомендованы изготовителем.
Не допускайте повреждения охлаждающего контура.
Не устанавливайте внутрь холодильного отделения, где хранятся продукты, никакие электрические устройства,
кроме тех, которые рекомендованы изготовителем.

Безпека перш за все! /17
Вимоги до електропостачання /18
Інструкція з транспортування /18
Інструкція зі встановлення /18
Загальні відомості про холодильник /19
Рекомендований спосіб розміщення продуктів у
холодильнику /19
Регулювання температури /20
Перед початком роботи /20
Зберігання заморожених продуктів /20
Заморожування свіжих продуктів /20
Заморожування льоду /21
Розморожування /21
Заміна лампочки всередині холодильника /21
Чищення холодильника і догляд за ним /21
Перенавішування дверцят /22
Що слід і чого не можна робити /22
Енергоспоживання /23
Чому холодильник шумить? /23
Усунення несправностей /24
Ohutus ennekõike! /25
Elektriohutus /26
Transpordieeskirjad /26
Paigaldusjuhised /26
Esmane tutvus seadmega /27
Toiduainete soovituslik paigutus seadmes /27
Temperatuuri valik ja reguleerimine /27
Enne seadme kasutamist /27
Külmutatud toiduainete säilitamine /28
Värskete toiduainete külmutamine /28
Jääkuubikute valmistamine /28
Sulatamine /28
Sisevalgusti pirni vahetamine /29
Puhastamine ja hooldus /29
Ukse avanemissuuna muutmine /29
Käsud ja keelud /29
Energiakulu /30
Seadme töötamisel tekkiv müra ja vibratsioon /31
Probleemide kõrvaldamine /31
Safety first /1
Electrical requirements /2
Transportation instructions /2
Installation instructions /2
Getting to know your appliance /3
Suggested arrangement of food in the
appliance /3
Temperature control and adjustment /4
Before operating /4
Storing frozen food /4
Freezing fresh food /4
Making ice cubes /4
Defrosting /5
Replacing the interior light bulb /5
Cleaning and care /5

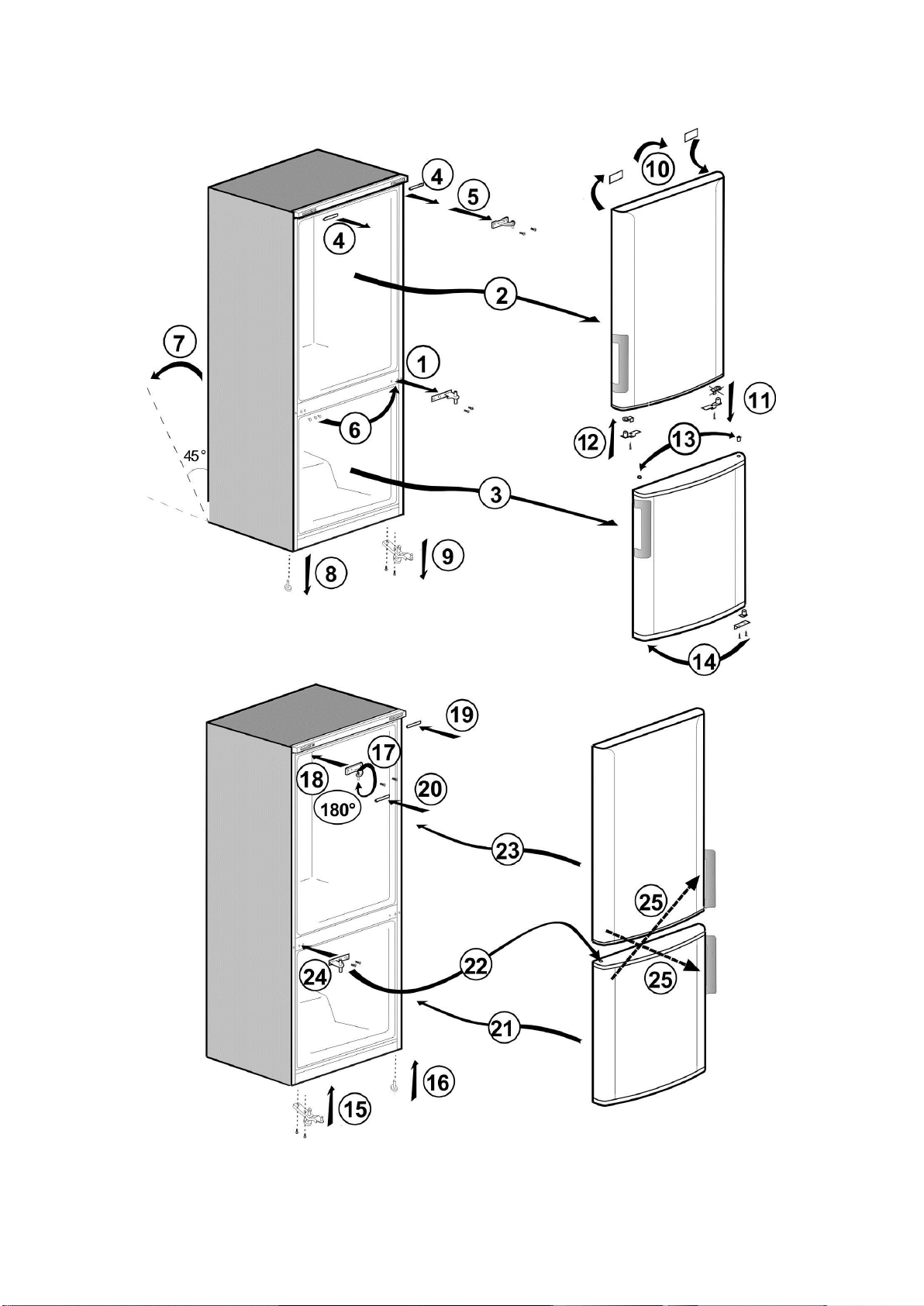

Repositioning the door /6
Do’s and don’ts /6
Energy Consumption /7
Information about operating noises /8
Troubleshooting /8
Prvo sigurnost /9
Električni zahtjevi /10
Upute za prijevoz /10
Upute za ugradnju /10
Upoznavanje Vašeg uređaja /11
Predloženo slaganje hrane u uređaju /11
Kontrola i prilagođavanje temperature /11
Prije rada /12
Pohrana smrznute hrane /12
Pohrana svježe hrane /12
Pravljenje kockica leda /12
Odmrzavanje /12
Zamjena unutarnje žarulje /13
Čišćenje i briga /13
Prebacivanje vrata /14
Što se smije a što se ne smije /14
Potrošnja energije /15
Informacije o buci za vrijeme rada /16
Rješavanje problema /16
EN Index
EST Register
УKP Зміст
HR Sadržaj

РУС Coдepжаниe
SR Sadržaj
Bezbednost na prvom mestu /32
Neophodne električne instalacije /33
Uputstvo za transport /33
Uputstvo za instaliranje /33
Elementi uređaja /34
Regulacija temperature /34
Pre stavljanja aparata u upotrebu /34
Skladištenje zamrznute hrane /34
Zamrzavanje sveže hrane /34
Pravljenje leda /34
Odmrzavanje /35
Zamena sijalice u aparatu /35
Čišćenje i održavanje /35
Smer otvaranja vrata /36
Potrošnja energije /36
Informacije u vezi sa bukom i vibracijama /36
Problemi /37
Безопасност преди всичко /38
Електрически изисквания /39
Tранспортнu uнструкции /39
Инструкции при инсталиране /39
Запознаване с вашия уред /40
Препоръки при подреждане на храната /40
Контрол на температурата и настройки /41
Преди работа /41
Съхранение на замразени храни /41
Замразяване на свежи продукти /41
Лед /41
Размразяване /42
Подмяна на лампичката от вътрешното
осветление /42
Почистване и грижи /42
Промяна посоката на отваряне на вратата /43
Полезни съвети /43
Разход на енергия /44
Информация за шумовете и вибрациите /45
Разрешение на проблеми /45
Безопасность прежде всего /46
Требования к электропитанию /47
Инструкция по транспортировке /47
Инструкция по установке /47
Общие сведения о холодильнике /48
Рекомендуемый способ размещения
продуктов /48
Регулировка температуры /49
Перед началом работы /49
Хранение замороженных продуктов /49
Замораживание свежих продуктов /50
Замораживание льда /50
Размораживание /50
Замена лампочки внутри холодильника /51
Чистка холодильника и уход за ним /51
Перенавешивание дверей /52
Что следует и чего нельзя делать /52
Энергопотребление /53
Почему холодильник шумит? /54
Устранение неисправностей /54
БГ Съдържание

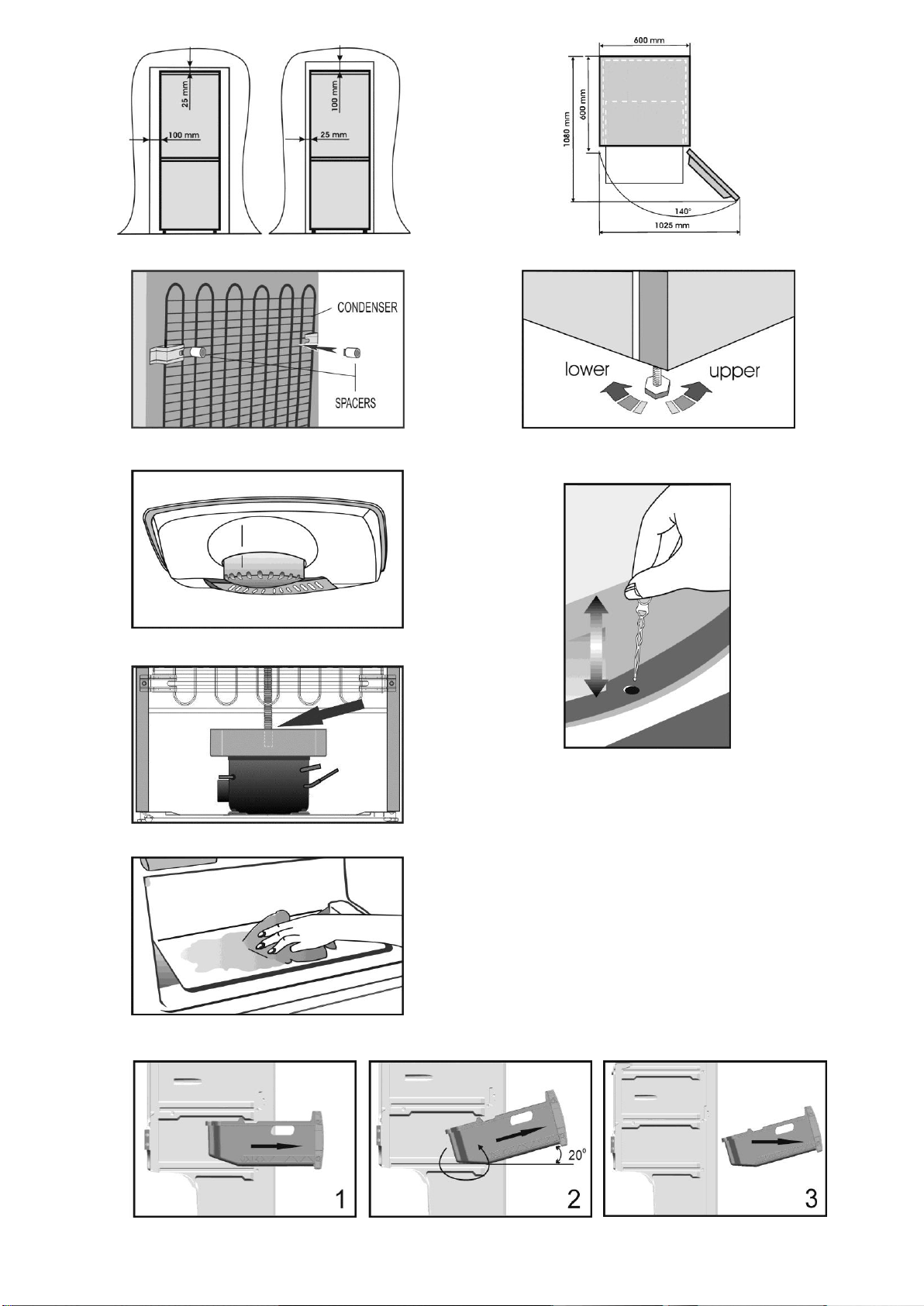

Figures that take place in this instruction manual are schematic and may not correspond exactly with your
product. If the subject parts are not included in the product you have purchased, then it is valid for other models.
Slike koje se nalaze u ovom priručniku su shematske i možda se ne ogovaraju u potpunosti vašem
proizvodu. Ako dijelovi naslova nisu sadržani u proizvodu koji ste kupili, onda to vrijedi za ostale modele.
Ілюстрації в даній інструкції є схематичними і можуть відрізнятися від вашої моделі. Якщо до
комплектації моделі, яку ви придбали, не входять згадані деталі, вони призначені для інших моделей.1
Kasutusjuhendis esinevad joonised on lihtsustatud ja ei pruugi täpselt vastata teie tootele. Kui kõnealused
osad ei ole teie soetatud tootega kaasas, kehtib see teiste mudelite kohta.
Slike koje su uključene u ovom uputstvu za upotrebu su šematske i možda ne odgovaraju tačno Vašem
proizvodu. Ako delovi teme nisu uključeni u proizvod koji ste kupili, onda to važi za druge modele.
Фигурите, в настоящето ръководство за употреба, са схематични и може да не отговарят точно на
вашия уред. Ако споменатите части липсват във вашия уред, то те важат за други модели.
Иллюстрации в данной инструкции являются схематичными и могут отличаться от вашей модели.
Если в приобретенном вами изделии нет каких-либо из показанных компонентов, значит, они
используются в других моделях.
1

2
3
4
5
6
7
8
9

10

Congratulations on your choice of a BEKO Quality
Appliance, designed to give you many years of service.
Safety first!
Do not connect your appliance to the electricity supply
until all packing and transit protectors have been
removed.
• Leave to stand for at least 4 hours before switching
on, to allow compressor oil to settle, if transported
horizontally.
• If you are discarding an old appliance with a lock or
latch fitted to the door, ensure that it is left in a safe
condition to prevent the entrapment of children.
• This appliance must only be used for its intended
purpose.
• Do not dispose of the appliance on a fire. Your
appliance contains non CFC substances in the
insulation which are flammable. We suggest you
contact your local authority for information on disposal
and available facilities.
• We do not recommend use of this appliance in an
unheated, cold room. (e.g. garage, conservatory,
annex, shed, out-house etc.)
To obtain the best possible performance and trouble
free operation from your appliance it is very important to
read these instructions carefully. Failure to observe
these instructions may invalidate your right to free
service during the guarantee period.
Please keep these instructions in a safe place for easy
reference.
Original Spare parts will be provided for 10 years,
following the product purchasing date.
EN Instruction for use
1
This appliance is not intended for use by person with reduced physical, sensory or mental
capabilities or lack of experience and knowledge unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

EN Instruction for use
Electrical requirements
Before inserting the plug into the wall socket
make sure that the voltage and the frequency
shown in the rating plate inside the appliance
corresponds to your electricity supply.
We recommend that this appliance is
connected to the mains supply via a suitably
switched and fused socket in a readily
accessible position.
Warning! This appliance must be earthed.
Repairs to electrical equipment should only be
performed by a qualified technician. Incorrect
repairs carried out by an unqualified person
are carry risks that may have critical
consequences for the user of the appliance.
ATTENTION!
This appliance operates with R600a which is
an environmental friendly but flammable gas.
During the transportation and fixing of the
product, care must be taken not to damage
the cooling system. If the cooling system is
damaged and there is a gas leakage from the
system, keep the product away from open
flame sources and ventilate the room for a
while.
WARNING - Do not use mechanical devices
or other means to accelerate the defrosting
process, others than those recommended by
the manufacturer.
WARNING - Do not damage the refrigerant
circuit.
WARNING - Do not use electrical appliances
inside the food storage compartments of the
appliance, unless they are of the type
recommended by the manufacturer.
WARNING - If the supply cord is damaged, it
must be replaced by the manufacturer, its
service agent or similarly qualified persons in
order to avoid a hazard.
Transportation instructions
1. The appliance should be transported only in
an upright position. The packing as supplied
must be intact during transportation.
2. If during the transport the appliance, has
been positioned horizontally, it must not be
operated for at least 4 hours, to allow the
system to settle.
3. Failure to comply with the above
instructions could result in damage to the
appliance, for which the manufacturer will not
be held liable.
4. The appliance must be protected against
rain, moisture and other atmospheric
influences.
Important!
• Care must be taken while cleaning/carrying
the appliance not to touch the bottom of the
condenser metal wires at the back of the
appliance, as this could cause injury to fingers
and hands.
• Do not attempt to sit or stand on top of your
appliance as it is not designed for such use.
You could injure yourself or damage the
appliance.
• Make sure that the mains cable is not caught
under the appliance during and after moving,
as this could damage the cable.
• Do not allow children to play with the
appliance or tamper with the controls.
Installation instructions
1. Do not keep your appliance in a room
where the temperature is likely to fall below 10
degrees C (50 degrees F) at night and/or
especially in winter, as it is designed to
operate in ambient temperatures between +10
and +38 degrees C (50 and 100 degrees F).
At lower temperatures the appliance may not
operate, resulting in a reduction in the storage
life of the food.
2. Do not place the appliance near cookers or
radiators or in direct sunlight, as this will
cause extra strain on the appliance's
functions. If installed next to a source of heat
or freezer, maintain the following minimum
side clearances:
From Cookers 30 mm
From Radiators 300 mm
From Freezers 25 mm
3. Make sure that sufficient room is provided
around the appliance to ensure free air
circulation (Item 2).
• Put the back airing lid to the back of your
refrigerator to set the distance between the
refrigerator and the wall (Item 3).
2

EN Instruction for use
4. The appliance should be positioned on a
smooth surface. The two front feet can be
adjusted as required.To ensure that your
appliance is standing upright adjust the two
front feet by turning clockwise or anti-
clockwise, until firm contact is secured with
the floor. Correct adjustment of feet prevents
excessive vibration and noise (Item 4).
5. Refer to "Cleaning and Care" section to
prepare your appliance for use.
Getting to know your appliance
(Item 1)
1 - Thermostat and lamp housing
2 - Adjustable Cabinet shelves
3 - Wine bottles support
4 - Water collector
5 - Crisper cover
6 - Crispers
7 - Ice tray support & ice tray
8 - Compartment for quickly freezing
9 - Compartments for frozen froods keeping
10 - Adjustable foot
11 - Dairy Compartment
12 - Shelf for jars
13 - Shelf for bottles
Suggested arrangement of food in
the appliance
Guidelines for obtaining optimum storage and
hygiene:
1. The fridge compartment is for the short-
term storage of fresh food and drinks.
2. The freezer compartment is
rated and suitable for the freezing and
storage of pre-frozen food.
The recommendation for storage as
stated on the food packaging should be
observed at all times.
3. Dairy products should be stored in the
special compartment provided in the door
liner.
4. Cooked dishes should be stored in airtight
containers.
5. Fresh wrapped produce can be kept on
the shelf. Fresh fruit and vegetables should be
cleaned and stored in the crispers.
6. Bottles can be kept in the door section.
7. To store raw meat, wrap in polythene
bags and place on the lowest shelf. Do not
allow to come into contact with cooked food,
to avoid contamination. For safety, only store
raw meat for two to three days.
8. For maximum efficiency, the removable
shelves should not be covered with paper or
other materials to allow free circulation of cool
air.
9. Do not keep vegetable oil on door
shelves. Keep the food packed, wrapped or
covered. Allow hot food and beverages to cool
before refrigerating. Leftover canned food
should not be stored in the can.
10. Fizzy drinks should not be frozen and
products such as flavoured water ices should
not be consumed too cold.
11. Some fruit and vegetables suffer damage
if kept at temperatures near 0°C. Therefore
wrap pineapples, melons, cucumbers,
tomatoes and similar produce in polythene
bags.
12. High-proof alcohol must be stored upright
in tightly closed containers. Never store
products that contain an inflammable
propellant gas (e.g. cream dispensers, spray
cans, etc.) or explosive substances. These
are an explosion hazard.
13. To take out the baskets from the freezer
compartment please proceed as in Item 9.
3

EN Instruction for use
Temperature control and adjustment
Operating temperatures are controlled by the
thermostat knob (Item 5) and may be set at
any position between 1 and 5 (the coldest
position).
The average temperature inside the fridge
should be around +5°C (+41°F).
Therefore adjust the thermostat to obtain the
desired temperature. Some sections of the
fridge may be cooler or warmer (such as
salad crisper and top part of the cabinet)
which is quite normal. We recommend that
you check the temperature periodically with a
thermometer to ensure that the cabinet is kept
to this temperature. Frequent door openings
cause internal temperatures to rise, so it is
advisable to close the door as soon as
possible after use.
Before operating
Final Check
Before you start using the appliance check
that:
1. The feet have been adjusted for perfect
levelling.
2. The interior is dry and air can circulate
freely at the rear.
3. The interior is clean as recommended
under "Cleaning and care.”
4. The plug has been inserted into the wall
socket and the electricity is switched on.
When the door is open the interior light will
come on.
And note that:
5. You will hear a noise as the compressor
starts up. The liquid and gases sealed within
the refrigeration system may also make some
(noise), whether the compressor is running or
not. This is quite normal.
6. Slight undulation of the top of the cabinet is
quite normal due to the manufacturing
process used; it is not a defect.
7. We recommend setting the thermostat knob
midway and monitor the temperature to
ensure the appliance maintains desired
storage temperatures (See section
Temperature Control and Adjustment).
8. Do not load the appliance immediately it is
switched on. Wait until the correct storage
temperature has been reached. We
recommend checking the temperature with an
accurate thermometer (see; Temperature
Control and Adjustment).
Storing frozen food
Your freezer is suitable for the long-term
storage of commercially frozen foods and also
can be used to freeze and store fresh food.
If there is a power failure, do not open the
door. Frozen food should not be affected if the
failure lasts for less than 18 hrs. If the failure
is longer, then the food should be checked
and either eaten immediately or cooked and
then re-frozen.
Freezing fresh food
Please observe the following instructions to
obtain the best results.
Do not freeze too large a quantity at any one
time. The quality of the food is best preserved
when it is frozen right through to the core as
quickly as possible.
Do not exceed the freezing capacity of your
appliance in 24 h.
Placing warm food into the freezer
compartment causes the refrigeration
machine to operate continously until the food
is frozen solid. This can temporarily lead to
excessive cooling of the refrigeration
compartment.
When freezing fresh food, keep the
thermostat knob at medium position. Small
quantities of food up to 1/2 kg. (1 lb) can be
frozen without adjusting the temperature
control knob.
Take special care not to mix already frozen
food and fresh food.
Making ice cubes
Fill the ice - cube tray 3/4 full with water and
place it in the freezer. Loosen frozen trays
with a spoon handle or a similar implement;
never use sharp-edged objects such as
knives or forks.
4

EN Instruction for use
Defrosting
A) Fridge compartment
The fridge compartment defrosts
automatically. The defrost water runs to the
drain tube via a collection container at the
back of the appliance (Item 6).
During defrosting, water droplets may form at
the back of the fridge compartment where a
concealed evaporator is located. Some
droplets may remain on the liner and refreeze
when defrosting is completed. Do not use
pointed or sharp-edged objects such as
knives or forks to remove the droplets which
have refrozen.
If, at any time, the defrost water does not
drain from the collection channel, check that
no food particles have blocked the drain tube.
The drain tube can be cleared with a pipe-
cleaner or similar implement.
Check that the tube is permanently placed with
its end in the collecting tray on the compressor
to prevent the water spilling on the electric
installation or on the floor (Item 7).
B) Freezer compartment
Defrosting is very straightforward and without
mess, thanks to a special defrost collection
basin.
Defrost twice a year or when a frost layer of
around 7 (1/4") mm has formed. To start the
defrosting procedure, switch off the appliance
at the socket outlet and pull out the mains
plug.
All food should be wrapped in several layers
of newspaper and stored in a cool place (e.g.
fridge or larder).
Containers of warm water may be placed
carefully in the freezer to speed up the
defrosting.
Do not use pointed or sharp-edged
objects, such as knives or forks to remove
the frost.
Never use hairdryers, electrical heaters or
other such electrical appliances for defrosting.
Sponge out the defrost water collected in the
bottom of the freezer compartment. After
defrosting, dry the interior thoroughly (Item 8).
Insert the plug into the wall socket and switch
on the electricity supply.
Replacing the interior light bulb
To change the Bulb/LED used for illumination
of your refrigerator, call your
AuthorisedService.
The lamp(s) used in this appliance is not
suitable for household room illumination. The
intended purpose of this lamp is to assist the
user to place foodstuffs in the
refrigerator/freezer in a safe and comfortable
way.
The lamps used in this appliance have to
withstand extreme physical conditions such as
temperatures below -20°C.
Cleaning and care
1. We recommend that you switch off the
appliance at the socket outlet and pull out the
mains plug before cleaning.
2. Never use any sharp instruments or
abrasive substances, soap, household
cleaner, detergent or wax polish for cleaning.
3. Use luke warm water to clean the cabinet
of the appliance and wipe it dry.
4. Use a damp cloth wrung out in a solution
of one teaspoon of bicarbonate of soda to one
pint of water to clean the interior and wipe it
dry.
5. Make sure that no water enters the
temperature control box.
6. If the appliance is not going to be used for
a long period of time, switch it off, remove all
food, clean it and leave the door ajar.
7. We recommend that you polish the metal
parts of the product (i.e. door exterior, cabinet
sides) with a silicone wax (car polish) to
protect the high quality paint finish.
8. Any dust that gathers on the condenser,
which is located at the back of the appliance,
should be removed once a year with a
vacuum cleaner.
9. Check door seals regularly to ensure they
areclean and free from food particles.
5

EN Instruction for use
10. Never:
• Clean the appliance with unsuitable material;
eg petroleum based products.
• Subject it to high temperatures in any way,
• Scour, rub etc., with abrasive material.
11. Removal of dairy cover and door tray :
• To remove the dairy cover, first lift the cover
up by about an inch and pull it off from the
side where there is an opening on the cover.
• To remove a door tray, remove all the
contents and then simply push the door tray
upwards from the base.
12. Make sure that the special plastic
container at the back of the appliance which
collects defrost water is clean at all times. If
you want to remove the tray to clean it, follow
the instructions below:
• Switch off at the socket outlet and pull out
the mains plug
• Gently uncrimp the stud on the compressor,
using a pair of pliers, so that the tray can be
removed
• Lift it up.
• Clean and wipe it dry
• Reassemble, reversing the sequence and
operations
13. To remove a drawer, pull it as far as
possible, tilt it upwards and then pull it out
completely.
Repositioning the door
Proceed in numerical order (Item 10).
Do’s and don’ts
Do-Clean and defrost your appliance
regularly (See "Defrosting")
Do-Keep raw meat and poultry below
cooked food and dairy products.
Do-Take off any unusable leaves on
vegetables and wipe off any soil.
Do-Leave lettuce, cabbage, parsley and
cauliflower on the stem.
Do-Wrap cheese firstly in greaseproof paper
and then in a polythene bag, excluding
as much air as possible. For best results,
take out of the fridge compartment an
hour before eating.
Do-Wrap raw meat and poultry loosely in
polythene or aluminium foil. This
prevents drying.
Do-Wrap fish and offal in polythene bags.
Do-Wrap food with a strong odour or which
may dry out, in polythene bags, or
aluminium foil or place in airtight
container.
Do-Wrap bread well to keep it fresh.
Do-Chill white wines, beer, lager and mineral
water before serving.
Do-Check contents of the freezer every so
often.
Do-Keep food for as short a time as possible
and adhere to "Best Before" and "Use
by" etc. dates.
Do-Store commercially frozen food in
accordance with the instructions given on
the packets.
Do-Always choose high quality fresh food
and be sure it is thoroughly clean before
you freeze it.
Do-Prepare fresh food for freezing in small
portions to ensure rapid freezing.
Do-Wrap all food in aluminium foil or freezer
quality polythene bags and make sure
any air is excluded.
Do-Wrap frozen food immediately after
purchasing and put it in to the freezer as
soon as possible.
Do-Defrost food in the fridge compartment.
6

Don’t-Store bananas in your fridge
compartment.
Don’t- Store melon in your fridge. It can be
chilled for short periods as long as it
is wrapped to prevent it flavouring
other food.
Don’t-Cover the shelves with any protective
materials which may obstruct air
circulation.
Don’t-Store poisonous or any dangerous
substances in your appliance. It has
been designed for the storage of
edible foodstuffs only.
Don’t-Consume food which has been
refrigerated for an excessive length of
time.
Don’t- Store cooked and fresh food together
in the same container. They should
be packaged and stored separately.
Don’t-Let defrosting food or food juices drip
onto food.
Don’t-Leave the door open for long periods,
as this will make the appliance more
costly to run and cause excessive ice
formation.
Don’t-Use sharp edged objects such as
knives or forks to remove the ice.
Don’t-Put hot food into the appliance. Let it
cool down first.
Don’t-Put liquid-filled bottles or sealed cans
containing carbonated liquids into the
freezer, as they may burst.
Don’t-Exceed the maximum freezing loads
when freezing fresh food.
Don’t-Give children ice-cream and water
ices direct from the freezer. The low
temperature may cause 'freezer
burns' on lips.
Don’t-Freeze fizzy drinks.
Don’t-Try to keep frozen food which has
thawed; it should be eaten within 24
hours or cooked and refrozen.
Don’t-Remove items from the freezer with
wet hands.
EN Instruction for use
7
Energy Consumption
Maximum frozen food storage volume is
achieved without using the middle and upper
drawer provided in the freezer compartment.
Energy consumption of your appliance is
declared while the freezer compartment is
fully loaded without using the middle and
upper drawer.
Practical advice concerning the reduction
of the electricity consumption
1. Make sure that the appliance is located in
well-ventilated areas, far from any source of
heat (cooker, radiator etc.). At the same time,
the location of the appliance must be done in
such a way that it prevents it to be under the
direct incidence of the sunbeams.
2. Make sure that the food purchased in
refrigerated/frozen condition is placed into the
appliance as soon as possible, especially
during summertime. It is recommended to use
thermal insulated bags to transport the food
home.
3. We recommend the thawing of the packets
taken out from the freezer compartment be
done in the refrigerator compartment. For this
purpose, the packet which is going to be
thawed will be placed in a vessel so that the
water resulting from the thawing does not leak
in the refrigerator compartment. We
recommend you to start the thawing at least
24 hours before the use of the frozen food.
4. We recommend reducing the number of
door openings to the minimum.
5. Do not keep the door of the appliance open
more than necessary and make sure that after
each opening the door is well closed.

Troubleshooting
If the appliance does not operate when
switched on, check;
•That the plug is inserted properly in the
socket and that the power supply is on. (To
check the power supply to the socket, plug
in another appliance)
• Whether the fuse has blown/circuit breaker
has tripped/main distribution switch has
been turned off.
• That the temperature control has been set
correctly.
• That the new plug is wired correctly, if you
have changed the fitted, moulded plug.
If the appliance is still not operating at all after
above checks, contact the dealer from whom
you purchased the unit.
Please ensure that above checks have been
done, as a charge will be made if no fault is
found.
The symbol on the product or on packaging indicates that this product may not be treated as
household waste. Instead it shall be handed over to the applicable collection point for the recycling
of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will
help prevent potential negative consequences for the environment and human health, which could
otherwise be otherwise be caused by inappropriate waste handling of this product. For more
detailed information about recycling of this product, please contact your local city office, you
household waste disposal service or the shop where you purchased the product.
EN Instruction for use
Information concerning the noise
and the vibrations which might
appear during the operation of the
appliance
1.The operation noise can increase during
the operation.
- In order to keep the temperatures at the
adjusted temperatures, the compressor of the
appliance starts periodically. The noise
produced by the compressor becomes
stronger when it starts and a click can be
heard when it stops.
- The performance and operation features of
the appliance can change according to the
modifications of the temperature of the
ambient environment. They must be
considered as normal.
2. Noises like liquids flowing or as being
sprayed
- These noises are caused by the flow of the
refrigerant in the circuit of the appliance and
comply with the operation principle of the
appliance.
3. Other vibrations and noises.
- The level of noise and vibrations can be
caused by the type and the aspect of the floor
on which the appliance is placed. Make sure
that the floor does not have significant level
distortions or if it can yield to the weight of the
appliance (it is flexible).
- Another source of noise and vibrations is
represented by the objects placed on the
appliance. These objects must be removed
from the appliance
- The bottles and the vessels placed in the
refrigerator touching each other. In such
cases move the bottles and the vessels so
that there is a small distance between them.
8

Čestitamo na Vašem izboru uređaja BEKO kvalitete,
koji je dizajniran da vam pruži puno godina uporabe.
Prvo sigurnost!
Ne spajajte Vaš uređaj u struju dok ne skinete cijelo
pakiranje i zaštitu za prijenos.
Ostavite da da stoji najmanje 4 sata prije nego ga
uključite, da biste dopustili da se ulje kompresora
slegne, ako je prevožen horizontalno.
Ako odlažete stari aparat s bravom ili kvakom na
vratima, pazite da je ostavljena u sigurnom položaju da
biste spriječili da djeca ostanu zatvorena unutra.
Ovaj se aparat smije koristiti samo u predviđenu svrhu.
Ne odlažite uređaj u vatru. Vaš uređaj sadržava tvari
bez klorofluorougljika u izolaciji, koje su zapaljive.
Preporučamo Vam da za informacije o odlaganju i
dostupnim objektima kontaktirate Vaše lokalne vlasti.
Ne preporučamo uporabu ovog aparata u negrijanoj,
hladnoj sobi. (npr. garaži, ostavi, dodatku, kolibi, izvan
kuće, itd.)
Da biste od vašeg aparata dobili najbolje moguće
performanse i rad bez greške, jako je važno da pažljivo
pročitate ove upute. Ako se ne budete držali ovih
uputa, to može poništiti Vaše pravo na besplatan servis
tijekom razdoblja trajanja jamstva.
Molimo čuvajte ove upute na sigurnom mjestu da bi bile
lako dostupne.
CZ Pokyny pro používání
HR Upute za uporabu
9
Uređaj ne smiju koristiti osobe smanjenjih fizičkih, osjetilnih ili mentalnih sposobnosti, te
osobe koje nemaju dovoljno iskustva i znanja, osim ako su pod nadzorom ili ih je uporabi
proizvoda poučila osoba odgovorna za njihovu sigurnost.
Djecu je potrebno nadzirati kako se ne bi igrala uređajem.

HR Upute za uporabu
Električni zahtjevi
Prije uključivanja utikača u utičnicu, pazite da
su napon i frekvencija navedeni na aparatu
jednaki onima u vašoj električnoj mreži.
Preporučamo da se ovaj uređaj spaja u struju
pomoću prikladne uzemljene utičnice sa
sklopkom na dostupnom položaju.
Upozorenje! Aparat mora biti uzemljen.
Popravke na električnoj opremi smije izvoditi
samo kvalificirani tehničar. Pogrešne
popravke koje izvede nekvalificirana osoba za
sobom nose rizik od opasnih posljedica po
korisnika aparata.
PAŽNJA!
Ovaj aparat radi s R600a, koji je plin
bezopasan za okoliš, ali je zapaljiv. Za vrijeme
transporta i popravke proizvoda, mora se
paziti da se ne ošteti sustav za hlađenje. Ako
je sustav za hlađenje oštećen i plin curi iz
sustava, držite uređaj podalje od izvora
otvorenog plamena i neko vrijeme zračite
sobu.
UPOZORENJE –ne koristite mehaničke
uređaje ili druge načine za ubrzavanje
procesa topljenja od onih koje preporuča
proizvođač.
UPOZORENJE –nemojte oštećivati sklop
odjeljka za zamrzavanje.
UPOZORENJE –Ne koristite električne
aparate unutar odjeljaka za spremanje hrane
u aparatu, osim ako nisu vrste kakvu
preporuča proizvođač.
UPOZORENJE –Ako je kabel napajanja
oštećen, mora ga zamijeniti proizvođač,
njegov serviser ili jednako kvalificirana osoba
da bi se izbjegla opasnost.
Upute za prijevoz
1. Aparat se treba prevoziti samo u
uspravnom položaju. Pakiranje mora tijekom
transporta ostati neoštećeno onako kako je
dostavljeno.
2. Ako je za vrijeme trasnporta uređaj bio
postavljen horizontalno, ne smije raditi
najmanje 4 sata, da bi se sustav smirio.
3. Nepridržavanje gore navedenih uputa može
rezultirati oštećenjem aparata za koje
proizvođač neće biti odgovoran.
4. Uređaj mora biti zaštićen od kiše, vlage i
drugih vremenskih utjecaja.
Važno!
Morate paziti kad čistite/nosite uređaj da ne
dodirnete dno metalnih žica kondenzatora na
stražnjem dijelu uređaja, jer to može dovesti
do povrede prstiju i ruku.
Ne pokušavajte sjediti ili stajati na uređaju
jer nije dizajniran za takvu uporabu. Mogli
biste se ozlijediti ili oštetiti aparat.
Pazite da strujni kabel ne zapne pod aparat
za vrijeme i nakon pomicanja, jer to može
oštetiti kabel.
Ne dopuštajte djeci da se igraju s uređajem
ili da se igraju s kontrolnim gumbima.
Upute za ugradnju
1. Ne držite aparat u sobi gdje temperatura
može pasti ispod 10°C (50 F) noću i/ili
posebno zimi, jer je napravljen za rad na
temperaturama okoline između +10 i +38°C
(50 i 100 F). Pri nižim temperaturama aparat
neće raditi, što će smanjiti vijek trajanja hrane.
2. Ne stavljajte uređaj blizu štednjaka ili
radijatora ili pod direktnu sunčevu svjetlost, jer
će to prouzročiti posebni napor u radu
aparata. Ukoliko se ugradi blizu izvora topline
ili škrinje, držite sljedeći najmanji razmak sa
strane:
Od štednjaka 30 mm
Od radijatora 300 mm
Od škrinja 25 mm
3. Pazite da oko aparata ima dovoljno
prostora da bi se omogućila slobodna
cirkulacija zraka (Slika 2).
Stavite stražnji poklopac za prozračivanje na
Vašem hladnjaku da biste odredili razmak
između hladnjaka i zida (Slika 3).
4. Aparat treba postaviti na glatku površinu.
Dvije prednje nožice se mogu prilagoditi po
potrebi. Da biste bili sigurni da Vaš uređaj stoji
uspravno, prilagodite dvije prednje nožice
okretanjem u smjeru kretanja kazaljke na
satu ili suprotnom smjeru, dok ne uspostavite
čvrsti kontakt s tlom. Točno postavljanje
nožica smanjuje pretjeranu vibraciju i buku
(Slika 4).
5. Pogledajte dio „Čišćenje i briga“ da biste
pripremili uređaj za uporabu.
10

HR Upute za uporabu
Upoznavanje Vašeg uređaja
(Slika 1)
1 - Kućište termostata i lampice
2 - Prilagodljive police unutrašnjosti
3 -Držač za boce za vino
4 - Sakupljač vode
5 - Poklopac odjeljka za povrće
6 - Odjeljci za povrće
7 - Držač za posudu za led i posuda za led
8 - Odjeljak za brzo zamrzavanje
9 - Odjeljci za držanje smrznute hrane
10 - Podesiva nožica
11 - Odjeljak za mliječne proizvode
12 - Polica za tegle
13 - Polica za boce
Predloženo slaganje hrane u uređaju
Smjernice za dobivanje optimalnog mjesta za
spremanje i higijene:
1. Odjeljak hladnjaka služi za kratkotrajnu
pohranu svježe hrane i pića.
2. Odjeljak za zamrzavanje je označen sa
i podesan je za zamrzavanje
prethodno smrznute hrane.
Svo vrijeme se treba pridržavati preporuke za
pohranu na pakiranju hrane.
3. Mliječni proizvodi se trebaju stavljati u
poseban odjeljak u vratima.
4. Kuhana jela se trebaju skladištiti u
posudama koje ne prošuštaju zrak.
5. Svježe umotani proizvodi se trebaju čuvati
na polici. Svježe voće i povrće se treba očistiti
i staviti u odjeljak za povrće.
6. Boce se mogu čuvati u dijelu u vratima.
7. Da biste pohranili meso, zamotajte ga u
plastične vrećice i stavite na najnižu policu.
Nemojte dopustiti da dođe u kontakt s
kuhanom hranom, da biste izmjegli
kontaminaciju. Zbog sigurnosti, svježe meso
čuvajte samo dva ili tri dana.
8. Za maksimalnu učinkovitost, pomične
police se ne smiju omatati papirom ili drugim
materijalima da bi se dopustio slobodan
protok zraka.
9. Ne držite biljno ulje na policama vrata.
Držite hranu zapakiranu, zamotanu ili
pokrivenu. Prije nego ih stavite u hladnjak,
pustite vruću hranu i pića da se ohlade. Ostaci
hrane iz konzerve se ne smiju spremati u
konzervi.
10. Gazirana pića se ne smiju zamrzavati i
proizvodi kao što su vodenasti sladoledi se ne
smiju konzumirati prehladni.
11. Neko voće i povrće se oštećuje ako se
čuva pri temperaturi nižoj od 0°. Zato omotajte
ananas, dinje, krastavce, rajčicu i slične
plodove u plastične vrećice.
12. Jaki alkohol se mora spremiti u
uspravnom položaju u dobro zatvorenim
spremnicima. Nikad nemojte stavljati
proitvode koji sadrže zapaljivi plin (npr.
spremnike sa šlagom, sprejeve, itd.) ili
eksplozivne tvari. Oni mogu prouzročiti
eksploziju.
13. Kako izvaditi košara iz zamrzivača molimo
postupite kao u Slika 9.
Kontrola i prilagođavanje
temperature
Temperaturama rada se upravlja gumbom
termostata i može se postaviti na bilo koji
položaj između 1 i 6 (najhladniji položaj).
Prosječna temperatura unutar hladnjaka treba
biti oko +5°C (+41 F).
Zato prilagodite termostat da biste dobili
željenu temperaturu. Deki dijelovi hladnjaka ili
zamrzivača mogu biti hladniji ili topliji (kao
odjeljak za salatu i povrće i vrh kutije), što je
sasvim normalno. Preporučamo da
povremeno provjeravate temperaturu
termometrom da biste bili sigurni da je
hladnjak na toj temperaturi. Često otvaranje
vrata dovodi do podizanja temperature, tako
da se savjetuje zatvaranje vrata čim prije
nakon uporabe.
11

HR Upute za uporabu
Prije rada
Zadnja provjera
Prije nego počnete koristiti uređaj, provjerite
da:
1. Da su nožice postavljene za savršenu
ravnotežu.
2. Da je unutrašnjost suha i da zrak može
slobodno cirkulirati.
3. Da je unutrašnjost čista kako se
preporuča u „Čišćenju i brizi“.
4. Da je utikač utaknut u utičnicu i da je
struja uključena. kad su vrata otvorane,
uključit će se unutrašnje svjetlo.
I imajte na umu da:
5. Čut ćete buku kad kompresor počne raditi.
Tekućina i plinovi koji su zatvoreni u sustavu
hladnjaka također mogu napraviti nešto buke,
bez obita na to da li kompresor radi ili ne. To
je u potpunosti normalno.
6. Malo talasanje na vrhu kutije je potpuno
normalno zbog korištenog procesa
proizvodnje, to nije greška.
7. Preporučamo postavljanje gumba
termostata na pola i da provjeravate
temperaturu da biste bili sigurni da aparat
održava željenu temperaturu (Vidite dio
Kontrola i postavljanje temperature)
8. Ne punite aparat odmah čim je uključen.
Čekajte dok se ne dosegna željena
temperatura. Preporučamo provjeravanje
temeprature točnim termometrom (vidite
Kontrola i prilagođavanje temperature).
Pohrana smrznute hrane
Vaš odjeljak za zamrzavanje je podesan za
dugotrajnu pohranu komercijalno zamrznute
hrane koja se može zamrzavati i za pohranu
svježe hrane.
Ukoliko dođe do nestanka struje, ne otvarajte
vrata. To neće utjecati na zamrznutu hranu
ukoliko nestanak struje traje manje od 18 sati.
Ako je prekid dulji, hrana se treba provjeriti i ili
pojesti odmah ili skuhati i zatim ponovno
zamrznuti.
Pohrana svježe hrane
Molimo Pazite na sljedeće upute da biste
dobili najbolje rezultate.
Nemojte zamrzavati prevelike količine u isto
vrijeme. Kvaliteta hrane se najbolje čuva ako
se zamrzava što je brže moguće.
Nemojte prelaziti kapacitet zamrzavanja
Vašeg aparata u 24 h.
Stavljanje tople hrane u odjeljak za
zamrzavanje uzrokuje stalni rad stroja dok se
hrana u potpunosti ne zamrzne. Ovo može
privremeno dovesti do pretjeranog hlađenja
odjeljka za zamrzavanje.
Kad zamrzavate svježu hranu, držite gumb
termostata na srednjem položaju. Male
količine hrane do ½ kg se mogu zamrznuti
bez prilagođavanja gumba za kontrolu
temperature.
Posebno pazite da ne miješate već zamrznutu
i svježu hranu.
Pravljenje kockica leda
Ispunite posudu za led 3/4 s vodom i stavite je
u hladnjak. Olabavite smrznute pladnjeve
drškom žlice ili sličnim predmetom, nikada ne
koristite oštre predmete kao što su noževi ili
vilice.
12
