Beko D2 7101E User manual

Washing Machine D2 7081 E
D2 7082 E
D2 7101 E
D2 7102 E
D2 7102 ES

Please read this manual first!
Dear Customer,
We hope that your product which has been manufactured in modern facilities and
passed through a strict quality control procedure will give you the best results.
Therefore, we advise you to read through this manual carefully before using your
product and keep it for future reference.
This operation manual will…
…help you use your machine in a fast and safe way.
 •PleasereadtheOperationManualbeforeinstallingandstartingyourmachine.
 •Particularlyfollowtheinstructionsrelatedtosafety.
 •KeepthisOperatingManualwithineasyreach.Youmayneeditinthefuture.
 •Pleasereadalladditionaldocumentssuppliedwiththismachine.
PleasenotethatthisOperatingManualmaybeapplicableforseveralothermodels.
Differences between models will be identified in the manual.
Explanation of symbols
ThroughoutthisOperationManualthefollowingsymbolsareused:
CImportant information or useful hints about usage.
AWarning for hazardous situations with regard to life and property.
BWarning for supply voltage.
This appliance’s packaging material is recyclable. Help recycle it and protect
the environment by dropping it off in the municipal receptacles provided for this
purpose.Yourappliancealsocontainsagreatamountofrecyclablematerial.
It is marked with this label to indicate the used appliances that should not be
mixed with other waste. This way, the appliance recycling organised by your
manufacturer will be done under the best possible conditions, in compliance with
European Directive 2002/96/EC on Waste Electrical and Electronic Equipment.
Contact your town hall or your retailer for the used appliance collection points
closest to your home. We thank you doing your part to protect the environment.

TR
3
TABLE OF CONTENTS
1 Your Washing Machine 4
Overview . . . . . . . . . . . . . . . . . . . . . . . 4
Specifications . . . . . . . . . . . . . . . . . . . 5
2 Warnings 6
General Safety. . . . . . . . . . . . . . . . . . . 6
First Use . . . . . . . . . . . . . . . . . . . . . . . 6
Intended use . . . . . . . . . . . . . . . . . . . . 6
Safety instructions . . . . . . . . . . . . . . . . 7
If there are children in your house... . . . 7
3 Installation 8
Removing packaging reinforcement. . . 8
Opening the transportation locks. . . . . 8
Appropriate installation location . . . . . . 8
Adjusting the feet. . . . . . . . . . . . . . . . . 8
Connecting to the water supply. . . . . . 9

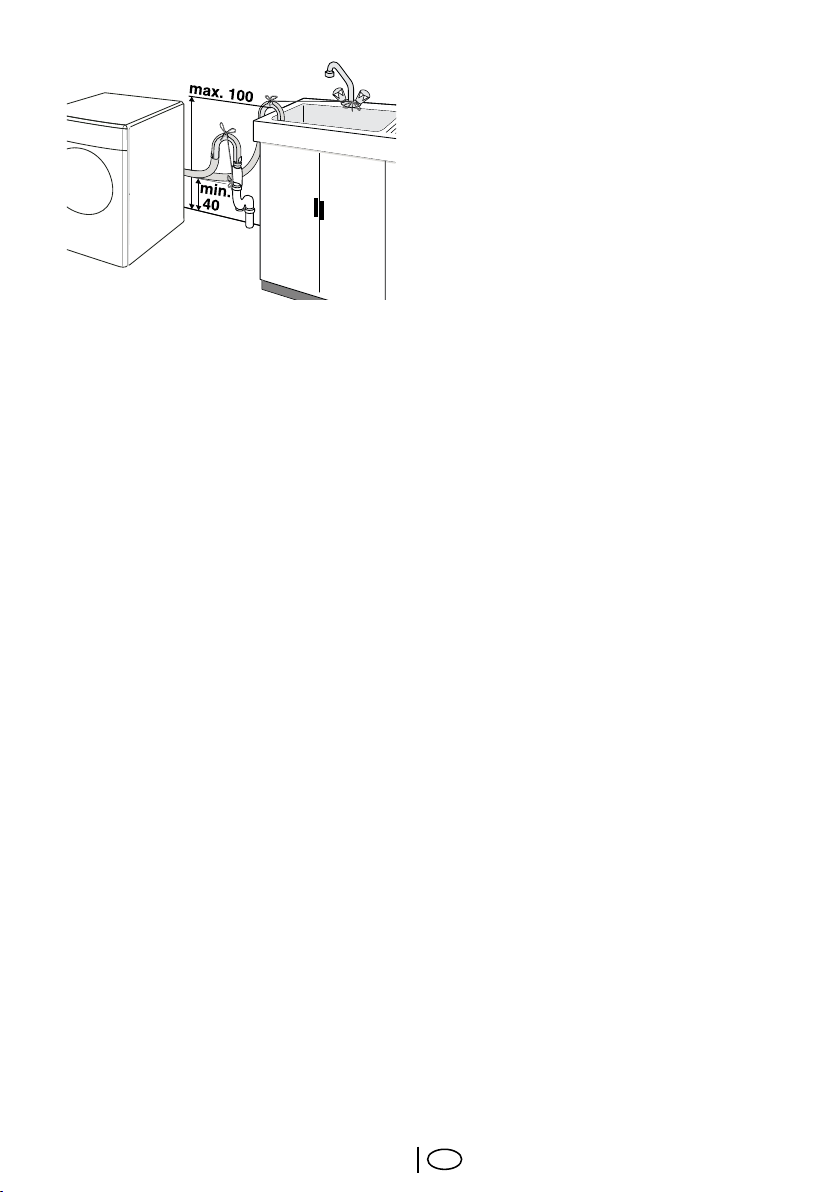

Connecting to the drain . . . . . . . . . . . . 9
Electrical connection . . . . . . . . . . . . . 10
Destroying the packaging material. . . 10
Disposing of the old machine. . . . . . . 10
4 Initial preparations for
washing 11
Sorting the laundry . . . . . . . . . . . . . . 11
Preparing clothes for washing . . . . . . 11
Correct load capacity . . . . . . . . . . . . 11
Loading door. . . . . . . . . . . . . . . . . . . 12
Detergents and softeners . . . . . . . . . 12
5 Selecting a program and
operating your machine 14
Control panel. . . . . . . . . . . . . . . . . . . 14

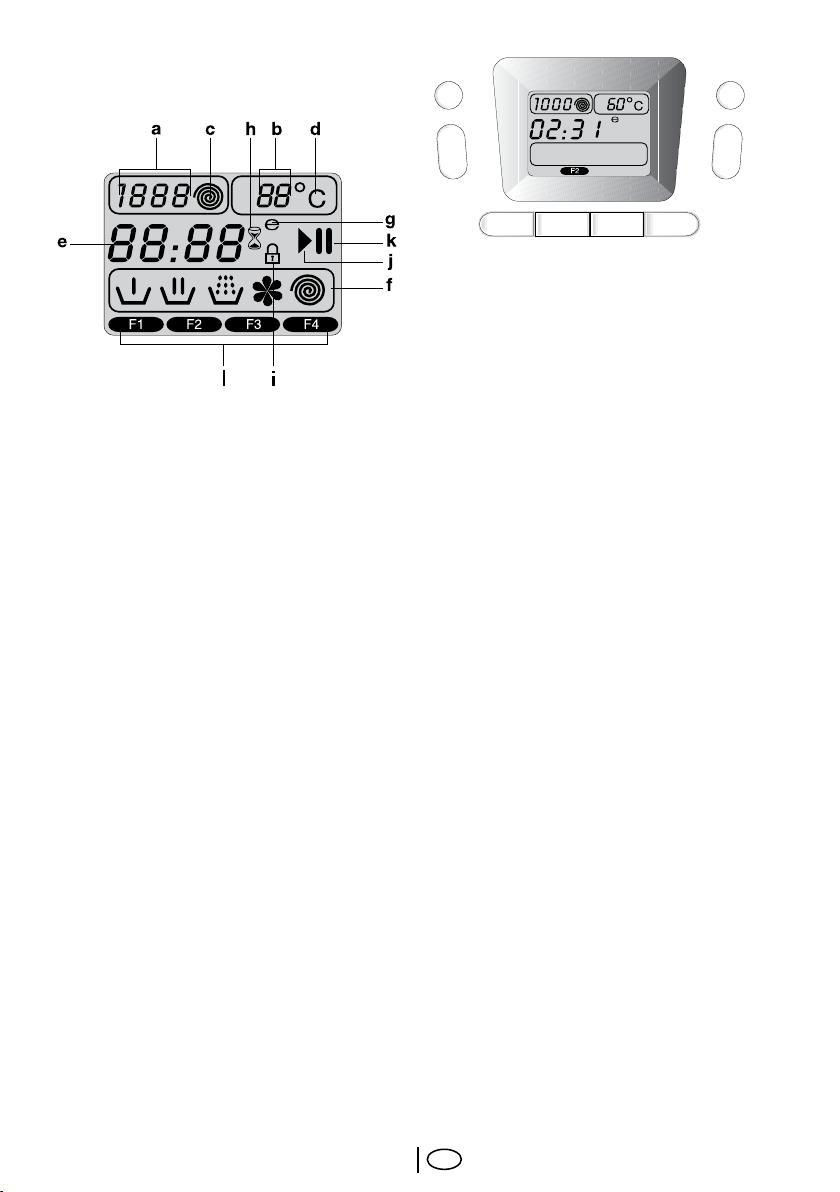

Display symbols. . . . . . . . . . . . . . . . . 15
Turning the machine on . . . . . . . . . . . 15
Program selection . . . . . . . . . . . . . . . 15
Additional programs . . . . . . . . . . . . . 16
Special programs . . . . . . . . . . . . . . . 16
Temperature selection . . . . . . . . . . . . 17
Spin Speed selection. . . . . . . . . . . . . 17
Program selection and consumption
table . . . . . . . . . . . . . . . . . . . . . . . . . 18
Auxiliary functions . . . . . . . . . . . . . . . 19
Time screen. . . . . . . . . . . . . . . . . . . . 19
Starting the program . . . . . . . . . . . . . 20
Progress of program.. . . . . . . . . . . . . 20
Changing the selections after the
program has started . . . . . . . . . . . . . 21
Child-proof lock. . . . . . . . . . . . . . . . . 21
Ending the program through
canceling. . . . . . . . . . . . . . . . . . . . . . 22
Program in rinse hold mode. . . . . . . . 22
End of program . . . . . . . . . . . . . . . . . 22
6 Quick instructions for
daily use 23
7 Cleaning and care 25
Detergent drawer. . . . . . . . . . . . . . . . 25
The door and the drum . . . . . . . . . . . 25
Outercabinetandcontrolpanel. . . . . 25
Inlet water filters. . . . . . . . . . . . . . . . . 25
Draining any remaining water and
cleaning the pump filter . . . . . . . . . . . 26
8 Troubleshooting 28

TR
4
1 - Detergent Drawer
2 - Door
3 - Top Lid
4-ControlPanel
5 - Filter Cap
6 - Height-adjustable feet
Overview
1Your Washing Machine
Figure 1







TR
5
D2 7081 E D2 7082 E D2 7101 E D2 7102 E
D2 7102 ES
77777
84 84 84 84 84
60 60 60 60 60
54 54 54 54 54
72 72 72 72 72
220-240 V / 50hz
10 10 10 10 10
2000-2350
800 800 1000 1000 1000
Specifications
Specifications of this appliance may change without notice to improve the quality of
the product. Figures in this manual are schematic and may not match your product
exactly.
Values stated on the machine labels or in the documentation accompanying it are
obtained in laboratory in accordance with the relevant standards. Depending on
operational and environmental conditions of the appliance, values may vary.
Models
Maximumdrylaundrycapacity(kg)
Height(cm)
Width(cm)
Depth(cm)
NetWeight(kg)
Electricity(V/Hz.)
TotalCurrent(A)
TotalPower(W)
Spinningcycle(rpmmax.)

TR
6
Pleasereadthefollowinginformation.
Otherwise,theremaybetheriskof
personal injury or material damage.
Moreover,anywarrantyandreliability
commitment will become void.
General Safety
• Neverplaceyourmachineona
carpetcoveredfloor.Otherwise,
lack of airflow from below of your
machine may cause electrical
parts to overheat. This may cause
problems with your washing
machine.
• Ifthepowercableormainsplugis
damaged you must call Authorized
Service for repair.
• Checkwaterhosesforwear.Do
not use old/used water inlet hoses.
These may cause stains on your
laundry.
• Fitthedrainhoseintothedischarge
housing securely to prevent any
water leakage and to allow machine
to take in and discharge water as
required. It is very important that the
water intake and drain hoses are not
folded, squeezed, or broken when
the appliance is pushed into place
after it is installed or cleaned.
• Yourwashingmachineisdesigned
to continue operating in the event
ofapowerinterruption.Youcannot
cancel any program by pressing the
“On/Offbutton.”Yourmachinewill
not resume its program when the
powerrestores.Pressthe“Start/
Pause/Cancel”buttonfor3seconds
tocanceltheprogram(See,
CancellingaProgram)
• Theremaybesomewaterinyour
machine when you receive it. This is
from the quality control process and
is normal. It is not harmful to your
machine.
• Someproblemsyoumayencounter
may be caused by the software.
Press“Start/Pause/Cancel”button
for 3 seconds to cancel the program
set in your machine before calling
the authorized service.
First Use
• Toprepareyourmachinefor
washing, carry out your first washing
process without loading your
machine and with detergent under
“Cottons90°C”program.
• Ensurethatthecoldandhot
water connections has been made
correctly when installing your
machine.Otherwise,yourlaundry
may come out hot at the end of the
washing process and may wear out.
• Ifthecurrentfuseorcircuitbreaker
is less than 16 Amperes, please
have a qualified electrician install a
16 Ampere fuse or circuit breaker.
• Whileusingwithorwithouta
transformer, do not neglect to have
the grounding installation laid by a
qualifiedelectrician.Ourcompany
shall not be liable for any damages
that may arise when the machine is
used on a line without grounding.
• Tomakeyourmachinereadyfor
use, please be sure that the tap
water supply and water drainage
systems are appropriate before
calling the authorized service. If they
are not, call a qualified plumber to
have any necessary arrangements
carried out.
Intended use
• Thisproducthasbeendesignedfor
home use.
• Theappliancemayonlybeusedfor
washing and rinsing of textiles that
are marked accordingly.
• Onlydetergents,softenersand
supplements suitable for washing
machines may be used.
• Observethecareinstructions
labelled on textile products and
any other instructions given by
2Warnings

TR
7
companies that produce detergents
for your machine.
Safety instructions
• Thisappliancemustbeconnected
to an earthed outlet protected by a
fuse of suitable capacity.
• Thesupplyanddraininghosesmust
always be securely fastened and
remain in an undamaged state.
• Fitthedraininghosetoawashbasin
or bathtub securely before starting
up your machine. There may be a
risk of being scalded due to high
washing temperatures!
• Neveropenthedoororremovethe
filter while there is still water in the
drum.Otherwise,theremaybethe
risk of flooding and possible injury
due to the hot water.
• Neverforceopenthelockeddoor!
The door will be ready to open just a
few minutes after the washing cycle
comes to an end.
• Unplugthemachinewhenitisnotin
use.
• Neverwashdowntheappliance
with a water hose! There is the risk
of electric shock! Always disconnect
from the mains by unplugging before
cleaning.
• Nevertouchtheplugwithwet
hands. Never unplug by pulling
on the cable, always pull out from
the plug only. Do not operate the
machine if the power cord or plug is
damaged.
• Neverattempttorepairthemachine
yourself.Otherwise,youmaybe
putting yours and other’s lives in
danger.
• Formalfunctionsthatcannot
be solved by information in the
operatingmanual:
Turn off the machine, unplug it, turn
off the water tap and contact an
authorized service agent.
If there are children in your
house...
• Electricalappliancesmaybe
dangerousforthechildren.Keep
children away from the machine
when it is operating. Do not let them
tamper with the machine.
• Closethedoorwhenyouleavethe
area where the machine is located.
• Storealldetergentsinasafeplace
out of reach of the children.

TR
8
Removing packaging
reinforcement
Tilt the machine to remove the
packaging reinforcement. Remove the
packaging reinforcement by pulling the
ribbon.
Opening the transportation
locks
CTransportation safety bolts must
be removed before operating the
washingmachine!Otherwise,the
machine will be damaged!
1. Loosen all the bolts with a spanner
untiltheyrotatefreely(“C”)
2. Remove transportation safety bolts
by turning them gently.
3. Fitthecovers(suppliedinthebag
withtheOperationManual)intothe
holesontherearpanel.(“P”)
C Keepthetransportationsafety
bolts in a safe place to reuse when
the washing machine needs to be
moved again in the future.
CNever move the appliance without
the transportation safety bolts
properly fixed in place!
Appropriate installation
location
Install the appliance in environments
which have no risk of freezing, in a
stable and level position.
CThe floor must be capable of
carrying the load on it!
C If the washing machine and a drier
are placed on top of each other,
their approximate weight together
may reach 180 kg when they are
full.
Important:
• Donotplacetheapplianceontopof
the power cable.
• Keepatleast1cmdistancefromthe
edges of other furniture.
• Placethemachineonafirmsurface;
do not position it on a long pile rug
or such like surfaces.
Adjusting the feet
CDo not use any tools to loosen the
locknuts.Otherwise,theycanbe
damaged.
1. Manually(byhand)loosenthelock
nuts on the feet.
2. Adjust them until the machine
stands level and firm.
3. Important:Tightenalllocknutsup
again.
3Installation

TR
9
Connecting to the water
supply.
Important:
• Thewatersupplypressurerequired
to run the machine must be 1-10
bar(0,1–1,0MPa).Attacha
pressure-reducing valve if the water
pressure is higher.
• Connectthespecialhosessupplied
with the machine to the water intake
valves on the machine. The hose
bearingthe“red”sign(90°Cmax)
is the hot water inlet and the hose
bearingthe“blue”sign(25°Cmax)is
for the cold water inlet.
• Ifyouaregoingtouseyourdouble
water-inlet machine as a single
(cold)water-inletunit,youmust
install the stopper*, supplied with
your machine to the hot water valve.
If you want to use both water inlets
of the product, you can connect the
hot water hose after removing the
stopper and gasket group from the
hot water valve.
* Applies for the products supplied
with a blind stopper group.
• Openthetapscompletelyafter
making the hose connection to
check if there is any water leakage
at the connection points. Turn off
the tap and remove the nut in case
of any leakage. Retighten the nut
carefully after checking the seal.
To prevent any water leakage and
any other damage to be caused by
it, keep the taps closed when the
machine is not in use.
• Modelswithasinglewaterinlet
should not be connected to the
hot water tap. Laundry may be
damaged or the appliance may
switch to protection mode and not
work.
When returning the appliance to its
place after maintenance or cleaning,
care should be taken not to fold,
squeeze or block the hoses.
Connecting to the drain
The water discharge hose can be
attached to the edge of a washbasin or
bathtub. The drain hose should be firmly
fitted into the drain as to not loosen in
its housing.
Important:
• Theendofthedrainhosecan
be directly connected to the
wastewater drain or to the
washbasin. The fitting must be
secured in all types of connections.
Yourhousemaybefloodedifthe
hose falls out of its housing during
water discharging.
• Thehoseshouldbeattachedtoa
height of at least 40 cm, and 100
cm at most.

TR
10
• Incasethehoseiselevated
after laying it on the floor level or
closetotheground(lessthan
40cmabovetheground),water
discharge becomes more difficult
and the laundry may come out wet.
Therefore, the heights described in
the figure should be followed.
• Topreventdirtywaterrefillingthe
machine, and to allow for easy
discharge, the end of the hose
must not be submerged in the drain
water. The end of the hose must be
able to take in air. The hose should
be pushed into the drainage for
more than 15 cm. If it is too long
you may have it shortened.
• Theendofthehoseshouldnotbe
bent, it should not be stepped on
and it must not be folded between
the drain and the machine.
• Thelengthofthehoseistooshort,
you may add an extension hose
to the original section. The length
of the hose must not be longer
than 3.2 m after coming out of the
machine. To avoid water leakage
failures, the connection between the
extension hose and the drain hose
of the product must be fitted well
with an appropriate clamp as not to
come off and leak.
Electrical connection
Connect the machine to an earthed
outlet protected by a fuse of suitable
capacity.
Important:
• Connectionshouldcomplywith
national regulations.
• Powercordplugmustbewithin
easy reach after installation.
• Thevoltageandtheallowedfuse
protection are specified in the
section“TechnicalSpecifications”.
• Thespecifiedvoltagemustbeequal
to your mains voltage.
• Connectionviaextensioncordsor
multi-plugs should not be made.
BA damaged power cable must be
replaced by a qualified electrician.
BThe appliance must not be operated
unless it is repaired! There is the risk
of electric shock!
Destroying the packaging
material
Packagingmaterialcanbedangerousto
children.Keepthepackagingmaterials
out of reach of children or dispose
them by classifying according to
waste directives. Do not dispose them
together with normal domestic waste.
Packagingmaterialsofyourmachineare
manufactured from recyclable materials.
Disposing of the old machine
Dispose of your old appliance in an
environmental friendly manner.
• Youmayrefertoyourlocalagentor
solid waste collection center in your
municipality to learn how to dispose
of your machine.
Before disposing of your old washing
machine, cut off the mains plug and
make the door lock unusable.

TR
11
Sorting the laundry
• Sortthelaundryaccordingtotype
of fabric, color, and degree of soiling
and permissible water temperature.
Always follow the advice on the
garment labels.
Suitable for
drier Do not dry with drier
Can be ironed
with hot iron Can be ironed with
warm iron
Dry on a
hanger
Do not iron
Washing water
temperature
Do not use
bleach
Bleach can be
used
Non machine
washable
Hang without
spinning
Do not
dry-clean
Dry
horizontally
Do not wash
Dry-cleanable
Wash with
sensitive, short
programs.
Preparing clothes for washing
Laundry items with metal attachments
such as, bras, belt buckles and metal
buttons will damage the machine.
Remove metal attachments or place the
items in a clothing bag, pillow case, or
something similar.
• Emptypocketsandremoveall
foreign objects such as coins, pens
and paper clips. If possible, turn
pockets out and brush.
• Placesmallitemslikeinfants’
socks and nylon stockings, etc.
in a laundry bag, pillow case or
something similar. This will also save
your laundry from getting lost.
• Placecurtainsinthemachinewith
care. Remove curtain rails and
pullers.
• Fastenzippers,sewloosebuttons
and mend rips and tears.
• Wash“machinewashable”or“hand
washable”labelledproductsonly
with an appropriate program.
• Donotwashcoloursandwhites
together. New, dark coloured
cottons may release a lot of dye.
Wash them separately.
• Toughstainsmustbetreated
properly before washing. If you are
not sure, check with a dry cleaner.
• Useonlydyes/colourchangersand
lime removers suitable for machine
wash. Always follow the instructions
on the packaging.
• Washtrousersanddelicateclothes
turned inside out.
• KeeplaundryitemsmadeofAngora
wool in the freezer for a few hours
before washing. This will reduce
pilling.
Correct load capacity
• Themaximumloadcapacity
depends on the type of laundry, the
degree of soiling and the washing
program you wish to use.
CThe machine adjusts the amount of
water according to the amount of
laundry placed inside.
C Pleasefollowtheinformationinthe
"ProgramSelectionTable".Washing
results will degrade when the
machine is overloaded.
4Initial preparations for washing

TR
12
Following weights are given as
examples.
Laundry type Weight(gr.)
Bathrobe 1200
Napkin 100
Duvet cover 700
Bed Sheet 500
Pillowcase 200
Tablecloth 250
Towel 200
Evening gown 200
Underclothing 100
Men’soveralls 600
Men’sshirt 200
Men’spyjamas 500
Blouse 100
Loading door
The door is locked during program
operation. The door can be opened after
some time following the program end.
• Openthedoor.
• Placelaundryitemslooselyinthe
machine.
• Pushthedooruntilitclicksinto
place tightly. Ensure that no items
are caught in the door.
Detergents and softeners
Detergent drawer
The detergent drawer is composed of
threecompartments:
The detergent dispenser may be in two
different types according to the model of
your machine.
-(I)forprewash
-(II)formainwash
-(III)siphon
–( )forsoftener
Detergent, softener and other
cleaning agents
Add detergent and softener before
starting the washing program.
Never open the detergent dispenser
drawer while the washing program is
running!
When using a program without pre-
wash, no detergent should be put
into the pre-wash compartment
(Compartmentno.I).
A program without pre-wash should
not be selected if a detergent bag or
a dispensing ball is going to be used.
Youcanplacethedetergentbagor
the dispensing ball directly among the
laundry in your machine.
Choosing the detergent type
The type of detergent to be used
depends on the type and colour of
fabric.
• Usedifferentdetergentsforcoloured
and white clothes.
• Washwoolenswithaspecial
detergent specifically for woolens.
• Useonlydetergentsmanufactured
specifically for washing machines.
Detergent quantity
The amount of washing detergent to
be used depends on the amount of
laundry, the degree of soiling and water
hardness.
• Donotuseamountsexceeding
the quantities recommended on
the package to avoid problems
of excessive foam, poor rinsing,
financial savings and finally,
environmental protection.
• Usesmallamountsofdetergentata
suitable measure for small amounts
of laundry or for only slightly soiled
laundry.
• Useexactmeasuresforhighly
concentrated detergents.

TR
13
Detergent
quantity
for prewashing 1/2 measure
for main
washing 1 measure
with hard water an additional
1/2 measure
Softener
Putthesoftenerintothesoftener
compartment of the detergent
dispenser.
• Usetheproportionsrecommended
on the packet.
• Neverexceedthe(>max<)level
marking;otherwise,thesoftenerwill
be wasted without being used.
• Ifthesoftenerhaslostitsfluidity,
dilute dense softener with water
before placing it in the detergent
drawer.
Liquid detergent
When using liquid or gel washing
detergents,pleasenotethefollowing:
• Theliquiddetergentmayleave
stains on your laundry if time delay
feature is selected.
• Donotuseliquiddetergentifyou
want to wash using the time delay
feature.
• Donotuseliquiddetergentforthe
main wash in a cycle with pre-wash.
• Usethedetergentmanufacturer’s
measuring cup and follow the
instructions on the package.
Starch
• Addliquidstarch,powderstarch
or the dyestuff into the softener
compartment as instructed on the
package.
• Neverusefabricsoftenerandstarch
together in the same washing cycle.
• Wipetheinsideofthedrumafter
using starch.
Eliminating lime formation
• Whenrequired,useonlyappropriate
lime removers developed specifically
for washing machines and always
follow the instructions on the
package.

TR
14
7 - Spin Speed Adjustment Button
8-TimeDelayingButton(+/-)
9 - Temperature Adjustment Button
10-Start/Pause/CancelButton
11 - Auxiliary Function Buttons
12-ProgramSelectionKnob
13 - Display
14-On/OffButton
Control panel
Figure 2
5Selecting a program and operating your machine
14
121011d11c11b11a
8
713 9

TR
15
Display symbols
Figure 3
13.a - Spin Speed Indicator
13.b–TemperatureIndicator
13.c–SpinningSymbol
13.d–TemperatureSymbol
13.e–RemainingTimeandDelaying
Time Indicator
13.f–ProgramIndicatorSymbols
(prewash/mainwash/rinsing/softener/
spinning)
13.g–EconomySymbol
13.h–TimeDelayingSymbol
13.i–DoorLockedSymbol
13.j–StartSymbol
13.k–PauseSymbol
13.l–AuxiliaryFunctionSymbols
13.m–Watercut-offsymbol(According
toyourmachine’smodel)
Turning the machine on
Pluginyourmachine.Turnthetapon
completely. Check if the hoses are
connectedtightly.Placethelaundry
inthemachine.Putindetergentand
softener.Pressthe“On/Off”button
(Figure2-5).
Program selection
Select the appropriate program from
the program table according to type,
amount and soiling degree of the laundry
and washing temperatures.
BringtheProgrammeSelectionKnob
(Figure2-4)totheprogrammodethat
you wish to wash your laundry at.
The recommended temperature and
spin speed for the selected program
appear.Press“Start/Pause/Cancel”
button(Figure2-8)tostarttheprogram.
Main programs
Depending on the type of textile, the
followingmainprogramsareavailable:
Each of these main programs comprise
of a complete washing process,
including washing, rinsing and, if
required, spin cycles.
CSort the laundry according to type
of fabric, color, degree of soiling and
permissible water temperature while
choosing a program.
CAlways select the lowest required
temperature. Higher temperature
means higher power consumption.
CFor further program details, see
“ProgramSelectionTable”
Cottons
Youcanwashyourdurableclothes
atthisprogram.Yourlaundryshall
be washed with intense washing
movements during a longer washing
cycle. It is recommended for your
cottonclothes(suchasbedsheets,
duvet and pillowcase sets, bathrobes,
underclothing,etc.).
Synthetics
Youcanwashyourlessdurableclothes
at this program. Lighter washing
movements and shorter washing
cycleisusedcomparedto“Cottons”
program. It is recommended for your
syntheticclothes(suchasshirts,
blouses, synthetic/cotton blended
garments,etc.).Forcurtainsandveils,it
isrecommendedtouse“Synthetic40˚C”
program with prewash and anti-creasing
functions selected. Detergent should

TR
16
not be put in the prewash compartment.
Less detergent should be put in the
main wash compartment as the veil
foams too much because of its meshed
structure.
Woollens
Youcanwashyourmachine-washable
woollen garments at this program. Wash
by selecting the proper temperature
according to the labels of your clothes.
It is recommended to use appropriate
detergents for woolens.
Additional programs
For special cases, there are also extra
programsavailable:
CAdditional programs may differ
according to the model of your
machine.
Babycare
Increased hygiene is provided by a
longer heating period and an additional
rinse cycle. It is recommended for baby
clothes and clothes worn by allergic
people.
Delicates
Youcanwashyourdelicateclothes
at this program. It has more sensitive
washing movements and does not
make intermediate spinning compared
to“Synthetic”program.Itmustbeused
for clothes for which sensitive washing is
recommended.
Hand Wash
Youcanwashyourwoolen/delicate
clothes that bear “not machine-
washable”labelsforwhichhandwash
is recommended at this program. It
washes the laundry with very tender
washing movements without wearing
your clothes out.
Mini
This program is used to quickly wash
a small number of lightly soiled cotton
garments.E.g.:bathrobes,duvet
covers, sport wears, daily clothes and
etc. used only once.
Super 40
This program washes for a longer period
at 40°C and gives the same result as
the“Cottons60°C”program,thusit
saves energy. It is suitable for clothes for
whichyoucannotusethe“Cotton60°C”
program.
Intensive
Youcanwashyourdurableandheavily
soiled clothes at this program. In this
program, your clothes will be washed
for a longer time and an extra rinsing
willbemadecomparedto“Cottons”
program.Youcanuseitforyourheavily
soiled clothes that you wish to be rinsed
sensitively.
Economy symbol
Shows energy saving programs and
temperature selections.
As“Intensive”and“Baby”programsare
long programs with higher temperature
selectionstoensurehygiene,“Economy”
Symbol(Figure3-2g)willnotlightup.
Special programs
For specific applications, you can select
anyofthefollowingprograms:
Rinse
This program is used when you want to
rinse or starch separately.
Spin
This program spins with maximum
possible rpm in the default setting.
C Youshouldusealowerspinrpmfor
delicate laundries.
Drain
This program is used to discharge the
water of the clothes soaked into water in
the machine.
Temperature selection
Whenever a new program is selected,
the temperature anticipated for that
program appears on the temperature
indicator(2b).
To change the temperature, press
thetemperaturebutton(Figure2-3).
Temperature falls with 10° decrements.
e

TR
17
Coldselectionisshownwith“-”symbol.
Whenthe“Temperature”buttonis
pressed after coming to the Cold
selection, the maximum temperature of
the program you have selected will be
displayed.
To decrease the temperature, press the
“Temperature”buttonagain.
90˚C
Normally soiled, white
cottonsandlinens.(Ex.:
coffee table covers,
tablecloths, towels, bed
sheets)
60˚C
Normally soiled, fade proof
colored linens, cottons
or synthetic clothes
(Ex.:shirts,nightgowns,
pajamas)andlightlysoiled
whitelinenclothes(Ex.:
underwear)
40˚C
30°C
Cold
Fordelicateclothes(Ex.:veil
curtains),blendedclothes
including synthetics and
woolens.
Spin Speed selection
Whenever a new program is selected,
the maximum spin speed of the selected
program is displayed on the spin speed
indicator(Figure3-2a).
To decrease the spin speed, press
the“Spin”button (Figure2-1).Spin
speed decreases gradually. Then, rinse
hold and no spin options are shown
respectively.
Rinse hold is shown with “ ”andno
spin is shown with “ ”symbols.
If you do not want to unload your
clothes immediately after the program,
you may use the rinse hold function in
order to prevent your clothes become
wrinkled in an anhydrous condition.
With this function, your laundry is kept
in the final rinsing water. If you want to
spin your laundry after the rinse hold
function:
- Adjust the spin speed.
- PressStart/Pause/CancelButton.
Programresumes.Yourmachines
drains the water and spins your
laundry.
Youcanusenospinfunctioninorderto
drain the water without spinning at the
end of the program.
e

TR
18
Program selection and consumption table
•Selectable
* Automatically selected, not cancellable.
**EnergyLabelprogramme(EN60456)
***SpinspeedofMini30programinwashingmachineswithspinspeedsmorethan
1400rpm is maximum 1400 rpm.
Water and power consumption and programme duration may differ from the table
shown, subject to changes in water pressure, water hardness and temperature,
ambient temperature, type and amount of laundry, selection of auxiliary functions,
and fluctuations in the supply voltage.
“Super40”programmaybeselectedinsteadof“Cotton60”programmeduring
winter in areas where the input water temperature is low and/or in areas with low
supply voltage.
CThe auxiliary functions in the table may differ according to the model of your
machine.
EN 2
Max.Load(kg) ProgrammeDuration(~min) WaterConsumption(l) EnergyConsumption(kWh) Spinspeed(rpm)
Auxiliary
functions Temperature
Programme
Prewash Quick Wash RinsePlus Anti-Creasing Rinse Hold 90 80 70 60 50 40 30 Cold
Cottons 90 7 153 52 2.72 max. •••••••••••••
Cottons 60** 7 144 52 1.33 max. •••••••••••••
Cottons 40 7 124 52 0.72 max. •••••••••••••
Super 40 7 159 52 0.84 max. • •
Intensive 60 7 189 70 1.43 max. * •• •••
Babycare 90 7 139 70 2.40 max. * •••••••
Synthetics 60 3 132 59 1.00 800 ••••• •••••
Synthetics 40 3 97 59 0.79 800 ••••• •••••
Delicate 40 2 75 65 0.30 600 ••• •••
Woollens 40 1.5 69 59 0.44 600 • • • • •
Hand wash 30 1 49 40 0.25 600 • •
Mini 30 2.5 30 55 0.22 max.
*** • •

TR
19
Auxiliary functions
Auxiliary function selection keys
• Dependingontheprogram,youcan
select the desired auxiliary function
by pressing the buttons.
• Selecttherequiredauxiliary
functions before starting the
program.
• Somecombinationscannotbe
selectedtogether.(Ex.:Prewash
and Quick Wash.
• Symboloftheselectedauxiliary
function(Figure3-2l)willlightup.
Auxiliary function selection
If an auxiliary function that should not
be selected together with a previously
selected function is chosen, the first
selected function will be cancelled and
the last auxiliary function selection will
remain active.
(Ex.:Ifyouwanttoselectprewashfirst
and then quick wash, prewash will be
cancelled and quick wash will remain
active.
Auxiliary function that is not compatible
with the program cannot be selected.
(see,“ProgramSelectionTable”)
Prewash
When you select this function, the
displaywillindicate“F1”symbol.
• Aprewashisonlyrequiredwith
heavily soiled laundry. Without
prewash you save energy, water,
detergent and time.
• Prewashwithoutdetergentis
recommended for veils and curtains.
Quick Wash
With this program, the wash time is
shortened.“F2”symbolwilllightupon
the display.
• Usethisfunctionforsmaller
amounts or slightly soiled laundries.
Rinse Plus
This function allows your machine to
perform an extra rinsing in addition to
the rinsing cycles performed by your
machine after main washing cycle.
Thus,theriskforsensitiveskins(babies,
allergicskinsandetc.)tobeeffectedby
the minimal detergent remnants on the
laundryisreduced.“F3”symbolwilllight
up on the display.
Anti - Crease
With this function, boiler movement will
be lessened to prevent creasing and
spinning speed is limited. In addition,
washing is carried out at a higher water
level.“F4”symbolwilllightuponthe
display.
• Usethisfunctionfordelicate
laundries that crease easily.
CWhenever you select this auxiliary
function, load your machine with
half of the maximum laundry amount
specified in the program table.
Time screen
The display shows the time remaining
for the program to complete while a
program is running. Time is displayed in
hoursandminutesas“01:30”.
• Programdurationmaydifferfrom
the values in the consumption table
subject to the changes in the water
pressure, water hardness and
temperature, ambient temperature,
type and amount of laundry, auxiliary
functions selected, and changes in
the supply voltage.
11a 11b 11c 11d

TR
20
Time delay
Withthe“Timedelay”functionyoucan
delay the program start up to 24 hours.
Setting can be made in intervals of 30
minutes.
1. Opentheloadingdoor,placethe
laundry inside and fill with detergent.
2. Set the washing program,
temperature, spin speed and,
if required, select the auxiliary
functions.
3. Press“Timedelaying”buttons“+”
and“-”(Figure2-6)tosetyour
desired time delay. Time delaying
symbol(Figure3-2h)willflash.
4. Press“Start/Pause/Cancel”button
(Figure2-8).Thenthetimedelay
starts to count down. Time delaying
symbol(Figure3-2h)willlightup.
Startsymbol(Figure3-2j)willlight
up.
The“:”inthemiddleofthedisplayed
time delay will start flashing.
• Morelaundrymaybeloadedor
taken out during the time delay
period. At the end of the time delay
countdown process, time delaying
symbol(Figure3-2h)fadesand
the washing starts as the program
duration is displayed.
Changing the delay time
If you want to change the time during
thecountdown:
1. Press“Start/Pause/Cancel”button
(Figure2-8).“:”inthemiddleofthe
screen will stop flashing. Standby
symbol(Figure3-2k)willlightup.
Timedelayingsymbol(Figure3-2h)
willflash.StartSymbol(Figure3-2j)
will fade.
2. Press“Timedelaying”buttons“+”
and“-”(Figure2-6)tosetyour
desired time delay.
3. Press“Start/Pause/Cancel”button.
Timedelayingsymbol(Figure3-2h)
willlightup.Standbysymbol(Figure
3-2k)willfade.Startsymbol(Figure
3-2j)willlightup.
4. The“:”inthemiddleofthedisplayed
time delay will start flashing.
Canceling the time delay
If you want to cancel the time delay
countdown and start the program
immediately:
1. Press“Start/Pause/Cancel”button
(Figure2-8).The“:”inthemiddle
of the displayed time delay will stop
flashing.
2. Startsymbol(Figure3-2j)willfade.
Thestandbysymbol(Figure3-2k)
andthetimedelayingsymbol(Figure
3-2h)willflash.
3. Presstimedelayingbutton“-”
(Figure2-6)todecreasethedesired
timedelay.Programdurationafter
30 minutes shall be displayed.
4. Press“Start/Pause/CancelButton”
to start the program.
Starting the program
1. Press“Start/Pause/Cancel”button
(Figure2-8)tostarttheprogram.
2. Thestartsymbol(Figure3-2j)which
indicates that the program has
started will light up.
3. The door locks and the door locked
symbol(Figure3-2i)willlightup.
4. Symbol of the relevant step
(prewash,mainwash,rinse,softener
andspin)thattheprogramhas
startedfromwilllightup(Figure
3-2f).
Progress of program.
The progress of a running program is
shown through a number of symbols on
the screen.
•At the beginning of each program
step, the relevant symbol in the
series of symbols will light up and
thus, at the end of the program,
all symbols will remain lit up. The
symbol that is lit up at the far right of
the series of symbols indicates the
step that is being carried out.
Prewash
When“Prewash”auxiliaryfunctionis
selected, prewash symbol will light up to
indicate the beginning of prewash step.
