Beko WIR76540F1 User manual

2820526050_EN/ 23-10-17.(10:17)
Washing Machine
User Manual
WIR76540F1
EN
Document Number=

Please read this user manual first!
Dear Customer,
Thank you for prefering a Beko product. We hope that you get the best results from your
product which has been manufactured with high quality and state-of-the-art technology.
Therefore, please read this entire user manual and all other accompanying documents
carefully before using the product and keep it as a reference for future use. If you
handover the product to someone else, give the user manual as well. Follow all warnings
and information in the user manual.
Remember that this user manual is also applicable for several other models. Differences
between models will be identified in the manual.
Explanaton of symbols
Throughout this user manual the following symbols are used:
C
Important information or useful hints
about usage.
A
Warning for hazardous situations with
regard to life and property.
B
Warning for electric shock.
Recyclable materials.
Do not dispose of the packaging materials together with the domestic or other wastes.
Take them to the packaging material collection points designated by the local authorities.
Service
This product was manufactured using the latest technology in environmentally friendly conditions.

3 / EN
Washng Machne / User’s Manual
1 General safety instructions 5
1.1 Life and property safety ---------------------------------------------------------------------------5
1.2 Children's safety -----------------------------------------------------------------------------------6
1.3 Electrical safety ------------------------------------------------------------------------------------6
1.4 Hot surface safety ---------------------------------------------------------------------------------7
2 Important instructions for environment 8
2.1 Compliance with WEEE Directive------------------------------------------------------------------8
2.2 Package information ------------------------------------------------------------------------------8
3 Intended use 8
4 Your washing machine 9
4.1 Overview -------------------------------------------------------------------------------------------9
4.2 Package Contents ---------------------------------------------------------------------------------10
4.3 Technical specifications---------------------------------------------------------------------------11
4.4 Installation-----------------------------------------------------------------------------------------12
4.4.1 Approprate nstallaton locaton ------------------------------------------------------------------------12
4.4.2 Removng packagng renforcement --------------------------------------------------------------------12
4.4.3 Removng the transportaton locks ---------------------------------------------------------------------13
4.4.4 Connectng water supply --------------------------------------------------------------------------------13
4.4.5 Connectng the dran hose to the dran -----------------------------------------------------------------14
4.4.6 Adjustng the feet----------------------------------------------------------------------------------------15
4.4.7 Electrcal connecton -------------------------------------------------------------------------------------16
4.4.8 Intal use -------------------------------------------------------------------------------------------------18
4.5 Preparation ----------------------------------------------------------------------------------------19
4.5.1 Sortng the laundry ---------------------------------------------------------------------------------------19
4.5.2 Preparng laundry for washng---------------------------------------------------------------------------20
4.5.3 Thngs to be done for energy savng --------------------------------------------------------------------20
4.5.4 Loadng the laundry --------------------------------------------------------------------------------------21
4.5.5 Correct load capacty -------------------------------------------------------------------------------------21
4.5.6 Usng detergent and softener ---------------------------------------------------------------------------21
4.5.7 Tps for effcent washng--------------------------------------------------------------------------------24
4.6 Operating the product ----------------------------------------------------------------------------25
4.6.1 Control panel----------------------------------------------------------------------------------------------25
4.6.2 Preparng the machne -----------------------------------------------------------------------------------25
4.6.3 Programme selecton and tps for effcent washng---------------------------------------------------25
4.6.4 Programme and consumpton table---------------------------------------------------------------------26
4.6.5 Man programmes ----------------------------------------------------------------------------------------27
4.6.6 Addtonal programmes ---------------------------------------------------------------------------------27
4.6.7 Specal programmes--------------------------------------------------------------------------------------29
4.6.8 Temperature selecton ----------------------------------------------------------------------------------30
4.6.9 Spn speed selecton -------------------------------------------------------------------------------------30
4.6.10 Auxlary functon selecton ----------------------------------------------------------------------------31
TABLE OF CONTENTS

4 / EN
Washng Machne / User’s Manual
4.6.10.1 Auxlary functons ------------------------------------------------------------------------------------31
4.6.10.2 Functons/Programmes Selected by Pressng the Functon Buttons for 3 Seconds--------------32
4.6.11 Delayed Start --------------------------------------------------------------------------------------------33
4.6.12 Startng the programme --------------------------------------------------------------------------------33
4.6.13 Progress of programme---------------------------------------------------------------------------------34
4.6.14 Loadng door lock ---------------------------------------------------------------------------------------34
4.6.15 Changng the selectons after programme has started -----------------------------------------------34
4.6.16 Cancellng the programme------------------------------------------------------------------------------35
4.6.17 End of programme --------------------------------------------------------------------------------------35
4.6.18 Your machne features "Standby Mode". --------------------------------------------------------------35
4.7 Maintenance and cleaning ------------------------------------------------------------------------36
4.7.1 Cleanng the detergent drawer --------------------------------------------------------------------------36
4.7.2 Cleanng the loadng door and the drum ----------------------------------------------------------------36
4.7.3 Cleanng the body and control panel --------------------------------------------------------------------37
4.7.4 Cleanng the water ntake flters ------------------------------------------------------------------------37
4.7.5 Dranng remanng water and cleanng the pump flter------------------------------------------------38
5 Troubleshooting 39
5 BUILT-IN INSTALLATION 44
TABLE OF CONTENTS

5 / EN
Washng Machne / User’s Manual
1 General safety nstructons
This section includes security instructions which may help prevent
the injuries and material damage risks. All kinds of warranties shall
be invalid if these instructions are not observed.
1.1 Lfe and property safety
u
Never place the product on a carpet-covered floor. Electrcal parts
wll get overheated snce ar cannot crculate from under the devce.
Ths wll cause problems wth your product.
u
Unplug the product f t s not n use.
u
Always have the reparng procedures carred out by the Authorsed
Servce Agent. Manufacturer shall not be held lable for damages that
may arse from procedures carred out by unauthorsed persons.
u
The water supply and dranng hoses must be securely fastened and
reman undamaged. Otherwse, water leak may occur.
u
Whle there s stll water nsde the product, never open the loadng
door or remove the flter. Otherwse, rsk of floodng and njury from
hot water wll occur.
u
Do not force open the locked loadng door. Door can be opened a few
mnutes after the washng cycle ends. In case of forcng the loadng
door to open, the door and the lock mechansm may get damaged.
u
Use detergents, softeners and supplements sutable for automatc
washng machnes only.
u
Follow the nstructons on the label of textles and the detergent
package.

6 / EN
Washng Machne / User’s Manual
1.2 Chldren's safety
u
Ths product can be used by the chldren who are at the age of 8 and
over and the people whose physcal, sensory or mental sklls are not
fully developed or who do not have necessary requred experence
and knowledge as long as they are supervsed or traned about the
safe use of the product and ts rsks. Chldren should not play wth the
devce. Cleanng and mantenance works should not be performed
by chldren unless they are supervsed by someone. Chldren of less
than 3 years should be kept away unless contnuously supervsed.
u
Packagng materals may be dangerous for the chldren. Keep
packagng materals n a safe place away from reach of the chldren.
u
Electrcal products are dangerous for the chldren. Keep the chldren
away from the product when t s n use. Do not allow them to play
wth the product. Use chld lock to prevent chldren from ntervenng
wth the product.
u
Do not forget to close the loadng door when leavng the room where
the product s located.
u
store all detergents and addtves n a safe place away from the
reach of the chldren by closng the cover of the detergent contaner
or sealng the detergent package.
1.3 Electrcal safety
u
The applance s only used wth the power supply unt provded wth
the applance.
u
If the product has a falure, t should not be operated unless t s
repared by the Authorsed Servce Agent. Rsk of electrc shock!
u
Ths product s desgned to resume operatng n the event of
powerng on after a power nterrupton. If you wsh to cancel the
programme, see "Cancellng the programme" secton.
u
Plug the product nto a grounded outlet protected by a 13 A fuse. Do
not neglect to have the groundng nstallaton made by a qualfed
electrcan. Our company shall not be lable for any damages that
wll arse when the product s used wthout groundng n accordance
wth the local regulatons.

7 / EN
Washng Machne / User’s Manual
u
Do not wash the product by sprayng or pourng water onto t! Rsk of
electrc shock!
u
Never touch the power cable plug wth wet hands! Do not grab the
power cord to unplug the machne, always unplug t by holdng the
socket wth one hand, and pullng the plug wth the other hand.
u
Product should be unplugged durng nstallaton, mantenance,
cleanng and repar procedures.
u
If the power cable s damaged, t must be replaced by the
manufacturer, after sales servce or a smlarly qualfed person
(preferably an electrcan) or someone desgnated by the mporter n
order to avod possble rsks.
1.4 Hot surface safety
While washing the laundry at high
temperatures, the loading door glass
will get hot. Considering this fact, during
washing operation keep the children
away from the loading door of the
product to prevent them touching it.

8 / EN
Washng Machne / User’s Manual
3 Intended use
 
should not be used out of its intended use.
 
accordingly.
 
transportation.
•Theservicelifeofyourproductis10years.Duringthisperiod,originalsparepartswill
beavailabletooperatetheapplianceproperly.
2 Important instructions for environment
2.1 Compliance with WEEE Directive
This product complies with EU WEEE Directive (2012/19/EU). This product
bears a classification symbol for waste electrical and electronic equipment
(WEEE).
This product has been manufactured with high quality parts and materials
which can be reused and are suitable for recycling. Do not dispose of the
waste product with normal domestic and other wastes at the end of its service
life. Take it to the collection center for the recycling of electrical and electronic
equipment. Please consult your local authorities to learn about these collection centers.
Compliance with RoHS Directive:
The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does
not contain harmful and prohibited materials specified in the Directive.
2.2 Package information
Packaging materials of the product are manufactured from recyclable materials in
accordance with our National Environment Regulations. Do not dispose of the packaging
materials together with the domestic or other wastes. Take them to the packaging
material collection points designated by the local authorities.

9 / EN
Washng Machne / User’s Manual
4 Your washing machine

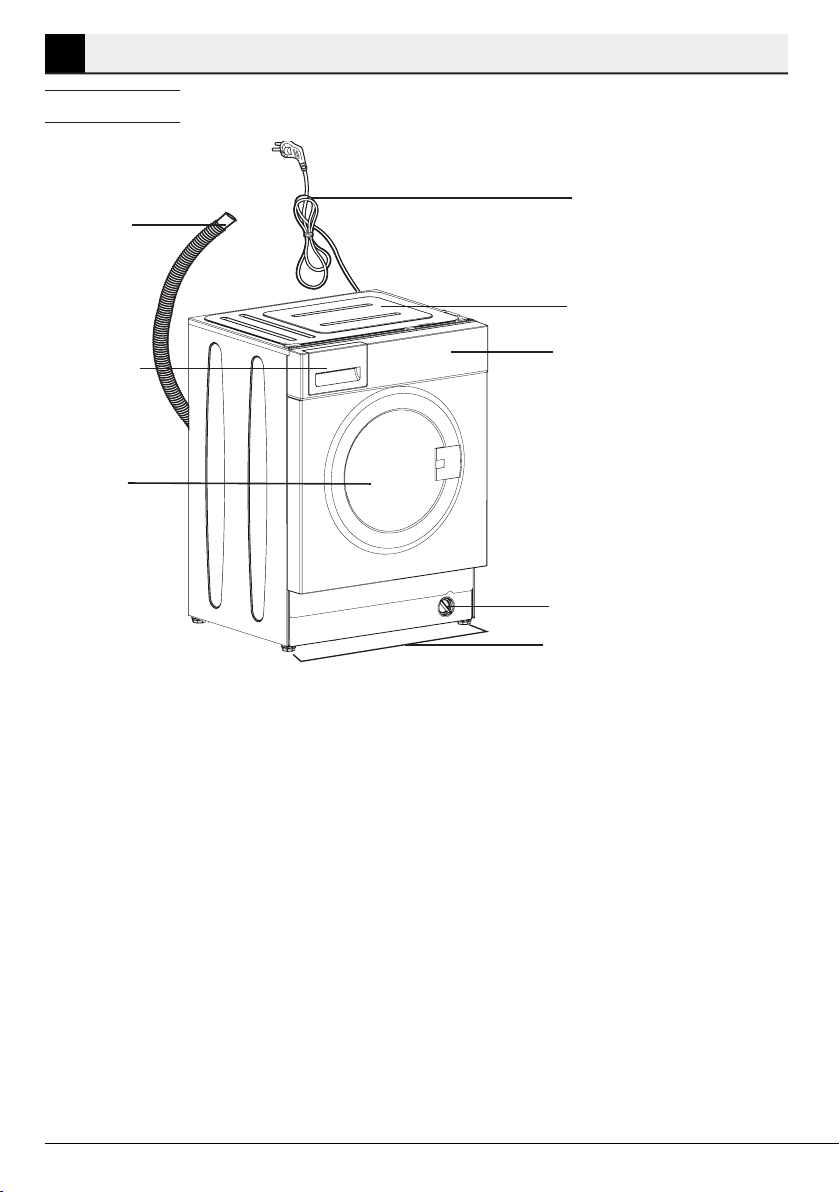

4.1 Overview
3
4
5
2
1
6
7
8
1- Power cable
2- Top panel
3- Control panel
4- Filter cap
5- Adjustable feet
6- Loading door
7- Detergent drawer
8- Drain hose

10 / EN
Washng Machne / User’s Manual

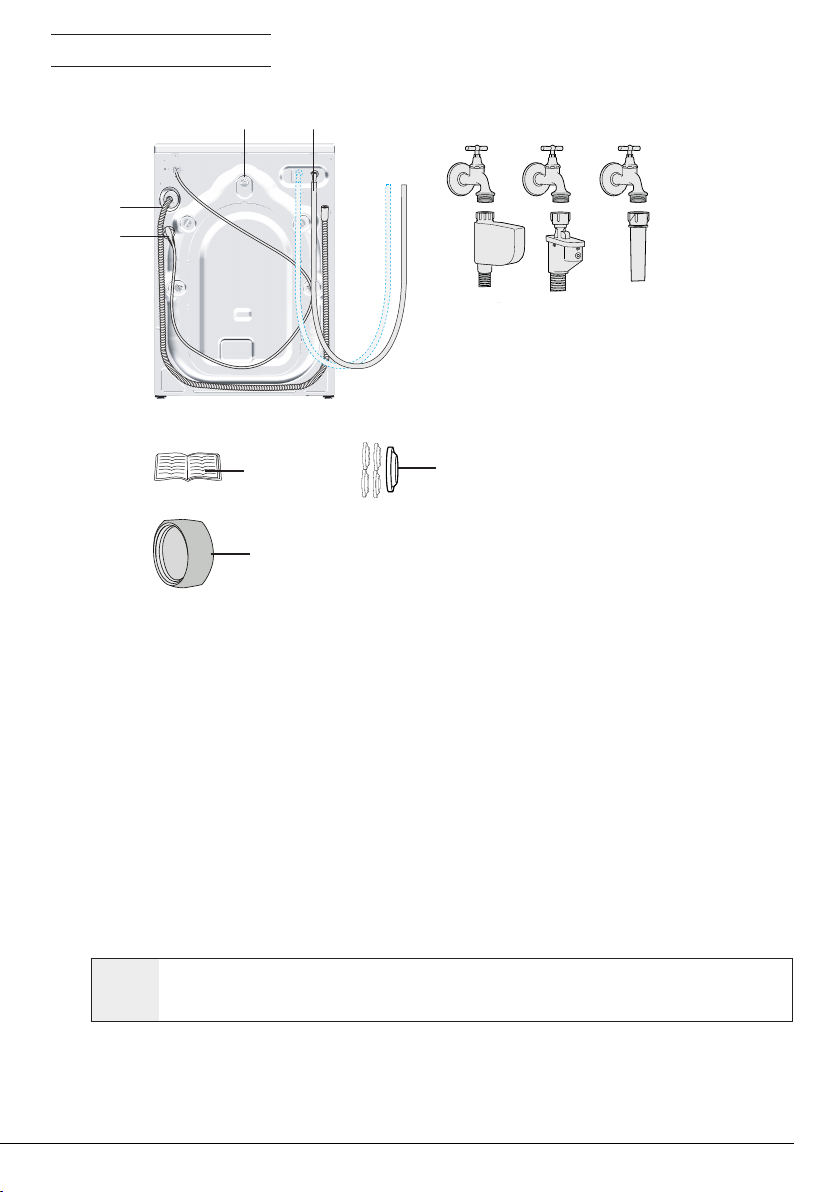

4.2 Package Contents
1
2
3 4
5
6
7
abc
1- Power cable
2- Drain hose
3- Transportation safety bolts *
4- Mains water inlet hose (One of the following filter types is used for the mains hose
connection.)
a- Electronical water shut-off
b- Mechanical water shut-off
c- Standard
5- User Manual
6- Blind plug**
7- Plastic plug group
* Number of transportation safety bolts may change depending on the model of your machine.
** This is supplied if your machine is equipped with double water inlet.
C
Figures in this manual are schematic and may not match the product exactly.

11 / EN
Washng Machne / User’s Manual
4.3 Technical specifications
Complying Commission Delegated Regulation (EU) No 1061/2010
Suppliernameortrademark Beko
Modelname WIR76540F1
Ratedcapacity(kg) 7
Energyefficiencyclass/ScalefromA+++(HighestEfficiency)toD(LowestEfficiency) A+++
AnnualEnergyConsumption(kWh)(1) 156
Energyconsumptionofthestandard60°Ccottonprogrammeatfullload(kWh) 0,790
Energyconsumptionofthestandard60°Ccottonprogrammeatpartialload(kWh) 0,620
Energyconsumptionofthestandard40°Ccottonprogrammeatpartialload(kWh) 0,600
Powerconsumptionin‘off-mode’(W) 0,400
Powerconsumptionin‘left-onmode’(W) 0,800
AnnualWaterConsumption(l)(2) 9899
Spin-dryingefficiencyclass/ScalefromA(HighestEfficiency)toG(LowestEfficiency) A
Maximumspinspeed(rpm) 1600
RemainingmoistureContent(%) 44
Standardcottonprogramme(3) CottonEco60°Cand40°C
Programmetimeofthestandard60°Ccottonprogrammeatfullload(min) 235
Programmetimeofthestandard60°Ccottonprogrammeatpartialload(min) 200
Programmetimeofthestandard40°Ccottonprogrammeatpartialload(min) 200
Durationoftheleft-onmode(min) N/A
Airborneacousticalnoiseemissionswashing/spinning(dB) 0
Built-in Yes
Height(cm) 82
Width(cm) 60
Depth(cm) 55
Netweight(±4kg.) 71
SingleWaterinlet/DoubleWaterinlet •/-
•Available
Electricalinput(V/Hz) 230V/50Hz
Totalcurrent(A) 10
Totalpower(W) 2200
Mainmodelcode 9211
(1)EnergyConsumptionbasedon220standardwashingcyclesforcottonprogrammesat60°Cand40°Catfullandpartialload,andthe
consumptionofthelow-powermodes.Actualenergyconsumptionwilldependonhowtheapplianceisused.
(2)Waterconsumptionbasedon220standardwashingcyclesforcottonprogrammesat60°Cand40°Catfullandpartialload.Actualwater
consumptionwilldependonhowtheapplianceisused.
(3)"Standard60°Ccottonprogramme"andthe"standard40°Ccottonprogramme"arethestandardwashingprogrammestowhichtheinformation
inthelabelandtheficherelatesandtheseprogrammesaresuitabletocleannormallysoiledcottonlaundryandthattheyarethemostefficient
programmesintermsofcombinedenergyandwaterconsumption.
Technicalspecificationsmaybechangedwithoutpriornoticetoimprovethequalityoftheproduct.

12 / EN
Washng Machne / User’s Manual
4.4 Installation
 
place of installation is under customer's responsibility.
 
folded, pinched or crushed while pushing the product into its place after installation or
cleaning procedures.
 
by competent persons. Manufacturer shall not be held liable for damages that may arise
from procedures carried out by unauthorized persons.
 
it installed. Damaged products cause risks for your safety.
4.4.1 Approprate nstallaton locaton
 
other similar surfaces.
 
–when loaded– amounts to 180 kilograms. Place the product on a solid and flat floor that
has sufficient load carrying capacity!
 
 
 
 
 
do not use them on the product.

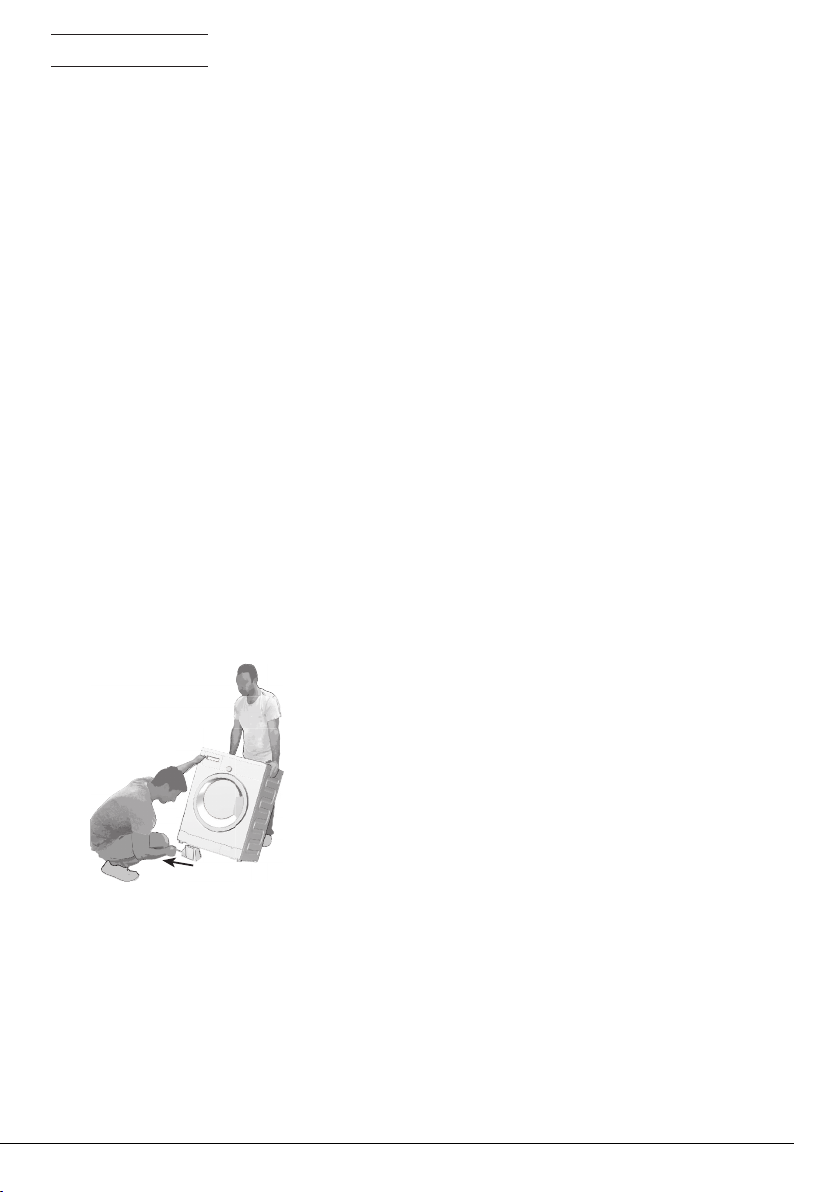

4.4.2 Removng packagng renforcement
Tilt the machine backwards to remove the packaging
reinforcement. Remove the packaging reinforcement by
pulling the ribbon. Do not make this operation alone by
yourself.

13 / EN
Washng Machne / User’s Manual

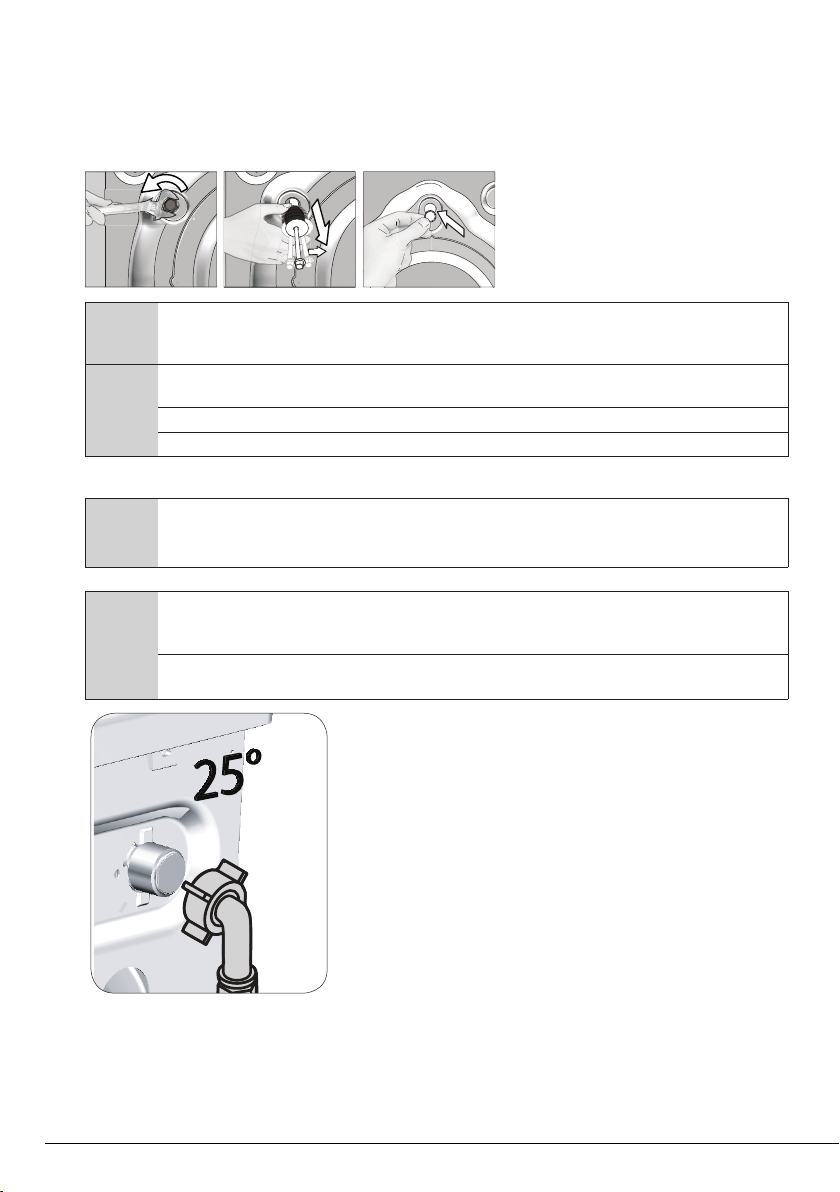

4.4.3 Removng the transportaton locks
1 Loose all bolts with an appropriate wrench until they turn freely.
2 Remove the transport safety bolts by turning them slightly.
3 Insert the plastic covers in the bag containing the user manual to the openings on the
rear panel.
ACAUTION:
Remove the transportation safety bolts before operating the washing
machine! Otherwise, the product will be damaged.
C
Keep the transportation safety bolts in a safe place to reuse when the washing machine
needs to be moved again in the future.
Install the transport safety bolts in reverse order of the disassembly procedure.
Never move the product without the transportation safety bolts properly fixed in place!
4.4.4 Connectng water supply
C
The water supply pressure required to run the product is between 1 to 10 bars (0.1 – 1 MPa).
It is necessary to have 10 – 80 liters of water flowing from the fully open tap in one minute to
have your machine run smoothly. Attach a pressure reducing valve if water pressure is higher.
ACAUTION:
Models with a single water inlet should not be connected to the hot water tap.
In such a case the laundry will get damaged or the product will switch to protection mode and
will not operate.
CAUTION: Do not use old or used water inlet hoses on the new product. It may cause
stains on your laundry.

14 / EN
Washng Machne / User’s Manual
1 Tighten the nuts of the hose by hand. Never use a tool when tightening the nuts.
2 When hose connection is completed, check whether there is leak problems at the
connection points by opening the taps fully. If any leaks occur, turn off the tap and
remove the nut. Retighten the nut carefully after checking the seal. In order to prevent
the water leaks and resultant damages, keep the taps closed when you do not use the
product.

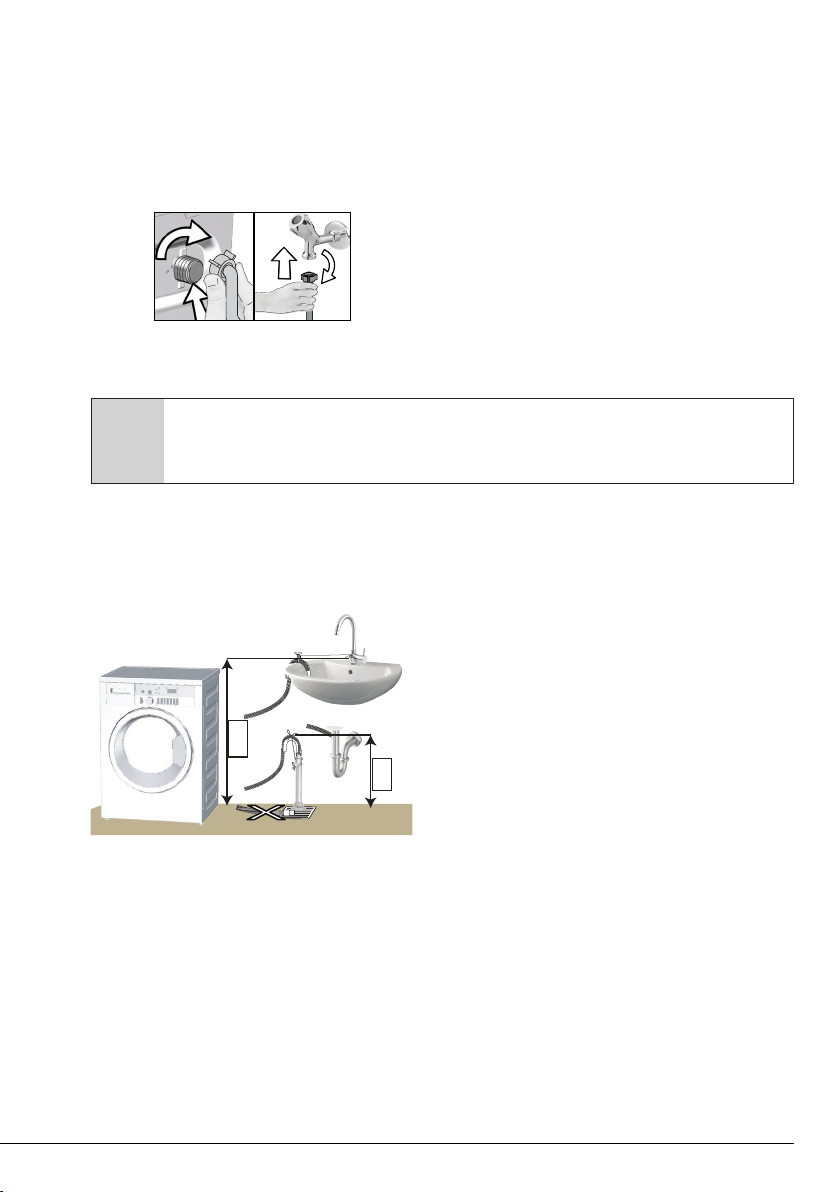

4.4.5 Connectng the dran hose to the dran
 
ACAUTION:
Your drain house will be flooded if the hose comes out of its housing during
water discharge. Moreover, there is risk of scalding due to high washing temperatures! In
order to prevent such situations and make sure that the machine performs water intake and
discharge processes without any problem, fix the drain hose securely.
 
 
(less than 40 cm above the ground), water discharge becomes more difficult and the
laundry may come out excessively wet. Therefore, follow the heights described in the
figure.
40 cm
100 cm
 
drainage, do not immerse the end of the hose into the waste water or do not insert it
into the drain for more than 15 cm. If it is too long, cut it short.
 
not be pinched between the drain and the machine.
 
of the hose may not be longer than 3.2 m. To avoid water leak failures, the connection
between the extension hose and the drain hose of the product must be fitted well with
an appropriate clamp as not to come off and leak.

15 / EN
Washng Machne / User’s Manual

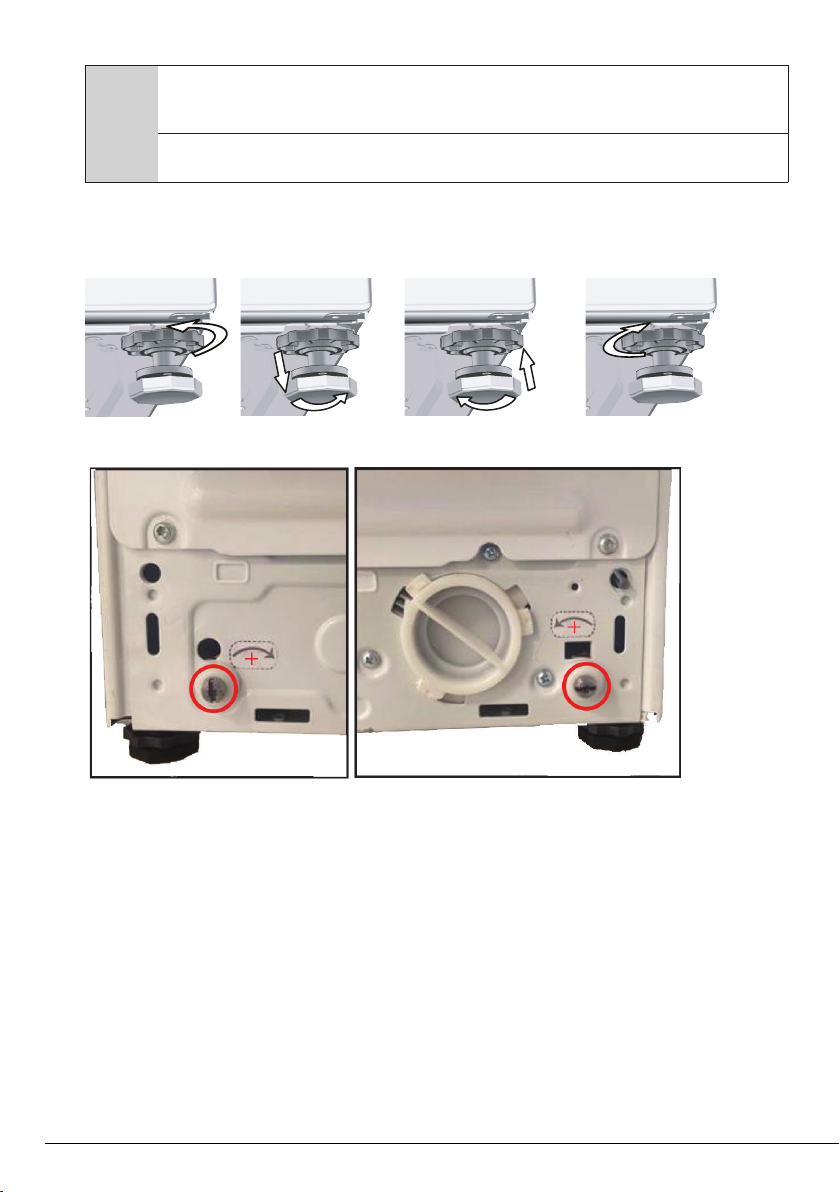

4.4.6 Adjustng the feet
ACAUTION:
In order to ensure that the product operates more silently and vibration-free,
it must stand level and balanced on its feet. Balance the machine by adjusting the feet.
Otherwise, the product may move from its place and cause crushing and vibration problems.
CAUTION: Do not use any tools to loosen the lock nuts. Otherwise, they will get
damaged.
1 Loosen the lock nuts on the feet by hand.
2 Adjust the feet until the product stands in a stable and balanced way.
3. Tighten all lock nuts by hand again.
Adjustng Rear Feet
 
will be elevated by 0.3 mm. When you turn it in the opposite direction of the arrow, the
machine will be lowered by 0.3 mm.
 
 

16 / EN
Washng Machne / User’s Manual

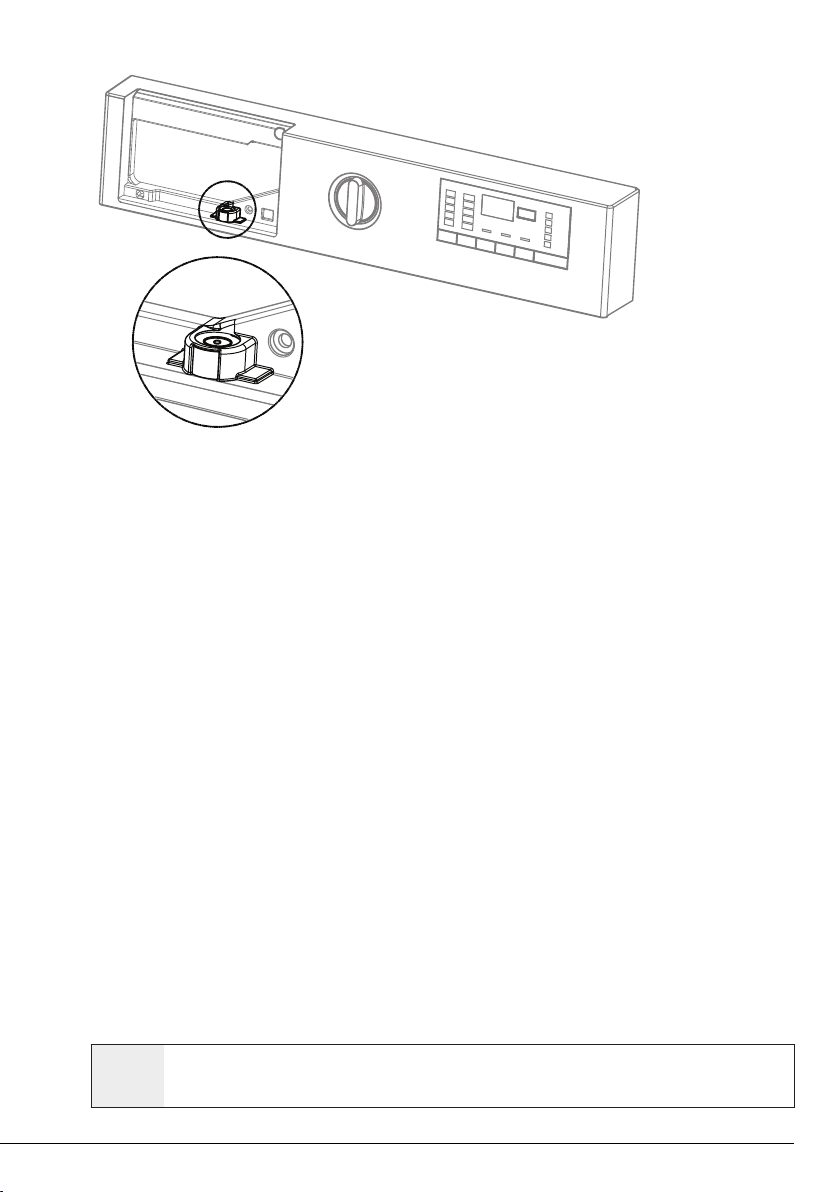

Adjustng the feet wth water level
 
 
middle .
  left , the pre-set right foot of the Washing
Machine must be adjusted.
  right , the pre-set left foot of the Washing
Machine must be adjusted.
  back , the pre-set front feet of the
Washing Machine must be turned to the left (clockwise).
  front , the pre-set front feet of the
Washing Machine must be turned to the right (anti-clockwise).
4.4.7 Electrcal connecton
Connect the product to a grounded outlet protected by a 13 A fuse. Our company shall not
be liable for any damages that will arise when the product is used without grounding in
accordance with the local regulations.
 
 
requirements. Use of a Groud Fault Circuit Interrupter (GFCI) is recommended.
 
 
qualified electrician install a 13 Amp fuse.
 
mains voltage.
 
BWARNING:
Damaged power cables must be replaced by the Authorised Service Agents.

17 / EN
Washng Machne / User’s Manual
Electrical requirements
Before you insert the plug into the wall socket make sure that the voltage and the
frequency shown in the rating label corresponds to your electricity supply.
We recommend that this appliance be connected to the mains supply via a suitable
switched and fused socket in a readily accessible position.
Should the mains lead of the appliance become damaged or need replacing at any time, it
must be replaced by a special purpose made mains lead which can only be obtained from a
Authorised Service Agent.
BWARNING:
This appliance must be earthed
If the fitted moulded plug is not suitable for your socket, then the plug should be cut off
and an appropriate plug fitted.
Destroy the old plug, which is cut off as a plug with a bared cord could cause a shock hazard
if inserted into a socket elsewhere in the house.
The moulded plug on this appliance incorporates a 13A fuse. Should the fuse need to be
replaced an ASTA approved BS1362 fuse of the same rating must be used. Do not forget to
refit the fuse cover. In the event of losing the fuse cover, the plug must not be used until a
replacement fuse cover has been fitted. Colour of the replacement fuse cover must be the
same colour as that visible on the pin face of the plug. Fuse covers are available from any
good electrical store.
Important
Fitting a different plug
As the colours of the wires in the mains lead of this
appliance may not correspond with the coloured markings
identifying the terminals on your plug, proceed as follows:
1 Connect the green - yellow or green (earth) wire to the

coloured green and yellow or green.
2 Connect the blue (neutral) wire to the terminal in the

3 Connect the brown (live) wire to the terminal in the plug

With the alternative plugs a 13A fuse must be fitted either
in the plug or adaptor or in the main fuse box. If in doubt
contact a qualified electrician.

18 / EN
Washng Machne / User’s Manual
Transportation of the product
1. Unplug the product before transporting it.
2. Remove water drain and water supply connections.
3. Drain all water that has remained in the product.
4.Install transportation safety bolts in the reverse order of removal procedure.
C
Never move the product without the transportation safety bolts properly fixed in place!
AWARNING:
Packaging materials are dangerous to children. Keep packaging materials in a
safe place away from reach of the children.

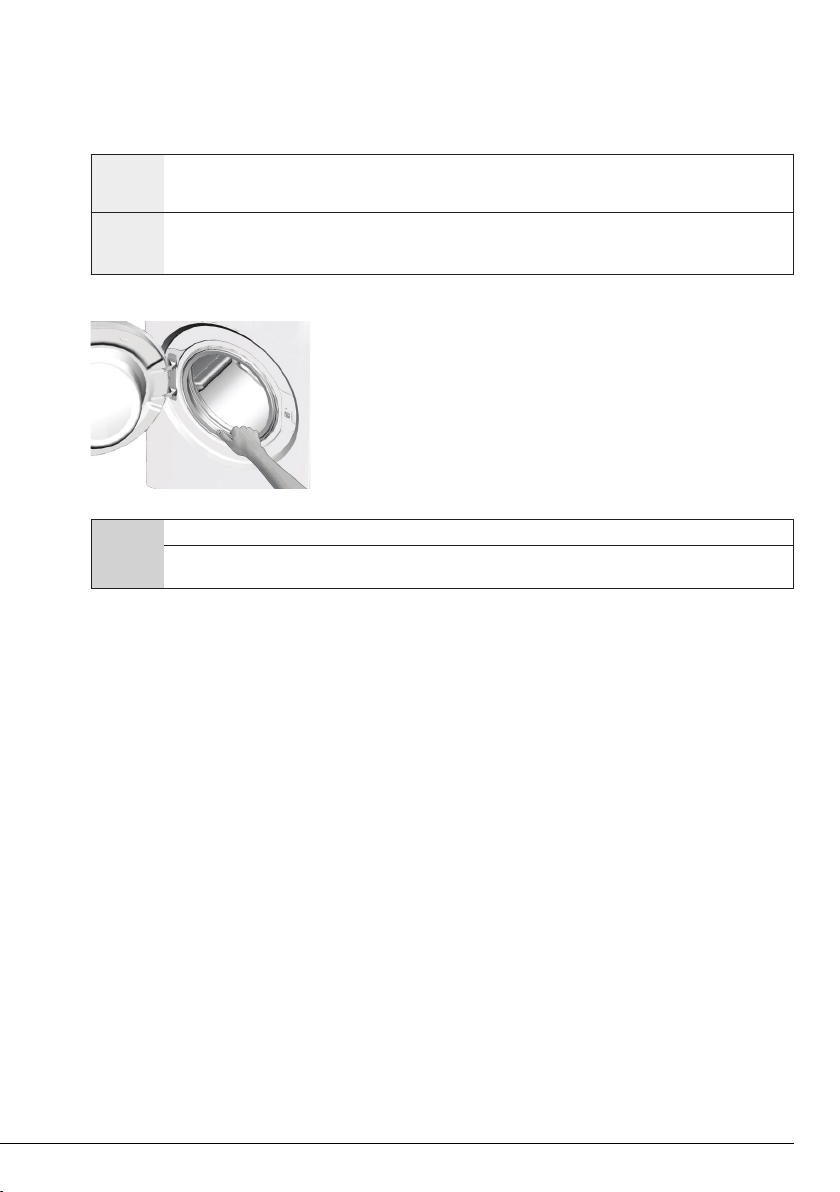

4.4.8 Intal use
Before starting to use the product make sure that the



To prepare the product for washing laundry, perform first
operation in Drum Cleaning programme. If this program is
not available in your machine, apply the method which is
described in the section 4.7.2.
C
Use an anti-limescale suitable for the washing machines.
Some water might have remained in the product due to the quality control processes in the
production. It is not harmful for the product.

19 / EN
Washng Machne / User’s Manual
4.5 Preparation
4.5.1 Sortng the laundry
 
water temperature.
 
LAUNDRY WASH SYMBOLS
Machine
Wash
Symbols

Normalwash NoIron Sensitive- Delicate wash Handwash Notwashable NoSpin
WASH Water
Temperatures
Maximum 950C700C600C500C400C300C
Symbol(s) lll
lll
lll
l l
ll
ll
lll l l l
Drying
Symbols Suitablefor
dryer NoIron Sensitive/
Delicatedry
Donotdry
withdryer
Donotdry Donotdry-
clean
DRYING
Drying
Settings
   


Atanytemperature Athightemperature Atmedium temperature Atlowtemperature Withoutheating Hangtodry Laytodry Hangwettodry Layinshadow todry Dry-cleanable
Iron-
  
IRON DryorSteam
Ironathigh
temperature
Ironatmedium
temperature
Ironatlow
temperature
Donotiron Ironwithout steam Maximumtemperature 2000C1500C1100C
Allbleachesareallowed

Bleach(sodium
hypochlorite)
canbeused
Bleachisnot
allowed

Onlybleacheswithout
chlorineareallowed
BLEACH

20 / EN
Washng Machne / User’s Manual
4.5.2 Preparng laundry for washng
 
buttons will damage the machine. Remove the metal pieces or wash the clothes by
putting them in a laundry bag or pillow case.

pockets inside out and brush. Such objects may damage the product or cause noise
problem.
 
pillow case.
 
 
 
programme.
 
dye. Wash them separately.
 
cleaner.
 
Always follow the instructions on the package.
 
 
This will reduce pilling.
 
intensely must be shaken off before placing into the machine. Such dusts and powders
on the laundry may build up on the inner parts of the machine in time and can cause
damage.
4.5.3 Thngs to be done for energy savng
Following information will help you use the product in an ecological and energy-efficient
manner.
 
selected, but do not overload; see, "Programme and consumption table".
 
 
 
 
stained.
 
during washing process.
 
