Beko WMB 50621 User manual

WMB 50621
Washing Machine
User’s Manual
Lavatrice
Manuale utente
Veļas mazgājamāmašīna
Lietošanas rokasgrāmata
Pesumasin
Kasutusjuhend
2820522897_EN/110512.1738

2EN
1 Important safety instructions
This section contains safety instructions that will
help protect from risk of personal injury or property
damage. Failure to follow these instructions shall void
any warranty.
General safety
• 8yearsandolderchildrenandpeoplewith
reduced physical, sensory, and mental abilities
as well as unskilled or inexperienced persons
can use this appliance provided that they are
supervised and instructed on safe use of the
appliance as well as to the related dangers.
Children should not play or tamper with the
appliance. Cleaning and user maintenance
should never be performed by children unless
supervised by a responsible adult.
• Neverplacetheproductonacarpet-covered
floor; otherwise, lack of airflow beneath the
machine will cause electrical parts to overheat.
This will cause problems with your product.
• Donotoperatetheproductifthepowercable
/ plug is damaged. Call the Authorized Service
Agent.
• Haveaqualifiedelectricianconnecta
16-Amperefusetotheinstallationlocationofthe
product.
• Iftheproducthasafailure,itshouldnotbe
operated unless it is repaired by the Authorized
Service Agent. There is the risk of electric shock!
• Thisproductisdesignedtoresumeoperating
in the event of powering on after a power
interruption.Ifyouwishtocancelthe
programme, see "Cancelling the programme"
section.
• Connecttheproducttoagroundedoutlet
protected by a fuse complying with the values
inthe"Technicalspecifications"table.Donot
neglect to have the grounding installation made
byaqualifiedelectrician.Ourcompanyshall
not be liable for any damages that will arise
when the product is used without grounding in
accordance with the local regulations.
• Thewatersupplyanddraininghosesmustbe
securely fastened and remain undamaged.
Otherwise,thereistheriskofwaterleakage.
• Neveropentheloadingdoororremovethefilter
whilethereisstillwaterinthedrum.Otherwise,
risk of flooding and injury from hot water will
occur.
• Donotforceopenthelockedloadingdoor.The
loading door will be ready to open just a few
minutes after the washing cycle comes to an
end.Incaseofforcingtheloadingdoortoopen,
the door and the lock mechanism may get
damaged.
• Unplugtheproductwhennotinuse.
• Neverwashtheproductbyspreadingorpouring
water onto it! There is the risk of electric shock!
• Nevertouchtheplugwithwethands!Never
unplug by pulling on the cable, always pull out
by grabbing the plug.
• Usedetergents,softenersandsupplements
suitable for automatic washing machines only.
• Followtheinstructionsonthetextiletagsandon
the detergent package.
• Theproductmustbeunpluggedduring
installation, maintenance, cleaning and repairing
procedures.
• Alwayshavetheinstallationandrepairing
procedures carried out by the Authorized
Service Agent. Manufacturer shall not be
held liable for damages that may arise from
procedures carried out by unauthorized
persons.
Intended use
• Thisproducthasbeendesignedfordomestic
use.Itisnotsuitableforcommercialuseandit
must not be used out of its intended use.
• Theproductmustonlybeusedforwashingand
rinsing of laundry that are marked accordingly.
• Themanufacturerwaivesanyresponsibility
arisen from incorrect usage or transportation.
Children's safety
• Electricalproductsaredangerousforthe
children. Keep children away from the product
whenitisinuse.Donotletthemtotamperwith
theproduct.Usechildlocktopreventchildren
from intervening with the product.
• Donotforgettoclosetheloadingdoorwhen
leaving the room where the product is located.
• Storealldetergentsandadditivesinasafeplace
away from the reach of the children.
2 Installation
Refer to the nearest Authorised Service Agent for
installation of the product. To make the product ready
for use, review the information in the user manual
and make sure that the electricity, tap water supply
and water drainage systems are appropriate before
callingtheAuthorizedServiceAgent.Iftheyarenot,
callaqualifiedtechnicianandplumbertohaveany
necessary arrangements carried out.
CPreparation of the location and electrical, tap
water and waste water installations at the place
of installation is under customer's responsibility.
B Installationandelectricalconnectionsofthe
product must be carried out by the Authorized
Service Agent. Manufacturer shall not be
held liable for damages that may arise from
procedures carried out by unauthorized
persons.
APrior to installation, visually check if the product
hasanydefectsonit.Ifso,donothaveit
installed.Damagedproductscauserisksfor
your safety.
CMake sure that the water inlet and discharge
hoses as well as the power cable are not
folded, pinched or crushed while pushing the
product into its place after installation or cleaning
procedures.
Appropriate installation location
• Placethemachineonarigidfloor.Donotplace
it on a long pile rug or similar surfaces.
• Totalweightofthewashingmachineandthe
dryer-withfullload-whentheyareplaced

3EN
ontopofeachotherreachestoapprox.180
kilograms. Place the product on a solid and flat
floor that has sufficient load carrying capacity!
• Donotplacetheproductonthepowercable.
• Donotinstalltheproductatplaceswhere
temperaturemayfallbelow0ºC.
• Placetheproductatleast1cmawayfromthe
edges of other furniture.
Removing packaging reinforcement
Tilt the machine backwards to remove the packaging
reinforcement. Remove the packaging reinforcement
by pulling the ribbon.
Removing the transportation locks
A Donotremovethetransportationlocksbefore
taking out the packaging reinforcement.
ARemove the transportation safety bolts before
operating the washing machine, otherwise, the
product will be damaged.
1. Loosen all the bolts with a spanner until they
rotate freely (C).
2. Remove transportation safety bolts by turning
them gently.
3. AttachtheplasticcoverssuppliedintheUser
Manual bag into the holes on the rear panel. (P)
CKeep the transportation safety bolts in a safe
place to reuse when the washing machine
needs to be moved again in the future.
CNever move the product without the
transportation safety bolts properly fixed in
place!
Connecting water supply
C Thewatersupplypressurerequiredtorunthe
productisbetween1to10bars(0.1–1MPa).
Itisnecessarytohave10–80litersofwater
flowing from the fully open tap in one minute
to have your machine run smoothly. Attach a
pressure reducing valve if water pressure is
higher.
C Ifyouaregoingtousethedoublewater-inlet
productasasingle(cold)water-inletunit,you
must install the supplied stopper to the hot
water valve before operating the product.
(Applies for the products supplied with a blind
stopper group.)
C Ifyouwanttousebothwaterinletsofthe
product, connect the hot water hose after
removing the stopper and gasket group from
the hot water valve. (Applies for the products
supplied with a blind stopper group.)
AModels with a single water inlet should not be
connectedtothehotwatertap.Insuchacase
the laundry will get damaged or the product will
switch to protection mode and will not operate.
A Donotuseoldorusedwaterinlethoseson
thenewproduct.Itmaycausestainsonyour
laundry.
1. Connect the special hoses supplied with the
product to the water inlets on the product. Red
hose(left)(max.90ºC)isforhotwaterinlet,blue
hose(right)(max.25ºC)isforcoldwaterinlet.
AEnsure that the cold and hot water connections
are made correctly when installing the product.
Otherwise,yourlaundrywillcomeouthotatthe
end of the washing process and wear out.
2. Tighten all hose nuts by hand. Never use a
wrench when tightening the nuts.
3. Openthetapscompletelyaftermakingthe
hose connection to check for water leaks at
theconnectionpoints.Ifanyleaksoccur,turn
off the tap and remove the nut. Retighten the
nut carefully after checking the seal. To prevent
water leakages and damages caused by them,
keep the taps closed when the machine is not in
use.
Connecting to the drain
• Theendofthedrainhosemustbedirectly
connected to the wastewater drain or to the
washbasin.
AYour house will be flooded if the hose comes out
of its housing during water discharge. Moreover,
there is risk of scalding due to high washing
temperatures! To prevent such situations and to
ensure smooth water intake and discharge of
the machine, fix the end of the discharge hose
tightly so that it cannot come out.

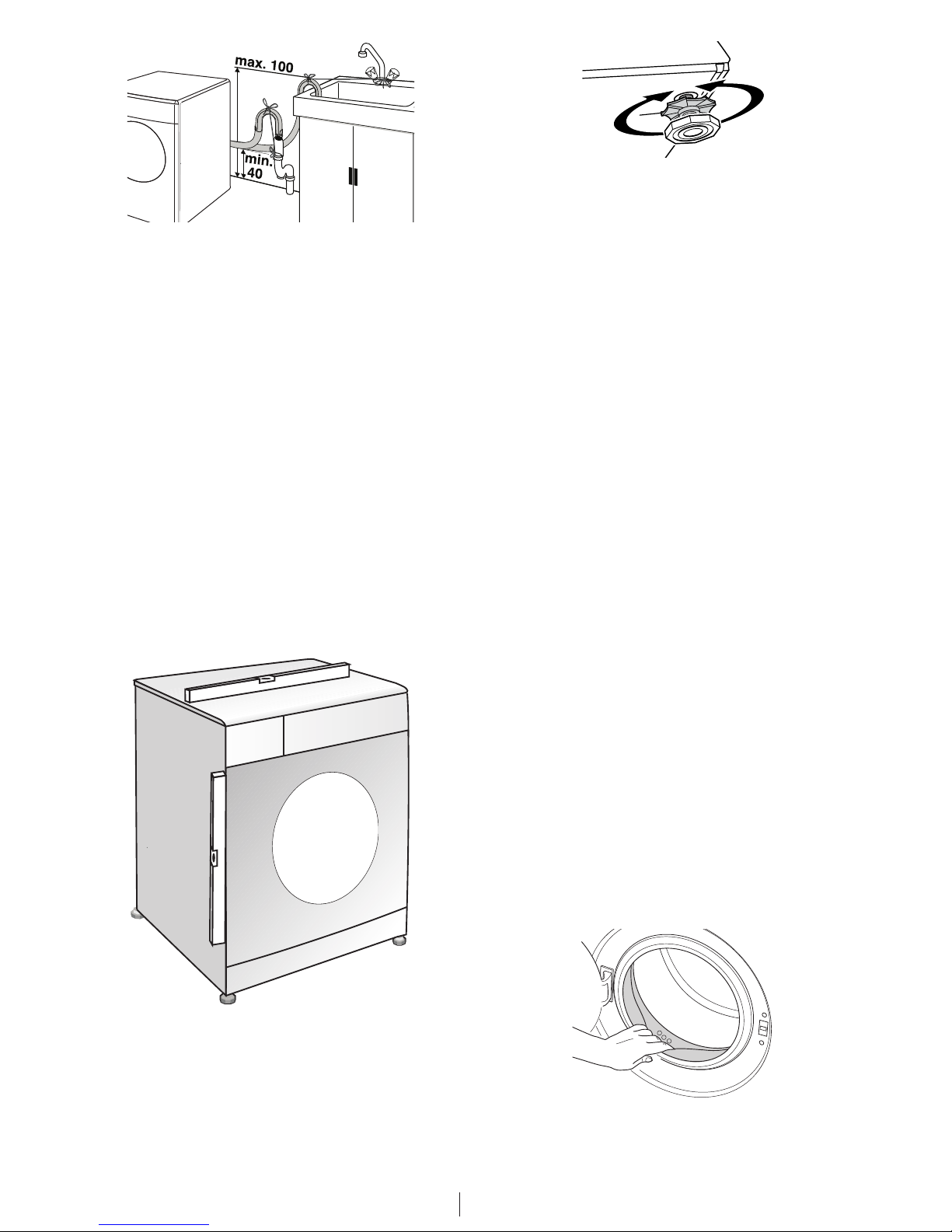

• Thehoseshouldbeattachedtoaheightofat
least40cm,and100cmatmost.
• Incasethehoseiselevatedafterlayingiton
the floor level or close to the ground (less than
40cmabovetheground),waterdischarge
becomes more difficult and the laundry may
come out excessively wet. Therefore, follow the
heights described in the figure.

4EN
• Topreventflowingofdirtywaterbackintothe
machine and to allow for easy discharge, do
not immerse the hose end into the dirty water or
driveitinthedrainmorethan15cm.Ifitistoo
long, cut it short.
• Theendofthehoseshouldnotbebent,it
should not be stepped on and the hose must
not be pinched between the drain and the
machine.
• Ifthelengthofthehoseistooshort,useitby
adding an original extension hose. Length of the
hose may not be longer than 3.2 m. To avoid
water leak failures, the connection between
the extension hose and the drain hose of the
product must be fitted well with an appropriate
clamp as not to come off and leak.
Adjusting the feet
A Inordertoensurethattheproductoperates
moresilentandvibration-free,itmuststandlevel
and balanced on its feet. Balance the machine
byadjustingthefeet.Otherwise,theproduct
may move from its place and cause crushing
and vibration problems.
1. Loosen the lock nuts on the feet by hand.
2. Adjust the feet until the product stands level and
balanced.
3. Tighten all lock nuts again by hand.
A Donotuseanytoolstoloosenthelocknuts.
Otherwise,theywillgetdamaged.
Electrical connection
Connect the product to a grounded outlet protected
by a fuse complying with the values in the "Technical
specifications"table.Ourcompanyshallnotbeliable
for any damages that will arise when the product is
used without grounding in accordance with the local
regulations.
• Connectionmustcomplywithnational
regulations.
• Powercableplugmustbewithineasyreach
after installation.
• Thevoltageandallowedfuseorbreaker
protection are specified in the “Technical
specifications”section.Ifthecurrentvalueof
the fuse or breaker in the house is less than 16
Amps,haveaqualifiedelectricianinstalla16
Amp fuse.
• Thespecifiedvoltagemustbeequaltoyour
mains voltage.
• Donotmakeconnectionsviaextensioncables
ormulti-plugs.
B Damagedpowercablesmustbereplacedby
the Authorized Service Agents.
First use
Before starting to use the product, make sure that
all preparations are made in accordance with the
instructionsinsections"Importantsafetyinstructions"
and"Installation".
To prepare the product for washing laundry, perform
firstoperationinDrumCleaningprogramme.If
yourmachineisnotfeaturedwithDrumCleaning
programme,useCottons-90programmeandselect
Additional Water or Extra Rinse auxiliary functions
as well. Before starting the programme, put max.
100gofpowderanti-limescaleintothemainwash
detergentcompartment(compartmentnr.II).Ifthe
anti-limescaleisintabletform,putonlyonetabletinto
compartmentnr.II.Drytheinsideofthebellowwitha
clean piece of cloth after the programme has come
to an end.
C Useananti-limescalesuitableforthewashing
machines.
CSome water might have remained in the product
duetothequalitycontrolprocessesinthe

5EN
production.Itisnotharmfulfortheproduct.
Disposing of packaging material
Packaging materials are dangerous to children. Keep
packaging materials in a safe place away from reach
of the children.
Packaging materials of the product are manufactured
fromrecyclablematerials.Disposeofthemproperly
and sort in accordance with recycled waste
instructions.Donotdisposeofthemwithnormal
domestic waste.
Transportation of the product
Unplugtheproductbeforetransportingit.Remove
waterdrainandwatersupplyconnections.Drain
the remaining water in the product completely; see,

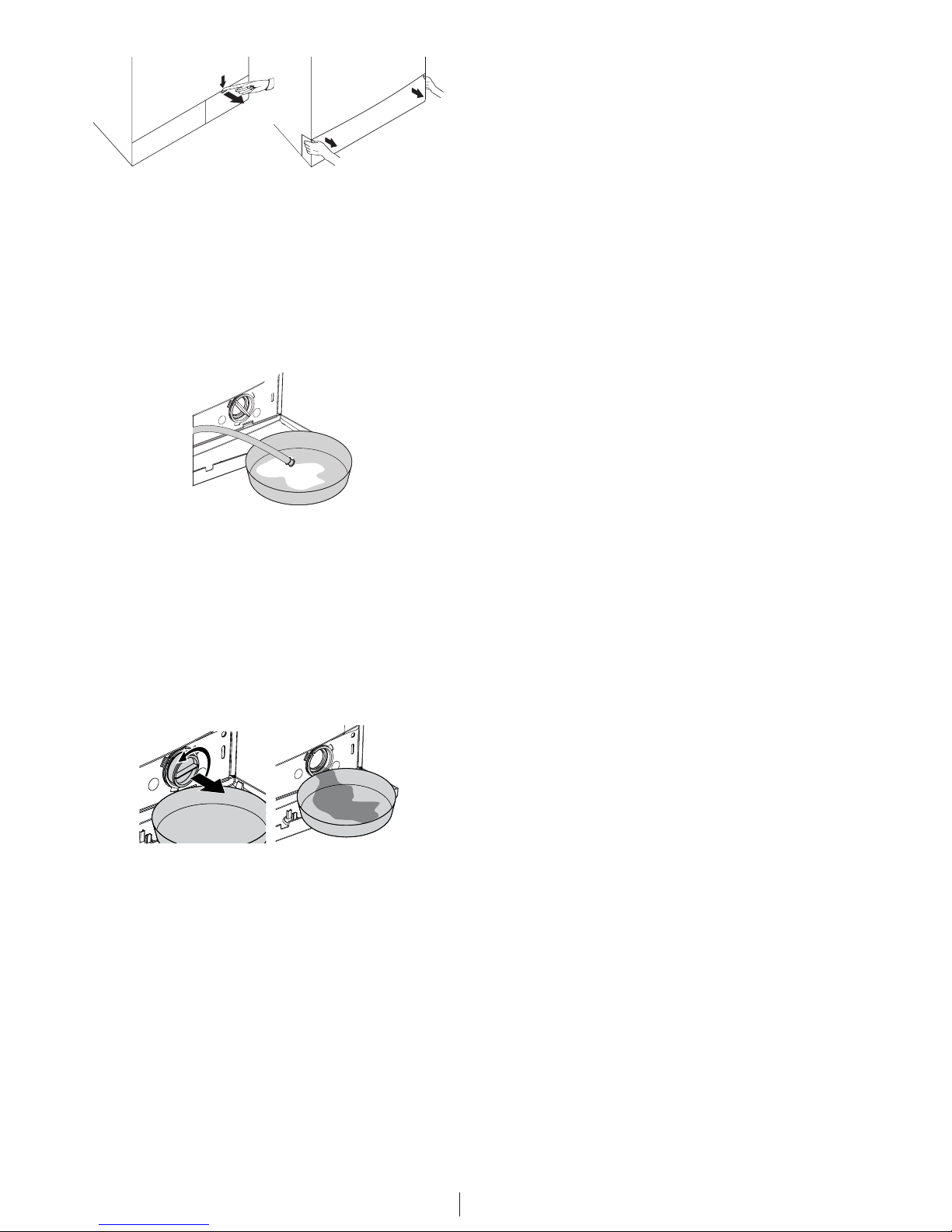

"Drainingremainingwaterandcleaningthepump
filter".Installtransportationsafetyboltsinthereverse
order of removal procedure; see, "Removing the
transportation locks".
CNever move the product without the
transportation safety bolts properly fixed in
place!
Disposing of the old product
Disposeoftheoldproductinanenvironmentally
friendly manner.
Refer to your local dealer or solid waste collection
centre in your area to learn how to dispose of your
product.
For children's safety, cut the power cable and break
the locking mechanism of the loading door so that it
will be nonfunctional before disposing of the product.
• Takeoutallsubstancesinthepocketssuchas
coins, pens and paper clips, and turn pockets
inside out and brush. Such objects may
damage the product or cause noise problem.
• Putsmallsizeclothessuchasinfant'ssocks
and nylon stockings in a laundry bag or pillow
case.
• Placecurtainsinwithoutcompressingthem.
Remove curtain attachment items.
• Fastenzippers,sewloosebuttonsandmend
rips and tears.
• Wash“machinewashable”or“handwashable”
labeled products only with an appropriate
programme.
• Donotwashcoloursandwhitestogether.New,
dark coloured cottons release a lot of dye. Wash
them separately.
• Toughstainsmustbetreatedproperlybefore
washing.Ifunsure,checkwithadrycleaner.
• Useonlydyes/colourchangersandlimescale
removers suitable for machine wash. Always
follow the instructions on the package.
• Washtrousersanddelicatelaundryturnedinside
out.
• KeeplaundryitemsmadeofAngorawoolinthe
freezer for a few hours before washing. This will
reduce pilling.
• Laundrythataresubjectedtomaterialssuchas
flour, lime dust, milk powder, etc. intensely must
be shaken off before placing into the machine.
Such dusts and powders on the laundry may
build up on the inner parts of the machine in
time and can cause damage.
Correct load capacity
The maximum load capacity depends on the type
of laundry, the degree of soiling and the washing
programme desired.
The machine automatically adjusts the amount of
water according to the weight of the loaded laundry.
AFollow the information in the “Programme
and consumption table”. When overloaded,
machine's washing performance will drop.
Moreover, noise and vibration problems may
occur.
Loading the laundry
• Opentheloadingdoor.
• Placelaundryitemslooselyintothemachine.
• Pushtheloadingdoortocloseuntilyouheara
locking sound. Ensure that no items are caught
in the door.
CThe loading door is locked while a programme
is running. The door can only be opened a while
after the programme comes to an end.
A Incaseofmisplacingthelaundry,noiseand
vibration problems may occur in the machine.
3 Preparation
Things to be done for energy saving
Following information will help you use the product in
anecologicalandenergy-efficientmanner.
• Operatetheproductinthehighestcapacity
allowed by the programme you have selected,
but do not overload; see, "Programme and
consumption table".
• Alwaysfollowtheinstructionsonthedetergent
packaging.
• Washslightlysoiledlaundryatlowtemperatures.
• Usefasterprogrammesforsmallquantitiesof
lightly soiled laundry.
• Donotuseprewashandhightemperaturesfor
laundry that is not heavily soiled or stained.
• Ifyouplantodryyourlaundryinadryer,select
the highest spin speed recommended during
washing process.
• Donotusedetergentinexcessoftheamount
recommended on the detergent package.
Sorting the laundry
• Sortlaundryaccordingtotypeoffabric,colour,
and degree of soiling and allowable water
temperature.
• Alwaysobeytheinstructionsgivenonthe
garment tags.
Preparing laundry for washing
• Laundryitemswithmetalattachmentssuchas,
underwired bras, belt buckles or metal buttons
will damage the machine. Remove the metal
pieces or wash the clothes by putting them in a
laundry bag or pillow case.

6EN
Using detergent and softener
Detergent Drawer
The detergent drawer is composed of three
compartments:
-(1)forprewash
-(2)formainwash
–(3)forsoftener
–(*)inaddition,thereissiphonpieceinthesoftener
compartment.
1
23
C The detergent dispenser may be in two different
types according to the model of your machine
as seen above.
Detergent, softener and other cleaning agents
• Adddetergentandsoftenerbeforestartingthe
washing programme.
• Neveropenthedetergentdrawerwhilethe
washing programme is running!
• Whenusingaprogrammewithoutprewash,
do not put any detergent into the prewash
compartment(compartmentnr.I).
• Inaprogrammewithprewash,donotput
liquiddetergentintotheprewashcompartment
(compartmentnr.I).
• Donotselectaprogrammewithprewashifyou
are using a detergent bag or dispensing ball.
Place the detergent bag or the dispensing ball
directly among the laundry in the machine.
• Ifyouareusingliquiddetergent,donotforget
toplacetheliquiddetergentcupintothemain
washcompartment(compartmentnr.II).
Choosing the detergent type
The type of detergent to be used depends on the
type and colour of the fabric.
• Usedifferentdetergentsforcolouredandwhite
laundry.
• Washyourdelicateclothesonlywithspecial
detergents(liquiddetergent,woolshampoo,
etc.) used solely for delicate clothes.
• Whenwashingdarkcolouredclothesandquilts,
itisrecommendedtouseliquiddetergent.
• Washwoolenswithspecialdetergentmade
specifically for woolens.
A Useonlydetergentsmanufacturedspecifically
for washing machines.
A Donotusesoappowder.
Adjusting detergent amount
The amount of washing detergent to be used
depends on the amount of laundry, the degree of
soiling and water hardness. Read the manufacturer's
instructions on the detergent package carefully and
follow the dosage values.
• Donotuseamountsexceedingthedosage
quantitiesrecommendedonthedetergent
package to avoid problems of excessive
foam, poor rinsing, financial savings and finally,
environmental protection.
• Uselesserdetergentforsmallamountsorlightly
soiled clothes.
• Useconcentrateddetergentsinthe
recommended dosage.
Using softeners
Pour the softener into the softener compartment of
the detergent drawer.
• Usethedosagesrecommendedonthe
package.
• Donotexceedthe(>max<)levelmarkinginthe
softener compartment.
• Ifthesoftenerhaslostitsfluidity,diluteitwith
water before putting it in the detergent drawer.
Using liquid detergents
If the product contains a liquid detergent cup:
• Makesurethatyouhaveplacedtheliquid
detergent cup in compartment nr. “2”.
• Usethedetergentmanufacturer'smeasuring
cup and follow the instructions on the package.
• Usethedosagesrecommendedonthe
package.
• Iftheliquiddetergenthaslostitsfluidity,diluteit
with water before putting in the detergent cup.
If the product does not contain a liquid
detergent cup:
• Donotuseliquiddetergentfortheprewashina
programme with prewash.
• Usethedetergentmanufacturer'smeasuring
cup and follow the instructions on the package.
• Liquiddetergentstainsyourclotheswhenused
withDelayedStartfunction.Ifyouaregoingto
usetheDelayedStartfunction,donotuseliquid
detergent.
Using gel and tablet detergent
When using tablet, gel, etc. detergents, read the
manufacturer's instructions on the detergent
packagecarefullyandfollowthedosagevalues.If
there is not any instruction on the package, apply the
following.
• Ifthegeldetergentthicknessisfluidaland
yourmachinedoesnotcontainaspecialliquid
detergent cup, put the gel detergent into the
main wash detergent compartment during first
waterintake.Ifyourmachinecontainsaliquid
detergent cup, fill the detergent into this cup
before starting the programme.
• Ifthegeldetergentthicknessisnotfluidalorin
theshapeofcapsuleliquidtablet,putitdirectly
into the drum before washing.
• Puttabletdetergentsintothemainwash
compartment(compartmentnr.II)ordirectlyinto
the drum before washing.

7EN
CTablet detergents may leave residues in the
detergentcompartment.Ifyouencountersuch
a case, place the tablet detergent between the
laundry, close to the lower part of the drum in
future washings.
C Usethetabletorgeldetergentwithoutselecting
the prewash function.
Using starch
• Addliquidstarch,powderstarchorthedyestuff
into the softener compartment as instructed on
the package.
• Donotusesoftenerandstarchtogetherina
washing cycle.
• Wipetheinsideofthemachinewithadampand
clean cloth after using starch.
Using bleaches
• Selectaprogrammewithprewashandadd
the bleaching agent at the beginning of the
prewash.Donotputdetergentintheprewash
compartment. As an alternative application,
select a programme with extra rinse and add
the bleaching agent while the machine is taking
water from the detergent compartment during
first rinsing step.
• Donotusebleachingagentanddetergentby
mixing them.
• Usejustalittleamount(approx.50ml)of
bleaching agent and rinse the clothes very
wellasitcausesskinirritation.Donotpourthe
bleaching agent onto the clothes and do not use
it for coloured clothes.
• Whenusingoxygenbasedbleaches,follow
the instructions on the package and select a
programme that washes at a lower temperature.
• Oxygenbasedbleachescanbeusedtogether
with detergents; however, if its thickness is
not the same with the detergent, put the
detergent first into the compartment nr. “2”
in the detergent drawer and wait until the
detergent flows while the machine is taking in
water. Add the bleaching agent from the same
compartment while the machine is still taking in
water.
Using limescale remover
• Whenrequired,uselimescaleremovers
manufactured specifically for washing machines
only.
• Alwaysfollowinstructionsonthepackage.

8EN
Tips for efficient washing
Clothes
Light colours and
whites Colors Dark colors Delicates/ Woolens/Silks
(Recommended
temperature range
based on soiling level:
40-90C)
(Recommended
temperature range based
onsoilinglevel:cold-40C)
(Recommended
temperature range
based on soiling
level:cold-40C)
(Recommended
temperature range
based on soiling
level:cold-30C)
Soiling Level
Heavily Soiled
(difficult stains
such as grass,
coffee, fruits and
blood.)
Itmaybenecessary
topre-treatthe
stains of perform
prewash. Powder
andliquiddetergents
recommended
for whites can be
used at dosages
recommended for
heavily soiled clothes.
Itisrecommendedto
use powder detergents
to clean clay and soil
stains and the stains
that are sensitive to
bleaches.
Powder and
liquiddetergents
recommended for
colours can be used at
dosages recommended
for heavily soiled clothes.
Itisrecommendedtouse
powder detergents to
clean clay and soil stains
and the stains that are
sensitive to bleaches.
Usedetergentswithout
bleach.
Liquiddetergents
suitable for
colours and dark
colours can be
used at dosages
recommended
for heavily soiled
clothes.
Preferliquid
detergents
produced for
delicate clothes.
Woollen and silk
clothes must
be washed with
special woollen
detergents.
Normally Soiled
(For example,
stains caused by
body on collars
and cuffs)
Powder and
liquiddetergents
recommended for
whites can be used at
dosages recommended
for normally soiled
clothes.
Powder and
liquiddetergents
recommended for
colours can be used at
dosages recommended
for normally soiled
clothes.Usedetergents
without bleach.
Liquiddetergents
suitable for
colours and dark
colours can be
used at dosages
recommended
for normally soiled
clothes.
Preferliquid
detergents
produced for
delicate clothes.
Woollen and silk
clothes must
be washed with
special woollen
detergents.
Lightly Soiled
(No visible stains
exist.)
Powder and
liquiddetergents
recommended for
whites can be used at
dosages recommended
for lightly soiled clothes.
Powder and
liquiddetergents
recommended for
colours can be used at
dosages recommended
for lightly soiled clothes.
Usedetergentswithout
bleach.
Liquiddetergents
suitable for
colours and dark
colours can be
used at dosages
recommended
for lightly soiled
clothes.
Preferliquid
detergents
produced for
delicate clothes.
Woollen and silk
clothes must
be washed with
special woollen
detergents.

9EN
4 Operating the product
Control panel
1-ProgrammeSelectionknob(Uppermostposition
On/Off)
2-ProgrammeFollow-upindicator
3-TemperatureAdjustmentbutton
4-SpinSpeedadjustmentbutton
5-AuxiliaryFunctionbuttons
6-DelayedStartbutton(insomemodels)
7-Start/Pausebutton
Preparing the machine
Make sure that the hoses are connected tightly. Plug
in your machine. Turn the tap on completely. Place
the laundry in the machine. Add detergent and fabric
softener.
Programme selection
1. Select the programme suitable for the type,
quantityandsoilingdegreeofthelaundry
in accordance with the "Programme and
consumption table" and the temperature table
below.
90˚C Heavilysoiledwhitecottonsandlinens.
(coffee table covers, tableclothes,
towels, bed sheets, etc.)
60˚C Normally soiled, coloured, fade proof cottons or synthetic clothes (shirt,
nightgown, pajamas, etc.) and lightly
soiled white linens (underwear, etc.)
40˚C-
30˚C-Cold
Blended laundry including delicate
textile (veil curtains, etc.), synthetics
and woolens.
2. Select the desired programme with the
Programme Selection button.
CProgrammes are limited with the highest spin
speed appropriate for that particular type of
fabric.
CWhen selecting a programme, always consider
the type of fabric, colour, degree of soiling and
permissible water temperature.
C Alwaysselectthelowestrequiredtemperature.
Highertemperaturemeanshigherpower
consumption.
CFor further programme details, see "Programme
and consumption table".
Main programmes
Dependingonthetypeoffabric,usethefollowing
main programmes.
• Cottons
Usethisprogrammeforyourcottonlaundry(such
as bed sheets, duvet and pillowcase sets, towels,
bathrobes, underwear, etc.). Your laundry will be
washed with vigorous washing action for a longer
washing cycle.
• Synthetics
Usethisprogrammetowashyoursyntheticclothes
(shirts,blouses,synthetic/cottonblends,etc.).It
washes with a gentle action and has a shorter
washing cycle compared to the Cottons programme.
Forcurtainsandtulle,usetheSynthetic40˚C
programmewithprewashandanti-creasingfunctions
selected. As their meshed texture causes excessive
foaming, wash the veils/tulle by putting little amount
ofdetergentintothemainwashcompartment.Do
not put detergent in the prewash compartment.
• Woollens
Usethisprogrammetowashyourwoolenclothes.
Select the appropriate temperature complying with
thetagsofyourclothes.Useappropriatedetergents
for woolens.
1 2
76543

10 EN
Additional programmes
For special cases, additional programmes are
available in the machine.
CAdditional programmes may differ according to
the model of the machine.
• Cotton Economic
You may wash your normally soiled durable cotton
and linen laundry in this programme with the highest
energy and water saving compared to all other
wash programmes suitable for cottons. Actual water
temperature may differ from the declared cycle
temperature. Programme duration may automatically
be shortened during later stages of the programme
if you wash less amount (e.g. ½ capacity or less) of
laundry.Inthiscaseenergyandwaterconsumption
will be further decreased giving you the opportunity
for a more economical wash. This feature is available
for certain models having remaining time display.
• BabyProtect
Usethisprogrammeforbabyclothesandclothes
wornbyallergicpeople.Increasedhygieneis
provided by a longer heating period and an additional
rinse cycle.
• Hand wash
Usethisprogrammetowashyourwoolen/delicate
clothesthatbear“notmachine-washable”tagsand
forwhichhandwashisrecommended.Itwashes
laundry with a very gentle washing action to not to
damage clothes.
• Daily express
Usethisprogrammetoquicklywashyourlightly
soiled cotton clothes.
• Darkwash
Usethisprogrammetowashyourdarkcoloured
laundry, or the coloured laundry that you do not
want them get faded. Washing is performed with
less mechanical movements at low temperature.
Itisrecommendedtouseliquiddetergentorwool
shampoo for dark coloured laundry.
• Mixed 40 (Mix 40)
Usethisprogrammetowashyourcottonand
synthetic clothes together without sorting them.
Special programmes
For specific applications, select any of the following
programmes.
• Rinse
Usethisprogrammewhenyouwanttorinseor
starch separately.
• Spin + Drain
Usethisprogrammetoapplyanadditionalspincycle
for your laundry or to drain the water in the machine.
Before selecting this programme, select the desired
spin speed and press Start / Pause button. First, the
machine will drain the water inside of it. Then, it will
spin the laundry with the set spin speed and drain the
water coming out of them.
Ifyouwishtodrainonlythewaterwithoutspinning
your laundry, select the Pump+Spin programme
and then select the No Spin function with the help of
Spin Speed Adjustment button. Press Start / Pause
button.
C Usealowerspinspeedfordelicatelaundries.
Temperature selection
Whenever a new programme is selected, the
recommended temperature for the selected
programme appears on the temperature indicator.
To decrease the temperature, press the Temperature
Adjustment button. Temperature will decrease
gradually.
C Iftheprogrammehasnotreachedtheheating
step, you can change the temperature without
switching the machine to Pause mode.
Spin speed selection
Whenever a new programme is selected, the
recommended spin speed of the selected
programme is displayed on the spin speed indicator.
To decrease the spin speed, press the Spin Speed
Adjustment button. Spin speed decreases gradually.
Then, depending on the model of the product,
"RinseHold"and"NoSpin"optionsappearonthe
display. See "Auxiliary function selection" section for
explanations of these options.
C Iftheprogrammehasnotreachedthespinning
step, you can change the speed without
switching the machine to Pause mode.

11 EN
Programme and consumption table
• Selectable
* Automaticallyselected,nocanceling.
** EnergyLabelprogramme(EN60456Ed.3)
*** Ifmaximumspinspeedofthemachineislowerthenthisvalue,youcanonlyselectuptothemaximum
spin speed.
CWater and power consumption may vary subject to the changes in water pressure, water hardness and
temperature, ambient temperature, type and amount of laundry, selection of auxiliary functions and spin
speed, and changes in electric voltage.
C Youcanseethewashingtimeoftheprogrammeyouhaveselectedonthedisplayofthemachine.Itis
normal that small differences may occur between the time shown on the display and the real washing
time.
CThe auxiliary functions in the table may vary according to the model of your machine.
EN 2Auxiliary functions
Programme
Max. Load (kg) ProgrammeDuration(~min) Water Consumption (l) Energy Consumption (kWh) Max.Speed*** Prewash Quick Wash Rinse Plus Anti-Creasing RinseHold Pet hair removal
Selectable
temperature
range °C
Cottons 90 5 147 66 2.25 1600 • • • • • • Cold-90
Cottons 60 5118 66 1.45 1600 • • • • • • Cold-90
Cottons 40 598 66 0.85 1600 • • • • • • Cold-90
Cotton Economic 60** 5 159 37 0.74 1600 • 40-60
Cotton Economic 60** 2.5 129 30 0.69 1600 • 40-60
Cotton Economic 40** 2.5 129 30 0.61 1600 • 40-60
Dailyexpress 90 588 55 1.90 1400 • • Cold-90
Dailyexpress 60 558 55 1.00 1400 • • Cold-90
Dailyexpress 30 528 55 0.20 1400 • • Cold-90
Darkwash 40 2.5 107 58 0.45 800 * • Cold-40
Mixed40(Mix40) 40 3 115 45 0.50 800 • • • • • • Cold-40
Handwash 30 1 43 30 0.15 600 Cold-30
Woollens 40 1.5 60 40 0.30 600 • • Cold-40
BabyProtect 90 5 165 85 1.90 1600 • * • 30-90
Synthetics 60 2.5 116 45 0.90 800 • • • • • • Cold-60
Synthetics 40 2.5 106 45 0.42 800 • • • • • • Cold-60
**“Cottoneco40°CandCottoneco60°Carethestandardprogrammes.”Theseprogrammesarereferredto
as‘standard40°Ccottonprogramme’and‘standard60°Ccottonprogramme’

12 EN
Auxiliary function selection
Usethefollowingauxiliaryfunctionsaccordingtoyour
daily needs. Select the desired auxiliary functions
before starting the programme. Furthermore, you
may also select or cancel auxiliary functions that
are suitable to the running programme without
pressing the Start / Pause button when the machine
is operating. For this, the machine must be in a step
before the auxiliary function you are going to select
or cancel.
Iftheauxiliaryfunctioncannotbeselectedor
canceled, light of the relevant auxiliary function will
blink 3 times to warn the user.
CSome functions cannot be selected together.
For example, Prewash and Quick Wash.
C Ifasecondauxiliaryfunctionconflictingwiththe
first one is selected before starting the machine,
the function selected first will be canceled
and the second auxiliary function selection
will remain active. For example, if you want to
select Quick Wash after you have selected the
Prewash, Prewash will be canceled and Quick
Wash will remain active.
CAn auxiliary function that is not compatible
with the programme cannot be selected. (See
"Programme and consumption table")
CAuxiliary Function buttons may vary according to
the model of the machine.
• Prewash
A Prewash is only worthwhile for heavily soiled
laundry. Not using the Prewash will save energy,
water, detergent and time.
CPrewash without detergent is recommended for
tulle and curtains.
• Quick Wash
This function can be used in Cottons and Synthetics
programmes.Itdecreasesthewashingtimesand
also the number of rinsing steps for lightly soiled
laundry.
CWhen you select this function, load your
machine with half of the maximum laundry
specified in the programme table.
• Rinse Plus
This function enables the machine to make another
rinsing in addition to the one already made after the
main wash. Thus, the risk for sensitive skins (babies,
allergic skins, etc.) to be effected by the minimal
detergent remnants on the laundry can be reduced.
• Anti-Creasing
This function creases the clothes lesser when they
arebeingwashed.Drummovementisreducedand
spinningspeedislimitedtopreventcreasing.In
addition, washing is done with a higher water level.
Usethisfunctionfordelicatelaundrythatcreases
easily.
• Rinse Hold
Ifyouarenotgoingtounloadyourclothes
immediately after the programme completes, you
may use rinse hold function to keep your laundry
in the final rinsing water in order to prevent them
from getting wrinkled when there is no water in
the machine. Press Start / Pause button after this
process if you want to drain the water without
spinning your laundry. Programme will resume and
complete after draining the water.
Ifyouwanttospinthelaundryheldinwater,adjust
the Spin Speed and press Start / Pause button.
The programme resumes. Water is drained, laundry
is spun and the programme is completed.
• Soaking
The Soaking auxiliary function ensures better removal
of stains ingrained into the clothes by holding
them in the detergent water prior to startup of the
programme.
• Pet hair removal
This function removes the pet hairs that remain on
your clothes more effectively.
When this function is selected, Prewash and Extra
Rinse steps are added to the normal programme.
Thus, pet hairs are removed more effectively by
performingthewashingwithmorewater(30%).
ANever wash your pets in your washing machine.
Delayed Start(Insomemodelsonly)
WiththeDelayedStartfunctionthestartupofthe
programme may be delayed up to 3, 6 or 9 hours.
C Donotuseliquiddetergentswhenyouset
DelayedStart!Thereistheriskofstainingofthe
clothes.
Opentheloadingdoor,placethelaundryandput
detergent, etc. Select the washing programme,
temperature,spinspeedand,ifrequired,theauxiliary
functions. Set the desired time by pressing the
DelayedStartbutton.Whenthebuttonispressed
once, 3 hours delayed start is selected. When the
same button is pressed again, 6 hours delay is
selected, and when it is pressed for the third time,
9hoursdelayedstartisselected.Ifyoupressthe
DelayedStartbuttononceagain,DelayedStart
function will be canceled. Press Start / Pause button.
Previous delayed start time light turns off and next
delayed start time light turns on after every 3 hours.
At the end of the countdown, all delayed start lights
will turn off and the selected programme will start.
CAdditional laundry may be loaded during the
delayed start period.
Changing the Delayed Start period
PressDelayedStartbutton.Everytimethebuttonis
pressed,theperiodwillchangein3-hourincrements
and the light of the selected delayed start time will
turn on.
Canceling the Delayed Start function
Ifyouwanttocancelthedelayedstartcountdown
and start the programme immediately:
SettheDelayedStartperiodtozero(alldelayedstart
period lights will turn off) or turn the Programme
Selectionknobtoanyprogramme.Thus,Delayed
Start function will be canceled. The End/Cancel light
flashes continuously. Then, select the programme
you want to run again. Press Start / Pause button to
start the programme.

13 EN
Starting the programme
Press Start / Pause button to start the programme.
Programmefollow-uplightshowingthestartupofthe
programme will turn on.
C Ifnoprogrammeisstartedornokeyispressed
within 1 minute during programme selection
process, the machine will switch to Pause mode
and the illumination level of the temperature,
speed and loading door indicator lights will
decrease.Otherindicatorlightsandindicators
willturnoff.OncetheProgrammeSelection
knob is rotated or any button is pressed,
indicator lights and indicators will turn on again.
Child Lock
Usechildlockfunctiontopreventchildrenfrom
tampering with the machine. Thus you can avoid any
changes in a running programme.
C IftheProgrammeSelectionknobisrotated
when the child lock is active, the lights on the
1st and 2nd auxiliary function buttons will blink
3 times. The child lock does not allow any
change in the programmes and the selected
temperature, speed and auxiliary functions.
CEven if another programme is selected with the
Programme Selection knob while the Child Lock
is active, previously selected programme will
continue running.
CWhen the Child Lock is active and the machine
is running, you can switch the machine to Pause
mode without deactivating the Child Lock by
turningtheProgrammeSelectionknobtoOn
/Offposition.WhenyouturntheProgramme
Selection knob afterwards, the programme will
resume.
To activate the Child Lock:
Press and hold 1st and 2nd Auxiliary Function buttons
for 3 seconds. The lights on the 1st and 2nd Auxiliary
Function buttons will flash while you keep the buttons
pressed for 3 seconds.
To deactivate the Child Lock:
Press and hold 1st and 2nd auxiliary function buttons
for 3 seconds while any programme is running. The
lights on the 1st and 2nd Auxiliary Function buttons
will flash while you keep the buttons pressed for 3
seconds.
C Inadditiontothemethodabove,todeactivate
the Child Lock, switch the Programme Selection
knobtoOn/Offpositionwhennoprogrammeis
running, and select another programme.
CWhen the power is restored after a power failure
or after your machine is unplugged and plugged
in again, the Child Lock will not be deactivated
when the machine resumes operating.
Progress of programme
Progress of a running programme can be followed
fromtheProgrammeFollow-upindicator.Atthe
beginning of every programme step, the relevant
indicator light will turn on and light of the completed
step will turn off.
You can change the auxiliary functions, speed
and temperature settings without stopping the
programme flow while the programme is running.
To do this, the change you are going to make must
beinastepaftertherunningprogrammestep.Ifthe
change is not compatible, relevant lights will flash for
3 times.
C Ifthemachinedoesnotpasstothespinning
step,RinseHoldfunctionmightbeactiveorthe
automatic unbalanced load detection system
might be activated due to the unbalanced
distribution of the laundry in the machine.
Loading door lock
There is a locking system on the loading door of the
machine that prevents opening of the door in cases
when the water level is unsuitable.
Loading door light will start flashing when the
machine is switched to Pause mode. Machine
checksthelevelofthewaterinside.Ifthelevelis
suitable,LoadingDoorlightilluminatessteadilywithin
1-2minutesandtheloadingdoorcanbeopened.
Ifthelevelisunsuitable,LoadingDoorlightturnsoff
andtheloadingdoorcannotbeopened.Ifyouare
obligedtoopentheLoadingDoorwhiletheLoading
Doorlightisoff,youhavetocancelthecurrent
programme; see "Canceling the programme".
Changing the selections after
programme has started
Switching the machine to pause mode
Press the Start / Pause button to switch the machine
to pause mode while a programme is running.
The light of the step which the machine is in starts
flashingintheProgrammeFollow-upindicatorto
show that the machine has been switched to the
pause mode.
Also, when the loading door is ready to be opened,
LoadingDoorlightwillalsoilluminatecontinuouslyin
addition to the programme step light.
Changing the speed and temperature settings
for auxiliary functions
Dependingonthesteptheprogrammehasreached,
you may cancel or activate the auxiliary functions;
see, "Auxiliary function selection".
You may also change the speed and temperature
settings; see, "Spin speed selection" and
"Temperature selection".
C Ifnochangeisallowed,therelevantlightwill
flash for 3 times.
Adding or taking out laundry
Press the Start / Pause button to switch the machine
topausemode.Theprogrammefollow-uplight
of the relevant step during which the machine
was switched into the pause mode will flash.
WaituntiltheLoadingDoorcanbeopened.Open
theLoadingDoorandaddortakeoutthelaundry.
ClosetheLoadingDoor.Makechangesinauxiliary
functions, temperature and speed settings if
necessary. Press Start / Pause button to start the
machine.
Canceling the programme
To cancel the programme, turn the Programme
Selection knob to select another programme.
Previous programme will be canceled. End /
Cancel light will flash continuously to notify that the
programme has been canceled.

14 EN
Your machine will end the programme when you
turn the Programme Selection knob; however,
it does not drain the water inside. When you
select and start a new programme, the newly
selected programme will start depending on the
step the previous programme was canceled in.
For example, it may take in additional water or
continue to wash with the water inside.
C Dependingonthestepwherethe
programme was canceled in, you may have
to put detergent and softener again for the
programme you have selected anew.
5 Maintenance and cleaning
Servicelifeoftheproductextendsandfrequently
faced problems decrease if cleaned at regular
intervals.
Cleaning the detergent drawer
Clean the detergent drawer at regular intervals
(every4-5washingcycles)asshownbelow
in order to prevent accumulation of powder
detergent in time.
Press the dotted point on the siphon in the
softener compartment and pull towards you until
the compartment is removed from the machine.
C Ifmorethannormalamountofwaterand
softener mixture starts to gather in the
softener compartment, the siphon must be
cleaned.
Wash the detergent drawer and the siphon with
plenty of lukewarm water in a washbasin. Wear
protective gloves or use an appropriate brush to
avoid touching of the residues in the drawer with
yourskinwhencleaning.Insertthedrawerback
into its place after cleaning and make sure that it
is seated well.
Ifyourdetergentdraweristheoneindicatedin
the following figure:
CLift the rear part of the siphon to remove
it as illustrated. After performing the above
mentioned cleaning procedures, replace
the siphon back to its seating and push its
front section downwards to make sure that
the locking tab engages.
Cleaning the water intake filters
There is a filter at the end of each water intake
valve at the rear of the machine and also at
the end of each water intake hose where they
are connected to the tap. These filters prevent
foreign substances and dirt in the water to enter
the washing machine. Filters should be cleaned
as they do get dirty.
Close the taps. Remove the nuts of the water
intake hoses to access the filters on the water
intake valves. Clean them with an appropriate
brush.Ifthefiltersaretoodirty,takethemout
by means of pliers and clean them. Take out the
filters on the flat ends of the water intake hoses
together with the gaskets and clean thoroughly
under running water. Replace the gaskets and
filters carefully in their places and tighten the hose
nuts by hand.
Draining remaining water and
cleaning the pump filter
The filter system in your machine prevents solid
items such as buttons, coins and fabric fibers
clogging the pump impeller during discharge
of washing water. Thus, the water will be
discharged without any problem and the service
life of the pump will extend.
Ifthemachinefailstodrainwater,thepumpfilter
is clogged. Filter must be cleaned whenever it
is clogged or in every 3 months. Water must be
drained off first to clean the pump filter.
Inaddition,priortotransportingthemachine
(eg., when moving to another house) and in case
of freezing of the water, water may have to be
drained completely.
AForeign substances left in the pump filter
may damage your machine or may cause
noise problem.
Inordertocleanthedirtyfilteranddischargethe
water:
Unplugthemachinetocutoffthesupplypower.
ATemperature of the water inside the machine
mayriseupto90ºC.Toavoidburningrisk,
filter must be cleaned after the water in the
machine cools down.
Openthefiltercap.
 Ifthefiltercapiscomposedoftwopieces,
press the tab on the filter cap downwards

15 EN
and pull the piece out towards yourself.
Ifthefiltercapisonepiece,pullthecapfromboth
sides at the top to open.
CYou can remove the filter cover by slightly
pushing downwards with a thin plastic tipped
tool,throughthegapabovethefiltercover.Do
not use metal tipped tools to remove the cover.
Some of our products have emergency draining hose
and some does not have. Follow the steps below to
discharge the water.
Dischargingthewaterwhentheproducthasan
emergency draining hose:
Pull the emergency draining hose out from its seat
Placealargecontainerattheendofthehose.Drain
the water into the container by pulling out the plug at
the end of the hose. When the container is full, block
the inlet of the hose by replacing the plug. After the
container is emptied, repeat the above procedure
to drain the water in the machine completely. When
draining of water is finished, close the end by the
plug again and fix the hose in its place. Turn the
pump filter to take it out.
Dischargingthewaterwhentheproductdoesnot
have an emergency draining hose:
Place a large container in front of the filter to
catch water from the filter. Loosen pump filter
(anticlockwise) until water starts to flow. Fill the
flowing water into the container you have placed in
front of the filter. Always keep a piece of cloth handy
to absorb any spilled water. When the water inside
the machine is finished, take out the filter completely
by turning it. Clean any residues inside the filter as
well as fibers, if any, around the pump impeller region.
Installthefilter.
A Ifyourproducthasawaterjetfeature,besure
to fit the filter into its housing in the pump.
Never force the filter while installing it into its
housing. Seat the filter into its place completely.
Otherwise,watermayleakfromthefiltercap.
Ifthefiltercapiscomposedoftwopieces,closethe
filtercapbypressingonthetab.Ifitisonepiece,seat
the tabs in the lower part into their places first, and
then press the upper part to close.

16 EN
6 Technical specifications
C Technicalspecificationsmaybechangedwithoutpriornoticetoimprovethequalityoftheproduct.
CFigures in this manual are schematic and may not match the product exactly.
CValues stated on the product labels or in the documentation accompanying it are obtained in laboratory
conditionsinaccordancewiththerelevantstandards.Dependingonoperationalandenvironmental
conditions of the product, these values may vary.
Models (EN)
Maximum dry laundry capacity (kg)
Height(cm)
Width (cm)
Depth(cm)
Net weight (±4 kg.)
Electricalinput(V/Hz)
Total current (A)
Total power (W)
Spin speed (rpm max.)
Stand-bymodepower(W)
Off-modepower(W)
Dark wash
(Darkcare)
Dark wash
(Darkcare)
Synthetics Cottons Pre-wash Main
wash
Rinse Wash Spin
Drain
(Pump)
Anti-
creasing
Duvet
(Bedding)
Child-
proof lock
Hand
Wash
BabyProtect
BabyProtect+
Cotton
Eco
Woollens
Delicate Pet hair
removal
Daily
Lingerie
expres 14
Super short
express
Daily
express
Rinse hold Start/
Pause
No spin Quick
wash
Finished Cold Self
Clean
Temperature
Mixed 40
(Mix40)
Super 40 Extra rinse
(Rinse Plus)
Freshen
up
Shirts Jeans Sport Time delay Intensive Fashioncare
mini 30
Eco Clean
Anti-
allergic
On/Off
Door Ready
Thisappliance’spackagingmaterialisrecyclable.Helprecycleitandprotecttheenvironment
by dropping it off in the municipal receptacles provided for this purpose. Your appliance
alsocontainsagreatamountofrecyclablematerial.Itismarkedwiththislabeltoindicate
the used appliances that should not be mixed with other waste. This way, the appliance
recycling organised by your manufacturer will be done under the best possible conditions,
incompliancewithEuropeanDirective2002/96/EConWasteElectricalandElectronic
Equipment.Contactyourtownhalloryourretailerfortheusedappliancecollectionpoints
closest to your home. We thank you doing your part to protect the environment.
WMB50621
5
84
60
45
59
230V/50Hz
10
2200
600
1.35
0.25

17 EN
7 Troubleshooting
Programme cannot be started or selected.
• Washingmachinehasswitchedtoselfprotectionmodeduetoasupplyproblem(linevoltage,water
pressure,etc.).>>>Tocanceltheprogramme,turntheProgrammeSelectionknobtoselectanother
programme. Previous programme will be cancelled. (See "Canceling the programme")
Water in the machine.
• Somewatermighthaveremainedintheproductduetothequalitycontrolprocessesinthe
production.>>>This is not a failure; water is not harmful to the machine.
Machine vibrates or makes noise.
• Machinemightbestandingunbalanced.>>>Adjust the feet to level the machine.
• Ahardsubstancemighthaveenteredintothepumpfilter.>>>Clean the pump filter.
• Transportationsafetyboltsarenotremoved.>>>Remove the transportation safety bolts.
• Laundryquantityinthemachinemightbetoolittle.>>>Add more laundry to the machine.
• Machinemightbeoverloadedwithlaundry.>>>Take out some of the laundry from the machine or
distribute the load by hand to balance it homogenously in the machine.
• Machinemightbeleaningonarigiditem.>>>Make sure that the machine is not leaning on anything.
Machine stopped shortly after the programme started.
• Machinemighthavestoppedtemporarilyduetolowvoltage.>>>It will resume running when the
voltage restores to the normal level.
Programmetimedoesnotcountdown.(Onmodelswithdisplay)
• Timermaystopduringwaterintake.>>>Timer indicator will not countdown until the machine takes
in adequate amount of water. The machine will wait until there is sufficient amount of water to avoid
poor washing results due to lack of water. Timer indicator will resume countdown after this.
• Timermaystopduringheatingstep.>>>Timer indicator will not countdown until the machine
reaches the selected temperature.
• Timermaystopduringspinningstep.>>>Automatic unbalanced load detection system might be
activated due to the unbalanced distribution of the laundry in the drum.
CMachine does not switch to spinning step when the laundry is not evenly distributed in the drum
to prevent any damage to the machine and to its surrounding environment. Laundry should be
rearrangedandre-spun.
Foam is overflowing from the detergent drawer.
• Toomuchdetergentisused.>>>Mix 1 tablespoonful softener and ½ l water and pour into the main
wash compartment of the detergent drawer.
CPut detergent into the machine suitable for the programmes and maximum loads indicated in the
“Programme and consumption table”. When you use additional chemicals (stain removers, bleachs
and etc), reduce the amount of detergent.
Laundry remains wet at the end of the programme
• Excessivefoammighthaveoccurredandautomaticfoamabsorptionsystemmighthavebeen
activatedduetotoomuchdetergentusage.>>>Use recommended amount of detergent.
CMachine does not switch to spinning step when the laundry is not evenly distributed in the drum
to prevent any damage to the machine and to its surrounding environment. Laundry should be
rearrangedandre-spun.
A Ifyoucannoteliminatetheproblemalthoughyoufollowtheinstructionsinthissection,consultyour
dealer or the Authorized Service Agent. Never try to repair a nonfunctional product yourself.

2820522897_IT/110512.1739

19 IT
1 Istruzioni importanti per la
sicurezza
Questa sezione contiene istruzioni sulla sicurezza
che aiutano a proteggere dal rischio di lesioni
personali o danni alla proprietà. La mancata
osservanzadiquesteistruzionirendelagaranzia
priva di validità.
Sicurezza generale
• Bambinidietàinferioreaottoanniepiùgrandi
e persone con capacità fisiche, sensoriali e
mentali ridotte nonché persone prive delle
adeguate capacità ed esperienze possono
usarequestoapparecchiosolosericevono
lasupervisioneeleistruzionisull’usosicuro
dell’apparecchioesuidannicorrelati.I
bambini non devono giocare né interferire
conl’apparecchio.Puliziaemanutenzione
dell’utentenondevonoesseremaieseguiteda
bambini a meno che non ricevano supervisione
da parte di un adulto responsabile.
• Nonposizionaremaiilprodottosuun
pavimento coperto da tappeto; altrimenti
la mancanza del flusso di aria al di sotto
della macchina provoca il surriscaldamento
delle parti elettriche. Ciò può provocare
malfunzionamenti del prodotto.
• Nonutilizzareilprodottoseilcavodi
alimentazione / la spina sono danneggiati.
Contattare l'agente autorizzato per
l'assistenza.
• Farcollegaredaunelettricistaqualificato
il fusibile da 16 ampere sul luogo della
installazione del prodotto.
• Seilprodottopresentaunguasto,nondeve
essere utilizzato, a meno che non sia riparato
da un agente autorizzato per l'assistenza. C'è
il rischio di shock elettrico!
• Ilprodottoèprogettatoperriprenderea
funzionare in caso di ripristino di corrente dopo
un guasto elettrico. Se si desidera annullare il
programma, vedere la sezione "Annullamento
del programma".
• Collegareilprodottoadunapresamessa
a terra protetta da un fusibile conforme ai
valori della tabelle "Specifiche tecniche". Non
trascurare la possibilità di fare installare la
messaaterradaunelettricistaqualificato.La
nostra azienda non sarà responsabile dei danni
derivanti dall'uso del prodotto senza la messa
a terra conforme ai regolamenti locali.
• L'alimentazionedell'acquaeiflessibilidi
scarico devono essere montati in modo sicuro
e restare privi di danni. Altrimenti c'è il rischio di
perditediacqua.
• Nonapriremailosportellonétogliereilfiltro
mentrevièancoradell’acquanelcestello.
Altrimenti si verifica il rischio di allagamenti e
lesioniprovocatedall'acquacalda.
• Nonforzareperaprirelosportellodicarico
bloccato. Lo sportello di carico sarà pronto per
l’aperturapochiminutidopolafinedelciclo
di lavaggio. Se si forza per aprire lo sportello
di carico bloccato, sportello e meccanismo di
blocco potrebbero danneggiarsi.
• Scollegareilprodottoquandononèinuso.
• Nonlavaremaiilprodottoversandoo
cospargendoacquasudiesso!C'èilrischiodi
shock elettrico!
• Nontoccaremailaspinaconlemanibagnate!
Non scollegare mai tirando dal cavo, estrarre
sempre tirando dalla spina.
• Usaresolodetersivi,ammorbidentieadditivi
adatti alle lavatrici automatiche.
• Seguireleistruzionisulleetichettedeitessutie
sulla confezione del detersivo.
• Ilprodottodeveesserescollegatodurante
le procedure di installazione, manutenzione,
pulizia e riparazione.
• Fareseguiresempreleproceduredi
installazione e riparazione dall'agente
autorizzatoperl'assistenza.Ilproduttore
non sarà ritenuto responsabile per danni che
possono derivare da procedure eseguite da
persone non autorizzate.
Uso previsto
• Questoprodottoèprogettatoperun
uso domestico. Non è adatto ad un uso
commerciale e non deve essere usato al di là
dell'uso previsto.
• Ilprodottopuòessereutilizzatoesclusivamente
perillavaggioeilrisciacquodibucatochein
etichetta preveda tale tipo di lavaggio.
• Ilproduttoredeclinaogniresponsabilitàche
derivi da uso o trasporto non corretti.
Sicurezza dei bambini
• Iprodottielettricisonopericolosiperibambini.
Tenere i bambini lontani dal prodotto mentre
questoèinuso.Nonlasciarligiocareconil
prodotto.Usareilbloccobambiniperevitare
che i bambini possano interferire con il
funzionamento del prodotto.
• Nondimenticaredichiuderelosportellodi
caricoquandosiescedallastanzaincuisi
trova il prodotto.
• Conservaretuttiidetersiviegliadditiviinun
posto sicuro fuori dalla portata dei bambini.
2 Installazione
Rivolgersialpiùvicinoagenteautorizzatoper
l'assistenza per l'installazione del prodotto. Per
rendere il prodotto pronto per l'uso, rivedere le
informazioni del manuale utente e assicurarsi che
elettricità,fornituradiacquaesistemidiscarico
dell'acquasianoappropriatiprimadichiamare
l'agente autorizzato per l'assistenza. Se non lo
sono,chiamareuntecnicoeunidraulicoqualificati
per eseguire tutte le regolazioni necessarie.
CLa preparazione del luogo e le installazioni
elettriche,idricheedell'acquadiscarico
sul luogo della installazione sono una
responsabilità del cliente.

20 IT
B Installazioneecollegamentielettricidel
prodotto devono essere eseguiti dall'agente
autorizzatoperl'assistenza.Ilproduttore
non sarà ritenuto responsabile per danni che
possono derivare da procedure eseguite da
persone non autorizzate.
APrima della installazione, ispezionare
visivamente il prodotto per rilevare la presenza
di eventuali difetti. Se è così, non farlo
installare.Iprodottidanneggiatirappresentano
un rischio per la sicurezza.
CAssicurarsi che i flessibili di ingresso e scarico
dell'acquanonchéilcavodialimentazionenon
sianopiegati,schiacciatiostrappatiquando
si riposiziona il prodotto dopo le procedure di
installazione o pulizia.
Posizione adeguata di montaggio
• Posizionarelamacchinasuunsuolosolido.
Non posizionare la macchina su tappeti a pelo
lungo o su superfici simili.
• Ilpesototaledilavatriceeasciugatrice-a
pienocarico-quandosonopostel'una
sull'altraraggiungecirca180kg.Mettereil
prodotto su una superficie solida e piana che
abbia una sufficiente capacità di sopportare il
carico!
• Nonposizionareilprodottosulcavodi
alimentazione.
• Noninstallareilprodottoinluoghiincuila
temperaturapuòscenderealdisottodi0ºC.
• Mettereilprodottoadunadistanzadialmeno
1 cm dai bordi degli altri arredi.
Rimozione dei rinforzi dell'imballaggio
Ribaltare la lavatrice all'indietro per rimuovere
irinforzidell’imballaggio.Tirareilnastroper
rimuovereirinforzidell’imballaggio.
Rimozione dei blocchi di trasporto
ANon rimuovere i blocchi di trasporto prima di
aver estratto i rinforzi dell'imballaggio.
ARimuovere i bulloni di sicurezza per il trasporto
prima di azionare la lavatrice, altrimenti il
prodotto si danneggia.
1. Allentaretuttiibulloniconun’appositachiave,
sinoaquandoruoterannoliberamente(C).
2. Rimuovere i bulloni di sicurezza di trasporto
ruotandoli delicatamente.
3. Inserireicoperchiettiinplasticaneiforidel
pannello posteriore, in dotazione nel sacchetto
allegato al manuale utente. (P)
CConservare i bulloni di sicurezza in un posto
sicuro per riutilizzarli in caso di ulteriori trasporti.
CNon spostare mai il prodotto senza avere
prima ripristinato correttamente i bulloni di
sicurezza!
Collegamento della fornitura idrica
CLa pressione idrica necessaria per utilizzare
ilprodottoècompresatra1e10bars(0,1
–1MPa).Ènecessariodisporredi10-80litri
diacquacorrentealminutoconilrubinetto
completamente aperto perché la lavatrice
funzioni senza problemi. Collegare una valvola
di riduzione della pressione se la pressione
dell’acquaèpiùalta.
C Sesiusaildoppioingressoperl’acquacome
unitàasingoloingressodell’acqua(fredda),
è necessario installare il tappo in dotazione
conlalavatrice,sullavalvoladell’acquacalda,
prima di utilizzare il prodotto. (Si applica ai
prodotti forniti di un gruppo tappo cieco).
CSe si desidera usare entrambi gli ingressi
dell’acquadelprodotto,collegareilflessibile
dell’acquacaldadopoaverrimossoiltappoe
laguarnizionedallavalvoladell’acquacalda.
(Si applica ai prodotti forniti di un gruppo tappo
cieco).
A Imodelliconingressosingolodell'acquanon
devonoesserecollegatialrubinettodell'acqua
calda.Inquestocasoilbucatosidanneggiao
il prodotto passa in modalità protezione e non
funziona.
ANon usare su prodotti nuovi flessibili per
l'acquavecchiousati.Altrimentiilbucato
potrebbe macchiarsi.
1. Iflessibilispecificiindotazioneconla
lavatrice sono collegati alle valvole di
ingressodell'acquasulprodotto.Ilflessibile
rosso(sinistra)(max.90ºC)èperl'ingresso
dell'acquacalda,ilflessibileblu(destra)(max.
25ºC)èperl'ingressodell'acquafredda.
AQuando si installa la lavatrice, assicurarsi
cheirubinettidiacquacaldaefreddasiano
collegati in modo corretto. Altrimenti il bucato
resta caldo alla fine del processo di lavaggio
usurandosi.
2. Stringere a mano tutti i dadi del flessibile. Non
usare mai una chiave per stringere i dadi.
3. Aprire completamente i rubinetti dopo aver
collegato il flessibile per controllare se ci sono
perditediacquaneipuntidiconnessione.
Incasodiperdite,chiudereilrubinettoe
rimuovere il dado. Stringere nuovamente il
dado dopo aver controllato la guarnizione. Per
evitareperditediacquaedanniconseguenti,
