Beko WML 15100 DB User manual

-1- EN
Washing Machine | User’s Manual
Control Panel
Program Selection and Starting Machine
1
Plug your machine to outlet. Turn on the machine by pressing
“On / Off” key. Open the door by pulling the handle and load the
machine without exceeding loading capacity and close the door.
Specify the appropriate program by looking at program selec-
tion table according to type of laundry, degree of soiledness and
washing temperature. Position program selection key to desired
washing program-temperature. Select convenient spin speed
related to selected program. If you are using auxiliary function
press desired auxiliary function key.
Afterwards place appropriate detergent and softener to your
machine’s detergent drawer. Start your machine by pressing
Start/Pause/Cancel button. Start/Pause/Cancel key’s led will be
on. After your machine starts, you can follow from the program
progress display at which step your machine is.
Program selection table
WML 15040 KL WML 15060 E WML 15080 P
WML 15050 KL WML 15080 DL WML 15100 P
WML 15060 KL WML 15080 DB WML 15100 DB
13
45
6
2
* Energy Labeling Program (EN 60456)
( 1 )WML 15060 E - WML 15080 DB - WML 15080 P - WML 15100 P - WML 15100 DB
( 2 ) WML 15060 KL - WML 15050 KL - WML 15040 KL - WML 15080 DL
Program Type of laundry
Maximum Load (kg)
Program Time (minutes) Water consumption (lt) Power
consumption
(kWh)
Prewash
Rinse Plus
Rinse Hold
Spin Speed Selection
Cottons 90 Heavily soiled, heat resistant cotton, linen
5155 45 1.70 • •
• •
Cottons 60 * Normally soiled, heat resistant cotton, linen
5145 45 0.95 / 1.14 • • • •
Cottons 40 Lightly soiled or heat sensitive cotton
5150 45 0.65 • • • •
Cold (Cotton) Lightly soiled or heat sensitive cotton
5110 45 0.35 • • • •
Super 40 Heavily soiled or heat sensitive cotton
5180 45 0.65 •
Synthetics 60 Normally soiled, heat resistant cotton/synthetic mixture
2.5 120 55 0.90 • • • •
Synthetics 40 Lightly soiled or heat sensitive cotton/synthetic mixture
2.5 125 55 0.55 • • • •
Synthetics 30 Slightly soiled or heat sensitive cotton/synthetic mixture
2.5 110 55 0.35 • • • •
Cold (Synthetic) Slightly soiled or heat sensitive cotton/synthetic mixture
2.5 100 55 0.20 • • • •
Delicates 30 Delicate, sensitive sysnthetic and cotton mixture
285 60 0.40 • • •
Wool 40 Delicate mixtures with wool and machine washable label
1.5 75 60 0.40 • • •
Cold (Wool) Delicate mixtures with wool and machine washable label
1.5 70 60 0.04 • • •
Hand Wash 30 Special program for silks, cashmeres and clothes with not machine washable
labels
155 50 0.21 •
Mini 30
Special program for slightly soiled and little amounts of laundry (tracking suits, towels, etc.,
that were used only 1 time)
2.5 30 40 0.16 •
Rinse Rinsing Program
523 15 0.04 •
Spin + Pump Spinning + Pumping Program
514 -0.03 •
(1) (2)
Program selection knob
Program follow-up indicator
On / Off button
Start/Pause/Cancel button
Auxiliary function buttons
Spin speed selection knob
6

-2- EN
• Thisproductisdesignedforhomeuse.
• Ifthefuseinyourhouseislessthan16Athanhaveacerti-
fiedelectriciandeployan16Afuse.
• Incaseoftransformerornon-transformeruse,grounding
installationmustbeperformedwithalicensedelectrician.
Anyusebeforegroundingisnotourresponsibility.
• Pleasecallcertifiedserviceforafailureofelectricplug/
cable.
• Neverplaceyourmachineoveracarpetcoveredfloor.
• Atfirstuse,washingmustbeperformedatCotton90°Cpro-
gramwithoutloadingwithlaundryforgettingyourmachine
readyforwashing.
• Performanceofyourwashingmachinedependsonthequal-
ityofwaterandhygienecompoundused.Iflowqualityand
unfittingcleaningmaterialisusedthestainswillbefixed.
• Becauseofqualitycontrolprocedurestheremightbelittle
amountofwaterinyourmachine.Thisdoesnothaveany
damagetoyourmachine.
• Your machine is programmed for starting operation again
when electricity is off and on afterwards. You can not press
On / Off button to cancel program. Machine will go on
program when electricity is on. To CANCEL the program
press >Start/Pause/Cancel< button for three seconds. (See.
Cancelling a program)
• After your machine starts operation, if Start/Pause/Cancel
key starts blinking than door is not locked. Open and close
the door again begin washing program again.
• If the “washing” led on the program progress display is blink-
ing either there is no water or tap is off. Check your taps.
Turn your machine off and on. If the problem persists unplug
your machine, turn off tap water and call authorized service.
• If program is started and program selection can not be
performed your machine might be in protection mode due to
infrastructure problem (voltage, water pressure, etc.) Press
and hold the > Start/Pause/Cancel < button for 3 seconds in
order to switch machine to factory settings.
Before starting your machine please beware of below men-
tioned points:
Didyouplugthecable?
Didyouconnectdraininghosecorrectly?
Didyouclosefrontdoor?
Didyouopentapwater?
Sorting the Laundry
Sortlaundryaccordingtotypeoffabric,color,levelofdirtiness
andallowedwashingtemperature.Donotwashwhitelaundry
together with colored ones. Remove hard parts like belt, wrist
button, curtain buttons, etc. or place laundry in a cloth bag.
Empty pockets. Zip up and button up. Very tiny laundry like
baby clothes may get into inside of drum, midst of bellow,
pump lter, hose, etc. in order to prevent this it is advised to
place such laundry in a special laundry string bag or large
laundry.Yourmachinecan wash“Machine Wash”or“No-mat-
ting” labeled woolen with special woolen program. Delicate
laundry with “Do not wash” or “hand wash” label (silk, cash-
mere,purewool,etc.)canbewashedinthespecialhand-wash
program.
Opening front door
Pull the handle to open the front door. Your machine’s front
doorisdesigned foropening duringonlymachineisnotoper-
ating. If the led displays “door” than door can open.
Loading machine with laundry
Fillthemachinebyunfoldingandnotsqueezinglaundry.Place
hand-woven garments inside-out to the machine. Make sure
there is no laundry jammed between bellow and front-door.
Closetheloadingdoorbypushing.Ifloading dooris notprop-
erly closed machine will not start.
Selection of detergent and softener
Quantity of the detergent used depends on hardness of water
andhowsoiledlaundryis.Recommendedvaluesareindicated
on the package. If your laundry is low soiled and/or hardness
of water is low use less detergent as indicated on the package.
Otherwise it may result in excessive foam.
You should use detergent specially designed for automatic
washingmachines.Avoidusingbleachproductcontainingsul-
furorchlorine.Placepowderdetergentandsoftenerinappro-
priatedrawercompartmentandclosedeter-
gent dispenser.

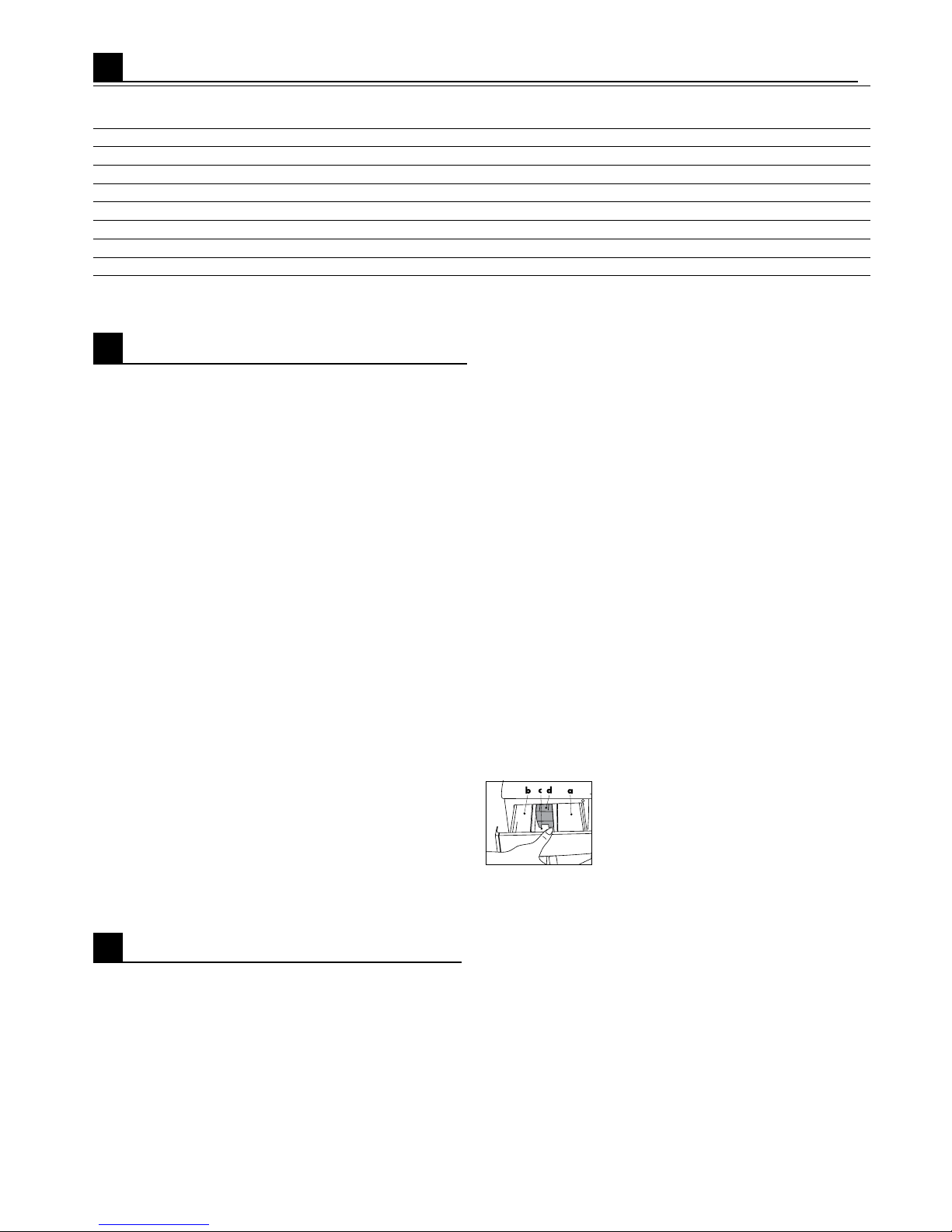

a. powder detergent drawer for pre-wash.
b.powder detergentdrawerformainwash.
c. Softener dispenser
d. Siphon
Fill the softener as indicated (usually <100ml; 1 tea bag) on
package. Never ll more than “MAX” level. Excess amount will
drain to suction cup and be wasted. You might need to ll soft-
ener again. If softener is thickened over time add some water
for thinning. Softener may obstruct siphon and block ow.
Auxiliary Functions
Prewash: To wash the very dirty laundries, you can use this func-
tion in the cotton and synthetic programs.
Rinse Plus: You can increase the number of the current rinsing
cycles by using this function. Thus, the risk of the sensitive skins
get effected by the detergent remaining on the laundry is reduced.
Rinse Hold: If you desire to leave your synthetic and wool
fabrics in the machine after the wash program you may select the
Rinse hold option to prevent them getting wrinkled. If you want to
cancel the “Rinse Hold” function, you have to press on “Start/
Pause/Cancel” button first, select the desired spin speed and
then repress on the “Start/Pause/Cancel” button.
Spin Speed selection button: When you want to reduce the
spin speed to 500 rpm, press this button.
3Warning
4Preparation
Technical Features of Your Washing Machine
There may be changes in the technical features without prior notice in order to enhance product quality. The gures in the manual are schematic and
may not represent your actual machine one-to-one. Labelling on your product and ones declared in the documents accompanying product are the val-
ues obtained under laboratory conditions with given standards. These values may vary according to usage and environmental conditions.
2
Models WML 15040 KL WML 15050 KL WML 15060 E
WML 15060 KL
WML 15080 DL
WML 15080 DB
WML 15080 P
WML 15100 P
WML 15100 DB
Maximum dry laundry capacity (kg.) 5 5 5 5 5
Height x Width x Depth (cm.) 85 x 60 x 54 85 x 60 x 54 85 x 60 x 54 85 x 60 x 54 85 x 60 x 54
Net Weight (kg.) 63 63 62 62 62
Electricity (V/Hz.) 230/50 230/50 230/50 230/50 230/50
Total Current (A) 10 10 10 10 10
Total Power (W) 2350 2350 2350 2350 2350
Washing -rinsing cycle (cyc/min) 52 52 52 52 52
Spinning cycle (max cyc/min) 400 500 600 800 1000

-3- EN
Detergent Dispenser
Powder detergent residue may accumulate in drawer after a
while. In order to clean detergent drawer press the marked
point of the siphon on softener compartment and push the
drawer towards yourself. Wash the drawer with water
Siphon
Do not neglect cleaning suction cup when it becomes soiled.
In order take suction cup out rst take detergent drawer out.
Cleanitinordertoeliminateblockingbysoftenerresidue.After
cleaning place suction cup to its place and make sure it is
placed properly.
Water Inlet Filters
There is a lter at each at end where water inlet hose is con-
nected to tap and at each of water inlet valve placed behind
the machine. These lters blocks entrance of foreign objects
and dirts to the machine. Filters must be cleaned regularly to
avoid clogging. For doing this, turn o tap water. Pull out water
5Care and maintanence
Spin Speed selection knob: With the models that contain a
speed selection knob, you can spin your laundries until 1200 rpm
by using this knob. Your machine will not spin over 800 rpm in
the synthetic programs and over 600 rpm in the woolen pro-
grams in order to protect your laundries. If you want to take out
your laundries without spinning, turn the speed selection knob to
“No Spin” position.
Pressing “On/Off”: You can make the machine ready for
program selection by pressing the “On /off” button. When “On/
Off” button is pressed, “Door” LED is on meaning that “door can
be opened”. To turn off the machine, press the “On/Off” button
again.Pressing the “On/Off” button never means that the program
is started.You must press “Start/Pause/Cancel” button in order
the machine starts its program.

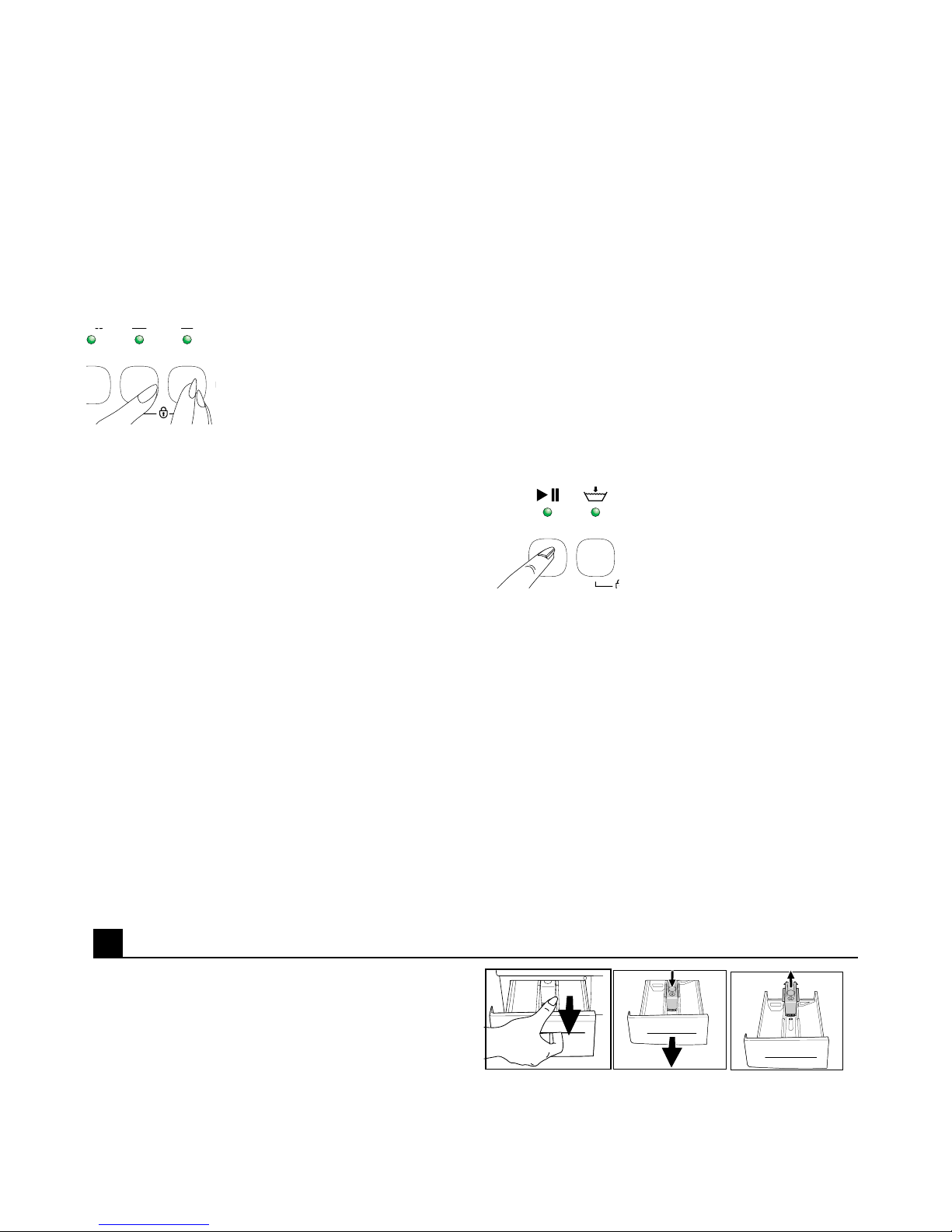

Child-proof lock: “This machine is equipped with a child lock
in order to prevent the program flow to be affected when the
buttons are pressed during washing cycles. In order to enable
the child lock, press and keep pressed the 1st and 2nd auxiliary
function buttons from the left at the same
time for 3 seconds. The light of the 1st
auxiliary function button will flash continu-
ously. After the program completes, it
is necessary to disable the child lock in
order to initiate a new program or interfere
the program. Therefore, when the same
buttons are pressed for 3 seconds, light of
the second auxiliary function will go off.
Function Selection: Depending on the selected program, the
selectable auxiliary functions are selected by pressing the each
function’s button. The light of the selected function comes on.
Since it is not possible to select some of the auxiliary func-
tions together, one of them becomes off when the other one is
selected.
Program Progress
After the machine starts to operate, the related light in the program
follow-up indicator comes on according to the selected program.
When a step is complete, the light of the previous step goes off
and the light of the related step comes on. When On/Off button is
pressed, the “Door” light comes on.After the washing program is
selected, “Washing” light on the program follow-up indicator comes
on when the “Start/Pause/Cancel” button is pressed.When the
program ends “End” light comes on. After the program is complete,
the
machine will not allow you to open the door for a while for your
safety. If you want to open the door meanwhile, the door will not
open and the “Door” light will flash. After the door lock is deactivat-
ed the “Door” and “End” lights will come on. Now you can open the
front door. You can switch your machine in to the “Pause” mode by
pressing the “Start/Pause/Cancel” button while your machine is
operating.In this case, “Start/Pause/Cancel” light will flash. You can
make some changes in the program settings in the Pause mode
(See. Changing the Program) and you may also benefit from the
laundry addition function if the “Pause” mode is selected at a
suitable step of the program (See. Laundry addition function). In
order to return to the “Washing” mode from the “Pause” mode,
you need to press the “Start/Pause/Cancel” button again. In this
case, “Start/Pause/Cancel” light will flash and your machine will
resume its program.
Changing Program
Even if a new program is selected by changing the position of
program selection knob while your machine is operating, the first
selected program continues to run.In order to change the wash-
ing program, the ongoing program should be cancelled. (See.
Cancelling a program)
In order to change the auxiliary functions while your machine is
operating, you can make any desired changes after pressing the
“Start/Pause/Cancel” button.
If you want to change the spin speed while your machine is
operating, press the “Start/Pause/Cancel” button, select the spin
speed and press the “Start/Pause/Cancel” button again.
Adding laundry
If you want to add laundry to your machine after the washing
program starts, switch the machine to pause mode by pressing
“Start/Pause/Cancel” button. If the water level in the machine
is suitable, the “Door” light on the program follow-up indicator
comes on approximately 2 minutes later and you can open the
door and add laundry. If the “Door” light is not
continuously on at the end of this period, the water level in the
machine is not suitable and you can not add laundry. You can
resume the program by pressing “Start/Pause/Cancel” button
again.
Canceling a Program
In order to cancel the selected program, “Start/Pause/Cancel”
button is pressed for 3 seconds and machine starts to drain at
the end of this time. Meanwhile, “Washing” and “End” lights are
on. After the drainage process completes “Start/Pause/Cancel”
and “Washing” lights are off. “Door” light starts to flash. When the
“Door” light is on continuously, the door
can be opened and a new program can
be selected. You can start a program
by selecting a new program.
The selected program continues to run
even if the position of program selection
knob is changed while your machine is
operating. In order to change the wash-
ing program, a new program can be
selected and started after “Cancelling a program” by pressing the
“Start/Pause/Cancel” button for 3 seconds as described above.
End of Program
When the program ends “End” light on the program follow-up
indicator comes on. “End” and “Door” lights come on within two
minutes after the door is opened, the machine becomes ready for
the next washing. If any of the buttons is pressed or the posi-
tion of the selection knob is changed when the machine is at the
end of a program, “End” light goes off and only the “Door” light
remains on. Meanwhile, if the door is still locked, the “Door” light
flashes until the door is opened. To turn the machine off, press
the “On/Off” button.
Emptying Laundry
Your machine stops automatically when the program ends. Turn
off the taps. Grab and pull the handle to open the door. Press
“On/Off” button to turn off your machine. After you take the laun-
dries out, leave the front door open and ventilate the inside of the
machine. Check the inside of the bellows and wipe it.

-4- EN
inlet hoses. Clean the top of the water inlet valve lter with a
brush. If lters are extremely clogged you can pull it out with a
pincer.Youcantakeouttheflatsideofwaterinlethoseswithits
sealandcleanwithtapwater.
Hose
Thereisriskoffreezingincoldregion,ifyourmachineisplaced
inacoldplaceremainingwaterinhosesmustbedrainedwith
pumpfilterwhenmachineisnotused.Waterinlethosescanbe
drainedbytakingitoutfromtap.
Cleaning Pump Filter
• Clean the foreign substance filter
periodically at least for once!
• If the foreign substances (coins, buttons, baby socks and
etc.) clog the foamy water pump, clean the filter.
• Before cleaning, empty the water that remains inside first.
• Hot water danger: There may be 15 liters of hot water at
90°C in the machine. Open the filter carefully.
Drain the water completely in the following situations...
• before cleaning the foreign substance filter;
• before transporting the machine ( for example moving into
a new house);
• when there is a risk of freezing.
1.Turnoffthe appliance, unplug the power cable and close
thetap.Waitforthehotsoapy watertocool enough.Other-
wise, there is a risk of scalding.
2. Open the service cover by pressing the button. In order
topreventthelittleamountofwaterthatisinsidepumpspill-
ingoverthefloor, put a container in front of thefiltercover.
Take out the filter by turning anticlockwise.
3. To loosen the foreign substance filter, turn it half turn
(anticlockwise) and take the remaining water with a cloth.
Whenthereisnowater,turntheforeignsubstancefilteruntil
it is totally released and take it out.
4. Clean the foreign substance filter and pump opening.
5. Reinstall the foreign substance filter and turn it tightly
(clockwise).
6. Close the service cover.
1. Removing the transportation safety bolts
Beforethewashingmachineisoperated, the transit bars must
be removed! In order to do this:
1. Loosen “C” bolts by rotating them counter clockwise with a
suitable spanner
2. Remove transportation safety bolts by turning.
3. Place “P” plastic covers onto the openings of transportation
locks by rotating in direction of arrow and pushing.
Attention please! Keep the transit safety bolts for using when
machine is to be transported again. Always transport your
machine with transportation locks.
2. Leveling the feet
In order to operate your machine without
noise and vibration it must be properly on
balance. Four feet of your machine can be
adjusted. First loosen the plastic counter
bolt.Tightenthecounterboltafteradjusting
the feet for leveling your machine.
3. Water Connections
a) Water Inlet Hose: Your machine is connect-
ed to water supply by special hoses supplied
by the machine.
There are plastic seals on hose or plastic bag
for eliminating any leakage in connections
points. These seals must be used on each
side of the connection. Seals on machine side must be con-
nected lter cannal.
After connecting the hose, check all connections for leaks In
order to eliminate any risk due to water leakage keep the taps
o when machine is not used.
Your machine will operate eciently if the water from tap is
minimum 1 and maximum 10 bars. Practically 1 bar means 8
liters of water in one minute when tap is fully on.
Connect hose to the machine. Tighten bolts with hand power,
do not use spanner.
Do not connect single inlet machine to hot water. If machine is
connected with Y part to a double inlet and over 40˚C for single
inlet machines, machine may switch to protection mode.
b) Water drain hose: Water drain hose could be placed either
at the side of the bath tub, or directly to the drain. The hose
should not be bent. Water drain hose should be secured with
the holder so that it would not fall down on the ground.
The hose should be placed between 40 and 100 cm. from the
ground. Water drain hose could be placed directly to the drain
water inlet.
4. Electrical connection
Connect the power cord to the appropirate electrical system
whichisbeingsupportedbythemaximumvoltageandcurrent
rating indicated on the rating plate placed on the washing
machine.
Look! Page 1, Steps before operating Fullautomatic Wash-
ing Machine and safety precautions. Make sure that you have
grounded power outlet.
You turned the machine on, but the leds are off on the
panel.
Check the grounding on the power cable or a blown fuse.
Check the front door proper closure.
Machine does not take water.
Check the front door for proper closure. Either taps are closed
or water intake lters are clogged.
Taken water is directly discharged.
Check if the discharge hose placed as described in the users
manual or not.
Water coming from beneath the machine.
Check the water intake and drain hoses. Tighten the connec-
tions. The washers of the hoses may be worn out. If non of the
both, the pump lter is not closed properly.
Foam coming out of the detergent dispenser.
Check whether your detergent is suitable for automatic ma-
chines. Next time use less detergent.
Pump does not drain water.
Clean the pump lter. Check whether the drain hose is bent or
not. If there is need to clean the pump lter, refer to the pump
lter cleaning section of the manual.
Installation
6
Before calling service
7
