BEKOMAT GNE V 222S User manual
GNE V 222S
GNE V 220 X
GNE V 220 S
GNE V 222 X
Refrigerator
Réfrigérateur
Gefrierschrank
Koelkast
Frigorífico
Холодильники
Please read this user manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you an
effective service.
Therefore, read this entire user manual carefully before using the product and keep
it as a reference. If you handover the product to someone else, give the user manual
as well.
The user manual will help you use the product in a fast and safe way.
• Read the manual before installing and operating the product.
• Make sure you read the safety instructions.
• Keep the manual in an easily accessible place as you may need it later.
• Read the other documents given with the product.
Remember that this user manual is also applicable for several other models.
Differences between models will be identified in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
CImportant information or useful tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.
EN
2
1 The refrigerator 3
2 Important Safety Warnings 4
Intended use........................................ 4
General safety..................................... 4
For products with a water dispenser;.... 6
Child safety.......................................... 6
Compliance with WEEE Directive and
Disposing of the Waste Product: ......... 6
Package information ............................ 7
HCA warning ....................................... 7
Things to be done for energy saving..... 7
Recommendations for the fresh food
compartment ....................................... 8
3 Installation 9
Points to be considered when re-
transporting your refrigerator ................ 9
Before operating your refrigerator......... 9
Electric connection............................... 9
Changing the illumination lamp .......... 10
Disposing of the packaging ................ 10
Disposing of your old refrigerator........ 10
Placing and Installation....................... 10
Floor balance adjustment................... 11
Adjusting the gap between the upper
door .................................................. 13
4 Preparation 14
5 Using your refrigerator 15
Indicator Panel................................... 15
Setting the fridge compartment
temperature....................................... 16
Setting the freezer compartment
temperature....................................... 16
Fast Freeze function........................... 16
Quick cool function ............................ 17
Egg tray............................................. 17
Sliding Body Shelves.......................... 17
Multi-purpose Shelf, Canned Drink and
Shelter............................................... 18
Blue light ........................................... 18
Crisper humidity control sliders........... 18
Ion: ................................................... 18
Recommendations for preservation of
frozen food ........................................ 19
Defrosting.......................................... 19
Replacing the Interior Light Bulb......... 19
Using the Icematic ............................. 22
Chiller compartment........................... 22
Water Dispenser ................................ 23
*optional ............................................ 23
Description and cleaning of odor filter: 25
6 Maintenance and cleaning26
Protection of plastic surfaces ............ 26
7 Recommended solutions for
the problems 27
CONTENTS
EN
3

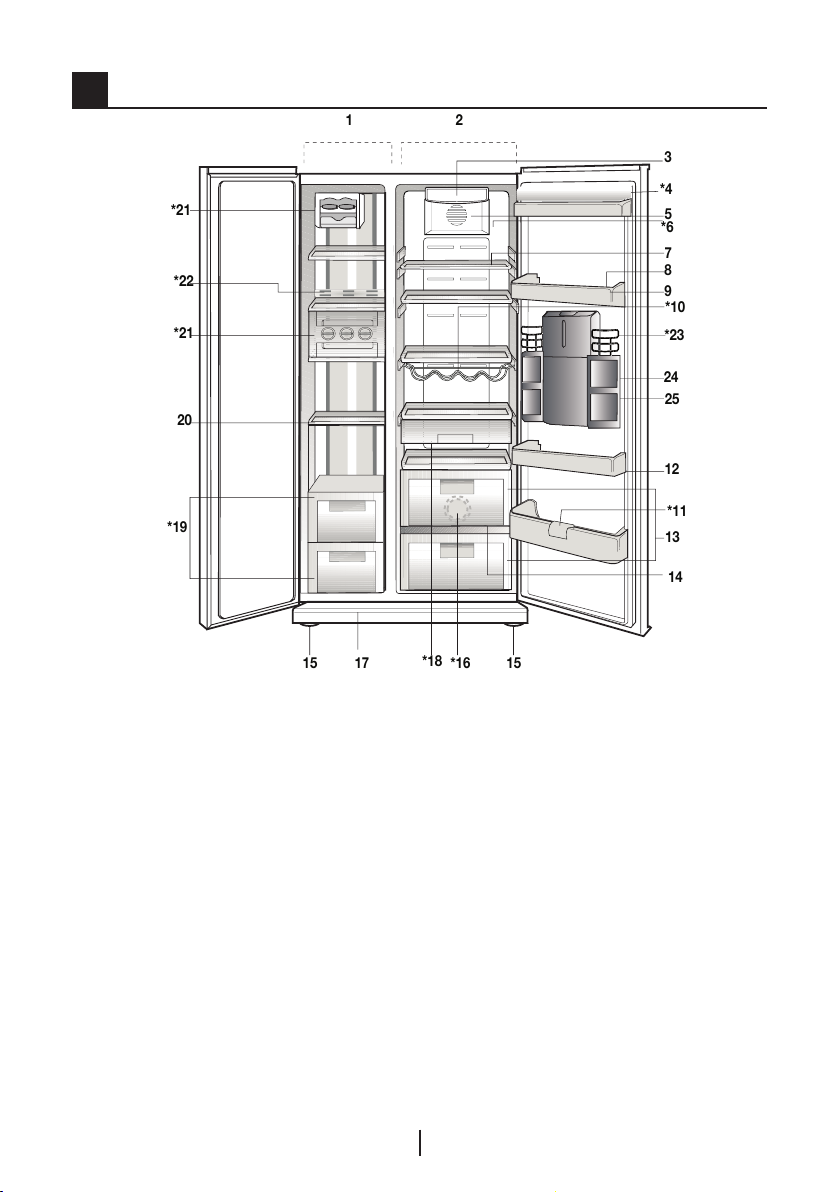

1The refrigerator
21
8
9
*11
17
7
15
*18
*4
15
3
5
20
*19
*6
*10
13
14
*16
*22
*21
*21
24
25
*23
12
1. Freezer compartment
2. Fridge compartment
3. Fridge compartment interior light
4. Butter & Cheese shelf
5. Fan
6. Ioniser
7. Fridge compartment glass shelves
8. Egg tray
9. Fridge compartment door racks
10.Wine cellar
11.Bottle holder
12.Bottle shelves
13.Crisper compartments
14.Crisper cover
15.Adjustable front legs
16.Blue light
17.Ventilation lid
18.Chiller compartment
19.Freezer compartment drawers
20.Freezer Compartment glass shelves
21.Icematic
22.Freezer compartment interior light
23.Shelter
24.Multi-purpose shelf
25.Water Dispenser
* OPTIONAL
CFigures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.
EN
4
2Important Safety Warnings
Please review the following
information. Failure to observe this
information may cause injuries or
material damage. Otherwise, all
warranty and reliability commitments
will become invalid.
The service life of your product is 10
years. During this period, original spare
parts will be available to operate the
product properly.
Intended use
This product is intended to be used
• indoors and in closed areas such as
homes;
• in closed working environments such
as stores and offices;
• in closed accommodation areas such
as farm houses, hotels, pensions.
• It should not be used outdoors.
General safety
• When you want to dispose/scrap
the product, we recommend you
to consult the authorized service in
order to learn the required information
and authorized bodies.
• Consult your authorized service for
all your questions and problems
related to the refrigerator. Do not
intervene or let someone intervene to
the refrigerator without notifying the
authorised services.
• For products with a freezer
compartment; Do not eat cone ice
cream and ice cubes immediately
after you take them out of the freezer
compartment! (This may cause
frostbite in your mouth.)
• For products with a freezer
compartment; Do not put bottled and
canned liquid beverages in the freezer
compartment. Otherwise, these may
burst.
• Do not touch frozen food by hand;
they may stick to your hand.
• Unplug your refrigerator before
cleaning or defrosting.
• Vapor and vaporized cleaning
materials should never be used in
cleaning and defrosting processes of
your refrigerator. In such cases, the
vapor may get in contact with the
electrical parts and cause short circuit
or electric shock.
• Never use the parts on your
refrigerator such as the door as a
means of support or step.
• Do not use electrical devices inside
the refrigerator.
• Do not damage the parts, where
the refrigerant is circulating, with
drilling or cutting tools. The refrigerant
that might blow out when the gas
channels of the evaporator, pipe
extensions or surface coatings are
punctured causes skin irritations and
eye injuries.
• Do not cover or block the ventilation
holes on your refrigerator with any
material.
• Electrical devices must be repaired
by only authorised persons. Repairs
performed by incompetent persons
create a risk for the user.
EN
5
• In case of any failure or during
a maintenance or repair work,
disconnect your refrigerator’s mains
supply by either turning off the
relevant fuse or unplugging your
appliance.
• Do not pull by the cable when pulling
off the plug.
• Place the beverage with higher proofs
tightly closed and vertically.
• Never store spray cans containing
flammable and explosive substances
in the refrigerator.
• Do not use mechanical devices
or other means to accelerate the
defrosting process, other than those
recommended by the manufacturer.
• This product is not intended to be
used by persons with physical,
sensory or mental disorders or
unlearned or inexperienced people
(including children) unless they are
attended by a person who will be
responsible for their safety or who will
instruct them accordingly for use of
the product
• Do not operate a damaged
refrigerator. Consult with the service
agent if you have any concerns.
• Electrical safety of your refrigerator
shall be guaranteed only if the earth
system in your house complies with
standards.
• Exposing the product to rain, snow,
sun and wind is dangerous with
respect to electrical safety.
• Contact authorized service when
there is a power cable damage to
avoid danger.
• Never plug the refrigerator into
the wall outlet during installation.
Otherwise, risk of death or serious
injury may arise.
• This refrigerator is intended for only
storing food items. It must not be
used for any other purpose.
• Label of technical specifications is
located on the left wall inside the
refrigerator.
• Never connect your refrigerator to
electricity-saving systems; they may
damage the refrigerator.
• If there is a blue light on the
refrigerator, do not look at the blue
light with optical tools.
• For manually controlled refrigerators,
wait for at least 5 minutes to start the
refrigerator after power failure.
• This operation manual should be
handed in to the new owner of the
product when it is given to others.
• Avoid causing damage on power
cable when transporting the
refrigerator. Bending cable may cause
fire. Never place heavy objects on
power cable.
• Do not touch the plug with wet hands
when plugging the product.
EN
6
• Do not plug the refrigerator if the wall
outlet is loose.
• Water should not be sprayed on
inner or outer parts of the product for
safety purposes.
• Do not spray substances containing
inflammable gases such as propane
gas near the refrigerator to avoid fire
and explosion risk.
• Never place containers filled with
water on top of the refrigerator; in the
event of spillages, this may cause
electric shock or fire.
• Do not overload the refrigerator with
food. If overloaded, the food items
may fall down and hurt you and
damage refrigerator when you open
the door.
• Never place objects on top of the
refrigerator; otherwise, these objects
may fall down when you open or
close the refrigerator's door.
• As they require a precise
temperature, vaccines, heat-sensitive
medicine and scientific materials
and etc. should not be kept in the
refrigerator.
• If not to be used for a long time,
refrigerator should be unplugged. A
possible problem in power cable may
cause fire.
• The plug's tip should be cleaned
regularly with a dry cloth; otherwise, it
may cause fire.
• Refrigerator may move if adjustable
legs are not properly secured on the
floor. Properly securing adjustable
legs on the floor can prevent the
refrigerator to move.
• When carrying the refrigerator, do not
hold it from door handle. Otherwise, it
may be snapped.
• When you have to place your product
next to another refrigerator or freezer,
the distance between devices should
be at least 8cm. Otherwise, adjacent
side walls may be humidified.
For products with a water
dispenser;
Pressure of water mains should be
minimum 1 bar. Pressure of water
mains should be maximum 8 bars.
• Use only potable water.
Child safety
• If the door has a lock, the key should
be kept away from reach of children.
• Children must be supervised to
prevent them from tampering with the
product.
Compliance with WEEE
Directive and Disposing of
the Waste Product:
This product complies
with EU WEEE Directive
(2012/19/EU). This product
bears a classification
symbol for waste electrical
and electronic equipment
.((WEEE
This product has been manufactured
with high quality parts and materials
which can be reused and are suitable
for recycling. Therefore, do not dispose
the product with normal domestic
EN
7
waste at the end of its service life. Take
it to a collection point for the recycling
of electrical and electronic equipment.
Please consult your local authorities
to learn the nearest collection point.
Help protect the environment and
natural resources by recycling used
products. For children's safety, cut the
power cable and break the locking
mechanism of the door, if any, so
that it will be non-functional before
disposing of the product.
Package information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations. Do
not dispose of the packaging materials
together with the domestic or other
wastes. Take them to the packaging
material collection points designated
by the local authorities.
Do not forget...
Any recycled substance is an
indispensable matter for nature and
our national asset wealth.
If you want to contribute to the
re-evaluation of the packaging
materials, you can consult to your
environmentalist organizations or the
municipalities where you are located.
HCA warning
If your product's cooling system
contains R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage and
transportation. In the event of damage,
keep your product away from potential
fire sources that can cause the
product catch a fire and ventilate the
room in which the unit is placed.
Ignore this warning if your
product's cooling system contains
R134a.
Type of gas used in the product is
stated in the type label which is on the
left wall inside the refrigerator.
Never throw the product in fire for
disposal.
Things to be done for energy
saving
• Do not leave the doors of your
refrigerator open for a long time.
• Do not put hot food or drinks in your
refrigerator.
• Do not overload your refrigerator so
that the air circulation inside of it is not
prevented.
• Do not install your refrigerator
under direct sunlight or near heat
emitting appliances such as ovens,
dishwashers or radiators. Keep your
refrigerator at least 30cm away from
heat emitting sources and at least
5cm from electrical ovens.
• Pay attention to keep your food in
closed containers.
EN
8

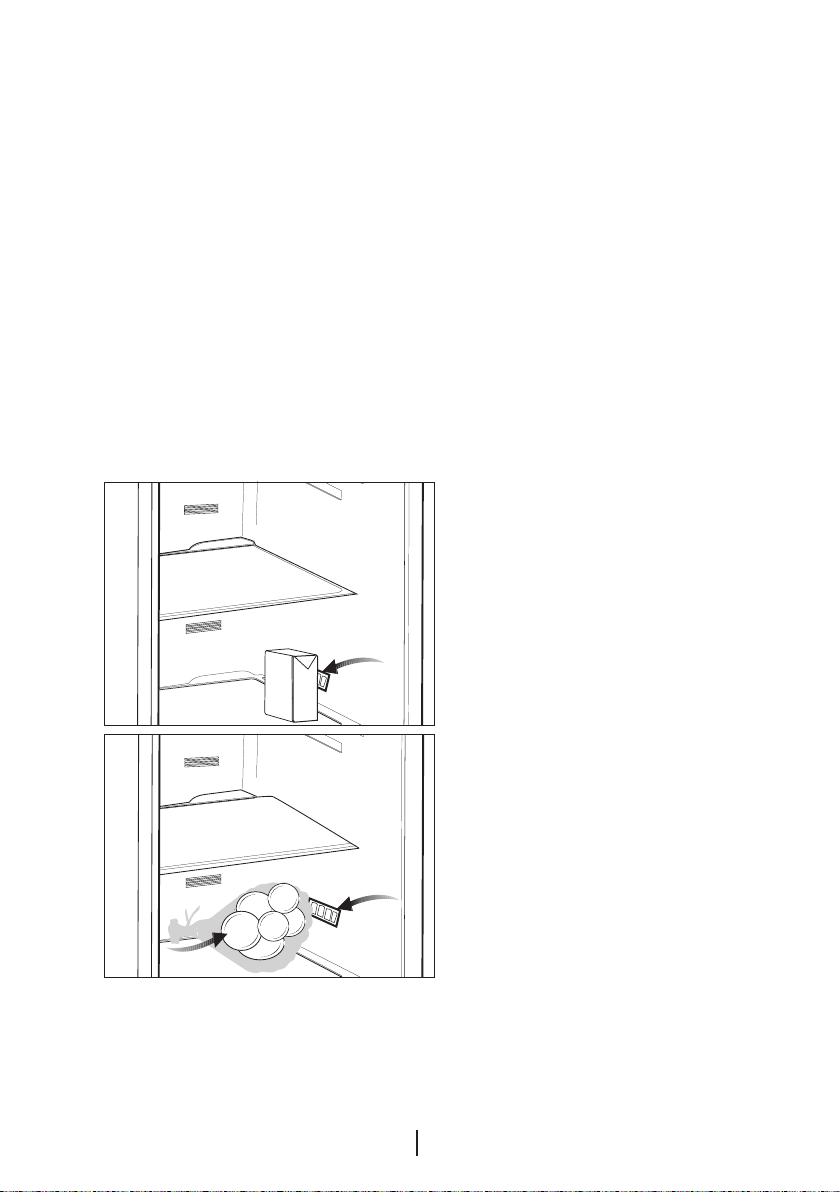

Recommendations for the
fresh food compartment
*optional
•Donotallowthefoodtotouchthe
temperature sensor in fresh food
compartment. To allow the fresh food
compartment keep its ideal storage
temperature, sensor must not be
hindered by food.
•Donotplacehotfoodsinthe
product.
temperature
sensor
food
MILK
juice
etc.
temperature
sensor
temperature
sensor
food
MILK
juice
etc.
temperature
sensor
• For products with a freezer
compartment; You can store
maximum amount of food items in
the freezer when you remove the
shelf or drawer of the freezer. Energy
consumption value stated for your
refrigerator has been determined
by removing freezer shelf or drawer
and under maximum load. There
is no harm to use a shelf or drawer
according to the shapes and size of
food to be frozen.
• Thawing frozen food in fridge
compartment will both provide energy
saving and preserve the food quality.
EN
9
3Installation
CPlease remember that the
manufacturer shall not be held liable if
the information given in the instruction
manual is not observed.
Points to be considered
when re-transporting your
refrigerator
1. Your refrigerator must be
emptied and cleaned prior to any
transportation.
2. Shelves, accessories, crisper and etc.
in your refrigerator must be fastened
securely by adhesive tape against any
jolt before repackaging.
3. Packaging must be tied with thick
tapes and strong ropes and the
rules of transportation printed on the
package must be followed.
CAlways remember...
Every recycled material is an
indispensable source for the nature
and for our national resources.
If you wish to contribute to recycling
the packaging materials, you can
get further information from the
environmental bodies or local
authorities.
Before operating your
refrigerator
Before starting to use your refrigerator
check the following:
1. Is the interior of the refrigerator dry
and can the air circulate freely in the
rear of it?
2. Clean the interior of the refrigerator as
recommended in the “Maintenance
and cleaning” section.
3. Insert the 2 plastic wedges onto the
rear ventilation as illustrated in the
following figure. Unscrew the existing
ones and use the screws given in the
same bag of wedges. Plastic wedges
will provide the required distance
between your refrigerator and the wall
in order to allow the air circulation.
4. Plug the refrigerator into the wall
outlet. When the door is open the
respective interior light will come on.
5. You will hear a noise as the
compressor starts up. The liquid and
gases sealed within the refrigeration
system may also give rise to noise,
even if the compressor is not running
and this is quite normal.
6. Front edges of the refrigerator may
feel warm. This is normal. These
areas are designed to be warm to
avoid condensation.
Electric connection
Connect your refrigerator to a
grounded socket which is being
protected by a fuse with the
appropriate capacity.
EN
10
Important:
BThe connection must be in
compliance with national regulations.
BThe power cable plug must be easily
accessible after installation.
BThe specified voltage must be equal
to your mains voltage.
BExtension cables and multiway plugs
must not be used for connection.
BA damaged power cable must be
replaced by a qualified electrician.
BThe appliance must not be operated
before it is repaired! There is danger
of electric shock!
Disposing of the packaging
AThe packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose them of by
classifying them in accordance
with the waste instructions. Do not
dispose them of along with the normal
household waste.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old machine without
giving any harm to the environment.
AYou may consult your authorized
dealer or waste collection center of
your municipality about the disposal
of your refrigerator.
ABefore disposing of your refrigerator,
cut out the electric plug and, if there
are any locks on the door, make them
inoperable in order to protect children
against any danger.
Placing and Installation
BCaution: Never plug the refrigerator
into the wall outlet during installation.
Otherwise, risk of death or serious
injury may arise.
AIf the entrance door of the room
where the refrigerator will be installed is
not wide enough for the refrigerator to
pass through, than call the authorised
service to have them remove the
doors of your refrigerator and pass it
sideways through the door.
1. Install your refrigerator to a place
that allows ease of use.
2. Keep your refrigerator away from
heat sources, humid places and direct
sunlight.
3. There must be appropriate air
ventilation around your refrigerator in
order to achieve an efficient operation.
If the refrigerator is to be placed in a
recess in the wall, there must be at
least 5 cm distance with the ceiling
and at least 5 cm with the wall.
If the floor is covered with a carpet,
your product must be elevated 2.5 cm
from the floor.
4. Place your refrigerator on an even
floor surface to prevent jolts.
Changing the illumination
lamp
To change the Bulb/LED used for
illumination of your refrigerator, call
your Authorized Service.
EN
11
(A)
(B)
4
1 2 3
(C)
2
2
Floor balance adjustment
If your refrigerator is unbalanced;
You can balance your refrigerator by
turning the front legs of it as illustrated
in the figure. (See Figure A) The corner
where the leg exists is lowered when
you turn in the direction of black
arrow and raised when you turn in the
opposite direction. Taking help from
someone to slightly lift the refrigerator
will facilitate this process.
Door height adjustment
In case there is a problem with the
alignment of the doors with respect
to each other, they may be re-aligned
vertically in the order given below.
Ensure that door shelves are empty
when adjusting the door height.
1. Remove the lower ventilation cover
by unscrewing its screws as shown in
the figure below. (See Figure B)
2. Loosen the three screws of the
hinges of the lower door, which you
wish to escalate, with the help of a
screwdriver as shown in the figure
below. (Do not remove completely)
(See Figure C)
EN
12
(D)
•Ifthefreezercompartmentdooris
lower than the fridge compartment
door, bring them to the same level by
turning the turning the elevation screw
on the freezer compartment side in
the direction of arrow using a M6 Allen
wrench as illustrated in Figure D.
•Ifthefreezercompartmentdooris
higher than the fridge compartment
door, bring them to the same level
by turning the elevation screw on
the freezer compartment side in the
reverse direction of arrow using a M6
Allen wrench as illustrated in Figure D.
After bringing the doors to the same
level by elevating the front part with
the aid of the elevation screws,ensure
the doors of the refrigerator shall close
properly. If the doors do not close
properly, this might adversely affect the
efficiency of the refrigerator.
EN
13
Adjusting the gap between
the upper door
CYou can adjust the gap between
the fridge compartment doors as
illustrated in the figures.
Door shelves should be empty when
adjusting the door height.
Because of being wires in the
hinge cover of the freezer door,
switch off the refrigerator power
before removing hinge covers and
this situation should be made to
take care.
C Using a screwdriver, remove the
screw of upper hinge cover of the door
you want to adjust.
C Adjust the door appropriately as
you desire by loosing the screws.
C Fix the door you have adjusted by
tightening the screws without changing
the position of the door.
C Replace the hinge cover and fix
with the screw.
EN
14
4Preparation
CYour refrigerator should be installed at
least 30 cm away from heat sources
such as hobs, ovens, central heater
and stoves and at least 5 cm away
from electrical ovens and should not
be located under direct sunlight.
CThe ambient temperature of
the room where you install your
refrigerator should at least be 10°C.
Operating your refrigerator under
cooler conditions than this is not
recommended with regard to its
efficiency.
CPlease make sure that the interior
of your refrigerator is cleaned
thoroughly.
CIf two refrigerators are to be installed
side by side, there should be at least
2 cm distance between them.
CWhen you operate your refrigerator
for the first time, please observe the
following instructions during the initial
six hours.
- The door should not be opened
frequently.
- It must be operated empty without
any food in it.
- Do not unplug your refrigerator. If
a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for the
problems” section.
COriginal packaging and foam
materials should be kept for future
transportations or moving.
EN
15
5Using your refrigerator
215 41 5
3
12 13 10
9 6
8
147 11
Indicator Panel
1. Freezer compartment temperature
setting indicator
2. Freezer compartment temperature
setting button
3. Fast Freeze indicator
4. Fast Freeze Button
5. Freezer door open indicator
6. Fridge compartment temperature
button
7. High humidity indicator
8. Fridge Compartment Temperature
Setting Indicator
9. Error indicator
10.Fridge compartment temperature
change indicator
11.Quick cool indicator
12.Quick cool button
13.Fridge compartment door open
indicator
14.Economy mode
15.Freezer compartment temperature
change indicator
Indicator panel aids in using your refrigerator with its audio and visual functions.
This panel allows you to start and use all functions of your refrigerator without
opening its doors since the panel is located on the outer side of the freezer
compartment door.
CFigures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.
EN
16
Setting the fridge
compartment temperature
When you want to change your
refrigerator’s temperature settings,
you need to press the “Fridge
compartment temperature
adjustment button” to make the
fridge compartment temperature
adjustment. The fridge compartment
temperature can be set to cooler
degrees every time you press on the
button (such as 8, 6, 4, 2, 8, …).
Setting the freezer
compartment temperature
When you want to change your
refrigerator’s temperature settings,
you need to press the “Freezer
compartment temperature
adjustment button” to make the
freezer compartment temperature
adjustment. The freezer compartment
temperature can be set to cooler
degrees every time you press on the
button (such as, -18, -20, -22, -24,
-18, …).
Fast Freeze function
You can use this function of your
refrigerator to rapidly freeze the food
you put into the freezer compartment
for the first time or to obtain ice more
quickly. If you want to keep your food
frozen for a long period, first apply
the fast freeze function to them. Fast
freeze is the healthiest way of keeping
the food for a long time. Temperature
of your refrigerator’s freezer
compartment drops down to -27°C
during fast freeze process. You must
read Part 4 carefully before applying
fast freeze process to your food.
When you want to use the “Fast
Freeze” function, press the fast freeze
button. Fast freeze indicator lights up
when you press the button. Freezer
Compartment Temperature Adjustment
Indicator turns to -27°C. While fast
freeze function is activated, this
compartment reaches colder degrees
than the adjusted values and all of
the freezer compartment temperature
indicators may light up. Fast Freeze
function lasts for maximum 24 hours.
Your refrigerator will automatically
exit the fast freeze mode once the
fast freeze process is completed, fast
freeze indicator lamp will go off and
the refrigerator will turn back to the
previously adjusted temperatures.
Freezer compartment temperature
indicators will gradually go off until the
adjusted temperature value is attained.
If you have unintentionally switched
your refrigerator to fast freeze mode or
if you want to cancel the process, just
press the “Fast Freeze” button again
to exit the fast freeze mode.
If you want to freeze large amounts of
fresh food, press the fast freeze button
24 hours before putting the food into
the freezer compartment.
EN
17
Quick cool function
This function can be used for food
placed in the fridge compartment and
desired to be cooled down rapidly.
Press quick cool button to activate the
function. During this process, the quick
cool indicator will light up and fridge
compartment temperature adjustment
indicator will turn into 1°C. While
quick cool function is activated, this
compartment reaches colder degrees
than the adjusted values. Meanwhile,
all of the temperature indicators of
the fridge compartment may light up.
Quick cool process will take about 2
hours and at the end of this period, the
quick cool indicator lamp will go off,
and the refrigerator will turn back to
the previously adjusted temperatures.

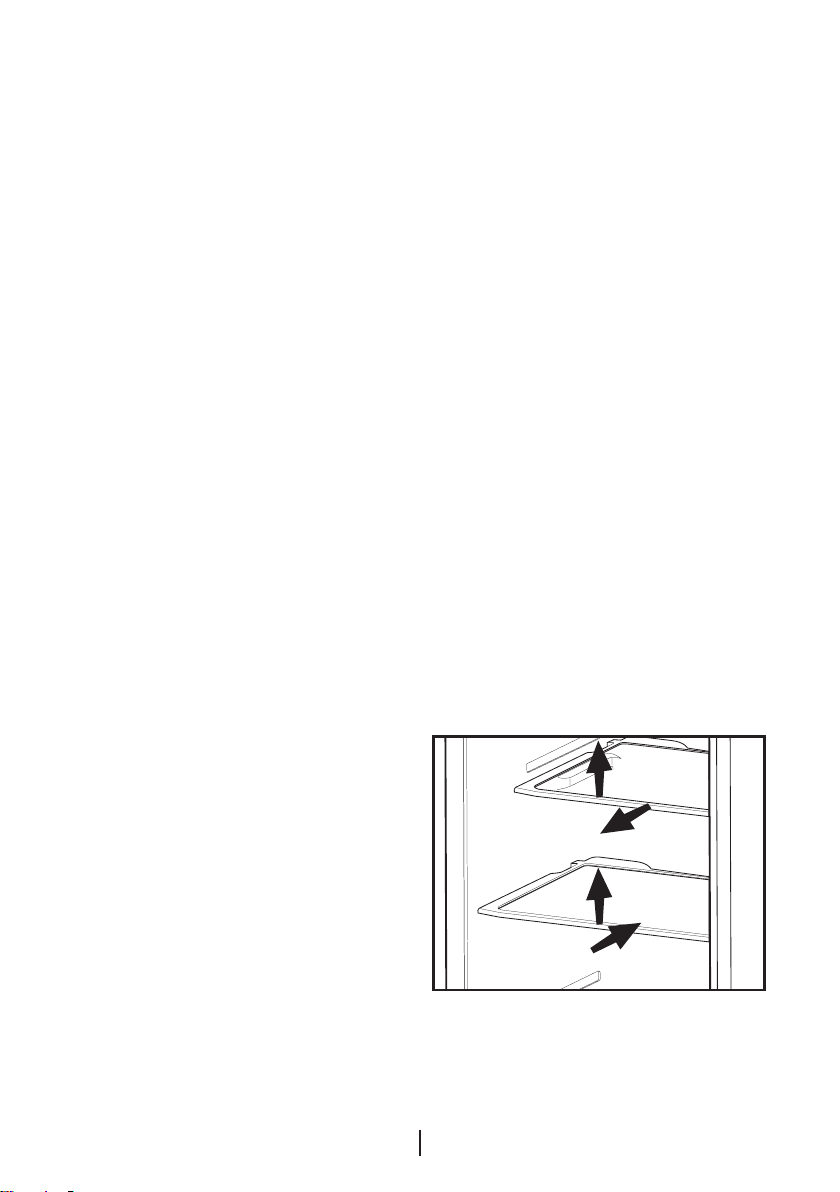

Sliding Body Shelves
Sliding body shelves can be pulled
by slightly lifting up from the front and
moved back and forth. They come to
a stop point when pulled towards front
to allow you reach the foods placed at
the back of the shelf; when it is pulled
after slightly lifted upwards at the
second stop point, the body shelf will
be released.
The shelf should be hold tightly from
the bottom as well in order to prevent
it from tipping over. The body shelf is
placed on the rails at the sides of the
refrigerator body by bringing it to one
lower or one upper level.
The body shelf should be pushed
backwards to seat it completely.
1
2
3
4
Egg tray
You can install the egg holder to the
desired door or body shelf.
Never store the egg holder in the
freezer compartment
EN
18
Blue light
Foodstuff stored in the crispers that
are enlightened with a blue light
continue their photosynthesis by
means of the wavelength effect of blue
light and thus, preserve their freshness
and increase their vitamin content.

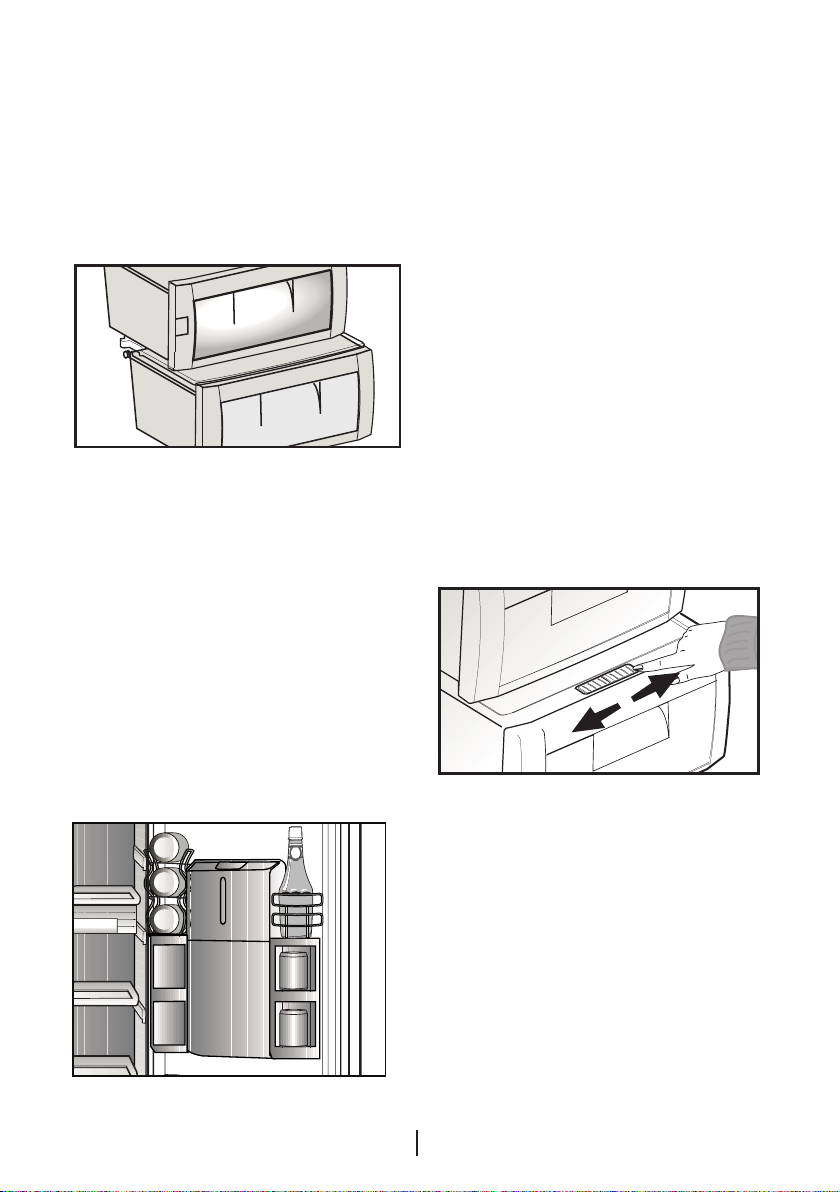

Crisper humidity control
sliders
Crisper of your refrigerator is designed
specially to keep your vegetables
freshly without loosing their humidity.
Cold air circulates basically around
the crisper and the amount of the
cold air passing through the crisper is
controlled by the sliders on the front
side of the crisper cover.
You can adjust the humidity control
sliders to a suitable position according
to the humidity and cooling condition
of your food in the crisper.
If you want your food in the crisper
to cool more, open the holes of the
humidity control sliders and if you
want them to cool less and keep their
humidity for a longer time, close the
holes.
Multi-purpose Shelf, Canned
Drink and Shelter
(May not be available in some
models.)
•Youmayuseyourmulti-purpose
shelf for foods in appropriate
dimensions as seen in the figure.
•Youmayusethiscompartmentto
preserve foods and drinks that can fit
into the shelter. (Ketchup, mayonnaise,
etc.)
•Youmayusethecanneddrinkshelf
by laying your beverages horizontally.
Ion:
Air is ionized by means of the ionizer
system in the fridge compartment air
duct. Thanks to this system, air-borne
bacteria and particles that cause odor
are removed.
EN
19
Recommendations for
preservation of frozen food
•Prepackedcommerciallyfrozen
food should be stored in accordance
with the frozen food manufacturer's
instructions for a ( 4 star) frozen
food storage compartment.
•Toensurethatthehighquality
supplied by the frozen food
manufacturer and the food retailer is
maintained, following points should be
noted:
1.Put packets in the freezer as quickly
as possible after purchase.
2.Ensure that contents are labelled
and dated.
3. Make sure that the "Use By", "Best
Before" dates on the packaging are
not expired.
If there is a power failure do not
open the freezer door. Even if the
power failure lasts up to the time
specified on Type Label (inside left of
the refrigerator), frozen food will not
be affected. In case the failure lasts
longer, the food must be checked and
when necessary, must be consumed
immediately or must be frozen after
cooked.
Defrosting
The fridge and freezer compartments
defrost automatically.
Replacing the Interior Light
Bulb
Should the light fail to work, proceed
as follows:
1. Switch off at the socket outlet and
pull out the mains plug.
Remove all shelves and drawers for
easy access.
2. Illumination covers in freezer and
fridge sections are opened by pressing
by hand; first release one side and
then the other by pressing on the sides
as shown in the figures.
3. First check that the bulb has not
worked loose by ensuring that it
is screwed securely in the holder.
Reinsert the plug and switch on. If the
bulb works, reinstall the light cover by
inserting the rear lug and pushing up
to locate the front two lugs.
4. If the light still fails to work, switch
off at the socket outlet and pull out
the mains plug. Replace the bulb with
a new 15 watt (max) screw cap E14
(SES) bulb.
5. Carefully dispose of the burnt-out
light bulb immediately.
Replacement light bulb can easily be
obtained from a good local electrical or
DIY store.
* OPTIONAL
* OPTIONAL
This manual suits for next models
3
Table of contents
Languages:
