Belifu AS8015 User manual

1

2
ACTIVATE YOUR 24 MONTH
WARRANTY & GET SPARE PADS
Register within 2 weeks after receiving
your tens unit
PLEASE VISIT NOW
www.belifu.co/warranty
CUSTOMER SERVICE
[e-mail]
@Belifu

3
Included in this standard package
Device × 1pc
Large pad × 2pcs
Medium pad × 6pcs
Small pad × 2pcs
Electric wire × 3pcs
When use 4 line cable, make sure to use at lease 1pc
white(positive)+1pc blue line(negative)at the same time.
USB cable × 1pc
Instruction manual × 1pc
Bag × 1pc
Features
4" touch screen
2 output with 24 modes
20 level intensity
20 minutes default timer, can be adjustable from
10-60 minutes
Rechargeable lithium battery
Battery indicator to know when need to recharge battery
AC adapter 110-240v

4
Illustrations of the device and accessories
1. On/ off switch
2. USB port
3. Battery indicator
4. Time
5. LCD screen
6. Two output connector
7. Lock
8. A/B Button
9. Pause
10. Intensity adjustment (+)
11. Intensity adjustment (-)
12. Timer
13. Electrode wires
14. USB cable
15.Electrode pads

5
Modes
There are 24 modes to choose from, there are:
1.Tuina 2.Acupuncture 3.Tapping 4.Pressure
5.Shiatus 6.Cupping 7.Guasha
8. Deep Tissue Massage 9.Waist 10.Body Building
11.Weight Loss 12.Combination 13. Shoulder 14.Neck
15.Back 16.Elbow 17.Hip 18.Ankle 19.Foot
20.Hand 21.Knee 22.Wrist 23.Ear 24.Relax
24 Modes Instruction
1. Tuina (TENS): Simulating Tuina is a hands-on body
treatment which opens the flow of Qi through the meridians. It’s
specially effective for joint pain, sciatica, muscle spasms, and
pain in the back, neck, and shoulders. It also helps chronic
conditions such as insomnia Constipation, headaches, and the
tension associated with stress.
2. Acupuncture (EMS): This mode is used for the points on the
Chinese meridian pressure point chart to assist headaches, a
variety of ailments as well as muscle and joint pain. Particularly
good for fast relief of acute pain.
3.Tapping(TENS):Produce a hard thumping sensation that mass
age your muscles, which can give you an invigorated and revitali
zed feeling.
4.Pressur e(TENS):It is the manipulation of superficial and
deeper layers of muscle and connective tissue using various

6
techniques. Can enhance function, aid in the healing process,
decrease muscle reflex activity, inhibit motor-neuron excitability,
promote relaxation,recreational and well-being.
4. Shiatus (TENS): It is a type of alternative medicine
consisting of finger and palm pressure, stretches, and other
massage techniques. Shiatsu can help facilitate healing from
many minor ailments, such as headaches and back pain to
digestive, sinus and skin problems.
5. Cupping(EMS)：Simulating cupping, relatively constant
stimulation contracts muscles. Cupping is used for relieve back
and neck pains, stiff muscles, anxiety, fatigue, migraines,
rheumatism, and even cellulite etc.
6. Guasha(EMS)：Simulating Guasha with a low frequency
setting provides the user with a scratching and kneading
sensation. Gua sha releases unhealthy elements from injured
areas and stimulates blood flow and healing. Guasha is
effective in acute and chronic internal organ disorders. Help
relieve pain, stiffness, fever, chill, cough, wheeze, nausea and
vomiting etc.
8. Deep Tissue Massage(TENS): Deep tissue massage therapy
is similar to Swedish massage, but the deeper pressure is
beneficial in releasing chronic muscle tension. It can provide
relief from pain and stiffness associated with sports injuries,
whiplash, osteoarthritis, muscle spasms, fibromyalgia and strain
injuries such as carpal tunnel syndrome.

7
9. Waist(TENS): For muscle strains, herniated discs, stenosis,
spondylosis, spondylolisthesis, and general arthritis pain.
10.Body Building(EMS):Electrical muscle stimulation helps
muscle reduction, relaxation of muscle spasms, increase range of
motion, injury recovery and post surgery recovery.
11. Weight Loss(TENS+EMS): Combination of acupuncture. It
helps lose weight or tone, strengthen and firm muscles at abs,
back, thighs and arms etc.
12. Combination(TENS+EMS): Auto combination of several
modes for relaxation. Full body relaxation after workout:
exercises & fitness or after a day of hard work.
13. Shoulder(TENS+EMS): Using tens unit for shoulder pain
or shoulder related injuries is very similar to using it for any
other part of the body. Electrodes are placed on or near where
you feel the pain and the settings adjusted properly until relief is
achieved.
14. Neck(TENS+EMS): It can be used to relieve neck pain. You
just need take a few precautions like being careful not to place
electrodes close to your head or on the front or sides of the neck.
15. Back(TENS): Use low frequency vibrations to promote
circulation of blood and relieve pain. Specifically use for lower
back.

8
16.Elbow(TENS):Inflammation and pain occur on and around
the outer bony bump of the elbow where the muscles and
tendons attach to the bone. Tens Units to ease pain and improve
healing of the tendon. Such as tennis pain, arthritis.
17. Hip(TENS+EMS): Help for bursitis, tendonitis, labral tears,
hip impingement (FAI), hip replacements (THA), and general
arthritis.
18. Ankle(TENS+EMS): It can be Used for achilles bursitis,
sprains, strains, heel pain, bone spurs, tendonitis, ankle
impingement, and general arthritis.
19.Foot(TENS+EMS): Help for foot pain caused by plantar
fasciitis, scarring, collagen breakdown, and micro-tears, Heel
spurs, foot muscles and ligament strains.
20. Hand(TENS+EMS): Help for Carpal Tunnel Syndrome,
including numbness, pins and needles, and pain (particularly at
night).
21. Knee(TENS+EMS): For traumatic injury, Post surgery,
Muscle strain, Tendonitis.

9
22. Wrist(EMS): Help for tenosynovitis, Carpal Tunnel
Syndrome.
23. Ear(TENS): Auto-combination massage. Can be used for all
common muscle pains.
24. Relax(TENS+EMS): For all muscles relaxation. Help for
muscle knots and muscle tightness caused by strain,
overworking of your muscles.

10
Operating instructions
1. Connect the pads to the wire by snapping them on, then
remove the protective film.
Note: adding a few drops of water on the pads will increase
their longevity.
2. Place pads where the massage sensations are desired.
And plug into one of the ports on the device. For additional
relief use the second port and repeat steps 1&2 for two
additional pads.
Note: Make sure both pads on the skin and not overlapping.
Make sure your skin is free from any dirt, oil or lotion.
TIPS: When you use two pads (one channel) or four
pads(two channels) at the same time, make sure you have
placed all the pads on your body, otherwise it won’t work.
3. Turn the device on by pressing the on/ off switch on the

11
top of the unit. The unit will be now activated and start in
Model 1.
4. Touch the screen to choose modes.Then touch center
button on the screen to control A/B channel. Remember the
strength will default to the lowest setting with each mode
selection.
5. Once you select a mode, gradually increase the intensity
by pressing the + button; decrease it by pressing ‐button
on the side of main device.
6. Adjust the tens using time by pressing the T button on
the side of the tens. The timer can be increased by 10
minute intervals and the tens will automatically turn off after
the set time has finished.
7. Turn the device off by pressing the on/ off switch on the
right side of the unit If you need to turn off the device
during massaging.
8. When battery is low, recharge the battery with 5V-0.5A
USB charger 40 minutes.
Precautions
1. Do not apply the massage pads near the heart, on the
head, above the neck, in the pubic region, over Scarred
areas, on the throat or over the mouth.
2. Avoid touching the pads when the unit is on.
3. Pregnant women must avoid using this massager.
4. Do not use this massager if you are using pacemaker or

12
other life support equipment such as an artificial lung or
respirator.
5. Should not be used while driving, operating machinery,
or during any activity in which involuntary muscle
contractions may put the user at undue risk or injury
6. Do not use if you have following medical conditions:
Acute disease, trauma or surgical procedure in past six
month
Cardiac dysfunction
Epilepsy
High blood pressure
High fever
cancer
Infectious disease
Malignant tumors
Recent surgery
Skin problems
Pregnancy
Maintenance and care
1. When you are finished using the device, turn it off and
take off the pads. Store the unit in a cool, dry place until
next use.
2. After usage, please cover the pads with the protective
film. Applying a few drops water before and after usage will
increase the longevity of the pads.

13
3. Charge the unit at least every 3 month in event it is not
used regularly.
4.Please replace the pads after using 15-20 times(Varies
widely depending on use, body type and care)
5. Do not apply pads to the same area more than 30
minutes at a time.

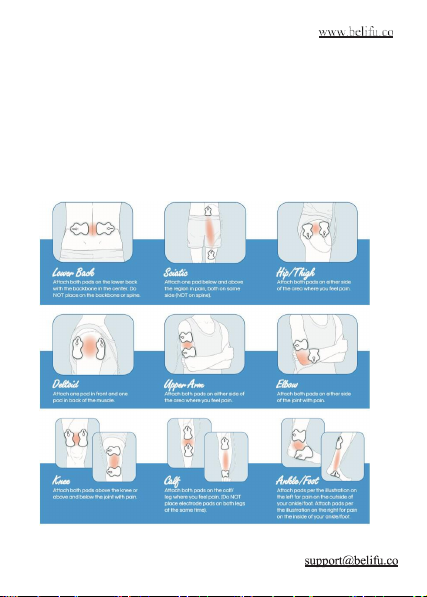

Recommend massage points

14
Troubleshooting

10
This device complies with part 15 of the FCC rules
