Bell Aliant OC810 User manual

Setup Guide
Call today to order additional equipment.
1 855-777-4117 • bellaliant.net/homesecurity
OC810
Outdoor IP Camera

9

Call today to order additional equipment.
1 855-777-4117 • bellaliant.net/homesecurity

OC810
Outdoor Camera
SET UP GUIDE
P/N 957YU60001 Document Version: 1.0
Copyright 2010. All Rights Reserved.
All trademarks and trade names are the properties of their respective owner.


:

Call today to order additional equipment.
1 855-777-4117 • bellaliant.net/homesecurity
Package Contents
The following items should be included:
1. Outdoor camera
2. Antenna
3. 15M Long Power Adapter
4. Mounting Swivel Connector
5. Mounting Stand
6. Mounting Base
7. Mounting Screws
8. Ethernet Cable (with water sealing cap)
If any of these items are damaged or missing, please contact Bell Aliant at 1 855 851-5599 immediately.
Overview
The outdoor camera has an Integrated Microcomputer and a high quality digital-image sensor, enabling it to
display high quality live streaming video.
Features
•Standalone Design: The Outdoor Camera is a standalone system with built-in CPU and video
encoder. It requires only a power source and a connection to your router.
•Triple Video Support: The Outdoor Camera can support H.264, MPEG4 and MJPEG video for
different image compression.
•Wired and Wireless Network Support: The Outdoor Camera supports either wired or wireless
transmission.
•PIR (Passive Infrared Sensor) Enhanced Motion Detection: The Outdoor Camera is embedded with
a PIR Sensor, which senses infrared light radiating from moving objects within its field of view. Motion
detection for large objects, which are undetectable by the PIR Sensor, is achieved by built-in software
that compares consecutive video frames for changes. When motion is detected, an alert can be sent,
or some other action may be triggered.
•Day/Night Switch: With the day/night switching feature, the camera is able to view and record better
images even in the dark of night.

;
Call today to order additional equipment.
1 855-777-4117 • bellaliant.net/homesecurity
Wireless Features
•Standards Compliant: The Outdoor Camera complies with the IEEE802.11g (DSSS) specifications for
wireless LANs.
•Supports 802.11n Wireless Stations: The 802.11n draft standard provides for backward compatibility
with 802.11b standard, so 802.11n, 802.11b and 802.11g wireless stations can be used
simultaneously.
•Speeds up to 108Mbps: All speeds up to the 802.11n maximum of 108Mbps are supported.
•Security Support: Full WEP (64/128 Bit), WPA and WPA2 Personal standards are supported on the
wireless interface allowing advanced encryption of wireless data.
System Requirements
•To use the Wired Interface, a standard router and network cable are required.
•To use the Wireless Interface, other wireless devices must be compliant with the IEEE802.11b,
IEEE802.11g or IEEE802.11 specifications. All wireless stations must use compatible settings.

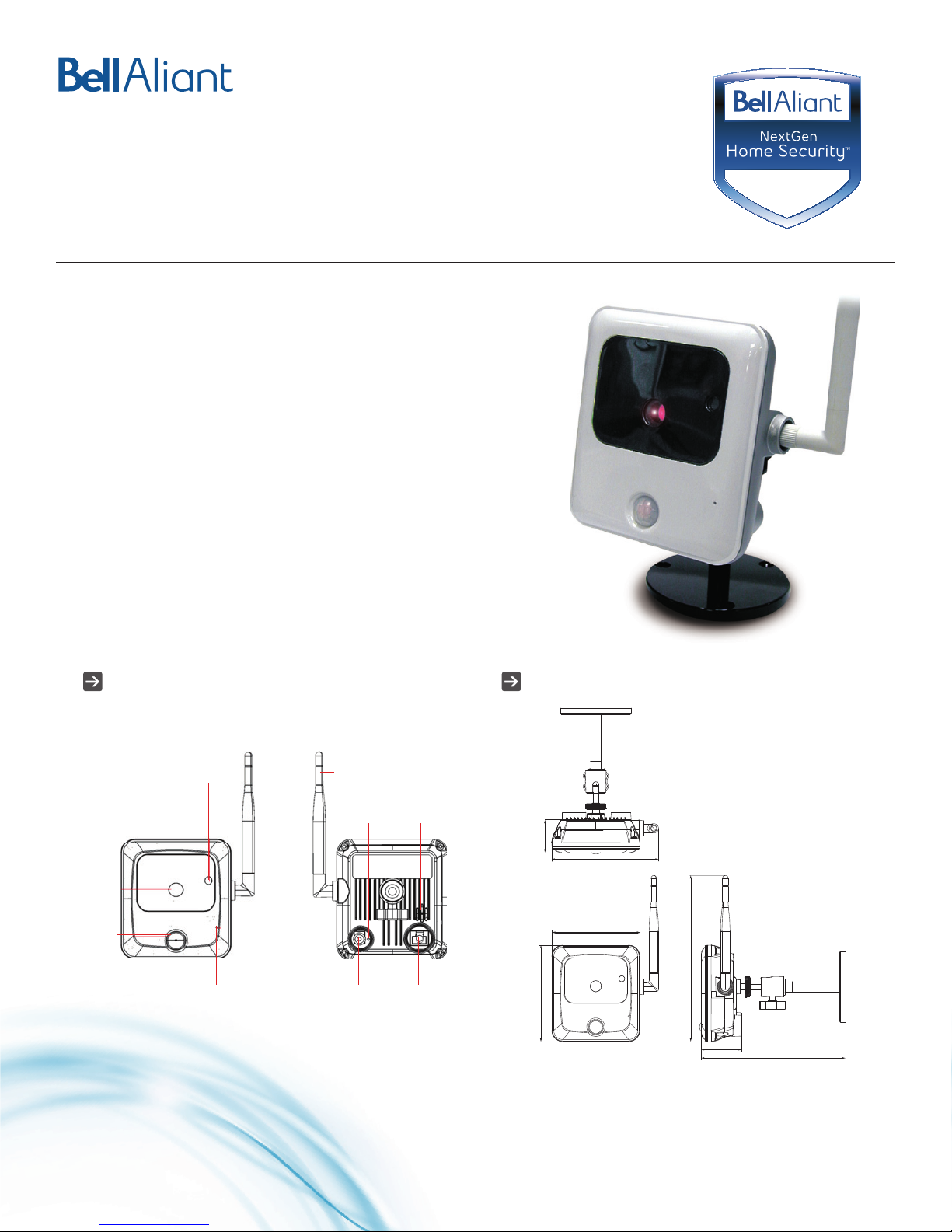

Physical Details – Outdoor Camera
Front Panel- Outdoor Camera

1. Lens No physical adjustment is required or possible for
the lens but you should ensure that the lens cover
remains clean. Image quality is degraded if the
lens cover is dirty or smudged.
2. Microphone The Outdoor Camera comes with a built-in microphone.
(Not currently
supported)
3. Power LED On- Powered on
Off- No power
Blinking- The Power LED blinks during power up.
This can take up to 20 seconds.
4. Passive The PIR Sensor is designed for motion detection.
Infrared
(PIR) Sensor
5. Light The Light Sensor detects luminance.
Sensor


<
Call today to order additional equipment.
1 855-777-4117 • bellaliant.net/homesecurity
Rear Panel- Outdoor Camera

1. Antenna The antenna is adjustable with best results typically
obtained with the antenna positioned vertically.
2. Power The supplied 12V power adapter plugs power to the
Port wireless camera’s power port.

3. Ethernet The Ethernet port allows connectivity of the wireless
Port camera to your gateway.

%
%

%&%'

%

%


%
4. Reset When pressed and held for ten (10) seconds, the
Button communication configuration of the wireless camera
will be reset to the default manufacturer settings.


%

=

Call today to order additional equipment.
1 855-777-4117 • bellaliant.net/homesecurity
Basic Setup


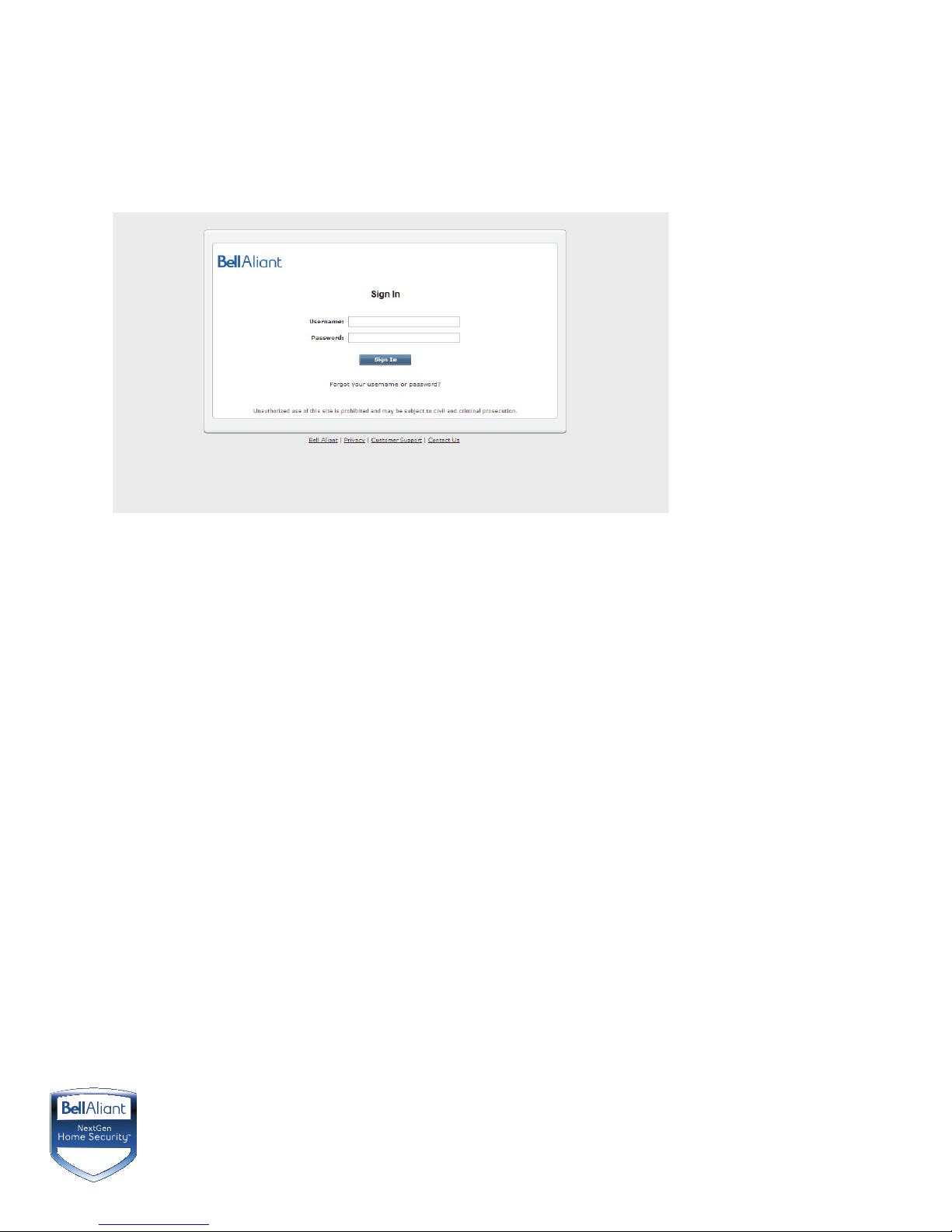

*% Open your web browser. In the address bar, type:bellaliant.net/homesecurity/signin

2. Type your Username and Password, and then click the Sign In button.
3. Click the System tab, and then click the Manage Devices button.
4. Select the type of equipment you are adding and follow the instructions in the installation wizard to add
your device.

>

Call today to order additional equipment.
1 855-777-4117 • bellaliant.net/homesecurity
PIR Video Motion Detection


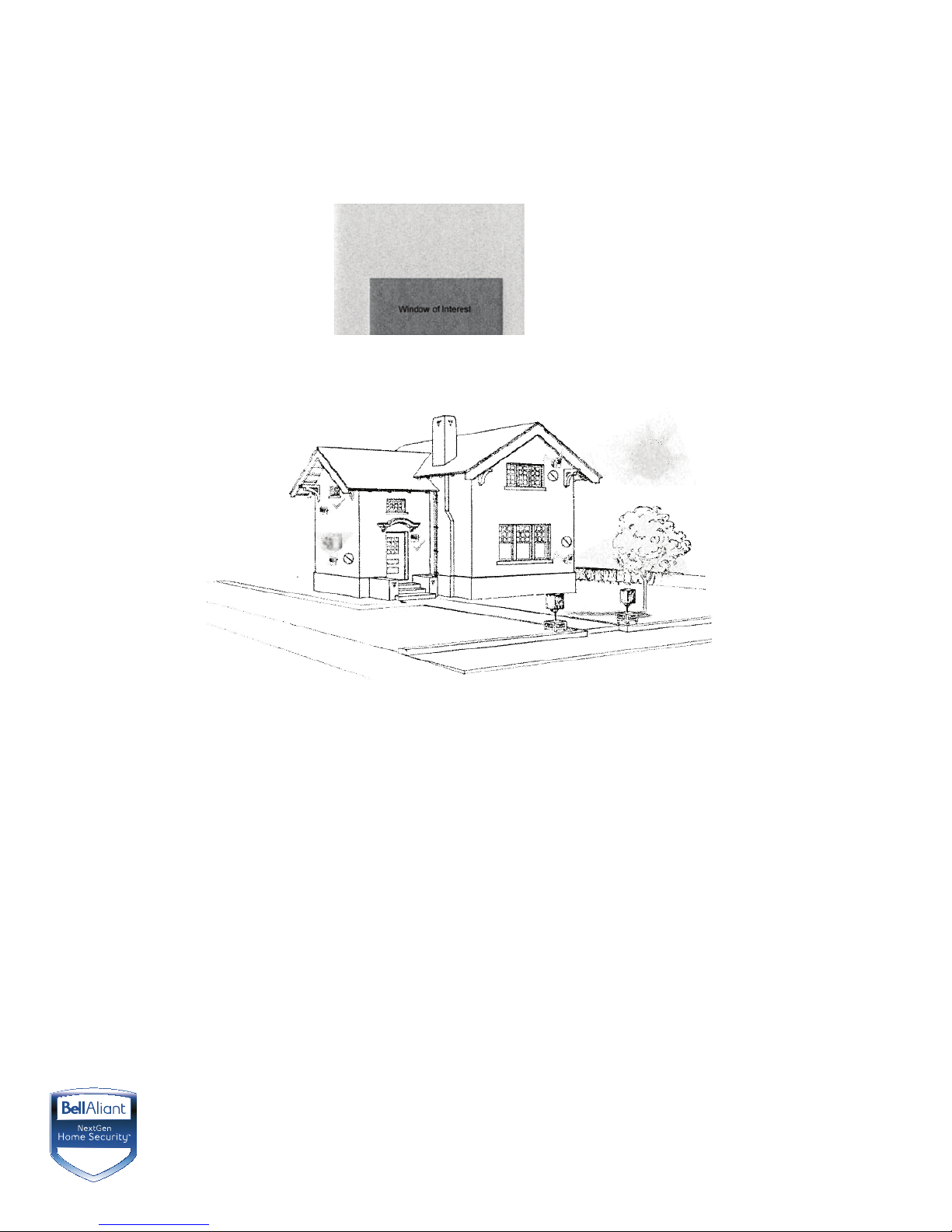

The motion event will be captured when a significant image changes within the Window of Interest. The
Window of Interest is defined below.
 
The following installation hints should be noted:
 
1. Take care not to install facing direct sunlight, bodies of water, or areas of moving shadows as these can
lead to unintended triggers.
2. Avoid aiming the PIR camera near or toward hot objects such as air conditioners.
3. It is preferable to install the PIR sensor underneath eaves or porch coverings to prevent exposure to
rain and ice.
4. Avoid direct sunlight or headlights from automobiles.
5. Avoid breeze and corrosive gases.
6. Make sure that the coverage area of PIR sensor does not extend into undesired areas that might cause
unwanted activations.
7. While choosing the installation area, be aware that the PIR sensor may detect unimportant motions,
such as moving trees or shadows caused by excessive wind.
NOTE: Video motion detection is susceptible to light reflection, shade or tree/leaves movement,
etc. within the Window of Interest. To reduce the number of unwanted video events, please adjust
the camera to reduce these noise factors appearing in the Window of Interest.

?

Call today to order additional equipment.
1 855-777-4117 • bellaliant.net/homesecurity
Enabling the Motion Detection via the NextGen Home Security System

*%  (#" " !(."(" (#" " )((#"0

+%  ((&&#&(')(#!(#"&#!(&&&#$3#+" '(0

,%  ( " &#!(*"(&#$3#+" '(0

-%  ((#"(#"')"&+-#)+"(()(#!(#"(#"(##)&&#!(*&#$3#+" '(0

.%  " !%

/% &#!( -&#$3#+" '(.' (( -#$(#"-#)+"((#)'#&('(#"0

0%  (('&#$(#"&#!((&#$3#+" '(

1%  %

2%  $%













@

Call today to order additional equipment.
1 855-777-4117 • bellaliant.net/homesecurity

Appendix: Specifications
OC810 Wireless Outdoor Day/Night Camera

Model OC810 Wireless Outdoor Day/Night Camera
Dimensions 94mm (W) * 103mm (H) * 37mm (D)
Operating Temperature -10˚C to 45 ˚C
Storage Temperature -20 ˚C to 70 ˚C
Weather Resistance IP 65
Network Protocols TCP/IP, HTTP, HTTPS, DHCP, SMTP, FTP, UPnP,
DDNS, NTP, RTP, RTCP, RTSP, SMB
Network Interface 1 Ethernet 10/100BaseT (RJ45) LAN connection
Wireless Interface
(Wireless Model Only)
IEEE 802.11n/802.11b/802.11g compatible,
Infrastructure/Ad-hoc mode, WEP/WPA
Personal/WPA2 Personal security support, roaming
support
LEDs 1 LED for indicator and 8 IR LEDS
Illuminator Night range approximately 25 feet
Power Adapter 12V/1A, 100-240 VAC
Regulatory Approvals
FCC Statement

'%)$!"("&('.)''""&(&#&%)"-"&-"."#("'( ")'"#&"+(
("'(&)(#"'.!-)'&!) "(&&"(#&##!!)"(#"'0#+*&.(&'"#)&"(((
"(&&"+ "#(#)&"$&() &"'( (#"0('%)$!"(#')'&!) "(&&"(#&##&
( *'#"&$(#".+"(&!"-()&""(%)$!"(#"#".()'&'"#)&(#(&-(#
#&&(("(&&"-#"#(# #+"!')&'/

A

Call today to order additional equipment.
1 855-777-4117 • bellaliant.net/homesecurity
•#&"(#&& #((&*""(""0
•"&'('$&(#"(+"(%)$!"("&*&0
•#""((%)$!"("(#"#)( (#"&)(&"(&#!(((#+(&*&'#""(0
•#"') (( &#&",$&"&#2(""#& $0
#'')&#"(")#!$ "."-"'#&!#(#"'"#(,$&'' -$$&#*-($&(-&'$#"' #&
#!$ "#) *#()'&1')(#&(-(##$&(('%)$!"(04,!$ 3)'#" -' "(& '
+"#""("(##!$)(&#&$&$& *'50

FCC Radiation Exposure Statement

'%)$!"(#!$ '+(&(#",$#')& !(''(#&(#&")"#"(&# "*&#"!"(0'
%)$!"('#) "'( "#$&(+(!"!)!'("#:8"(!(&'(+"(&(#&"-#)&
#-0
'*#!$ '+(&(9=#() '0$&(#"'')((#(# #+"(+##"(#"'/
90 '*!-"#()'&!) "(&&"."
:0 '*!)'($("-"(&&"&*" )"(&&"((!-)')"'&#$&(#"0
'(&"'!((&!)'("#(#3 #(#&#$&(""#")"(#"+("-#(&"(""#&(&"'!((&0

CE Approvals

@98& '')(##&-2(!&!('() "'#()&#$""#""#!$ '+((
AA2=2"AA2=&(*'." )"(# #+"'("&'/
•>8A=839
•<88;:@
•;89<@A
•==8:<
'' ''$&#)(0"#!'("*&#"!"(('$&#)(!-)'&#"(&&""+'()'&
!-&%)&(#(%)(!')&'0
'$&#)('"&("#!$ -+(>8A=839"#&!(#""# #-%)$!"($$  
&%)&!"(0

