Bellfires Wi-Fi Box/Puck User manual

I
Installation and user
manual
Wi-Fi Box / Puck
Serial number:
Production date:

C
Contents
1 About this document................................................................................ 4
2 How to work with this document.............................................................. 5
2.1 Warnings and cautions used in this document............................................................................ 5
2.2 Related documentation................................................................................................................5
3 Description............................................................................................... 6
3.1 Intended use................................................................................................................................ 6
3.1.1 Wi-Fi Box...........................................................................................................................6
3.1.2 Puck.................................................................................................................................. 6
3.2 Overview......................................................................................................................................6
3.2.1 Overview of the Wi-Fi Box ................................................................................................6
3.2.2 LED indication ..................................................................................................................6
3.2.3 Overview of the Puck ....................................................................................................... 7
4 Requirements...........................................................................................8
4.1 Wi-Fi router (for Wi-Fi Box only).................................................................................................. 8
4.2 Receiver.......................................................................................................................................8
4.3 Handset (for Wi-Fi Box only)........................................................................................................8
4.4 Mobile device (for Wi-Fi Box only)............................................................................................... 8
5 Installation of the Wi-Fi Box..................................................................... 9
6 Connecting the Puck..............................................................................10
7 Setup of the Bellfires Gas app............................................................... 11
7.1 Registration................................................................................................................................11
7.2 Connecting to the home network with KWIK connect................................................................13
7.3 Connecting to the home network with standard setup...............................................................14
7.4 Appliance settings......................................................................................................................15
Contents
2
Wifi Box

8
8 Operating the appliance with the Bellfires Gas app............................... 17
8.1 Start screen................................................................................................................................17
8.2 Description of the symbols.........................................................................................................18
8.2.1 Menu symbols.................................................................................................................18
8.2.2 Other symbols.................................................................................................................19
8.3 Main menu................................................................................................................................. 19
8.3.1 Profiles............................................................................................................................ 19
8.3.2 Manual operation............................................................................................................ 20
8.3.3 Thermostatic operation...................................................................................................21
8.3.4 Timer...............................................................................................................................22
8.3.5 Program mode................................................................................................................ 22
8.3.6 ECO mode...................................................................................................................... 24
8.3.7 Fan (optional)..................................................................................................................25
8.3.8 Lighting (optional)............................................................................................................26
8.3.9 AUX (double burner)....................................................................................................... 27
8.3.10 Safety lock.......................................................................................................................27
9 Operating the appliance with the Puck.................................................. 28
10 Troubleshooting..................................................................................... 29
11 Technical data........................................................................................31
12 Warranty Terms..................................................................................... 32
Contents
Wifi Box
3

1
1About this document
This document shows the necessary information to do these tasks on the Puck or on the
Wi-Fi Box in combination with the Bellfires Gas app:
• Installation
• Operation
This document is an essential part of your appliance. Read it carefully before you do work
on the appliance. Keep it in a safe place.
The original instructions of the document are in English. All other language versions of
the document are translations of the original instructions. It is not always possible to
provide a detailed illustration of every single item of the equipment. The illustrations are
for instructional use only. Screenshots of the Bellfires Gas app are from an Apple IPad.
The screenshots of the Bellfires Gas app on other mobile devices can be different.
About this document
4
Wifi Box

2
2How to work with this document
1. Make yourself familiar with the structure and content of the document.
2. Read the safety chapter in detail.
3. Make sure that you understand all the instructions.
4. Do the procedures completely and in the given sequence.
2.1 Warnings and cautions used in this document
Warning
If you do not obey these instructions, there is a risk that can cause personal injury or
death.
Caution
If you do not obey these instructions, there is a risk of damage to the equipment or to
property.
Note
A note shows more information.
Symbol Description
Visual sign that there is a hazard
Visual sign that there is a notice
2.2 Related documentation
All documents that belongs to the Bellfires gas appliance.
• Preparation manual
• Installation and maintenance manual
• User manual
How to work with this document
Wifi Box
5

3
3Description
3.1 Intended use
3.1.1 Wi-Fi Box
The Wi-Fi Box is intended for indoor use in combination with a Bellfires gas appliance
and with the Bellfires Gas app in combination with a hand set or Puck. Do not use it for
other purposes.
3.1.2 Puck
The Puck is intended for indoor use in combination with a Bellfires gas appliance. It can
be used in combination with the Wi-Fi Box. Do not use it for other purposes.
3.2 Overview
3.2.1 Overview of the Wi-Fi Box
Item Description
A Connector Connector for the cable to the receiver
B Reset button Reset of the Wi-Fi Box
C LED 1 Shows the status of the connection to the receiver
D LED 2 Shows the status of the Wi-Fi connection
3.2.2 LED indication
The Wi-Fi Box has two LED's with colors red/green/blue.
Item Description
LED 1 Green Connected to receiver
Red Not connected to receiver
Off Standby mode is active. No power supply
Description
6
Wifi Box

I
Item Description
LED 2 Green Connected to the home network (router)
Blue blinking A Wi-Fi network has been detected
Red Not connected to the home network (router)
Off Standby mode is active. No power supply
3.2.3 Overview of the Puck
Item Description
A ON/OFF button To start or stop the appliance
B Down button Reduce the flame height or set appliance on Standby
C Up button Increase the flame height
Description
Wifi Box
7

4
4Requirements
4.1 Wi-Fi router (for Wi-Fi Box only)
Minimum requirements Wi-Fi router:
• Compatible with IEEE 802.11n/g/b
• WPA2 encryption
• Radio frequency: 2.4 GHz
• Wireless auto channel: Automated search for Wi-Fi radio channel free of interference
• Support of the User Datagram Protocol (UDP)
• Connection to mDNS is required to make sure Easy Commission Process works.
If the Wi-Fi router is part of a business network, or if the router is applicable for use in a
business network, the User Datagram Protocol (UDP) and/or broadcasting must be
enabled. Refer to the manual of the router.
Note:
At the end of the installation procedure, the initial router settings can be
restored, if necessary.
4.2 Receiver
• Symax-2 receiver. This type can be recognized by a blue sticker attached to it.
Contact your dealer if you have a receiver with a green sticker (Symax-1) or a silver
sticker (GV60).
• The Symax-2 receiver must have a power supply by means of a 6 VDC adapter.
Batteries are not sufficient to power the Wi-Fi Box.
Note:
The Puck works only with a Symax-2 receiver with production code 'CN'
or higher. This code can be found in the lower right corner of the blue sticker
on the receiver.
4.3 Handset (for Wi-Fi Box only)
The Wi-Fi Box works only with the 8-button or 10-button Symax-2 handset with a blue
sticker attached to it.
Contact your dealer if you have a handset with a green sticker (Symax-1) or with a silver
sticker (GV60).
4.4 Mobile device (for Wi-Fi Box only)
• Tablet or smartphone with IOS 8.0 / Android 4.2 or higher.
Requirements
8
Wifi Box

5
5Installation of the Wi-Fi Box
1. Make sure you have a Symax-2 receiver and a Symax-2 handset (8 or 10 buttons).
Both can be recognized by the blue sticker. If not, contact your dealer.
2. Connect the 4-wire cable on the connector marked '
'SI '
on the receiver.
3. Connect the other side of the 4-wire cable on the connector marked '
'receiver'
on the
Wi-Fi Box
4. Make sure LED 1 is green. If not, check the connection to the receiver.
Installation of the Wi-Fi Box
Wifi Box
9

6
6Connecting the Puck
1. Remove the lid of the battery compartment at the back of the Puck.
2. Put 2 batteries (type AAA, 1.5 Volt) in the battery compartment. Make sure the
batteries are put correctly as indicated in the battery holder.
3. Put the lid on the battery compartment.
4. On the Symax-2 receiver, press the Reset button (refer to the User Manual of the
appliance) until 2 beeps are heard.
5. After the second beep release the Reset button.
6. Within 20 seconds after release of the Reset button, press the '
'-'
button on the Puck.
Note:
It is not necessary to connect the Puck again after the batteries have
been changed. The Puck stays connected with the receiver
Important:
To prevent damage to the electronics, do not use metal tools to
remove the batteries.
Important:
• Remove old or dead batteries immediately to prevent damage to the Puck.
• Prevent exposure of the batteries to direct sunlight, too much heat, fire,
moisture of too much force.
• Make sure batteries are kept with their recommended temperature limits (0
ºC to 55 ºC).
• New and old batteries and different brands of batteries must not be used
together.
Connecting the Puck
10
Wifi Box

7
7Setup of the Bellfires Gas app
Note:
Screen shots shown in this manual are for an Apple iPad. The Bellfires
Gas app screen on an iPhone or Android mobile device can look different on
details. The functionality and use is the same as described in this manual.
Note:
Make sure:
• Home network is available.
• SSID of the Wi-Fi router is not hidden.
• Home network signal is in range.
• Wi-Fi router supports the Use Datagram Protocol (UDP).
Do all procedures in this chapter.
1. Download the '
'Bellfires Gas app'
from Google Play or Apple App Store and install on
your mobile device.
2. Make sure you have the SSID name and password of your Wi-Fi router. They are
usually shown on a sticker on the router.
3. Make sure the Wi-Fi Box is connected to the receiver and LED 1 is green.
4. Start the Bellfires Gas app.
5. Select a language, the
temperature scale (ºC/ºF)
and clock (12h/24h).
6. Select N
Next
.
7.1 Registration
You need to register before you can use the Bellfires Gas app.
If you have an account, login with
your e-mail address and password,
as used for registration.
If you do not have an account you
must first register.
Setup of the Bellfires Gas app
Wifi Box
11

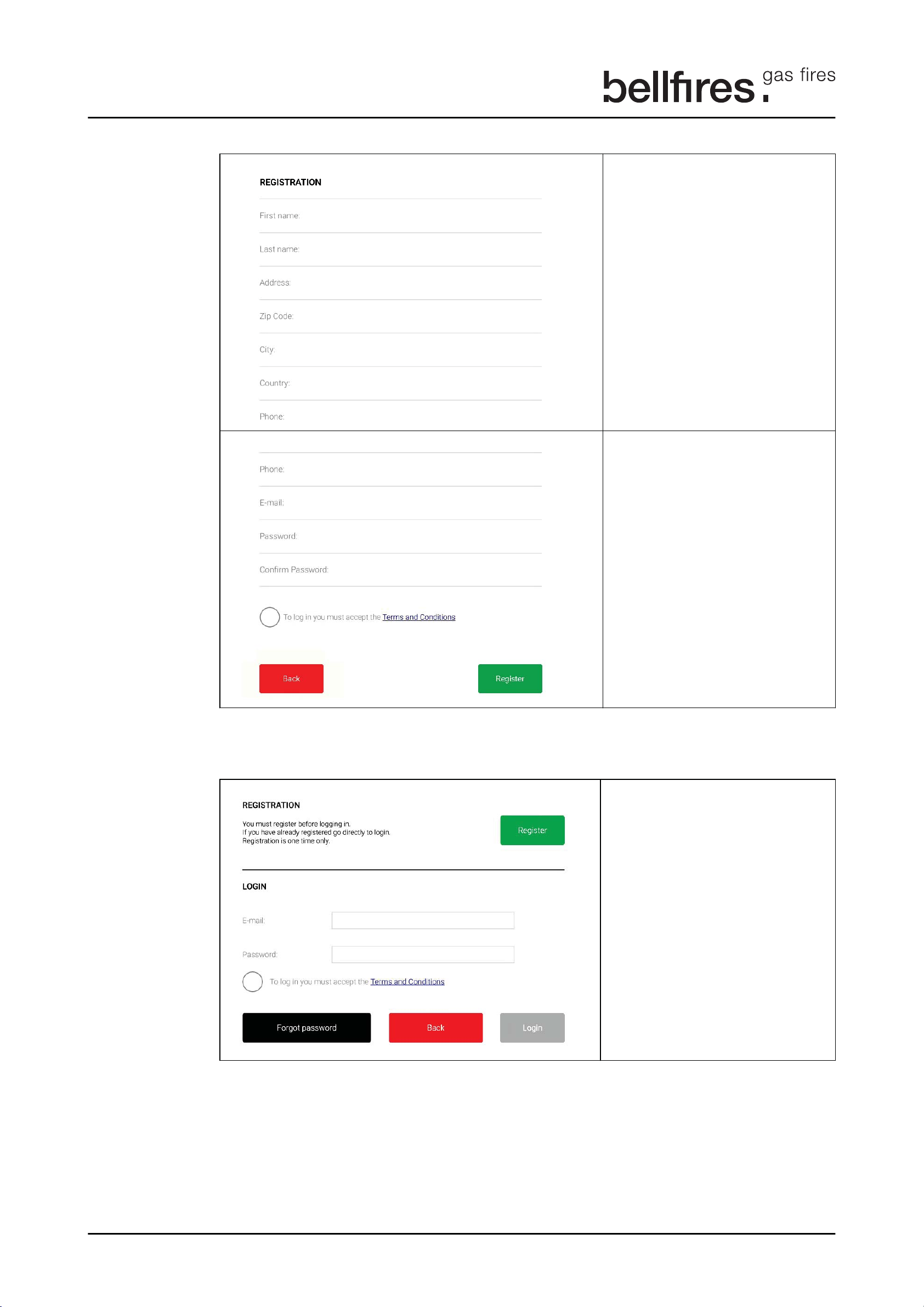

Complete the requested information
(scroll down)
• The e-mail address is the user
name for your account.
• The password must have a mini-
mum of 8 characters.
• Agree with the T
Terms and Con-
ditions
.
• Select R
Register
Confirm your registration by clicking on the link in the e-mail that has been sent to you.
Upon successful verification of your account, you can login on the Bellfires Gas app.
• Return to the Bellfires Gas app.
• Fill in the login details and ac-
cept the T
Terms and Conditions
.
• Select L
Login
.
Setup of the Bellfires Gas app
12
Wifi Box

7

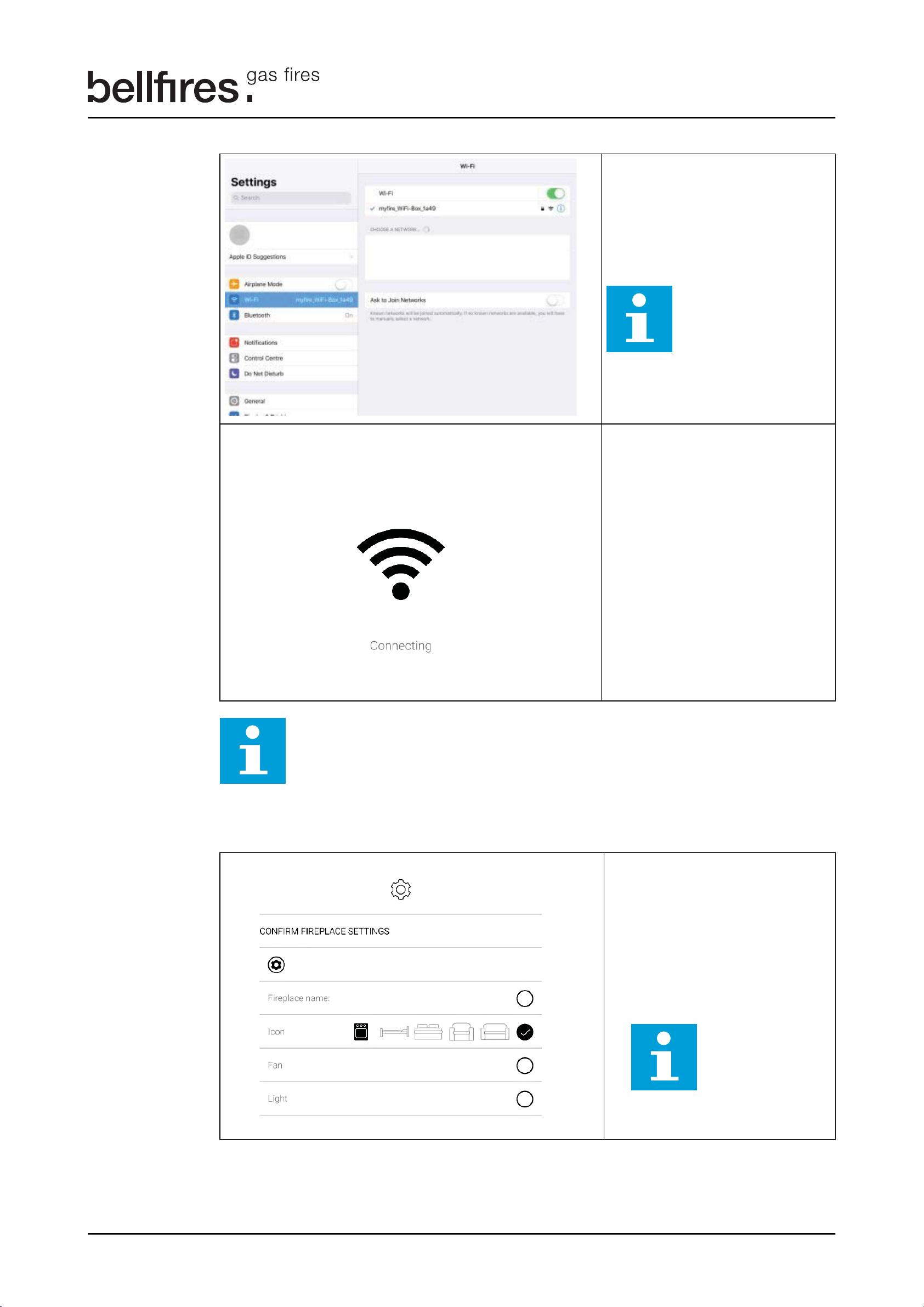

7.2 Connecting to the home network with KWIK connect
Note:
• Make sure the router obeys the requirements. Refer to chapter
4.1 for
details.
• Before you continue with the connection procedure, make sure that your
mobile device is connected to the correct network. (only If multiple Wi-Fi
networks are available)
• Select the +
+
sign.
• The name of the home network
is shown.
• Give the password of this
home network.
• Select C
Connect
.
The Bellfires Gas app starts to
connect the Wi-Fi Box to the selec-
ted home network.
If connection is successful proceed
with F
Fireplace settings
. Continue
the instructions in chapter
7.4 .
Setup of the Bellfires Gas app
Wifi Box
13

If connection is unsuccessful se-
lect S
Standard Setup
. Continue the
instructions in chapter
7.3 .
or
Press the reset button on the Wi-Fi
Box for 7 seconds and select R
Re-
try
.
7.3 Connecting to the home network with standard setup
Note:
• Make sure the router obeys the requirements given in chapter 4.1 .
• Before you continue with the connection procedure, make sure that your
mobile device is connected to the correct network. (only If multiple Wi-Fi
networks are available)
Note:
This step does
not show when KWIK
connect failed and you
selected S
Standard Set-
up
.
• Select the '
'+'
sign
• Select O
OK
• The settings page of the mobile
device opens
Setup of the Bellfires Gas app
14
Wifi Box

• Goto the Wi-Fi settings of the
mobile device.
• Select network m
myfire_WiFi-
Box_<number>
• The password is:
MYFIREPLACE
Note:
For Apple iOS
mobile devices: The
message 'No internet
connection' is to be ig-
nored
• Go back to the Bellfires Gas app
The Bellfires Gas app starts to con-
nect the Wi-Fi Box to the selected
home network.
After successful connection the
screen shows the appliance settings
page. Refer to chapter
7.4 .
Note:
Refer to chapter
10 if the connection with Standard Setup failed.
7.4 Appliance settings
• Give the appliance a name.
• Select the checkmark on the
right to confirm the name.
or
• Select a symbol for the appli-
ance
• Select the available options.
Note: AUX
is the
double burner.
• If necessary, synchronize the
clock time.
Setup of the Bellfires Gas app
Wifi Box
15

Scroll down and select F
Finish
to
complete the appliance settings.
• Select S
Start APP
to operate the
appliance.
or
• Select the '
'+'
sign to connect
another Wi-Fi-box. Repeat the
steps in chapter
7.2 for each ex-
tra WiFi-box. Maximum 8 WiFi
boxes can be connected.
Setup of the Bellfires Gas app
16
Wifi Box

8
8Operating the appliance with the Bellfires Gas
app
8.1 Start screen
All functions of the Bellfires Gas app are accessible from the menu or the icons on the
start screen.
Number Option Description
1 ON/OFF button To start or stop the appliance.
Note:
After switch to OFF of the appliance, wait 30
seconds before the appliance can be switched ON
2 Quick menu Access to some basic or activated functions. Activated functions
are yellow. Refer to chapter
8.2.1 for a description of the icons.
3 Room temperature Temperature of the room where the appliance is. The room tem-
perature is measured with the handset or Puck and sent to the
mobile device.
4 Main menu Access to the main menu. Refer to chapter
8.2.1 for more infor-
mation
5 Help function Access to the Help menu.
6 Outside temperature The outside temperature comes from a dedicated website.
The start screen appears automatically after 30 seconds of inactivity on the other function
pages.
Operating the appliance with the Bellfires Gas
app
Wifi Box
17

8
8.2 Description of the symbols
8.2.1 Menu symbols
Symbol Function Description
Profiles Define or choose your personal operating profile.
Maximum 4 user profiles can be set,
Manual mode Manual adjustment of the flame height.
Thermostatic mode Automatic adjustment of the heat output based on
the set room temperature and the measured room
temperature.
Timer Setting of the time duration before the appliance
switches to OFF
Program mode Set time and temperature in maximum 8 user de-
fined programs
ECO mode Varies the flame height automatically according
one of the three available pre-set cycles
Fan (optional) Operation of the (optional) convection ventilator
Lighting (optional) Operation of the (optional) lights
AUX Switch between single or double burner (only for
appliance with a double burner)
Safety lock Activate or deactivate the child safety lock
Fireplace settings General appliance settings
Operating the appliance with the Bellfires Gas
app
18
Wifi Box

S
Symbol Function Description
Help Help pages with information about the menu func-
tions
8.2.2 Other symbols
Symbol Function Description
Home Go to the start screen
ON / OFF Start or stop the appliance
Outside temperature Shows the outside temperature measured by a
nearby weather station
Power Starts or stops these functions:
• Timer
• Fan (when present)
• Light (when present)
• Set program
8.3 Main menu
8.3.1 Profiles
Define a maximum of 4 user profiles.
Operating the appliance with the Bellfires Gas
app
Wifi Box
19

S
Set a user profile
1. Select one of the four user profiles. The selected user profile shows in the left hand
corner of the screen.
2. Select a function that must be included in the selected profile and set this function to
the correct value or correct position.
3. Press Y
YES
in the S
Save to profile?
screen.
4. Repeat steps 2 and 3 until the profile is complete.
Start a user profile operation
1. Select one of the four user profiles. The selected user profile shows in the left hand
corner of the screen.
Note:
Selecting a function when the user profile is on and subsequently
selecting Y
YES
in the S
Save to profile?
screen will add the function and its value
to the user profile.
Stop a user profile operation
1. Select any of the available menu functions.
2. Press N
NO
in the S
Save to profile?
screen.
8.3.2 Manual operation
Operating the appliance with the Bellfires Gas
app
20
Wifi Box
