Belling BMW034GC User manual

Read these instructions carefully before using your
microwave oven, and keep as a reference guide.
MODEL: BMW034G C
34L Microwave Oven
with Grill and Convection Oven

(a) Do not attempt to operate this oven with the door
open, as this can result in harmful exposure to
microwave energy. It is important not to break or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face
and the door or allow residue to accumulate on sealing
surfaces.
(c) WARNING: If the door or door seals are damaged,
the oven must not be operated until it has been repaired
by anauthorised repairer.
ADDENDUM
If the unit is not maintained sufficiently, its surface could be
degraded and affect the lifespan of the unit. Surface
degration may be dangerous.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
Specifications
2
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Rated Input Power(Grill):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
315 mm
Approx.18.6 kg
Rated Input Power(Convection):
240V~50Hz
1550W
1100W
2100W
mm
1000W
34L
BMW034GC
314X519X490

To reduce the risk of fire, electric shock, injury to
persons or exposure to excessive microwave oven
energy when using your appliance, follow basic
precautions, including the following:
1. Warning: Liquids and other foods must not be heated
in sealed containers, due to risk of explosion.
2. Warning: It is hazardous for anyone other than a
licensed repairer to carry out any service or repair
operation that involves the removal of the unit cover which
gives protection against exposure to microwave energy.
3. This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning the us of the appliance by a
person responsible for thier safety.
4. Keep the appliance and its cord out of reach of
children under the age of 8 years.
5. Only use utensils that are suitable for use in microwave
6. The oven should be cleaned regularly and any food
deposits should be removed.
7. When heating food in plastic or paper containers,
IMPORTANT SAFETY INSTRUCTIONS
WARNING
3
.ovens
keep an eye on the oven due to the possibility of ignition.

8.If smoke is emitted, switch off or unplug the appliance
and keep the door closed in order to stifle any flames.
9.Do not overcook food.
10.Do not use the oven cavity for storage purposes.
Do not store items, such as bread, cookies, etc. inside
the oven.
11.Remove wire twist-ties and metal handles from
paper or plastic containers/bags before placing them in
the oven.
12.Install or locate this oven only in accordance with the
installation instructions provided.
13.Eggs in the shell and whole hard-boiled eggs should
not be heated in microwave ovens since they may
explode, even after microwave heating has ended.
14.This appliance is intended to be used in domestic
applications only. Use in any other applications
may void the warranty.
15.If the supply cord is damaged, it must be replaced by
the manufacturer, licensed service agent or similarly
qualified persons in order to avoid a hazard.
16.Do not store or use this appliance outdoors.
17.Do not use this oven near water, in a wet basement
or near a swimming pool.
18.The temperature of accessible surfaces may be high
when the appliance is operating. The surfaces may get
hot during use. Keep cord away from heated surface,
and do not cover any vents on the oven.
ir
4
19.Do not let the cord hang over edge of table or counter.

20.Failure to maintain the oven in a clean condition
could lead to deterioration of the surface that could
adversely affect the life of the appliance and possibly
result in a hazardous situation.
21.Please use caution when heating infant bottles or food.
Always shake or stir food and test temperature before
consumption to avoid burns or injury.
22.Microwave heating of beverages can result in
delayed eruptive boiling, therefore care must be taken
when handling the container.
23.Children should be supervised to ensure that they do
not play with the appliance.
24.The appliances are not intended to be operated by
means of an external timer or separate remote-control
system.
25.Accessible parts may become hot during use. Young
children should be kept away.
26.Do not clean the unit with a steam cleaner.
27.During use,the appliance becomes hot. Care should
be taken to avoid touching heating elements inside the
oven.
5

28.WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements. Children less than 8 years
of age shall be kept away unless continuously
supervised.
29.The rear surface of appliance must be placed against
a wall.
30.The microwave oven must not be placed in a cabinet.
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE
31.The microwave oven is intended for heating food and
beverages.Drying of food or clothing and heating of
warming pads,slippers,sponges,damp cloth and similar
may lead to risk of injury,ignition or fire.
6

To Reduce the Risk of Injury to Persons
Grounding Installation
DANGER
Electric Shock Hazard
Touching some of the
internal components can
cause serious personal
injury or death. Do not
disassemble this
appliance.
WARNING
Electric Shock Hazard
Improper use of the grounding
can result in electric shock.
Do not plug into an outlet
until appliance is properly
installed and grounded.
This appliance must be
grounded. In the event of
an electrical short circuit,
grounding reduces the
risk of electric shock by
providing an escape wire
for the electric current.
This appliance is equipped
with a cord having a
grounding wire with
a grounding plug. The
plug must be plugged into
an outlet that is properly
installed and grounded.
Consult a qualified
electrician or serviceman
if the grounding instructions
are not completely
understood or if doubt exists
as to whether the appliance
is properly grounded.
If it is necessary to use an
extension cord, use only
a 3-wire
1. A short power-supply cord
is provided to reduce the risks
resulting from becoming
entangled in or tripping over a
longer cord.
2. If a long cord set or extension
cord is used:
1)The marked electrical rating
of the cord set or extension cord
should be at least as great as
the electrical rating of the
appliance.
2)The extension cord must be
a grounding-type 3-wire cord.
3)The long cord should be
arranged so that it will not drape
over the counter top or tabletop
where it can be pulled on
by children or tripped over
unintentionally.
extension cord.
7

CLEANING
Be sure tounplug the appliance from the power supply before cleaning.
1.
Clean the cavity ofthe oven after usewith a slightly damp
cloth.
2.
Clean the accessories insoapy water.
3.
The door frame,seal and neighbouring parts must be
cleaned carefully with a damp cloth regularly. Do not operate
unit if these are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
5.
Cleaning Tip---For easier cleaning ofthe cavity walls:
Place half alemon in abowl, add 300ml (1/2 pint) water and
heat on 100% microwave power for 10 minutes. Wipe the oven
clean using a soft, dry cloth.
UTENSILS
CAUTION
Personal Injury Hazard
It is hazardous for
anyone other than a
licensed small appliance
repairer to carry out any
service or repair
operation that involves
the removal of a cover
which gives protection
against exposure to
microwave energy.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
8

Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labelled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
9

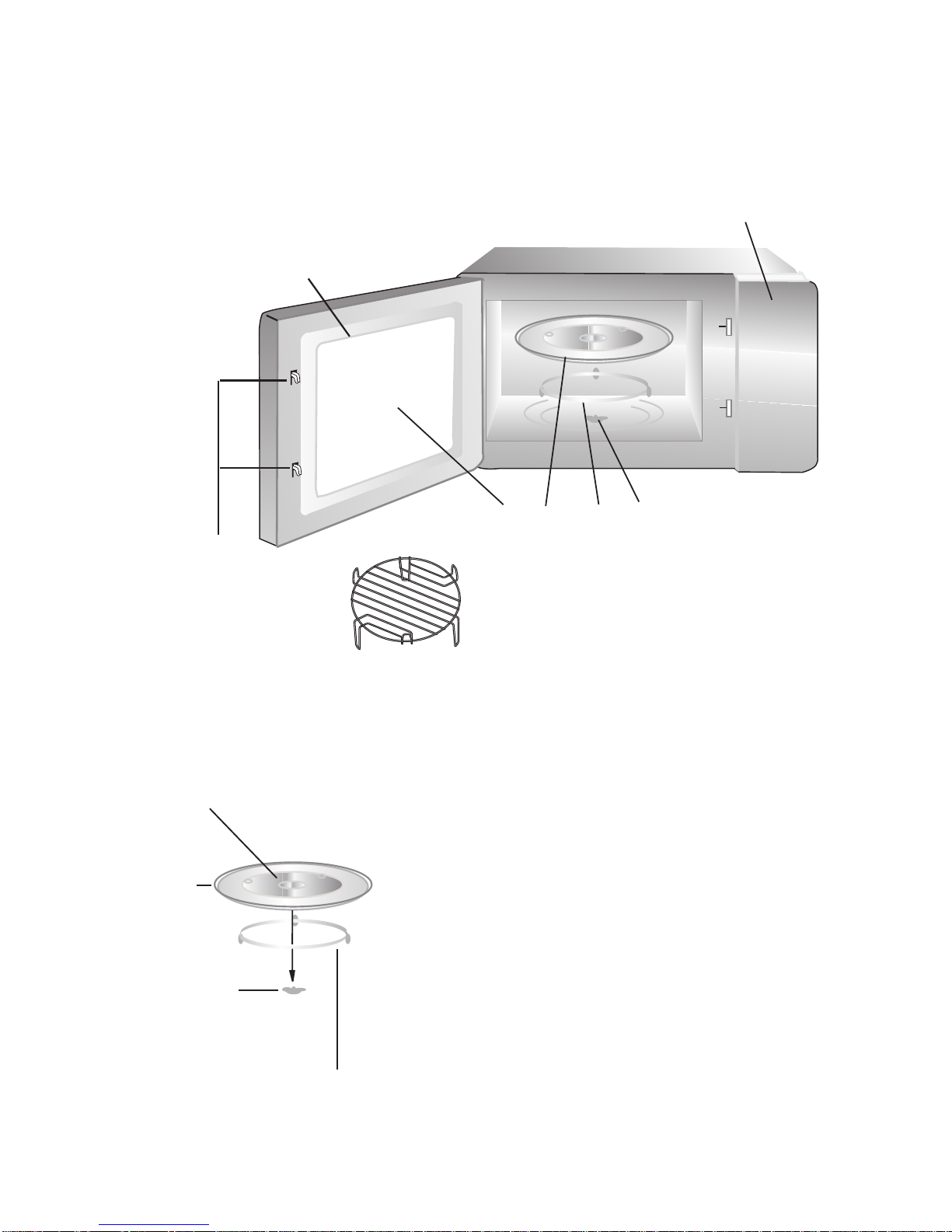

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
F
G
A
C B
ED
SETTING UP YOUR OVEN
Parts and accessories Diagram
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Hub (underside)
Glass tray
Turntable ring assembly
a. Never place the glass tray upside down. The glass
tray should never be restricted.
b. Both glass tray and turntable ring assembly must
always be used during cooking.
c. All food and containers of food are always placed
on the glass tray for cooking.
d. If the glass tray or turntable ring assembly cracks or
breaks, contact your nearest authorised service
center.
Turntable Installation
Turntable shaft
10
Grill Rack (Only be used in grill function
and be placed on the glass tray)

Remove all packing material and accessories.
Examine the oven for any damage such as
dents or broken door. Do not install if oven is
damaged.
Countertop Installation
Cabinet: Remove any protective film found
on the microwave oven cabinet surface.
Do not remove the light brown Mica cover
that is attached to the oven cavity to
protect the magnetron.
Installation
1.Select a level surface that
providesenough open
space for the intake and/or
outlet vents.
(1) The minimum installation
height is 85cm above floor
level.
(2) The rear surface of
appliance must be placed
against a wall.
Leave a minimum clearance
of 30cm above the oven, and
aminimum clearance of
20cm is required between the
oven and any adjacent walls.
(3) Do not remove the legs
from the bottom of the oven.
(4) Blocking the intake and/or
outlet openings can damage
the oven.
(5) Place the oven as far
away from radios and TVs
as possible. Operation of
the microwave oven may
cause interference to your
radio or TV reception.
2. Plug your oven into a
standard household outlet.
Be sure the voltage and
the frequency is the same
as the voltage and the
frequency on the rating
label.
WARNING: Do not install
oven over a range cooktop
or other heat-producing
appliance. If installed near
or over a heat source, the
oven could be damaged
and the warranty would be
void.
20cm
30cm
20cm
min85cm
0cm
The accessible
surface may be
hot during operation.
11

12
2. Microwave Cooking
OPERATION INSTRUCTIONS
This microwave oven uses electronic controls to adjust cooking parameters to best
achieve your desired cooking results.
2) Turn " " to adjust the hour figures, the input time should be within 0--23.
3) Press "CLOCK/TIMER", the minute figures will flash.
5) Press "CLOCK/TIMER" to finish clock setting. ":" will flash.
Note: 1)
2) During the process of clock setting, if you press "STOP/CLEAR", it will
exit the clock setting function.
1) In waiting state, press "CLOCK/TIMER" once, "00:00" displays.
Hour figures will flash
NOTE: the step quantities for the adjustment time of the coding switch are as follow:
0---1 min : 5 seconds
1---5 min : 10 seconds
5---10 min : 30 seconds
10---30 min : 1 minute
30---95 min : 5 minutes
Microwave Power Chart
Press
Microwave Power
Once Twice 3 times 4 times 5 times
80% 50% 30% 10%
100%
4) Turn " " to adjust the minute figures, the input time should be within 0--59.
1) Press the "MICRO./GRILL/COMBI./CONVE. " key once, and "P100" display.
2) Press " MICRO./GRILL/COMBI./CONVE. " for times or turn " " to select the
microwave power from 100% to 10%. "P100", "P80", "P50", "P30", "P10"... will display
in order.
3) Press "START/+30SEC./CONFIRM " to confirm.
4)Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5) Press " START/+30SEC./CONFIRM " to start cooking.
1.Clock Setting
The clock will not work if it is not set when powered.

13
3. Grill Cooking
4. Combination Cooking
5. Convection Cooking (With preheating funtion)
Instructions Microwave Grill
Display Convection
1
2
3
4
1) Press the "MICRO./GRILL/COMBI./CONVE. " key once, and "P100" display.
2) Press " MICRO./GRILL/COMBI./CONVE. " for times or turn " " to select the
grill function. When "G-1" displays, it indicates grill function.
3) Press "START/+30SEC./CONFIRM " to confirm.
4)Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5) Press " START/+30SEC./CONFIRM " to start cooking.
1) Press the "MICRO./GRILL/COMBI./CONVE. " key once, and "P100" display.
2) Press " MICRO./GRILL/COMBI./CONVE. " for times or turn " " to select the
combination function. Stop turning when "C-1","C-2","C-3","C-4" displays.
3) Press "START/+30SEC./CONFIRM " to confirm.
4)Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5) Press " START/+30SEC./CONFIRM " to start cooking.
C-1
C-2
C-3
C-4
The convection cooking can let you to cook the food as a traditional oven. Microwave is not
used in this function. It is recommended that you should preheat the oven to the
appropriate temperature before placing the food in the oven.
Note: Combination instructions
Note: If half the grilling time passes, the oven will sound twice to tell you to turn over
the food. You can just leave it continue. For better grilling results, turn the
food over, close the door, and then press"START/+30SEC./CONFIRM" to
continue cooking.

14
6. Convection Cooking( Without pre-heating function)
7.Multi-Stage Cooking
A maximum of one stage is defrosting, it should be put in the first stage. The buzzer will
ring once after each stage and the next stage will begin.
Note: Auto menu and preheating cannot be set as one of the multi-stage.
3) Press the " START/+30SEC./CONFIRM " to confirm the temperature.
4) Press the " START/+30SEC./CONFIRM " to start preheating.When the
preheating temperature arrives, the buzzer will sound twice to remind you to
put the food into the oven. And the preheated temperature is displayed and flash.
5) Put the food into the oven and close the door.
Turn " " to adjust the cooking time. (The maximum setting time is 95 minutes.)
6) Press the " START/+30SEC./CONFIRM " key to start cooking.
3) Press the " START/+30SEC./CONFIRM " to confirm the temperature
4) Turn " " to adjust the cooking time. (The maximum setting time is 95 minutes.)
5) Press the " START/+30SEC./CONFIRM " key to start cooking.
1) Press the "MICRO./GRILL/COMBI./CONVE. " key once, and "P100" display.
2) Press " MICRO./GRILL/COMBI./CONVE. " for times or turn " " to select the
convection function. When convection temperature displays, it indicates convection function.
The temperature can be chosen from 150 degrees to 240 degrees.
1) Press the "MICRO./GRILL/COMBI./CONVE. " key once, and "P100" display.
2) Press " MICRO.E/GRILL/COMBI./CONVE. " for times or turn " " to select the
convection function. When convection temperature displays, it indicates convection function.
The temperature can be chosen from 150 degrees to 240 degrees.
Note: a. Cooking time cannot be input until the preheating temperature arrives.
If the temperature arrives, door must be opened to input the cooking time.
b. If the time is not input within 5 minutes, the oven will stop preheating. The buzzer
will sound five times and revert back to waiting states.
Example: If you want to defrost the food for 5 minutes, then to cook with 80%
microwave power for 7 minutes. The steps are as following:
1) Press "WEIGHT /TIME DEFROST " twice, the screen will display "d-2";
2) Turn " " to adjust the defrost time of 5 minutes;

15
2) Turn " " to adjust the timer. The MAX.time is 95 minutes.
3) Press " START/+30SEC./CONFIRM " to confirm.
1) In waiting state, press "CLOCK/TIMER" twice, "00:00" displays.
Note: 1) The kitchen time is different from 24-hour system, the Timer is a timer.
2) During timer, programs cannot be set.
5) Press "START/+30SEC./CONFIRM" to confirm;
6) Turn " " to adjust the cooking time of 7 minutes;
7) Press "START/+30SEC./CONFIRM" to start cooking.
8. TIMER
3) Press" MICRO./GRILL/COMBI./CONVE. " once;
4) Turn " " to choose 80% microwave power till "P80" display;
1) In waiting state, press "START/+30SEC./CONFIRM" key to cook with 100% power
level for 30 seconds. Each press on the same key can increase 30 seconds. The
maximum cooking time is 95 minutes.
2) During microwave,grill,convection and combination states, press
"START/+30SEC./CONFIRM" key to cook with 100% power level for 30 seconds.
Each press on the same key can increase 30 seconds.
In waiting state, turn " " left to choose cooking time directly then press
"START/+30SEC./CONFIRM" key to cook with 100% microwave power.
This program can be set as the first one of multi-stage.
Note: this function cannot work under weight defrost,multi-stage and auto
menu cooking.
9. Speedy Cooking
10. Speedy Microwave Cooking

16
Auto menu Chart
Menu
Weight
Display
Power
A1
AUTO REHEAT
150g
150
100%
250g
250
350g
350
450g
450
600g
600
A2 POTATO
1 (about 230g)
1
100%
2 (about 460g)
2
3 (about 690g)
3
A3
MEAT
150g
150
100%
300g
300
450g
450
600g
600
A4 VEGETABLE
150g
150
100%
350g
350
500g
500
A5
FISH
150g
150
80%
250g
250
350g
350
450g
450
650g
650
A6
PASTA
50g(with 450 cold water)
50
80%
100g(with 800 coldwater)
100
150g(with 1200 cold water)
150
A7
SOUP
200ml
200
100%
400ml
400
600ml
600
A8
CAKE
475g
475
Preheat to
160℃
A9
PIZZA
200g
200
C-4
300g
300
400g
400
A10
CHICKEN
500g
500
C-4
750g
750
1000g
1000
1200g
1200
ml
ml
ml

17
13. Defrost by Time
12. Defrost by Weight
14. Inquiring Function
(1) In cooking state, press "MICRO./GRILL/COMBI./CONVE. ", the current
power will be
displayed for 2-3 seconds.
displayed for 2-3 seconds.
1) Press " WEIGHT/TIME DEFROST " key twice, the oven will display "d-2"
2) Turn " " to select the cooking time. The maximum setting time is 95 minutes.
3) Press " START/+30SEC./CONFIRM" key to start defrosting.
1) Press "WEIGHT/TIME DEFROST" pad once,the oven will display "d-1",.
3) Press "START/+30SEC./CONFIRM" key to start defrosting.
2) Turn " " to select the weight of food.At the same time, "g" will indicate,
The weight should be 100-2000g.
(2) During cooking state, press "CLOCK/TIMER" to check the current time. It will be
11. Auto Menu
Note: 1). Cake menu is under convection cooking with 1 -warm-up function,
and you should preheat first following the auto menu operation, when the oven
reaches the temperature, it will stop working and sound to remind opening
the door to put cake in, then press "Start/+30Sec./Confirm " to start cooking.
1) In waiting state, turn " " right to choose the function wanted,
and "A1","A2","A3"...."A10" will be displayed.
2) Press "START/ +30 SEC./CONFIRM" to confirm the menu you need.
3) Turn " " to choose the weight of menu,and "g" indicator will light.
4) Press "START/ +30 SEC./CONFIRM" to start cooking.
60
twice indicating that the food needs to be turned over. You can leave it as is or for
better results, Turn the food over, close the door and then press
“Start/+30Sec./Confirm” to continue cooking.
2) When roast chicken function chosen, and 2/3 of the time has passed, the unit will ring
Note: To defrost, if the food is less than 200 grams, place the item at the side of the
glass turntable for best results. Do not place at the centre of the turntable.

18
16. Specification
(1) The buzzer will sound once when turning the knob at the beginning;
(2) "START/+30 SEC./CONFIRM" must be pressed to continue cooking if the door is opened
during cooking;
(3) Once the cooking programme has been set , "START/+30 SEC./CONFIRM" is not pressed
within 5 minutes. The current time will be displayed. The setting will be cancelled.
(4) The buzzer sounds once when pressed, ineffective press will not be indicated by buzzer.
(5) The buzzer will sound five times to remind you when cooking is finished.
15. Lock-out Function for Children
Lock: In waiting state, press "STOP/CLEAR" for 3 seconds, there will be a long "beep"
denoting entering into the children-lock state and locked indicator will light. Screen will display
current time or 0:00.
Lock quitting: In locked state, press "STOP/CLEAR" for 3 seconds, there will be a long "beep"
denoting that the lock is released, and " " indicator will disapear.
WARRANTY
The warranty period is 24 months from the date of purchase.
CONTACT
Glen Dimplex Australia Pty Ltd
Unit 1, 21 Lionel Road
Mount Waverley VIC 3149
Australia
Ph: 1300 556 816
Fax: [phone]
Web: www.belling.com.au
Glen Dimplex Australiasia Ltd
38 Harris Road, East Tamaki
Manukau, Auckland 2013
New Zealand
Ph: [phone]
Fax: [phone]
Web: www.belling.co.nz

19
Trouble shooting
-
Do not run the unit without any food inside. It is very
dangerous.
Radio and TV reception may experience interference
when microwave oven is operating. It is similar to the
interference of small electrical appliances like a mixer,
vacuum cleaner and electric fan. Interference is normal.
In low power microwave cooking, oven light may
become dim. This is normal.
In cooking, steam may come out of food. Most will get
out from vents, but some may accumulate on a cool
place like the oven door. This is normal.
Fuse blown or circuit
breaker works
Replace fuse or reset circuit
breaker (repaired by a licensed
technician)
Test the power outlet with other
electrical appliances.
Ensure door is correctly closed.
Refer to "Maintenance of
Microwave" to clean the dirty
parts.
Door not correctly closed
Do not dispose of electrical appliances as unsorted municipal waste.
Use separate collection facilities.
-Contact your local government for more information regarding the
collection systems available.
-If electrical appliances are disposed of in landfills or dumps,
hazardous substances can leak into the ground water, polluting the
food chain and damaging health and well-being.
PN:16170000A15635
