Belling FM2890C STA User manual

Belling Sta
Microwave User Manual
FM2890C

SAVE THESE INSTRUCTIONS CAREFULLY
Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.
1
Belling FM2890C Sta

(a) Do not attempt to operate this oven with the door
open since this can result in harmful exposure to
microwave energy. It is important not to break or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face
and the door or allow soil or cleaner residue to accumulate
on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired by
a competent person.
ADDENDUM
If the apparatus is not maintained in a good state of
cleanliness, its surface could be degraded and affect the
lifespan of the apparatus and lead to a dangerous situation.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
Specifications
Model:
Rated Voltage:
2 0V~ 50Hz 3
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Rated Input Power(Grill):
Rated InputPower(Convection):
Oven Capacity:
L28
Turntable Diameter:
External Dimensions:
510
NetWeight:
Approx.
900W
1450W
1100W
2500W
315mm
18kg
520
325mm
2
Belling FM2890C Sta

To reduce the risk of fire, electric shock, injury to
persons or exposure to excessive microwave oven
energy when using your appliance, follow basic
precautions, including the following:
1. Warning: Liquids and other foods must not be heated
in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a
competent person to carry out any service or repair
operation that involves the removal of a cover which
gives protection against exposure to microwave energy.
3. This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children unless they are older than
8 and supervised.
4. Keep the appliance and its cord out of reach of
children less than 8 years.
5. Only use utensils that are suitable for use in microwave
6. The oven should be cleaned regularly and any food
deposits should be removed.
7. Read and follow the specific:"PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY".
8. When heating food in plastic or paper containers,
IMPORTANT SAFETY INSTRUCTIONS
WARNING
.ovens
3

9. If smoke is emitted, switch off or unplug the appliance
and keep the door closed in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes.
Do not store items, such as bread, cookies, etc. inside
the oven.
12. Remove wire twist-ties and metal handles from
paper or plastic containers/bags before placing them in
the oven.
13. Install or locate this oven only in accordance with the
installation instructions provided.
14. Eggs in the shell and whole hard-boiled eggs should
not be heated in microwave ovens since they may
explode, even after microwave heating has ended.
15.This appliance is intended to be used in household
and similar applications such as:
-staff kitchen areas in shops, offices and other working
environments;
-by clients in hotels, motels and other residential type
environments;
-farm houses;
-bed and breakfast type environments.
16. If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet basement
or near a swimming pool.
19. The temperature of accessible surfaces may be high
when the appliance is operating. The surfaces are liable
to get hot during use. Keep cord away from heated
ir
keep an eye on the oven due to the possibility of ignition.
4

20. Do not let cord hang over edge of table or counter.
21. Failure to maintain the oven in a clean condition
could lead to deterioration of the surface that could
adversely affect the life of the appliance and possibly
result in a hazardous situation.
22.The contents of feeding bottles and baby food jars
shall be stirred or shaken and the temperature checked
before consumption, in order to avoid burns.
23. Microwave heating of beverages can result in
delayed eruptive boiling, therefore care must be taken
when handling the container.
24.The appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
25.Children should be supervised to ensure that they do
not play with the appliance.
26.The appliances are not intended to be operated by
means of an external timer or separate remote-control
system.
27.Accessible parts may become hot during use. Young
children should be kept away.
28.Steam cleaner is not to be used.
29.During use the appliance becomes hot. Care should
be taken to avoid touching heating elements inside the
oven.
30.Only use the temperature probe recommended for
this oven.(for ovens provided with a facility to use a
surface, and do not cover any vents on the oven.
5

31. WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements. Children less than 8 years
of age shall be kept away unless continuously
supervised.
32.The microwave oven must be operated with the
decorative door open. (for ovens with a decorative door.)
33.The rear surface of appliance shall be placed against
a wall.
34.The microwave oven must not be placed in a cabinet.
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE
35.The microwave oven is intended for heating food and
beverages.Drying of food or clothing and heating of
warming pads,slippers,sponges,damp cloth and similar
may lead to risk of injury,ignition or fire.
temperature-sensing probe.)
6

To Reduce the Risk of Injury to Persons
Grounding Installation
DANGER
Electric Shock Hazard
Touching some of the
internal components can
cause serious personal
injury or death. Do not
disassemble this
appliance.
WARNING
Electric Shock Hazard
Improper
use of the grounding
can
result in electric shock.
Do not plug into an outlet
until appliance is properly
installed and grounded.
This appliance must be
grounded. In the event of
an electrical short circuit,
grounding reduces the
risk of electric shock by
providing an escape wire
for the electric current.
This appliance is equipped
with a cord having a
grounding wire with
a grounding plug. The
plug must be plugged into
an outlet that is properly
installed and grounded.
Consult a qualified
electrician or serviceman
if the grounding instructions
are not completely
understood or if doubt exists
as to whether the appliance
is properly grounded.
If it is necessary to use an
extension cord, use only
a 3-wire
1. A short power-supply cord
is provided to reduce the risks
resulting from becoming
entangled in or tripping over a
longer cord.
2. If a long cord set or extension
cord is used:
1)The marked electrical rating
of the cord set or extension cord
should be at least as great as
the electrical rating of the
appliance.
2)The extension cord must be
a grounding-type 3-wire cord.
3)The long cord should be
arranged so that it will not drape
over the counter top or tabletop
where it can be pulled on
by children or tripped over
unintentionally.
extension cord.
7

CLEANING
Be sure to unplug the appliance from the power supply.
1. Clean the cavity of the oven after using with a slightly damp
cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be
cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the
food cooked can touch: Place half a lemon in a bowl, add 300ml
(1/2 pint) water and heat on 100% microwave power for 10
minutes. Wipe the oven clean using a soft, dry cloth.
UTENSILS
CAUTION
Personal Injury Hazard
It is hazardous for
anyone other than a
compentent person to
carry out any service
or repair operation that
involves the removal of
a cover which gives
protection against
exposure to microwave
energy.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
8

Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
9

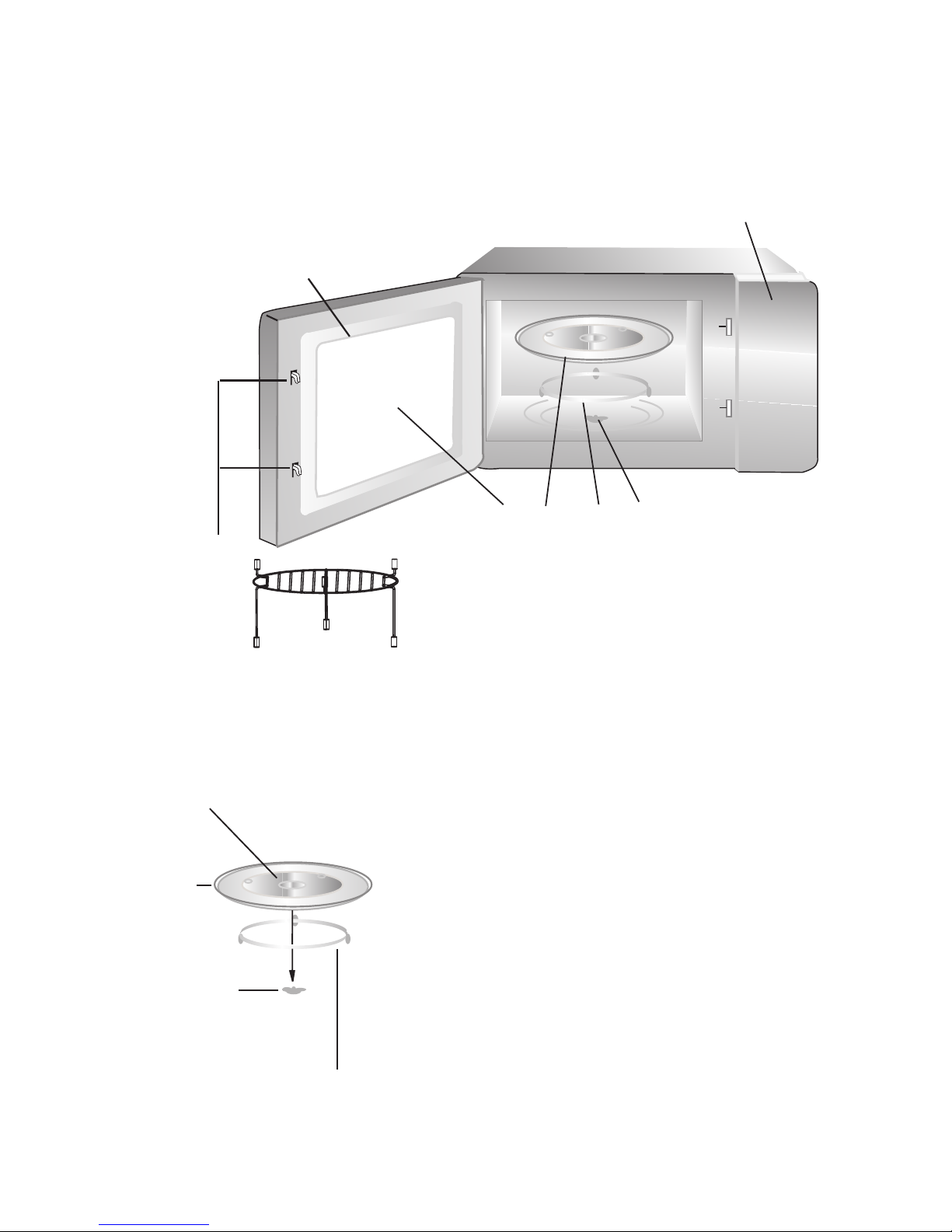

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
F
G
A
C B
ED
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Hub (underside)
Glass tray
Turntable ring assembly
a. Never place the glass tray upside down. The glass
tray should never be restricted.
b. Both glass tray and turntable ring assembly must
always be used during cooking.
c. All food and containers of food are always placed
on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or
breaks, contact your nearest authorized service
center.
Turntable Installation
Turntable shaft
Grill Rack( Can not be used in microwave
function and must be placed on the glass tray )
10

Remove all packing material and accessories.
Examine the oven for any damage such as
dents or broken door. Do not install if oven is
damaged.
Countertop Installation
Cabinet: Remove any protective film found
on the microwave oven cabinet surface.
Do not remove the light brown Mica cover
that is attached to the oven cavity to
protect the magnetron.
Installation
1.Select a level surface that
provide enough open space
for the intake and/or outlet
vents.
(1) The minimum installation
height is 85cm.
(2) The rear surface of
appliance shall be placed
against a wall.
Leave a minimum clearance
of 30cm above the oven, a
minimum clearance of 20cm
is required between the oven
and any adjacent walls.
(3) Do not remove the legs
from the bottom of the oven.
(4) Blocking the intake and/
or outlet openings can
damage the oven.
(5) Place the oven as far
away from radios and TV
as possible. Operation of
microwave oven may
cause interference to your
radio or TV reception.
2. Plug your oven into a
standard household outlet.
Be sure the voltage and
the frequency is the same
as the voltage and the
frequency on the rating
label.
WARNING: Do not install
oven over a range cooktop
or other heat-producing
appliance. If installed near
or over a heat source, the
oven could be damaged
and the warranty would be
void.
20cm
30cm
20cm
min85cm
0cm
The accessible
surface may be
hot during operation.
11

OPERATION INSTRUCTION
This microwave oven uses modern electronic controls to meet your cooking needs.
1.Clock Setting
When the microwave oven is Powered On, the oven will display "0:00" and the
buzzer will ring once. ,
1) Press " CLOCK/KITCHEN TIMER once. "00:00" displays. "
2) Turn " " to adjust the hour figures, the input time should be within 0--23(24-hour).
3) Press " CLOCK/KITCHEN TIMER ", the minute figures will flash.
4) Turn " " to adjust the minute figures, the input time should be within 0--59.
5) Press " CLOCK/KITCHEN TIMER" to finish clock setting. ":" will flash.
Note: 1) If the clock is not set, it would not function when powered.
2) During the process of clock setting, if you press " STOP/CLEAR ", the oven
will go back to the previous status automatically.
2. Kitchen Timer
(1) Press " CLOCK/KITCHEN TIMER " twice, the screen will display 00:00.
(2) Turn " " to enter the correct timer. (The maximum cooking time is 95 minutes.)
(3) Press " START/+30SEC./CONFIRM " to confirm setting.
(4) When the kitchen time is reached, the buzzer will ring 5 times.
If the clock set to the (24-hour system), the screen will display the current time.has been
Note: The kitchen Time is different from 24-hour system Kitchen Timer is.a timer.
3. Microwave Cooking
Press " Microwave " e will display "P100". Press " Microwave "
choose the power you want, and "P100", "P 80" "P 50", "P 30" orto "P 10" will
display for each added press. Then press "START/+30SEC./CONFIRM " toconfirm,
and turn "
Press" START/+30SEC./CONFIRM " again to start cooking.
Example: If you want to use 80% microwave power to cook for 20 minutes, you can
operate the oven with the following steps.
" to adjust the cooking time.
. (The maximum cooking time is 95 minutes.)
once, th screen repeatedly
12

1) Press " Microwave " once, the screen displays "P100".
2) Press "Microwave " once again to choose 80% microwave power.
3) Press "Start/+30Sec./Confirm " to confirm, and the screen displays "P 80".
4) Turn " " to adjust the cooking time until the oven displays "20:00".
5) Press " Start/+30Sec./Confirm" to start cooking .
NOTE:
The step quantities for the adjustment time of the coding switch are as follow:
0---1 min : 5 seconds
1---5 min : 10 seconds
5---10 min : 30 seconds
10---30 min : 1 minute
30---95 min : 5 minutes
Microwave Power Chart
Press Once Twice Thrice 4 times 5 times
Microwave Power
100%
80%
50%
30%
10%
4. Grill or Combi. Cooking
Press "Grill/Combi." e will display "G-1", and press "Grill/Combi."
turn the " " to choose the power you want, and "G ", "C-1", "C-2",
"C-4" will display for each added press. Then press "Start/+30Sec./Confirm"
to confirm, and turn " " to
Press "Start/+30Sec./Confirm" again to start cooking.
Example: If you want to use grill power to cook for 10 minutes, you can operate the
oven as the following steps.
1) Press " Grill/Combi. " once, the screen displays "G-1".
2) Press " Start/+30Sec./Confirm " to confirm.
3) Turn " " to adjust the cooking time until the oven displays "10:00".
4) Press " Start/+30Sec./Confirm " to start cooking.
Note: If half the grill time passes, the oven sounds twice, and this is normal.
order to have a better effect of grilling food, you should turn the food over,
r, and press to continue cooking. If no
operation the oven will continue cooking.
In
close the doo m""Start/+30Sec./Confir
adjust the cooking time. (The maximum setting time is
95 minutes.)
once, th screen
repeatedly or
"C-3" or -1
13

Note: Combination instructions
Instructions Display Microwave
Grill Convection
1
C-1
2 C-2
3 C-3
4 C-4
5. Convection Cooking (With preheating function)
The convection cooking can let you to cook the food as a traditional oven. Microwave is not
used. It is recommended that you should preheat the oven to the appropriate temperature
before placing the food in the oven.
1) Press the "CONVECTION " key once, "140" flash.
2) Keep pressing "CONVECTION" or turn " " to select the convection temperature.
Note: The temperature can be chosen from 140 degrees to 230 degrees.
3) Press the " START/+30SEC./CONFIRM " to confirm the temperature.
4) Press the " START/+30SEC./CONFIRM " to start preheating. When the preheating
temperature arrives, the buzzer will sound twice to remind you to put the food into the
And the preheated temperature is displayed and flashes.oven.
5) Put the food into the oven and close the door.
Turn " " to adjust the cooking time. (The maximum setting time is 95 minutes.)
6) Press the " START/+30SEC./CONFIRM " key to start cooking.
Note: a. Cooking time cannot be input until the preheating temperature arrives.
If the temperature arrives, door must be opened to input the cooking time.
The buzzer sounds b. If the time not input in 5 minutes, the oven will stop preheating.
five times and turn back to waiting state.
14

7. Multi-StageCooking
Note: Auto menu and preheating cannot be set as one of the multi-stage.
Example: If you want to defrost the food for 5 minutes, then to cook with 80%
microwave power for 7 minutes. The steps are as following:
1) Press "W E DEFROST " twice, the screen will display "d-2";
2) Turn " " to adjust the defrost time of 5 minutes;
3) Press "
MICROWAVE
" once, "P100" will display;
4) Press " " again to choose 80% microwave power till "P 80" displays;
5) Press "START/+30SEC./CONFIRM" to confirm;
6) Turn " " to adjust the cooking time of 7 minutes;
7) Press "START/+30SEC./CONFIRM" to start cooking.
8. Speedy Cooking
1) In waiting state, press "START/+30SEC./CONFIRM" key to cook with 100% power
level for 30 seconds. Each press on the same key can increase 30 seconds. The
maximum cooking time is 95 minutes.
2) During microwave, grill, convection and combination states,
seconds.
cooking time can be
increased by pressing " ". Each press can increase 30
Note: s function cannot work under t, multi-stage and auto menu
cooking.
Thi
MICROWAVE
START/+30SEC./CONFIRM
6. Convection Cooking ( Without pre-heating function)
1) Press the "CONVECTION " key once, "140" flash.
2) Keep pressing "CONVECTION" or turn " " to select the convection .
Note: The temperature can be chosen from 140 degrees to 230 degrees.
3) Press the " START/+30SEC./CONFIRM " to confirm the temperature.
4) Turn " " to adjust the cooking time. (The maximum setting time is 95 minutes.)
5) Pressthe " START/+30SEC./CONFIRM " key to start cooking.
temperature
weight defros
EIGHT/TIM
15
the next stage will begin.
Two stages of cooking can be set at the same time. If one stage is defrosting, it will
automatically be set as the first stage. The buzzer will ring once after each stage and

Auto menu Chart
Menu
Weight
Display
Power
A1
AUTO REHEAT
150g
150
100%
250g
250
350g
350
450g
450
600g
600
A2 POTATO
1 (about 230g)
1
100%
2 (about 460g)
2
3 (about 690g)
3
A3
MEAT
150g
150
100%
300g
300
450g
450
600g
600
A4 VEGETABLE
150g
150
100%
350g
350
500g
500
A5
FISH
150g
150
80%
250g
250
350g
350
450g
450
650g
650
A6
PASTA
50g(with 450g cold water)
50
80%
100g(with 800g coldwater)
100
150g(with 1200g cold water)
150
A7
SOUP
200ml
200
100%
400ml
400
600ml
600
A8
CAKE
475g
475
Preheat to
160℃
A9
PIZZA
200g
200
C-4
300g
300
400g
400
A10
CHICKEN
500g
500
C-4
750g
750
1000g
1000
1200g
1200
16

17
Auto Menu9.
1) In waiting state, turn " " right to choose the function wanted,
and "A1","A2","A3"...."A10" will be displayed.
2) Press "START/ +30 SEC./CONFIRM" to confirm the menu you need.
3) Turn " " to choose the weight of menu,and "g" indicator will light.
4) Press "START/ +30 SEC./CONFIRM" to start cooking.
Note: When you choose A9 cake, please do not put the cake into the oven at the begining.
The oven needs to be preheated to 160 degree first. After several minutes, the buzzer
sounds twice to remind you to put the cake into the oven.After putting the cake in the oven,
please press start again. The timer will count down, and the cake will be cooked perfectly.
10. Defrost by W.T.
1) Press "WDEFROST " pad once, the oven will display "d-1".
2) Turn " " to select the weight of food. At the same time, "g" will
e weight should be -2000g.light. Th within 100
3) Press "START/+30SEC./CONFIRM" key to start defrosting.
1Defrost by Time1.
1) Press " WDEFROST " key twice, the oven will display "d-2".
2) Turn " " to select the cooking time. The maximum setting time is 95 minutes.
3) Press " START/+30SEC./CONFIRM" key to start defrosting.
12. Inquiring Function
(1) During cooking state, press "CLOCK/KITCHEN TIMER" to check the current time.
(2) In cooking state, press "MICROWAVE", "GRILL/ COMBI." or " CONVECTION", the
r will be displayed for 2-3 seconds.current powe
EIGHT/TIME
EIGHT/TIME
17

1Child Lock3.
Lock: In waiting state, press "STOP/CLEAR" for 3 seconds, there will be a long "beep"
denoting entering into the children-lock state and " " indicator will light. will
current time or 0:00.
Unlock: In locked state, press "STOP/CLEAR" for 3 seconds, there will be a long "beep"
denoting that the lock is released, and " " indicator will disappear.
14. Specification
(1) The buzzer will sound once when turning the knob at the beginning.
(2) "START/+30 SEC./CONFIRM" must be pressed to continue cooking if the door is
opened during cooking.
(3) Once the cooking programmer has been set , "START/+30 SEC./CONFIRM" is not
pressed in 5 minutes. The current time will be displayed. The setting will be cancelled.
(4) The buzzer sounds once by efficient press, inefficient press will be no response.
(5) The buzzer will sound five times to remind you when cooking is finished.
The screen
display
18
