Belson Outdoors T22-02 User manual
www.belson.com
BEFORE ASSEMBLY, PLEASE MAKE SURE ALL COMPONENTS ARE INCLUDED.
D - BAG HOLDER
( 2 ) - TWO BAG HOLDERS
C - FRAME RING
( 2 ) - TWO FRAME RINGS
FP - FASTENER PACK
( 1 ) - ONE FASTENER PACK
E - FLAT TOP
( 1 ) - FLAT TOP
B - SIDE BOARD W/ PILOT HOLES
( 2 ) - TWO SIDE BOARDS W/ PILOT HOLES
A - SIDE BOARD
( 16 ) - SIXTEEN SIDE BOARDS
www.belson.com
1 - 3” PHILLIPS DRIVE BIT
ALSO NEEDED FOR THIS ASSEMBLY WILL BE THE FOLLOWING MATERIALS:
72 - #12 X 2” FLAT HEAD PHILLIPS SCREWS
4 - #12 X 1-1/2” PAN HEAD PHILLIPS SCREWS
8 - 1/4” FLAT WASHER
BEFORE ASSEMBLY, PLEASE MAKE SURE ALL FASTENERS ARE INCLUDED.
www.belson.com
STEP #1:
PLACE THE ( 2 ) TWO FRAME RINGS ON EDGE WITH THE LONG EDGE ON A FLAT SURFACE AS SHOWN
IN THE DIAGRAM ABOVE. ONE AT A TIME, PLACE ( 4 ) FOUR SIDE BOARDS IN POSITION MAKING SURE THE
HOLES LINE UP WITH THE PRE-DRILLED PILOT HOLES IN THE FRAME RINGS. FASTEN USING ( 1 ) ONE 2”
FLAT HEAD PHILLIPS SCREW PER HOLE.
#12 X 2” FLAT HEAD
PHILLIPS SCREW
www.belson.com
STEP #2:
REPEAT STEP #1 FOR THE OPPOSITE SIDE.
#12 X 2” FLAT HEAD
PHILLIPS SCREW
www.belson.com
STEP #3:
PLACE ( 1 ) ONE SIDE BOARD W/ PILOT HOLES IN THE CENTER POSITION MAKING SURE THE HOLES
LINE UP WITH THE PRE-DRILLED PILOT HOLES IN THE FRAME RINGS. FASTEN USING ( 1 ) ONE 2” FLAT
HEAD PHILLIPS SCREW PER HOLE.
www.belson.com
STEP #5:
REPEAT STEP #3 AN #4 FOR OPPOSITE SIDE.
#12 X 2” FLAT HEAD
PHILLIPS SCREW
STEP #4:
ONE AT A TIME, PLACE ( 4 ) FOUR SIDE BOARDS IN POSITION MAKING SURE THE HOLES LINE UP
WITH THE PRE-DRILLED PILOT HOLES IN THE FRAME RINGS. FASTEN USING ( 1 ) ONE 2” FLAT HEAD
PHILLIPS SCREW PER HOLE.
STEP #6:
TURN THE TRASH RECEPTACLE UPRIGHT ONTO ITS BASE. PLEASE USE CAUTION WHILE MOVING.
AT THIS POINT IN ASSEMBLY THE RECEPTACLE WILL WEIGH APPROXIMATELY 66 POUNDS.

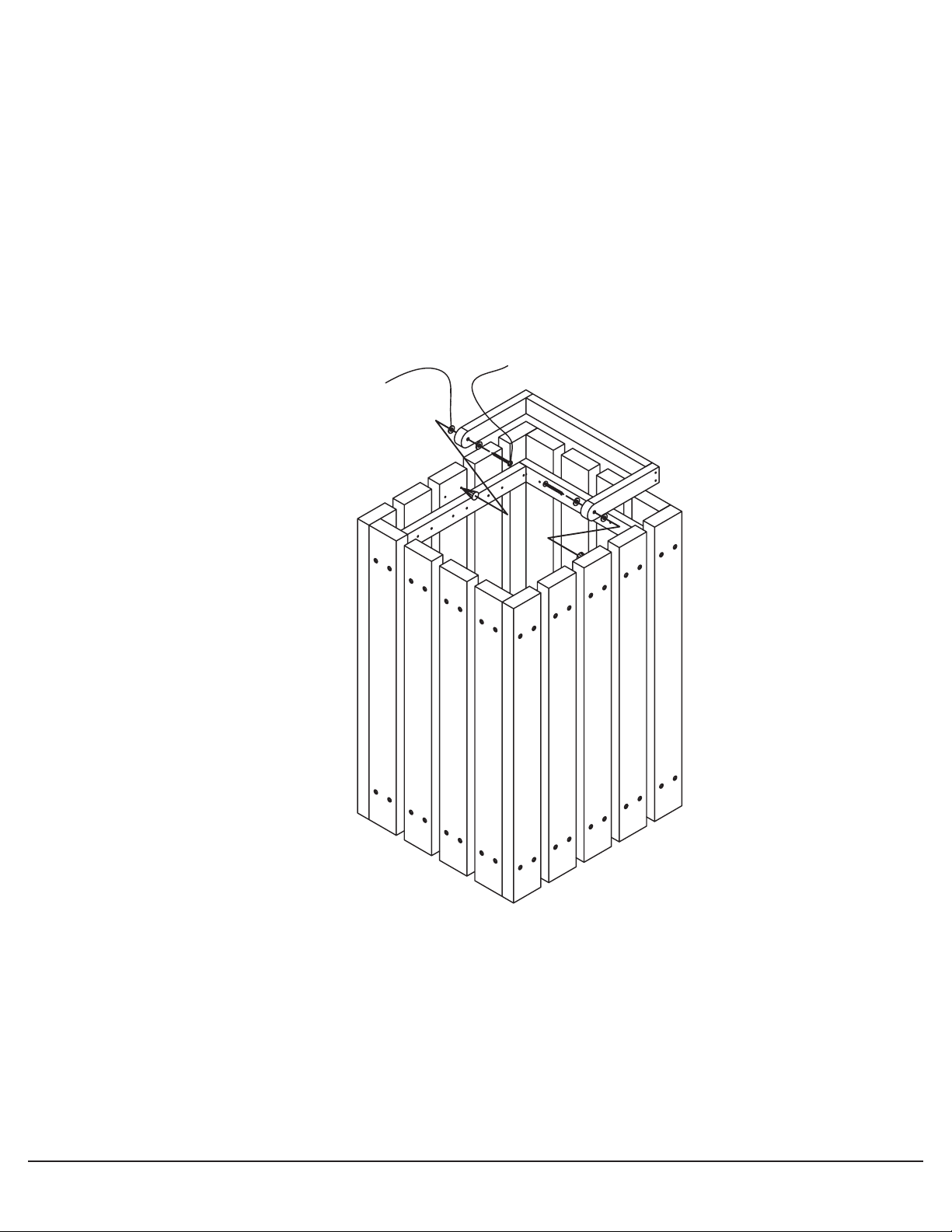

STEP #7:
PLACE THE BAG HOLDER IN THE TRASH RECEPTACLE, USING ( 1 ) ONE 1/4” FLAT WASHER ON EACH SIDE
OF THE PRE-DRILLED HOLES, FASTEN WITH ( 1 ) ONE 1-1/2” PAN HEAD PHILLIPS SCREW IN TO EACH
PRE-DRILLED PILOT HOLES IN THE SIDE BOARDS.
www.belson.com
1/4” FLAT WASHER
#12 X 1-1/2” PAN HEAD
PHILLIPS SCREW
STEP #8:
REPEAT STEP #7 FOR THE OPPOSITE SIDE.
STEP #9:
TO PLACE THE LID ON THE TRASH RECEPTACLE, REST IT ON THE INNER LEDGE OF THE SIDE WALLS.
