Bentone B40 MF Technical specifications

Providing sustainable energy solutions worldwide
178 056 56-6 2019-01-10
Installation and Maintenance instruction
B40 MF, B45-2 MF

2Bentone B40 MF/B45-2 MF

3
Bentone B40 MF/B45-2 MF
General
Table of Contents
Table of Contents _______________________________________________________ 3
1. TECHNICAL DATA _______________________________________________ 8
1.1 Dimensions B40 ______________________________________________ 8
1.2 Setting of ignition electrodes and brake plate _______ 8
1.3 Dimensions B45-2 ___________________________________________ 9
1.4 Setting of ignition electrodes and brake plate _______ 9
1.5 Dimensions, flange_________________________________________ 10
1.6 Recommended nozzle and pressure _________________ 10
1.7 Oil grades_____________________________________________________ 11
1.9 Nozzle for bio oils, 20-28 bar ___________________________ 12
1.10 Nozzle for fossil oils, 22-28 bar ________________________ 13
1.11 Description B40 MF ______________________________________ 14
1.12 Description B45-2 MF ____________________________________ 16
2. INSTALLATION ___________________________________________________ 18
2.1 Acceptance inspection ___________________________________ 18
2.2 Preparations for installation______________________________ 18
2.3 Distribution of oil____________________________________________ 18
2.4 Electrical connection ______________________________________ 19
2.5 Nozzle selection ____________________________________________ 20
2.6 Setting of brake plate and air flow_____________________ 20
2.7 Burner installation __________________________________________ 20
2.8 Burner installation __________________________________________ 21
2.9 Check oil line seals_________________________________________ 21
3. FUNCTION DESCRIPTION ________________________________ 22
3.1 B40 MF 1-stage burner __________________________________ 22
3.2 B45-2 MF 2-stage burner _______________________________ 23
4. BASIC SETTINGS ______________________________________________ 24
4.1 Examples of basic setting B40 MF____________________ 24
4.2 Examples of basic setting B45-2 MF_________________ 25
4.3 Setting values for nozzle assembly B40 MF________ 26
4.4 Setting values for air damper B40 MF _______________ 26
4.5 Setting values for nozzle assembly B45-2 MF_____ 26
4.6 Setting values for air damper B45-2 MF ____________ 26
4.7 Nozzle assembly control, brake plate ________________ 27
4.8 Air setting B40 MF _________________________________________ 27
4.9 Air setting B45-2 MF Damper motor _________________ 28
5. BURNER SERVICING ________________________________________ 30
5.1 Servicing the combustion assembly _________________ 30
5.2 Servicing air dampers ____________________________________ 31
5.3 Replacement of damper motor B45-2 MF__________ 32
5.4 Replacement of oil pump B40 MF / B45-2 MF____ 33
5.5 Replacement of preheaters _____________________________ 34
5.6 Replacement of electrical components______________ 35
5.7 Replacement of preheater overheating protector_ 35
5.8 Check oil line seals_________________________________________ 36
5.9 Check pressure piston nozzle holder seals_________ 36
5.10 Replacement of pressure piston and seat __________ 37
5.11 Immersion heaters for extra preheating______________ 38
5.12 Replacement of pump filter______________________________ 40
5.13 Check/service oil pre-filter _______________________________ 40
6. Preheater____________________________________________________________ 41
6.1 Technical data preheater _________________________________ 41
6.2 Adjustment of preheater operating thermostat____ 42
7. PUMP INSTRUCTION PUMP E4NC-1069 7P ___ 43
7.1 Technical data _______________________________________________ 43
7.2 Components_________________________________________________ 43
7.3 Oil connection _______________________________________________ 43
7.4 Changing the filter__________________________________________ 43
7.5 Function_______________________________________________________ 44
7.6 Preheating pump ___________________________________________ 44
7.7 Return Oil Pressure Switch______________________________ 45
8. ELECTRICAL EQUIPMENT _______________________________ 46
8.1 B40 MF wiring diagram LMO24.255 ... _____________ 46
8.2 B45-2 MF wiring diagram LMO24.255... ___________ 47
8.3 Component list LMO24.255 ... ________________________ 48
8.4 Function LMO24.255 ...__________________________________ 48
8.5 Technical data LMO24.255...___________________________ 49
8.6 Colour codes ________________________________________________ 50
8.7 Fault codes___________________________________________________ 50
9. FAULT LOCATION ______________________________________________ 51
9.1 Burner will not start ________________________________________ 51
9.2 The burner does not start after normal operation 51
9.3 Delayed ignition _____________________________________________ 52
9.4 Noise in pump_______________________________________________ 52
9.5 Pump pressure______________________________________________ 52
10. DECLARATION OF CONFIRMITY______________________ 53

4Bentone B40 MF/B45-2 MF
General
4Bentone
1. General Information
This Installation and Maintenance manual:
• is to be regarded as part of the burner and must always be kept near
the installation site
• is intended for use by authorised personnel
• must be read prior to installation
• must be observed by all who work with the burner and associated
system components
• work with the burner may only be carried out by certified installers/
personnel
• Enertech AB is not liable for any typographical errors and reserves the
right to make design changes without prior notice.
• The burner may only be used for its intended purpose in accordance
with the product’s technical data.
• The burner may only be installed and operated by authorised
personnel.
• The product is packaged to prevent damage from occurring during
handling. Handle the product with care. Lifting equipment must be
used to lift larger packages.
• The products must be transported/stored on a level surface in a dry
environment, max. 80% relative humidity, no condensation.
Temperature -20 to +60 °C.
• Check that the burner is compatible with the boiler’s output range.
• The label information on the rating plate refers to the burner’s minimum
and maximum power.
• The power data on the type sign refers to the burner’s min. and max.
power.
• All components must be installed without being bent, twisted or
subjected to mechanical or thermal forces which can affect the
components.
• The burner must be installed so that it complies with local regulations
for fire safety, electrical safety, and fuel distribution.
• Make sure when installing the equipment that there is enough space to
service the burner.
• Permitted ambient temperature during operation -0 to +60 °C. Max
80% relative humidity, no condensation.
• The installer must ensure that the room has adequate air supply.
• The room must comply with local regulations pertaining to its intended
use.
• The installation site must be free of chemicals.
• Burner pipes, fan wheels and air dampers may contain sharp edges.
• The surface temperature of the burner’s components can exceed 60
°C.
• Caution: The burner has moving parts, and there is risk of crushing
injuries.
165 105 60

5
Bentone B40 MF/B45-2 MF
General
• The electrical installation must be professionally carried out in
accordance with applicable high voltage regulations, as per Enertech’s
recommendations.
• Before servicing, shut off the fuel supply and turn off the power to the
burner.
• Leak checks must be performed during installation and servicing to
prevent fuel leakage.
• Care should be taken by the installer to ensure that no electrical cables
or fuel lines are crushed or otherwise damaged during installation or
servicing.
• If the boiler is equipped with an access hatch, this must be equipped
with a hatch opening switch connected to the burner's safety system.
• When in operation, the burner’s noise level can exceed 85 dBA.
Use hearing protection.
• The burner must not be put into operation without proper safety and
protection devices.
• A Class BE fire extinguisher is recommended.
• It is forbidden to alter thedesign or use accessories which have not
been approved by Enertech in writing.
• Prior to operation, the following points must be checked:
-fitting and installation work has been completed and approved
-electrical installation has been correctly performed
-flue gas ducts and combustion air ducts are not blocked
-all actuators and control and safety devices are in working order and
correctly set

6Bentone B40 MF/B45-2 MF
General
Components Service life – Recommended
replacement
Service life – Recommended
replacement Operating starts
Control system 10 years 250,000 starts
Pressure switch 10 years 250,000 starts
Flame guard 10 years 250,000 starts
UV flame sensor 10000 hrs N/A
Damper motor 500 000 starts
Contaktor 10 years 500,000 starts
Gas valve with seal testing Replacement upon fault detection N/A
Gas pressure switch 10 years 250,000 starts
Safety blow-off system 10 years N/A
Damper motor N/A 500,000 starts
Contactor 10 years 500,000 starts
Pressure piston max. load, Pressure
piston min. load + O-ring
Valve seat
10 years 80 000 starts
Burner 1 year 3000 hrs
Filter 1 year 3000 h Change
Oilhose 1 year control/change
Nozzle 1 year change 3000h Change
Electrods 1 Year Change /cleaning 3000h Change /cleaning
Brake plate 1 Year Change /cleaning 3000h Change /cleaning
Motor 1 year 3000 hrs
Cuppling chaft 1 year control/change 3000h control/change
Fan wheel “1 Year Change when dirty /
unbalance”
“3000h Change when dirty /
unbalance”
Pressure piston max. load
Pressure piston min. load
Regular checks of seal and function
every 3 month. Change at leakage.
Control 2000 hrs
The burner and its components must be recycled according to applicable regulations.
Burner servicing schedule
Servicing must be carried out once a year or after 3000 hours of operation
Component replacement intervals
Delivery check
• Make sure everything is delivered and the goods have not been
damaged during transit.
• If something is wrong with a delivery, report it to the supplier.
• Transport damage must be reported to the shipping company.

7
Bentone B40 MF/B45-2 MF
General

8Bentone B40 MF/B45-2 MF
General
1. TECHNICAL DATA

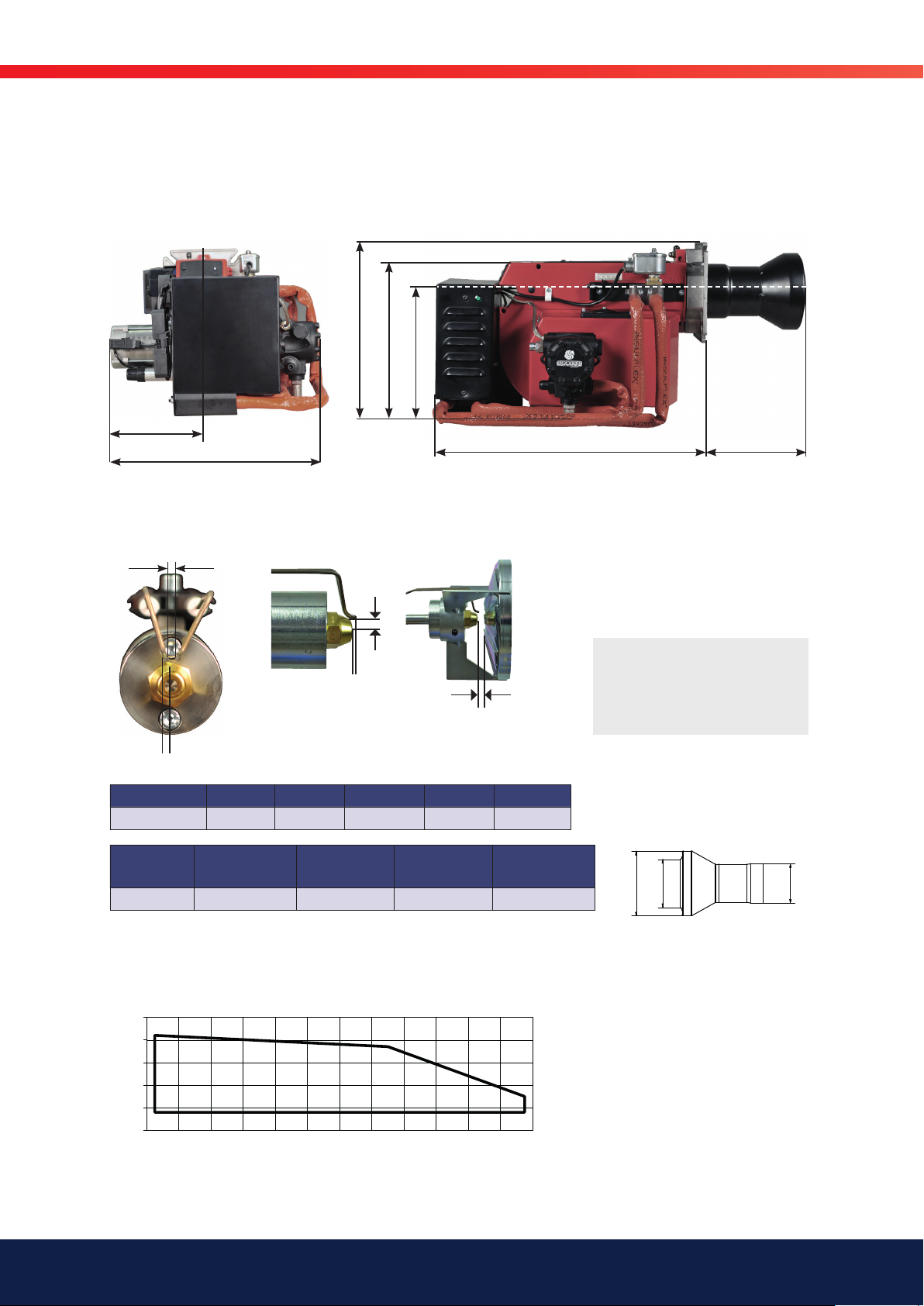

1.1 Dimensions B40
B40 MF Insertion length,
burner tube
Burner tube,
Dimension B
Burner tube,
Dimension C
Burner tube,
Dimension D
Standard 1 202 115 160 114
!*NB It is important that
the spark does not strike
against the brake plate
or nozzle
* Used lower calorific value of
10.00 kWh/kg for rapeseed
oil in accordance with DIN
51605:2010-10
1.1.1 Burner output
6.5 -29.5 kg/h
65 -295 kW
a b c d e
B40 MF 2,5-3,0 2,0 6,5-7,0 2,0 5,0
mbar
-1
0
1
2
3
4
60 100 140 180 220 260 300
mbar
kW
ØD

C

B
451
202
202
527
262
316
362
e
c
d
1.2 Setting of ignition electrodes and brake plate
a
b

9
Bentone B40 MF/B45-2 MF
General

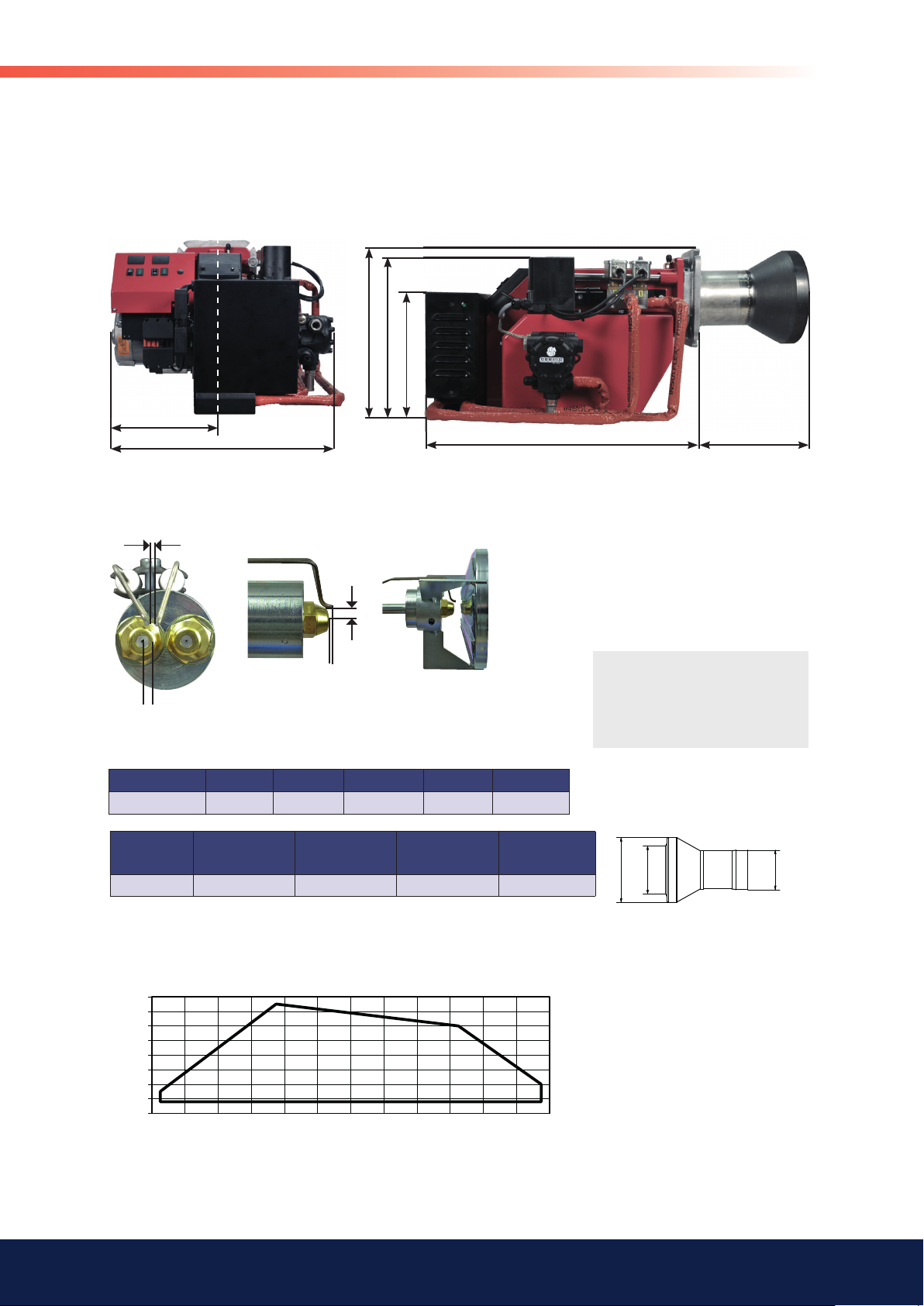

B45-2 MF Insertion length,
burner tube
Burner tube,
Dimension B
Burner tube,
Dimension C
Burner tube,
Dimension D
Standard 1 250 160 220 134
1.2.1 Burner output
9.0 -55.0 kg/h
90 -550 kW
* Used lower calorific value of
10.00 kWh/kg for rapeseed
oil in accordance with DIN
51605:2010-10
!*NB It is important that
the spark does not strike
against the brake plate or
nozzle
a b c d e
B45-2 MF 2,5-3,0 2,0 6,5-7,0 2,0 6,0
-1
0
1
2
3
4
5
6
7
80 120 160 200 240 280 320 360 400 440 480 520 560
mbar
kW
ØD

C

B
513
248
265
347
375
585 250
a
b
c
d
1.3 Dimensions B45-2
1.4 Setting of ignition electrodes and brake plate

10 Bentone B40 MF/B45-2 MF
General
14
ø134
220
ø114
200
37
34
14
B40 MF B45-2 MF
1.5 Dimensions, flange
1.6 Recommended nozzle and pressure
Nozzle: 45° Solid/semi-solid
60° Solid/semi-solid
80° Solid/semi-solid
Pump pressure 28 bar (24-28 bar)1)
24 bar (20-28 bar)2)
!The burner pump is factory set at 24 bar and
test operated using Roadway 80.
Because of the various boiler types with varying furnace geometries and
furnace loads, it is impossible to commit to a certain scattering angle or a
specific distribution pattern.
It should be noted that the scattering angle and distribution pattern changes
with pump pressure.
1) high viscosity oils
2) low viscosity oils

11
Bentone B40 MF/B45-2 MF
General
1.8
The bur
which is compliant with standar
The bur
higher viscosity
The maximum viscosity at which the bur
tested is 120 mm ²/s at 20
corr
° C, which is standar
vary depending on the oil grade. Another way to define
the type of oil the bur
such a natur
at the temperatur
point.
!Altered structure of the oil can give rise to altered viscosity, pumpabilty and ignita-
bility. This can cause the pump, valves and nozzles to get blocked
1.7 Oil grades
The burner is tested and approved for pure rapeseed oil that complies with
standard DIN 51605:2010-10.
The burner is designed to be able to burn oils with a higher viscosity, both
of biological and fossil origin. The maximum viscosity with which the burner
is tested is 75 mm²/s, 0–130°c. Another way of defining which kind of oil
the burner can handle is that the oil must be of such a nature that it can be
pumped by the burner pump at the temperature the oil has at the point of
access to the pump.
The burner, without the pump, is designed to withstand the more corrosive
environment often created by oils of biological origin.
The Suntec E1069 pump is NOT designed for aggressive oils.
The burner pump has a service life of approx. 3–5 years if the oil is of a grade
that complies with standard DIN 51605:2010-10. If oil of a different grade
is used, especially if the oil contains contaminants such as particles, press
residue, metal swarf etc., or has chemical aggression, the pump may be
expected to have a significantly shorter service life.
The pump is considered to be a wearing part and is not covered by the
warranty.
Pressure at the pump inlet must be -0.30 to max 2.0 bar. If there is a noise
from the pump, the oil is not pumpable at the current temperature or flow.
A transport oil pump combined with preheater is then needed to supply the
burner’s pump with oil for trouble-free operation.
The oil distribution system must be designed with the required equipment
such as filters, transport oil pump, preheater and reduction valve to provide
trouble -free operation. Max filter size is 120 µm and the oil may need to be
filtered in several steps.
In the case of a standstill in which the oil can be expected to change
structure, for example aging or phase transitions due to temperature and
storage, the burner must be flushed with fuel oil after the standstill. This
procedure ensures a good start after standstill.

12 Bentone B40 MF/B45-2 MF
General
1.9 Nozzle for bio oils, 20-28 bar
Pump pressure bar
Rapeseed oil compliant with DIN 51605:2010-10 Viscosity: 36.0 mm2/ s, at 40 °C preheater 160 °C
Gph 20 22 24 26 28
kg/h kW kg/h kW kg/h kW kg/h kW kg/h kW
1,00 4,9 49 5,2 51 5,4 53 5,6 56 5,8 58
1,50 7,4 73 7,7 77 8,1 80 8,4 84 8,7 87
2,00 9,8 98 10,3 103 10,8 107 11,2 112 11,6 116
2,50 12,3 122 12,9 128 13,5 134 14,0 140 14,5 145
3,00 14,8 147 15,5 154 16,2 161 16,8 168 17,5 174
3,50 17,2 172 18,0 180 18,9 188 19,6 196 20,4 203
4,00 19,7 196 20,6 206 21,5 215 22,4 224 23,3 232
4,50 22,1 221 23,2 232 24,2 242 25,2 252 26,2 261
5,00 24,6 245 25,8 257 26,9 269 28,0 280 29,1 290
5,50 27,0 270 28,4 283 29,6 296 30,8 308 32,0 320
6,00 29,5 295 30,9 309 32,3 323 33,6 336 34,9 349
6,50 32,0 319 33,5 335 35,0 350 36,4 364 37,8 378
7,00 34,4 344 36,1 361 37,7 377 39,2 392 40,7 407
7,50 36,9 368 38,7 386 40,4 404 42,0 420 43,6 436
8,00 39,3 393 41,3 412 43,1 430 44,9 448 46,5 465
8,50 41,8 418 43,8 438 45,8 457 47,7 476 49,5 494
9,00 44,3 442 46,4 464 48,5 484 50,5 504 52,4 523
9,50 46,7 467 49,0 489 51,2 511 53,3 532 55,3 552
10,00 49,2 491 51,6 515 53,9 538 56,1 560 58,2 581
10,50 51,6 516 54,1 541 56,6 565 58,9 588 61,1 610
11,00 54,1 540 56,7 567 59,3 592 61,7 616 64,0 640
11,50 56,5 565 59,3 593 61,9 619 64,5 644 66,9 669
12,00 59,0 590 61,9 618 64,6 646 67,3 672 69,8 698

13
Bentone B40 MF/B45-2 MF
General
1.10 Nozzle for fossil oils, 22-28 bar
Pump pressure bar
The table applies to oil with a viscosity of 4.4 mm 2/s at a density of 830 kg/m 3.
Gph 22 24 26 28
kg/h kW kg/h kW kg/h kW kg/h kW
1,00 5,52 65,44 5,76 68,35 6 71,14 6,22 73,83
1,50 8,66 102,73 9,05 107,3 9,42 111,68 9,77 115,9
2,00 11,01 130,53 11,5 136,33 11,96 141,9 12,42 147,25
2,50 13,78 163,42 14,39 170,69 14,98 117,66 15,55 184,37
3,00 17,21 204,06 17,97 213,13 18,7 221,83 19,41 230,21
3,50 19,13 226,93 19,89 237,02 20,8 246,7 21,59 256,01
4,00 21,06 249,8 22 260,9 22,9 271,56 23,76 281,81
4,50 23,88 283,22 24,94 295,81 25,96 307,89 26,94 319,51
5,00 27,44 325,44 28,66 339,91 29,83 353,79 30,96 367,14
5,50 31 367,66 32,38 384 33,7 399,68 34,97 414,77
6,00 34,71 411,63 36,25 429,94 37,73 447,49 39,16 464,39
6,50 38,71 459,13 40,43 479,55 42,08 499,13 43,67 517,97
7,00 41,38 490,8 43,22 512,62 44,99 533,55 46,69 553,69
7,50 44,2 524,22 46,17 547,53 48,05 569,89 49,86 591,4
8,00 46,72 554,12 48,8 578,76 50,79 602,4 52,71 625,14
8,50 49,1 582,27 51,28 608,16 53,37 632,99 55,39 656,89
9,00 52,51 622,73 54,84 650,42 57,08 676,98 59,24 702,53
10,00 55,92 663,19 58,4 692,68 60,79 720,96 63,08 748,18
11,00 63,04 747,63 65,84 780,87 68,53 812,76 71,12 843,44
12,00 70,75 839,1 73,9 876,41 76,91 912,2 79,82 946,63

14 Bentone B40 MF/B45-2 MF
General
21
23
27
24
26 25
22
13
4
9
65 873
10
2
15 12 1114
1
17
18
19
16
20
1.11 Description B40 MF
1.11.1 Components B40 MF
1. Indicator lamp, preheater ON
2. Inspection glass
3. Immersion heater, pump
4. Fan housing
5. Nozzle assembly control
6. Scale, nozzle assembly control
7. Solenoid valve NO
8. Valve block
9. Burner tube
10. Cavity immersion heater valve block
11. Pressure outlet pump
12. Return pump
13. Pump
14. Pressure control pump
15. Inlet pump
16. Nozzle assembly
17. Brake plate
18. Nozzle
19. Cavity immersion heater nozzle holder
20. Preheater

15
Bentone B40 MF/B45-2 MF
General
41
16
28 29 30 31
39
38
40
37 3536
33 34
32
21. Fan wheel
22. Measuring nipple, fan pressure
23. Burner flange
24. Connecting pipe, valve block return
25. Damper motor
26. Connecting pipe, preheater valve block
27. Connecting pipe, pump preheater
28. Ignition electrodes
29. Spring pressure piston
30. Preheater
31. Valve seat
32. Front nozzle holder
33. Relay box
34. 7-pole Europlug (feed)
35. 5-pole Euro plug (feed preheater)
36. 4-pole Euro plug (control signal preheater)
37. Capacitor
38. Motor
39. Air intake
40. Ignition transformer
41. Air damper

16 Bentone B40 MF/B45-2 MF
General
8
32
36
11
2425
31
15 14 13 12 10
9
72 3 654
1
34
33
35
29
30
16
26
2120
22
1917 18
28
27 23
1.12 Description B45-2 MF
1.12.1 Components B45-2 MF
1. Indicator lamp, preheater ON
2. Nozzle assembly control
3. Scale, nozzle assembly control
4. Solenoid valve NC max. load
5. Solenoid valve NO min. load
6. Measuring nipple, fan pressure
7. Valve block
8. Burner tube
9. Burner flange
10. Pressure outlet pump
11. Pump
12. Return pump
13. Pressure control pump
14. Inlet pump
15. Immersion heater, pump
16. Ignition electrodes
17. Valve needle
18. Spring pressure piston
19. Pressure piston max. load
20. Valve seat
21. Front nozzle holder
22. Pressure piston min. load
23. Air intake
24. Brake plate
25. Nozzle
26. Preheater

17
Bentone B40 MF/B45-2 MF
For installers
4039
38
37 41
43 42
4544 46
48 47
23
27. 5-pole Euro plug (feed preheater)
28. 4-pole Euro plug (control signal preheater)
29. Contactor for motor
30. Relay box
31. Ignition transformer
32. Fan wheel
33. Connecting pipe, valve block return
34. Connecting pipe, preheater valve block
35. Connecting pipe, pump preheater
36. Damper motor
37. Switch 0-I
38. Indicator, min. load
39. Switch I-II
40. Indicator lamp, maximum load
41. Inspection glass
42. 4-pole Euro plug (max. load)
43. 7-pole Euro plug (min. load feed)
44. Air damper
45. Air intake
46. Capacitor
47. Motor
48. Fan housing

18 Bentone B40 MF/B45-2 MF
For installers
1
2. INSTALLATION
2.1 Acceptance inspection
Make sure everything is delivered and the goods have not been damaged
during transit. If something is wrong with the delivery, report it to the supplier.
Transport damage must be reported to the shipping company.
2.2 Preparations for installation
Check that the burner's dimensions and capacity range are suitable for the
boiler in question. The power data on the type sign refers to the burner's
min. and max. power.
2.3 Distribution of oil
In order to achieve good reliability, it is important that the oil distribution
system is designed correctly.
Take the following into account:
- Selection of pipe diameter, pipe length and height difference; see Pump
instruction.
- Pipelines are to be laid with a minimal number of glands.
- The pipes are to be laid so that the oil supply hoses are not subjected to
tensile stresses or are excessively bent when the burner is swung out or
removed for service.
- The ½ " oil filter should be installed so that the filter cartridge can easily
be replaced or cleaned. Self-cleaning filters are recommended for oils of
a higher viscosity or oils that contain significant impurities.
- Oil-affected parts shall be selected in materials that are capable of
withstanding the medium's physical properties.
- When installing oil hoses, check that the inlet and return hoses are
fitted to the appropriate connection on the oil pump. The hoses shall
be located so that they do not bend or become subject to tensile load.
To the suction line on the pump (see paragraph 7.2 pos. 3) should the
supplied oil hose with 90° bend be connected.
- Bleed the oil system. The oil pump/oil preheater may be damaged if run
dry. The vacuum should not fall below 0 bar in the suction line during
start-up.
2.3.1 Proposed pipe routing for oil distribution
systems without transport pump
This type of connection should be used only when the oil has a viscosity less
than 30 mm²/s
1. Self-cleaning filter
!Be sure to fill the burner
oil system before starting
it for the first time.

19
Bentone B40 MF/B45-2 MF
For installers
X3
X4
1. Transport oil filter
2. Basket filter
3. Overflow valve 0.5 – 2.0 bar
4. Seal filter
5. Pressure gauge 1
6. Pressure gauge 2
3
2
1 Transport oil pump / Transportoljepump
4
5
6
1
!If any electrical connection is used other than that recommended by Bentone, there may be a danger of
damage to property and personal injury.
2.3.2 Proposed pipe routing for oil distribution systems with transport
pump, basket filter and seal filter
2.4 Electrical connection
Before electrical installation begins, the main power switch must be turned off.
If the boiler has a 7-pole and a 4-pole Euro plug connector, they will usually
connect directly to the burner. Otherwise, use the supplied connectors. The
5-pole connector supplies the burner preheater with a separate 3-phase
supply. See connection under Electrical equipment.
1. Switch off the main switch.
2. Connect the Euro plugs. (See Electrical equipment)
3. Make sure the burner operations switch (S1) is off.
4. Turn on the main switch.

20 Bentone B40 MF/B45-2 MF
For installers
2.5 Nozzle selection
See under Technical data: Recommended nozzle and Nozzle table.
If, after selecting the nozzle, burner type B45-2 MF has difficulty starting, this
may in some cases be due to the selection of nozzle made for the first stage.
Selecting a nozzle with a smaller effect in the first stage may solve the
problem.
2.6 Setting of brake plate and air flow
Prior to commissioning, the basic settings of the burner can be set in
accordance with the diagram. See under Basic settings. Note that it is simply
a matter of a basic setting that should be adjusted retrospectively once the
burner has started. You should then conduct a flue gas analysis and soot
quantity measurement.
2.7 Burner installation
2.7.1 Hole pattern
Make sure the hole pattern on the boiler is designed for burner flange.
Combustion
device
d 1d 2d 3
B40 MF ø 115-175 M10-M12 ø 195-245
B45-2 MF ø 135-(175) 200 M10-M12 ø (195) 224-260
d1
d2
d3
