Bercomac 700714 User manual

1
B
BERCO
FINISHINGMOWER60’’
CAUTION:
READ & FOLLOW ALL SAFETY RULES & INSTRUCTIONS BEFORE
OPERATING YOUR EQUIPMENT
107631_EN R-04012015
* ASSEMBLY * REPAIR PARTS
* OPERATION * MAINTENANCE
0107631
OWNER’SMANUAL
MODELNUMBER
700714

2
LIMITED WARRANTY
Bercomac Limitée
92, Fortin North, Adstock, Quebec, Canada, G0N 1S0
Conditions and Products Covered:
BERCOMAC guarantees any part of the product or accessory
manufactured by BERCOMAC and found in the reasonable
judgment of BERCOMAC to be defective in material and or
workmanship will be repaired or replaced by an authorized
dealer without charge up to our maximum labor rates and pre-
established times. For replacement parts onl
y standard ground
freight services are covered. This warranty extends to the
original retail purchaser only and is not transferable to any
subsequent purchasers. This warranty applies to the products
bought and used in North America.
Warranty Period
(from date of the original retail purchase)
xResidential use: 1 year
xSemi-commercial, professional or rental use: 90 days
Exceptions Noted Below;
the following items are guaranteed
by the original manufacturer and have their own warranty,
conditions and limited time:
xTire Chains: 90 days
xEngines: Will vary as per the manufacturer
Please refer to the engine manufacturer’s warranty
statement included with the unit. BERCOMAC is not
authorized to handle warranty adjustments on engines.
Items and Conditions NOT Covered:
This warranty does not cover the following:
xPick-up or delivery charges or in-home services fees.
xAny damage or deterioration of the unit, parts and or finish
of these due to normal use, wear and tear, or exposure.
xCost of regular use o
r maintenance service or parts, such as
gas, oil, lubricants, tune-up parts, and adjustments.
xAny part or accessory which has been altered, modified,
misused, neglected, accidentally damaged or not properly
installed, maintained, stored or repaired not in
accordance
with the instructions in the owner’s manual.
xRepair due to normal wear and or any wear items such as
shear pins, bolts, belts, etc.
xExpedited freight fee services for replacement parts.
xShear bolts and shear pins are to be considered as a
preventive measure not as an assured protection, any
damages resulting from the lack of shear bolts breakage are
not covered.
xDamages due to product being installed on a vehicle other
than stipulated in owner’s manual.
NOTE: All warranty work must be performed
by an authorized
dealer using original (manufacturer) replacement parts.
Owner’s Responsibilities:
BERCOMAC’s defective equipment or part must be returned
to an authorized dealer within the warranty period for repairs.
In the event that defective merchandise must be returned to
manufacturer for repairs, freight fees ar
e prepaid and a written
authorization from BERCOMAC must be obtained by dealer
prior to the shipment. This warranty extends only to
equipment operated under normal conditions. To validate a
warranty claim, it is the user’s responsibility to maintain and
service the unit as specified in the owner’s manual or to have
the unit serviced at their dealer at their expense.
General Conditions:
The sole liability of BERCOMAC with respect to this warranty
shall be strictly and exclusively repair and replacement
as
mentioned herein. BERCOMAC shall not have any liability for
any other costs, loss or damage, including but not limited to,
any incidental or consequential loss or damage.
Taking advantage of the warranty does not in any way extend
the length or renewal of the warranty.
In particular, without being limited to, BERCOMAC shall have
no liability or responsibility for:
x
Travel time, overtime, after hours time or other
extraordinary repair charges or relating to repairs and or
replacements outside of normal business hours.
x
Rental of like or similar replacement equipment during the
period of any, repair or replacement work.
xAny communicating or travel charges.
x
Loss or damage to person or property other than that
covered by the terms of this warranty.
xAny clai
ms for lost revenue, lost profit or any similar costs
as a result of damage or repair.
xAttorney’s fees.
BERCOMAC’s responsibility in respect to claims is limited to
making the required repairs or replacement without charge up
to our maximum labor rates and pre-
established times and no
claim of breach of warranty shall be cause for cancellation or
rescission of the contract of sale of any product or accessory.
In no event recovery of any kind be greater than the amount of
the purchase price of the product sold.
This warranty gives you specific legal rights.
You may also
have other rights, which vary from state to state.
NOTE: Bercomac reserves the right to change or improve the design of any part or accessory without assuming any obligation to modify
any product previously manufactured.
Instructions for Obtaining Warranty Services:
Contact dealer where equipment was purchased or any other BERCO service dealer to arrange
service at their dealership.
Requests for
warranty claims must be carried out through the same distribution network used to purchase the product.
.
Don't forget to bring your proof
of purchase (sales receipt) to the BERCOMAC dealer.

3
TABLE OF CONTENTS
INTRODUCTION ...................................................................................................................................................... 1
SAFETY PRECAUTIONS ........................................................................................................................................ 2
SAFETY DECALS .................................................................................................................................................... 4

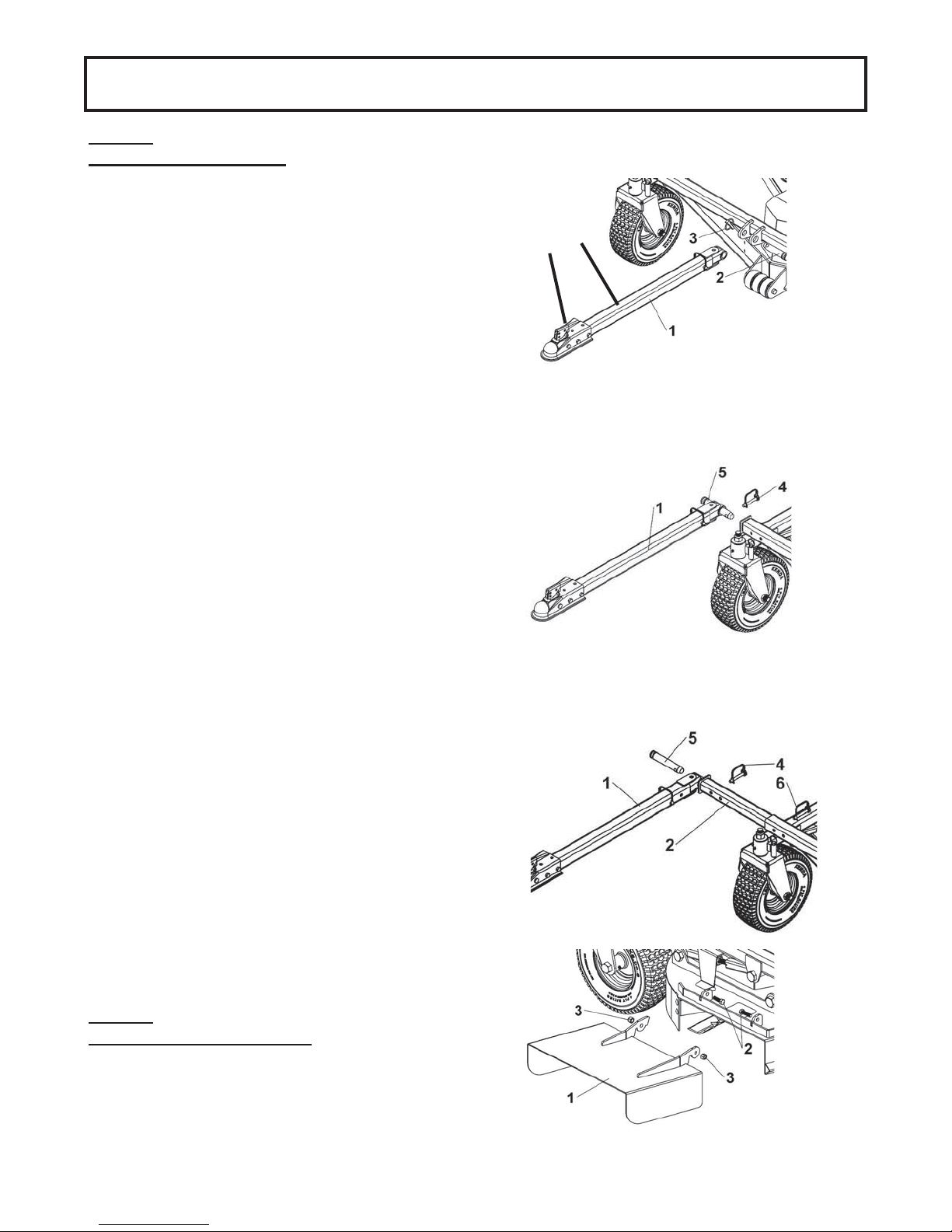

ASSEMBLY
Assembly instructions ................................................................................................................................ 5
Step 1 Engine and battery preparation ................................................................................................... 6
Step 2 Caster wheel assembly ................................................................................................................ 6
Step 3 Tow bar assembly ........................................................................................................................ 7
Step 4 Deflector assembly ....................................................................................................................... 7
Step 5 Height scale assembly................................................................................................................... 8
Step 6 Control box support installation ................................................................................................... 8
OPERATION ......................................................................................................................................................... 9
ADJUSTMENTS ....................................................................................................................................................... 13
MAINTENANCE ....................................................................................................................................................... 15
GENERAL TROUBLESHOOTING ......................................................................................................................... 16
TORQUE SPECIFICATION TABLE ....................................................................................................................... 17
PARTS BREAKDOWN AND PARTS LIST
Finishing mower ......................................................................................................................................... 18
Mower assembly ......................................................................................................................................... 20
Support assembly ....................................................................................................................................... 22
Deck assembly ........................................................................................................................................... 24
Engine assembly ........................................................................................................................................ 27
Control box assembly ................................................................................................................................. 29
Tensioner assembly ................................................................................................................................... 32
Hitch bar assembly ..................................................................................................................................... 33
PAGE

1
INTRODUCTION
TO THE PURCHASER
This new accessory was carefully designed to give years of dependable service. This manual has been provided to
assist in the safe operation and servicing of your attachment.
NOTE:
All photographs and illustrations
in the manual may not necessarily depict the actual models or attachment, but
are intended for reference only and are based on the latest product information available at the time of publication.
Familiarize yourself fully with the safety recommendations and operating procedures before putting the machine to
use. Carefully read, understand and follow these recommendations and insist that they be followed by those who will
use this attachment.
THIS SAFETY ALERT SYMBOL IDENTIFIES AN IMPORTANT SAFETY MESSAG
E IN THIS
MANUAL THAT HELPS YOU AND OTHERS AVOID PERSONAL INJURY OR EVEN DEATH.
DANGER, WARNING, AND CAUTION ARE SIGNAL WORDS USED TO IDENTIFY THE LEVEL OF
HAZARD. HOWEVER, REGARDLESS OF THE HAZARD, BE EXTREMELY CAREFUL.
DANGER:
Signals an extreme hazard
that will cause serious injury or death if recommended precautions
are not followed.
WARNING:
Signals a hazard that may cause serious injury or death if the recommended precautions are
not followed.
CAUTION:
Signals a hazard that may cause minor or mod
erate injury if the recommended precautions are
not followed.
Record your attachment serial number and purchase date in the section reserved below (there is no serial number on
the subframe). Your dealer requires this information to give you prompt, efficient service when ordering replacement
parts. Use only genuine parts when replacements are required.
If warranty repairs are required please present this registration booklet and original sales invoice to your selling dealer
for warranty service.
This manual should be kept for future reference.
Please check if you have received all the parts for your kit with the list of the
bag and the list of the box.
SERIAL NUMBER : ___________________________
(IF APPLICABLE)
MODEL NUMBER: ___________________________
PURCHASE DATE : ___________________________

2
SAFETY PRECAUTIONS
Careful operation is your best insurance against an accident. Read this section carefully before operating the vehicle
and accessory.
This acces
sory is capable of amputating hands and feet and throwing objects. Failure to observe the
following safety instructions could result in serious injury. All operators, no matter how experienced they may be,
should read this and other manuals related to the vehicle and accessory before operating. It is the owner's legal
obligation to instruct all operators in safe operation of the accessory.
GLOSSARY:
In this manual, right and left sides are determined by
sitting on the seat of the vehicle facing forward.
In this manual, "accessories" means attachments
(snowblower, rotary broom, blade etc.) that you install
on the vehicle (lawn tracto
rs, A.T.V. s etc).
TRAINING:
This symbol, "Safety Alert Symbol", is used
throughout this manual and on the
accessory’s safety labels to warn of the
possibility of serious injury. Please take
special care in reading and understanding
the safety precautions
before operating the
vehicle and accessory.
1.
Read this owner's manual carefully. Be thoroughly
familiar with the controls and proper use of the
vehicle and accessory
. Know how to stop the unit
and disengage the controls quickly.
2.
Never allow childre
n to operate the vehicle nor the
accessory. Never allow adults to operate the vehicle
nor the accessory without proper instructions.
Children are often attracted to accessories. Never
assume children will stay in place where you have
last seen them. Keep c
hildren under surveillance of a
responsible adult at all times.
3.
No one should operate the vehicle nor the
accessory while intoxicated or while taking
medication that impairs the senses or reactions.
4.
Keep the area of operation clear of all people,
particularly small children and pets.
5.
Never start or operate the accessories except from
the operator’s station on the power unit except if
this is impossible.
PREPARATION:
1.
Thoroughly inspect the area where the accessory
is to be used and remove
door mats, all foreign
objects and the like
which could be pick up and
projected by accessory.
2.
For motorized accessories,
disengage all clutches
and shift into neutral before starting engine.
3.
Prepare for emergencies. Be prepared if a fire
starts. K
eep first aid kit and fire extinguisher
handy. Keep emergency phone numbers (doctor,
ambulance, ect) near a phone
4. Do not operate the accessory without wearing
adequat outer garments.
Avoid loose fitting clothing
that can get caught in moving parts.
Wear footwear
that will improve footing on slippery surfaces.
5.
Handle fuel with care, it is highly flammable.
a) Use approved fuel container.
b)
Never add fuel to a running engine or hot engine.
c)
Fill fuel tank outdoors with extreme care. Never fill
fuel tank indoors.
d)
Never fill containers inside a vehicle, or on a
truck or a trailer bed with a plastic liner. Always
place containers on the ground, away from your
vehicle, before filling.
e) When practical, remove gas-
powered
equipment from the truck
or trailer and refuel it
on the ground. If this is not possible, then refuel
such equipment on a trailer with a portable
container, rather than directly
from a gasoline
dispenser nozzle.
f)
Keep the nozzle in contact with the rim of the
fuel tank or conta
iner opening at all times, until
refueling is complete. Do not use a nozzle lock-
open device.
g)
Replace fuel cap securely and wipe up spilled
fuel.
h)
If fuel is spilled on clothing, change clothing
immediately.
6.
Never attempt to make any adjustments wh
ile the
engine (motor) is running (except when specifically
recommended by manufacturer).
7.
Let the vehicle and accessory adjust to outdoor
temperatures before using.
8.
Never use an accessory without proper guards,
plates, or other safety protective devices in place
9.
Always make sure to wear the appropriate safety
equipment required (glasses, muffs, mask…)
for
each type of product. See operation section.
10.
Always make sure of having safe traction on the
vehicle by using the recommended accessories
(chains, A.T.V. tracks, counterweights…)
. See
operation section.
11.
Always make sure
all components are correctly
installed. (driveline securely attached and locked at
both ends, belts properly installed…)
12.
If applicable, a
lways handle the winch cable with
thick leather gloves.
13
.
Never modify the accessory or any part without
the written consent from the manufacturer.

3
OPERATION:
1.
Do not put hands or feet near, under or inside rotating
parts.
2.
Exercise extreme caution when operating on or
crossing gravel drives, walks or roads. Stay alert for
hidden hazards or traffic.
Do not carry passengers.
3.
After stri
king a foreign object, stop the engine (motor),
disconnect the wire from the spark plug(s) and keep
wire away to prevent accidental starting. Thoroughly
inspect the accessory for any damage and repair
damage before restarting and using the accessory.
4.
I
f the unit should start to vibrate abnormally, stop the
engine (motor) and check immediately for the
cause. Vibration is generally a warning of trouble.
Don not use equipment until properly repaired.
5.
Take all possible precautions when leaving the
vehicle unattended. Disengage the power take
-off,
lower the attachment, place the transmission into
neutral, set the parking brake, stop the engine and
remove the ignition key.
6.
Do not run the engine indoors, except when starting
the engine and for transport
ing in or out of the
building. Do not operate or let motor run in a storage
area without ventilation because gas contains
carbon monoxide which is odorless, colorless and
can cause death.
7.
Never use the accessories
across the face of
slopes, go from top
to bottom. Exercise extreme
caution when using equipment on slopes. Do not
attempt to use accessory on a steep slope.
8.
Never tolerate bystanders in the working zone.
Never use an accessory in the direction of
bystanders, it might throw gravel or debris
that can
hurt people or damage property.
9.
Never operate the accessory at high transport
speeds on slippery surfaces. Use care when
backing up.
10
. Do not carry passengers.
11
.
Disengage power to the accessory when it is
transported or not in use.
12
.
Never operate the accessory without good visibility
or light.
13
.
Keep the accessory away from heat sources or
flames.
14.
If applicable, never handle
the winch cable or hook
while under tension.
15. Never use accessory if it has been dropped or
damaged. Repair if necessary before re-using.
MAINTENANCE AND STORAGE
1.
When cleaning, repairing or inspe
cting the vehicle
and accessory: stop the engine, set brake, remove
ignition key, and wait
that all moving parts have
stopped. For gasoline engine, disco
nnect wire from
the spark plug(s) and keep wire away to prevent
accidental starting.
2.
Check all the bolts and components
at frequent
intervals to make sure that they are properly
tightened and in safe working condition.
3.
Never store a motorized acces
sory with fuel in the
fuel tank inside a building where ignition sources are
present such as hot water and space heaters,
clothes dryers, and the like. Allow the engine to cool
before storing in any enclosure.
4.
Always refer to the owner’s manual when yo
u store
the accessory and vehicle for a prolonged or an
unspecified length of time.
5.
Maintain or replace safety and instruction labels, as
necessary.
6 For winter accessories, (if applicable), let the engine
run for a few minutes after clearing snow in
order to
prevent the rotary parts from freezing.
7.
Inspect the vehicle’s and accessory’s air filter (if
applicable)
every day. Clean it or replace it as
necessary
. Change the oil more often when working
in dusty conditions. See the vehicle’s and
accessory's owner’s manual.
TRANSPORT
1.
Review Transport Safety instructions in vehicle
manual before moving.
2.
Check with local authorities regarding transport on
public roads and off road
. Obey all applicable laws
and regulations.
3.
Make sure all lights
and reflectors that are required
by the local highway and transport authorities
(exemple : SMV (Slow Moving Vehicle)) are in
place, are clean, and can be seen clearly by all
overtaking and oncoming traffic.
4.
Never have the equipment in operation during
transport.
5.
Always travel at a safe speed.
SAFETY PRECAUTIONS

4
SAFETY LABELS
REPLACE IF DECALS ARE DAMAGED
SEE PARTS BREAKDOWN FOR DECAL LOCATION
Decal #107584
Decal #105128
Decal #107585

5
ASSEMBLY
ASSEMBLY INSTRUCTIONS
IMPORTANT: UNLESS OTHERWISE SPECIFIED TORQUE ALL BOLTS ACCORDING TO TORQUE SPECI-
FICATION TABLE (SEE TABLE OF CONTENTS) WHEN STATED: TIGHTEN FIRMLY. REFER TO PARTS
BREAKDOWN SECTION FOR PART IDENTIFICATION.

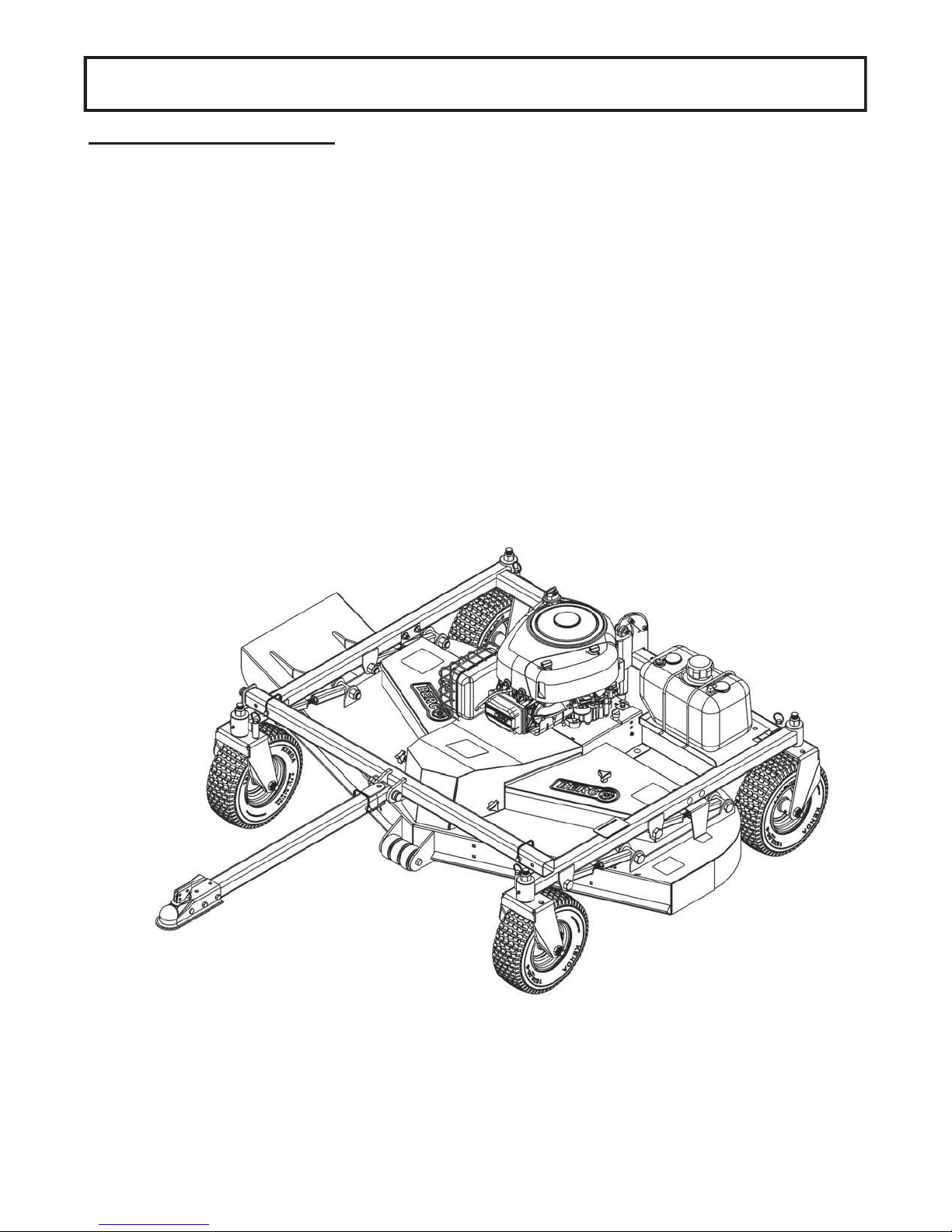

Overall view once assembled
NOTE: In this manual, the right and left side is determined being seated on the driver’s seat facing forward.
Remove the mower and all the other components
from the crate.
INTENDED USE
This Finishing mower is designed to produce a quality finish cut on lawns, golf courses, etc. It is not designed to
clear brush or cut saplings. Your Finishing mower should be towed behind an ATV, a golf cart, tractor, or similar
approved vehicle. It is not meant for speeds exceeding 5 mph. Please refer to the towing vehicle’s manual fand
respect the towing capacities specified.

6
ASSEMBLY
STEP 2
CASTER WHEEL ASSEMBLY
Assemble the four wheels on the wheel support as
shown. Insert the wheel (item 1) on the wheel support
(item 2). Secure in place using a bolt 3/4 x 6-
1/2’’ (item 3) and a thin nylon inset lock nut 3/4’’ (item
4).
Make sure there is a slight play between the wheel
fork and the bearings, this will guarantee that the
bearings are not too tight. Make sure the wheel turns
freely after completing the assembly.
Then insert the lock pins (item 5) in place to lock the
wheels.
Lock the four wheels when:
Transporting between mowing zones.
Mowing at high speed (max speed 5 mph).
Mowing in a sector that does not require tight
turns.
Lock two wheels when:
Mowing in all conditions.
No wheels are locked:
Only when the mower is used in the front.
(requires optional subframe)
Unlocking the four wheels when the mower is
attached at the back of the vehicle can cause loss
of control which will cause injuries or even death.
STEP 1
ENGINE AND BATTERY PREPARATION
Disengage spark plug wire and place it where it
cannot make a connection.
Add oil in the engine. Verify oil level and add if
necessary before starting engine. (See engine
owner’s manual).
U1 battery must be purchased locally:
Check the battery. If the battery is put into service
after the “month and year” of the date on the battery,
it may need to be charged with a 12 volt battery
charger. Follow the manufacturer's instructions for the
battery or for the battery charger.
Attach battery cables to the battery, making sure to
attach the red wire to the positive terminal first and
the black wire to the negative terminal second.
Secure in place with the rubber ties.
NOTE: It is important to put the protection cap
on the battery’s red post . Failure to install the
cap can cause injury or damage.
5

7
ASSEMBLY
STEP 3
TOW BAR ASSEMBLY
NOTE: If you do not want to use the 2’’ ball on
your vehicle, it is possible to remove the hitch
(item A) and turn around the hitch arm (item B) to
use an attaching system with a plate instead of
using a ball.
Central position:
Put the tow bar in place (item 1) with the help of a pin
(item 2) and the lynch pin (item 3).
Left or right partial offset position:
Remove the lock pin (item 4), insert the pin (item 5) in
the tow bar (item 1) then reinsert the pin (item 5) in
place.
Left or right offset position:
Remove the lock pin (item 4) and remove the pin
(item 5). Pull the extension arm (item 2) and secure
as shown with the lock pin (item 6) from the other side
of the frame (original location not shown). Complete
the assembly by installing the tow bar (item 1) to the
extension arm with the pin (item 5) and the lock pin
(item 4)
A B
STEP 4
DEFLECTOR ASSEMBLY
Install the deflector (item 1) with two bolts (item 2)
and two nuts (item 3).

8
ASSEMBLY
STEP 6
CONTROL BOX SUPPORT
INSTALLATION
Choose between the two ways of installing the control
box support (item 1).
Option A
Use two hex bolts 1/4" x 1 1/2" (item 2), two spacers
(item 3) and two flange nuts 1/4" (item 4) to attach the
control box support to the support brackets (item 5).
NOTE: Choose the right hole combination on the
control box support in order to orient the front of the
control box towards the driving controls of the vehicle.
(see operation section to see how control box is
oriented), Furthermore, make sure to have free
access at all times to the equipment's controls in
order to safely control the equipment.
Option B
Drill two holes of 1 9/16’’ apart on the vehicle. Secure
the control box support with two bolts 1/4" x 1/2" (item
6) and two flange nuts 1/4".
Insert the control box in the control box support.
NOTE: In order to prevent damage due to water
accumulation, make sure to place the control box
horizontally.
STEP 5
HEIGHT SCALE ASSEMBLY
Install the height scale (item 1) with two bolts (item 2)
and two nuts (item 3).

9
OPERATION
CAUTION
Tragic accidents can occur if the operator is not alert
to the presence of children.
Children are often attracted to the machine and the
mowing activity. Never assume that children will
remain where you last saw them.
OPERATING THE MOWER
The operation of any mower can produce foreign
objects to be thrown into the eyes, resulting in severe
eye damage.
Always wear certified safety glasses or wide-vision
safety goggles over spectacles before starting any
cutting machine and while operating such a machine.
The operation of any mower produces sound waves
that are damaging to the human ear. Ear protection is
recommended.
Do not operate on slopes of more than 15 degrees.
Do not use equipment driving backwards. Always look
down and behind, before and while driving
backwards.
ATTACHING THE MOWER TO TOW VEHICLE
A 2’’ BALL IS REQUIRED ON THE TOWING
VEHICLE. IF NOT, IT IS POSSIBLE TO USE AN
ATTACHING SYSTEM WITH A PLATE ( SEE
ASSEMBLY SECTION).
Back vehicle up to desired towing position.
Offset the mower to the side opposite the tow vehicle
discharge (if any). This prevents the tow vehicle from
throwing grass into mower engine.
DANGER
ALWAYS OPERATE FROM THE DRIVER’S SEAT
AND ALWAYS INSTALL ON YOURSELF THE
EMERGENCY SWITCH LANYARD THAT IS LINKED
TO THE CONTROL BOX.
NEVER OPERATE WITHOUT THIS LANYARD IN
PLACE.

10
OPERATION
INSTALL THE CONTROL BOX IN ITS SUPPORT
Put the control box in the support previously installed.
Attach the electrical cable and the engine control
cable to the equipment and to the vehicle, if
necessary use cable ties. The control wire must go
under the axle support.
NOTE: Be careful to secure the cables to avoid any
damage caused by a contact with the vehicle,
equipment itself or any other object that can be found
in the area of these cables.
FAMILIARIZATION WITH THE CONTROL BOX

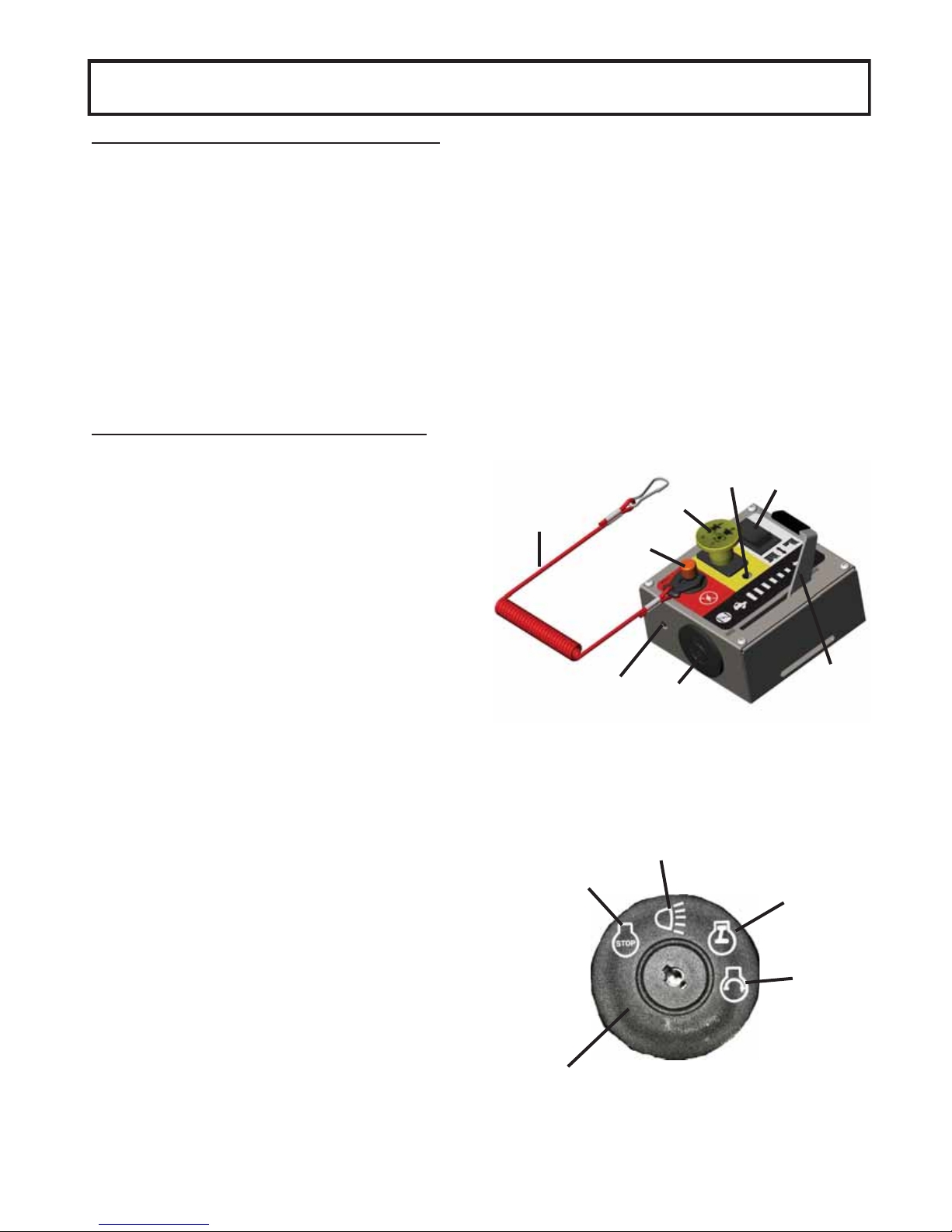

Item 1: Ignition switch.
Using the key: Allows to start the engine or you may
turn the key to the accessory setting to activate the
controls without starting the engine. The light (item 7)
is on when the key is turned to the accessory or start
setting.
Always remove the key when the equipment is left
without surveillance.
Item 2: Throttle lever
Push towards the front to increase engine speed,
push completely to the end to ‘’start’’
Item 3: Emergency switch
Push to stop equipment quickly.
Item 4: Safety lanyard:
Links the operator to the control box. If the operator
leaves the driver’s seat without stopping the
equipment, the equipment will stop (the cable will
disconnect itself from the control box).
Item 5: Engagement switch
Pull to engage, push to disengage. The light (item 8)
is on when equipment is engaged.
Item 6: Height adjustment switch.
Allows to adjust the cutting height.
7
3
5
8
4
2
1
6
front
back
1
Stop
Accessory
Engine start
Engine running

11
OPERATION
STARTING THE ENGINE
See engine manufacturer’s recommendations for the
type and amount of oil and fuel used.
Make sure the tow vehicle parking brake is set,
mower is level, and blades are disengaged. Engine
must be level to accurately check and fill oil.
Do not overfill.
Check spark plug wire, oil, and fuel.
Check all electrical connections for debris buildup .
BEFORE STARTING TO WORK, SIT ON THE
DRIVER’S SEAT AND ALWAYS MAKE SURE TO
INSTALL ON YOURSELF THE EMERGENCY
SWITCH LANYARD THAT IS LINKED TO THE
CONTROL BOX.
Using the control box, follow these steps:
Set the throttle lever on the control box to “START”
position.
Turn key to the “ACCESSORY” setting, then to the
“START” setting.
Set throttle lever to minimum RPM.
Allow engine to idle a few moments before engaging
the blades.
ENGAGING BLADES
BEFORE ENGAGING THE BLADES, MAKE SURE
THE ENGINE IS RUNNING AT MINIMUM RPM.
NOTE: Do not attempt to start the unit with
engagement knob pulled up in the “ENGAGED”
position.
Engage blades by pulling up the knob.
Push down the knob to disengage the blades.
Then gradually increase the engine’s rpm to
maximum.

12
OPERATION & TRANSPORTATION
BREAKING IN YOUR MOWER
Set the vehicle parking brake and chock the wheels.
While the engine is running, slowly engage blade
control.
In a safe environment, (i.e. no children or pets) allow
blades to rotate and engine to idle for 5 minutes,
breaking in the belt for a longer life.
Stop cutter.
STOPPING THE ENGINE
Make sure the tow vehicle parking brake is set.
Disengage cutting blades.
Reduce engine to idle speed and allow engine to run
momentarily for cooling.
Turn the key to the ’’OFF’’ position.
STARTING TO CUT
Adjust the cutting height using the height adjustment
knob on the control box.
Double check that the mower is well attached to
vehicle.
Following the instructions “Starting the engine” on the
preceding page, start the mower engine.
Engage the blades following the instructions on the
preceding page.
Start mowing at a slow travel speed.
STOPPING THE CUTTING SESSION
Bring tow vehicle to a complete stop, set the parking
brake and disengage blades.
Turn ignition key to the “OFF” position.
Always remember to remove keys to avoid accidental
starting and irresponsible usage.
SUGGESTED MOWING PRACTICES
Operate mower engine at full throttle to assure the
best cutting performance and maximum material
discharge.
Allow wet grass to dry. Clumps of wet grass will
collect under the mowing deck.
Mowing should be started with tow vehicle in low gear
and increased only as safe mowing conditions permit.
This speed should not exceed 5 mph.
The average lawn should be cut to approximately 2.5”
during the cool season and to over 3” during the hot
months.
For a healthier lawn and better esthetics, your lawn
should be mowed often and after moderate growth.
When cutting high or dense grass areas, go slowly.
Some areas may need to be mowed twice. The
second cut should be at 90 degrees to the first, if
possible.
Do not attempt to cut areas that the tow vehicle
cannot maneuver through and/or slopes that you do
not feel comfortable riding.
TRANSPORTING MOWER
Stop mower properly and wait for all moving parts to
stop.
Place mower deck in its highest position.
If transporting without the use of a tow vehicle, then
remove spark plug wire and place where it cannot

13
ADJUSTMENTS
FRONT TO BACK ADJUSTMENT
For best cutting results, the cutter deck should be
parallel to the ground. To check parallel adjustment,
measure the distance from the bottom edge of the
deck in both the front and rear of the deck. This
adjustment is best done while the tow vehicle and
mower are attached together.
Adjust as needed by turning the front adjustment
arms (item 1). Turn clockwise to lift the front of the
mower and turn counter clockwise to lower the front
of the mower.
Make sure to have the same adjustment on both
sides of the mower.
LATERAL ADJUSTMENT
The mower must cut evenly from left to right. If this is
not the case, adjust the position of the actuator to
adjust this.
If the mower is lower on the right side than on the left
side, put the actuator on the right side.
If the mower is lower on the left side than on the right
side, put the actuator on the left side.
WARNING
STOP THE ENGINE AND DISCONNECT THE
SPARK PLUG CABLE BEFORE DOING ANY
ADJUSTMENTS ON THE MOWER

14
ADJUSTMENTS
CUTTING HEIGHT ADJUSTMENT
There is approximately 4” of height adjustment.
It is not required to disconnect the spark plug for this
step, since it is done from the driver’s seat.
Adjust the height with the knob for the height control
on the control box.
Dense areas should be cut in two passes.
Push handle down to lock height position in place.
MAXIMUM AND MINIMUM CUTTING HEIGHT
ADJUSTMENT

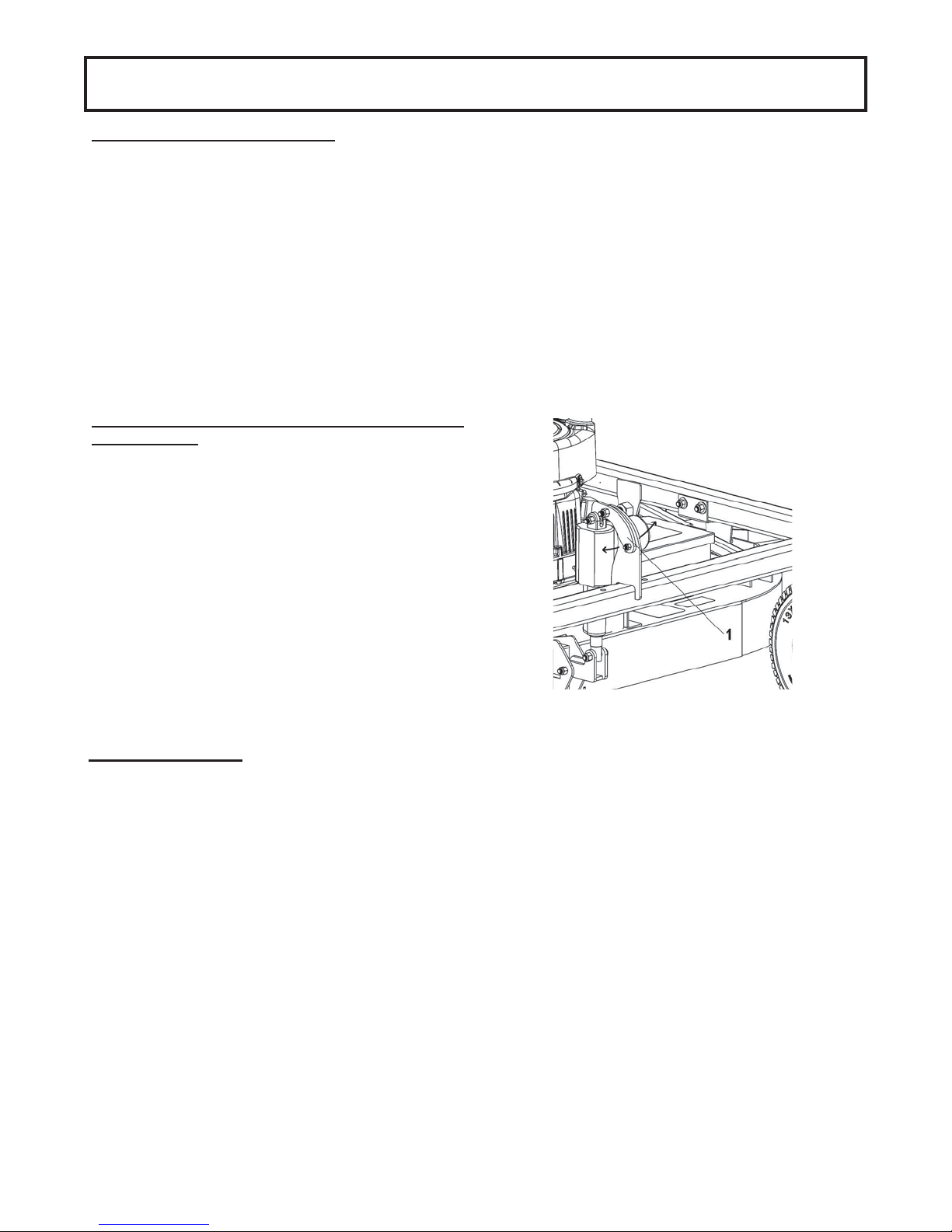

Use the other adjustment holes (item 1) on the
actuator support. The mower must never come into
contact with the lift stoppers.
TOW HITCH OFFSET
Offset the mower to the opposite side of the
discharge chute of the tow vehicle
It is recommended if the tow vehicle is equipped with
a mid-mount mower to overlap the cut approximately
6”. This may vary depending on mowing terrain,
obstacles, and/or tow vehicle. Always keep safety the
first priority.
Always keep the tow vehicle cutter raised higher than
the mower.

15
MAINTENANCE
ALWAYS PRACTICE SAFE MAINTENANCE
Always understand the procedures before doing any
work. Use the proper tools and equipment, refer to
the Owner’s manual for additional information.
GENERAL RECOMMENDATIONS
The warranty on this mower does not cover items that
have been subjected to operator abuse or negligence.
To receive full value from the warranty, operator must
maintain unit as instructed in this manual.
Some adjustments will need to be made periodically
to maintain your unit properly.
Regularly inspect under the guards and near the
battery to eliminate all accumulations of debris.
BEFORE EACH USE
Check engine oil level. Check twice to insure an
accurate reading.
Check condition of air filter; clean and replace as
necessary.
Check blade operation; keep blades in good
condition.
Check for loose fasteners and tighten them as
needed.
AFTER EACH USE
Keep blades sharp.
Remove fresh grass clippings with garden hose.
Grass clippings hardened to the underside should be
scraped out with a putty knife.
Keep fluids at proper levels.
You may cover the mower to prevent rain or other
debris buildup or simply cover the engine.
BEFORE AND/OR AFTER EACH SEASON
Replace the spark plug.
Clean or replace the air filter.
A new spark plug and clean air filter assures proper
air-fuel mixture and helps your engine run better and
last longer.
Check blades and belts for wear. Replace as
necessary.
DAILY MAINTENANCE
Make sure all nuts and bolts are tight and cotter pins
and retainer springs are secure.
Keep blades sharp.
Observe all safety precautions.
BLADE CARE AND SERVICE
For best results blades must be kept sharp.
The blades can be sharpened with a few strokes of a
file or grinding wheel.
DO NOT ATTEMPT to sharpen the blades while
installed on the mower. Disconnect spark plug wire
before servicing unit.
Important: Replace blades that have been damaged
or deeply nicked.
Important: Check blade and spindle hardware on a
regular basis to make sure nuts are tight
CAUTION
DO NOT STORE ENGINE INDOORS OR OTHER
POORLY VENTILATED AREA. KEEP ENGINE
AWAY FROM GAS APPLIANCES WHERE FUMES
COULD CONTACT OPEN FLAME, PILOT LIGHTS
OR SPARKS.
STORAGE RECOMMENDATIONS
IF ENGINE IS STORED FOR 30 OR MORE DAYS,
PREPARE UNIT AS FOLLOWS:
Drain fuel outside into an approved container.
Start engine properly and run until unit is out of fuel.
Let engine cool.
Remove remaining gasoline from carburetor and fuel
tank to prevent gum deposits from forming within the
engine. Gum deposits can cause malfunction in the
engine.
Store mower with blades disengaged to prevent belts
from being permanently stretched.
CAUTION
DO NOT HANDLE MOWER BLADES WITH BARE
HANDS.
CARELESS OR IMPROPER HANDLING MAY
RESULT IN SERIOUS INJURY.

16
GENERAL TROUBLESHOOTING
The mower is not cutting level.
See adjustment section.
The mower is not level.
See adjustment section
The engine will not start.
Disengage blades, turn the key to “ON” position,
check battery and all other electrical connections,
and inspect spark plug and wire.
Check for fuel in the engine.
Engine runs poorly.
See engine manual.
Check throttle adjuster.
Replace fuel, clean fuel filter and fuel line.
CAUTION
IF PROBLEMS PERSIST HAVE A QUALIFIED
MECHANIC SERVICE THE MOWER. NEVER
ATTEMPT TO MAKE AN ADJUSTMENT THAT
YOU ARE NOT SURE IS CORRECT. DOING SO
CAN CAUSE OTHER PROBLEMS.
WEAR YOUR SAFETY GLASSES
FORESIGHT IS BETTER THAN NO SIGHT.

17
TORQUE SPECIFICATION TABLE
GENERAL TORQUE SPECIFICATION TABLE
USE THE FOLLOWING TORQUES WHEN SPECIAL TORQUES ARE NOT GIVEN
NOTE:
These values apply to fasteners as received from supplier, dry or when lubricated with normal oil. They do not
app
ly if special graphited or moly disulphide greases or other extreme pressure lubricants are used. This applies to
both UNF and UNC threads.
*
Thick nuts must be used with grade 8 bolts
SEE Grade No.
2 5 8 *
BOLT HEAD
IDENTIFICATION
MARKS ASPER GRADE
NOTEMANUFACTURING
MARKS W ILL VARY
TORQUE TORQUE TORQUE
BOLT SIZE FOOT POUNDS NEWTON-METERS FOOT POUNDS NEWTON-METERS FOOT POUNDS NEWTON-METERS
Inches Millimetre Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Max. Min.Max. Max.
1/4" 6.35 5 6 6.8 8.13 9 11 12.2 14.9 12 15 16.3 30.3
5/16" 7.94 10 12 13.6 16.3 17 20.5 23.1 27.8 24 29 32.5 39.3
3/8" 9.53 20 23 27.1 31.2 35 42 47.5 57 45 54 61 73.2
7/16" 11.11 30 35 40.7 47.4 54 64 73.2 86.8 70 84 94.9 113.9
1/2" 12.7 45 52 61 70.5 80 96 108.5 130.2 110 132 149.2 179
9/16" 14.29 65 75 88.1 101.6 110 132 149.2 179 160 192 217 260.4
5/8" 15.88 95 105 128.7 142.3 150 180 203.4 244.1 220 264 298.3 358
3/4" 19.05 150 185 203.3 250.7 270 324 366.1 439.3 380 456 515.3 618.3
7/8" 22.23 160 200 216.8 271 400 480 542.4 650.9 600 720 813.6 976.3
1" 25.4 250 300 338.8 406.5 580 696 786.5 943.8 900 1080 1220.4 1464.5
METRIC BOLT TORQUE SPECIFICATIONS
COARSE THREAD
Size Screw Grade No. Pitch (mm) Foot Pounds Newton-Meters Pitch (mm) Foot Pounds Newton-Meters
M6 4T 1.00 3.6 - 5.8 4.9 - 7.9 - - -
7T 5.8 - 9.4 7.9 - 12.7 - -
8T 7.2 - 10 9.8 - 13.6 - -
M8 4T 1.25 7.2 - 14 9.8 - 19 1.00 12 - 17 16.3 - 23
7T 17 - 22 23 - 29.8 19 - 27 25.7 - 36.6
8T 20 - 26 27.1 - 35.2 22 - 31 29.8 - 42
M10 4T 1.50 20 - 25 27.1 - 33.9 1.25 20 - 29 27.1 - 39.3
7T 34 - 40 46.1 - 54.2 35 - 47 47.4 - 63.7
8T 38 - 46 51.5 - 62.3 40 - 52 54.2 - 70.5
M12 4T 1.75 28 - 34 37.9 - 46.1 1.25 31 - 41 42 - 55.6
7T 51 - 59 69.1 - 79.9 56 - 68 75.9 - 92.1
8T 57 - 66 77.2 - 89.4 62 - 75 84 - 101.6
M14 4T 2.00 49 - 56 66.4 - 75.9 1.50 52 - 64 70.5 - 86.7
7T 81 - 93 109.8 - 126 90 - 106 122 - 143.6
8T 96 - 109 130.1 - 147.7 107 - 124 145 - 168
M16 4T 2.00 67 - 77 90.8 - 104.3 1.50 69 - 83 93.5 - 112.5
7T 116 - 130 157.2 - 176.2 120 - 138 162.6 - 187
8T 129 - 145 174.8 - 196.5 140 - 158 189.7 - 214.1
M18 4T 2.00 88 - 100 119.2 - 136 1.50 100 - 117 136 - 158.5
7T 150 - 168 203.3 - 227.6 177 - 199 239.8 - 269.6
8T 175 - 194 237.1 - 262.9 202 - 231 273.7 - 313
M20 4T 2.50 108 - 130 146.3 - 176.2 1.50 132 - 150 178.9 - 203.3
7T 186 - 205 252 - 277.8 206 - 242 279.1 - 327.9
8T 213 - 249 288.6 - 337.4 246 - 289 333.3 - 391.6
FINE THREAD
