Berkeley FUTURA ZHI-DRY-3501 User manual
972-926-6488
www.aycllc.com
CONTACT US
MODEL: ZHI-DRY-3501
INFRARED HAIR COLOR PROCESSOR
DRYER ACCELERATOR
FUTURA
Thank you very much for purchasing our product.
Please read our user manual carefully prior to use.
②
③
①
Press once, time increases minute by minute up to 60.
Press once, time decreases a minute down to 1 minute.
⑥⑦⑧⑨⑩
⑪
TIME DISPLAY
④
Press once, temperature increases up a level
Press once, temperature decreases by a level
⑤
Five different functions to choose from.
⑭
⑫
⑬
⑮
START/PAUSE: Press once to start operation, press again to pause the operation.
CONTROL PANEL:
⑧
⑨
⑩
⑥
⑦
⑤
①
②
③
④
11
14
13
12
Shape
Hot oil
Hair Dye
Hair Care
Hair Dry
Temperature Adjustment
Time Setting
Rotation
Cool Wind
Hot Wind
Start/Pause
Working Mode
Work State
⑮
COOL WIND: This key controls the fan behind neck position.
HOT WIND: This key provides selection from cool to hot wind.
ROTATION: Controls the circular heating element from going around to being still.
MAIN POWER SWITCH: Switch for the machine’s main power supply. Please turn off if device is not in use.
INSTALLATION OF STAND AND BASE
Assemble the stand as illustrated below.
Place the machine onto the stand, and adjust it to desired
height.
1.
2.
Height Adjustment knob
2
CAUTION:
Do not touch the surface or the safety net on the circular heating
element, as tremendous heat will be produced during operation
A grounding wire must be connected to the wall power supply
Machine must be serviced or repaired by a certified technician or
technician from our authorized dealer. Repaired machine must be
fully inspected in order to meet safety stands before use.
In the case where the wire is damaged or aged, new 53 (RVV)
3*0.75mm2 wire must be replaced by a certified technician from
our authorized dealer.
TROUBLE SHOOTING
OPERATION MODES
MODE
Shape
Hot Oil
Hair
Care
Hair Dye
Hair Dry
Application Operation Status
Adjust time and temperature according
to type of hair, specification of products
used and technical requirement.
Temperature Time (min) Fan Hot Wind Rotation
2 28 Off Off On
May operate under manual mode if requires
4 20 Off Off On
May operate under manual mode if requires
3 15 Off Off On
May operate under manual mode if requires
5 08 Off Off On
May operate under manual mode if requires
4 13 On On On
May operate under manual mode if requires
Adjust time and temperature according
to type of skin, specification of products
used and technical requirement.
Adjust time and temperature according
to type of hair and shampoo.
In use with partially styling and acid type
coloring products.
Selected when drying ordinary natural
hair.
OPERATING MANUAL
Plug the machine into a power supply, turn the Main Power Switch on.
When “00” is displayed on the time display window, it means that
the machine is ready for operation.
When the circular heating element is not in its initial position, it will
return to its default place.
Operating procedure:
Choose the function you need, and indicator will light up beside
chosen function.
Press START/PAUSE button to start the operation.
The circular heating element shall operate under chosen option.
Time and temperature can be adjusted if needed.
During operation:
The indicator besides the START/PAUSE key will remain on.
The indicator besides the chosen function key will remain on.
Decimal point in the TIME DISPLAY window shall flash every second.
All operating modes can be switched from one to another during
operation.
Pause Operation:
Press STOP/PAUSE to pause the operation.
The circular heating element will stop rotating.
Timer:
Buzzer will buzz for 5 times to indicate that operation is finished.
If the circular heating element is not at its initial position, please
turn the machine off then on, it shall return to its default position.
Please unplug the machine after use.
1.
2.
3.
4.
5.
6.
Status Reason Solution
Circular heating
element does not rotate
at all
Rotation function is not chosen
Connector between motor and
rotor became loose
1.
2. Press the ROTATION Key
Open the back-cover and tighten the
connector
1.
2.
Circular heating element
does not rotate regularly
Connector between motor and
rotor became loose.
Motor cannot be stopped
1.
2.
Open the back-cover and tighten the
connector
Replace the optical sensor/positioning
strip
1.
2.
Heating element does
not produce heat
Heating function is not chosen
Connector between motor and
rotor became loose.
1.
2.
Adjust temperature to non-zero status.
Open the back-cover and tighten the
connector.
1.
2.

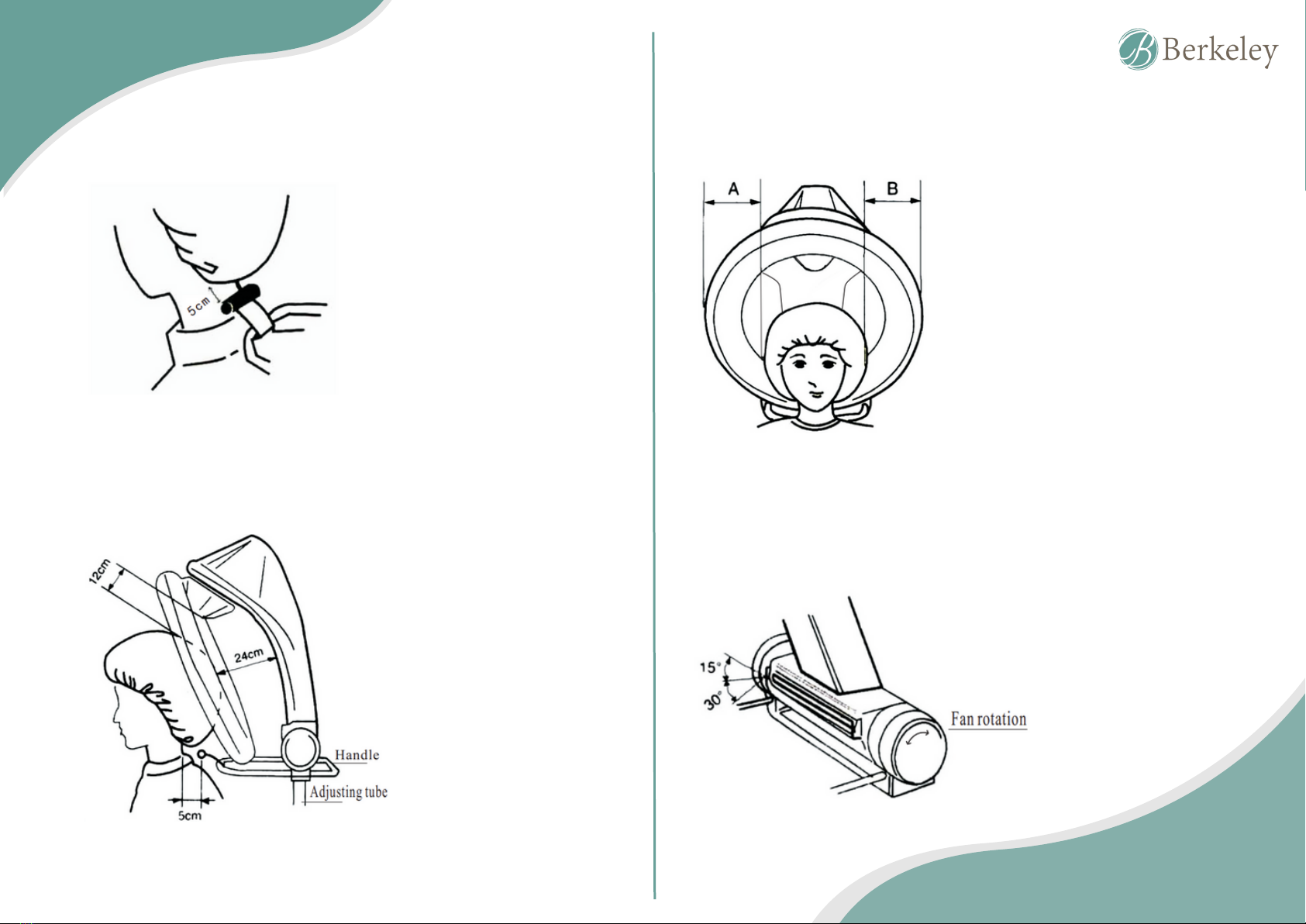

ILLUSTRATION
Set height by adjusting the supporting
tube to place the rubber piece behind
client’s neck.
Keep the rubber piece about 2" (5cm)
away from the back of client’s neck
1.
2.
Between the top point of client’s head
and machine’s rotation center, a 5"
(12cm) distance should be reserved
Keep the rubber piece about 2" (5cm)
away from the back of client’s neck.
1.
2.
Keep distance A and B the same
(as shown above), in order to keep
client in the middle of the
machine.
According to the length of client’s hair,
the angle of the fan behind the neck
can be adjusted. Rotate the adjusting
cover to change the angel, which
ranges between 15 to 30 degrees.
STEP 1
STEP 2
STEP 3
STEP 4
