Berlin Gardens DRFP4254 User manual

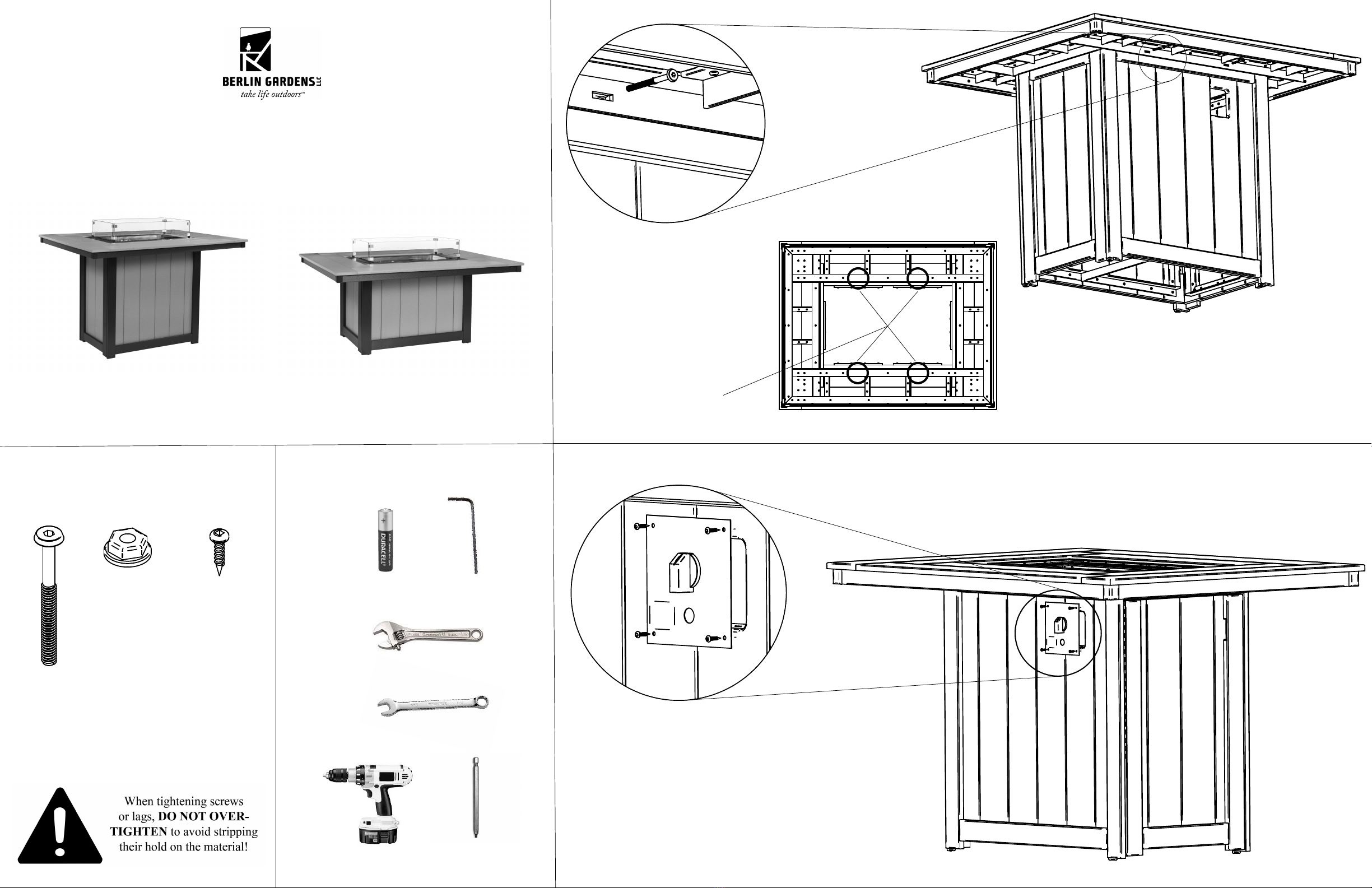

Top Assembly Detail
Control Panel Installation
Hardware Included Tools / Items Needed
3/4" Panhead Screws
(x4)
Assembly Guide
DRFT4254C
Donoma 42"x 54" Rectangular Fire Table
(Dining, Counter & Bar Heights)
Cordless Drill #2 Square Drive Bit
+
DRFP4254
Donoma 42"x 54" Rectangular Fire Pit
Allen Wrench
(included)
1 - AAA Battery
(not included)
Cresent Wrench
7/16" Wrench
1/4" x 2 1/2" Bolts
(x4)
1/4" Flange Nuts
(x4)
Fasten the Fire Pit Top to the Fire Pit
Base by inserting four 1/4" x 2 1/2"
bolts through the rectangular slots.
The bolt heads should be on the
outside of the base.
Fasten on the inside of the base
using the 1/4" Flange Nuts.
Locations of Slots for Bolts
Step 1
Step 2
Place the control panel into the cutout located in
one of the long sides of the fire pit base.
Fasten it using four 3/4" Panhead Screws.
Applies for: DRFP4254, DRFT4254D, DRFT4254C, DRFT4254B

Stainless Steel Heat Barrier Placement
Step 3 Step 4
Step 5
Place the stainless steel heat barrier on top of the
aluminum support pieces located at the edge of the
opening in the center of the fire pit top. Ensure that
the recessed edge of the heat barrier is turned
upward and remove the protective sticker.
Place the Burner on top of the recessed edge of
the Stainless Steel Heat Barrier.
For Installation of the Burner, connecting gas, igniter
and operation instructions, see The Outdoor Great Room
Company Crystal Fire Manual that is included with the Burner.
A.
Place Propane Tank on Tank Carrier and slide into the
base and close the door.
B.
Spread Fire Pit Gems into the burner evenly.
C.
Place the Glass Wind Guard on top of the Heat Barrier
so that the burner is centered in it.
Your Fire Pit or Table is complete!
