Bertram 700 User manual

700
OWNER’S MANUAL

Studio ti S.r.l.
40026 Imola (BO) - Italy
Via Ercolani, 5c
Tel. [phone] - 643321
Fax [phone]
[e-mail]

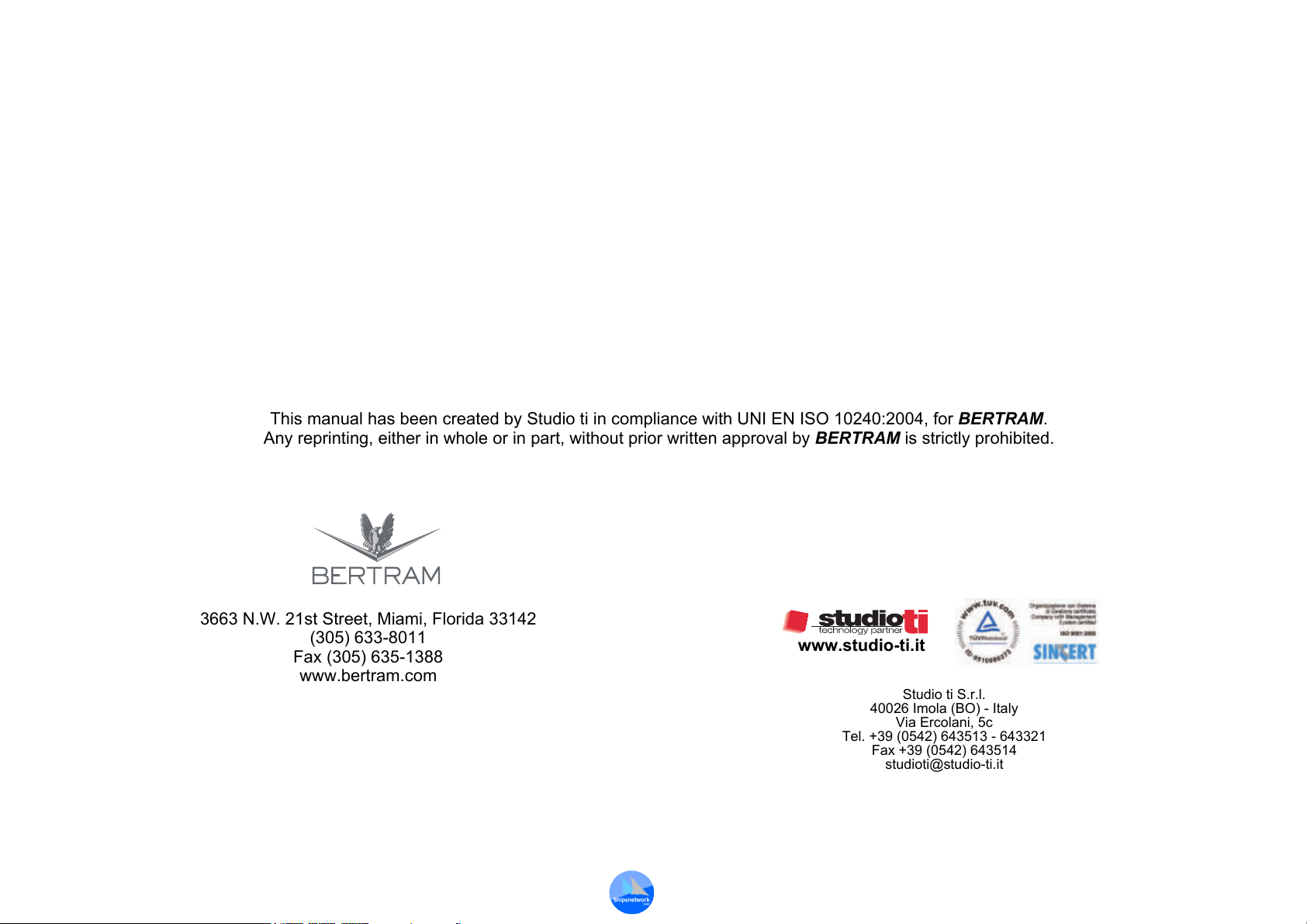

This manual has been created by Studio ti in compliance with UNI EN ISO 10240:2004, for BERTRAM.
Any reprinting, either in whole or in part, without prior written approval by BERTRAM is strictly prohibited.
3663 N.W. 21st Street, Miami, Florida 33142
[phone]
Fax [phone]
www.bertram.com
www.studio-ti.it

700
Studio ti 75608 700-08EB 3
RINA S.p.A. (Registro Italiano Navale) assigned the classification of Your
BERTRAM yacht with Certificate, following its supervision of hull
lamination, reinforcement structures, propulsion and auxiliary power
generating machinery, onboard systems.
Specifications
Manufacturer Name BERTRAM
Hull No. 9
Number of People Capacity max. 18
Propulsion type: engine (#2)
Maximum Rated Engine Power 2217 mhp/1630 kW
Dimensions
- Length overall with fore pulpit 74 ft 2 in - 22.6 m
- Length hull (standard ISO 8666) 70 ft 4 in - 21.45 m
- Length waterline, yacht fully laden 62 ft 6 in - 19.06 m
- Fore rail extension pulpit 3 ft 9 in - 1.15 m
- Maximum Beam 18 ft 8 in - 5.70 m
- Depth under propellers (yacht fully laden) 6 ft - 1.82 m**
- Height maximum above waterline 19 ft 6 in - 5,93 m**
- Cockpit surface 270 sq ft - 15.6 m2
Displacements
- Displacement, unladen 95681 lb - 43.4 ton
- Displacement fully laden 119500 lbs - 54,2 ton
Tank capacities
- Standard fuel tank capacity 2008 US gals - 7600 lt *
- Water tank capacity 350 US gals - 1323 lt *
- Black water tank capacity 160 US gals - 606 lt *
* The usable volume of tanks will vary according to the trim and load.
** With fuel and water tanks full, 6 persons onboard and 1200 lbs (545 kg) of equipment.
฀
NOTICE
The EC Certificate of product check stating that this pleasure boat has
been approved in accordance with the 94/25/EC Directive, amended by
the 2003/44/EC Directive, and that it conforms to the safety
requirements applicable, is not included inside of the current Owner’s
manual, but it will be delivered separately by BERTRAM and will have
to be stored with this manual.

700
Studio ti 75608 700-08EB
4
BERTRAM YACHT, INC.
LIMITED WARRANTY (U.S.A.)
The limited warranty. Bertram Yacht, Inc. (Bertram) warrants, subject to the
limitations herein, to the first retail purchaser of this yacht (first owner) provided
the First Owner completes, signs and returns the Bertram Warranty Registration
Card to Bertram at the address below by certified mail, return receipt requested,
within (10) days of the First Owner’s purchase of the yacht, and any properly
registered subsequent owners, that it will repair or replace defects in (a) items
manufactured by Bertram for one (1) year and (b) the yacht’s hull and its
fiberglass structural components for five (5) years. These warranties run from the
date of Delivery. “Delivery” means the date of the actual delivery of the yacht to
the First Owner. Unless prohibited by applicable state law, an action hereunder
shall be barred unless it is commenced with in (1) year from the date the cause
of action accrues, regardless of the time remaining in the applicable period
above.
Bertram’s Obligation. Bertram’s obligation is limited to repairing or replacing,
at its option, any covered items found to be defective at a facility designated by
Bertram. Repaired or replaced items shall be warranted as provided herein for
the remainder of the applicable warranty period. Defective parts or components
that are replaced shall thereupon become the property of Bertram.
Procedures. Notice of defects occurring under this Limited Warranty must be
given to Bertram within a reasonable time, not to exceed thirty (30) days after
discovery, or the time such defect should reasonably have been discovered, in
writing, at the address below, by certified mail, return receipt requested. All
notices must include the owner’s name, address, phone number, the hull
number, the nature of the defect, the date it was discovered, the date of
purchase, and the name and address of the party from whom the yacht was
purchased. A copy must also be sent to the dealer from whom the yacht must
was purchased.
The owner must thereafter provide all information necessary to allow Bertram to
verify compliance with these requirements. The dealer must obtain Bertram’s
written approval before repairing the yacht and must follow all applicable
Bertram procedures. As to items not covered by this Limited Warranty, the owner
may contact the appropriate manufacturer representative, to which the dealer
will direct the owner on request.
Future Improvements. Bertram reserves the right to improve its design or
materials without any obligation, or incorporate any changes into any previously
manufactured yachts.
Exclusions. This Limited Warranty is NOT applicable to:
a. Damage to a yacht part or component, caused by any alteration,
modification, or repair, or which has been removed from the yacht, unless
specifically authorized in writing by Bertram.
b. Paints; varnishes; gelcoats; anti-fouling products; chrome plated, anodized,
aluminum, or other plated finishes; the color fastness of materials or
finishes; external wood paneling, siding, and trimming; stainless steel,
fabrics and canvas - all of which are subject to the effects of different
climates and use (including cracking and crazing); osmosis blistering if the
original gelcoat surface has been altered in any way - including repair,
application of any coating other than marine antifouling bottom paint,
improper surface preparation for paint, or excessive sanding or
sandblasting.
c. Engines, engine parts, controls, accessories, air conditioning systems,
transmissions, electronics (including the installation thereof unless installed
by Bertram), batteries, appliances, propellers, generators, and any
equipment not manufactured by Bertram. Some of these items are
warranted by their manufacturers as stated in the applicable warranties as
supplied by their manufacturers. The owner shall look exclusively to these
manufacturers for any and all such warranty claims.
d. Yachts which have been used for or subjected to: commercial or charter
service; careless operation, grounding, collision, hurricane conditions or
other extreme forces of nature; military or paramilitary operations; racing,
towing, improper storage, service or maintenance; negligent operation; lack
of maintenance; improper use; use in violation of instructions provided by
Bertram; or use in of Federal, State, or other governmental laws,
regulations, or rules.

700
Studio ti 75608 700-08EB 5
e. Any published or announced catalog speeds; fuel consumption; weight;
draft and performance characteristics; since these are estimated or
obtained from test runs.
f. Electrolysis, galvanic or crevice corrosion, or any deterioration of
underwater items or items requiring repairs or replacement as a result of
lack of maintenance or improper use.
g. Any damage or failure that occurs from either increasing the horsepower of
the original engines installed by Bertram.
h. Compliance with the laws, regulations, or rules of any governmental or
regulatory body or agency other than the U.S.A.
i. Direct, incidental, or consequential damages, costs or expenses, including
but not limited to, loss of time, inconvenience, rental charges, travel
expenses, loss of use, dockage fees, towing and storage charges, and the
costs of transportation to the repair facility designated by Bertram, incurred
as a result of any defects, or as a result of any steps the owner must take to
become entitled to repair or replacement, and injury or damage to persons
or property resulting from information provided by the dealer if erroneous or
not approved in advance and in writing by Bertram. SOME STATES DO
NOT ALLOW THE EXCLUSION OF LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES SO SUCH LIMITATION MAY NOT APPLY
TO YOU.
DISCLAIMER; LlMlTATION OF DURATION OF IMPLIED WARRANTIES.
EXCEPT FOR THE REPAIR OR REPLACEMENT BY BERTRAM OF
ITEMS COVERED BY THE LIMITED WARRANTY, BERTRAM MAKES NO
OTHER WARRANTIES EXCEPT FOR THE IMPLIED WARRANTIES THAT
CANNOT BE DISCLAIMED, ALL OF WHICH ARE LIMITED IN DURATION
TO THE APPLICABLE PERIOD PROVIDED IN THE LIMITED WARRANTY.
SOME STATES DO NOT ALLOW TIME LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS, SO THlS LIMITATION MAY NOT APPLY TO
YOU.
Modifications, Subsequent Owners. This limited warranty may only be
modified in writing by an authorized Bertram officer. No dealer or other party
may modify the Limited Warranty. Subsequent owners to the First Owner
may register to qualify for the benefits of this Limited Warranty by following
the procedures specified after contacting Bertram at the address and phone
set forth below.
Venue. To the extent permitted by law, venue for any dispute shall lie in
Miami-Dade County, Florida, unless an alternative venue is elected by
Bertram.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU
MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO
STATE.

700
Studio ti 75608 700-08EB
6
NOTES:

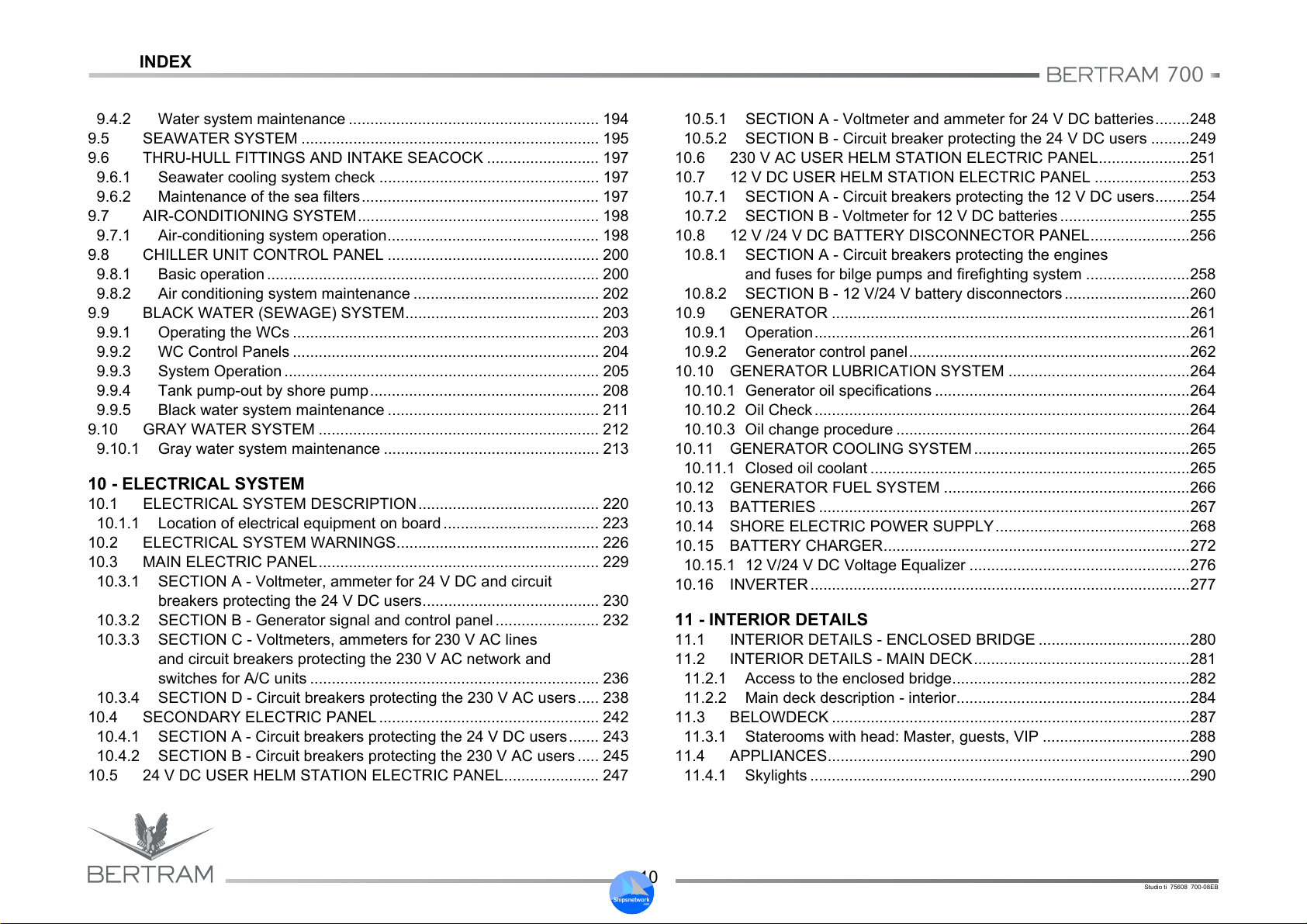

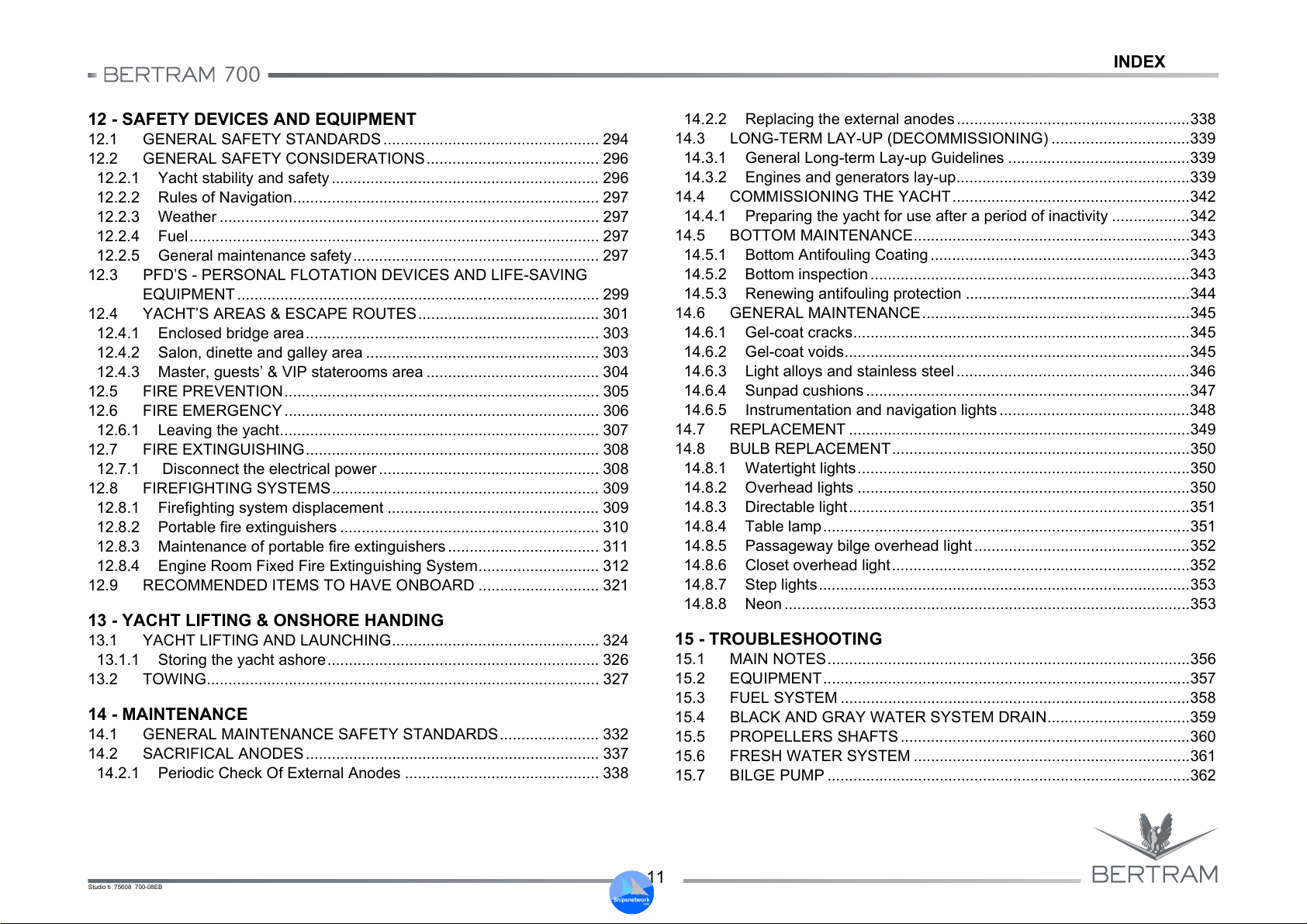

INDEX
