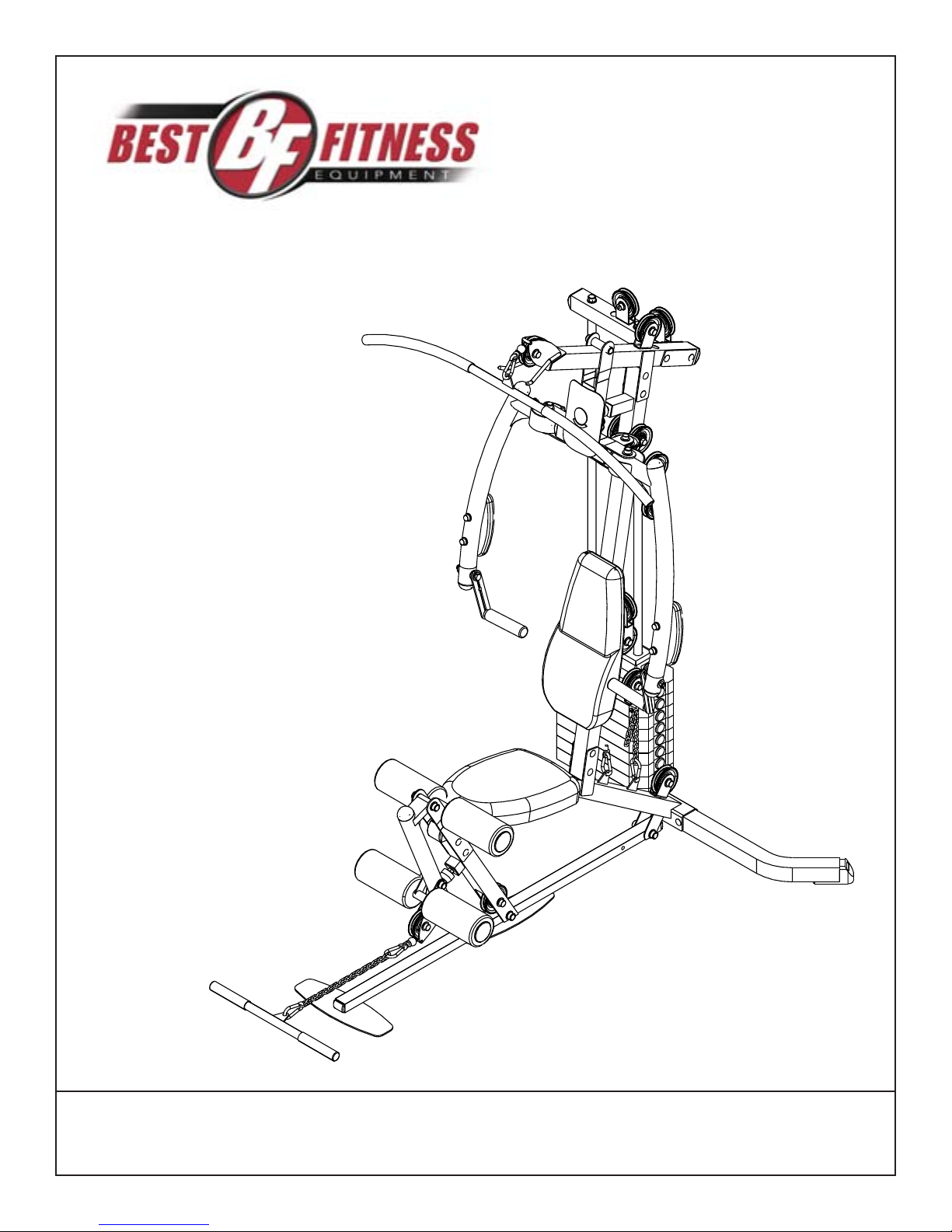

Best Fitness BFMG20 User manual

BFMG20
OWNER’S MANUAL

Thank you for purchasing the Best Fitness BFMG20. This gym is part of the Best Fitness quality strength training
machines, which lets you target specic muscle groups to achieve better muscle tone and overall body condition-
ing.
To maximize your use of the equipment please study this Owner’s Manual thoroughly.
Unpacking the Equipment
The BFMG20 is carefully tested and inspected before
shipment. We have shipped the unit in several pieces
that require assembly. Ask for assistance during the
assembly process.
Carefully unpack the boxes and lay the pieces on
the oor near the area where you plan to use the
equipment.
Be careful to assemble all components in the
sequence presented in this guide.
If any items are missing, contact the dealer from whom
you purchased the unit or call 1-800-556-3113 for
the dealer nearest you.
1
BEFORE YOU BEGIN

2
IMPORTANT SAFETY INSTRUCTIONS
Before beginning any tness program, you should obtain a complete physical examination from your physician.
Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise. Si vous
avez des etourdissements ou des faiblesses, arretez les exercices immediatement.
Antes de comenzar cualquier programma de ejercicios, deberias tener un examen sico con su doctor.
When using exercise equipment, you
should always take basic precautions,
including the following:
• Read all instructions before using the BFMG20. These
instructions are written to ensure your safety and to
protect the unit.
• Do not allow children on or near the equipment.
• Use the equipment only for its intended purpose as
described in this guide. Do not use accessory
attachments that are not recommended by the
manufacturer. Such attachments might cause injuries.
• Wear proper exercise clothing and shoes for your
workout, no loose clothing.
• Use care when getting on or off the unit.
• Do not overexert yourself or work to exhaustion.
• If you feel any pain or abnormal symptoms, stop your
workout immediately and consult your physician.
• Never operate unit when it has been dropped or
damaged. Return the equipment to a service center
for examination and repair.
• Never drop or insert objects into any opening in the
equipment.
• Always check the unit and its cables before each
use. Make sure that all fasteners and cables are
secure and in good working condition.
• Do not use the equipment outdoors or near water.
Personal Safety During Assembly
• It is strongly recommended that a qualied dealer
assemble the equipment. Assistance is required.
• Before beginning assembly, please take the time to
read the instructions thoroughly.
• Read each step in the assembly instructions and
follow the steps in sequence. Do not skip ahead. If
you skip ahead, you may learn later that you have to
disassemble components and that you may have
damaged the equipment.
• Assemble and operate the BFMG20 on a solid, level
surface. Locate the unit a few feet from the walls or
furniture to provide easy access.
The BFMG20 is designed for your enjoyment. By
following these precautions and using common
sense, you will have many safe and pleasurable hours
of healthful exercise with your Best Fitness BFMG20.
After assembly, you should check all functions to
ensure correct operation. If you experience problems,
rst recheck the assembly instructions to locate any
possible errors made during assembly. If you are unable
to correct the problem, call the dealer from whom
you purchased the machine or call 1-800-556-3113
for the dealer nearest you.
Obtaining Service
Please use this Owner’s Manual to make sure that all
parts have been included in your shipment. When
ordering parts, you must use the part number and
description from this Owner’s Manual. Use only
Best Fitness replacement parts when servicing this
machine. Failure to do so will void your warranty and
could result in personal injury.
For information about product operation or service,
go to www.besttness.com or contact an authorized
Best Fitness dealer or a Best Fitness factory-authorized
service company or contact Best Fitness customer
service at one of the following:
Toll Free: 1-800-556-3113
Phone: [phone]
Fax: [phone]
Or write to: Best Fitness
Service Department
1900 S. Des Plaines Ave.
Forest Park, IL 60130 USA
Retain this Owner’s Manual for future
reference. Part numbers are required when
ordering parts.

5
SAFETY GUIDELINES
Successful resistance training programs have one prominent feature in common...safety. Resistance
training has some inherent dangers, as do all physical activities. The chance of injury can be greatly
reduced or completely removed by using correct lifting techniques, proper breathing, maintaining
equipment in good working condition, and by wearing the appropriate clothing.
1. It is highly recommended that you consult your physician before beginning any exercise
program. This is especially important for individuals over the age of 35, or persons with
pre-existing health problems.
2. Always warm up before starting a workout. Try to do a total body warm up before you start. It is
especially important to warm up the specic muscle groups you are going to be using. This can
be as simple as performing a warm up set of high repetitions and light weight for each exercise.
3. Use proper form. Focus on only working the muscle groups intended for the exercise you are
doing. If there is strain elsewhere, you may need to re-evaluate the amount of weight that is
involved with the lift. Keeping proper form also includes maintaining control through an entire
range of motion.
4. Breath properly. Inhale during the eccentric phase of the exercise, and exhale during the lifting,
or concentric phase. Never hold your breath during any part of an exercise.
5. Always wear the appropriate clothing and shoes when exercising. Wearing comfortable athletic
shoes with good support and loose tting, breathable clothing will reduce the risk of injury.
6. Maintaining equipment in proper operating condition is of utmost importance for a safe
resistance training program. Pulleys and cables should be checked for wear frequently and
replaced as needed. Equipment should be lubricated as indicated by the manufacturer.
7. Read and study all warning labels on this machine. It is absolutely necessary that you
familiarize yourself and all others with the proper operation of this machine prior to use.
8. Keep hands, limbs, loose clothing and long hair well out of the way of all moving parts.
9. Do not attempt to lift more weight than you can control safely.
10. Inspect the machine daily for loose or worn parts. If a problem is found do not allow the
machine to be used until all parts are tightened or worn or defective parts are repaired or
replaced.
3

4
Assembly of the BFMG20 takes professional installers about 1 hour to complete. If this is the rst
time you have assembled this type of equipment, plan on signicantly more time.
Professional installers are highly recommended!
However, if you acquire the appropriate tools, obtain assistance, and follow the assembly steps se-
quentially, the process will take time, but is fairly easy.
Assembly Tips
Read all “Notes” on each page before beginning each
step.
While you may be able to assemble the BFMG20 using the
illustrations only, important safety notes and other tips are
included in the text.
Some pieces may have extra holes that you will not use.
Use only those holes indicated in the instructions and il-
lustrations.

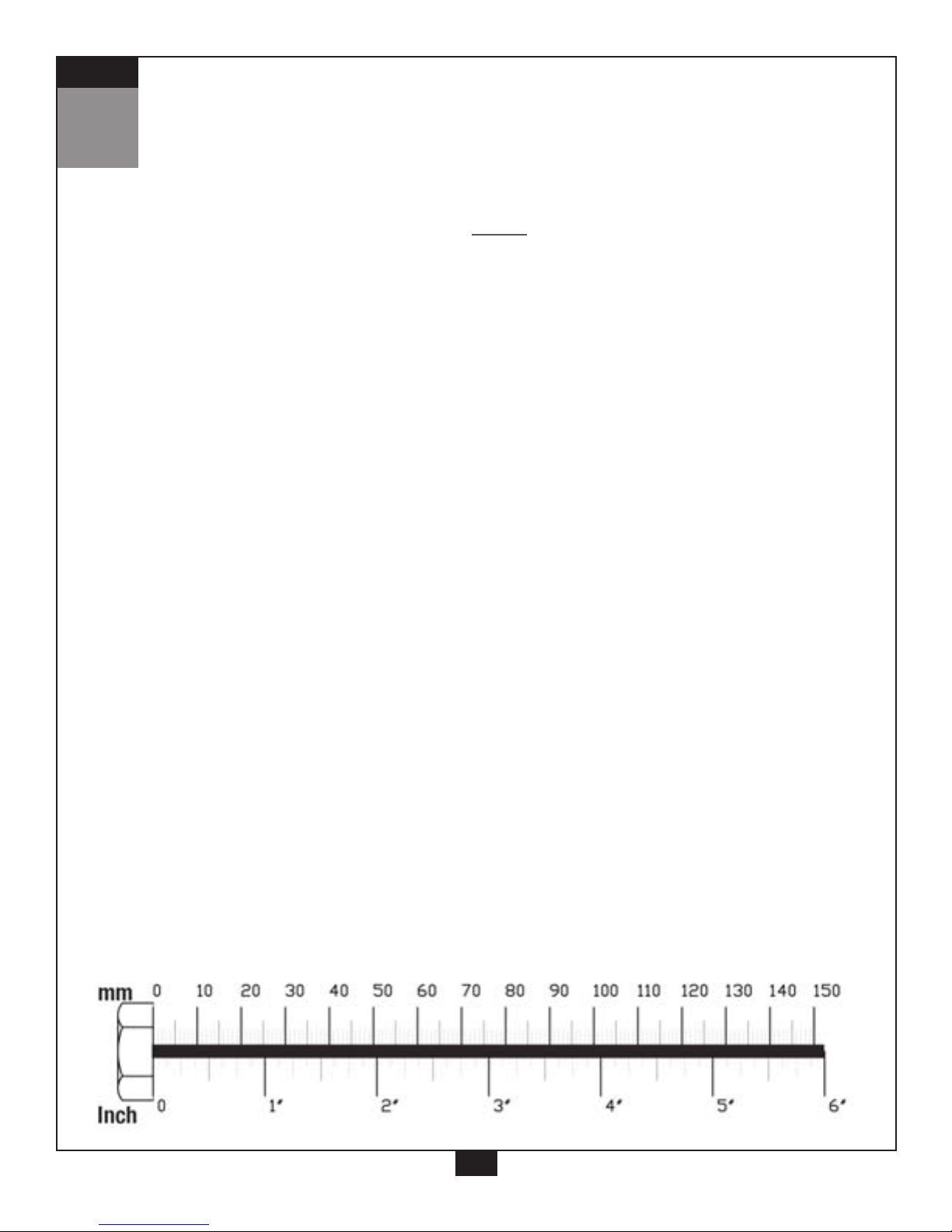

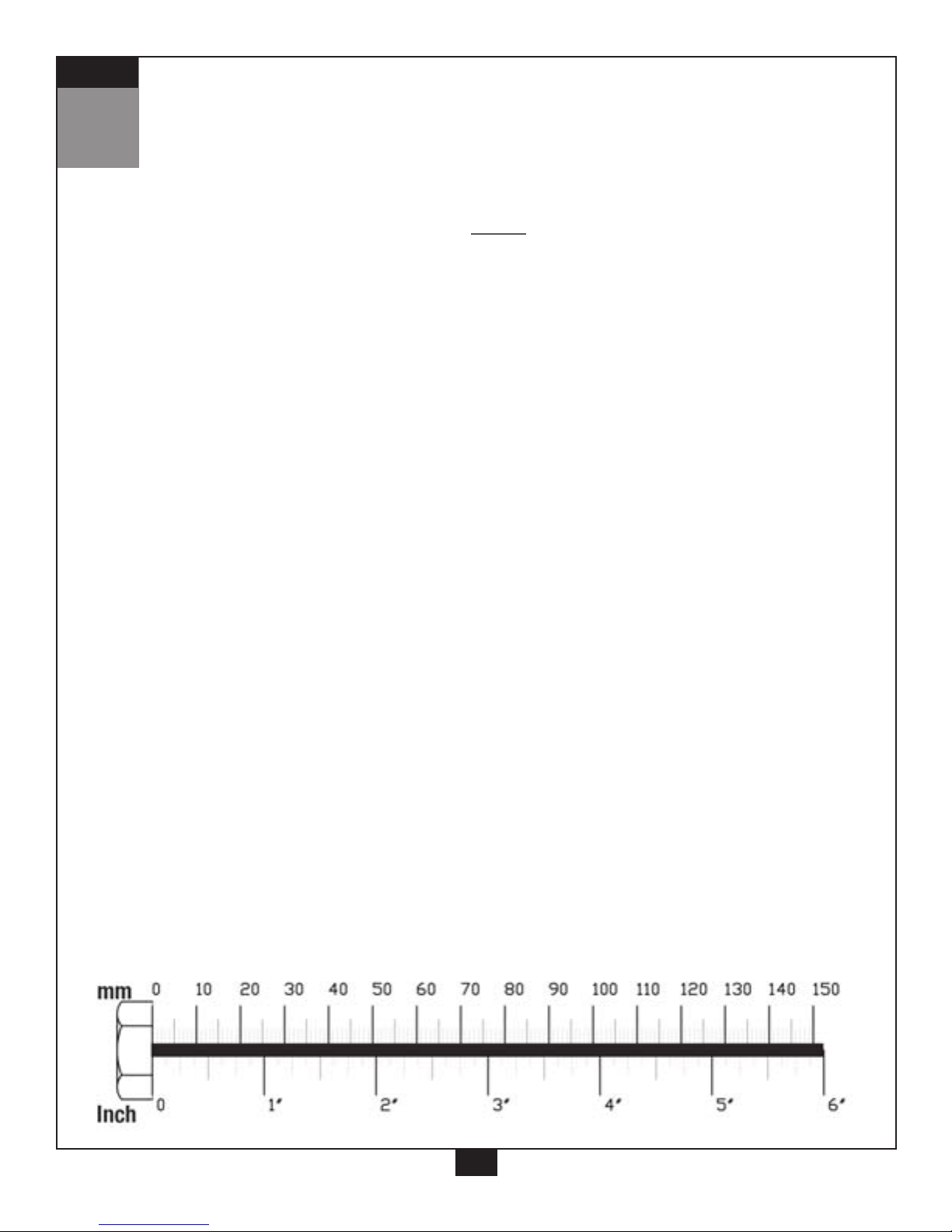

NOTE: To nd out the length of a particular bolt, measure
its shank (the long, narrow part beneath the head).
Refer to the following diagram:
Do not fully tighten bolts until instructed to do so.
Note: After assembly, you should check all functions to ensure
correct operation. If you experience problems, rst recheck
the assembly instructions to locate any possible errors made
during assembly.
If you are unable to correct the problem, call the dealer from
whom you purchased the machine or call 1-800-556-3113
for the dealer nearest you.
ASSEMBLY INSTRUCTIONS

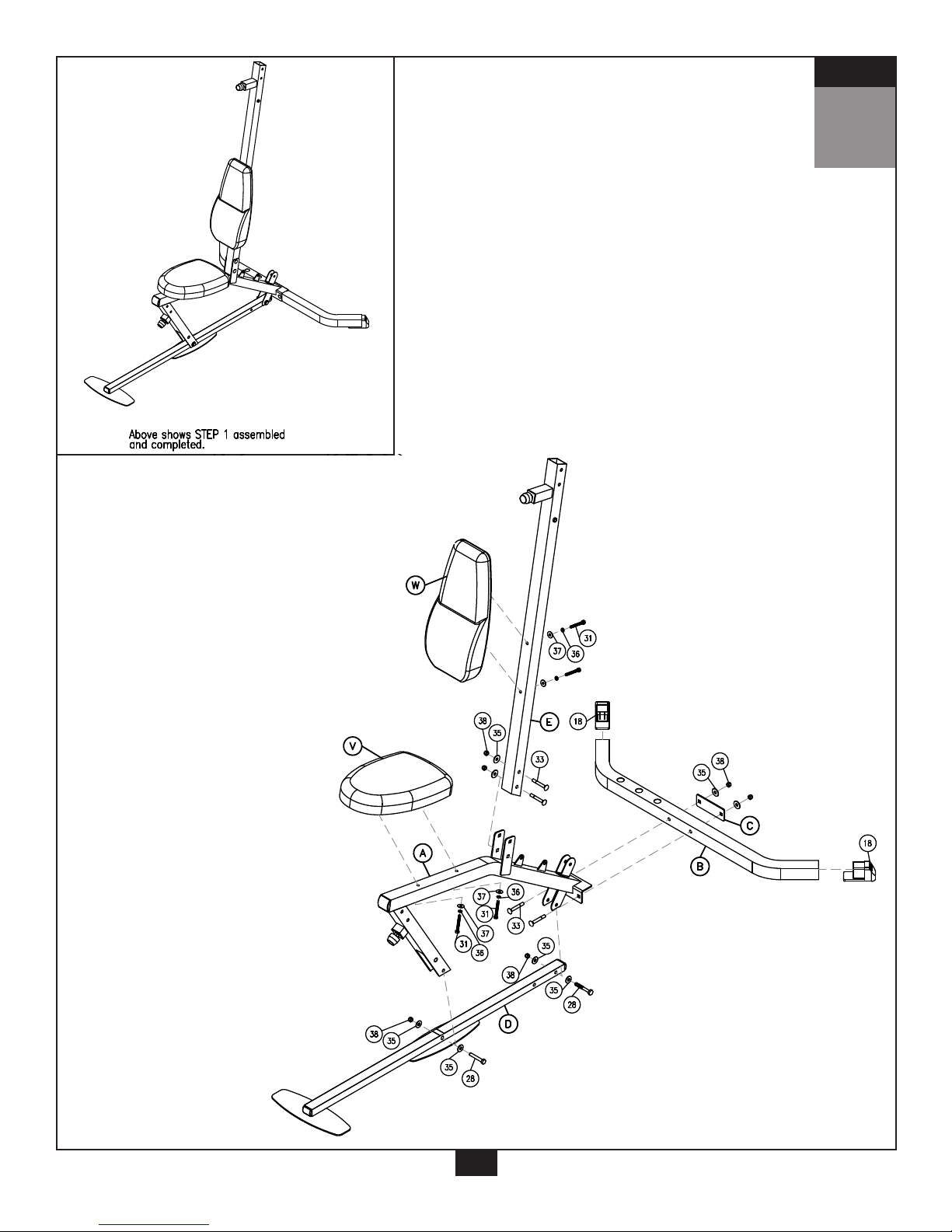

1

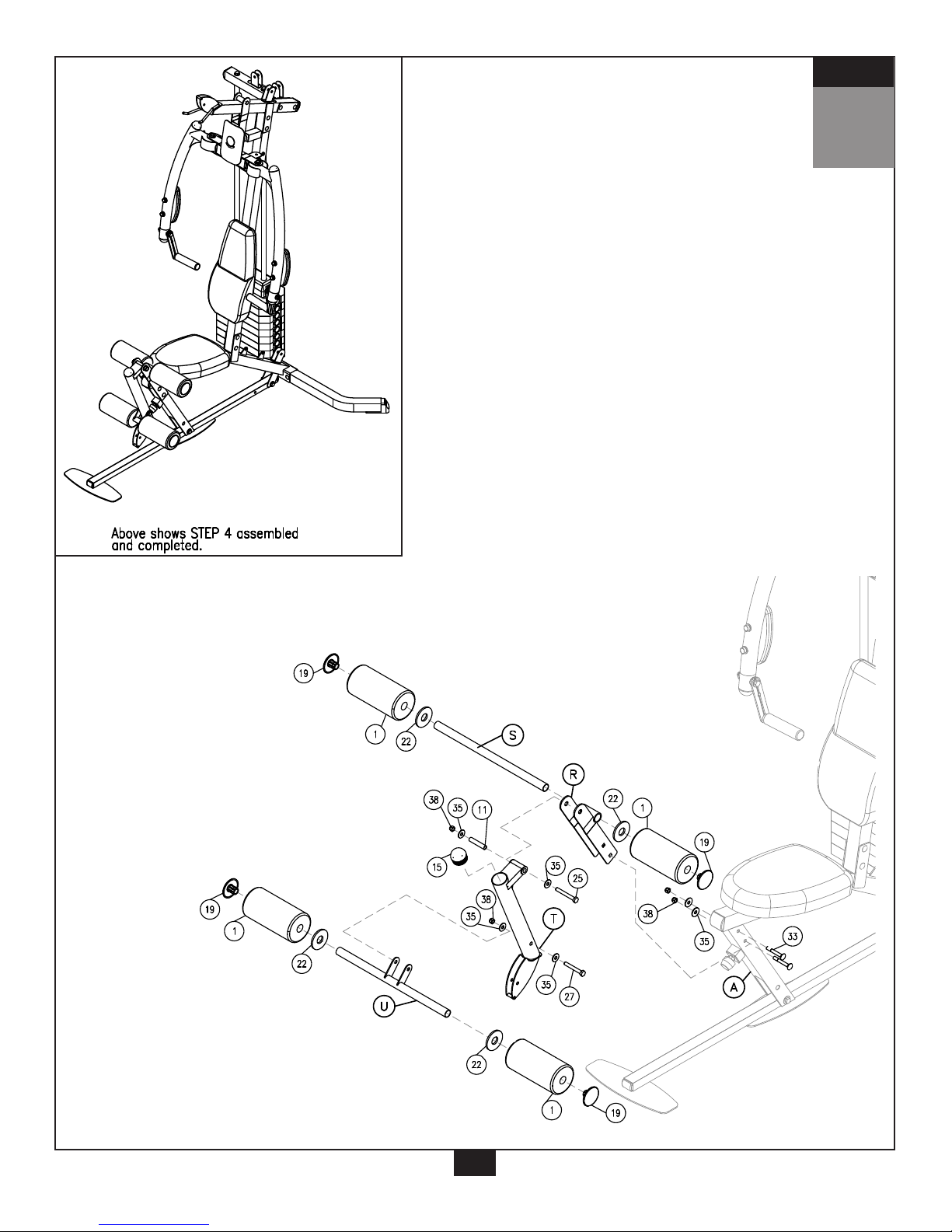

STEP
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Finger tighten all hardware in this step. Do Not wrench tighten until end of Step 4.
5
A. Connect Seat Frame (A) to Main Base Frame (D) by using:
Two 28 (M10x65 hex head bolt)
Four 35 (Φ10 washer)
Two 38 (Φ10 nylon lock nut)
B. Connect Seat Frame (A) and Flat Plate (C) to Back Foot Tube (B) by using:
Two 33 (M10x70 carriage bolt)
Two 35 (Φ10 washer)
Two 38 (Φ10 nylon lock nut)
C. Connect Angled Vertical Frame (E) to Seat Frame (A) by using:
Two 33 (M10x70 carriage bolt)
Two 35 (Φ10 washer)
Two 38 (Φ10 nylon lock nut)
D. Attach Seat Pad (V) to Seat Frame (A) by using:
Two 31 (M8x65 hex head bolt)
Two 36 (Φ8 washer)
Two 37 (Φ8 spring washer)
E. Attach Back Pad (W) to Angled Vertical Frame (E) by using:
Two 31 (M8x65 hex head bolt)
Two 36 (Φ8 washer)
Two 37 (Φ8 spring washer)
F. Insert Foot Caps (18) into the ends of Back Foot Tube (B).

1
STEP
6

7
2

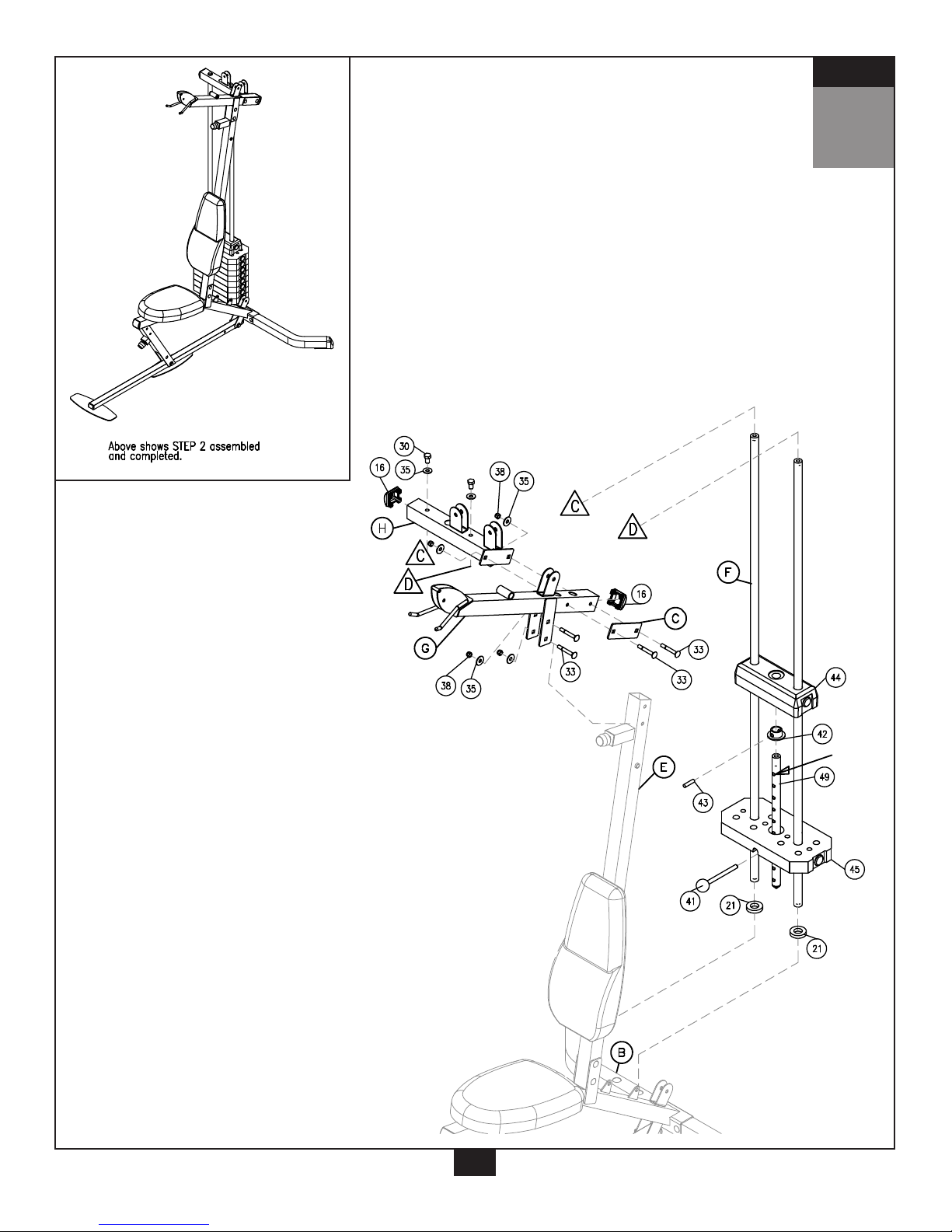

STEP
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Finger tighten all hardware in this step. Do Not wrench tighten until end of Step 4.
A. Connect Top Frame (G) to Angled Vertical Frame (E) by using:
One 33 (M10x70 carriage bolt)
Two 35 (Φ10 washer)
Two 38 (Φ10 nylon lock nut)
B. Connect Top Weight Stack Frame (H) and Flat Plate (C) to Top Plate (G) by using:
One 33 (M10x70 carriage bolt)
Two 35 (Φ10 washer)
Two 38 (Φ10 nylon lock nut)
C. Insert Convex End Cap (16) into Top Weight Stack Frame (H) and Top Frame (G) as shown in the
diagram.
D. Insert Chrome Guide Rods (F) into Rubber Donuts (21) and Back Foot Tube (B)
E. Slide all Stack Plates (45) onto Chrome Guide Rods (F). Add Top Stack Plate (44) to Chrome
Guide Rods (F).
F. Attach Selector Rod (49) to Top Stack Plate (44) by using Pushnut (42) and tightening Pivot Axle
(43). Note: Use top hole on Selector Rod (49) for this assembly.
G. Secure Chrome Guide Rods (F) to Top Weight Stack Frame (H) by using:
Two 30 (M10x20 hex head bolt)
Two 35 (Φ10 washer)
H. Insert Weight Plate Pin (41) to the desired weight level.

2
STEP
8

9
3

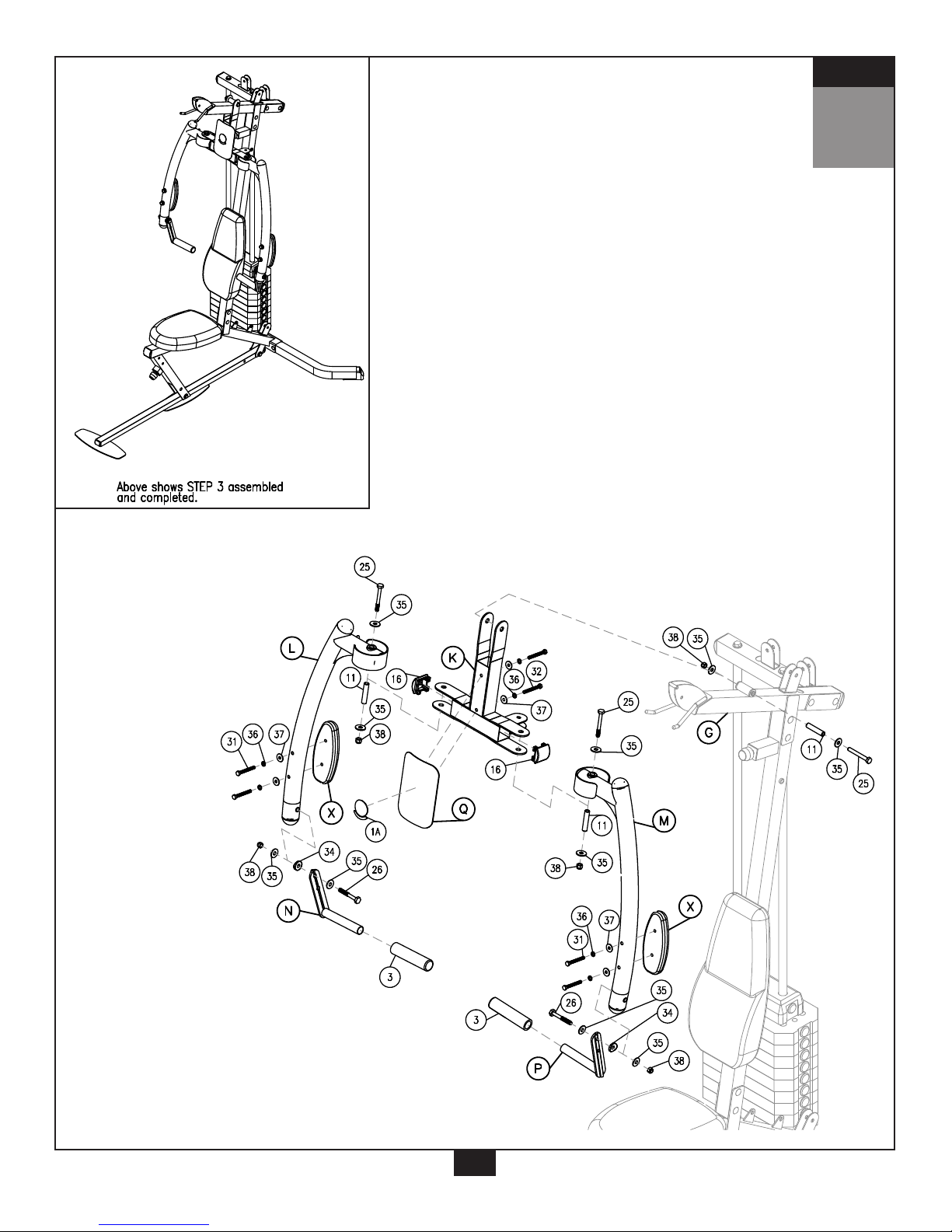

STEP
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Finger tighten all hardware in this step. Do Not wrench tighten until end of Step 4.
A. Connect Press Arm Support (K) to Top Frame (G) using:
One 25 (M10x82 hex head bolt)
Two 35 (Φ10 washer)
One 11 (shaft)
One 38 (Φ10 nylon lock nut)
B. Insert Convex End Caps (16) into Press Arm Support (K) as shown in the diagram.
C. Connect Left Buttery Frame (L) and Right Buttery Frame (M) to Press Arm Support (K) using:
Two 25 (M10x82 hex head bolt)
Four 35 (Φ10 washer)
Two 11 (shaft)
Two 38 (Φ10 nylon lock nut)
D. Connect Label Board (Q) to Press Arm Support (K) using:
Two 32 (M8x60 hex head bolt)
Two 36 (Φ8 washer)
Two 37 (Φ8 spring washer)
Apply Decal (1A) to Label Board (Q).
E. Connect Arm Pad (X) to Left Buttery Frame (L) and Right Buttery Frame (M) using:
Four 31 (M8x65 hex head bolt)
Four 36 (Φ8 washer)
Four 37 (Φ8 spring washer)
F. Slide PVC Sleeve (3) into Left Handle Frame (N) and Right Handle Frame (P).
G. Connect Left Handle Frame (N) and Right Handle Frame (P) to Left Buttery Frame (L) and Right
Buttery Frame (M) by using:
Two 26 (M10x75 hex head bolt)
Four 35 (Φ10 washer)
Two 34 (nylon washers)
Two 38 (Φ10 nylon lock nut)

3
STEP
10

11
4
STEP
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Finger tighten all hardware in this step. Do Not wrench tighten until end of Step 4.
A. Connect Upper Foam Frame (R) to Seat Frame (A) using:
Two 33 (M10x70 carriage bolt)
Two 35 (Φ10 washer)
Two 38 (Φ10 nylon lock nut)
B. Insert Leg Extension (T) into Upper Foam Frame (R) and secure using:
One 25 (M10x82 hex head bolt)
Two 35 (Φ10 washer)
One 11 (shaft)
One 38 (Φ10 nylon lock nut)
C. Slide Foam Pad (1), ABS Washer (22), Foam Roller End Cap (19) onto Foam Roller Bar (S).
D. Connect Bottom Frame (U) to Leg Extension (T) using:
One 27 (M10x70 hex head bolt)
Two 35 (Φ10 washer)
One 38 (Φ10 nylon lock nut)
E. Slide pads Foam Pad (1), ABS Washer (22), Foam Roller End Cap (19) onto Bottom Frame (U).
Insert Round End Cap (15) into Leg Extension (T).

4
STEP
12

13
5
STEP
Be careful to assemble all components
in the sequence they are presented.
A. Install Pulleys (A1), (A2), (A4), (A5) by using:
Three 29 (M10x42 hex head bolt)
Six 35 (Φ10 washer)
Three 38 (Φ10 nylon lock nut)
B. Install Pulley (A3) into Pulley Plate (Y) by using:
One 29 (M10x42 hex head bolt)
Two 35 (Φ10 washer)
One 38 (Φ10 nylon lock nut)
C. Route Cable (6) starting at (A1) and bring towards (A2).
D. Route Cable (6) down through the mainframe, around (A3) and back up around (A4).
E. Bring Cable (6) towards and around (A5) then terminate at top plate using:
Two 6A (Φ12 nut)
One 48 (at washer)

5
STEP
14

15
6
STEP
Be careful to assemble all components
in the sequence they are presented.
A. Install Pulleys (B1) and (B5) to (K) as shown in the diagram by using:
Two 29 (M10x42 hex head bolt)
Four 35 (Φ10 washer)
Two 38 (Φ10 nylon lock nut)
Two J (stop plate)
B. Install Pulleys (B2) and (B4) to (E) by using:
One 24 (M10x115 hex head bolt)
Two 35 (Φ10 washer)
One 38 (Φ10 nylon lock nut)
C. Install Pulley (B3) to Double Pulley Frame (Z) by using:
One 29 (M10x42 hex head bolt)
Two 35 (Φ10 washer)
One 38 (Φ10 nylon lock nut)
D. Terminate Cable (4) on Press Arm Support (K) as shown.
E. Route Cable (4) around Pulleys (B1) and (B2) then around and down to Pulley (B3) as shown in the
diagram.
F. Bring Cable (4) around and up from Pulley (B3) to Pulley (B4).
G. Route Cable (4) around Pulleys (B4) and (B5) and terminate on Press Arm Support (K) as shown.

6
STEP
16

17
7
STEP
Be careful to assemble all components
in the sequence they are presented.
A. Install Pulley (C6) to (Z), (C2) to (A), (C3) to (A) and (C4) to (Y) by using:
Two 29 (M10x42 hex head bolt)
Four 35 (Φ10 washer)
Two 38 (Φ10 nylon lock nut)
B. Install Pulley (C5) to (AA) by using:
One 29 (M10x42 hex head bolt)
Two 35 (Φ10 washer)
One 38 (Φ10 nylon lock nut)
Connect (10) to (AA) and secure using (40).
Connect (9) to (10).
Connect (9) to (A) as shown in the diagram.
C. Install Pulley (C1) to (T) using:
One 29 (M10x42 hex head bolt)
Two 35 (Φ10 washer)
One 38 (Φ10 nylon lock nut)
D. Route Cable (6) from (C1) to (C2).
E. Bring Cable (6) under (C2) and towards (C3).
F. Route Cable (6) up from (C3), towards, around and down form (C4) and around and up from (C5).
G. Bring Cable (6) from (C5) up and around (C6) then back down and terminate to (A) as shown in the
diagram.
H. Tighten all remaining loose bolts and apply bolt caps as shown in the Detail View.

7
STEP
18
Detail View

19
Be sure that all users carefully read and understand all
warning, safety and maintenance labels on the
machine before each use. Failure to do so may result
in serious injury. It is imperative that you retain this
Owner’s Manual and be sure all warning labels are
legible and intact. Replacement Owner’s Manuals and
labels are available from your local dealer.
If you have any questions about the operation, set up
or maintenance of this machine please call our customer
service department at 1 [phone].
#DWRULE-4
Warning Label for Rules
#DWSM-5
Warning Label for Maintenance
IMPORTANT SAFETY INSTRUCTIONS
