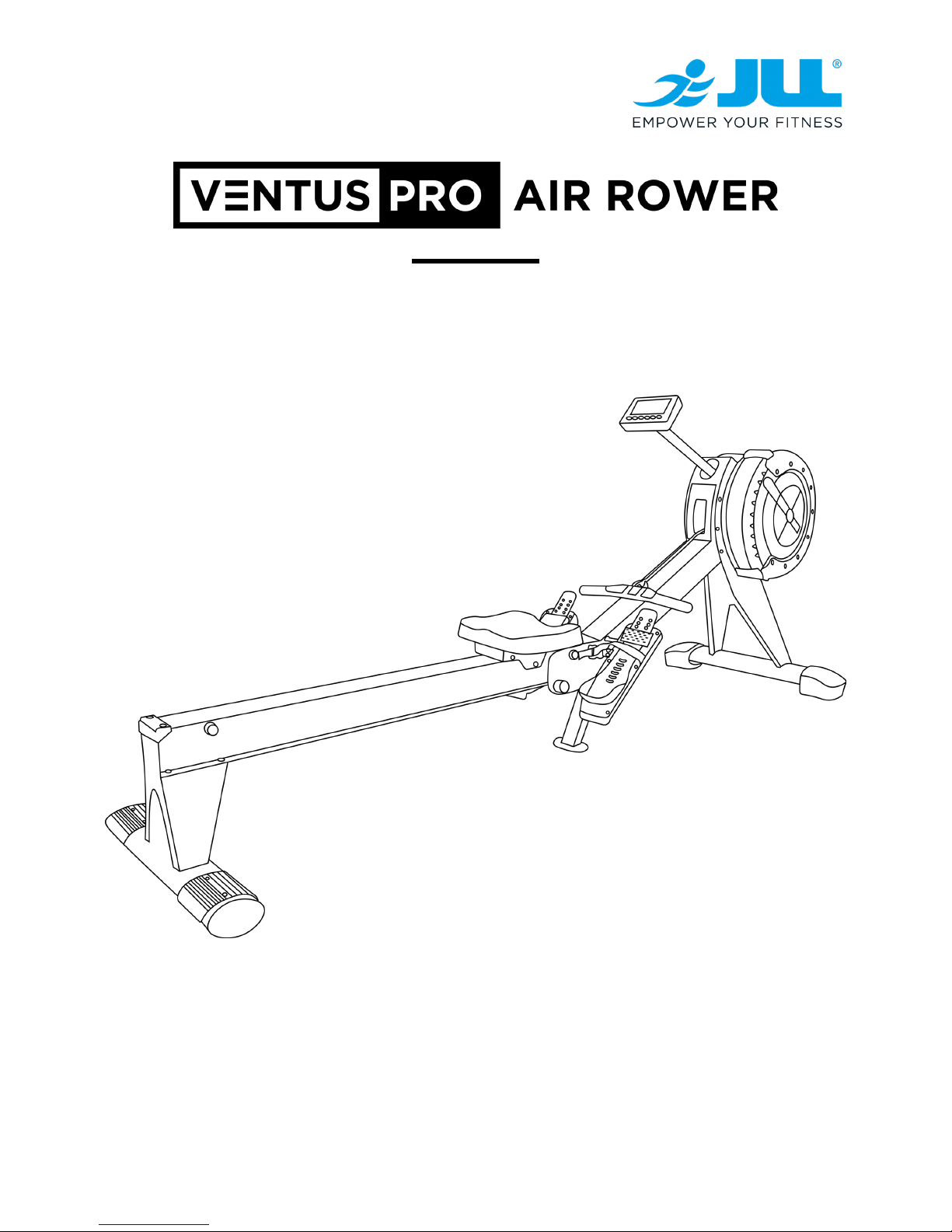

JLL Ventus Pro Air Power User manual

INSTRUCTION MANUAL
Please read this book thoroughly before operating the rower.

CONTENTS
2. ASSEMBLY
Preparing the site
Diagram
Content listing
Box contents
Tools pack
Ventus PRO assembly
Adjusting the pedals
Folding the machine
Adjusting the resistance
Adjusting the monitor
Monitor conguration
Monitor specications
Specications
Operation procedures
Functions
Testing the rower operation
3. OPERATION
Preventive maintenance activities
Rower cleaning
3 easy steps to clean your rower
4. MAINTENANCE
p. 9
p. 9
p. 10
p. 10
p. 10
p. 11
p. 13
p. 13
p. 13
p. 13
p. 14
p. 14
p. 15
p. 16
p. 16
p. 16
p. 17
p. 18
p. 18
1. SAFETY INSTRUCTIONS
Important safety information
User safety precautions
Prior to use
During use
Exercise safety precautions
Facility safety precautions
Warning stickers
p. 6
p. 7
p. 7
p. 7
p. 7
p. 7
p. 8
Exploded diagram
Parts list
p. 4
p. 5

Contact information
Disclaimer
5. ADDITIONAL INFORMATION
p. 19
p. 19

4
1
EXPLODED DIAGRAM

5

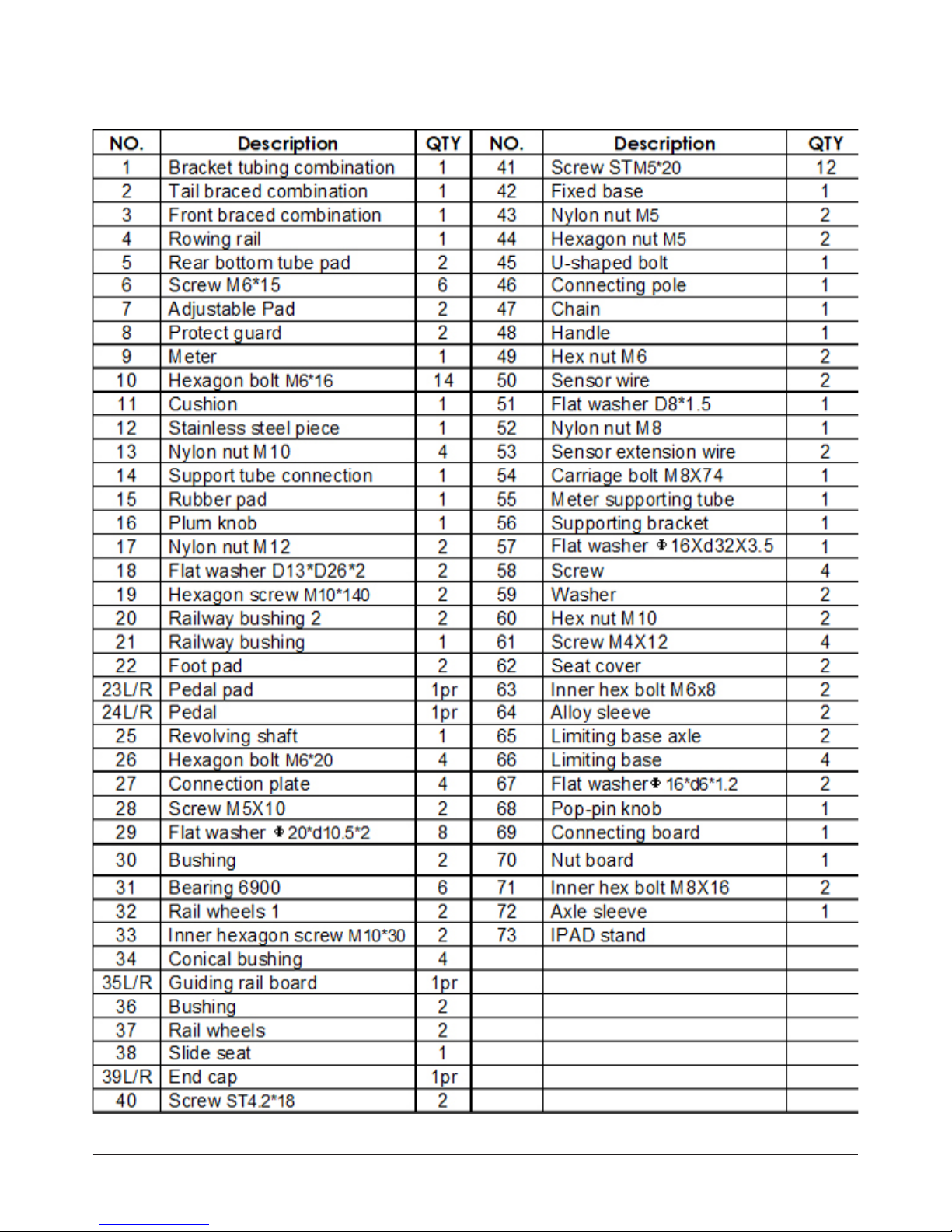

PARTS LIST

6
Safety Instructions
Please pay attention to the following instructions before operating this rowing machine.
IMPORTANT SAFETY INFORMATION
Thank you for choosing our product. To ensure your health and safety, please use
this equipment as advised. It is important to read this entire manual before
assembling and using the equipment. Safe and effective use can only be achieved
if the equipment is assembled, maintained and used in accordance to the manual.
It is your responsibility to ensure that all users of the equipment are informed of all
warnings and precautions.
1. Before starting any exercise program, you should consult a health professional
to determine if you have any medical or physical conditions that could put your
health and safety at risk or prevent you from using the equipment properly. A
health professional’s advice is essential if you are taking medication that affects
your heart rate, blood pressure or cholesterol level.
2.Be aware of your body’s signals. Incorrect or excessive exercise can damage your
health. Stop exercising if you experience any of the following symptoms: pain,
tightness in your chest, irregular heartbeat, lightheadedness, dizziness or
feelings of nausea. If you do experience any of these conditions, you should
consult a health professional before continuing with your exercise program.
3.Keep children and pets away from the equipment. The equipment is designed for
adult use only.
4.Use the equipment on a solid, flat level surface with a protective cover for your
floor or carpet. To ensure safety, the equipment should have at least 2 feet (61 cm)
of free space all around it.
5.Ensure that all nuts and bolts are securely tightened before using the equipment.
The safety of the equipment can only be maintained if it is regularly examined for
damage and/or wear and tear.
6.Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming
from the equipment during exercise, discontinue use of the equipment
immediately. Please contact JLL Fitness on 0800 6123 988 for advice on how to
resolve the issue.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing
that may become entangled in the equipment.
8.Do not place fingers or objects into the moving parts of the equipment.
1

7
USER SAFETY PRECAUTIONS
PRIOR TO USE
• Assemble the rower according to the instruction manual.
• Consult your doctor before beginning any exercise program.
• Read instructions.
• Read warning labels.
• Read emergency stop procedures.
• Maximum user weight is 150kg / 23.62 St
• Inspect unit. If damaged, DO NOT USE.
• Ensure every bolt and screw is securely tightened.
DURING USE
• DO NOT use for stretching and DO NOT attach straps or other devices.
• DO NOT allow children aged 12 or younger to be on or near the machine.
• Stop exercising if you feel faint, dizzy, or encounter pain.
• Keep all clothing and accessories clear of moving parts.
EXERCISE SAFETY PRECAUTIONS
• Use sports clothes and gym shoes.
FACILITY SAFETY PRECAUTIONS
• DO NOT operate this machine in damp or wet locations.
• Use caution when getting on or off the rower.
• Check the rowing machine for worn or loose components before each use. DO NOT
use until worn or damaged parts are replaced.
• Maintain regularly. Refer to Preventive Maintenance chapter.
• DO NOT use the rower if: (1) the machine is not working adequately or (2) the rower
has been dropped or damaged.
• DO NOT use the rower outdoors.
9.The maximum weight capacity of this unit is 150 kg.
10. To avoid bodily injury and/or damage to the product or property, ensure to follow
safe procedures for lifting and moving the item.
11. Your product is intended for use in cool, dry conditions. You should avoid storage
in extreme cold, hot or damp areas as this may lead to corrosion and other related
problems.

8
• Read the instruction manual completely before using the rower.
• Ensure all users wear appropriate footwear on JLL®equipment.
• Set up and operate the rowing machine on a level surface. DO NOT operate in small
restricted areas or on plush carpet.
• As far as possible provide the following clearances: 0.5 m at each side and 2 m
at the back. Be sure your machine is clear of walls, equipment and other hard
surfaces.
• DO NOT modify the unit in any way. Any modifications will void the warranty.
• All the data displayed by the monitor is for reference purposes only.
Warning stickers indicate a potentially hazardous situation which, if not avoided, could
result in death or serious injury. Carefully read the following caution and warning labels
before using the unit.
WARNING STICKERS
DO NOT touch any moving parts during use.
Children and pets must be kept away from machine at all times.
Appropriate clothing MUST be worn whilst exercising.
Please consult a doctor or health professional before undertaking any exercise or
health regime.
WARNING

9
Assembly
2
To find the ideal location to set up this rowing machine, ensure that:
• Area is well illuminated and well ventilated.
• Surface is level.
• There is enough space to access the unit and emergency dismount. If it is possible,
keep the following clearances: 0.5 m at each side and 2 m at the back.
• The rowing machine is placed in an environment with a relative humidity range of 30-
50%. Please ensure the temperature is kept constant. Do not use in a moist or damp
environment as this may impact on the integrity and performance of the machine.
PREPARING SITE
DIAGRAM
Front Stabilizer
Center Stand
Saddle
Monitor
Main Base
Slideway
Foot Plate
Handle
Damper

10
CONTENT LISTING
2TOOLS PACK
See diagram (left) and content listing (below) for rower box contents. See Customer
Service chapter for contact information if any parts are missing.
BOX 1 CONTENTS
Rower Main Base
Tools Pack2
Center StandFront Stabilizer
Manual
Slideway
Saddle
6mm Hex Allen Key
x1
Multi-Tool
x1
Spanner
x2
Monitor
5mm Hex Allen Key
x1
Rear Stabilizer
BOX 2 CONTENTS
Ipad Stand
Monitor Stand

11
VENTUS PRO ASSEMBLY
The rower has been assembled and tested at the factory, so you shouldn’t have any
problems putting all the parts together. Components are designed to fit together, and
only basic tools are required for the assembly process. Inside the box you will find a Tools
Pack (Hex Allen Key, Spanner, Washers and Bolts). See previous page.
To assemble your JLL Ventus PRO please follow these easy steps:

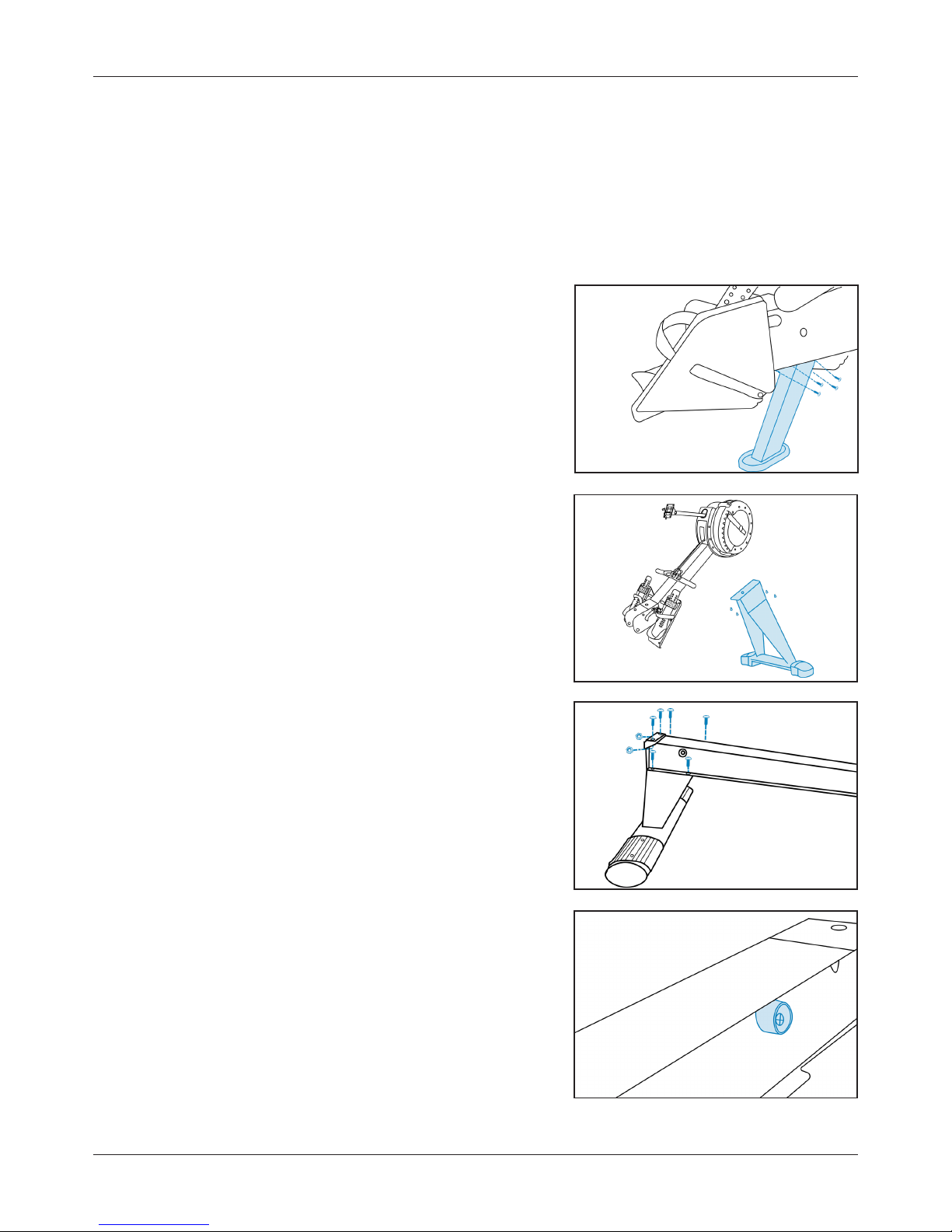

STEP 1
Attach the center stand to the underside of the
main base using four Allen head bolts found in the
frame.
STEP 2
Attach the rear stabiliser to the base using four
screws found in the frame.
STEP 3
Attach the front stabiliser to the slideway using the
six Allen head bolts found in the stabiliser. Two of
these bolts will also be secured with a small hex nut.
Make sure when attached the slideway the plastic
cap on the stabiliser is lifted.
STEP 4
Next, remove the black plastic stopper from the
opposite end of the slideway using both the large
Allen key and multi-tool.
Remove the large flat knob and two silver hex nuts
from either side.

12
STEP 5
Slide the saddle onto the slideway, the dip in the
saddle will be towards the front stabiliser.
Then, reattach the black stopper.
STEP 6
Secure the slideway to the base using the silver hex
bolt and nuts from before. Also secure using the flat
knob on top.
Make sure the smaller knob located on the side is
removed beforehand and reattached after.
STEP 7
Attach the monitor stand to the base using the two
screws found in the frame.

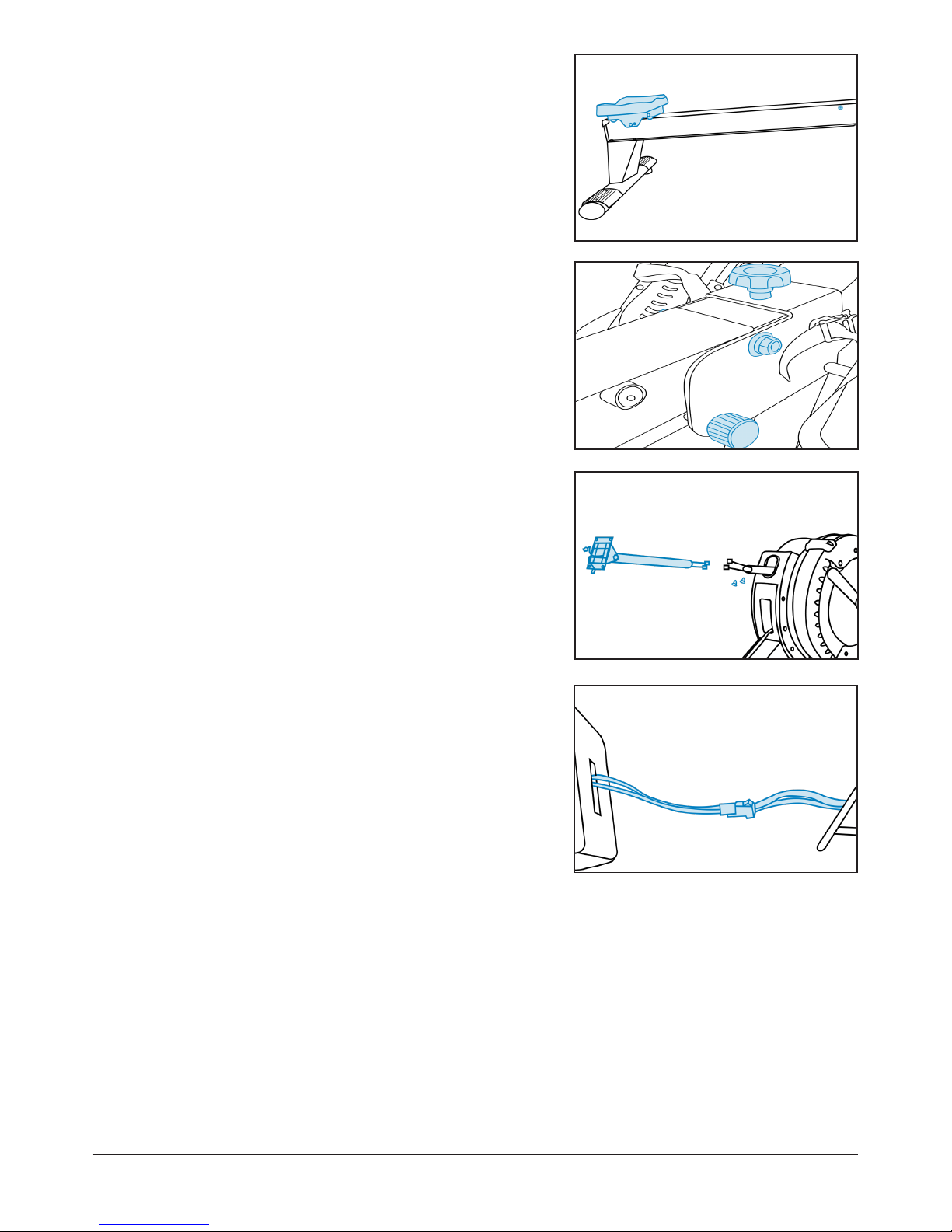

STEP 8
Next, feed the wires from the monitor through the
ipad stand and connect to the wires from the base.
Secure both the monitor and ipad stand to the
bracket using four screws from the back of the
monitor.

13
ADJUSTING THE PEDALS
The length of footplate can be adjusted by pulling
the plastic slip forward until it is released from the
pegs. Slide the footplate up or down to the desired
length and line up the holes and push it back into the
pegs.
FOLDING THE MACHINE
To fold the slideway into a verticle position, remove
the large flat knob and pull the spring loaded knob.
Push the slideway up until the you hear a click from
the knob holding it in place. Replace the large flat
knob to the underside of the slideway.
ADJUSTING THE RESISTANCE
Move the handle of the damper on the right hand
side of the machine. The handle slides up and down
opening and closing the vents restricting the air
flow into the machine.
Level 1 is the lowest and level 10 is the highest.
ADJUSTING THE MONITOR
Depending on the user’s height the monitor can be
moved to be read more easily. The monitor stand
can be pushed up and down and the angle of the
monitor itself can be changed.

14
MONITOR CONFIGURATION
1
1LCD display 2Recovery Button
3Reset Button 4Start/Stop Button
5Enter Button 6Down Button
7Up Button
MONITOR SPECIFICATIONS
Time.........................................................................................................................00:00 - 99:59 MIN:SEC
Time 500M............................................................................................................00:00 - 99:59 MIN:SEC
Stroke...................................................................................................................................................0 - 9999
Calorie.............................................................................................................................................0.0 - 999.9
Distance..........................................................................................................................................0.0 - 999.9
Strokes Per Minute..........................................................................................................................0 - 9999
Total Strokes......................................................................................................................................0 - 9999
Pulse.........................................................................................................................................................0 - 240
Temperature................................................................................................................................................0°C
Calendar...............................................................................................................................year, month, day
Clock..........................................................................................................................................................00:00
2 3 4 5 6 7

15
SPECIFICATIONS
Display
LCD Monitor: Time, Time 500M, Calorie, Distance, Strokes, Strokes Per
Minute (SPM), Pulse, Total Strokes, Date, Clock, Calendar and
Temperature
Storage Built-in wheels.
Resistance 10 Levels of Air Resistance
Battery 2 x AA
Saddle Foam seat with free movement up and down the slideway.
Pedals Adjustable platform pedals
Handlebars Ergonomic handles
Colour Black and red
Slideway Length 94.5 cm
Maximum User Weight 150 kg, 23.62 St or 330 lb.
Occupying Area 244 cm (Length) x 78 cm (Width) x 90 cm (Height)
Folded Area 152 cm (Length) x 78 cm (Width) x 158 cm (Height)
Packaging Dimensions Box 1: 146.5 cm x 56.5 cm x 66 cm Box 2: 83.5 cm x 70 cm x 36.5 cm
Gross Weight Box 1: 43 kg Box 2: 17 kg
Net Weight Box 1: 34 kg Box 2: 12.5 kg

16
3
Operation
Auto On/Off: The monitor will turn on when you start rowing or by pressing any button.
The monitor will turn off after being inactive for 4 minutes.
When the monitor is powered on, the LCD display will show all the segments for 1 second.
Firstly, you will need to enter the Year (within the Strokes section), the Month (within the
Calories section) and the Day (within the Pulse section). After you confirm this, the alarm
will sound off.
Press the UP button to set the ON/OFF which is the sign of the alarm.
If the alarm symbol does not display press ENTER, when the alarm display is on you can
set the time of the alarm (the same way in which you set the date).
Next press ENTER so that the sport symbol in the top left corner is showing, the
MANUAL and RACE will blink ready to be selected. Press UP or DOWN to select either
one and then press ENTER to confirm.
OPERATION PROCEDURES
Once entered into the manual mode, press UP to set the time, this will be flickering.
Once you have set your target time press ENTER to confirm it. DISTANCE - STROKES -
CALORIES - PULSE - TIME can all be set to a specific target however, multiple functions
cannot be set during one workout. (e.g. if a target time has been set then a target
distance can’t also be set)
Press the START/STOP key to begin, the STOP icon will disappear and you can press UP
or DOWN to select functions. When the specific function has counted down to zero or
you have pressed the START/STOP button the monitor will stop and display the average
figure.
MANUAL
Once you have entered into the RACE mode using the previous steps, the L1 will flash and
the TIME 500M may display with 8:00. Use the UP or DOWN buttons to select L1-L15 and
press ENTER to confirm. After, you can set the distance of the race (500m - 10000m),
the distance section should be flashing. Press ENTER and the image of the race will dis-
play on the center segment. The figures of TIME 500M are;
L1 - 8:00 L4 - 6:30 L7 - 5:00 L10 - 3:30 L13 - 2:00
L2 - 7:30 L5 - 6:00 L8 - 4:30 L11 - 3:00 L14 - 1:30
L3 - 7:00 L6 - 5:30 L9 - 4:00 L12 - 2:30 L15 - 1:00
RACE

17
Use the following instructions to test the full resistance of the rower and to check the
chain for proper operation.
1. Sit on the machine and place your feet on the footplates, gently complete a few
strokes.
2. Check the monitor to make sure the digits are changing.
3. Turn the damper from 1 to 10 and check to feel a difference in the
difficulty of resistance.
4. As you are performing each stroke make sure the chain is retracting fully into in the
base and is not slack.
5. Also make sure there are no unusual noises coming from the machine and no
wobble during your workout.
TESTING THE ROWER OPERATION
TIME: Counts the duration of your workout.
TIME 500M: Calculates your average 500 meter time. Shares the same segment as time.
STROKES: Counts the strokes completed during your workout.
CALORIE: Counts the estimated calories burnt while exercising.
STROKES PER MINUTE: Displays the average strokes per minute.
DISTANCE: Displays the distance covered in meters throughout your workout.
PULSE: Displays your current heart rate during your workout. The pulse measurement
will only function with a chest belt system.
CALENDAR: The monitor will display year, month and day when the monitor is asleep.
TEMPERATURE: The monitor will display current room temperature when the monitor is
asleep.
CLOCK: The monitor will display the current time when it is asleep.
FUNCTIONS
Press the START/STOP button and the STOP icon will disappear. The monitors race
character and yourself will show in the center, the monitor will stop when you have
reached the target distance of the race. PC WIN or USER WIN will be shown.
When the race has been completed, you can press START/STOP to repeat the race again.
After exercising for a period of time, if you are wearing a chest strap press RECOVERY.
All functions will stop except for time, this will start counting down from 60 seconds. The
screen will then display your heart rate recovery status with F1-F6, F1 being the best and
F6 being the worst. Press the RECOVERY button again to return to the main display.
RECOVERY

18
Maintenance
4
Maintenance must be performed on a regular basis. Performing maintenance actions can
aid in providing safe and trouble-free operation of all JLL®equipment.
JLL®are not responsible for performing regular inspection and maintenance actions for
your machine. JLL®representatives are available to answer any questions that you may
have on [phone].
PREVENTIVE MAINTENANCE ACTIVITIES
Keeping the rowing machine in a clean state will help to prolong its life. Perform regular
preventive maintenance to ensure normal operation of the unit. Keep a log of all
maintenance actions to assist in staying current with all preventive maintenance
activities. JLL®is not responsible for performing regular inspection or maintenance.
Read all instructions and warnings listed both in this chapter and in the
Safety chapter. Contact JLL®Customer Service on [phone] for any
maintenance or service concerns.
Requirements:
• Water
• Dry cloth
• Vacuum
1. Only use water to clean and dust. Do not use any cleaning product because they
may damage the rower.
2. Be careful not to spill or get excessive moisture between the edge of the
display panel, as this might create an electrical hazard or cause failure of the
electronics.
3. Direct spraying could cause damage to the electronics and may void the
warranty.
WARNING

19
Depending on where the rowing machine is placed, you may experience dry air,
causing a common experience of static electricity. You can notice that by walking
across a carpet and then touching a metal object. On your rower you may
experience a shock due to the build-up of static electricity on your body and the
discharge path of the rower. If you experience this type of situation, you may want to
increase the humidity to a comfortable level through the use of a humidifier.
Check your machine regularly for rust. If rust starts to appear on the screws it means
the item is not housed in the correct environment and will need to be moved to a more
suitable room. Any rust will indicate there may be moisture in the air and as a result this
could impact on the integrity and performance of your machine.
1. Use only JLL®replacement parts.
2. Keep water and liquids away from electrical parts.
3. If you allow your machine to become rusty, this will affect your warranty.
ROWER CLEANING
Keep the slideway free of dust and debris for smooth running and preventing
injuries. Debris may cause damage to the rollers underneath the saddle.
After every workout use a neat, dry cloth for cleaning the machine and the handlebars
to prevent the unit of corrosion. Wipe away any sweat that may have dripped. Avoid
scratching the display by using a soft cloth.
Do not use abrasive or chemical cleaning agents.
WARNING
3 EASY STEPS TO CLEAN YOUR ROWING MACHINE
Recommendation (these are just a guideline):
• Use a clean cloth to wipe down the whole machine.
• Vacuum or sweep the floor underneath and around the rower to prevent any dust
going into the machine. A treadmill mat can help to reduce dust.
• Use a vacuum cleaner or a soft damp cloth to clean machines entire cover area.
When not using product for an extended period of time the product should be
folded and stored in a suitable environment.

20
In case any issues arise, please do not hesitate to contact our Customer Service team on
[phone] or email us at [e-mail]
You can also visit our support centre at SUPPORT.JLLFITNESS.CO.UK for maintenance and
assembly articles & videos.
Additional Information
5
CONTACT INFORMATION
• You should consult your physician, doctor or other health care professional before
starting or taking part in any of our workout guides. It is your responsibility to
evaluate your own health before taking part or performing any physical activity you
may see associated with JLL Fitness Ltd.
• Always seek professional advice before changing your diet or starting any exercise
program.
• JLL Fitness Ltd is not liable for any injuries or damages that may occur when
assembling or using this rowing machine.
• By reading this you assume full responsibility for any injuries or changes to your
physical well-being. You waive all rights and release JLL Fitness Ltd of blame from
any injuries or damages to property that may occur whilst following our advice.
• This manual offers specific instructions on how to assemble and maintain your
rowing machine. Failure to follow these directions may result in your warranty being
void.
DISCLAIMER
