BESTEK BNX-M67 User manual

1
Embedded Board
BNX-M67
Always at the forefront of innovation
User Manual

2
This publication contains information that is protected by copyright. No part of it may be reproduced in any
form or by any means or used to make any transformation adaptation without the prior written permission
from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no representations or
warranties with respect to the contents or use of this manual and specifically disclaims any express or implied
warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk of the
use or the results of the use of this document. Further, the manufacturer reserves the right to revise this
publication and make changes to its contents at any time, without obligation to notify any person or entity of
such revisions or changes.
© 2011. All Rights Reserved.
All trademarks and registered trademarks of products appearing in this manual are the properties of their
respective holders.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.
Copyright
Trademarks
FCC and DOC Statement on Class A

3
1. Warranty does not cover damages or failures that are raised from misuse of the product, inability to use the
product, unauthorized replacement or alteration of components and product specifications.
2. The warranty is void if the product has been subject to physical abuse, improper installation, modification,
accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circumstances, attempt to
perform service, adjustments or repairs on the product, whether in or out of warranty. It must be returned
to the purchase point, factory or authorized service agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequential damages to the product that has
been modified or altered.
It is quite easy to inadvertently damage your PC, system board, components or devices even before installing
them in your system unit. Static electrical discharge can damage computer components without causing any
signs of physical damage. You must take extra care in handling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are ready to install
it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, contacts or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or connectors by their
ends.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other
components. Perform the upgrade instruction procedures described at an ESD
workstation only. If such a station is not available, you can provide some ESD protection
by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis.
If a wrist strap is unavailable, establish and maintain contact with the system chassis
throughout any procedures requiring ESD protection.
Warranty
Static Electricity Precautions

4
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for installation or servicing. After installation
or servicing, cover the system chassis before plugging the power cord.
Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by the manufacturer.
• Dispose of used batteries according to local ordinance.
Before using the system, prepare basic system components.
If the system comes as a barebone; that is, none of the key components, including processor, memory, and hard
drive has been pre-installed as part of your purchase, you will need to at least ensure a compatible counterpart
is located and installed.
You will also need a few external system peripherals intended for the use of the system, a common pool with
at least a keyboard, a mouse, and a monitor is thus suggested.
Safety Measures
Before Using the System

5
Table of Content
Copyright .................................................................................................................................................................... 2
Trademarks .................................................................................................................................................................... 2
FCC and DOC Statement On Class A.............................................................................................................................. 2
Warranty ........................................................................................................................................................................ 3
Static Electricity Precautions......................................................................................................................................... 3
Safety Measures ............................................................................................................................................................ 4
Before Using the System Board..................................................................................................................................... 4
Table of Content ............................................................................................................................................................ 5
Chapter 1 General Information
1.1 Main Feature ........................................................................................................................................................... 7
1.2 Specifications ....................................................................................................................................................... 8
1.3 Board Layout ..................................................................................................................................................... 9
Chapter 2 Jumper Setting
2.1 Before You Begin...................................................................................................................................... 11
2.2 Precautions......................................................................................................................................................... 11
2.3 Setting Jumpers.................................................................................................................................................. 12
2.4 Back Panel Connectors....................................................................................................................................... 13
2.5 Location of Jumpers and Connectors.............................................................................................................. 14
Chapter 3 Operation
3.1 System Memory.............................................................................................................................................. 26
3.2 Installing Memory...................................................................................................................................... 26
3.3 Installing LGA1155 Intel® Core-i CPU, Heat Sink, and Fan ............................................................................... 28
3.4 Adding Power Connectors .............................................................................................................................. 31
3.5 Adding PCIe/PCI Cards.................................................................................................................................... 32
3.6 Installing a PCI Express Mini Card in the Full-Mini Card Slot.......................................................................... 33
Chapter 4 BIOS Setup
4.1 Entering Setup ................................................................................................................................................ 36
4.2 Getting Help.................................................................................................................................................... 36
4.3 Control Keys .................................................................................................................................................... 36
4.4 The Main Menu ............................................................................................................................................... 37
4.5 The Advanced Menu........................................................................................................................................ 38
4.6 The Chipset Menu..................................................................................................................................................... 40
4.7 The Boot Menu................................................................................................................................................ 41
4.8 The Security Menu .......................................................................................................................................... 42
4.9 The Save & Exit Menu...................................................................................................................................... 43

6
Chapter 1
General Information

7
Micro-ATX System Board
BNX-M67 is a standard Micro-ATX motherboard featuring Intel® Q67 PCH chipset supports Intel® Gen-2
Core™ processor and four Dual Channel DDR3 DIMM slots up to 16GB DDR3 1066/1333MHz SDRAM with
Non-ECC support and integrated HD graphic controller.
Intel® Gen-2 LGA1155 Sandybridge Processor
Four DDR3 RAM Slots up to 16GB
Eight SATA Ports: 6* SATA 2.0 + 2* SATA 3.0
Support Intel® RAID-0/1/5/10 Function
Three Display Ports: DB15 VGA, DVI-D, and HDMI
Two Series Ports: One supporting RS-232/422/485
Ten USB 2.0 ports: Four Edge Ports + Six Internal Ports
Two Intel® GbE LAN Ports
1* PCIe X16 2.0 Slot
1* full-sized miniPCIe Slot
1.1 Main Feature

8
Core Engine
Chipset
Intel® Q67 PCH
Processor
Support Intel® Gen-2 Core i3, i5, i7, Pentium® , Celeron® Processor
Single LGA1155 Processor Socket
Memory
4x DDR3 1066/1333 DIMM Slots, up to 16GB, Non-ECC/Non-Buffered Memory Module
Display
Intel® HD Graphics 2000
Ethernet
Controller
Onboard 1x Intel® 82579LM and 1x Intel® 82583V PCIe GbE Controllers
2x LAN LED Pin Headers
Storage
SATA
6x SATA2 + 2x SATA3 Ports, support RAID-0/1/5/10
Expansion
PCIe X16
1x
miniPCIe
1x Full-sized
Edge I/O
Display
1x DB15 VGA + 1x DVI-D + 1x HDMI
USB
4x USB 2.0
LAN
2x RJ45 GbE
Audio
3x Audio Jacks
Internal I/O
Front Panel
1x Front Panel Switch/LED Header
COM
1x RS-232 + 1x RS-232/422/485 Pin Header
USB
6x USB 2.0 Pin Headers
GPIO
8x 5V TTL GPIO Pin Header
LED
2x LAN LED
Fan
3x Fan Connectors
Other
H/W Monitoring
Monitor temperature, voltage, and fan speed, auto-throttling control at CPU overheat
WDT
1 min increment from 1 to 255 min, 1 sec increment from 1 to 255 sec
Environment
Operating Temp.
0oC ~ 60oC
Storage Temp.
-20oC ~ 70oC
Humidity
10% ~ 90% (Non-Condensing)
Mechanical
Dimension
244mm (W) x 244mm (D)
1.2 Specifications

9

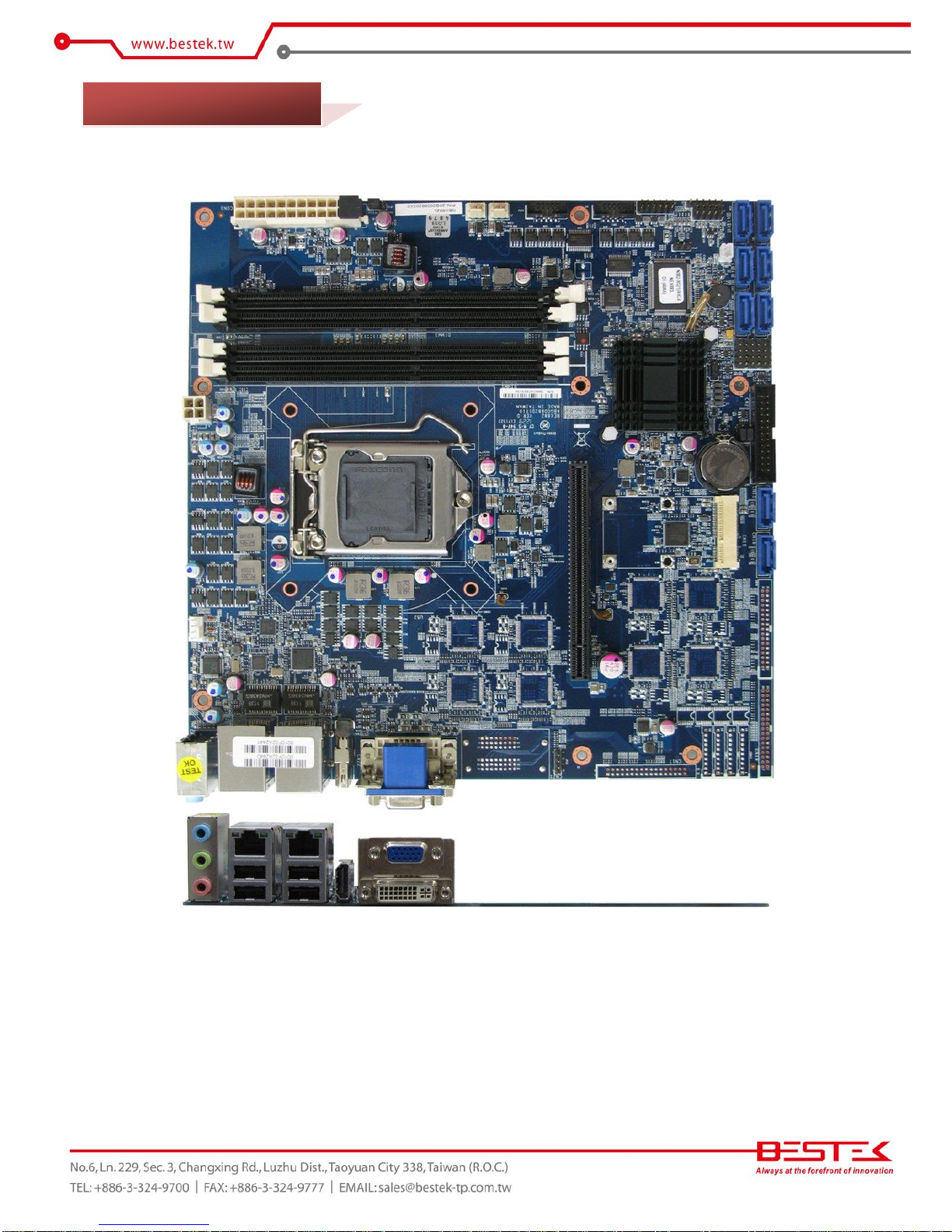

Figure 1.1: Board Layout of BNX-M67
1.3 Board Layout

10
Chapter 2
Preparation

11
A stable and clean working environment are essential. Dust and dirt can get into components and cause a
malfunction. Use containers to keep small components separated.
Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most
of the procedures that follow require only a few simple tools, including the following:
A Philips screwdriver
A flat-tipped screwdriver
A set of jewelers Screwdrivers
A grounding strap
An anti-static pad
Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nosed
pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.
Before working on internal components, make sure that the power is off. Ground yourself before touching any
internal components, by touching a metal object. Static electricity can damage many of the electronic
components. Humid environment tend to have less static electricity than dry environments. A grounding strap is
warranted whenever danger of static electricity exists.
Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working
on the computers that are still connected to a power supply can be extremely dangerous. Follow the guidelines
below to avoid damage to your computer or yourself:
Always disconnect the unit from the power outlet whenever you are working inside the case.
If possible, wear a grounded wrist strap when you are working inside the computer case. Alternatively,
discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body
of any other grounded appliance.
Hold electronic circuit boards by the edges only. Never touch the components on the board unless it is
necessary to do so. Do not flex or stress the circuit board.
Leave all components inside the static-proof packaging that they shipped with until they are ready for
installation.
Use correct screws and do not over tighten screws.
2.1 Before You Begin

12
A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers,
ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the
jumper is SHORT. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is OPEN.

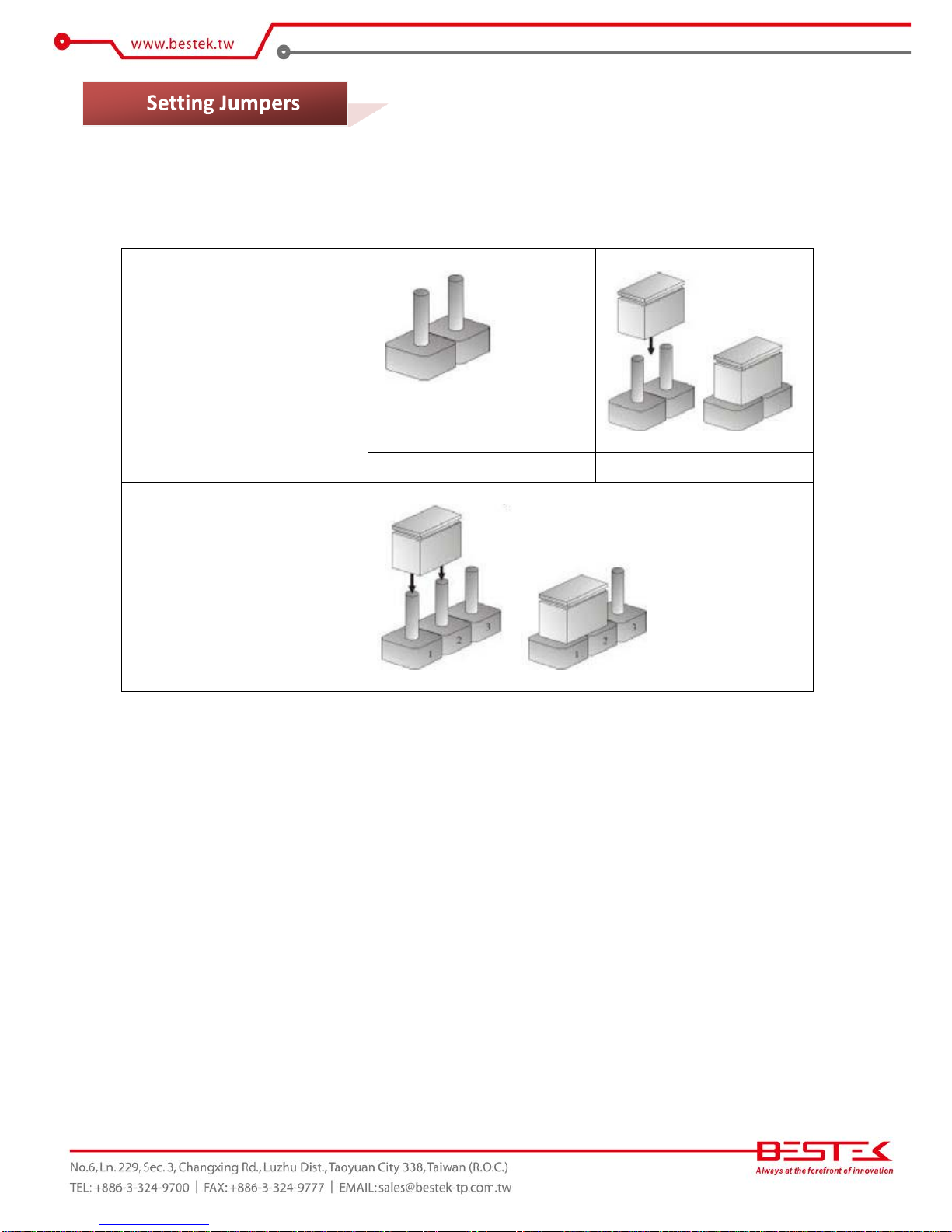

Please see the following illustrations
The illustrations on the right
show a 2-pin jumper. When the
jumper cap is placed on both
pins, the jumper is SHORT. If
you remove the jumper cap, or
place the jumper cap on just
one pin, the jumper is OPEN.
Open (Off)
Short (On)
These illustrations show a 3-pin
jumper. Pins 1 and 2 are SHORT.
Table 2-1: Setting Jumpers
2.3

13

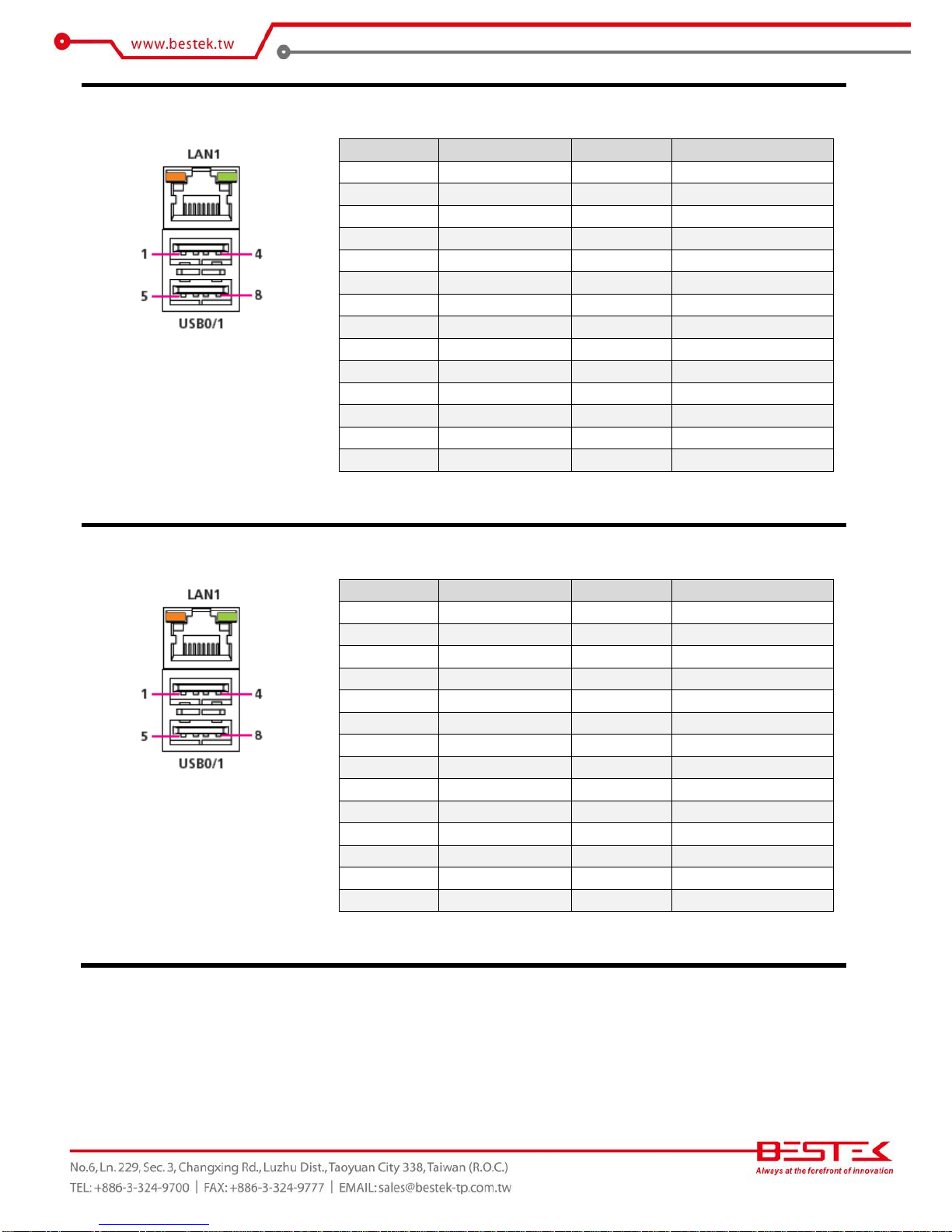

1. Line-In Jack
2. LAN1
3. LAN2
4. DB15 VGA
5. DVI
6. HDMI
7. 2* USB 2.0
8. 2* USB 2.0
9. Microphone Jack
10. Line-Out Jack
2.4 Back Panel Connectors

14
2.5 Locations Of Jumpers and Connectors

15
List of Onboard Connectors
CON2
Edge LAN2 & USB2/3
CON3
24-pin ATX Power Connector
CON4
Edge LAN1 & USB0/1
CON5
2x2 +12Vdc Power Connector
Fan1
CPU Fan
J2
PS/2 Keyboard & Mouse
J3
System Fan
J4
System Fan
J5
Edge HDMI
JP3
USB8/USB9
JP6
USB6/USB7
JP7
Clear CMOS Jumper
JP8
ME Clear Jumper
JP9
USB4/USB5
JP11
Front Panel LED & Switch
JP12
4in/4out GPIO
JP14
PCIe X16 Slot
JP18
AT/ATX Jumper
CN1
SATA1 (3.0)
CN2
SATA4 (2.0)
CN3
SATA3 (2.0)
CN5
miniPCIe
CN6
SATA5 (2.0)
CN7
SATA2 (2.0)
CN8
SATA0 (3.0)
CN10
miniPCIe
CN11
COM1
CN12
COM2
CN14
Edge Audio Jack
CN15
SATA7 (2.0)
CN16
SATA8 (2.0)
CN20
USB 3.0
CN22
Edge VGA & DVI-D

16
►Clear CMOS Jumper JP7
Pin
Definition
1-2 On
Normal (Default)
2-3 On
Clear CMOS
►ME Clear Jumper JP8
Pin
Definition
1-2 On
Normal (Default)
2-3 On
Clear ME
►Power Mode Selection Jumper JP18
Pin
Definition
1-2 On
ATX (Default)
2-3 On
AT
2.6 Jumpers

17
VGA + DV-D CN22
Pin
Definition
Pin
Definition
1
DVI_DATA2_N
2
DVI_DATA2_P
3
GND
4
NC
5
NC
6
DVI_CTRL_CLK
7
DVI_CTRL_DATA
8
NC
9
DVI_DATA1_N
10
DVI_DATA1_P
11
GND
12
NC
13
NC
14
DVI_PWR_S_VCC5
15
GND
16
DVI_HPDET
17
DVI_DATA0_N
18
DVI_DATA0_P
19
GND
20
NC
21
NC
22
NC
23
DVI_CLK_P
24
DVI_CLK_N
C1
NC
C2
NC
C3
NC
C4
NC
C5A
GND
C5B
GND
MH1
Chassis_GND2
MH2
Chassis_GND2
25
RED_VGA
26
GREEN_VGA
27
BLUE_VGA
28
GND
29
GND
30
GND
31
GND
32
GND
33
GND
34
GND
35
GND
36
DDC_DATA_VGA
37
HSYNC_VGA
38
VSYNC_VGA
39
DDC_CLK_VGA
MH3
Chassis_GND2
MH4
Chassis_GND2
Audio Jack CN14
Jack
Definition
Blue
Line-In (Blue)
Green
Line-Out (Green)
Pink
Mic-In (Pink)
2.7 Internal Connectors

18
LAN1 & USB0/USB1 CON4
Pin
Definition
Pin
Definition
1
P5V_USB
2
USBN
3
USBP
4
GND
5
P5V_USB
6
USBN
7
USBP
8
GND
9
LANTXDP0
10
LANTXDN0
11
LANTXDP1
12
LANTXDN1
13
LANTXDP2
14
LANTXDN2
15
LANTXDP3
16
LANTXDN3
17
LAN_LED1P
18
LAN_LED_LNK#_ACT
19
LAN_LINK
20
LANLINKMIX
21
Chassis_GND1
22
Chassis_GND1
23
Chassis_GND1
24
Chassis_GND1
25
Chassis_GND1
26
Chassis_GND1
27
Chassis_GND1
28
Chassis_GND1
LAN2 & USB2/USB3 CON2
Pin
Definition
Pin
Definition
1
P5V_USB
2
USBN
3
USBP
4
GND
5
P5V_USB
6
USBN
7
USBP
8
GND
9
LANTXDP0
10
LANTXDN0
11
LANTXDP1
12
LANTXDN1
13
LANTXDP2
14
LANTXDN2
15
LANTXDP3
16
LANTXDN3
17
LAN_LED1P
18
LAN_LED_LNK#_ACT
19
LAN_LINK
20
LANLINKMIX
21
Chassis_GND1
22
Chassis_GND1
23
Chassis_GND1
24
Chassis_GND1
25
Chassis_GND1
26
Chassis_GND1
27
Chassis_GND1
28
Chassis_GND1

19
CPU Fan Connector: FAN1
Pin
Definition
Pin
Definition
1
GND
2
+12V
3
FAN_TAC1
4
FAN_CTL1
System Fan Connector J3/J4
Pin
Definition
1
GND
2
+12V
3
SENSE
2x2 +12Vdc Power Connector CON5
Pin
Definition
1
GND
2
GND
3
+12V
4
+12V
USB 2.0 Connector JP9 (USB4, USB5)/JP6 (USB6, USB7)/JP3 (USB8, USB9)
Pin
Definition
Pin
Definition
1
5VDUAL
2
5VDUAL
3
DATA0_N
4
DATA1_N
5
DATA0_P
6
DATA1_P
7
GND
8
GND
10
NC

20
24-pin ATX Power Connector CON3
Pin
Definition
Pin
Definition
1
VCC3
2
VCC3
3
GND
4
VCC5
5
GND
6
VCC5
7
GND
8
ATXPWROK
9
5VSB
10
VCC12
11
VCC12
12
VCC3
13
VCC3
14
-12V
15
GND
16
ATX_PS_ON_N
17
GND
18
GND
19
GND
20
NA
21
VCC5
22
VCC5
23
VCC5
24
GND
GPIO Connector JP12
Pin
Definition
Pin
Definition
1
SIO_GPI_80
2
SIO_GPI_81
3
SIO_GPI_82
4
SIO_GPI_83
5
SIO_GPO_84
6
SIO_GPO_85
7
SIO_GPO_86
8
SIO_GPO_87
9
+3.3V
10
+3.3V
11
GND
12
GND
COM1 (RS-232) Connector CN11
Pin
Definition
Pin
Definition
1
DCD
2
RXD
3
TXD
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
RI
10
RXD
