BFD 815 - ND 18 Installation guide

INSTALLATION AND OPERATING GUIDE
For
Electric Stove
with Remote Control
Model
815 -ND 18
This guide is intended to help you install and care for
your electric heater. Please read carefully before
installing and using your heater.
Important
Please keep your guide in a safe place for future
reference
BAXI FIRES DIVISION
BIRMINGHAM
B24 9QP
Part Number 5112306
/
02

Customer Care
All our heaters are designed to meet the most stringent quality, performance
and safety requirements to provide our customers with many years of trouble
free service. This guide aims to improve your understanding and appreciation of
your new heater, by providing simple and informative instructions to enable you
to install it and to ensure that you benefit from the excellent performance and
features it has to offer.
If you require further assistance, the Technical Helpline will be pleased to help.
Please telephone [phone] (local rates apply in the United Kingdom)
In the Republic of Ireland Telephone [phone]
FOR OTHER USEFUL TELEPHONE NUMBERS SEE THE BACK COVER
Important Safety Instructions
It is important that the following safety instructions are followed
Always
Always install the heater in accordance with the instructions. If in doubt obtain
expert advice.
Always make sure the electrical socket is accessible and located adjacent to,
but not above the heater.
Always disconnect the heater from the electrical supply before carrying out
cleaning, maintenance or replacing the bulb.
Always use a fireguard when young children and infirm persons can come into
contact with the heater.
Never
Never leave children unsupervised in a room where the heater is ON and
unguarded.
Never obstruct or cover the fan outlet or force items into the heater openings.
Never install or use the heater anywhere where water is in use, i.e.
Bathrooms, Shower Rooms, Swimming Pools etc.
Never use aerosols or steam cleaners on or around the heater.
Never route the mains supply cable under carpet etc.
Never install the heater close to curtains or combustible materials.
Never use the heater to dry clothes etc.
Never sit or stand on the heater
2

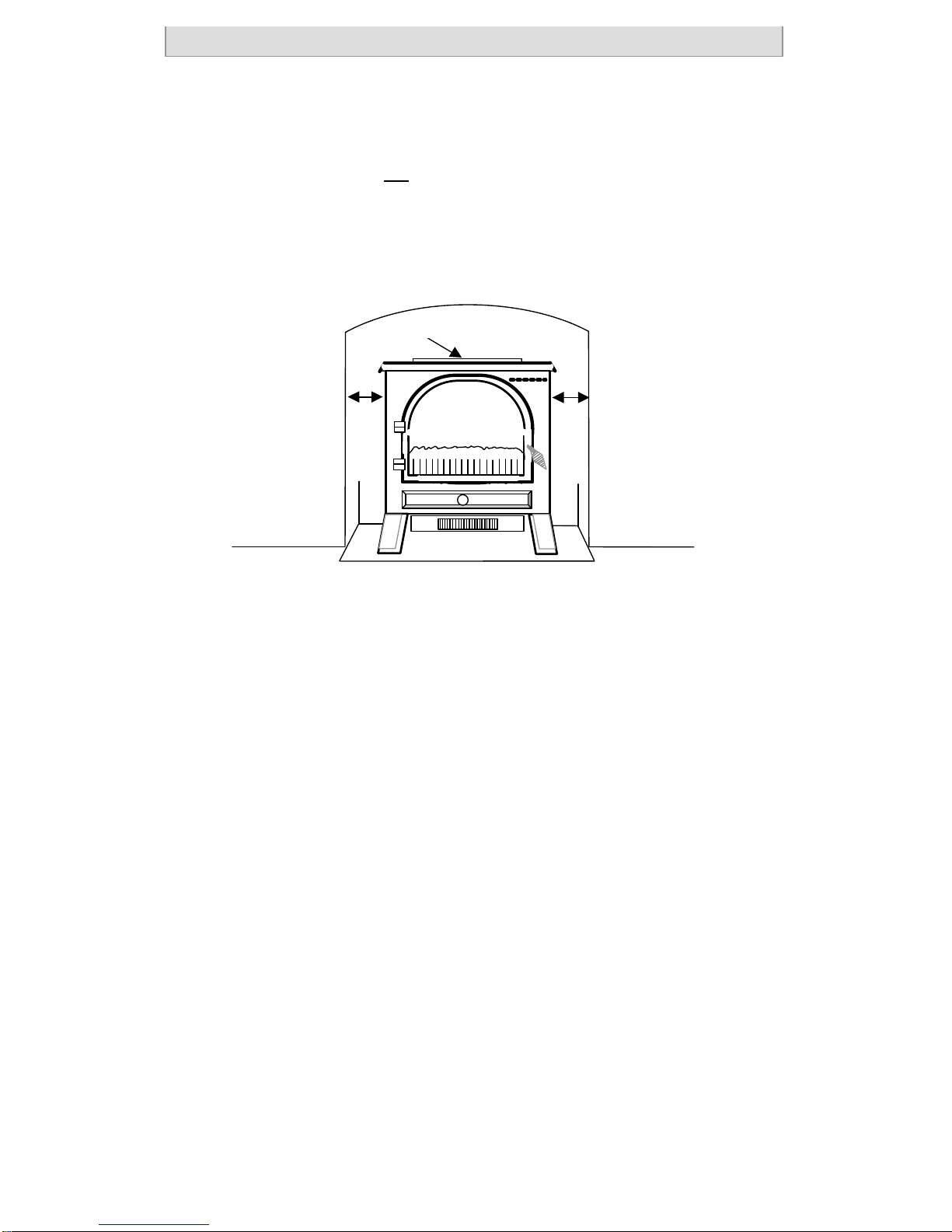

The heater is designed to be free standing on a hard level surface. When siting
please bear the following points in mind
• If you are placing the heater in an alcove, make sure that 150mm-side
clearance is maintained to ensure good air circulation
• The heater must not be located under a fixed electrical socket, the
socket must always be accessible in order to disconnect the heater
from the electrical supply for maintenance or when replacing a lamp.
• Keep hearth rugs and other soft furnishings etc. away from the front of
the heater. They could obstruct the free flow of hot air from the fan
and damage both soft furnishings and heater.
Installation
Before connecting the heater to the power supply for the first time, it is
necessary to arrange the loose coal on the fuel support inside the heater.
Open the heater door and arrange the coal on the support to achieve the
desired effect.
It is not necessary to use all the supplied coal.
Important! This heater must be earthed.
The heater is supplied with a 3 pin 13A fused re–wireable plug with 1mm². 3
core mains cable,
L = Brown N = Blue E= Green/Yellow
The mains supply cable must be safely routed from the heater to an electrical
socket. If the mains cable is damaged, to avoid a hazard it must be replaced by
an authorised service agent or a similarly qualified person.
All external wiring between the appliance and the electrical supply, including the
earth, shall comply with current IEE regulations
150mm
150mm
Siting
controls
•
•
3

Never cover the heater or obstruct the opening at the base of the heater,
this could cause overheating and consequent risk of fire.
The appliance can be controlled by the controls mounted on the heater, or using
the remote control handset.

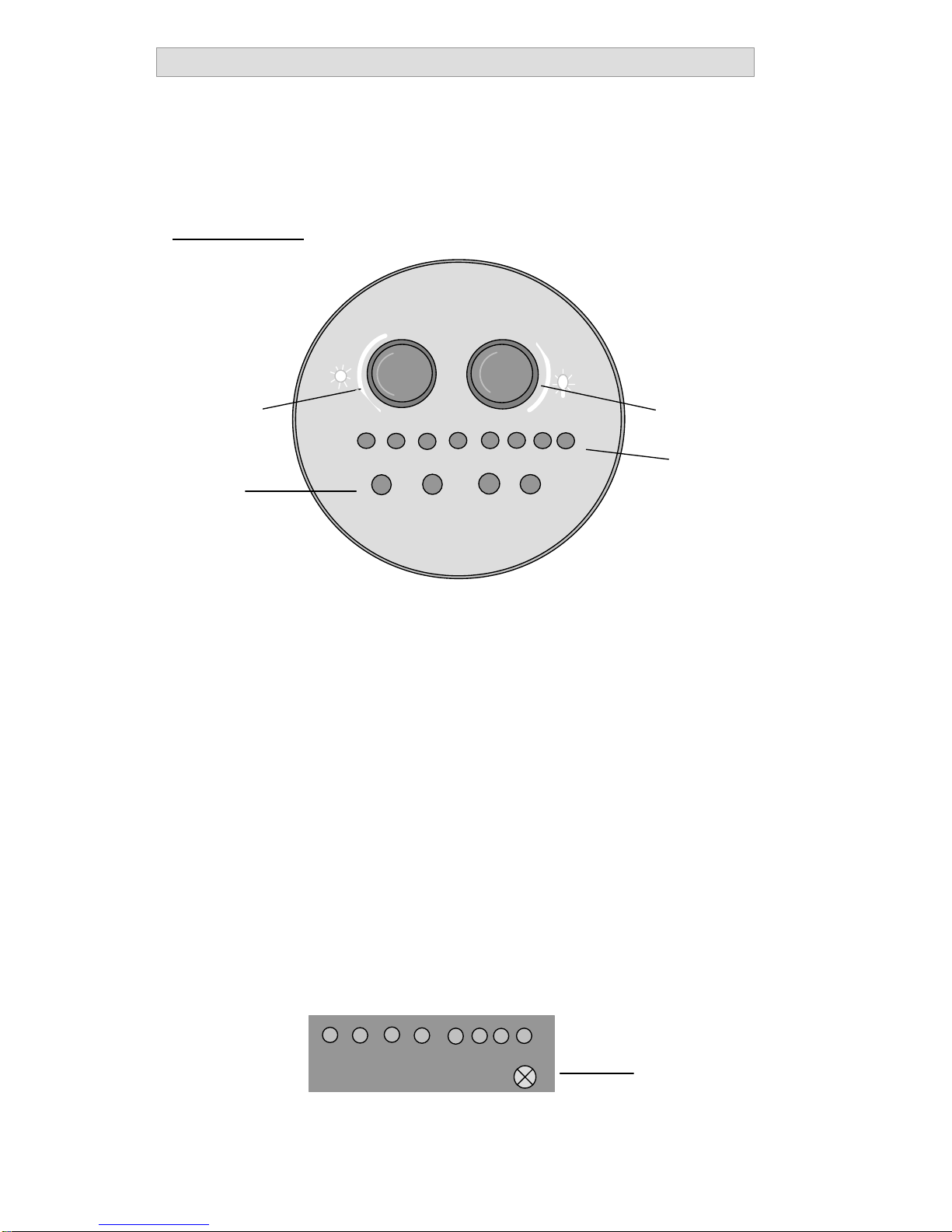

Heater Controls
The following switches are located under the controls cover, on top of the
heater.
Thermostat Control -Adjust to maintain room temperature (cycles between
900 and 1800W)
Flame Dimmer Control -Adjust to set flame intensity
ON/OFF -Switches on FAN for cool air
900W/1800W -Press once for Low heat setting
Press twice for High heat setting
Heater will only work if ON/ OFF button has first been
pressed and if the thermostat is set above ambient
room temperature. Switch off by pressing the
ON/OFF button
LAMP -Switches flame/fuel effect on and off
TIMER Press the timer button to set the heater or fan to run
for a period of between a half-hour (0.5) and 7hours.
The setting can be increased in 0.5H increments by
repeatedly pressing the TIMER button. The indicator
lights will shows the time set.
Situated at the front of the stove is a row of lights, which indicate the stove
functions
Operation
Flame Dimmer
Control
Thermostat
Control
Control
Panel
Tell Tale Panel
FAN 900W 900W LAMP 0.5H 1H 2H 4H
.
FAN 900W 900W LAMP O.5H 1H 2H 4H
ON/OFF 900/1800W LAMP TIMER
Function
Buttons
Indicator
Lights
4
Infra Red Sensor for
Remote Control
-

Remote Control

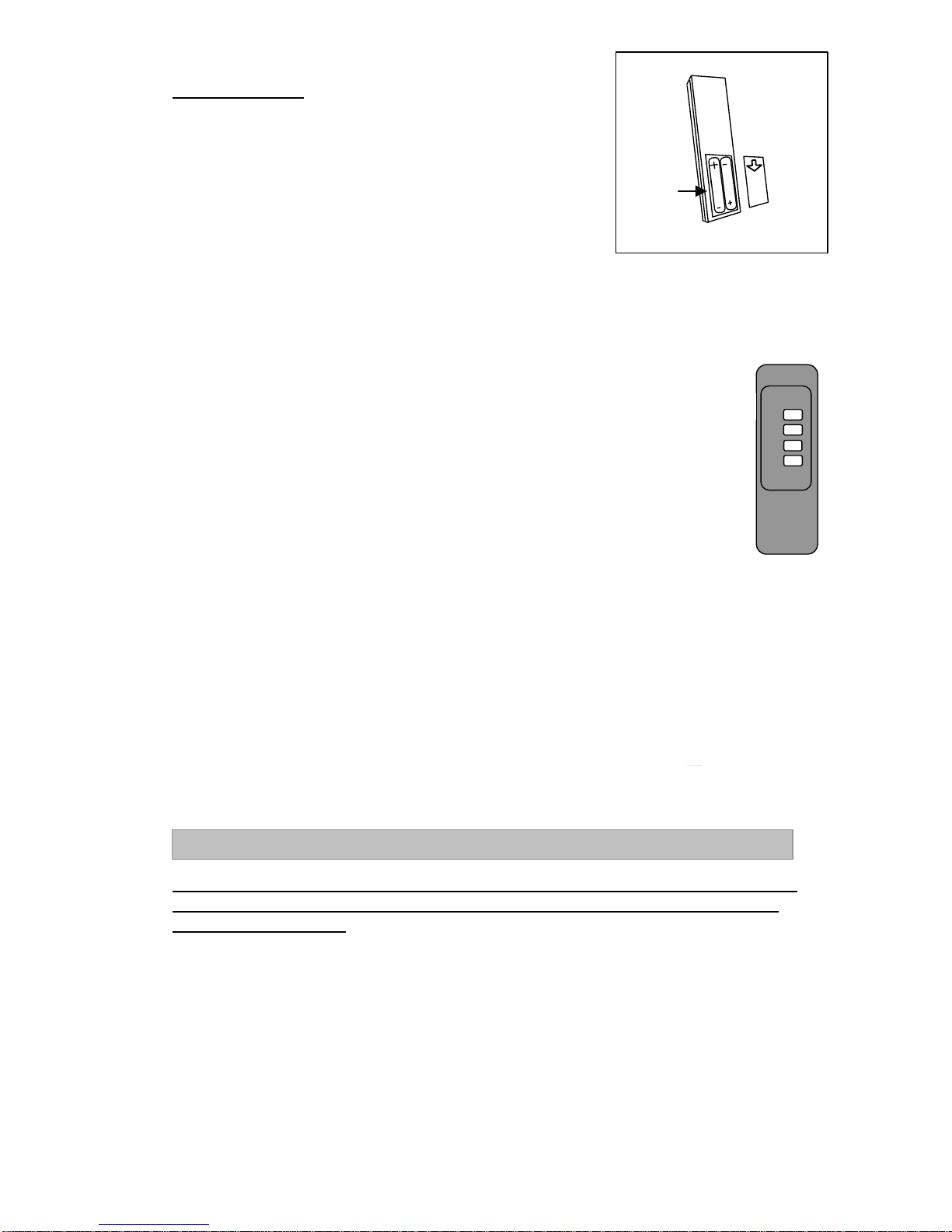

Install the batteries into the handset by sliding the battery
cover down on the rear of the handset
If the heater does not respond to the remote control handset
commands, it is likely that the batteries require replacement
Replace the batteries with 2, AAA type. For longer battery
life use Alkaline batteries.
Use
•Ensure the heater is plugged into the wall socket and switched On
•Aim the remote control towards the heater
The Tell Tale lamps on the front of the stove confirm the selected function
Flame effect Press LAMP button
Flame effect illuminates
To switch off, press LAMP
Fan Press ON OFF button
Fan operates
To switch off press, ON/OFF
Low Heat
(The Fan must be On) Press ON/OFF button. Press 900/1800W button once
Fan and 900 W heater operates
To switch off, press ON/OFF
High Heat
(Low Heat must be On) Press 900/1800W button once
Fan and 1800W heater operates
To switch off, press ON/OFF
Timer
(Heater must be On) Press Timer repeatedly button until time required is set
Tell Tale light will show set time. I.e. 2+1+0.5 = 3.5 hours.
To cancel, press ON/OFF button. Heater will switch off, or
repeatedly press TIMER button until no time is set
Always disconnect the heater from the electricity supply by removing the 3
pin plug and allowing the heater to cool before undertaking maintenance
or replacing the bulb.
Bulb Replacement
The bulbs fitted to this heater are 230V 25W E14 small Edison screw, clear,
candle bulbs
Due to the indeterminate life span and ease of replacement they are specifically
excluded from the guarantee.
To replace a bulb.
To protect the hearth or soft furnishings we strongly recommend placing a
newspaper on the floor before removing the loose coal from the fuel support.
Remove the loose coal and place on the newspaper. Remove the two Philips
Maintenance
Battery
location
ON/OFF
LAMP
TIMER
900/1800W
5

screws securing the fuel basket and put to one side. Pull forward and lift up the
fuel support, detach the effects mechanism by sliding the rod off the motor shaft.
Remove the faulty bulb by screwing the bulb anti -clockwise,
Fit the new bulb and reconnect the
effects mechanism.
Relocate the fuel support
and secure using the two screws.
Replace the loose coals.
Automatic Cut Out
A cut out is fitted to the heating element to prevent damage due to over heating.
If it operates due to an obstruction in the airflow, the heater must be turned off
and allowed to cool for 15 minutes and the obstruction removed before
restarting.
Care and Cleaning
The heater and glass parts need only to be wiped clean with a dry soft cloth, do
not use polishes or abrasive materials.
Fault Finding
If the stove functions manually but not by the remote control handset replace the
handset batteries (2 x AAA Alkaline)
No light from the fuel effect: possibly a bulb failure. Remove the faulty bulb as
detailed above and check it in a table lamp that is known to work.
No heat or light: check the wall socket by plugging in a known working
appliance. If functional,check the 13A fuse in the heater plug. If either fuse or
socket is suspected, have them checked by an electrician.
Light but no heat: Check that the Thermostat on the stove is set above
ambient room temperature, alternatively the automatic cut out, may have
operated, see Automatic Cut Out section.
Disposal
The plug should be removed from the mains cable and the mains cable cut from
the heater.
Environmental Protection.
Waste electrical products should not be disposed of with household
waste. Please recycle where facilities exist. Check with your local
authority or retailer for recycling advice.
Turn anti
clockwise
to re
move
Turn
clockwise
to tighten
Bulbs
Effects mechanism
Fuel support removal
screws
I I I I I I I I
6
Slide off

Useful Telephone Numbers
• Your Post Code
• Type of Fire
• Model / Name
• Serial Number
• The fault, problem or request
General advice about your heater
BFD TECHNICAL HELPLINE 08706 061065
To report faults or arrange for your heater to be serviced
BFD SERVICE 08706 090081
To order spares or for sales information
BFD SALES 08706 061 067
Callers in the Republic of Ireland
Call 0044 8706 061 065
