1800W Boden Electric Stove
Instruction Manual

THE SCIENCE
BEHIND HEAT
Please read all instructions carefully and retain for future reference.
Getting Started
Remove the appliance from the box.
Remove any packaging from the appliance.
Place the packaging inside the box and either store or dispose of safely.
In the Box
Large 1800W stove fire
Instruction manual
Features
Variable ‘flame’ brightness control
Thermostatic control
Fan heater
Thermal safety cut-off
2 x 900W heat setting switches
Flame/Fuel On/Off switch
Safety Instructions
When using electric appliances, basic safety precautions should always be followed.
Check that the voltage indicated on the rating plate corresponds to your local network before
plugging the appliance into the mains power supply.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities or lack of experience and knowledge, unless they have been given
supervision or instruction concerning the use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the appliance.
Do not operate the appliance if it has been dropped or damaged in any way.
This appliance contains no user serviceable parts. A qualified engineer should carry out all repairs.
Improper repairs may place the user at risk of harm.
If the supply cord or plug is damaged, a qualified engineer must replace it in order to avoid
a hazard.
Ensure that there is sufficient ventilation around the appliance.
Keep the appliance away from naked flames and flammable objects.
Never immerse the appliance in water or any other liquid.
Unplug the appliance from the mains power supply using the plug; never remove it using
the cord.
Do not use the appliance outdoors.
EH0792WK 1800W Boden Electric Stove 3

This appliance is for domestic use only and should not be used for commercial purposes.
Do not move the appliance when it is in use.
This appliance should not be used for drying clothes.
Do not sit or stand on the appliance.
It is advisable to use a fireguard around the appliance to protect children from injury.
Do not use aerosols or steam cleaners on or around the appliance.
Do not run the mains cable under carpets, rugs, etc.
In order to avoid a hazard due to inadvertent resetting of the automatic safety cut-off, this
appliance must not be supplied through an external switching device such as a timer or
connected to a circuit that is regularly switched on and off by the utility.
Warning: The exterior of the appliance may get hot during use; exercise extreme caution
around the appliance to avoid injury.
Warning: In order to avoid overheating, do not cover the appliance.
Warning: The appliance must be earthed.
Description of Parts
EH0792WK 1800W Boden Electric Stove
4
Glass door
Controls (under the
cover)
Log bed
Fan air vent

THE SCIENCE
BEHIND HEAT
Controls
Never cover the stove or obstruct the opening at the base of the heater as this could cause
overheating and a risk of fire.
The following switches are located under the controls cover on the front of the stove:
1. Thermostat Control Knob Adjust to maintain room temperature (cycles
between 900W and 1800W)
2. Flame Brightness Control Knob Adjust to set the flame brightness
3. Fan Switch Use alone for cool air or with the heat settings
4. Heat Switch 1 Use for medium heat (fan switch must also
be on)
5. Heat Switch 2 Use for medium heat (fan switch must also
be on)
4 + 5 Heat Switch 1 + Heat Switch 2 Use both heat switches for high heat (fan
switch must also be on)
6. Lamp Switch Switches the flame/fuel effect on/off
EH0792WK 1800W Boden Electric Stove 5
12
3456

Instructions for Use
Placement
This free standing stove is designed to be placed on a hard, level surface. When positioning the
stove, keep the following points in mind:
If you are placing the stove in an alcove, make sure that there is at least 150mm of space on all
sides to ensure good air circulation.
The stove must not be located over an electrical mains socket. The mains socket must always
be accessible in order to disconnect the stove from the mains power supply for maintenance or
when replacing a bulb.
Keep hearth rugs and other soft furnishings away from the front of the stove. They could
obstruct the free flow of hot air from the fan and damage both the soft furnishings and the stove.
Operating the Electric Stove
Insert the plug into the mains power supply.
Select the desired function:
Flame effect On/Off (6)
Fan - without heating (3)
Low heat 900w (3+4) or (3+5)
Full heat (3 + 4 + 5)
Heat and Flame effect (1 + 2 + 3 + 4 + 5 + 6)
Increase or decrease the flame effect – rotate higher or lower (2)
The stove will only work if the fan switch (3) is on and the thermostat (1) is set above the
current room temperature.
Caution: The stove should be free from noticeable vibrations when it is in operation; vibrations
may cause damage to the bulb. Ensure that the stove is turned off before moving it, attempting
maintenance (such as changing bulbs) or cleaning.
Automatic Safety Cut-Off
A safety cut-off switch is fitted to the heating element to prevent damage due to overheating. If
it cuts-off due to an obstruction in the airflow, the stove must be allowed to cool for 15 minutes
and the obstruction must be removed before restarting.
Bulb Replacement
Always unplug the stove from the mains power supply and leave it to cool before attempting to
replace a bulb.
Loosen the three screws at the front of the log bed and remove the fixed plate.
Pull the log bed from both ends to remove it; the two bulbs are located underneath the log bed.
EH0792WK 1800W Boden Electric Stove
6

THE SCIENCE
BEHIND HEAT
Replace the bulbs with a 25W G9 halogen bulb.
Take care not to touch the bulbs with bare hands.
Remove the defective bulb by pulling it out of the holder.
To reassemble, follow the above instructions in reverse order.
The bulbs in this stove are 220-240V ~ 50Hz G9 halogen bulbs.
Due to the indeterminate life span and the ease of replacement, the bulbs are specifically
excluded from the guarantee.
Care and Maintenance
Before attempting any cleaning or maintenance, always unplug the stove from the mains power supply.
Ensure that the stove has cooled fully.
The glass parts can be wiped clean with a soft, dry cloth; do not use polishes or abrasive materials.
The exterior of the stove should be cleaned with a soft, damp, lint-free cloth and dried thoroughly.
Do not immerse the stove in water or any other liquid.
Do not use harsh or abrasive cleaning agents to clean the stove.
Troubleshooting
Problem Cause/Solution
No light from the fuel effect. This may indicate a bulb failure. Remove
the faulty bulb as detailed in the ‘Bulb
Replacement’ section and check it in a
working lamp.
No heat or light. Check the mains power supply by plugging
in a working appliance. If the mains power
supply is functional and the cord or plug of
the stove is suspected to be faulty, have it
checked by an electrician.
Light but no heat. Check that the thermostat on the stove is
set above the current room temperature.
Alternatively, the automatic safety cut-off
may have engaged; see the ‘Automatic Safety
Cut-Off’ section.
Specifications
Power supply: 220-240V ~ 50Hz
Power Consumption: 1800W
Bulb: 2 x 25W G9 halogen bulb
EH0792WK 1800W Boden Electric Stove 7

Connection to the mains
Please check that the voltage indicated on the product corresponds with your supply voltage.
Important
As the colours in the mains lead of this appliance
may not correspond with the coloured markings
identifying the terminals in your plug, please
proceed as follows:
The wires in the mains lead are coloured in
accordance with the following code:
Blue Neutral (N)
Brown Live (L)
Green/Yellow Earth ( )

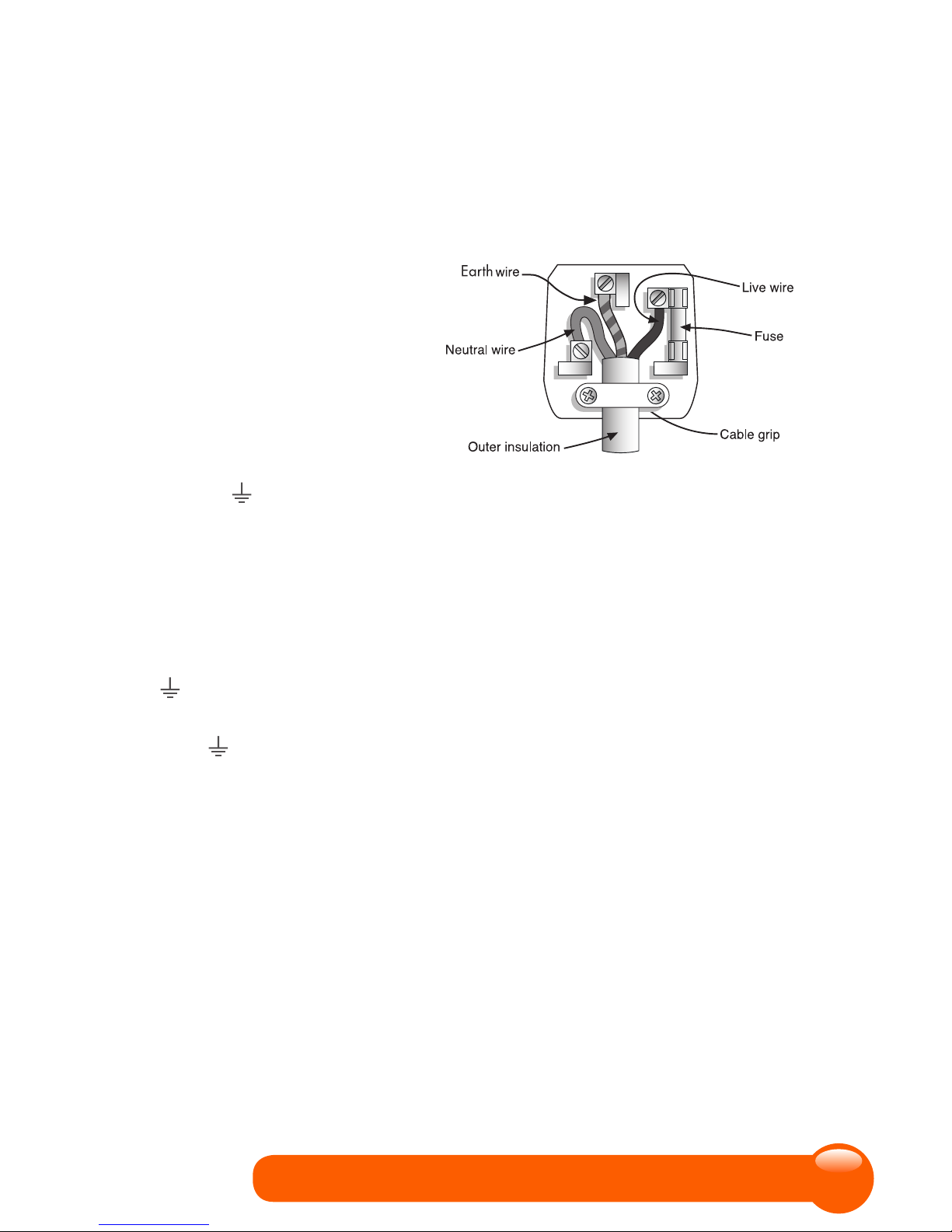

FOR UK USE ONLY - Plug fitting details (where applicable).
The wire coloured BLUE is the NEUTRAL and must be connected to the terminal marked N or
coloured BLACK.
The wire coloured BROWN is the LIVE wire and must be connected to the terminal marked L or
coloured RED.
The wire coloured GREEN/YELLOW must be connected to the terminal marked with the letter E
or marked .
On no account must either the BROWN or the BLUE wire be connected to the
EARTH terminal ( ).
Always ensure that the cord grip is fastened correctly.
The plug must be fitted with a fuse of the same rating already fitted and conforming to BS 1362
and be ASTA approved.
If in doubt consult a qualified electrician who will be pleased to do this for you.
Non-rewireable mains plug
If your appliance is supplied with a non-rewireable plug fitted to the mains lead and should the fuse
need replacing, you must use an ASTA approved one (conforming to BS 1362 of the same rating).
If in doubt, consult a qualified electrician who will be pleased to do this for you.
If you need to remove the plug - DISCONNECT IT FROM THE MAINS and then cut it off the
mains lead and immediately dispose of it safely. Never attempt to re-use the plug or insert it into a
socket outlet as there is a danger of an electric shock.
