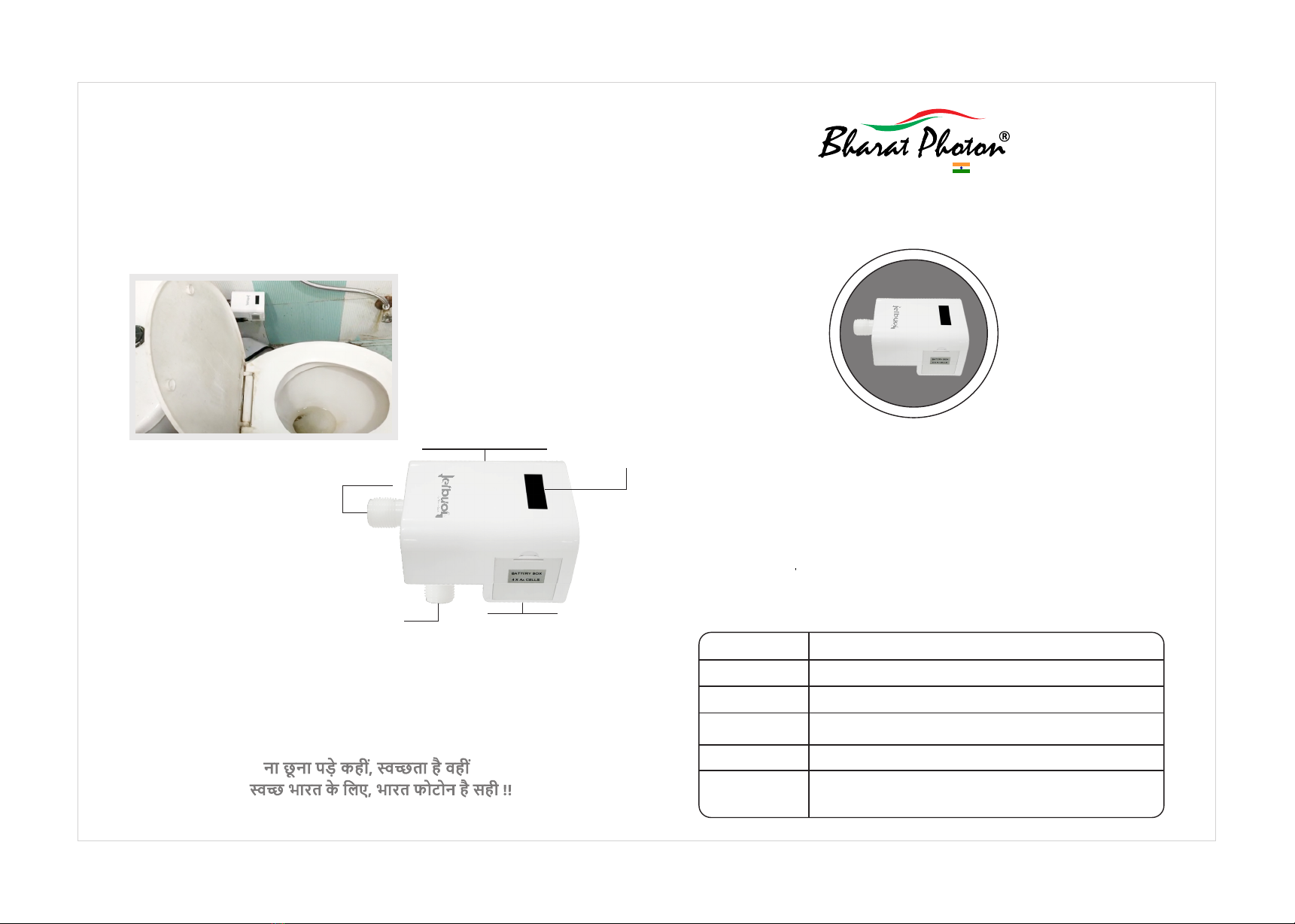

Bharat Photon JETBUOY User manual

1. Designed and manufactured in India to make your JET touchfree for convenience and
hygiene.
2. An essential and dependable component in every washroom to maintain proper hygiene.
3. Simultaneously instrumental to help reduce water wastage.
4. Prevents the spread of germs due to physical contact of tap.
5. Show your hand to sensor for JET ON, Show hand again for JET OFF.
6. A true Indian product that confirms to Green Building Standards.
7. Reduces carbon footprint & saves considerable amount of operational costs as compared
to Manual Taps/ Hand Shower.
INSTALLATION & OPERATION MANUAL
SPECIFICATIONS :-
APRODUCTPROUDLYDESIGNED&MANUFACTUREDININDIA
JETBUOY
CUSTOMER SUPPORT :-
AFTER-SALES SERVICE
Our Customer Support Team is comprehensively trained to provide help and advice, spare parts or a service visit.
SPARE PARTS
We maintain an extensive stock of spares and aim to have functional parts available for ten years from the date of final
manufacture of the product. Spares can be purchased from approved stockists or merchants (locations on request) or
direct from our Customer Support Department. Spares direct will normally be dispatched within two working days.
NOTE
In the interest of safety, spares requiring exposure to mains voltages can only be sent to qualified persons.
SERVICE
Our Customer Support Team is available to provide quality service at a reasonable cost. You will be assured of the
services of a trained engineer I agent, genuine spares and a 3-month warranty on the repair.
(Automatic Jet Spray System for WC)
BHARAT PHOTON JETBUOY for commercial bathrooms from Indian Standard now works perfectly. This long-
lasting faucet is constructed with durability for high-use applications.
JETBUOY modern design elevates the design of any commercial bathroom.
Highly useful for children, senior citizen to eliminate the effort of bending & operating angle valve/ hand faucet
MODEL
POWER
SENSING RANGE
WATER PRESSURE
INLET
SETTINGS
JETBUOY
6V DC
0-170mm adjustable (Factory setting at 100mm)
0.02 MPa - 0.8 Mpa
*0.05 Mpa is minimum required pressure for decent flow of water
G1/2” (Dn15)
Sensing range adjustment pot given at the bottom
4By default range is preset at optimum value
4Alter setting only if necessary
where sensors mean ‘India’
OUTLET
INLET
BODY
POLYCARBONATE ABS
BATTERY BOX
SENSOR
EYE
(Make your Jet
Touch Free/ Install
Automatic
Jet for WC)

Water not Flowing Coming Continuously
Water flow
very less
Is red indicator blinking in C.U. on sensing?
Red indicator not blinking on sensing
Rotate adjustment pot in C.U. clockwise to increase range
Red indicator Blinking Continuously
Rotate adjustment pot in C.U. anti clockwise to decrease range
Check it that solves problem
Check it that works
BHARAT PHOTON
JETBUOY rocks again
Test power source
- AC or batteries & replace
Hold the valve in C.U. & check if coil operating sound happening on sensing
Control Unit is faulty
Contact our customer care for assistance
Clean inlet strainer of valve at C.U. & check if it solves problem
BHARAT PHOTON
JETBUOY
rocks again.
Check for plumbing line at inlet for water supply Present?
Resume the water
supply & your
BHARAT PHOTON
JETBUOY rocks again
Yes Yes
Yes
Yes
No No
No
No
No
No
Electronic System is ok.
Valve require
cleaning.
Yes
Yes
Contact our customer care for assistance
Sensor is faulty
Automatic JETBUOY Troubleshoot Flowchart
Adjustment Pot for Sensing Range
Rotate the pot with soft hands only (if required) Applying pressure on minimum / maximum threshold will damage the pot
BATTERY LID LOCK
WATER IN
WATER OUT
58mm
101mm
Height
- + Range
Rotate adjustment pot at the bottom Clockwise to
increase range and Anti-Clockwise to decrease range
1. Release battery lid lock screw from down, open the lid & install 4 x AA size
alkaline batteries. Close the lid properly and lock it with screw.
2. Uninstall Jet pipe from angle valve outlet if Jet already installed.
3. Install JETBUOY inlet to angle valve outlet through socket and SS pipe
4. Install Jet pipe at the outlet of JETBUOY
5. Desired water pressure can be set through angle valve
6. Just show your hand on sensor to JET ON
7. Again just show your hand on sensor to JET OFF
IN-BOX CONTENTS
1. Jetbuoy
2. Jet Spray
3. Warranty card
4. Installation Manual
5. Socket
6. SS Pipe
SOCKET SS PIPE JET SPRAY
WATER OUT
SOCKET
BATTERY
BOX
S PIPE
INSTALLATION DIAGRAM
JET SPRAY
INLET PIPE
JET SPRAY
ANGLE VALVE
