Bharat Photon BP-U612 User manual

where sensors mean ‘India’
INSTALLATION & OPERATION MANUAL
1. Designed and manufactured in India to automatically flush urinal pot after every use.
2. An essential & dependable component in every washroom to maintain proper hygiene.
3. Simultaneously instrumental to help reduce water wastage.
4. Intelligent flushing ensures your washroom remains stink free.
5. Recovers its cost by saving significant amount of water as compared to washroom with
continuously running flushing.
6. Tried and tested easily serviceable & lifetime repairable product, very adaptive to robust
Indian conditions.
7. Essential for green buildings and must for every public washroom.
8. Reduces carbon footprint & saves considerable amount of operational costs as compared
to conventional flushing techniques.
SPECIFICATIONS :-
MODEL
POWER
SENSING RANGE
WATER PRESSURE
FLUSH TIME
INLET/ OUTLET
SETTINGS
BP-U612 BP-U612E
DC 6V AC 220V 50Hz / DC 6V - 4XAA Alkaline Batteries
Upto 500mm Adjustable
0.02 Mpa - 0.8 Mpa
7-8 Seconds Postflush
G1/2” (Dn15)
Sensing range (or detection zone) adjustment pot given at sensor
4By default range is preset at optimum value
4Alter setting only if necessary
RECESSED AUTOMATIC URINAL FLUSHER
W120 X H120mm
BATTERY INSTALLATION
While inserting batteries into battery box, make sure that
Positive-negative marks are followed and batteries are
installed in right orientation this is important to have right
connection of power and eliminate short-circuit drain out
in batteries
4 X AA
ALKALINE BATTERIES
AFTERSALESSERVICE
Our Customer Support Team is Comprehensively trained to provide help and advice, spare parts or a service visit.
SPAREPARTS
We maintain an extensive stock of spares and aim to have functional parts available for ten years from the date of final
manufacture of the product. Spares can be purchased from approved stockists or merchants (locations on request) or
direct from our Customer Support Department. Spares direct will normally be dispatched within two working days.
NOTE
In the interest of safety, spares requiring exposure to mains voltages can only be sent to qualified persons.
SERVICE
Our Customer Support Team is available to provide quality service at a reasonable cost. You will be assured of the services
of a trained engineer, genuine spares and a 3 months warranty on the repair.
CUSTOMER SUPPORT :-
Concealed Box Dim.
W120 X H120mm X D70MM

Sensor Plate ABS Wall Mounted Box
With Inbuilt Solenoid Valve
Battery Pack AC/DC Adpter Protective Cover
With Installation Kit
IN-BOX CONTENTS

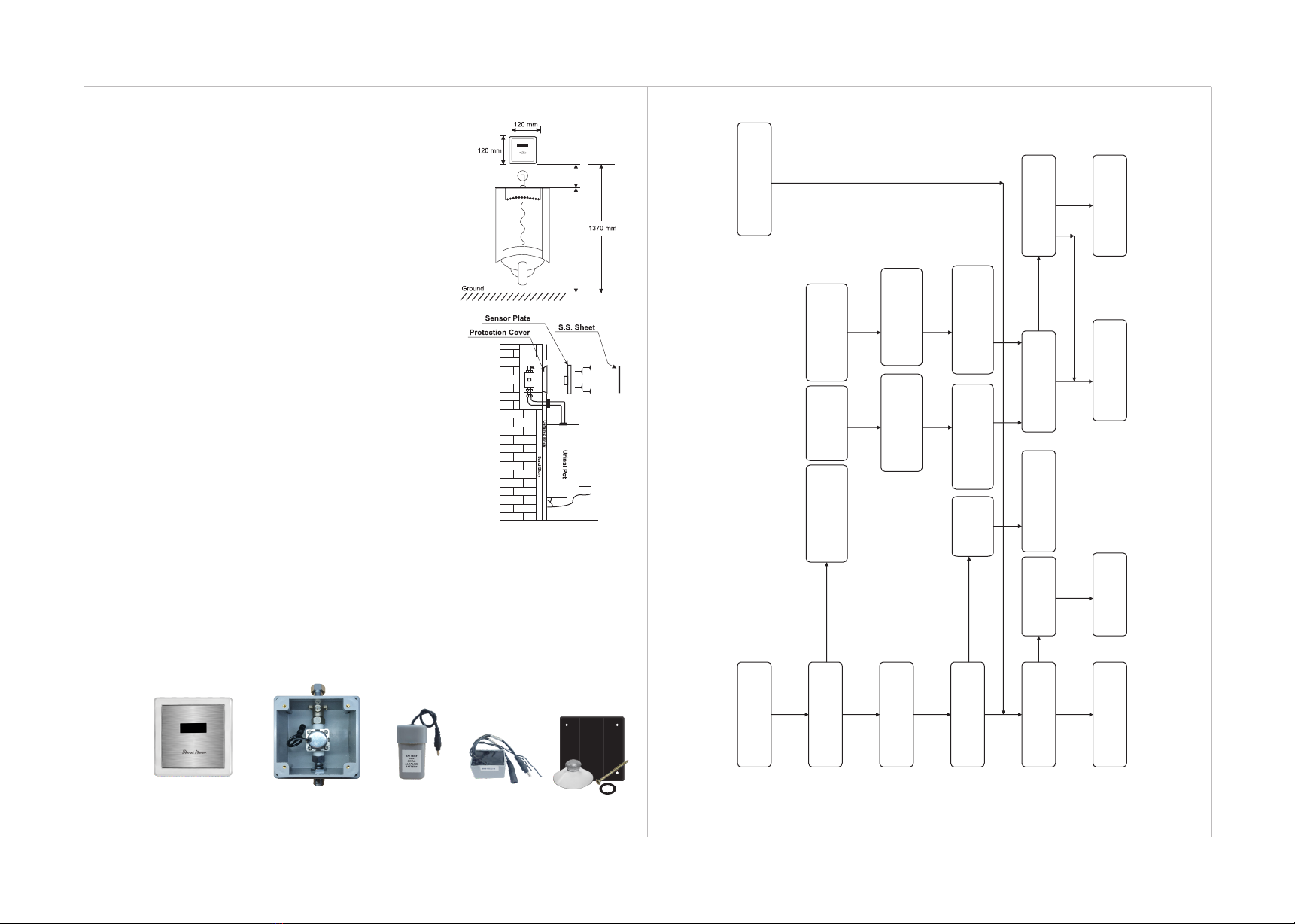

INSTALLATION PROCEDURE : -
1. Clean the pipeline by running 1~2 bucket water until dust particles like cement
pieces or thread etc. are washed away.
2. Unscrew the front plastic cover and grout the stainless steel box with inbuilt
valve inside the wall with bottom at approximately 4.5 feet height from the floor.
3. Now install the water pipeline to each urinal pot through the inlet and outlet of
Polycarbonate ABS Box.
4. Screw the front plastic cover on the box until the site is prepared for final
connection & keep the sensor separately in the packing to ensure the safety
of sensor & items inside the wall box.
5. Complete the finishing & do tiling up to the level of front plastic cover.
Now the sensor is ready to install as directed below : -
a) Install 4XAA size Alkaline batteries into battery compartment & connect the
battery pack to sensor or AC/DC adaptor as per the stickers on the leads.
b) Connect the solenoid valve lead of sensor to solenoid valve.
c) Place the battery pack inside the S.S.Box at proper place.
d) Now take out front magnetic S.S. sheet of the sensor through the vacuum
sucker to reach the four corner screws behind it.
Screw the sensor properly to the wall S.S. Box and place back the magnetic
sheet on the front.
YOUR BATTERY OPERATED AUTO FLUSH SENSOR FOR URINAL IS READY
FOR USE NOW
SPECIAL FEATURES :
1. Deodorize feature of 24 hrs. voluntarily flush if no use
2. Polycarbonate ABS body Concealed box
3. Easy to Install - No breaking of walls or tiles for replacing spare parts
4. Live Indicators for sensing & flush modes give immersive experience for use
& troubleshooting
5. False flush protection as system will not flush before 7 seconds continuous sensing
6. Sense to respect feature that stops ongoing flushing is senses another person in
queue to avoid splash
Automatic Urinal Flusher Troubleshoot Flowchart
No flushing seen in Urinal pot
Is red indicator blinking
fast (means ready to flush)
before leaving detection
zone?
Take out the magnetic front plate and unscrew the sensor plate from box
Hold the solenoid coil in the box with hand & check if coil operating sound taking place after leaving?
Check for plumbing lines :
at inlet, outlet to spreader
of W.C. pot for any choke
present?
Clean it.
Your Bharat Photon
Urinal Sensor rocks again
Will blink fast after 7 sec of continuous sensing
Yes
No No
No
No
Yes Yes Yes
Sensor and solenoid valve working fine
Red indicator blinking slow -wait for 7 seconds continuous sensing for flush ready & then leave- it will work
Red indicator not blinking-
Red indicator blinking
continuously after
leaving sensing zone-
Take out the magnetic front plate and unscrew the sensor plate from box
Take out the magnetic front plate and unscrew the sensor plate from box
Solenoid valve or sensor or both may be faulty
Very less volume flushing in Urinal pot
After cleaning, refit carefully & open flow control. Bharat Photon sensor rocks again
Contact our Customer Care for assistance
Contact our Customer Care for assistance
Bharat Photon
Urinal Sensor rocks again
Check if that solves problem
Test power source -AC or batteries (replace with new one) and check if it works?
Valve requires cleaning
Rotate blue sensing range adj. screw at sensor plate backside in clockwise direction to increase detection zone
Rotate blue sensing range adj. screw at sensor plate backside in clockwise direction to increase detection zone
Sensor is faulty
Close flow control and
take out valve coil to
clean its inlet filter from
dust
