Big Chill BC55UCFS1 User manual

Model BC55UCFS1 Model BC55UCBI1
Model BC55UCFS1/BC55UCBI1 is a physically modified Summit FF-61W-BI.
Model BC55UCFS1/BC55UCBI1 is electronically identical to Summit FF-61W-BI.
Instruction Manual
BEFORE USE, PLEASE READ AND FOLLOW
ALL SAFETY RULES AND OPERATING INSTRUCTIONS
Big Chill
P.O. Box 892
Boulder, CO 80306
www.bigchill.com
250637
Write Model and Serial Numbers here:
Model
Serial No.

1
Location of Parts .................................................................................................................. 1
Important Safeguards ..................................................................................................... 2 - 3
Technical Information .......................................................................................................... 3
Installation Instructions .................................................................................................. 4 - 6
Before Using Your Appliance .......................................................................................... 4
Installing the Refrigerator ................................................................................................ 4
Electrical Connection / Extension Cord ............................................................................ 5
Operating Your Refrigerator ................................................................................................ 6
Temperature Control
Defrosting Your Appliance
Care and Maintenance ......................................................................................................... 7
Cleaning Your Appliance / Power Failure / Vacation Time/
Moving your Appliance / Energy-Saving Tips
Troubleshooting ................................................................................................................... 8
Limited Warranty .................................................................................................................. 9

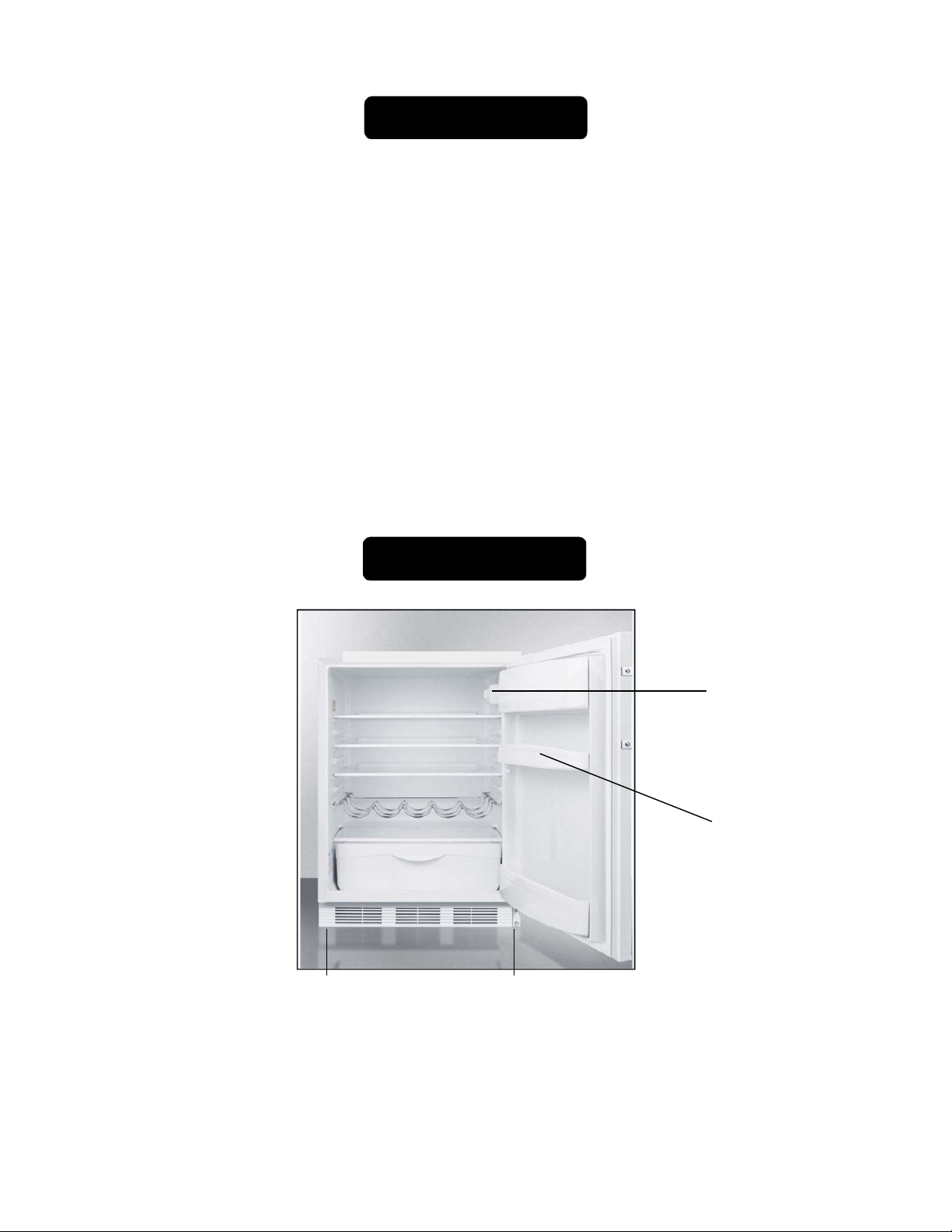

Temperature control dial
(thermostat) and interior
light
Wine rack
Crisper and
glass cover
Front ventilation
slots (kick plate)
Leveling legs
Door with storage
compartments
Adjustable glass
shelves
Defrost water
outlet
(behind crisper)
Table of Contents
Location of Parts

2
Your safety and the safety of others are very important.
Before the refrigerator is used, it must be properly positioned and
installed as described in this manual, so read the manual carefully. To
reduce the risk of fire, electrical shock or injury when using the
appliance, follow basic precautions, including the following:
 Plug into a grounded 3-prong outlet. Do not remove grounding prong, do not use an
adapter, and do not use an extension cord.
 It is recommended that a separate circuit, serving only your refrigerator, be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
 Never clean appliance parts with flammable fluids. These fumes can create a fire hazard
or explosion. And do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
 Before proceeding with cleaning and maintenance operations, make sure the power line of
the unit is disconnected.
 Do not connect or disconnect the electric plug when your hands are wet.
 Unplug the appliance or disconnect the power before cleaning or servicing. Failure to do
so can result in electrical shock or death.
 Do not attempt to repair or replace any part of your refrigerator unless it is specifically
recommended in this material. All other servicing should be referred to a qualified
technician.
 Use two or more people to move and install the refrigerator. Failure to do so can result in
back or other injury.
 To ensure proper ventilation for your appliance, the front of the unit must be completely
unobstructed. Choose a well-ventilated area with temperatures above 60
°
F (16
°
C) and
below 90
°
F (32
°
C). This unit must be installed in an area protected from the elements,
such as wind, rain, water spray or drips.
 The appliance should not be located next to ovens, radiators or other sources of high heat.
 The appliance must be installed with all electrical connections in accordance with state
and local codes. A standard electrical supply (115V AC only, 60 Hz), properly grounded in
accordance with the National Electrical Code and local codes and ordinances, is required.
 Do not kink or pinch the power supply cord of the appliance.
 The fuse (or circuit breaker) size should be 15 amperes.
 It is important for the refrigerator to be leveled in order to work properly. You may need to
make several adjustments to level it.
 Never allow children to operate, play with or crawl inside the refrigerator.
 Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners
may damage or discolor the interior.
 Do not use this apparatus for other than its intended purpose.
IMPORTANT SAFEGUARDS
WARNING! This product may contain chemicals known to the state of California to
cause cancer or birth defects or other reproductive harm. For more information, visit:
www.summitappliance.com/prop65
Chemicals known by the manufacturer to be present in this product in concentrations
higher than threshold limits: NONE.

3
Risk of child entrapment!
Child entrapment and suffocation are not problems of the past. Junked or abandoned
refrigerators and freezers are still dangerous, even if they will “just sit in the garage a few
days.”
 Before you throw away your old refrigerator or freezer: Take off the doors.
Leave the shelves or drawers in place so that children may not easily climb inside.
 Never allow children to operate, play with, or crawl inside the appliance.
THIS APPLIANCE IS NOT INTENDED FOR USE BY YOUNG CHILDREN OR INFIRM PERSONS
UNLESS THEY HAVE BEEN ADEQUATELY SUPERVISED BY A RESPONSIBLE PERSON TO
ENSURE THAT THEY CAN USE THE APPLIANCE SAFELY. YOUNG CHILDREN SHOULD BE
SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE.
- SAVE THESE INSTRUCTIONS -
Model Number BC55UCFS1
BC55UCBI1
Capacity 5.5 cu. ft.
Electrical Input 115V AC/60Hz
Rated Current 0.902A
Refrigerant R600a (0.64 oz.)
Installation Freestanding Built In
Unit Weight 140 lbs. 140 lbs.
Unit Width 23.74 23.74
Unit Depth (w/o Handle) 25.25 25.25
Unit Height 35.96 34.50
NOTE: Specifications are subject to change without notice.
To save energy and maintain optimum performance:
Your refrigerator may be installed as a free-standing unit or built into an enclosure
or below a countertop.
When positioning this unit: If used freestanding allow at least 2 inches of clearance
on top, at the sides and in the rear for sufficient airflow. If unit is built in, allow 2”
of air space between the rear of the unit and the wall and leave at least 1/8” on
both sides and 1/16” at the top. Be sure that airflow under the appliance is not
blocked.
Technical Information

4
Before Using Your Appliance:

Remove the exterior and interior packing.

Before connecting the unit to a power source, let it stand for approximately 2
hours. This will reduce the possibility of a malfunction in the cooling system from
handling during transportation.

Remove the shelves and clean them and the interior surfaces of the unit with
lukewarm water using a soft cloth.
Installing the Refrigerator:

Place the unit on a floor that is strong enough to support it when the appliance is
fully loaded. To level the unit, adjust the two leveling legs at the front.

Your appliance can be installed either free-standing, recessed or built into an
enclosure. When installing as a free-standing unit, allow at least 2” (51mm) of
space at the sides, top and rear of the unit to allow for proper air circulation to cool
the compressor and condenser. Even when built in, the unit requires at least 2” of
clearance at the back, 1/8” (3mm) at both sides and 1/16” (1.6mm) at the top.
Take care that the air vents at the front of the appliance are never covered or
blocked in any way.


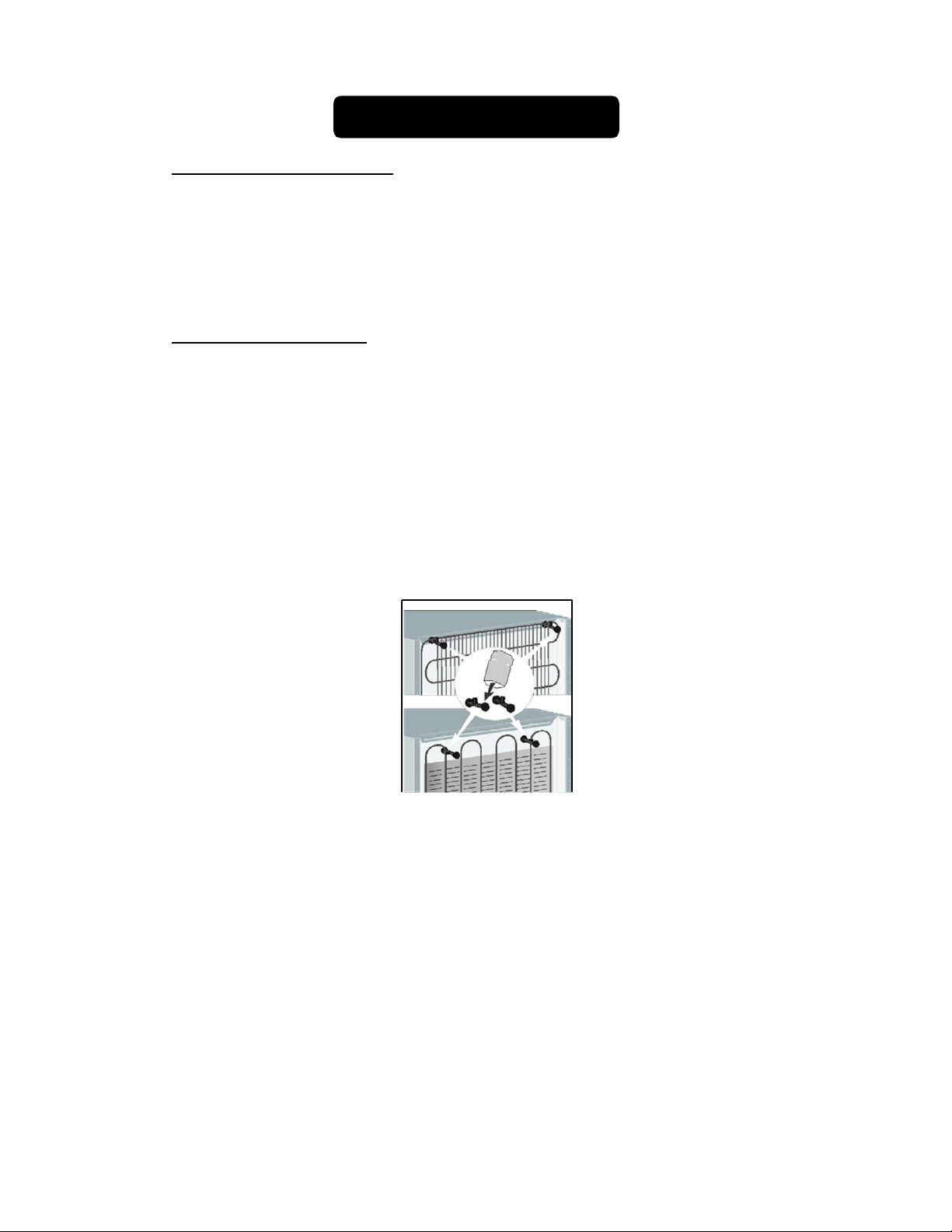

This appliance is supplied with spacers that have to be mounted onto the
condenser tube at the back to make sure there is sufficient clearance between the
appliance and the wall.

Locate the unit away from direct sunlight and sources of heat (oven, heater,
radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may
increase electrical consumption. Extremely cold ambient temperatures may also
affect the unit's performance.

Avoid locating the unit in moist areas. Too much moisture in the air will cause frost
to form quickly on the evaporator, requiring more frequent defrosting of the
interior.

Plug the unit into an exclusive, properly installed and grounded wall outlet. Any
questions concerning power and/or grounding should be directed toward a
certified electrician or authorized service center.
Installation Instructions

5
Electrical Connection:
This unit should be properly grounded for your safety. The power cord of this unit is
equipped with a three-prong plug which mates with a standard three-prong wall outlet
to minimize the possibility of electrical shock.
Do not under any circumstances cut or remove the third ground prong from the
power cord supplied. For personal safety, this appliance must be properly grounded.
This unit requires a standard 115-volt AC/60Hz electrical outlet with three-prong
ground. Have the wall outlet and circuit checked by a qualified electrician to make
sure the outlet is properly grounded. When a standard 2-prong wall outlet is
encountered, it is your responsibility and obligation to have it replaced with a
grounded 3-prong wall outlet.
To prevent accidental injury, the cord should be secured behind the unit and not left
exposed or dangling.
The unit should always be plugged into its own individual electrical outlet which has a
voltage rating that matches the rating label on the appliance. This provides the best
performance and also prevents overloading house wiring circuits that could cause a
fire hazard from overheated wires. Never unplug the unit by pulling on the power
cord. Always grip the plug firmly and pull straight out from the receptacle. Repair or
replace immediately any power cord that has become frayed or otherwise damaged.
Do not use a cord that shows cracks or abrasion damage along its length or at either
end. When moving the unit, be careful not to damage the power cord.
Extension Cord:
Do not use an extension cord with this appliance. If the power cord is too short, have
a qualified electrician or service technician install an outlet near the appliance.
Improper use of the grounded plug can result in the risk of electrical shock. If the power
cord is damaged, have it replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.

6

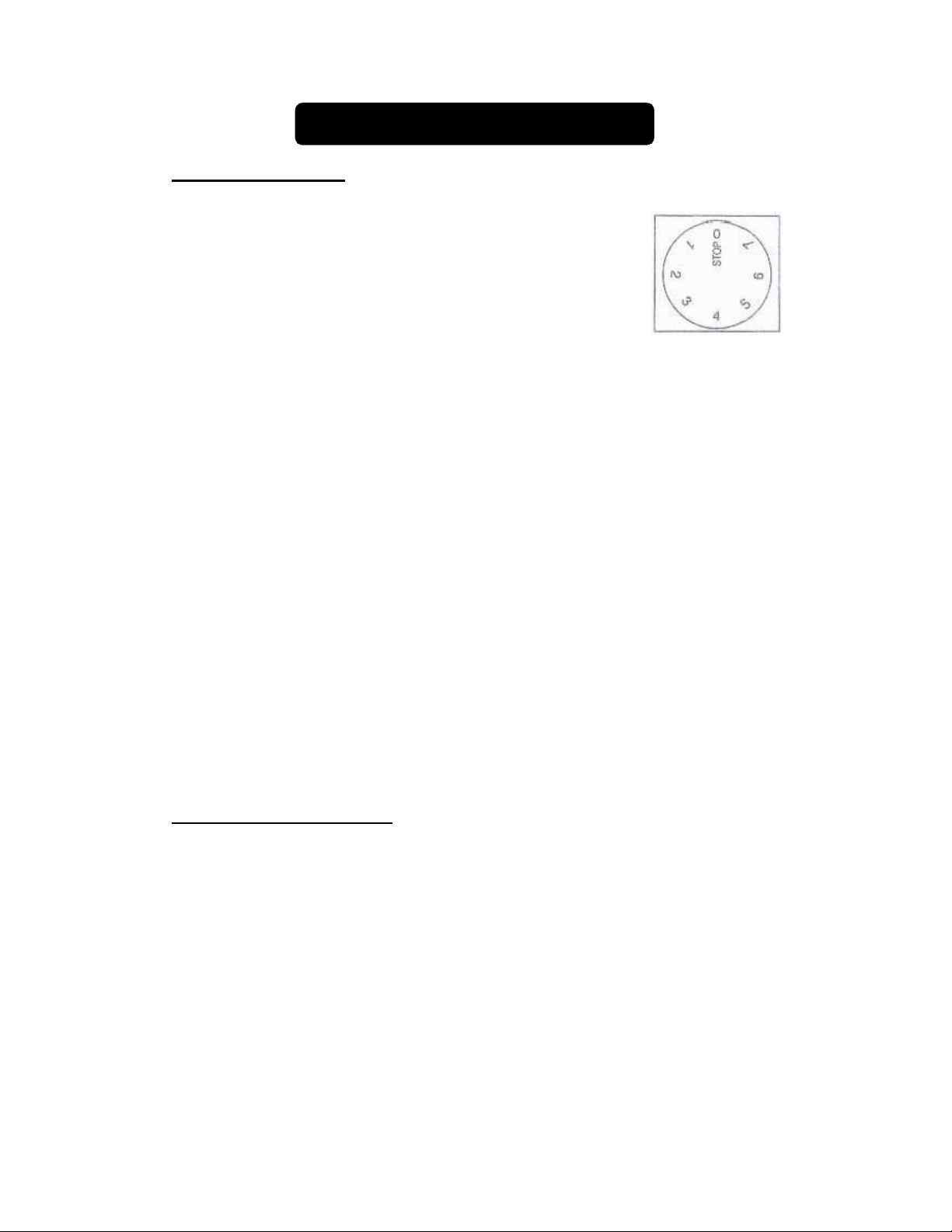

Temperature Control:

Your appliance’s evaporator system is out of sight behind the interior rear wall.

The interior temperature is controlled with a thermostat knob
located inside the unit, towards the upper right-hand corner.
Turn the knob clockwise from the STOP (0) position toward
the higher numbers for colder temperatures. Higher settings
on the knob (higher numbers) mean lower temperatures
(colder) in the refrigerator.

On the coldest settings, temperatures in some spots inside
the cabinet may drop below 32°F. Use higher thermostat settings only when
required or recommended. When the ambient temperature is normal, we
recommend a medium setting.

Changes in the ambient temperature affect the temperature inside the refrigerator
so choose an appropriate setting of the thermostat knob, depending on ambient
conditions.

In the STOP (0) position, the appliance does not operate (the cooling system is
switched off), yet the power supply is not interrupted (the light still works).

The temperature inside the refrigerator also depends on how often you open the
door.

In all small refrigerators without interior fans, temperatures are coldest near the
bottom, and occasionally near the rear. Place contents accordingly. It is best not
to operate these units mostly empty. If temperatures are erratic, try putting some
water bottles inside to create a load for the compressor.
NOTES:
1. The glass shelves are adjustable. These shelves stop short an inch before the
back wall, which is essential for air flow and the proper operation of the automatic
defrost system. Do not block these gaps.
2. Interior lighting is controlled by a switch that is activated by the opening and
closing of the refrigerator door.
3. If the refrigerator is unplugged, has lost power or is turned off, you must wait 3 to
5 minutes before restarting it. If you attempt to restart before this time delay, the
unit will not start.
Defrosting Your Appliance:
This appliance operates with an automatic defrost system, so the refrigerator defrosts
itself. While the compressor is operating, ice will build up along the cold rear wall (the
evaporator plate is behind the wall). During the compressor’s off-cycle, ice will melt,
drip down, collect in the trough at the bottom and drain through a small hole into a
tray above the compressor; where the compressor’s heat will evaporate the water. If
you notice excessive ice build-up on the rear wall, try adjusting the thermostat to a
slightly warmer setting. Be sure that the door gasket is sealing well and that there is
no obstruction of the drain hole at the bottom rear of the interior cabinet.
Operating Your Refrigerator

7
Cleaning Your Appliance:
1.
Unplug the appliance, turn the thermostat to STOP (0) and remove all contents,
including shelves and crisper.
2.
Wash the inside surfaces with a solution of lukewarm water and vinegar. Wipe
dry with a clean, soft cloth.
3.
Wash the shelves and crisper with a mild detergent solution, then rinse and dry
thoroughly.
4.
Wash the outside cabinet with a solution of warm water and mild liquid detergent.
Rinse well and wipe dry with a clean soft cloth.
5.
Wring excess water out of the sponge or cloth before cleaning the area of the
temperature control or any electrical parts.
6.

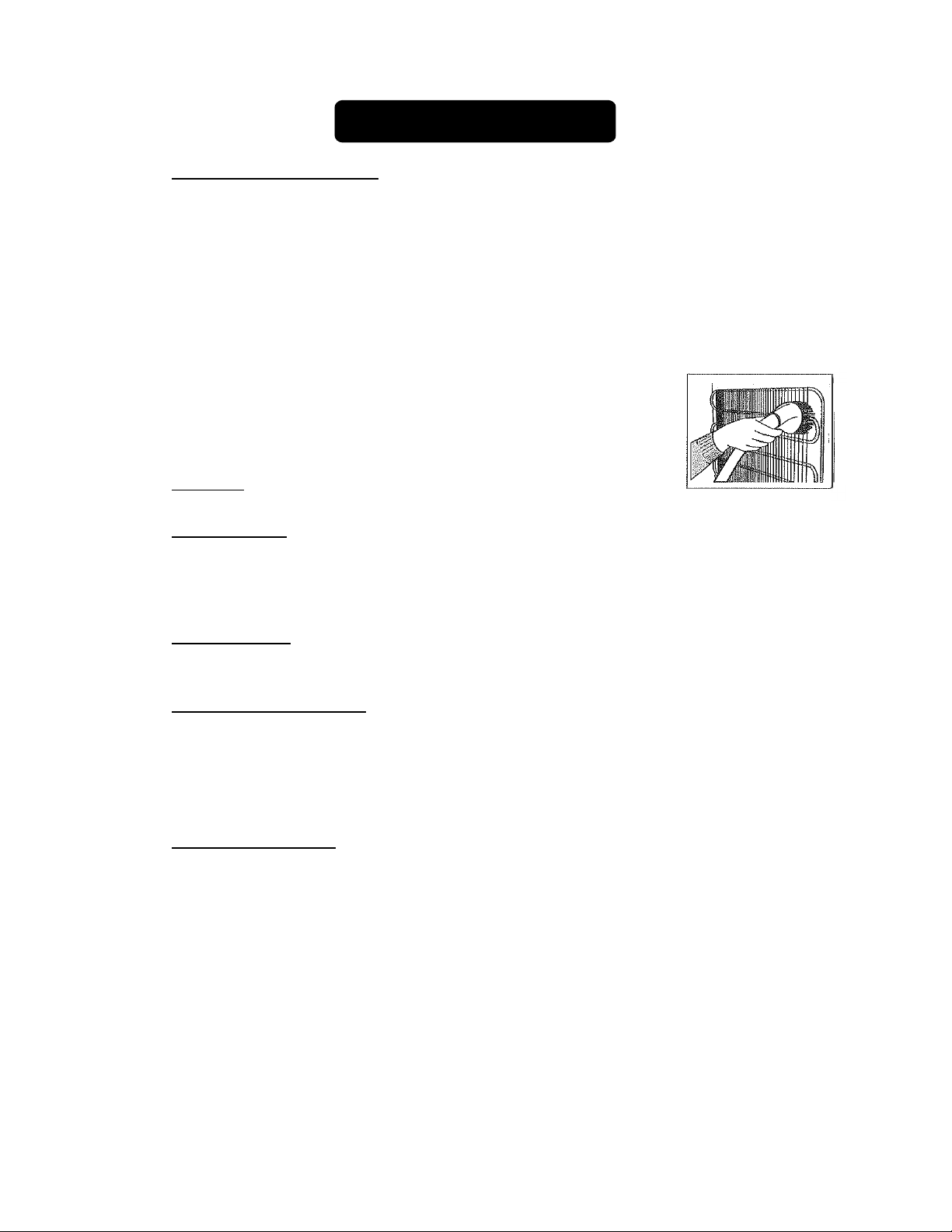

From time to time, wipe the condenser on the back wall with a soft
non-metallic brush or vacuum cleaner.
7.
After you have cleaned the appliance, reconnect it to the power
supply, reset the thermostat and return all contents to their place.
CAUTION: Failure to unplug the unit before cleaning or maintenance
could result in electrical shock or personal injury.
Power Failure:
Most power failures are corrected within a few hours and should not affect the
temperature of your appliance if you minimize the number of times the door is
opened. If the power is going to be off for a longer period of time, you need to take
the proper steps to protect your chilled items.
Vacation Time:
During long absences, remove all contents. Unplug the appliance, clean it and leave the
door open slightly to avoid possible formation of condensation, mold or odors.
Moving Your Appliance:
1. Remove the contents.
2. Securely tape down all shelving inside the unit.
3. Turn the leveling legs up to the base to avoid damage.
4. Tape the door shut.
5. Be sure the appliance stays secure in the upright position during transportation.
Energy-Saving Tips:

The unit should be located in the coolest area of the room, away from heat-
producing appliances or heating ducts and out of direct sunlight.

Try not to open the door too often, especially when the weather is damp and hot.
Once you open the door, close it as soon as possible.

Occasionally check if the appliance is sufficiently ventilated (adequate air
circulation behind and at the front of the appliance).

Set the thermostat from higher to lower settings as soon as possible (depending
on how loaded the appliance is, ambient temperature, etc.).

Before loading items into the unit, be sure they have cooled to ambient
temperature.
Care and Maintenance

8
When using this appliance, you may come across some problems that in many cases
result from improper handling and can easily be eliminated.
TROUBLESHOOTING GUIDE
The appliance fails to operate after being connected to the power source.
 Check whether the power supply is active and that the thermostat is not set to
the STOP (0) position.
The compressor is running continuously.
 The door was opened frequently or it was left open too long.
 The door is not properly closed (the door may sag; the gasket may be dirty or
damaged).
 The power supply has been interrupted for a long period of time.
 The appliance may have been overloaded with items above room temperature.
 There may be inadequate ventilation of the compressor and condenser.
(Assure there is adequate air circulation behind and in front of the appliance
and wipe the dust from the condenser.)
Noise

Cooling in refrigeration appliances is enabled by the refrigerating system with a
compressor, which produces noise. How noisy the appliance is depends on
where it is placed, how it is used and how old the appliance is.


During the operation of the compressor, the noise of liquid is heard and when
the compressor is not operating, the refrigerant flow is heard. This is a normal
condition and has no influence whatsoever on the lifetime of the appliance.


After starting the appliance, the operation of the compressor and the refrigerant
flow may be louder. This does not mean that something is wrong. Gradually the
noise is reduced.


Sometimes a louder noise is heard, which is unusual for the appliance. This
noise is often a consequence of improper placement of the unit. (The unit
should be placed and leveled firmly on a solid base and it should not touch the
wall or cabinets standing next to it.)

Troubleshooting

9
Big Chill, Inc. warrants your Big Chill appliance (“product”) purchased in the U.S. and Canada and installed in
residential properties for normal residential use.
What Is Covered
Subject to the specific conditions and limitations below, this warranty covers parts and/or labor necessary to repair
or replace any part of the product that contains defects in materials and workmanship.
One-Year Warranty
For one (1) year from the date of installation, this warranty covers all parts and labor necessary to repair or
replace any part on the product except for the Cosmetic Warranty below.
Cosmetic Warranty
Big Chill offers a seven-day cosmetic warranty from the date of delivery on all deliveries. The Owner must report
cosmetic imperfections within this seven-day period, supported by pictures and note “subject to inspection” at the
time of delivery.
Limitations of Coverage
 The replacement of a part under this warranty does not extend the warranty period.
 Warranty service outside normal business hours and in areas beyond 50 miles one way from an authorized service
provider. The owner will be responsible for any and all costs associated with additional mileage, non-standard service or
overtime, and special equipment required to remove the product so service may be performed.
This warranty is null and void:
 If the product is removed from where it was originally installed.
 If the original factory installed serial number is altered or removed from the product.
What Is Not Covered
This warranty does not cover, and specifically excludes:
 Product installed or used in any commercial or other non-residential property such as, but not limited to, day
care facilities, fire stations, hotels, nursing homes, rentals, vacation properties, etc.
 Installation related issues including improper badge placement or installation inconsistent with the product
specifications/installation instructions.
 Damage or repairs caused by alterations or modifications, abuse, misuse, neglect, or improper installation,
mounting, handling, operation, maintenance, or storage.
 Normal adjustments after installation and setup.
 Normal wear, care, and maintenance of the product as described in the use and care manual.
 Service calls to educate the customer on the proper use and care of the product.
 Consumable parts such as water filters.
 Damage or repairs caused by unauthorized service or repairs, including unauthorized adjustments or
calibrations performed on the product.
 Accidental or intentional damage.
 Damage or repairs as a result of natural disasters, fires, floods, earthquakes, winds, lightning, corrosive
atmosphere, loss of electrical power to the product for any reason, or other conditions beyond Big Chill’s
control.
 Damage or repairs caused by alteration for outdoor use.
 Damage or repairs caused by the use of harsh chemicals or cleaning products improperly applied.
 Liability or responsibility for damage to surrounding property including cabinetry, floors, ceilings, etc.
 Consequential or incidental damage, including but not limited to food or medicine loss, restaurant meals, etc.
The terms of this warranty provide for repair of the product only. If the product cannot be repaired, Big Chill, at its
sole discretion, will determine whether to exchange the product.
Please see the Arbitration Clause and Related Provisions, which affect your legal rights. The Arbitration Clause is
available at www.bigchill.com.
Warranty

10
Printed in USA
This warranty is in lieu of all other express warranties.
ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR PARTICULAR PURPOSE ARE LIMITED TO THE DURATION OF THIS WARRANTY.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so this
provision may not apply.
If you are a California or Quebec resident, please refer to the section below.THE OWNER AND BIG CHILL
AGREE THAT THE REMEDIES SET OUT HEREIN ARE THE OWNER’S EXCLUSIVE REMEDIES FOR BREACH OF
ALL WARRANTIES, EXPRESS OR IMPLIED.
WHETHER ANY CLAIM IS BASED ON NEGLIGENCE OR OTHER TORT, BREACH OF WARRANTY OR BREACH
OF CONTRACT, OR ANY OTHER TORT THEORY, BIG CHILL SHALL IN NO EVENT BE LIABLE FOR
INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, INCLUDING BUT NOT LIMITED TO EXTRA UTILITY
EXPENSES, SHIPPING COSTS RELATED TO REPAIR OR REPLACEMENT OF ANY PRODUCT OR DAMAGES
TO PROPERTY, RESULTING FROM BREACH OF THIS WARRANTY OR ANY IMPLIED WARRANTY.
For service or a warranty claim, please call 877-842-3269 or visit Parts & Service on bigchill.com.
