Midea Arctic King ARM31D4ABB User manual

设 计
DESIGN
徐红玲
2020.1.18
校 对
CO.BY
图号/物料编码 PART NO.
标准化
STANDARD
图纸名称 PART NAME
ARCTIC KING(Bi-Mart客户)ARM31D4ABB
(UR-BCD87CM-ST)说明书
业务
seller 王笑
周军
图样标记
REL
版本号
REV.NO.
重量(g)
WEIGHT
比例
scale
材料 MATERIAL
105g 铜版纸
批 准
AUTHORI
ZE
共 页
TOTAL SHEETS
第 页
NO. OF SHEETS
美的冰箱事业部
MIDEA REFRIGERATION
DIVISION
标记
MARKER
01:1
变更内容 修改日期 签名
技术要求
16131000018643
1. 尺寸：32K
2.印刷颜色： 单色(灰度印刷)
3.制件必须符合QMB-J53.005 产品说明书及其它类似印刷件技术规范；
4.除客户特别要求外均参照美的冰箱最新版相关企业标准执行;

Refrigerator
ARM31D4ABB

CONTENTS
r
Door ight-eft hange

1
1 Safety warnings
1.1 War ning
THIS appliance is intended to be used in household and similar applications such as staff kitchen areas
in shops, offices and other working environments; farm houses and by clients in hotels, motels and other
residential type environments; bed and breakfast type environments; catering and similar non-retail
applications.
THIS
IF the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
DO not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
THE appliance has to be unplugged after use and before carrying out user maintenance on the
appliance.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear
of obstruction.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
WARNING: Please abandon the refrigerator according to local regulators for it use flammable
blowing gas and refrigerant.
WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of
the appliance.
DO not use extension cords or ungrounded（two prong）adapters.
DANGER:Risk of child entrapment.Before you throw away your old refrigerator or freezer:
-Take off the doors.
-Leave the shelves in place so that children may not easily climb inside.
THE refrigerator must be disconnected from the source of electrical supply before attempting the
installation of accessory.
appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.)
risk of fire / flammable materialsWarning:

2

This manual contains lots of important safety information
which shall be observed by the users.
1 2.Meaning of safety warning symbols
Prohibition symbol
Warning symbol
Note symbol
This is a prohibition symbol.
Any incompliance with instructions marked with
this symbol may result in damage to the product
or endanger the personal safety of the user.
This is a warning symbol.
It is required to operate in strict observance of
instructions marked with this symbol; or otherwise
damage to the product or personal injury may be caused.
This is a cautioning symbol.
Instructions marked with this symbol require special caution.
Insufficient caution may result in slight or moderate injury,
or damage to the product.
3
1 3 Electricity related war nings.1 3 Electricity related war nings.
Do not pull the power cord when pulling the power plug of the
refrigerator. Please firmly grasp the plug and pull out it from
the socket directly.
To ensure safe use, do not damage the power cord or use the power cord
when it is damaged or worn.
Please turn off the valve of the leaking gas and then open the doors
and windows in case of leakage of gas and other flammable gases.
Do not unplug the refrigerator and other electrical appliances
considering that spark may cause a fire.
Please use a dedicated power socket and the power socket shall
not be shared with other electrical appliances.
The power plug should be firmly contacted with the socket or else
fires might be caused.
Please ensure that the grounding electrode of the power socket is
equipped with a reliable grounding line.
Do not use electrical appliances on the top of the appliance,
unless they are of the type recommended by the manufacturer.

4
1.5 War nings for placement
1 4 Warnings for using.
Do not put flammable, explosive, volatile and highly corrosive items
in the refrigerator to prevent damages to the product or fire accidents.
Do not place flammable items near the refrigerator to avoid fires.
The refrigerator is intended for household use, such as storage of foods;
it shall not be used for other purposes, such as storage of blood,
drugs or biological products, etc.
Do not arbitrarily disassemble or reconstruct the refrigerator,
nor damage the refrigerant circuit; maintenance of the appliance
must be conducted by a specialist
Damaged power cord must be replaced by the manufacturer, its
maintenance department or related professionals in order to avoid
danger.
Do not allow any child to get into or climb the refrigerator; otherwise
suffocation or falling injury of the child may be caused.
Do not place heavy objects on the top of the refrigerator considering
that objects may fall when close or open the door, and accidental
injuries might be caused.
Please pull out the plug in case of power failure or cleaning. Do not
connect the freezer to power supply within five minutes to prevent
damages to the compressor due to successive starts.
The gaps between refrigerator doors and between doors and refrigerator
body are small, be noted not to put your hand in these areas to prevent from
squeezing the finger. Please be gentle when close the refrigerator door to
avoid falling articles.
Do not pick foods or containers with wet hands in the freezing chamber when the
refrigerator is running, especially metal containers in order to avoid frostbite.

Do not store beer, beverage or other fluid contained in bottles or
enclosed containers in the freezing chamber of the refrigerator;
or otherwise the bottles or enclosed containers may crack due to
freezing to cause damages.
5
1.6 War nings for energy
Warning for energy
1)Refrigerating appliances might not operate consistently (possibility of defrosting of contents or
temperature becoming too warm in the frozen food compartment) when sited for an extended period of
time below the cold end of the range of temperatures for which the refrigerating appliance is designed.
2)The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or
in low-temperature compartments or cabinets, and that some products such as water ices should not be
consumed too cold;
3)The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of
food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage
compartments or cabinets;
4)The precautions necessary to prevent an undue rise in the temperature of the frozen food while
defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.
5)The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or
cleaning could shorten the storage life.
6)The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach
of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being
locked inside
.
Freezing chamber
1.7 War nings for disposal
Refrigerant and cyclopentane foaming material used for the refrigerator are flammable.
Therefore, when the refrigerator is scrapped, it shall be kept away from any fire source and
be recovered by a special recovering company with corresponding qualification other than
be disposed by combustion, so as to prevent damage to the environment or any other harm.
When the refrigerator is scrapped, disassemble the doors, and remove gasket of door and
shelves; put the doors and shelves in a proper place, so as to prevent trapping of any child.
Correct Disposal of this product
This marking indicates that this product should not be disposed with other household
wastes. To prevent possible harm to the environment or human health from uncontrolled
waste disposal, recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and collection systems or
contact the retailer where the product was purchased. They can take this product for
environmental safe recycling.
：

2 1 Placement.
2 Proper use of refrigerators
Before use, remove all packing materials, including bottom cushions,
foam pads and tapes inside of the refrigerator;
tear off the protective film on the doors and the refrigerator body.
The refrigerator is placed in a well-ventilated indoor place;
the ground shall be flat, and sturdy (rotate left or right to
adjust the wheel for levelling if unstable).
The top space of the refrigerator shall be greater than 30cm, and
The refrigerator should be placed against a wall with a free distance
more than 10cm to facilitate heat dissipation.
Keep away from heat and avoid direct sunlight. Do not
place the freezer in moist or watery places to prevent rust
or reduction of insulating effect.
Do not spray or wash the refrigerator; do not put the refrigerator in
moist places easy to be splashed with water so as not to affect the
electrical insulation properties of the refrigerator.
Precautions before installation:
Before installation or adjusting of accessories, it shall be ensured that the refrigerator is
disconnected from power.
Precautions shall be taken to prevent fall of the handle from causing any personal injury.
6

2.2 Levelling feet
7
2.3Door Right-Left Change
1 Remove all food from the inner door liner.
Fix the door by tapes.
)
1) Schematic diagram of the leveling feet
（） The picture above is only for reference. The actual configuration will depend on
the physical product or statement by the distributor
3) Adjusting procedures:
a. Turn the feet clockwise to the refrigerator;
b. Turn the feet counterclockwise to lower the refrigerator;
c. Adjust the right and left feet based on the procedures above to a horizontal level.
raise
Cross screwdriver
List of tools to be provided by the user
5/16
socket and ratchet
″Masking tape
Putty knife
thin-blade screwdriver

8
2)top ole cap of the other sideDismantle top hinge cover, hinge and h .
3)Remove freezer chamber door as well as middle hinge and hole cap of the other side.
4) Remove chamber door and dismantle bottom hinge and adjustable foot.refrigerating
Hole cap
Top hinge cover
Top hinge
Middle hinge
Hole cap
Bottom hinge
Adjustable foot

9
6)
the hole caps on right side.
Place refrigerating chamber door on bottom hinge then fix the middle hinge on left side and insert
7) Place freezer chamber door on middle hinge then fix the top hinge,top hinge cover on left side and
insert hole caps on right side.
5) Exchange the installation position of bottom hinge and adjustable foot,then fix them respectively.
Remove the hinge sleeve pipe of the refrigerating chamber door,and install it on the other side.
Remove the hinge sleeve pipe of the freezing chamber door and install it on the other side.
The picture above is only for reference. The actual configuration will depend on
the physical product or statement by the distributor

10
2 4 the Light. Changing
2.6 Energy saving tips
The appliance should be located in the coolest area of the room, away from heat producing
appliances or heating ducts, and out of the direct sunlight.
Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance
forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance.
This cuts down on frost build-up inside the appliance.
Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling.
Liners interfere with cold air circulation, making the appliance less efficient.
Organize and label food to reduce door openings and extended searches. Remove as many
items as needed at one time, and close the door as soon as possible.
2 5. Starting
Before initial start, keep the refrigerator still for two hours
before connecting it to power supply.
Before putting any fresh or frozen foods, the refrigerator shall have run
for 2-3 hours, or for above 4 hours in summer when the ambient
temperature is high.
Spare enough space for convenient opening of the doors and drawers or
statement by the distributor.
445mm
470mm
180°
913mm
Disconnecting the mains supply before carrying out the bulb replacement
Hold and lift up the light bulb cover.
Remove the old bulb by unscrewing it in an anti-clockwise direction.
Replace with a new bulb (Max. 15W) by screwing it in a clockwise direction making sure that it is
secure in the bulb holder.
Refit the light cover and re-connect your Fridge to the mains supply.

11
3.1Key components
3 Structure and functions
Refrigerating chamber
Freezing chamber
The low temperature freezing chamber may keep food fresh for a long time and it is mainly used to
store frozen foods and making ice.
The freezing chamber is suitable for storage of meat, fish, rice balls and other foods not to be
consumed in short term.
Chunks of meat are preferably to be divided into small pieces for easy access. Please be noted food
shall be consumed within the shelf time.
The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and
other food consumed in the short term.
Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature.
Foods are recommended to be sealed up before putting into the refrigerator.
The glass shelves can be adjusted up or down for a reasonable amount of storage space and easy use.
（
the physical product or statement by the distributor）
The picture above is only for reference. The actual configuration will depend on
Fence
Temperature-control
assembly
Shelf
Fr uits a nd
vegetables
box
Note: Storage of too much food during operation after the initial connection to power may adversely
affect the freezing effect of the refrigerator.

12
（） The picture above is only for reference. The actual configuration will depend on
the physical product or statement by the distributor
3 2 Functions.

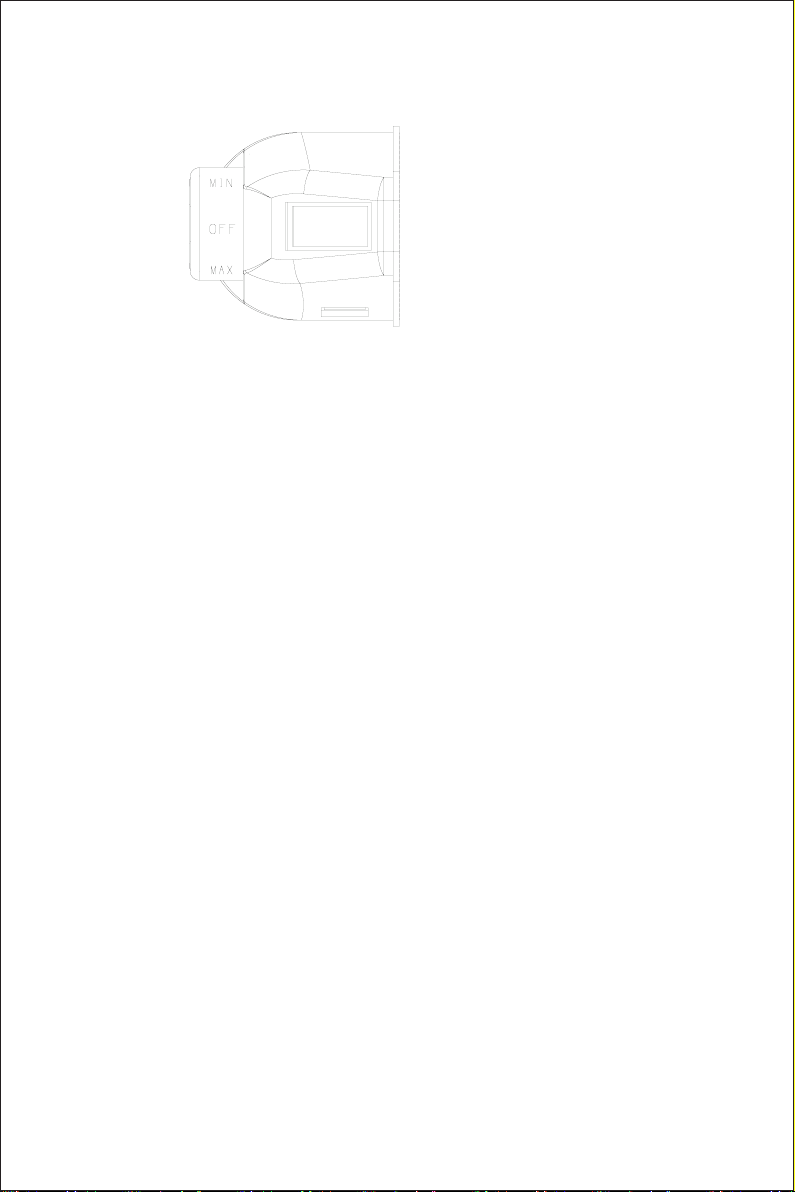

Turn the temperature control knob to MAX, the internal temperature of the refrigerator becomes lower;
Turn the temperature control knob to MIN, the internal temperature of the refrigerator becomes higher.
NOTE: Please adjusting and using between "MAX" and "MIN".

13
4. Maintenance and care of the refrigerator
4.1Cleaning
The appliance shall run continuously once it is started. Generally, the operation of the appliance
shall not be interrupted;otherwise the service life may be impaired
4 3. Stop using
Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for
several hours; during the power failure, the times of door opening shall be reduced, and no more fresh
food shall be put into the appliance.
Long-time nonuse: The appliance shall be unplugged and then cleaned; then the doors are left open
to prevent odor.
Moving: Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder,
freezing chamber drawers and etc. with tape, and tighten the levelling feet; close the doors and fix them
with tape. During moving, the appliance shall not be laid upside down or horizontally, or be vibrated;
the inclination during movement shall be no more than 45°.
4 2 Defrost.
Remove the food from the and place it properly to prevent food from melting.
Clear the drain pipe (to use soft materials to prevent damage to the liner), Prepare the water containers for
defrosting.
(pay attention to clean the compressor compartment water draining tray,Avoding overflow to the ground).
You can use the natural temperature for the natural defrost, you can also use the ice shovel to eliminate the
frost (to use plastic or wooden ice shovel, for avoding damage to the liner or pipe)
You can also use the appropriate amount of hot water to speed up the defrost, with a dry towel to dry
the water after defrosting.
After defrosting, put back the foods in cabinet , and power on the refrigerator.
Power off the refrigerator.
refrigerator
Dusts behind the refrigerator and on the ground shall be timely
cleaned to improve the cooling effect and energy saving.
Check the door gasket regularly to make sure there are no debris.
Clean the door gasket with a soft cloth dampened with soapy water
or diluted detergent.
The interior of the refrigerator should be cleaned regularly to avoid odor.
Please turn off the power before cleaning interior, remove all foods,
drinks ,shelves, drawers, etc.
Use a soft cloth or sponge to clean the inside of the refrigerator, with
two tablespoons of baking soda and a quart of warm water. Then
rinse with water and wipe clean. After cleaning, open the door and
let it dry naturally before turning on the power.
For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or
corners), it is recommended to wipe them regularly with a soft rag, softbrush, etc. and
when necessary,combined with some auxiliary tools (such as thin sticks) to ensure no
contaminants or bacterials accumulation in these areas.
Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors
in the interior of the refrigerator or contaminated food.
Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water
or diluted detergent. Dry with a soft cloth or dry naturally.
Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water,
detergent, etc., and then wipe dry.
Do not use hard brushes, clean steel balls, wire brushes, abrasives(such as toothpastes),
organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid
or alkaline items, which may damage the cooler surface and interior. Boiling water
and organic solvents such as benzene may deform or damage plastic parts.
Do not rinse directly with water or other liquids during cleaning to avoid short
circuits or affect electrical insulation after immersion.
Please unplug the for defrost and cleaning. refrigerator
det ergent

Loud noise
Check whether the floor is level and whether the refrigerator is placed stably
Check whether accessories are placed at proper locations
Water pan
overflows
There is too much food in the chamber or food stored contains
too much water,resulting in heavy defrosting
The doors are not closed properly, resulting in frosting due to entry
of air and increased water due to defrosting
5 Trouble shooting
5 1You may try to solve the following simple problems by yourself.
If them cannot be solved, please contact the after-sales department.
.
Failed operation
Check whether the appliance is connected to power or
whether the plug is in well contact
Check whether the voltage is too low
Check whether there is a power failure or partial circuits have tripped
Odor
Odorous foods shall be tightly wrapped
Check whether there is any rotten food
Clean the inside of the refrigerator
Light fails to get lit
Check whether the refrigerator is connected to power supply and
whether the illuminating light is damaged
Have the light replaced by a specialist
Door seal fails to
be tight
Remove foreign matters on the door seal
Heat the door seal and then cool it for restoration
(or blow it with an electrical drier or use a hot towel for heating)
Hot housing
Heat dissipation of the built-in condenser via the housing, which is normal
When housing becomes hot due to high ambient temperature,
storage of too much food,provide sound ventilation to facilitate heat dissipation
Abnormal noise
Long operation of the refrigerator is normal in summer
when the ambient temperature is high
It is not suggestible having too much food in the appliance at the same time
Food shall get cool before being put into the appliance
The doors are opened too frequently
Long-time operation
of the compressor
The door is stuck by food packages
Too much food is placed
The refrigerator is tilted
Doors cannot be
properly closed
Surface
condensation
Condensation on the exterior surface and door seals of the refrigerator
is normal when the ambient humidity is too high. Just wipe the condensate
with a clean towel.
Buzz: The compressor may produce buzzes during operation, and the buzzes
are loud particularly upon start or stop. This is normal.
Creak: Refrigerant flowing inside of the appliance may produce creak,
which is normal.
14

Customer Service/Servicio al Cliente
Toll Free/Llamada Gratuita: 1-866-646-4332
www.midea.com
