Big green egg 128003 User manual

Congratulations on your purchase of the Professional Remote Food

Thermometer, a programmable radio frequency food thermometer. You will

now be able to remotely monitor the temperature of cooking food and the

temperature inside your EGG from anywhere in your home.

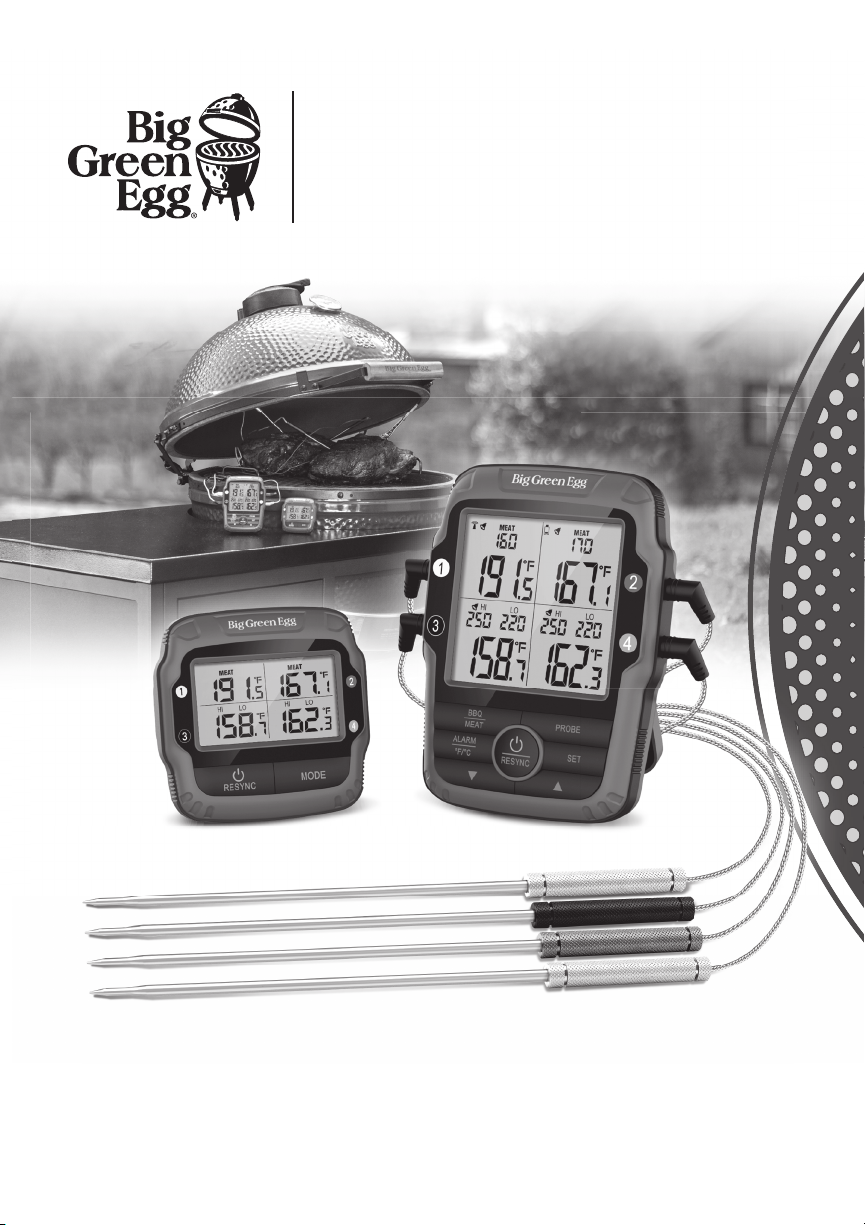

Components

1 x Receiver

1 x Transmitter

4 x Detachable, color coded stainless steel probes with steel mesh cable

4 x AAA batteries

2 x Clips

Transmitter Features

• LCD (Liquid Crystal Display) Screen - Displays all icons and temperature

• Low Battery Indicator (Will show on Probe #2)

• Remote Range: 1000 ft (305 m)

• IPX4 Water Resistant (Protects from splashing water, but do not

submerge in water)

• Touch Backlight

• Temperature Alarm

• Four Color Coded Stainless Probes

• Temperature Range of Probe: 14°F to 572°F(-10°C to 300°C)

• Temperature Accuracy: +/-1.8°F(+/-1.0°C)

• All probes can choose between BBQ and MEAT

• Battery Compartment: Holds 2 x AAA batteries, 3.0V

• Tabletop Stand, Magnet and Wall-Mounted Design

Transmitter Buttons

1. BBQ/MEAT - Press once to display HI, LO or MEAT.

2. ALARM / °F/°C - Press once to turn on/off the alarm. Press and hold for 3

seconds to switch between °F and °C.

3. - Press to decrease the temperature setting. Press and hold for 3

seconds to rapidly scroll through digits.

4. PROBE - Press to rotate through the four temperature probes. When a

probe is selected, the current temperature on the display will be ashing. To

disable/enable the alarm function, press and hold for 3 seconds.

5. SET - Press and hold for 3 seconds to set the temperature (BBQ HI, LO

temperature or MEAT temperature). Press once again to conrm.

6. - Press to increase the temperature setting. Press and hold for 3

seconds to rapidly scroll through digits.

7. Power/RESYNC - Press to turn on/off the transmitter. Press and hold for 3

seconds to enter the Synchronization/Pairing process.

8. Big Green Egg - Touch to turn on/off the backlight. Backlight will

automatically turn off after 15 seconds of inactivity.

Receiver Features

• LCD (Liquid Crystal Display) Screen - Displays all icons, temperature

• Low Battery Indicator (Will show on probe #2)

• Remote Range: 1000 ft (305 m)

• IPX4 Waterproof (Protects from splashing water, but do not submerge in water)

• Touch Backlight

• Tabletop Stand, Magnet Design

• Temperature Alarm Mode: Beep Alarm, Vibration Alarm, Beep and

Vibration Alarm and Silent Mode

Receiver Buttons

1. Power/RESYNC - Press to turn on/off the receiver. Press and hold for 3

seconds to enter the Synchronization/Pairing process.

2. MODE - Default is Beep Alarm Mode. Press once to switch to Vibration

Mode; press again to switch to Beep and Vibration Mode; press once

more to switch to Silent Mode.

3. Big Green Egg - Touch to turn on/off the backlight. Backlight will

automatically turn off after 15 seconds of inactivity.

Installing Batteries

Open the battery compartment of both the transmitter and receiver and

insert two AAA batteries with correct polarity.

Turn On/Off Unit

Press the Power/RESYNC button on the receiver to turn on/off the receiver.

Press the Power/RESYNC button on the transmitter to turn on/off the transmitter.

Operating Instructions

1. Plug the temperature probes into the corresponding probe sockets on

the transmitter.

2. The LCD screen will display all icons for 2 seconds and you will hear a

"beep"; then you will see the current default temperature on the LCD screen.

Probes 1 and 2 will display MEAT 160°F. Probes 3 and 4 will display

HI 250°F and LO 220°F.

3. If you do not insert the probes into the transmitter, the LCD screen will

display "---".

4. When all 4 probes are inserted into the transmitter, it will display the current

temperature of each probe.

5. Touch the Big Green Egg (backlight button) on the top of the transmitter to

turn on/off the backlight.

6. Press the ALARM button on the transmitter to turn on/off all probes' alarm.

Press the PROBE button to select the probe, then press and hold PROBE

button for 3 seconds to turn on/off the corresponding probe's alarm.

How to Set Meat Temperature to Your Speciﬁc Taste

1. Press the PROBE button to choose between probe 1/2/3/4. You will see the

corresponding probe’s current temperature ashing on the LCD screen.

2. Press the BBQ/MEAT button until you see MEAT on the LCD screen.

Press and hold the SET button for 3 seconds. You will see the default meat

temperature (160°F) begin to ash.

3. Press the or buttons to raise or lower the set temperature. Press and

hold the or buttons to rapidly scroll through digits.

4. Press SET again to conrm. The ashing will stop.

How to Set BBQ Temperature

1. Press the PROBE button to choose between probe 1/2/3/4. You will see the

corresponding probe’s current temperature ashing on the LCD screen.

2. Press BBQ/MEAT button until you see BBQ on the LCD screen. Press and

hold the SET button for 3 seconds. You will see default HI temperature

(250°F) begin to ash.

3. Press the or buttons to set your desired HI BBQ temperature. Press

and hold the or buttons to rapidly scroll through digits.

4. Press SET again to conrm.

5. The default LO temperature (220°F) will begin to ash. Press the or 

buttons to set your desired LO BBQ temperature. Press and hold the

 or buttons to rapidly scroll through digits.

6. Press SET again to conrm. The ashing will stop.

NOTE: The HI BBQ temperature range is 33°F - 572°F and the default

setting is 250°F. The LO BBQ temperature range is 32°F - 571°F and the

default setting is 220°F.

7. To set probe 2, 3, 4's temperature, select the probe and repeat the rest of

the steps above.

8. The thermometer will save the current settings after the unit is turned off.

9. After you are nished setting the temperature, you can begin to monitor the

MEAT and BBQ temperatures. Insert each probe into the meat or place in

the BBQ/SMOKER/OVEN with the BBQ Clips. The receiver will receive an

updated temperature every 12 seconds.

10. Once the temperature of the MEAT/BBQ reaches the set temperature, both

the transmitter and receiver will sound an alarm, the LCD backlight will turn

on, and the corresponding probe on the display will ash. Press any button

to stop the alarm.

Details about HI and LO Alarm

1. The alarm will not be activated if the current temperature is below the LO

setting or above the HI setting. For example, current temperature is 86°F,

the HI setting is 194°F, the LO setting is 140°F, the alarm will not be activated.

Once the current temperature goes above 140°F, and then drops below

140°F, the LO temperature alarm will be activated. Once the current

temperature goes above 194°F, the HI temperature alarm will be activated.

2. The alarm settings will be saved after the unit is turned off.

Auto Off Feature

The receiver will turn off automatically if it hasn't received a temperature signal

from the transmitter for more than 30 minutes. An alarm will sound for one

minute before it automatically turns off. The transmitter will automatically turn

off if the temperature of the 4 probes stays below 104°F for 2 hours. The unit

will save the current settings after the unit is turned off.

Synchronize/Pair Transmitter and Receiver

The transmitter and receiver were already paired at our manufacturing facility.

Usually you do NOT need to re-synchronize or re-pair the units. Simply plug in

the probes, insert batteries, and turn on the receiver and transmitter. After a

few seconds, the temperatures will show on both the receiver and transmitter,

and the units are ready for use. However, if the transmitter and receiver are no

longer paired, you may re-synchronize them as follows:

Option 1:

1. Insert two AAA batteries into the receiver; the signal icon on the display will ash.

2. Insert two AAA batteries into the transmitter and insert the stainless-steel

probes into the corresponding probe sockets in the transmitter. The LCD

screen will show the current temperatures of each probe.

3. Wait for a few seconds. The transmitter will send the signal to the receiver

and once you see the current temperatures on the receiver, the thermometer

is ready for use.

Option 2:

1. Press and hold the POWER/RESYNC button on receiver for three seconds

to enter the synchronization mode. Then press and hold the POWER/RESYNC

button on transmitter for three seconds.

2. Wait for a moment until the temperature reading shows on the receiver

display; it means the synchronization/pairing is complete. Your thermometer

is now ready for use.

Note: The synchronization between the transmitter and the receiver won't be

lost even if you replace the batteries.

Helpful Hints

• If the receiver and/or the transmitter do not show the temperature, wait for

the probe to reach room temperature. Be sure the probe jacks are fully

inserted into the transmitter and gently twist them back and forth to ensure

good contact. If the problem persists, it is likely the internal probe wire has

shorted out either through moisture or heat damage.

Includes four temperature probes to

remotely monitor the temperature of

food or the temperature inside the EGG.

• Within the warranty period, contact us and we will send you a replacement

probe at no charge.

• If the temperature displayed seems to read too high or the temperature

seems to increase too quickly, check to make sure the probe tip is not

poking through the food. Re-position the probe tip in the center of the

thickest part of the food. Avoid touching bone or heavy fat areas.

Precautions

1. Always wear a heat resistant glove to touch the stainless-steel probe

sensors or wires during or just after cooking. Do not touch with bare hands.

2. Keep the stainless steel probe sensors and wires away from children.

3. Clean the stainless steel probes and dry thoroughly after each use.

4. Do not expose the plugs of the stainless-steel probes or the probe sockets

of the transmitter to water or any liquid. This will result in a bad connection

and faulty readings.

5. Wipe the transmitter and receiver with damp cloth.

6. Do not expose the receiver or transmitter to direct heat.

7. Do not use stainless steel probes in a microwave oven.

8. The probe thermometer registers temperatures as low as 14°F (-10°C) and

as high as 572°F (300°C). Do not use the stainless probe sensor above

572°F. Doing so will deteriorate the wire.

9. Not intended for use by persons aged 12 and under.

Cleaning

• Always wear a heat resistant glove to touch the stainless steel probe sensor

or wire during or just after cooking. Do not touch with bare hands.

• Keep the stainless steel probe sensor and wire away from children.

• Wash the metal probe tip with hot soapy water and dry thoroughly. Do not

immerse the probe in water while cleaning.

• Wipe the transmitter and receiver with damp cloth. Do not immerse either in water.

FCC Compliance – Information to user

Warning: Changes or modications to this unit not expressly approved by the

party responsible for compliance could void the users' authority to operate the

equipment.

Note: This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instruc-

tions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television recep-

tion, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject

to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference

that may cause undesired operation.

Declaration of Conformity

Hereby, the manufacturer declares that this product complies with the basic

requirements and applicable regulations of the Radio Equipment Directive

2014/53/EU, the EMC Directive 2014/30/EU.

Disposal

• Protect our environment: do not dispose of electrical equipment in the

domestic waste.

• Return any electrical equipment that you will no longer use to the collection

points provided for their disposal.

• This helps avoid the potential effects of incorrect disposal on the

environment and human health.

• This will contribute to the recycling and other forms of reutilization

of electrical and electronic equipment.

• Information concerning where the equipment can be disposed of can be

obtained from your local authority.

CAUTION: Batteries/rechargeable batteries must not be disposed of with

household waste!

• The batteries must be removed from the appliance.

• Take spent batteries to the appropriate collection point or to a dealer.

•

Your town or local authority can provide information about public collection points.

This symbol can be found on batteries/rechargeable batteries, which

contain hazardous:

Pb = contains lead

Cd = contains cadmium

Hg = contains mercury

Li = contains lithium

Limited One-Year Warranty

ThermoPro warrants this product to be free of defects in parts, materials and

workmanship for a period of one year, from date of purchase. Should any

repairs or servicing under this warranty be required, contact Customer Service

by phone or email for instructions on how to pack and ship the product to

ThermoPro. This warranty gives you specic legal rights and you may also

have other rights which vary from state to state.

Wireless Remote Food

Thermometer with Four

Temperature Probes

128003
