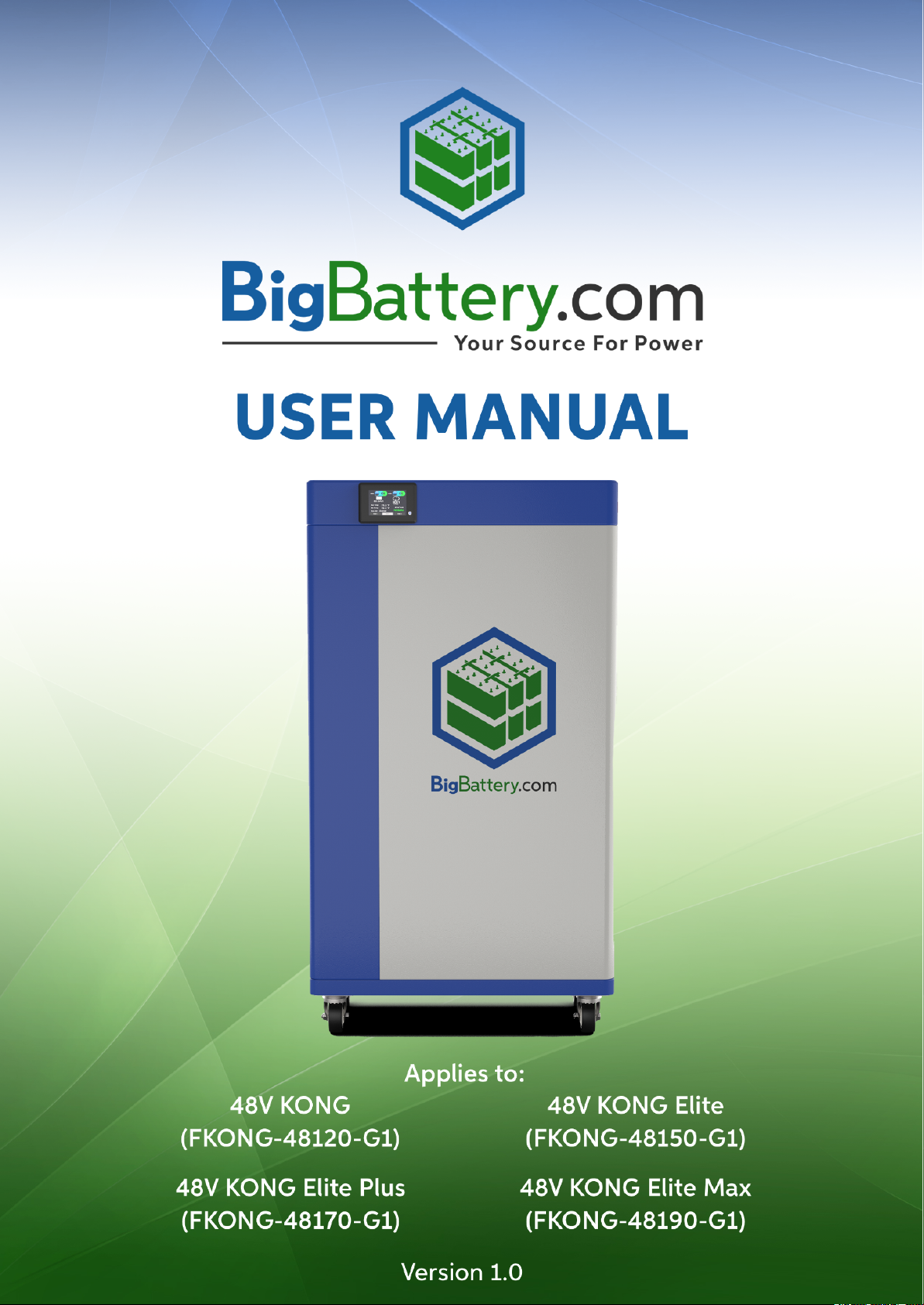

BigBattery 48V KONG User manual

-
w

Table of Contents
1. Introduction . . . . . . . . . . . 2
2. Applications & Features . . . . . . . . . . . 2
3. Product Specifications . . . . . . . . . . . 3
3.1 Battery Specs . . . . . . . . . . . 3
3.2 BMS Specs . . . . . . . . . . . 4
4. Warnings & Precautions . . . . . . . . . . . 6
5. Parts & Components . . . . . . . . . . . 7
5.1 Installation Safety Guidelines . . . . . . . . . . . 7
5.2 Parts & Components . . . . . . . . . . . 7
5.3 Battery Installation . . . . . . . . . . . 8
6. Battery Interface . . . . . . . . . . . 9
6.1 Overview . . . . . . . . . . . 9
6.2 BMS Codes . . . . . . . . . . 10
7. Recycling . . . . . . . . . . 10
8. Warranty & Returns . . . . . . . . . . 11
1
Need Further Assistance?
Email us @ [e-mail] (OR) Call us @ # [phone].

1. Introduction
Introducing BigBattery’s KONG family! Each battery in the 48V KONG family is a
massive single battery, packing a whopping 12 kWh of capacity in our KONG, and up
to 19 kWh of capacity in our KONG Elite Max! These are the BEST Batteries Money
can Buy. These units utilize Lithium Iron Phosphate (LiFePO4/LFP), which is the
SAFEST battery chemistry in the World. This User Manual is designed to provide you
with an understanding of the specs, features, capabilities, and installation of these
batteries. Read and take note of all safety information prior to installing or operating
your battery. This document applies to the BigBattery KONG (FKONG-48120-G1),
KONG Elite (FKONG-48150-G1), KONG Elite Plus (FKONG-48170-G1), and KONG Elite
Max (FKONG-48190-G1).
2. Features & Applications
Applications:
●Solar
●Home
●Cabin Off-Grid
●Backup Power
Features:
●Advanced BMS (Battery
Management System)
●Lithium-Ion LiFePO4/LFP
Chemistry
●Easy connection to a larger
power system
●Multiple layers of safety and
battery protection
●High quality & durable steel
construction
●Utilizes standardized 175-amp
connector for battery power
source
●LED Smart Display
BigBattery’s KONG family of batteries is the ultimate solution for your solar systems,
off-grid power systems, emergency power supplies, and more. These batteries come
equipped with an advanced BMS, and can operate safely within a wide temperature
range. They will last you at least 3,700 – 8,000 Complete Full Charge/Discharge Cycles,
and are incredibly versatile, allowing you to easily connect to and provide power to a
variety of larger power systems. The battery utilizes a standard 175 connection, which
easily and safely secures power to your battery unit.
You can always monitor your battery's health and performance with the LED interface
located on the side of the unit, which will display BMS status codes alerting you to the
condition of your battery. Equipped with one of our KONG family batteries from
BigBattery, you’ll stay powered and prepared!
2
Need Further Assistance?
Email us @ [e-mail] (OR) Call us @ # [phone].

3. Product Specifications
3.1 Battery Specs
Parameter
Specification
Unit
Chemistry
Lithium Iron Phosphate,
LiFePO4/LFP
Cell Configuration
16S
n/a
Nominal Voltage
48
Volts (DC)
Capacity(Ah) - KONG
Capacity(Ah) - KONG Elite
Capacity(Ah) - KONG Elite Plus
Capacity(Ah) - KONG Elite Max
233
300
332
372
Amp-hours
Amp-hours
Amp-hours
Amp-hours
Capacity(kWh) - KONG
Capacity(kWh) - KONG Elite
Capacity(kWh) - KONG Elite Plus
Capacity(kWh) - KONG Elite Max
12.0
15.0
17.0
19.0
Kilowatt-hours
Kilowatt-hours
Kilowatt-hours
Kilowatt-hours
Operating Voltage Range
43 – 58.8
Volts (DC)
Charging Voltage Range
55.6 - 58.0
Volts (DC)
Max Charging Voltage
58.8
Volts (DC)
WARNING: Do NOT exceed max charging voltage.
Charging Current Limit
(Continuous)
90
Amps
Discharging Current Limit
(Continuous)
150
Amps
Max Peak Discharge Current
(Over 6 seconds)
350
Amps
Charge Temp Range
0 - 55
(32 - 131)
°C
(°F)
Discharge Temp Range
-30 - 55
(-22 – 131)
°C
(°F)
Optimal Discharge Temp Range
15 - 35
(59 - 95)
°C
(°F)
Storage Temperature Range
(Max 6 months)
(Humidity < 90%)
-5 - 35
(23 - 95)
°C
(°F)
Optimal Storage Temp Range
15 - 35
(59 - 95)
°C
(°F)
Weight
273
(600)
kg
(lb)
Length
64.8
(25.5)
cm
(in)
3
Need Further Assistance?
Email us @ [e-mail] (OR) Call us @ # [phone].

Width
38.1
(15)
cm
(in)
Height
118.1
(46.5)
cm
(in)
Safety Features
BMS (Battery Management System), Over
Voltage, Under Voltage, Over-Current
Protection, Thermal Management System,
300A Fuse
Max Battery Connections
Series: Not series capable
Parallel: Max. 8 connections
3.2 BMS Specs
Category
Function
Specification
Unit
Charge Voltage
Protection
Maximum Charger
Voltage (CC-CV)
58.8
Volts (DC)
Overcharge Voltage Limit
Cutoff Protection (each
cell)
3.8
Volts (DC)
Overcharge Voltage Limit
Protection Delay Time
2000
Milliseconds
Overcharge Protection
Recovery Voltage
3.45
Volts (DC)
Discharge
Voltage
Protection
Low Voltage Protection
Limit Range
2.5 - 2.7
Volts (DC)
Low Voltage Protection
Delay Time
2000
Milliseconds
Low Voltage Protection
Recovery
3.0
Volts (DC)
Overcurrent
Protection
Charge Overcurrent
Protection Value Range
270 - 330
Amps
Charge Overcurrent Delay
10
Seconds
Charge Overcurrent
Release Recovery
Condition
Reconnection delayed 120
seconds
Scenario 1:
Discharge Overcurrent
Protection
300
Amps
Scenario 1:
Discharge Overcurrent
Protection Delay
10
Seconds
Scenario 2 (Short Circuit):
800 - 1200
Amps
4
Need Further Assistance?
Email us @ [e-mail] (OR) Call us @ # [phone].

Discharge Overcurrent
Protection Range
Scenario 2 (Short Circuit):
Discharge Overcurrent
Protection Delay Range
600 - 1800
Milliseconds
Discharge Overcurrent
Protection Recovery
Condition
Reconnection delayed 120
seconds
Balance
Function
Minimum Cell Voltage to
Activate Cell Balancing
3.35
Volts (DC)
Voltage Difference to
Activate Cell Balancing
10
Millivolts
(DC)
Balancing Mode
Balance when charging
Balancing Current Range
100 - 260
Milliamps
Temperature
Protection
High Temperature
Protection Value when
Charging
65
(149)
°C
(°F)
High Temperature
Protection Release Value
when Charging
55
(131)
°C
(°F)
Low Temperature
Protection Value when
Charging
-2
(28.4)
°C
(°F)
Low Temperature
Protection Release Value
when Charging
3
(37.4)
°C
(°F)
High Temperature
Protection Value when
Discharging
75
(167)
°C
(°F)
High Temperature
Protection Release Value
when Discharging
65
(149)
°C
(°F)
Low Temperature
Protection Value when
Discharging
-20
(-4)
°C
(°F)
Low Temperature
Protection Release Value
when Discharging
-10
(14)
°C
(°F)
Resistance
Resistance in the
Discharge Circuit Range
5 - 10
Milliohms
Self-Power
Consumption
Operating Mode Range
(relay closed)
35 - 50
Microamps
Sleep Mode
0.5
Microamps
Sleep Conditions
No current, communication, or
prolonged protection states
Time to Sleep Mode
18 hours
5
Need Further Assistance?
Email us @ [e-mail] (OR) Call us @ # [phone].

4. Warnings & Precautions
Lithium Iron Phosphate (LiFePO4) batteries are an inherently safe chemistry.
However, safety measures should always be taken. Adhere to the instructions within
this User Manual for safe handling and operation.
Warnings:
Do not charge with a charge voltage above 58.8V.
Do not charge nor discharge battery when ambient temperature is above 55 °C
(131 °F).
Do not install battery where it may contact conductive materials, water, seawater,
strong oxidizers, nor strong acids.
Do not install battery in a location exposed to direct sun, hot surfaces, nor hot
locations. Do not install batteries in a tight clearance compartment, overheating
may result.
Keep any flammable/combustible material (e.g. paper, cloth, plastic, etc.) that may
be ignited by heat, sparks, flames, or any other heat source at a minimum distance
of two feet away from the batteries.
Disconnect batteries immediately if, during operation or charging, they emit an
unusual smell, develop heat, or behave abnormally.
Have a Class ABC or Class BC fire extinguisher on the premises.
Precautions:
Handle batteries and/or battery-powered devices cautiously to not damage
the battery casing or connections.
Do not charge battery if ambient temperature is below 0°C (32 °F), nor
discharge battery if ambient temperature is below -30 °C (-22 °F).
Before storing battery for more than 6 months, charge the battery to 53V or
above.
For long-term storage, disconnect batteries from your power system.
Always wear protective gear when handling batteries.
Do not place any objects on top of batteries.
Make sure all cable connections are properly tightened.
Install and remove batteries using the handles provided.
6
Need Further Assistance?
Email us @ [e-mail] (OR) Call us @ # [phone].

5. Parts & Components
WARNING: Before installing, make sure to review all warnings and
precautions in Section 4, as well as the installation safety guidelines in
Section 5.1 below.
5.1 Installation Safety Guidelines
●Inspect batteries upon receipt for any signs of damage before use.
●Check to ensure that all cables are in good condition.
●Use a screwdriver with a rubber coated handle.
●When your battery has been charging and has come to maximum charge (up to
58.8V max.), your battery may experience a slight voltage drop either immediately or
within the hour after unplugging. This is normal and should be no cause for concern.
5.2 Parts & Components
General

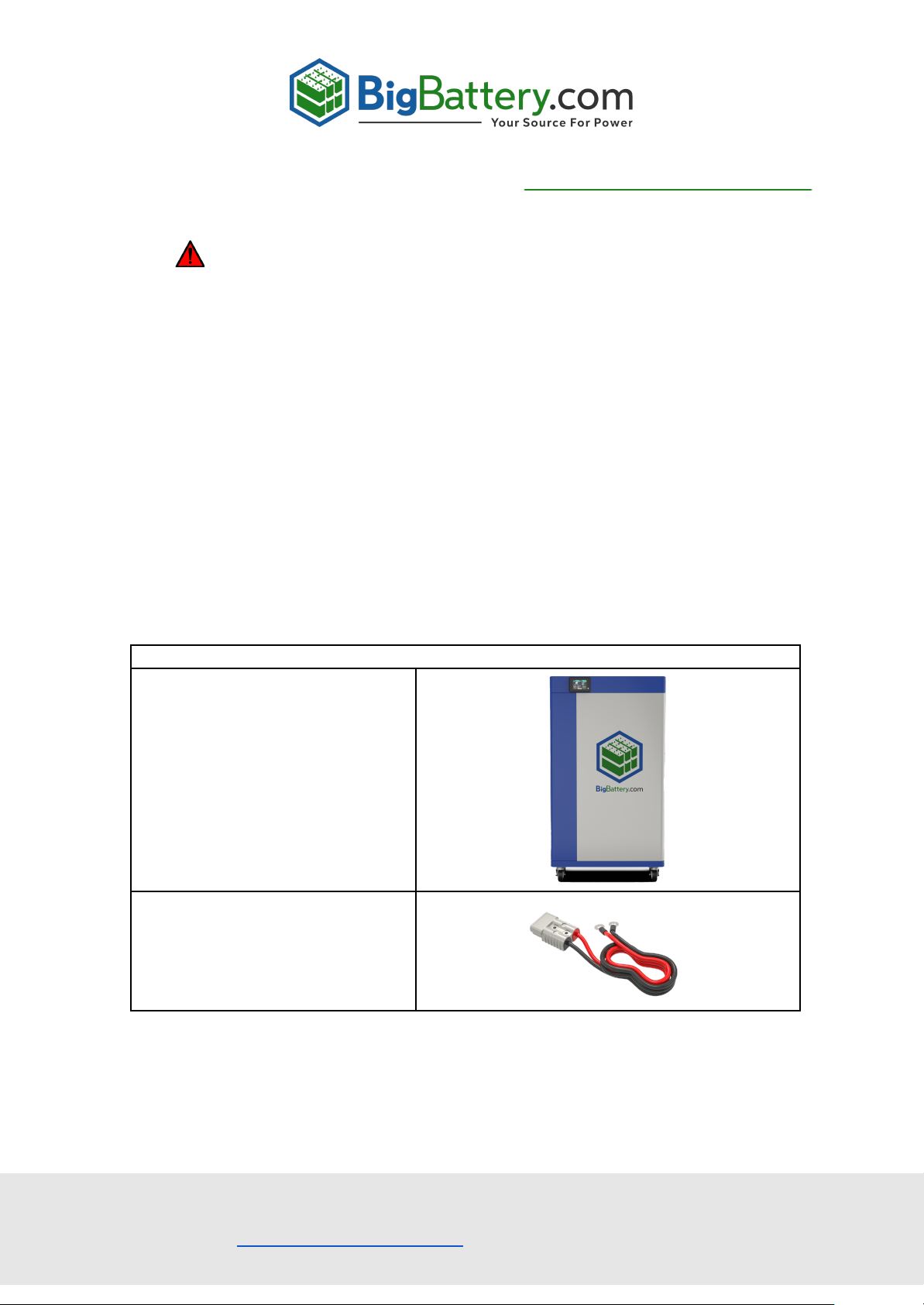

Battery Unit (1)
64.8 x 38.1 x 118.1 cm
(25.5 x 15 x 46.5 in)
Ring Terminal to 175-amp
connector cable (1)
101.6 cm
(40 in)
7
Need Further Assistance?
Email us @ [e-mail] (OR) Call us @ # [phone].

5.3 Battery Installation
Tools needed:
- Screwdriver
Step 1:
Determine the best location to
accommodate your battery unit
for operation.
Step 2:
Unscrew thin metal panel on the
backside of your KONG Elite unit,
using a mini screwdriver.
Step 3:
Connect the standardized
connector side of your 175-amp
Ring Terminal connector cable to
the receiving connector located
on the battery unit.
Step 4:
Place the battery in the space
where you will store it and
operate it.
Step 5:
Lock the wheels so they are not
free to move. This will make your
battery unit more stable in place.
Step 6:
Turn the battery on by pressing
the power button located on the
LED screen.
8
Need Further Assistance?
Email us @ [e-mail] (OR) Call us @ # [phone].

6. Battery Interface
6.1 Overview
9
Need Further Assistance?
Email us @ [e-mail] (OR) Call us @ # [phone].

6.2 BMS Codes
Symbol
Category
Description
COV
Voltage Protection
Over voltage protection by battery
cell level
CUV
Voltage Protection
Under voltage protection by battery
cell level
POVP
Voltage Protection
Whole pack over voltage protection
PUVP
Voltage Protection
Whole pack under voltage protection
COCP
Temperature
Protection
Over temperature protection while
charging
CUTP
Temperature
Protection
Under temperature protection while
charging
DOCP
Temperature
Protection
Over temperature protection while
discharging
DUTP
Temperature
Protection
Under temperature protection while
discharging
COTP
Current Protection
Overcurrent protection while
charging
SC
Short Circuit
Short circuit protection
LOCK
Status
Lock status
NOMAL
Status
Normal status
7. Recycling
Please dispose of LiFePO4 batteries at an authorized lithium recycling facility, or
return to BigBattery. We can take care of recycling your batteries for you.
10
Need Further Assistance?
Email us @ [e-mail] (OR) Call us @ # [phone].

8. Warranty & Returns
In the unlikely event you are having an issue with one of our batteries we have
developed a straightforward warranty & return policy which includes the following:
●For all returns or warranty claims contact[e-mail].
●30-day money back guarantee.Returns of undamaged batteries unrelated to warranty
claims may be issued full refunds less a 20% restocking fee.
●We have a10-year warrantyon all new batteries. For more information, visit the Policies
page at BigBattery.com.
●We offer a 30-day warranty on all cells, accessories & complimentary products
(Anderson connectors, wires, chargers, etc.).
●Warranty only applies to original owner (non-transferable).
●Warranties can be used for an exchange of a component only once per component.
●Operating the battery outside of acceptable parameters, according to our listed battery
specs (ref. Section 3.1) will void your warranty.
●Example: Using an incorrect charger may exceed max. charging voltage
specifications.
●WARNING: Make sure to use the appropriate charger for your battery.
●Customer pays return shipping on returns or warrantied component inspections initiated
after the first 30 days of ownership. Please note some battery returns may require
special documentation and packaging, and these instances will encounter extra fees.
This is to correctly comply with lithium battery shipping regulations.
●If you have a quality issue with a product, pleasecontact our support teamto help
properly diagnose the problem. If the product you receive does not meet our rigorous
quality standards, then we will issue you a replacement component or fix the original at
no additional cost. Replacement batteries or components will only be sent after we have
received your returned battery or component and finished an inspection to determine the
cause of any problems. BigBattery is not responsible for return shipping.
●DIY modifications or damage due to gross negligence or abuse are not covered by the
warranty.

For all returns, please mail your package in a traceable method to the address below. Include
a note with your name, your order number and describing your situation and/or request.

BigBattery Inc.
Technical Support Team
[e-mail]
[phone], ext. 1005
9667 Owensmouth Ave., Suite 105
Chatsworth, California 91311
11
Need Further Assistance?
Email us @ [e-mail] (OR) Call us @ # [phone].
