Stabilmove C 620 User manual

Filming in a New Dimension
_____________________________________________
!
!
Thank you for buying the STABILMOVE Camera Crane. You have purchased a tool that will enable
you to create stabilised video camera shots, including flawlessly smooth pans and pivots that were
previously only possible with great technical effort.
Please note the following safety tips:
The camera arm must be used appropriately, which means that the amount of counterweight as well
as the pivoting degree should not exceed the specified ranges.
Manual operation is required for each movement. Be aware of the risk of pinching yourself while
manipulating the crane, and be sure to ensure a free range of pivoting.
Never leave the mounted arm unattended.
The manufacturer cannot be held responsible for any damage caused by incorrect use.
Damaged parts can compromise not only your safety, but the protection of the camera and its
functional reliability. Therefore, please have all essential repair work be carried out by STABILMOVE.
Incorrect repairs and structural alterations can damage the arm and/or the camera as well as lead to
physical injuries.
Always ensure to correctly attach the arm to the tripod and the camera to the arm. Make sure the
control knob is secured at the quick change plate. Always ensure a balanced setting, and make sure
that correct counterweight is added to the camera's net weight where appropriate to the ball head.
When loosening the red knobs, turn them only slightly past their built-in stop. Otherwise you will
destroy the safety measure in place to protect their hold.
Protect your STABILMOVE Crane from moisture, and make sure to keep all dust, dirt, and other
contaminants away from the ball bearings.
When in doubt, please contact [e-mail].

Quick Setup Guide
In order to quickly and safely assemble your camera crane, it is equipped with a MANFROTTO quick
change system. This means that the respective counterparts for the tripod and the camera (not
included) need to be mounted.
Important! Until the camera crane is completely mounted, your tripod’s load will be lopsided.
Make sure the tripod is not overloaded and that is does not tip over.
Set up your tripod upright and make sure it is in a stable position. Now place the camera crane onto
the tripod until it snaps into the quick-release plate. You will hear a clear clicking sound. Use the safety
catch to lock the connection in place.
Now put the counter-balance weights on the holding bar of the crane. The camera's weight, including
the ball head, must never exceed:
•C 620 bis 1100 g
•C 730 bis 2200 g
•
Tip:
We recommend the use of a ballhead (not included) as this lends full functionality to the crane by
enabling camera shots of a subject from above or below.
Mount the ball head onto the camera crane and then your camera onto the ball head. With each
attachment, don’t forget to lock the safety catch into place.

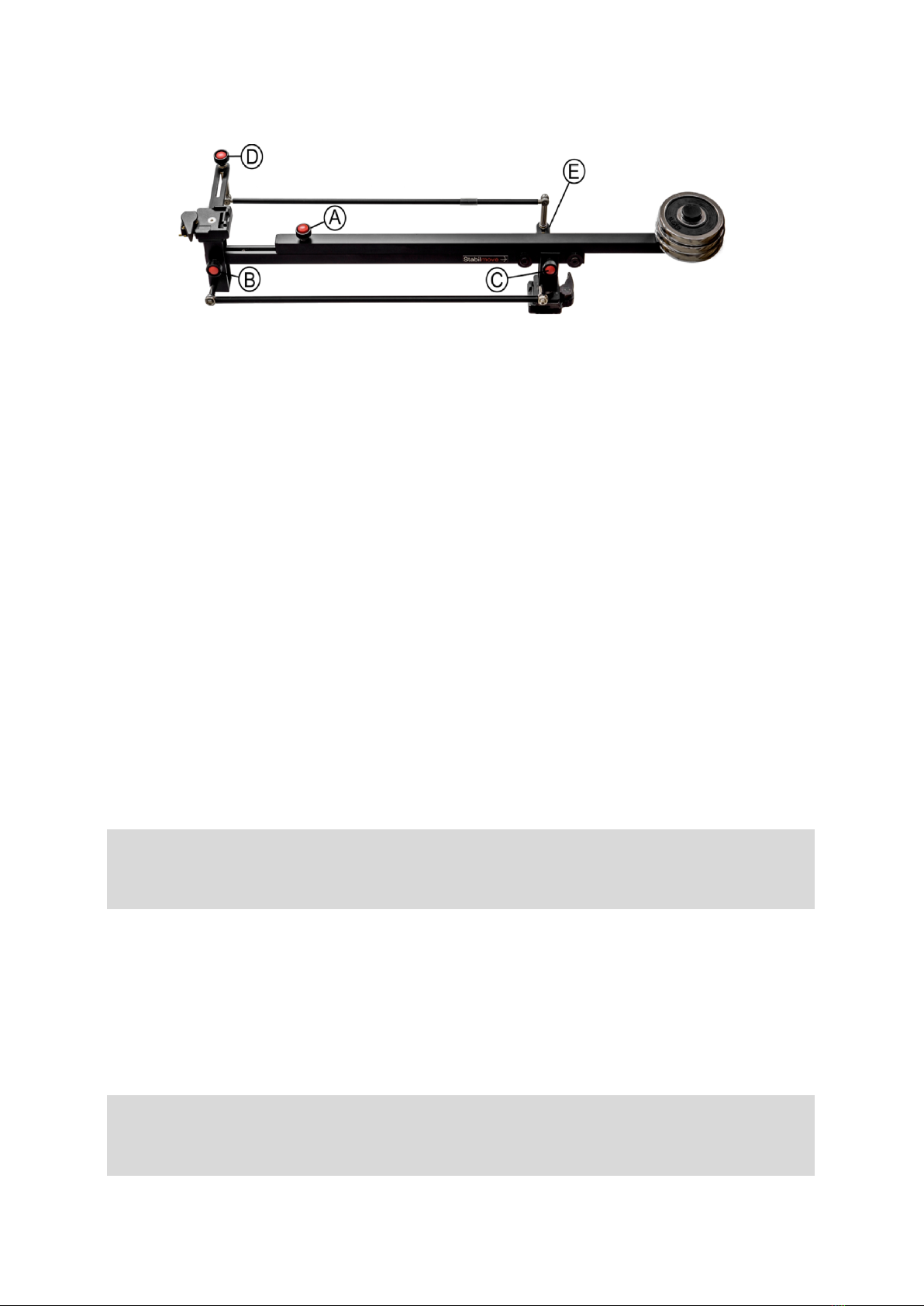

Balance the crane and turn the red STABILMOVE Knob A slightly. Now pull the arm out until the
crane is in equilibrium. Then gently tighten the knob again.
Tip:
During calibration, gently loosen both red STABILMOVE Knobs B and C. This will ensure that the
function of vertical camera movements isn’t affected.

Features:
For vertical camera moves, both red STABILMOVE Knobs B and C are slightly loosened at the anchor
profile. For horizontal shots, the following options are available:
Make sure the base setting of the guide arm is aligned at an exact right angle to the camera crane.
Parallel Panning shot
For this shot, adjust the red STABILMOVE Knobs D and E at the exterior insets of the guide arms.
Turn the knobs only slightly.
Arc shot (circular pivot)
Set the camera in the default position so it faces the middle of the subject matter. Now rotate the crane by
20 !-30 !(depending on the subject). Loosen Knob D by half a turn until the camera is aligned to the middle of
the image. Make sure you turn the knob only slightly.
Broad Pivot (Panorama) shot
Set the camera in the default position so it faces the middle of the subject matter. Now rotate the crane by 20 !-
30 !(depending on the subject). Loosen Knob E by half a turn and slide it until the camera turns to the start of
the panning shot. Turn the knob only slightly.
Tip:
Pull on the two knurled knobs B and C slightly just before taking a horizontal shot. This will allow the
tripod to absorb the vibrations from the crane.
Enjoy the process of familiarizing yourself with the features of your STABILMOVE Camera Crane.
Hopefully you find yourself excited about all the new possibilities this crane offers your videography.
For a quick visual overview of how the crane works, please check out our website, which also features
a video about the crane’s functionality.
If you have any further questions, please contact [e-mail].
