BilJax ET 1500 Operation manual

Model ET 1500
Operation and Service Manual
Max.Cap.1500lbs. Max. Cap. 1500 lbs.
ET 1500ET 1500
scalate
Trailer
scalate
Trailer
E
Load Capacity: 1500 lbs
The ET 1500 ESCALATE TRAILER offers ground
level roll-on loading and roll-off unloading of
equipment with non-tilting lowering deck. The
winch driven deck allows one person to load and
unload equipment.
Contents
SAFETY .............................................................. 2
SPECIAL FEATURES ......................................... 2
SPECIFICATIONS .............................................. 3
WARRANTY ........................................................ 3
TRAILER HITCHING ........................................... 5
EQUIPMENT LOADING ...................................... 6
SERVICE ............................................................ 9
PARTS LIST ....................................................... 12
B33-01-0067-01
®
®

SAFETY
2
WARNING
Stand clear of trailer while deck is being raised or
lowered. Moving deck will create pinch points
causing serious crushing injury.
WARNING
Stand clear of trailer while deck
is being lowered. Contact with
trailer deck will cause serious
crushing injury.
WARNING
Trailer deck must be fully raised
with transport clamp locked and
pinned before towing trailer.
Failure to comply with these instructions
may result in serious personal injury or
death as well as damage to cargo.
Warnings and Cautions
Observe all warning labels on the
trailer. The trailer warning labels
are shown here as a reminder.
Other warnings and cautions are
included in this manual.
Failure to observe all warnings
may result in serious injury or
death. Failure to observe all
cautions may result in equipment
damage.
SPECIAL FEATURES
The Bil-Jax ESCALATE TRAILER includes all the features of a heavy duty trailer, plus:
Escalator Deck and Winch Adjustable Bumper Bar
Adjustable Hitch Stow-away Trailer Jack
®

SPECIFICATIONS
3
ESCALATE TRAILER
Model Number ET 1500 Serial Number ________________
Manufactured by: Bil-Jax, Inc.
125 Taylor Parkway
Archbold, Ohio 43502
419.445.9675
Specifications
Rated Capacity 1500 lbs. (680.4 kg) max.
Weight (Empty) 720 lbs. (326.6 kg)
Overall Width 83 in. (210.8 cm)
Overall Length 148 in. (375.9 cm)
Overall Height (Bed
Raised) 32 in. (81.3 cm)
Bed Height (Raised) 13-1/2 in. (34.3 cm)
Bed Size (Flat Surface) 40 in. wide x 72 in. long
(101.6 cm wide x 182.9 cm long)
Overall Bed Size
(Including Ramp) 40 in. wide x 86 in. long (101.6 cm wide x 218.4 cm long)
Ramp Grade 6 degrees
Hitch Size 2 in. (5.08 cm) ball
Suspension Rubber Torsion
WARRANTY
Bil-Jax warrants its trailers for one year from the date of delivery against all defects of material and
workmanship, provided the unit is operated and maintained in compliance with Bil-Jax’s operating and
maintenance instructions; structural components are also warranted for one year. Bil-Jax will, at its option,
repair or replace any unit or component part which fails to function properly in normal use.
This warranty does not apply if the trailer and/or its component parts have been altered, changed, or
repaired without the consent of Bil-Jax or by anyone other than Bil-Jax or its factory trained personnel, nor
if the trailer and/or its components have been subjected to misuse, negligence, accident or any conditions
deemed other than those considered as occurring during normal use.
Components not manufactured by Bil-Jax are covered by their respective manufacturers warranties. A list
of those components and their warranties is available upon written request to Bil-Jax.
Bil-Jax shall not in any event be liable for the cost of any special, indirect or consequential damages to
anyone, product, or thing. This warranty is in lieu of all other warranties expressed or implied. We neither
assume nor authorize any representative, or other person, to assume for us any other liability in
connection with the sale, rental, or use of this product.
®

4
This page intentionally left blank

TRAILER HITCHING
5

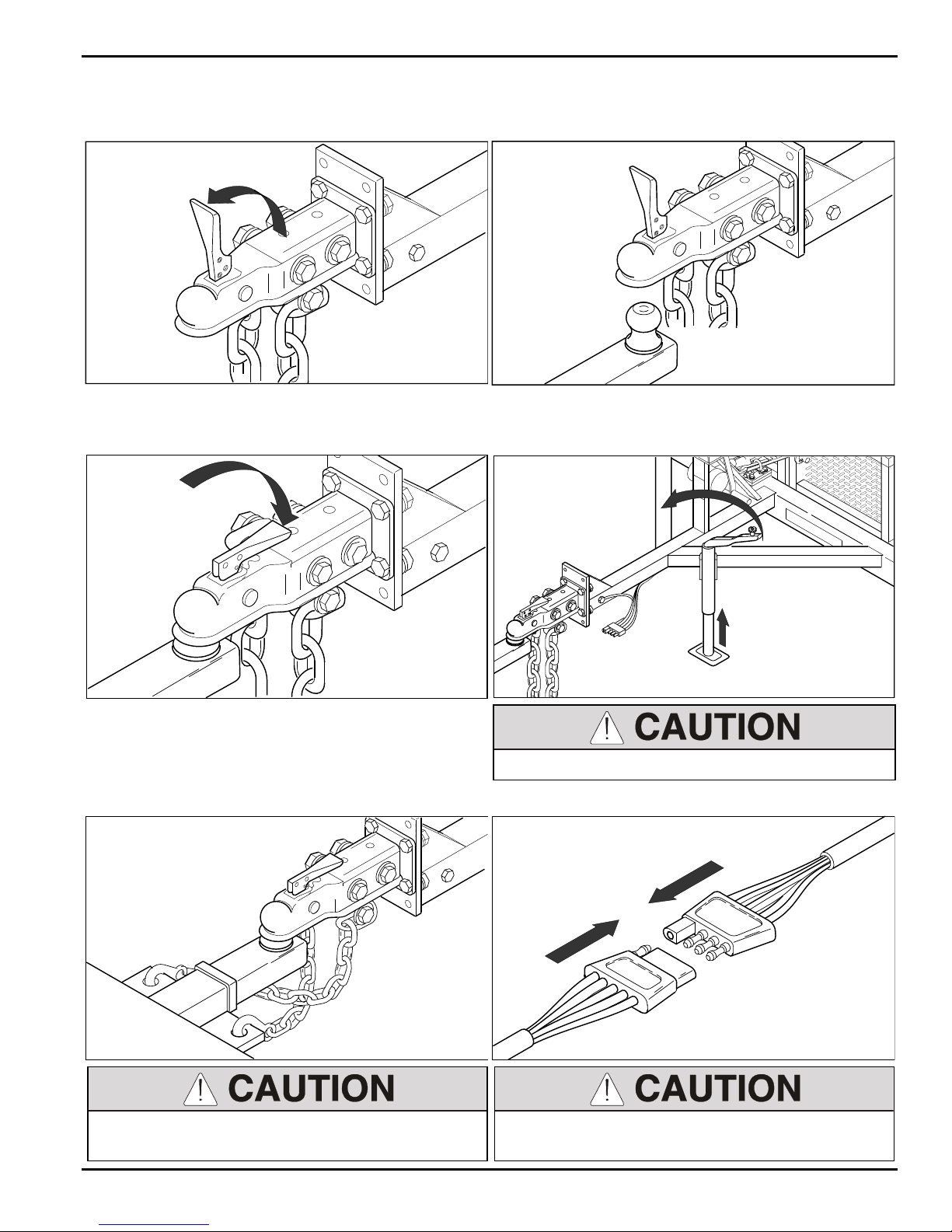

Hook Up the Trailer
1. Raise trailer and lift ball latch. 2. Line up ball with hitch.
NOTE: The trailer hitch uses a 2 inch ball.
3. Lower hitch onto ball and close ball latch. 4. Raise and secure jack.
Max.Cap.1500lbs.
Max. Cap. 1500 lbs.
NOTE: Trailer frame should be level when hitch is
on ball. See page 9 to change hitch height. Always raise and pin the jack before towing.
5. Hook safety chains. 6. Connect and check trailer lights.
Always cross safety chains below tongue. Safety
chains must hold tongue up if hitch fails. Always check the tail lights and brake lights before towing.

EQUIPMENT LOADING
6

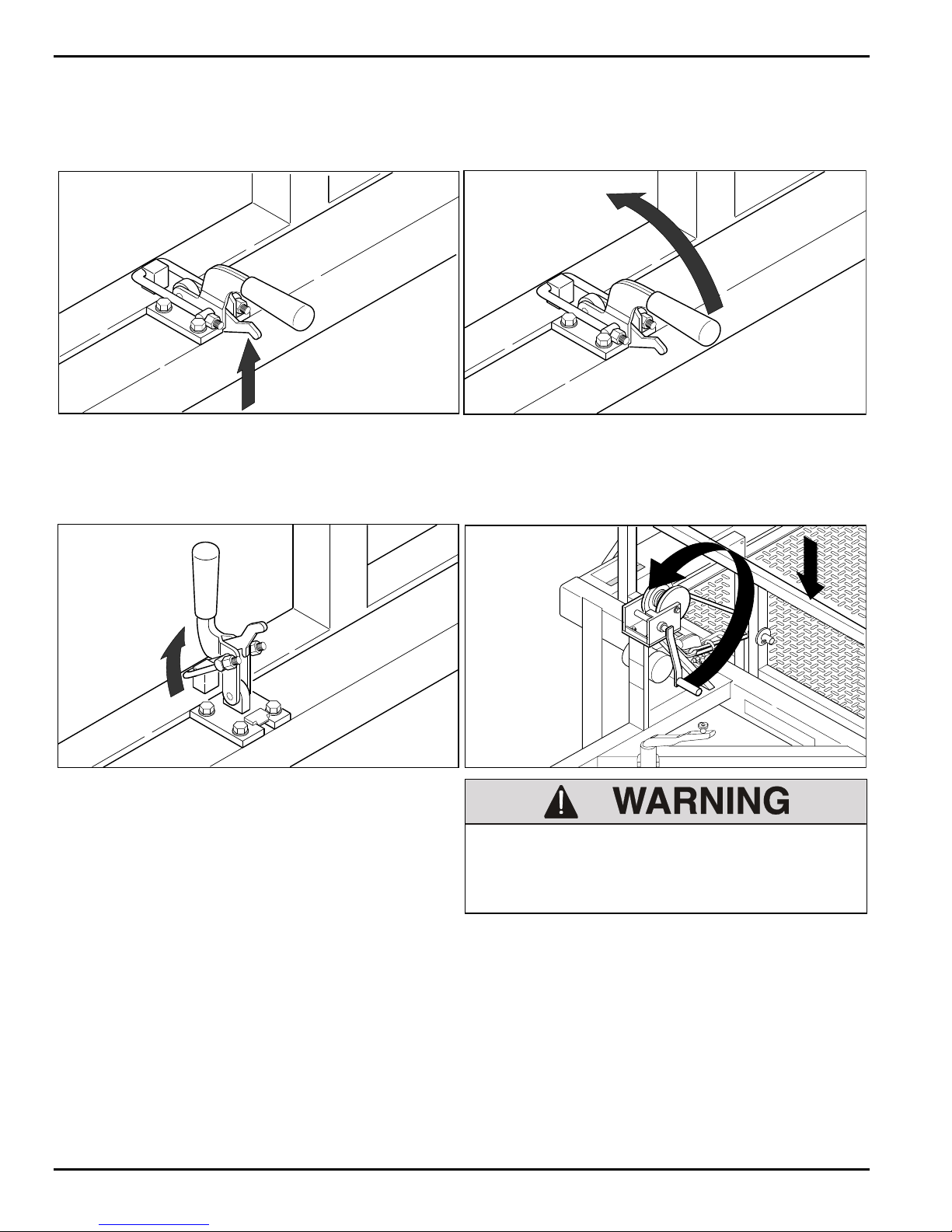

Lower the Deck
NOTE: Trailer must be hitched to vehicle according to page 5 before lowering or raising the deck.
1. Lift latch release lever. 2. Lift latch handle.
NOTE: The trailer frame should be on a level
surface when lowering the deck. NOTE: If the deck pulls against the clamp when the latch handle is up, the winch brake must be
adjusted. See page 9 to adjust the winch brake.
3. Lift latch clamp. 4. Lower the deck.
Max.Cap.1500lbs.
NOTE: To prepare for raising the deck, tilt the latch
clamp back onto the handle. Make sure people are away from the trailer before
lowering the deck. Keep hands and feet away from
deck and rails. Hands and feet can get crushed
between the deck and frame.

EQUIPMENT LOADING
7

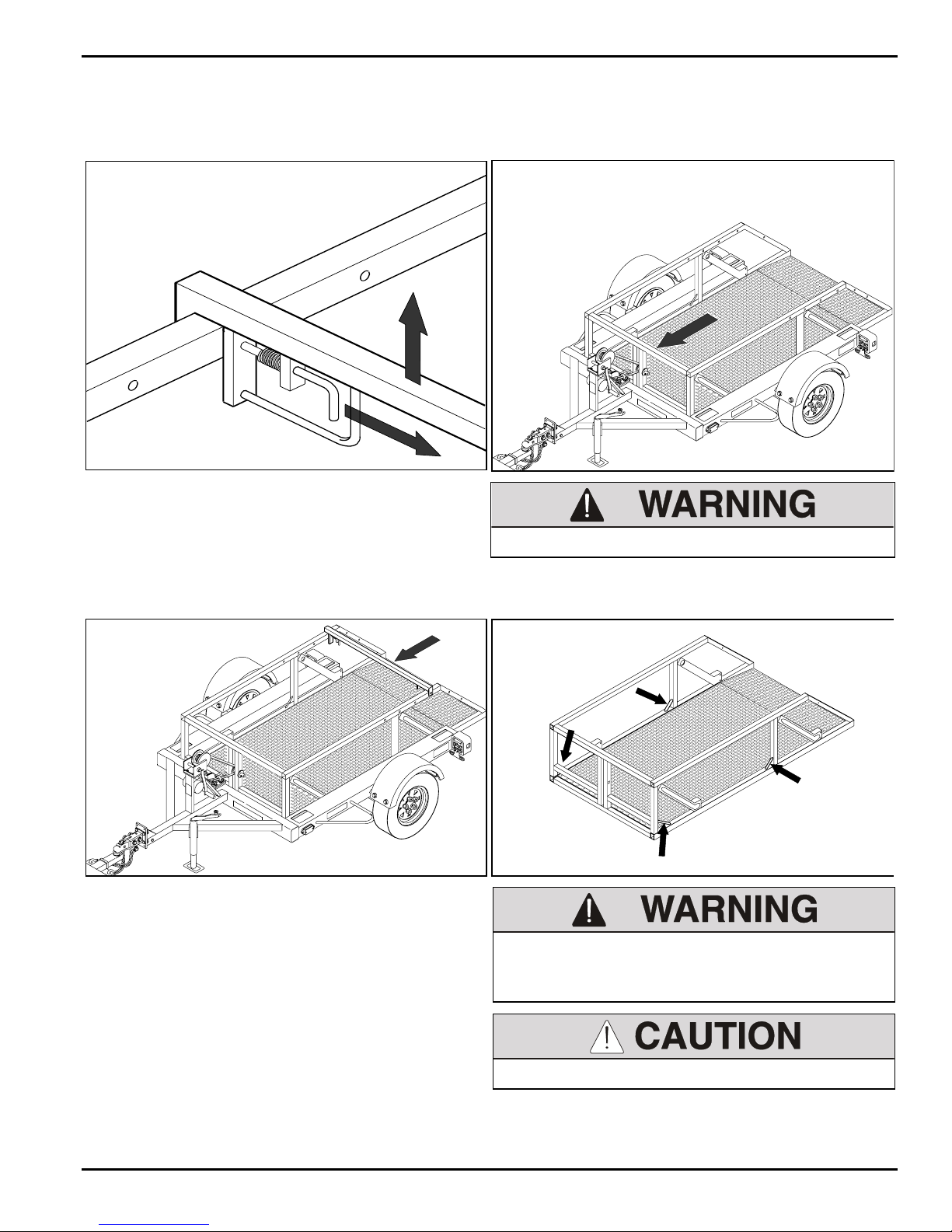

Load the Equipment
1. Remove bumper bar. 2. Load equipment so that the resulting tongue
weight is 15 to 20% of the total load.
Max.Cap.1500lbs.
Max. Cap. 1500 lbs.
ET 1500
ET 1500
scalate
Trailer
scalate
Trailer
E
Maximum capacity = 1500 lbs. Do not exceed.
3. Install bumper bar close to the rear of the loaded
equipment. 4. Install tie-down straps to keep the load from shifting. Use tie-down anchors shown.
Max. Cap. 1500 lbs.
Max. Cap. 1500 lbs.
ET1500
ET 1500
scalate
Trailer
scalate
Trailer
E
Always secure the load with tie-down straps before
towing. Failure to properly secure the load may
result in injury, death, or equipment damage.
Do not hook tie-down straps on the roller guides.

EQUIPMENT LOADING
8

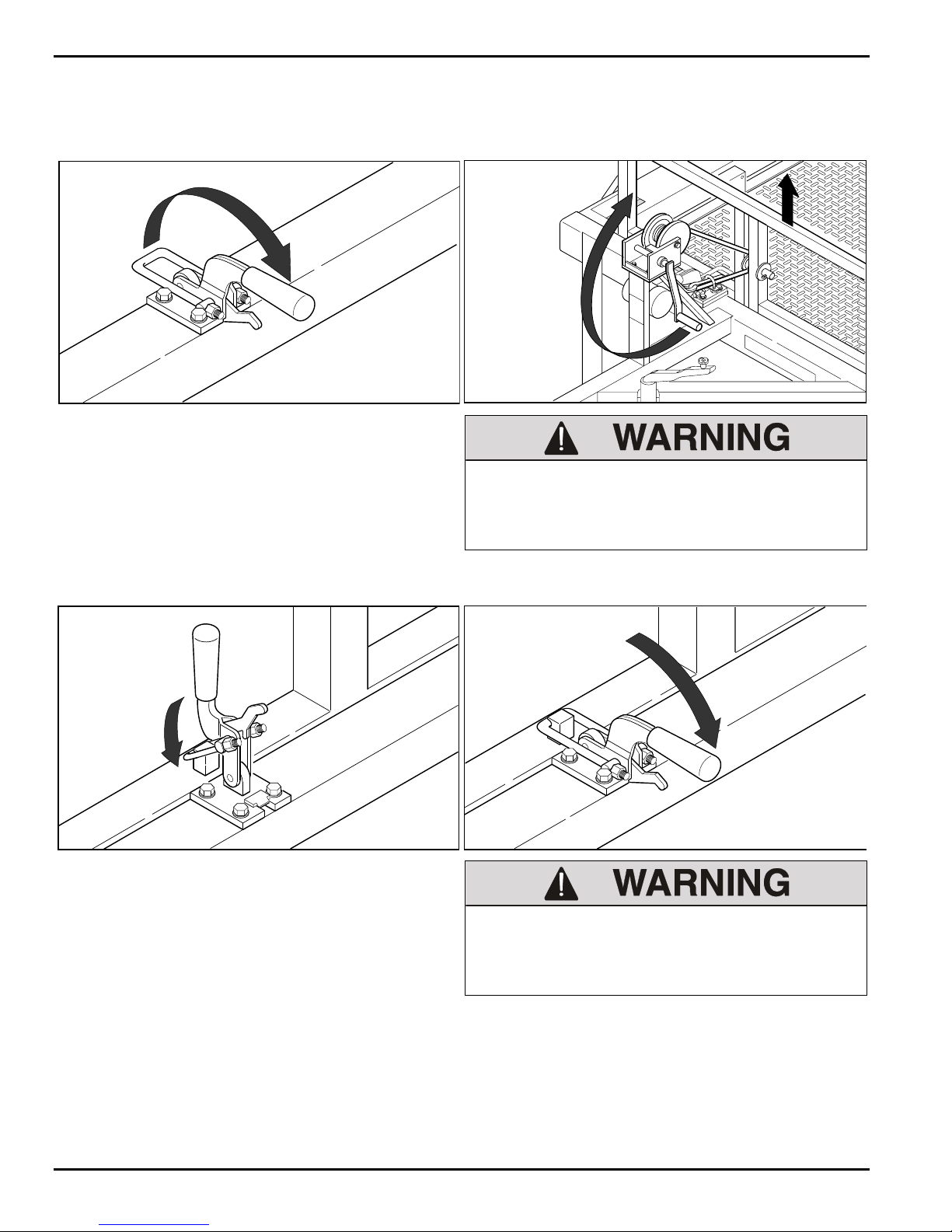

Raise the Deck (trailer must be hitched to the vehicle)
1. Check the latch clamp. Tilt the latch clamp back
onto the handle. 2. Crank winch handle to raise the deck. Stop cranking when the deck is aligned with the frame.
Max. Cap. 1500 lbs.
Make sure people are away from the trailer before
raising the deck. Keep hands and feet away from
deck and rails. Hands and feet can get crushed
between the deck and frame.
3. Raise the latch handle. Put the latch clamp over
the clamp boss. 4. Push the latch handle down until the release lever locks.
NOTE: Do not over tighten winch. Winch is
intended to raise and lower deck — not to secure
load on trailer. If not clamped, the deck may fall during travel.
Always clamp the deck before towing. Failure to
clamp the deck may result in injury, death, or
equipment damage.

SERVICE
9

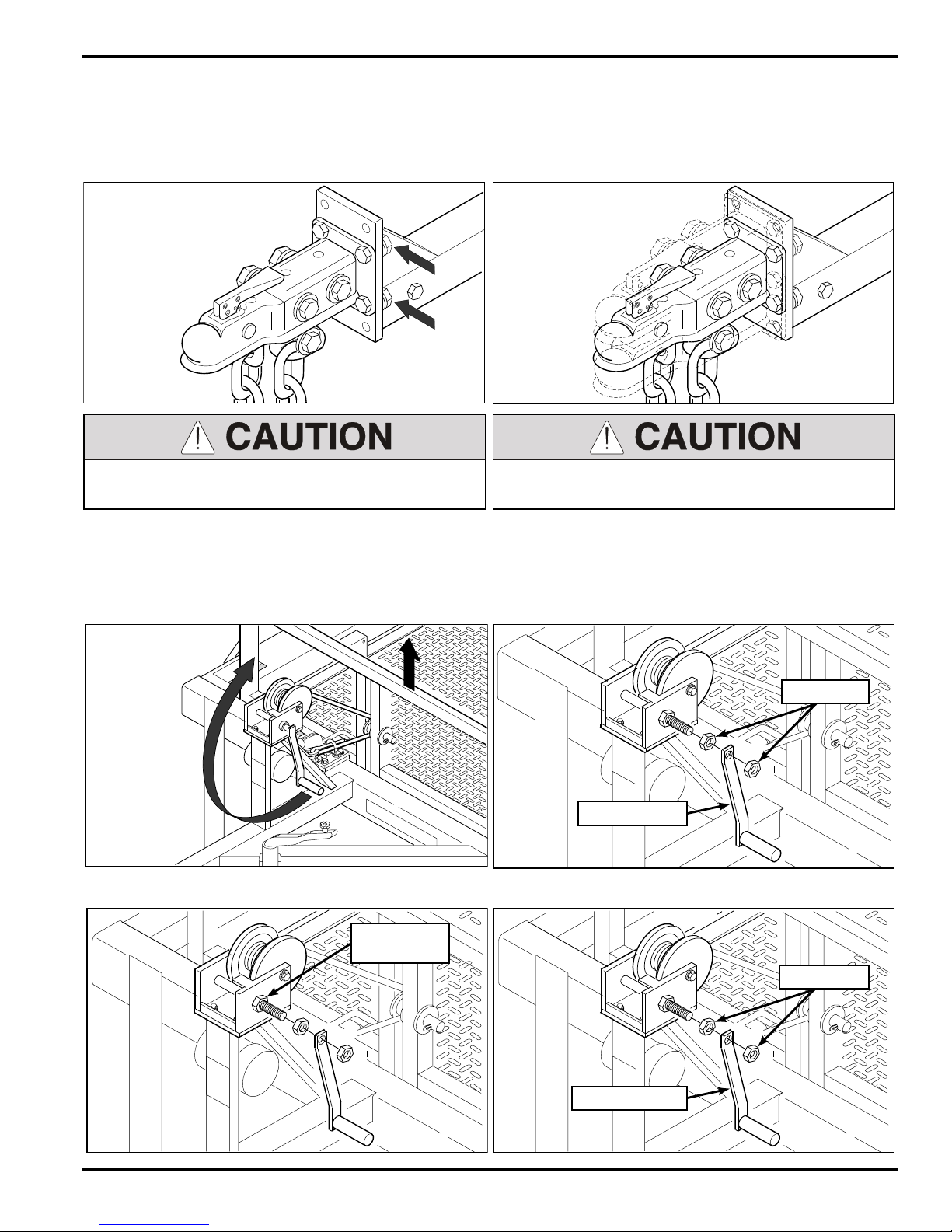

Adjusting the Hitch Height
The trailer frame and deck should be level for equipment loading and unloading. If the trailer hitch is too
high or too low when hitched to the towing vehicle, readjust the hitch height.
1. Unhitch trailer. Remove hitch mounting screws. 2. Install hitch in new position.
Adjust hitch height when trailer is empty. Use jack
to aid in hitch adjustment. Failure to install and tighten all hitch mounting screws may cause serious equipment damage.
Adjusting the Winch Brake
The winch brake should hold the trailer deck up when the equipment load is not more than 1500 pounds.
If the winch brake does not hold the deck up when the winch handle is released, readjust brake tension.
1. Raise the deck. 2. Remove the winch handle and lock nuts.
Max.Cap.1500lbs.
WINCH HANDLE
LOCK NUTS
3. Tighten the winch brake adjust nut 1/4 turn. 4. Install and tighten the lock nuts and handle.
WINCH BRAKE
ADJUST NUT
WINCH HANDLE
LOCK NUTS

SERVICE
10
Replacing the Lift Rollers
1. On a paved, level surface, pull trailer onto 4x4
blocks. Jack up and unhitch the trailer. 2. Lower the deck until the front or rear lift rollers can be removed from the roller access holes.
3-1/2
Max.
Max.
Cap.
Cap.
1500
The deck must be supported by the paved surface
or shoring before the lift rollers are removed.
3. Use a hex wrench to unscrew and remove the
rollers. Install and tighten new rollers.
NOTE: It is easier to remove and replace one roller
at a time. You can adjust the jack to access each
roller. Loosen set screw first.

SERVICE
11
Tire Maintenance Wheel Torque Requirements
At least once each week, use an accurate tire
pressure gage to check the air pressure in both
trailer tires. Inflate to the pressure recommended by
the tire manufacturer (located on the tire).
It is extremely important to apply and maintain
proper wheel mounting torque on your axle.
Wheel nuts should be retorqued after 50 miles
and 100 miles and periodically there after.
Low or uneven tire pressures will not properly
support a loaded trailer and could lead to premature
tire wear.
When replacing tires, it is important to use a tire of
appropriate size and load rating (530-12).
Failure to maintain proper torque on the lug nuts
may result in the wheel shearing off of the trailer,
possibly causing an accident and seriously
damaging the equipment.
The tightening of the lug nuts should be torqued
in the sequence above.
Lug nuts should be torqued in stages:
Stage 1 Stage 2 Stage 3
25 Ft-Lbs 60 Ft-Lbs 100 Ft-Lbs
This procedure should be followed after each
time the tire is removed.
Lubrication (every 6 months)
Lubricate the following parts with clean motor oil or wheel bearing grease
where shown.
For additional winch operating and service instructions, refer to the Winch Owner’s Manual. The Winch
Owner’s Manual is in the storage tube at the front of the trailer.
NOTE: Be sure that no grease is applied to brake pad.
Wheel Bearings Jack Winch
Max. C
Hitch Deck Latch Bumper Bar

PARTS LIST
12
Item
No. Part No. Description Qty
1 B12-00-0044 Deck Weldment 1
2 B03-00-0124 Load Bar Assembly 1
3 B07-06-5456 Plate, Spring Push-Off 2
4 B39-00-0023 Spring, Compression, 7/8 in. 2
5 0090-0051 Screw, Cap, 3/8-16 x 2-3/4 2
6 B12-00-0045 Frame Weldment 1
7 0090-0363 Screw, Set, 1/4-20 x 3/4 4
8 B25-00-0048 Roller, Lift 4
9 0090-0028 Screw, Cap, 5/16-18 x 3/4 8
10 0090-0420 Washer, SAE Flat, 5/16 8
11 0090-0185 Nut, Lock, 5/16-18 8
12 B18-00-0110 Fender 2
13 B06-00-0313 Decal, “Stand Clear While...” 2
14 B01-10-0024 Light Assembly, Left Tail 1
14A B01-10-0023 Light Assembly, Right Tail 1
14B B01-10-0070 Lamp, Tail Light, GE-1157 2
14C B01-10-0069 Replacement Lens 2
15 B06-00-0317 Decal, “Escalate Trailer” 2
16 0090-0005 Screw, Cap, 1/4-20 x 3/4 2
17 B29-00-0037 Bracket, License Plate 1
18 0090-0183 Nut, Lock, 1/4-20 2
19 0090-0419 Washer, SAE Flat, 1/4 Zinc 2
20 B10-00-0017 Axle, Torsion, Left Hand 1
20A B10-00-0018 Axle, Torsion, Right Hand 1
21 0192-0042 Hub Group, (items 22 thru 25) 2
22 B32-00-0008 Seal, Bearing 2
23 B25-00-0055 Bearing, Wheel 4
24 0192-0102 Hub, 5 Hole, 4.5 in. BC 2
25 B32-00-0010 Cap, Hub 2
26 0090-0881 Pin, Cotter, 5/32 x 2 2
27 0090-0880 Nut, Castle, 1-14 2
28 0192-0035 Wheel/Tire Assembly 530 - 12 2
29 0090-0624 Nut, Wheel Lug 10
30 0090-0188 Nut, Lock, 3/8-16 8
31 0090-0422 Washer, SAE Flat, 3/8 11
Item
No. Part No. Description Qty
32 0090-0045 Screw, Cap, 3/8-16 x 1-1/2 8
33 B06-00-0318 Decal, ET1500 2
34 B06-00-0315 Decal, “Max. Cap. 1500 lbs.” 1
35 B23-02-0036 Jack, Tongue, with Retaining Pin 1
36 0090-0344 Screw, Self Tap, #10-24 x 1/2 1
37 B01-01-0120 Harness, Wiring 1
38 B12-00-0049 Hitch Weldment 1
39 0090-0574 Washer, SAE Flat, 1/2 6
40 0090-0080 Screw, Cap, 1/2-13 x 4-1/2 2
41 0090-0081 Screw, Cap, 1/2-13 x 5 1
42 B03-00-0017 Safety Chain Assembly 2
43 0192-0099 Hitch, Ball, 2 in., 3500 lbs. 1
44 0090-0192 Nut, Lock, 1/2-13 7
45 0090-0068 Screw, Cap, 1/2-13 x 1-3/4 4
46 Not
Replaceable Serial Number Tag 1
47 B00-00-0014 Cap, Plastic, 2-1/2 in. dia. 2
48 B00-00-0018 Winch, w/o Cable 1
49 0090-0210 Washer, Split Lock, 3/8 7
50 0090-0040 Screw, Cap, 3/8-16 x 3/4 7
51 B04-07-0047 Clamp, Cable, 1/4 in. 2
52 B05-03-0001 Cable, Steel, 1/4 in. 7ft.
53 B00-00-0036 Thimble, Cable, 1/4 in. dia. 1
54 B06-00-0314 Decal, “Lock Transport …” 1
55 B42-00-0012 Latch, Deck 1
56 B06-00-0312 Decal, “Stand Clear ...” 2
57 0090-0429 Washer, SAE Flat, 1 in. Zinc 1
58 B26-00-0016 Pulley 1
59 0090-0770 Pin, Cotter, 3/16 x 1-1/2 1
60 B36-00-0027 Pin, Pulley 1
61 B01-09-0026 Bushing, Hole 2
62 B01-10-0179 Light, Side Marker – Amber 2
62A B01-10-0070 Lamp, Tail Light, GE-1157 2
62B B01-10-0066 Replacement Lens 2
63 0090-0346 Screw, Self Tap, #10-24 x 3/4 4

PARTS LIST
13
Max. Cap. 1500 lbs.
ET1500
scalate
Trailer
E
1
2
7
6812
9
10
11
13
14, 14A,
14B, 14C
15
14
14 16
17
18 19
32
20, 20A
2223
23
24 21
25
26 27
29
28
30
31
33
34
35
36 63
37
38
44
46
47
48
31
49
50
51
52
53
54
55 49
50
57
56
35
58
59
60
34
5
39
39
62,62A,
62B
40 41
42
43
44 39 45
61
Model ET 1500 ESCALATE TRAILER
®

125 Taylor Parkway  Archbold, OH 43502
Phone [phone]  Fax [phone]
