Bilt Backyard Discovery WHISPERING POINT User manual

Made in China
INS-2300262-A-WHISPERING POINT-ENG 09/13/23
Please visit www.backyarddiscovery.com
For the most up to date assembly manual, to register your set, or to order replacement parts
Para obtener instrucciones en español, visite www.backyarddiscovery.com
Model # 2300262
WHISPERING POINT
MANUFACTURED BY:
Backyard Discovery
3305 Airport Drive, Pittsburg, KS 66762
800-856-4445
Swing Set
Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: [phone]
J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: [phone]
WARNING
Adult Assembly Required.
Not suitable for children under 36 months due to small parts.
FOR DOMESTIC USE ONLY. INTENDED FOR OUTDOOR USE.
The assembly manual must be retained
since it contains important information

Safe Play Zone
SAFE PLAY HEIGHT: 18'-3 1/2" [5.5 m]
MAXIMUM FALL HEIGHT: 6'-3/4" [1.8 m]
General Information:
Your set has been designed and engineered for children only and for residential use only.
A maximum of 150 lbs. per child is recommended for play activities designed for individual use.
A maximum of 120 lbs. per child is recommended for play activities designed for multiple child use.
A maximum of 9 children is recommended for this swing set.
SAFE PLAY AREA DIAGRAM
Place the set on level ground, not less than 6'-7" [2 m] from any structure or obstruction such as a
fence, garage, house, overhanging branches, laundry lines, or electrical wires.
While assembling unit, take time before and after each phase to make sure fort is level. If fort is not level, assembly will be difficult and
improper assembly may result. Extra care must be taken to insure the fort is square.
The safe play area refers to a zone extending 6'-7" (2 m) beyond the play product on all sides, including the space above the play product.
Owner's Manual - Basic Setup Dimensions & Assembly Notes
Ground Dimensions Safe Play Area
28'-5 3/4"
[8.7 m]
24'-8 1/2"
[7.5 m]
6'-7"
[2.0 m]
6'-7"
[2.0 m]
15'-3 3/4"
[4.7 m]
11'-6 1/2"
[3.5 m]
11'-8 1/2"
[3.6 m] 10'-6 3/4"
[3.2 m]
6'- 3/4"
[1.8 m]
4'-11"
[1.5 m]
9'-8 1/4"
[3.0 m]
15'-3 3/4"
[4.7 m]
2

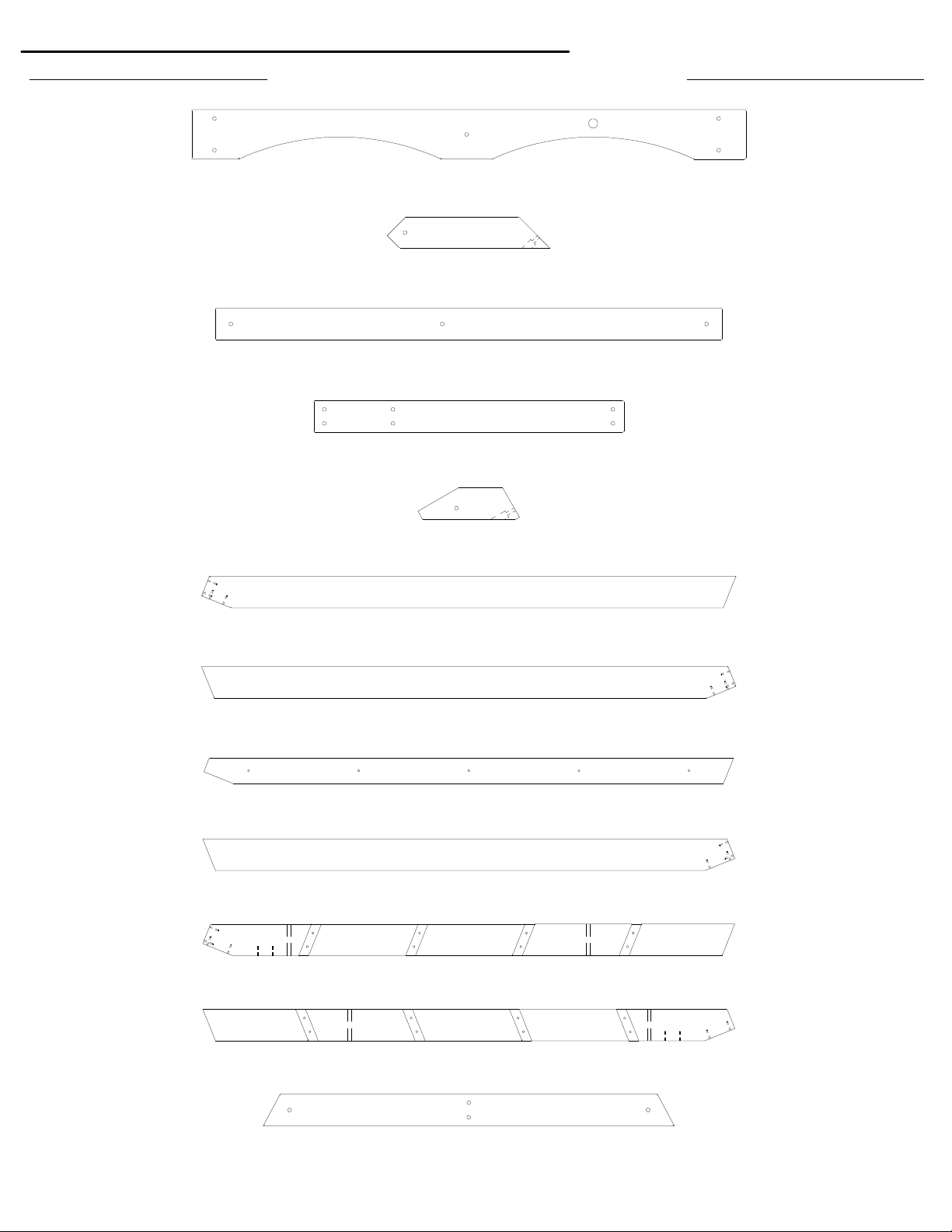

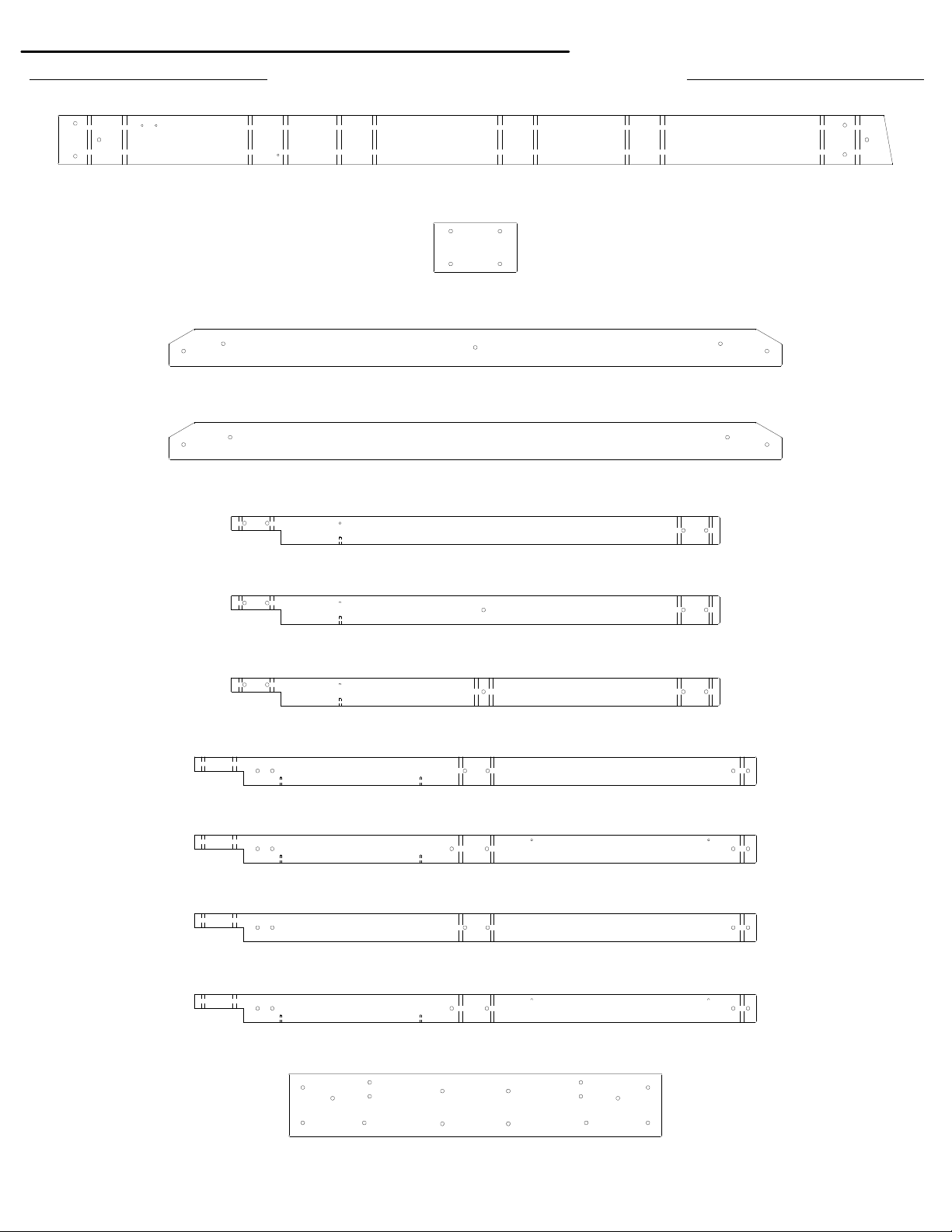

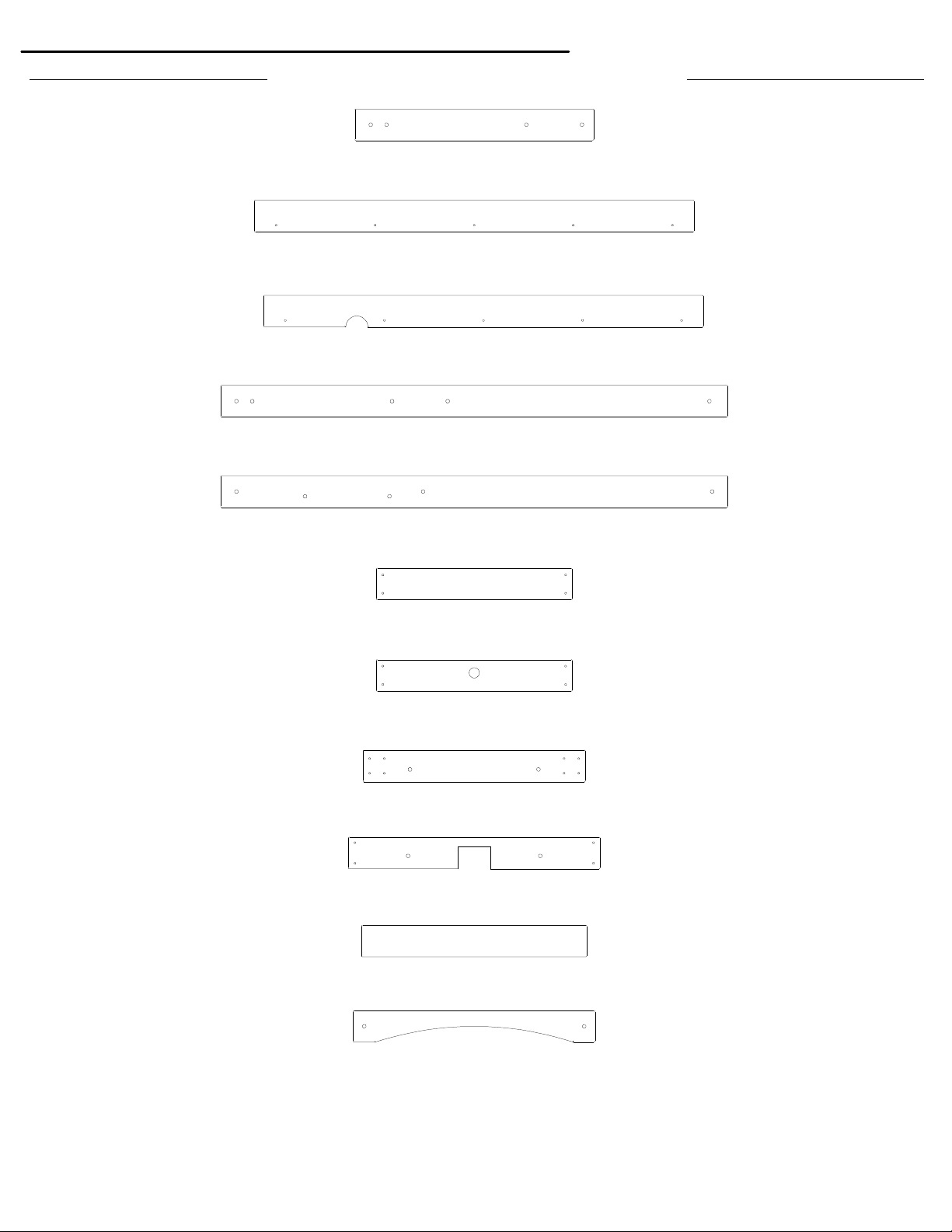

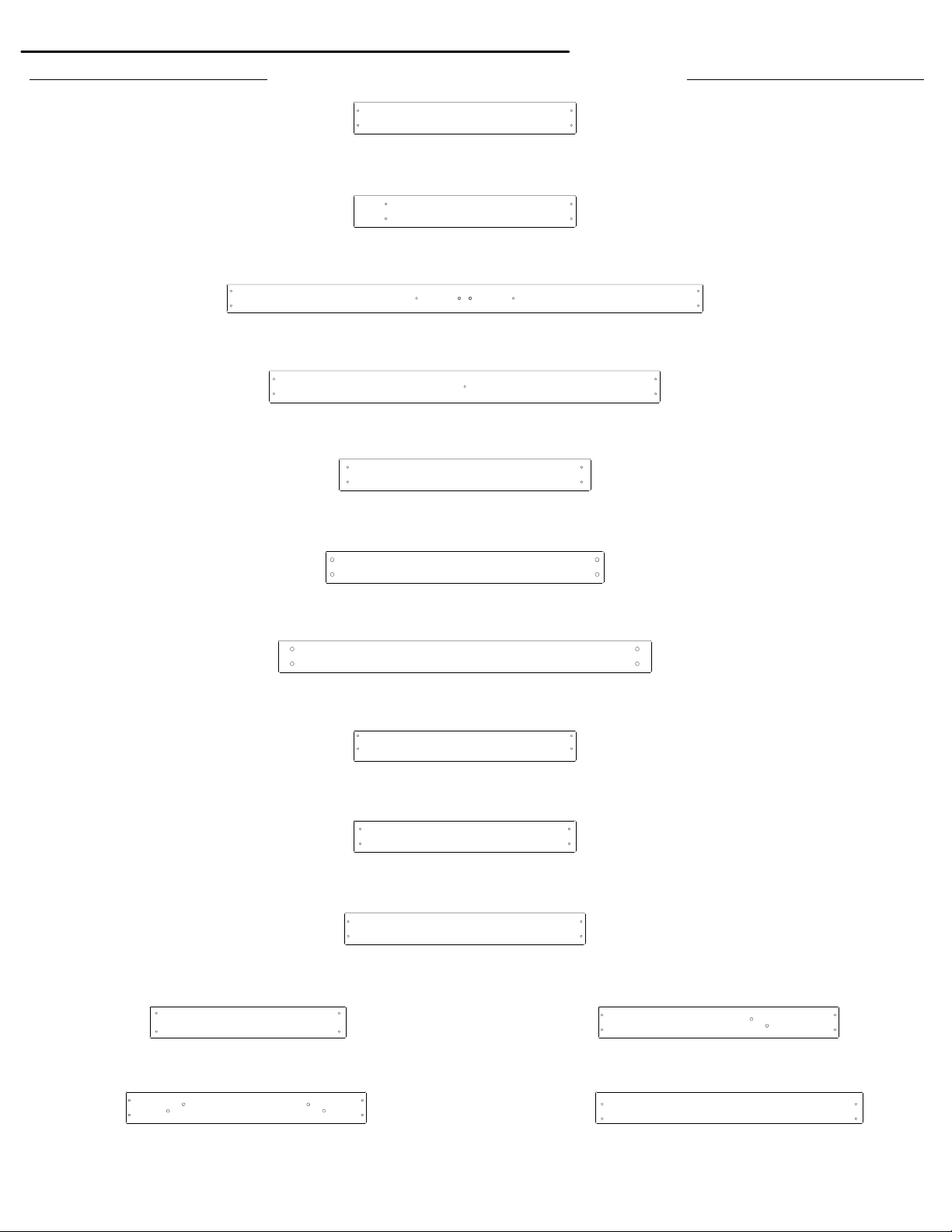

Wood Components (Not to Scale)
Owner's Manual - Parts Identification
SWING BEAM EXTENDED - W4L18222
3 3/8"x5 1/4"x89 1/2" (86x134x2274)
A1
(x1)
SB 9" BLOCK - W4L18223
3 3/8"x5 1/4"x9" (86x134x228)
A2
(x1)
WALL RAIL - W4L18279
1"x3 7/8"x65 3/4" (24x100x1670)
AD01
(x1)
WALL RAIL - W4L18286
1"x3 7/8"x65 3/4" (24x100x1670)
AD02
(x1)
POST - W4L18234
3"x3"x52 3/8" (76x76x1330)
B02
(x1)
POST - W4L18235
3"x3"x52 3/8" (76x76x1330)
B03
(x1)
POST - W4L18236
3"x3"x52 3/8" (76x76x1330)
B04
(x1)
POST - W4L18265
3"x3"x60 3/8" (76x76x1532)
B05
(x1)
POST - W4L18266
3"x3"x60 3/8" (76x76x1532)
B06
(x1)
POST - W4L18267
3"x3"x60 3/8" (76x76x1532)
B07
(x1)
POST - W4L18268
3"x3"x60 3/8" (76x76x1532)
B08
(x1)
TOP SWING BEAM RAIL - W4L18273
1 3/8"x6 3/4"x40" (36x172x1017)
C01
(x1)
3

Wood Components (Not to Scale)
Owner's Manual - Parts Identification
FRONT ARCHED RAIL - W4L18270
1 3/8"x5 1/4"x59 1/2" (36x134x1510)
D01
(x1)
ANGLE BRACE - W4L18261
1 7/16"x3 3/8"x17 1/2" (36x86x444)
E01
(x8)
WALL BOARD - W4L18287
1 3/8"x3 3/8"x54 3/8" (36x86x1382)
E02
(x2)
CROWS NEST FLOOR RAIL - W4L18291
1 3/8"x3 3/8"x33 1/4" (36x86x846)
E03
(x2)
CROWS NEST DECK BRACE - W4L18292
1 7/16"x3 3/8"x10 7/8" (36x86x276)
E04
(x2)
LEFT RAIL - W4L18224
1 3/8"x3 3/8"x57 3/8" (36x86x1456)
E07
(x1)
RIGHT RAIL - W4L18225
1 3/8"x3 3/8"x57 3/8" (36x86x1456)
E08
(x1)
UPRIGHT - W4L18318
1 3/8"x2 3/4"x56 7/8" (36x70x1444)
E09
(x2)
RIGHT UPRIGHT - W4L18312
1 3/8"x3 3/8"x57 1/8" (36x86x1450)
E10
(x1)
MIDDLE UPRIGHT - W4L18308
1 3/8"x3 3/8"x57 1/8" (36x86x1450)
E11
(x1)
LEFT UPRIGHT - W4L18307
1 3/8"x3 3/8"x57 1/8" (36x86x1450)
E12
(x1)
END SUPPORT - W4L18220
1 1/2"x3 1/2"x44" (36x86x1120)
E79
(x1)
4

Wood Components (Not to Scale)
Owner's Manual - Parts Identification
ANGLE BRACE - W4L18219
1 3/8"x3 3/8"x74 7/8" (36x86x1903)
E80
(x2)
CROWS NEST WALL SUPPORT - W4L18297
1 3/8"x2 3/8"x55" (36x60x1397)
F01
(x2)
CROWS NEST WALL SUPPORT - W4L18298
1 3/8"x2 3/8"x55" (36x60x1397)
F02
(x2)
SUPPORT RAIL - W4L18227
1 3/8"x2 3/8"x56 7/8" (36x60x1446)
F07
(x2)
GROUND BOARD - W4L18237
1"x5 1/4"x59" (24x134x1498)
G01
(x2)
GROUND BOARD - W4L18238
1"x5 1/4"x40" (24x134x1017)
G02
(x1)
FLOOR RAIL - W4L18255
1"x5 1/4"x59" (24x134x1498)
G04
(x1)
FLOOR RAIL - W4L18256
1"x5 1/4"x59" (24x134x1498)
G05
(x1)
FLOOR RAIL - W4L18257
1"x5 1/4"x40" (24x134x1017)
G06
(x1)
FLOOR RAIL - W4L18258
1"x5 1/4"x40" (24x134x1017)
G07
(x1)
BACK ARCHED RAIL - W4L18271
1"x5 1/4"x59 1/2" (24x134x1510)
G08
(x1)
5

Wood Components (Not to Scale)
Owner's Manual - Parts Identification
WALL RAIL - W4L18272
1"x5 1/4"x40" (24x134x1017)
G09
(x2)
GROUND BOARD - W4L18218
1"x5 1/4"x75 1/4" (24x134x1912)
G50
(x1)
COUNTERTOP RAIL - W4L18240
1"x3 3/8"x59" (24x86x1498)
H01
(x1)
WALL RAIL - W4L18245
1"x3 3/8"x40" (24x86x1017)
H02
(x1)
WALL UPRIGHT - W4L18246
1"x3 3/8"x49" (24x86x1244)
H03
(x1)
WALL RAIL - W4L18247
1"x3 3/8"x21 3/4" (24x86x551)
H04
(x1)
FLOOR JOIST - W4L18259
1"x3 3/8"x57 1/8" (24x86x1450)
H05
(x1)
FLOOR BLOCK - W4L18260
1"x3"x3 3/8" (24x76x86)
H06
(x4)
WALL RAIL - W4L18264
1"x3 3/8"x40" (24x86x1017)
H07
(x2)
WALL RAIL - W4L18269
1"x3 3/8"x40" (24x86x1017)
H08
(x1)
6

Wood Components (Not to Scale)
Owner's Manual - Parts Identification
WALL BOARD - W4L18274
1"x3 3/8"x25 5/8" (24x86x650)
H09
(x1)
WINDOW TRIM - W4L18275
1"x3 3/8"x47 1/8" (24x86x1198)
H10
(x1)
WALL BOARD - W4L18282
1"x3 3/8"x54 3/8" (24x86x1382)
H13
(x1)
WALL BOARD - W4L18288
1"x3 3/8"x54 3/8" (24x86x1382)
H14
(x2)
ROPE WALL BOARD - W4L18231
1"x3 3/8"x21" (24x86x534)
H15
(x7)
ROPE WALL BOARD - W4L18232
1"x3 3/8"x21" (24x86x534)
H16
(x1)
ATTACHMENT BOARD - W4L18228
1"x3 3/8"x23 7/8" (24x86x606)
H17
(x1)
CROWS NEST FLOOR RAIL - W4L18293
1"x3 3/8"x27" (24x86x686)
H18
(x1)
CROWS NEST FLOOR SUPPORT - W4L18294
1"x3 3/8"x24 1/8" (24x86x614)
H19
(x1)
CROWS NEST WALL RAIL - W4L18299
1"x3 3/8"x26" (24x86x660)
H20
(x2)
WINDOW TRIM - W4L18494
1"x3 3/8"x47 1/8" (24x86x1198)
H11
(x1)
7

Wood Components (Not to Scale)
Owner's Manual - Parts Identification
CROWS NEST WALL RAIL - W4L18300
1"x3 3/8"x29 7/8" (24x86x758)
H21
(x2)
CROWS NEST WALL RAIL - W4L18301
1"x3 3/8"x34 3/4" (24x86x882)
H22
(x2)
CROWS NEST WALL RAIL - W4L18303
1"x3 3/8"x26" (24x86x660)
H23
(x2)
CROWS NEST WALL RAIL - W4L18304
1"x3 3/8"x11 1/8" (24x86x282)
H24
(x2)
ATTACHMENT BOARD - W4L18311
1"x3 3/8"x51 1/8" (24x86x1297)
H25
(x1)
LADDER RUNG - W4L18309
1"x3 3/8"x21 3/4" (24x86x554)
H26
(x4)
LEFT ROOF RAFTER - W4L18323
1"x3 3/8"x42 1/8" (24x86x1069)
H27
(x2)
RIGHT ROOF RAFTER - W4L18324
1"x3 3/8"x42 1/8" (24x86x1069)
H28
(x2)
LEFT ROOF RAFTER - W4L18325
1"x3 3/8"x17 3/4" (24x86x451)
H29
(x4)
COUNTERTOP RAIL - W4L18248
1"x2 3/8"x57 1/8" (24x60x1450)
J01
(x1)
COUNTERTOP RAIL - W4L18249
1"x2 3/8"x10 3/4" (24x60x272)
J02
(x2)
COUNTERTOP RAIL - W4L18250
1"x2 3/8"x10 3/4" (24x60x272)
J03
(x2)
8

Wood Components (Not to Scale)
Owner's Manual - Parts Identification
BAY WINDOW SIDE - W4L18277
1"x1 7/8"x18 1/4" (24x48x464)
J04
(x2)
WINDOW TRIM - W4L18278
1"x2"x26 1/4" (24x50x668)
J05
(x2)
COUNTERTOP BOARD - W4L18254
5/8"x5 1/4"x57" (16x134x1449)
K01
(x1)
BAY WINDOW HEADER - W4L18276
5/8"x5 1/4"x47 1/4" (16x134x1199)
K02
(x2)
WALL RAIL - W4L18283
5/8"x5 1/4"x29 3/8" (16x134x746)
K03
(x4)
WALL BOARD - W4L18284
5/8"x4 3/8"x6 5/8" (16x112x167)
L01
(x4)
WALL BOARD - W4L18285
5/8"x4 3/8"x7 1/4" (16x112x184)
L02
(x4)
CROWS NEST FLOOR BOARD - W4L18295
5/8"x4 3/8"x27" (16x112x686)
L03
(x6)
CROWS NEST FLOOR BOARD - W4L18296
5/8"x4 3/8"x27" (16x112x686)
L04
(x1)
CROWS NEST FLOOR BOARD - W4L18306
5/8"x5 1/4"x27" (16x134x686)
L05
(x1)
WALL BOARD - W4L18281
5/8"x4 3/8"x7 1/4" (16x112x184)
L07
(x2)
WALL BOARD - W4L18239
5/8"x4 3/8"x6 5/8" (16x112x167)
L06
(x2)
9

Wood Components (Not to Scale)
Owner's Manual - Parts Identification
COUNTERTOP BOARD - W4L18252
5/8"x3 3/8"x23 7/8" (16x86x605)
M02
(x2)
COUNTERTOP BOARD - W4L18253
5/8"x3"x51 1/8" (16x76x1297)
M03
(x1)
FLOOR BOARD - W4L18263
5/8"x3 3/8"x41 7/8" (16x86x1065)
M04
(x15)
WALL BOARD - W4L18289
5/8"x3 3/8"x27" (16x86x686)
M05
(x6)
CROWS NEST WALL RAIL - W4L18302
5/8"x3 3/8"x29 7/8" (16x86x758)
M06
(x2)
TOP BOARD - W4L18226
5/8"x3 1/4"x23 7/8" (16x82x606)
M11
(x1)
REAR SUPPORT - W4L18310
5/8"x3 3/8"x23 7/8" (16x86x606)
M12
(x1)
ROCK BOARD - W4L18314
5/8"x3 3/8"x25 3/4" (16x86x655)
M13
(x9)
ROCK WALL BOARD - W4L18230
5/8"x3 3/8"x21" (16x86x534)
M14
(x8)
ROCK BOARD - W4L18315
5/8"x3 3/8"x25 3/4" (16x86x655)
M15
(x4)
ROCK BOARD - W4L18316
5/8"x3 3/8"x25 3/4" (16x86x655)
M16
(x3)
TOP BOARD - W4L18322
5/8"x3 3/8"x28 5/8" (16x86x728)
M17
(x1)
WALL RAIL - W4L18280
5/8"x3 3/8"x40" (16x86x1017)
M07
(x1)
PICKET - W4L18251
5/8"x3 3/8"x23 7/8" (16x86x606)
M01
(x12)
10

Wood Components (Not to Scale)
Owner's Manual - Parts Identification
CLEAT - W4L18229
5/8"x2 3/8"x50 3/4" (16x60x1289)
N01
(x1)
CROWS NEST WALL BOARD - W4L18319
5/8"x2 3/8"x22 3/8" (16x60x568)
N02
(x2)
FILLER BOARD - W4L18233
5/8"x1 3/4"x21" (16x45x534)
N03
(x1)
ROCK WALL BOARD - W4L18313
5/8"x1 5/8"x25 3/4" (16x40x655)
N04
(x1)
ROCKWALL CLEAT - W4L18317
5/8"x2 3/8"x53 7/8" (16x60x1370)
N05
(x1)
CROWS NEST WALL BOARD - W4L18305
5/8"x1 3/8"x32 1/4" (16x34x819)
O01
(x16)
SWING BEAM SUPPORT - W4L18221
3 3/8"x3 3/8"x49 1/2" (86x86x1256)
SP71
(x1)
FLOOR BOARD - W4L18262
5/8"x3 7/8"x34" (16x100x864)
Y01
(x2)
B01
(x1)
POST ASSEMBLY - W2A03946
3"x3"x63 7/16" (76x76x1330)
RP1
(x2)
PEAK ROOF PANEL - W2A03948
1 5/8"x13 3/8"x48 7/8" (42x341x1241)
RP2
(x3)
ROOF PANEL - W2A03947
1 5/8"x15 5/8"x59 3/8" (42x396x1241)
11

Wood Components (Not to Scale)
Owner's Manual - Parts Identification
RP3
(x1)
ROOF PANEL - W2A03949
1 5/8"x15 5/8"x59 3/8" (42x396x1241)
RP4
(x2)
CROWS NEST ROOF PANEL - W2A03951
1 5/8"x18 1/2"x38 3/8" (42x469x975)
12

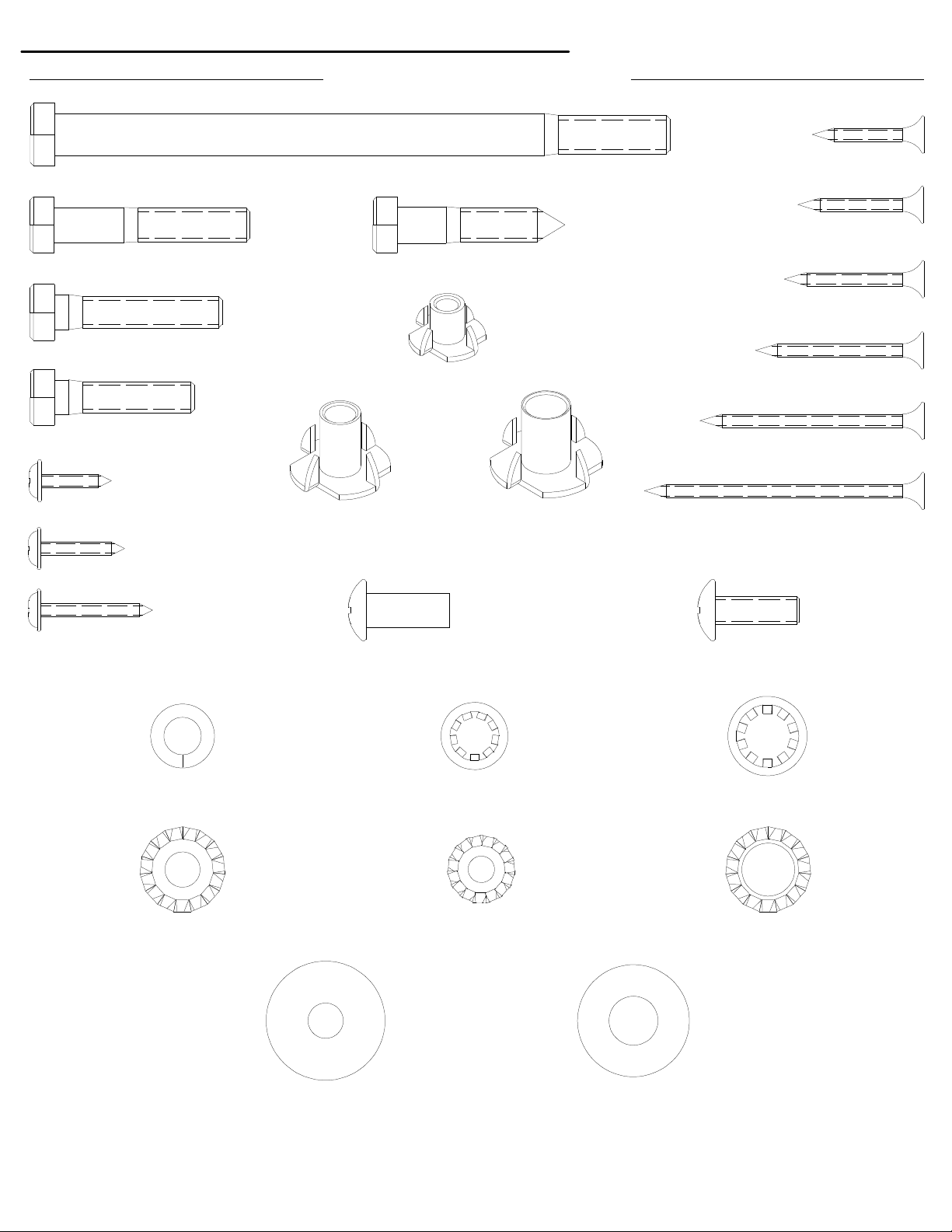

Hardware Components
Owner's Manual - Parts Identification
BOLT WH BLK
5/16x1/2
(x4)
H100396
BOLT WH BLK
5/16x1
(x16)
H100468
BOLT WH BLK
5/16x1 1/4
(x7)
H100459
BOLT WH BLK
5/16x1 1/2
(x4)
H100407
BOLT WH BLK
5/16x1 3/4
(x22)
H100378
BOLT WH BLK
5/16x2-1/4
(x35)
H100205
BOLT WH BLK
5/16x2-3/4
(x13)
H100195
BOLT WH BLK
5/16x3 1/4
(x13)
H100484
BOLT WH BLK
5/16x3 3/4
(x71)
H100415
BOLT WH BLK
5/16x3
(x22)
H100416
BOLT WH BLK
5/16x3-1/2
(x11)
H100503
BOLT WH BLK
5/16x4-1/4
(x9)
H100513
BOLT WH BLK
5/16x4 3/4
(x2)
H100480
LAG SCREW WH BLK
5/16x1 1/2
(x11)
H100471
LAG SCREW WH BLK
5/16x2 1/2
(x2)
H100197
BOLT WH BLK
1/4x3/4
(x22)
H101111
LAG SCREW WH BLK
1/4x2 1/2
(x2)
H100456
LAG SCREW WH BLK
1/4x3
(x9)
H100792
NUT BARREL WH BLK
5/16x7/8
(x25)
H100192
13

Hardware Components
Owner's Manual - Parts Identification
BOLT HEX BLK
3/8x5-1/2
(x13)
H101169
BOLT HEX BLK
5/16x1 3/4
(x4)
H100657
BOLT HEX - BLK
5/16x1 1/2
(x4)
H100498
BOLT HEX BLK
5/16x1 1/4
(x4)
H100481
LAG SCREW BLK
5/16x1 1/2
(x9)
H100659
SCREW PFH BLK
8x1
(x7)
H100385
SCREW PFH BLK
8x1 1/8
(x28)
H100380
SCREW PFH BLK
8x1 1/2
(x281)
H100200
SCREW PFH BLK
8x1 1/4
(x170)
H100387
SCREW PFH BLK
8x2
(x155)
H100391
SCREW PFH BLK
8x2-1/2
(x49)
H100201
T-NUT BLK
1/4
(x22)
H100398
T-NUT BLK
5/16
(x220)
H100379 T-NUT BLK
3/8
(x13)
H101168
SCREW PWH BLK
8x5/8
(x13)
H100202
SCREW PWH BLK
8x1
(x67)
H100797
WASHER SPLIT BLK
5/16
(x22)
H100477 WASHER LOCK INT BLK
8x15
(x22)
H100473 WASHER LOCK INT BLK
10x18
(x13)
H101166
WASHER LOCK EXT BLK
8x19
(x179)
H100198 WASHER LOCK EXT BLK
6x15
(x11)
H100405 WASHER LOCK EXT BLK
12x19
(x11)
H100199
WASHER FLAT BLK
8x27
(x22)
H100478 WASHER FLAT BLK
11x25
(x13)
H101167
SCREW PWH BLK
8x3/4
(x9)
H100392
NUT BARREL PTH
BLK
1/4x3/4
(x4)
H100831 BOLT PTH BLK
(with LOCTITE)
1/4x3/4
(x4)
H100832
14

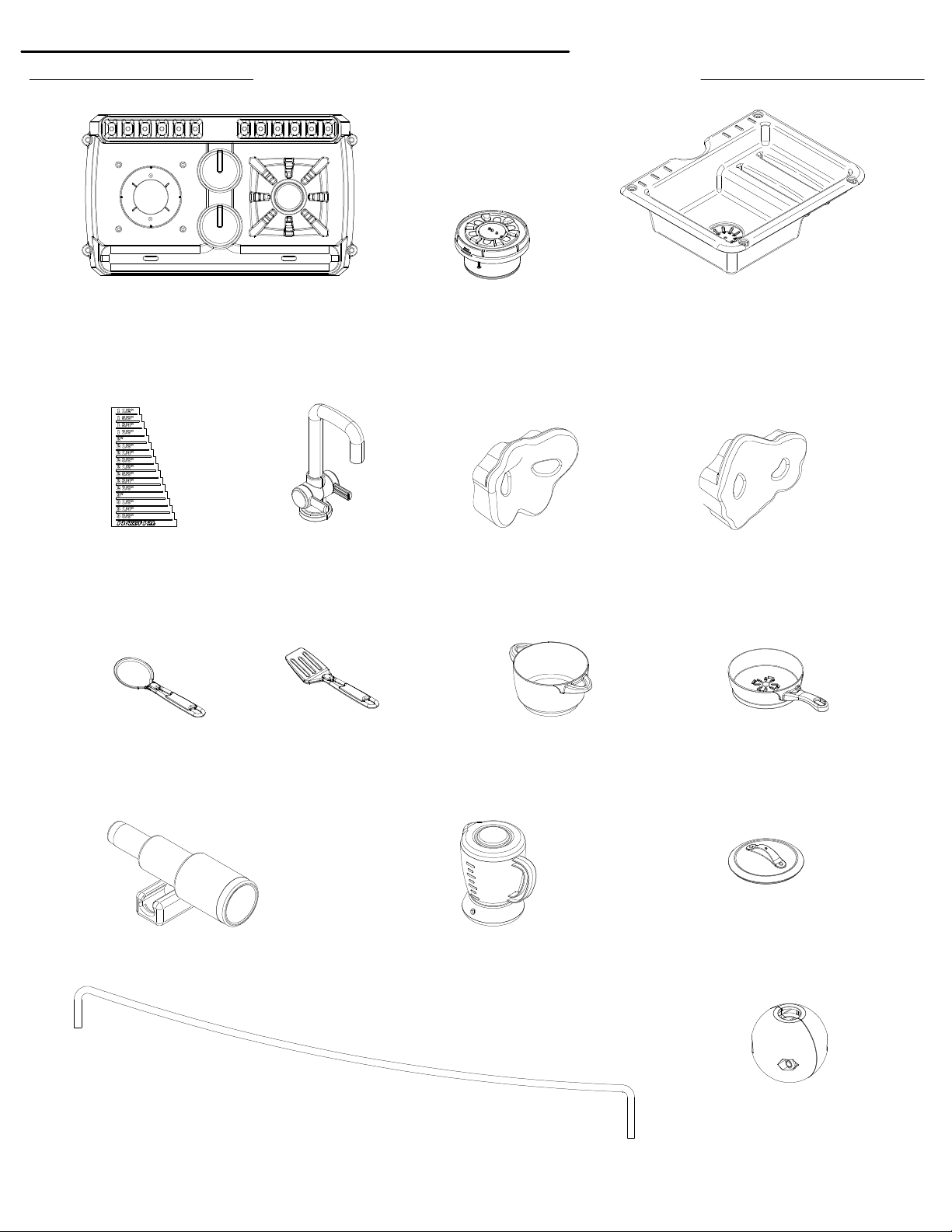

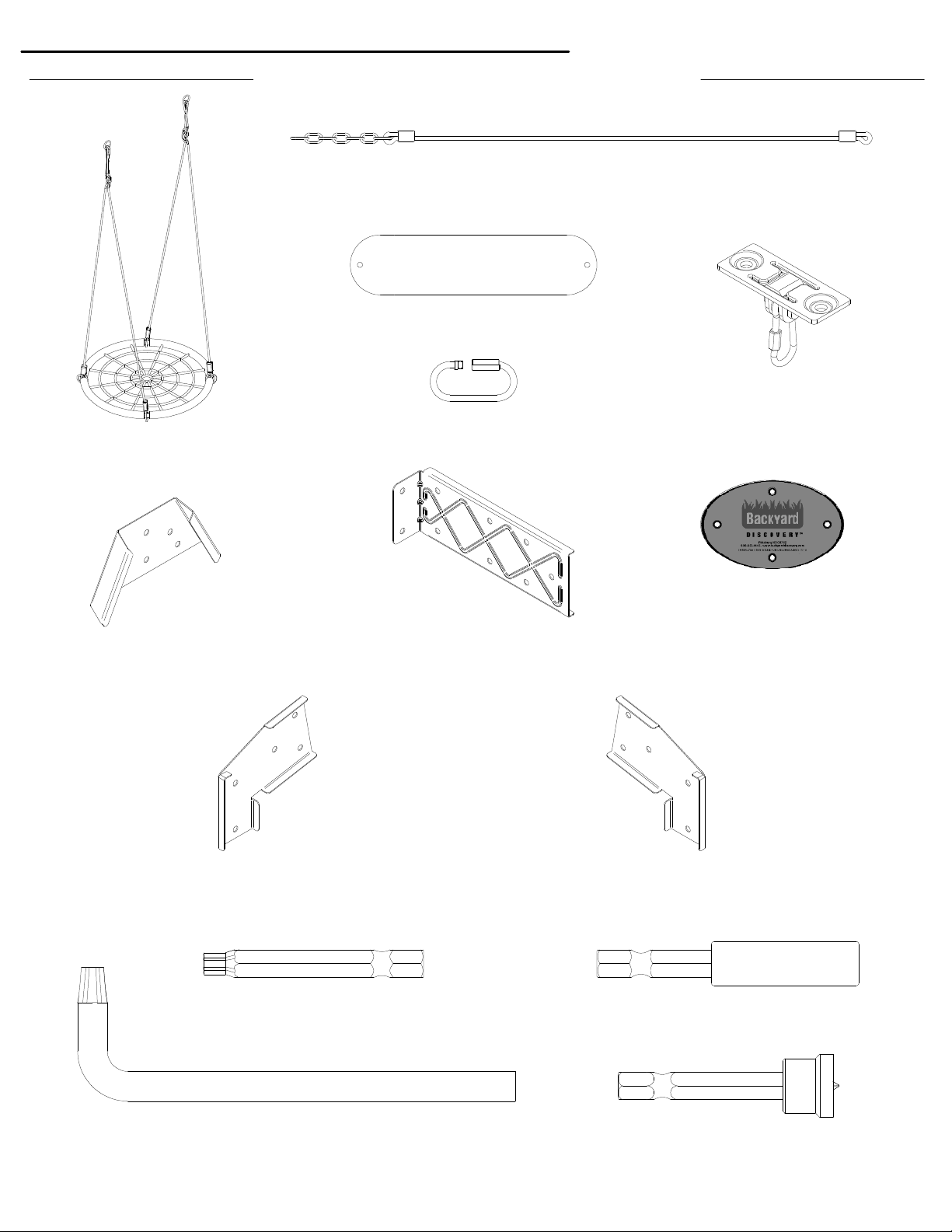

Accessory Components (Not to Scale)
Owner's Manual - Parts Identification
26" WEB SWING
A4M01415
(x1)
SWING SEAT GREY 22"
(x2)
A6P00595
ROPE-CHAIN BLACK 51.25"
(x4)
A6P00708
QUICK LINK BLK
(x4)
A4M00633
SWING HANGER
(x6)
A4M02171
A-FRAME BRACKET
(x1)
A4M01782 EXTENDED SWING BEAM BRACKET
(x2)
A4M01679
SWING BEAM EXTENSION BRACKET-LEFT
(x1)
A4M00617 SWING BEAM EXTENSION BRACKET-RIGHT
(x1)
A4M00618
BYD ID TAG (LARGE) AGES 3-10
(x1)
A100164
T-30 TORX WRENCH
(x1)
H100114 SCREW SETTER
(x1)
H100764
MAGNETIC DRIVER
(x1)
H101100
T-30 TORX BIT
(x1)
H100147
15

Accessory Components (Not to Scale)
Owner's Manual - Parts Identification
INDUCTIVE BURNER KIT
(x1)
A6P00330
FAUCET
(x1)
A6P00333
PREMIUM SINK
(x1)
A6P00332
PICKET PAL
(x1)
A6P00410
TELESCOPE GREY
(x1)
A6P00596
GREY HC ROCK #1
(x5)
A6P00592 GREY HC ROCK #2
(x5)
A6P00593
7'-7 1/4" ROPE
(x1)
A6P00617 ROPE CLAMP KIT
(x6)
A6P00508
LADLE
(x1)
A6P00340 SPATULA
(x1)
A6P00339
BOIL POT
(x1)
A6P00336
POT/PAN LID
(x2)
A6P00337
FRY PAN
(x1)
A6P00338
BLENDER
(x1)
A6P00331
STOVE BASE
(x1)
A6P00335
16

Accessory Components (Not to Scale)
Owner's Manual - Parts Identification
ARCHED GABLE
(x2)
A6P00319
PLASTIC WINDOW 44x412x485
(x2)
A100321 BAY WINDOW PANEL
(x3)
A100373
AUGER GROUND STAKE
(x8)
A4M02252
8' BLOW MOLDED SLIDE - GREY
(x1)
A6P00554
LADDER RUNG 578 GREY
(x2)
A4M02251
HAND GRIP GREY 816 C/C
(x2)
A4M02250
HAND GRIP METAL GREY 381 C/C
(x5)
A4M02249
L BRACKET 51x32x82x3.175
(x4)
A4M00855
L BRACKET 2.5x38x55x55
(x6)
A4M01047
GABLE CLEAT
(x2)
A4M02100
17

H100194 BOLT WH
5/16 x 2-1/2
(x2)
PRE-ASSEMBLY STEP 1 - SORTING PARTS
It is critical for ease of assembly that you take the time to sort and organize the wood and hardware.
WOOD PARTS:
• Organize wood parts by the three-digit, alpha-numeric number stamped on each board (ex. P01).
• If there are multiple boards with the same stamped number, stack those pieces together.
• Stamps can be found on the flat surface of the boards or on the end of the boards.
• Allow yourself plenty of room - the wood pieces can take up a significant amount of space.
NOTE: CARTONS ARE NOT ORGANIZED BY BOARD NUMBER.
HARDWARE PARTS:
• We recommend that you have a separate table to organize the hardware.
• Hardware bags are printed with a seven-digit, alpha-numeric part number.
• You can organize your hardware by part number or group by hardware type (i.e. bolts, nuts, etc.).
• During assembly you only need to reference the last four digits of the number.
18

PRE-ASSEMBLY STEP 2 - TOOLS REQUIRED
Cordless Drill or
Electric Drill
Drill Attachments:
Phillips Head
Open End Wrenches 1/2" & 9/16"
Phillips Screw Driver
1/8", 3/16", 3/8" & 7/16" Drill Bits
3/8" Drive Ratchet, 1/2" &
9/16" STD Sockets 1/2" & 9/16" Deep Sockets
Claw Hammer Rubber Mallet - Optional
Tape Measure
Square
Level 24"
19

PRE-ASSEMBLY STEP 3 - CHOOSE YOUR ASSEMBLY METHOD
There are several types of assembly instructions available to you.
1. Printed Assembly Manual included with your set
2. BILT APP - 3D interactive instructions
3. Combination of the Printed Manual and BILT APP (Note: Step numbers can differ between the two
methods)
20
