3-Unit Swing Set with Bonus Swing Seat
Model: S000664
Assembly, Installation, Care, Maintenance and Use Instructions
Plus Bonus swing seat piece.
This can be substituted for the tot swing.
IMPORTANT
Please read and retain this manual as it will assist with identification for parts and service.
Read these materials prior to assembling and using this swing set.
This Product is for Domestic Use Only.
- Warning -
- This swing set is for family domestic use only.
- This swing set is designed for use by children 3-9 years of age weighing no more than 34kgs.
- This swing set has a maximum weight limit of 102kgs.
- Children of all ages must be supervised by an adult at all times when using this swing set.
- Adult assembly of this swing set is required. Two adults are recommended for assembly.

@ACTION SPORTS EQUIPMENT PTY LTD –www.actionsports.com.au Page: 2
- WARNING -
1) Read and understand enclosed safety information before assembly and use of the swing set.
2) Place the swing set on a level and soft surface before use.
3) Lateral clearance is essential. The swing set should be placed not less than 2m (6 feet 6 inches) from any structure
or obstruction ie. a fence, garage, house, shed, overhead branches, clothes line etc.
4) DO NOT install this swing over hard surfaces such as concrete, asphalt or any other hard surface.
5) It is recommended that this swing set be positioned over soft lawn or fine sand.
6) Anchor the swing set using the wiggling anchor pegs provided to prevent overturning or lifting. The anchors
should be placed level with or under the ground in order to reduce the tripping hazards.
7) Never place the swing set under or near powerlines.
8) Never place the swing set inside a garage or basement or under any structure.
9) Always position the swing where it can be seen from the house.
10) This swing set is designed to be used by one child per seat at one time.
11) Do not allow additional items to be attached to the swing set such as ropes, chains, cords, or other items not
designed for use.
12) Do not use the swing set when it is wet as it will become slippery and serious injury may result.
13) Do not wear apparel such as hats with chin straps, helmets, scarves, garments with pull strings and other items of
loose clothing while using this swing set as they can cause serious injury.
14) Do not walk close to, in front of or behind the swing set when in use. Walking between moving rides can cause
serious injury.
15) Do not jump from the swing set when they are in motion.
16) Do not stand on the seats when using the swing set.
17) Do not climb on the side braces or the top support of the swing set.

@ACTION SPORTS EQUIPMENT PTY LTD –www.actionsports.com.au Page: 3
TABLE OF CONTENTS
TABLE OF CONTENTS.................................................................................................................3
PARTS LIST –MAIN FRAME.......................................................................................................4
PARTS LIST –SWING SEAT.........................................................................................................4
PARTS LIST –TRAPEZE...............................................................................................................5
PARTS LIST –TOT SWING...........................................................................................................5
PARTS MATCH LISTS –1:1 Actual Scale.....................................................................................6
ASSEMBLYAND INSTALLATION INSTRUCTION ..................................................................9
SECTION 1- MAIN FRAME ASSEMBLY..................................................................................10
SECTION 2- SWING SEATASSEMBLY....................................................................................12
SECTION 3 –TRAPEZE ASSEMBLY ........................................................................................13
SECTION 4 –TOT SWING ASSEMBLY ....................................................................................14
SECTION 5 –ANCHOR PEGS....................................................................................................15
MAINTENANCE INSTRUCTION...............................................................................................16
CAUTION......................................................................................................................................16
LIMITED WARRANTY…………………………………………………………………………17

@ACTION SPORTS EQUIPMENT PTY LTD –www.actionsports.com.au Page: 4
PARTS LIST –MAIN FRAME
Parts #
Parts
Description
Quantity
MF-1a
Top Support Tube A
1
MF-1b
Top Support Tube B
1
MF-2
Top Support Tube
Brace
2
MF-3
Leg Stay
2
MF-4
Upper Leg Tube
4
MF-5
Lower Leg Tube with
Foam
4
MF-6
Foam Sleeve
4
MF-7
Anchor Peg
4
PARTS LIST –SWING SEAT
Parts #
Parts
Description
Quantity
MS-1
Swing Seat Assembly
2
MS-2
EyeboltAssembly
(built- in to MS-1)
4
X6
Oval Opening Cap
(built-in to MS-2)
4
X16
Plastic Lock (built-in to
MS-2)
4

@ACTION SPORTS EQUIPMENT PTY LTD –www.actionsports.com.au Page: 5

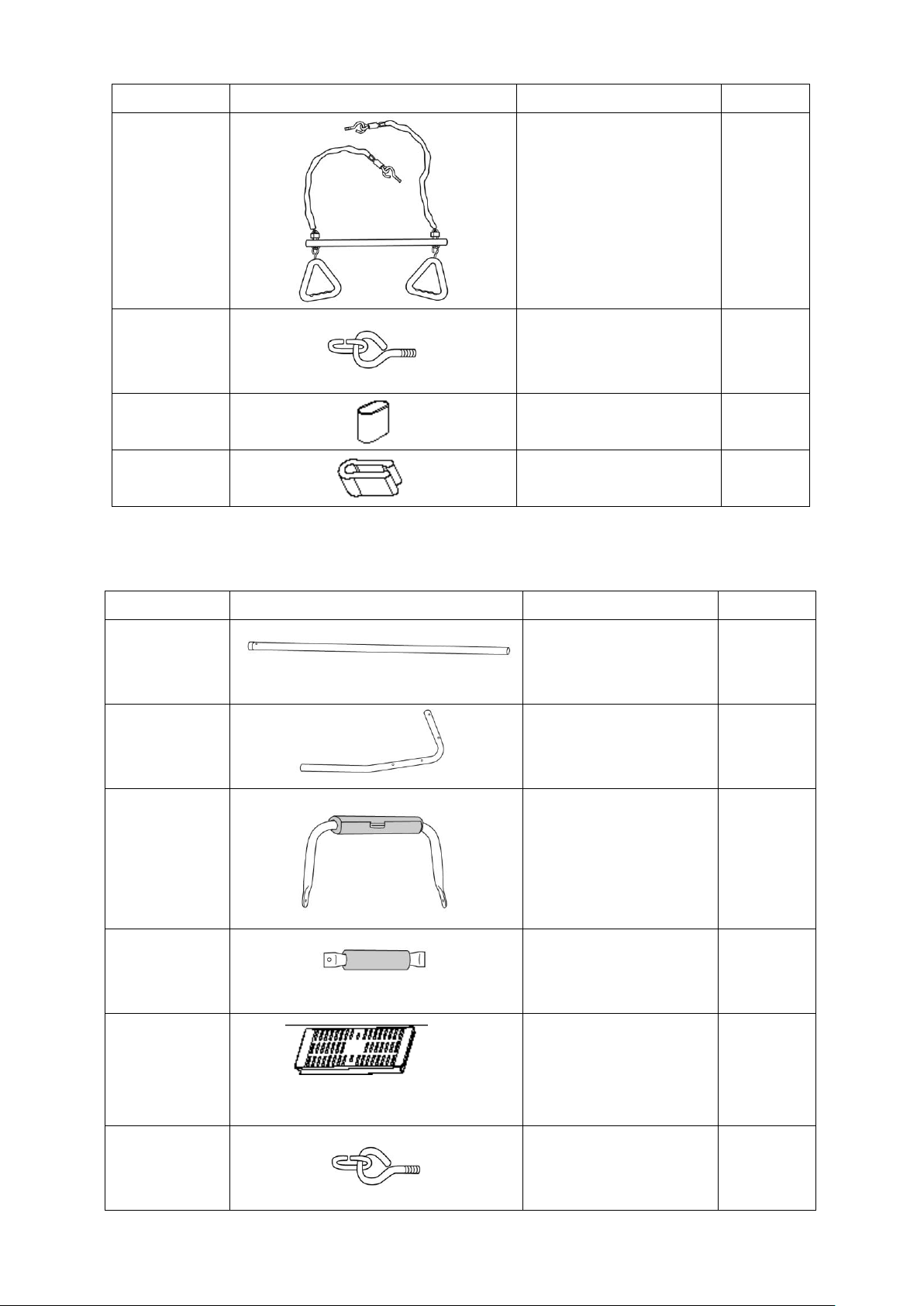

PARTS LIST –TRAPEZE
Parts #
Parts
Description
Quantity
TZ-1
Trapeze Assembly
1
TZ-2
Eyebolt & Link
Assembly (built-in to
TZ-1)
2
X6
Oval Opening Cap
(built-in to TZ-2_
2
X16
Plastic Lock (built-in to
TZ-2)
2
PARTS LIST –TOT SWING
Parts #
Parts
Description
Quantity
TS-1
Tot Swing Upper
Hanger Tube
2
TS-2
Tot Swing Lower
Handle Tube
2
TS-3
Tot Swing Armrest
Tube with foam and
cover
1
TS-4
Tot Swing Support
Tube with foam and
cover
1
TS-5
Seat and Back Plate
(seat plate with one
hole at the centre of
front panel)
2
TS-6
EyeboltAssembly
(built-in to TS-1)
2

@ACTION SPORTS EQUIPMENT PTY LTD –www.actionsports.com.au Page: 6

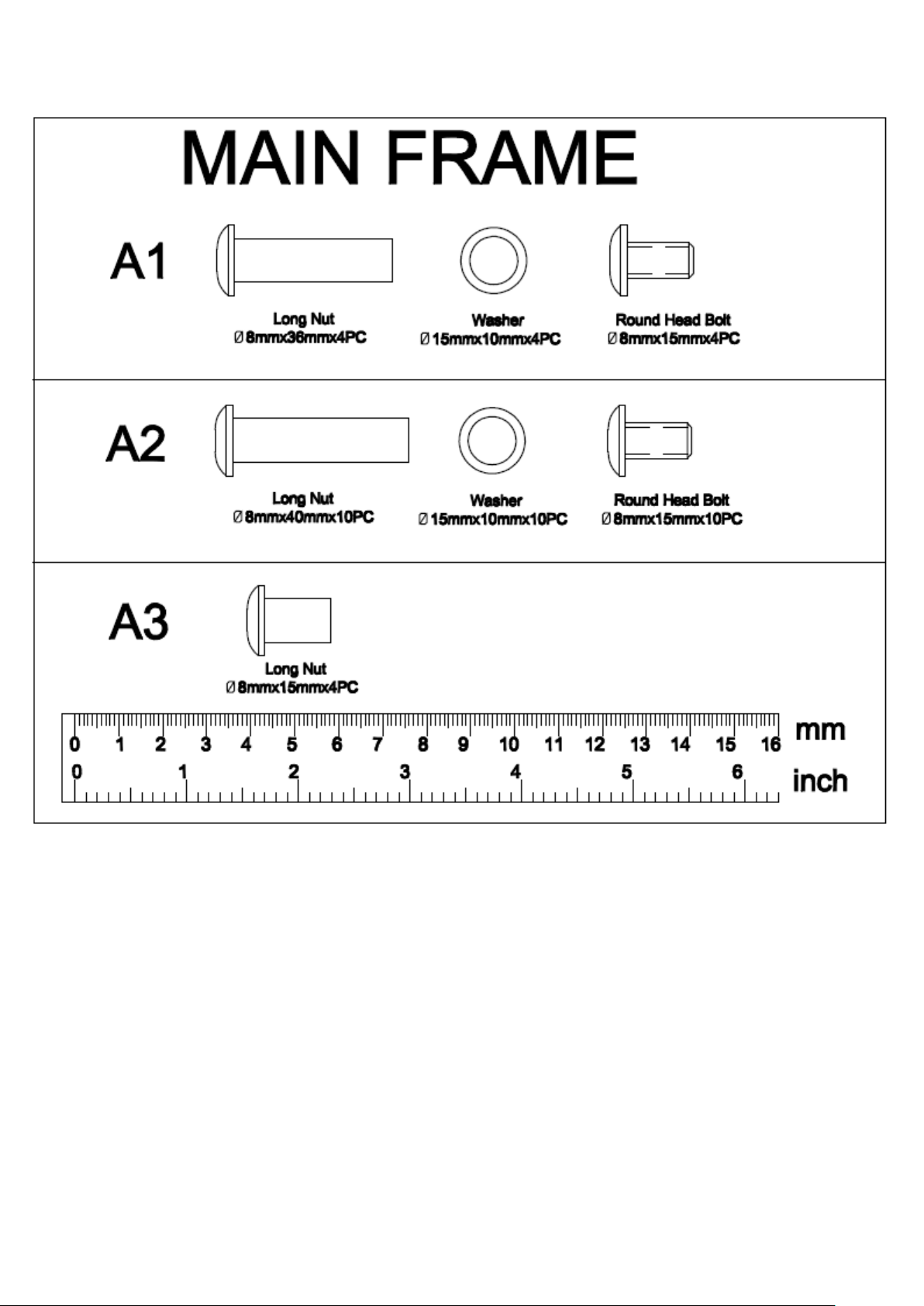

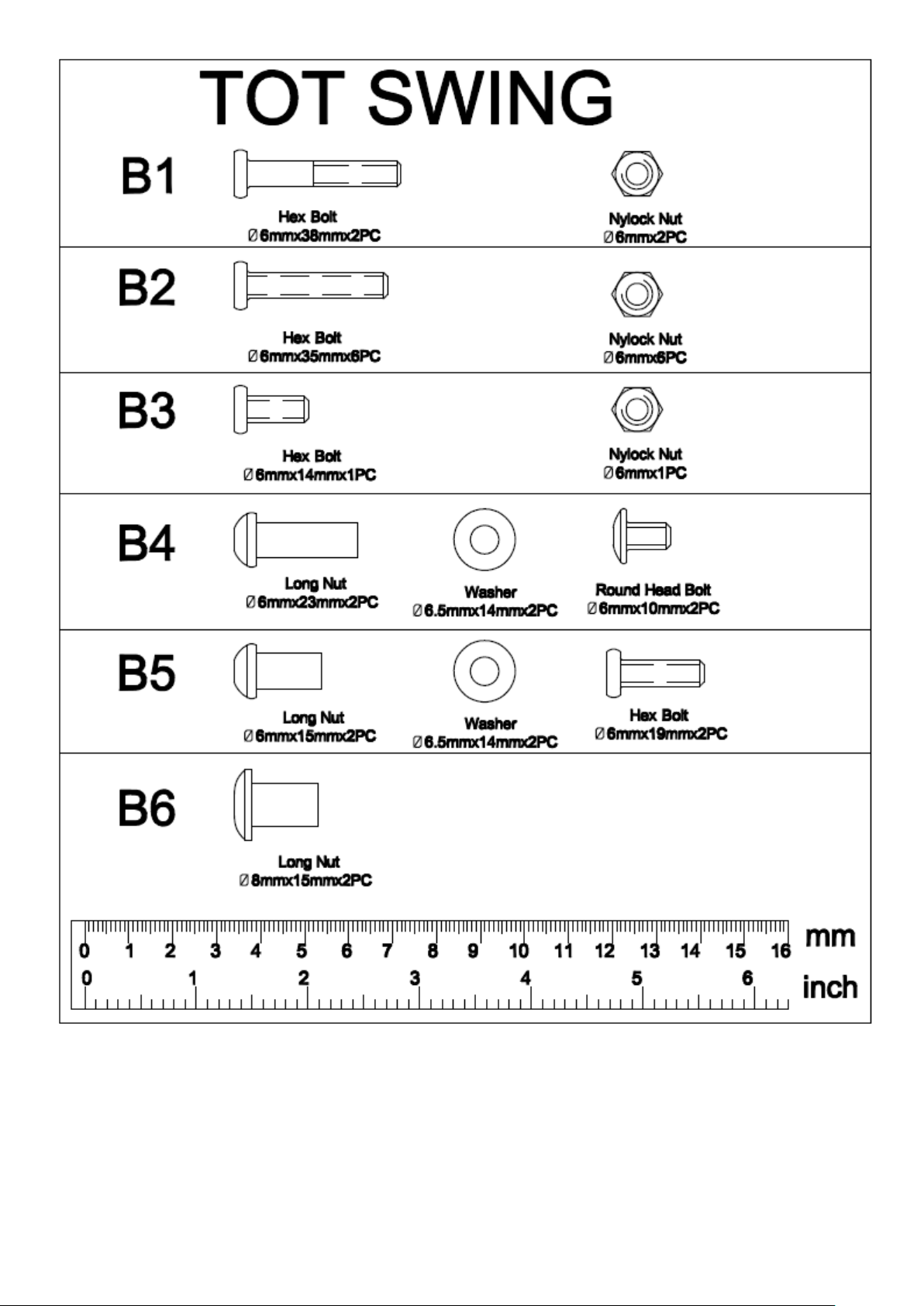

PARTS MATCH LISTS –1:1 Actual Scale

@ACTION SPORTS EQUIPMENT PTY LTD –www.actionsports.com.au Page: 7

@ACTION SPORTS EQUIPMENT PTY LTD –www.actionsports.com.au Page: 8
Tools included in the Item
Wrench Allen Key
A socket set and adjustable spanner may also be used to further assist in swing assembly.
- IMPORTANT -
Use this parts list to make sure all parts are present before assembly. Do not attempt to
assemble the swing set if any parts are missing or damaged. Disassemble the Swing Set
immediately if any part is missing or any unsafe condition exists. Obtain a replacement
part to properly correct the hazard by calling 1800 465 070 (Australia) or 09 477 6020 (New
Zealand). Do not allow use of the swing set until the hazard has been corrected.

@ACTION SPORTS EQUIPMENT PTY LTD –www.actionsports.com.au Page: 9
ASSEMBLYAND INSTALLATION INSTRUCTION
Read this entire assembly section before beginning to assemble your swing set. Carefully follow each
step.
NOTE:At least 2 persons are recommended for the following assembly.

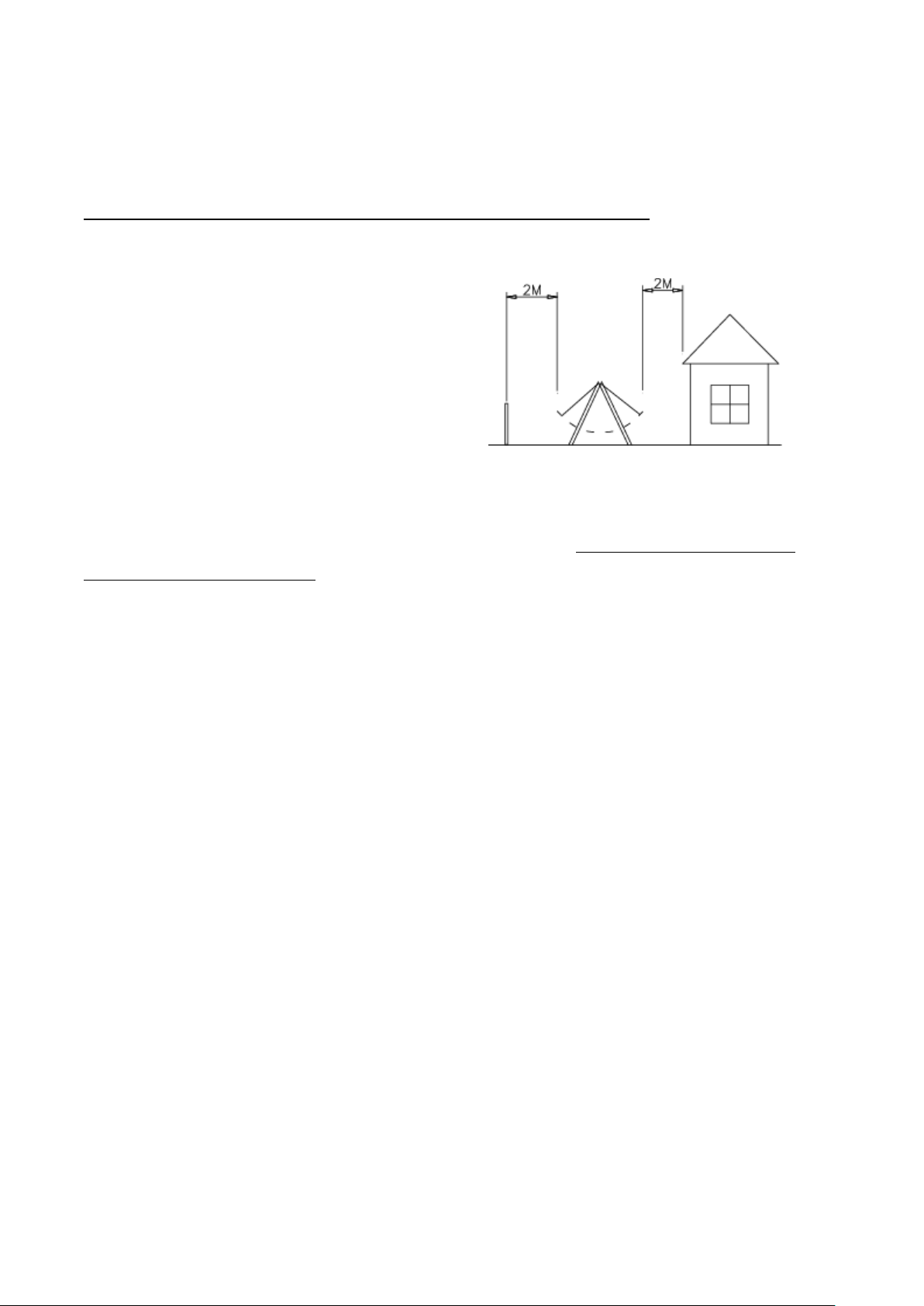

In order to avoid injuries and damage to property, it
is recommended that the Swing Set should be at
least 2 metres away from any buildings, fences and
so on. Also clear the ground of any sharp objects.
Use the Parts List to make sure all parts are present. Contact Customer Service at 1800 465 070
(Australia) or 09 477 6020 (New Zealand) if any parts are missing. Do not attempt to assemble the
swing set if any parts are missing.

@ACTION SPORTS EQUIPMENT PTY LTD –www.actionsports.com.au Page: 10
SECTION 1- MAIN FRAME ASSEMBLY
Note: At least two people are required for the assembly of the swing set.
Caution: The swing set should be placed on a soft surface, such as a grassed lawn area is
recommended.
1.1 Lay out the top frame on a soft and level surface as Fig. 1.Align holes; connect the Top Support Tubes
(MF-1a & b) and the Top Support Tube Braces (MF-2), using Bolts, Washers & Nuts of A2. See Fig.2
Figure 1
Figure 2
1.2 Slide the Lower Leg Tubes (MF-5) into the Upper Leg Tubes (MF-4), align holes. See Fig.3
Figure 3

@ACTION SPORTS EQUIPMENT PTY LTD –www.actionsports.com.au Page: 11
1.3 Slide the Foam Sleeve (MF-6) to the Lower Leg Tubes (MF-5) to cover the leg foam as Figure 4.
Figure 4
1.4 Attach the leg tubes to Main Frame and fasten with Bolts, Washers & Nuts (A1). Put the Leg
Stay (MF-3) onto the leg tubes. Align holes and tighten with bolts, washers & nuts of A2. See
Figure 5.
Figure 5

@ACTION SPORTS EQUIPMENT PTY LTD –www.actionsports.com.au Page: 12
SECTION 2- SWING SEAT ASSEMBLY
Attach the Swing Seat to the Main Frame as shown Figure 6 .
Figure 6
WARNING!
DO NOT OVER TIGHTEN EYEBOLTS!
THIS CAN RESULT INASSEMBLY FAILURE!

@ACTION SPORTS EQUIPMENT PTY LTD –www.actionsports.com.au Page: 13
SECTION 3 –TRAPEZE ASSEMBLY

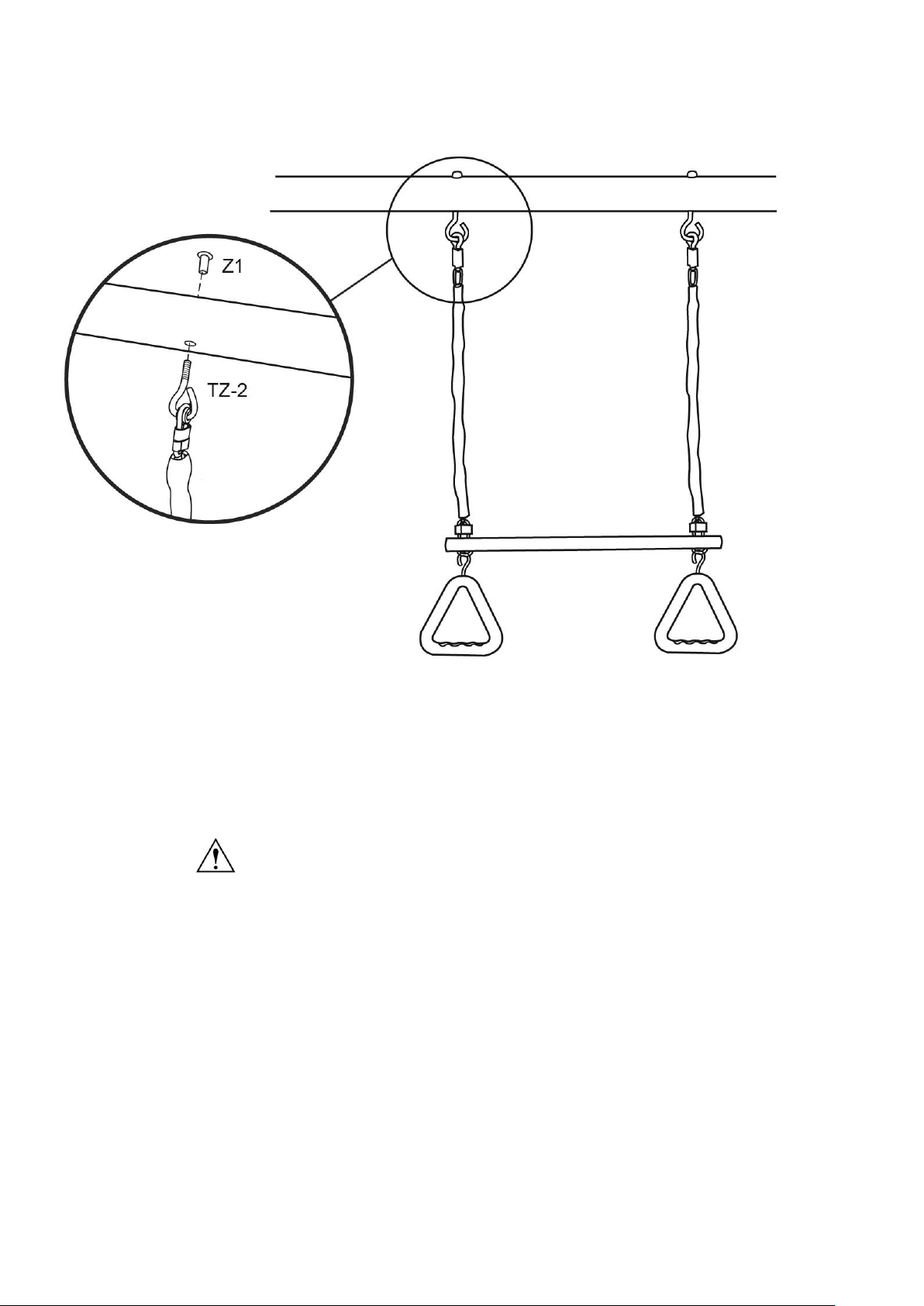

Connect the Trapeze to the Main Frame as shown in Figure 7.
Figure 7
WARNING!
DO NOT OVER TIGHTEN EYEBOLTS!
THIS CAN RESULT INASSEMBLY FAILURE!

@ACTION SPORTS EQUIPMENT PTY LTD –www.actionsports.com.au Page: 14
SECTION 4 –TOT SWINGASSEMBLY

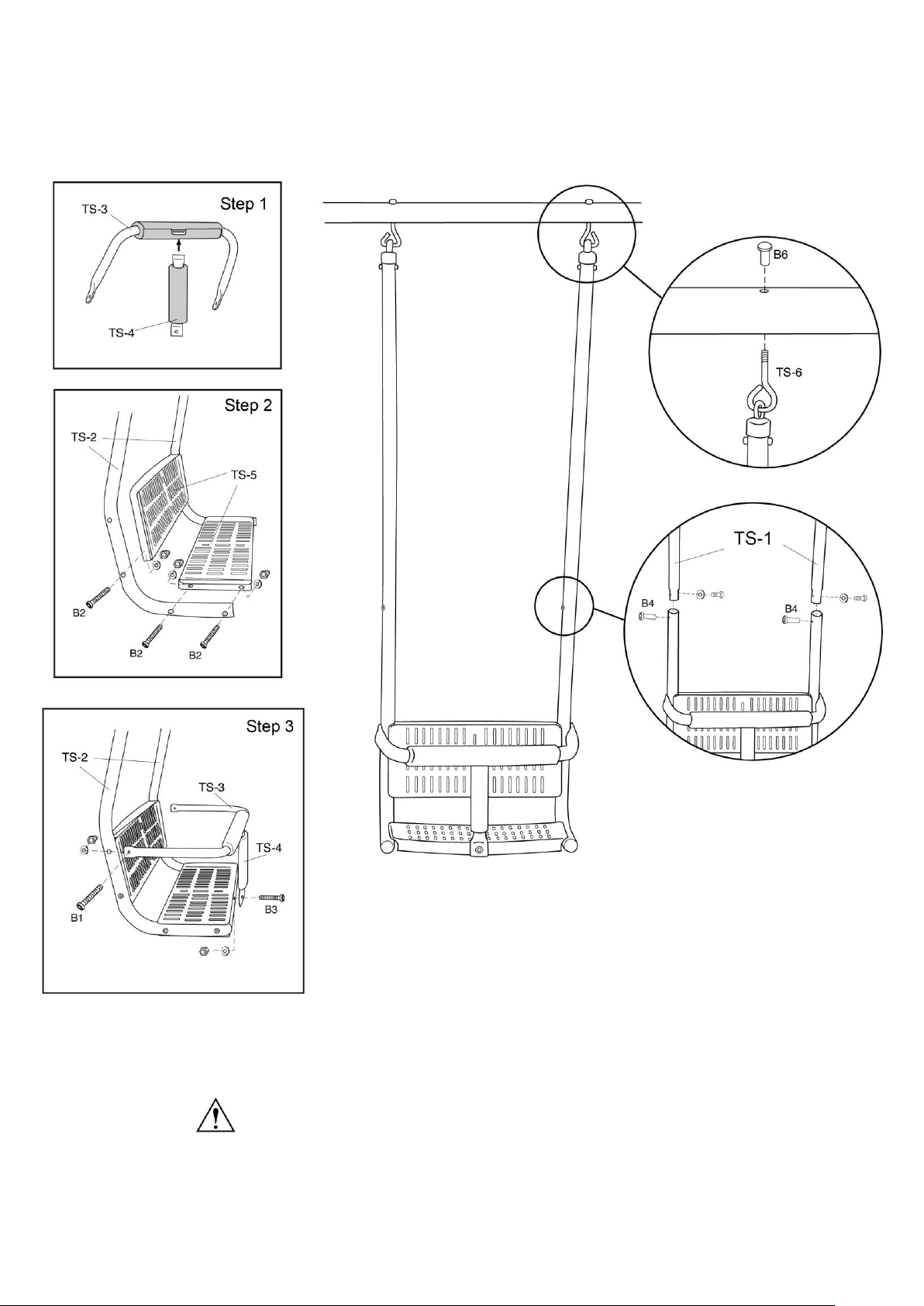

Connect the Tot Swing to the Main Frame as shown in Figure 8.
Figure 8
WARNING!
DO NOT OVER TIGHTEN EYEBOLTS!
THIS CAN RESULT INASSEMBLY FAILURE!

@ACTION SPORTS EQUIPMENT PTY LTD –www.actionsports.com.au Page: 15
SECTION 5 –ANCHOR PEGS

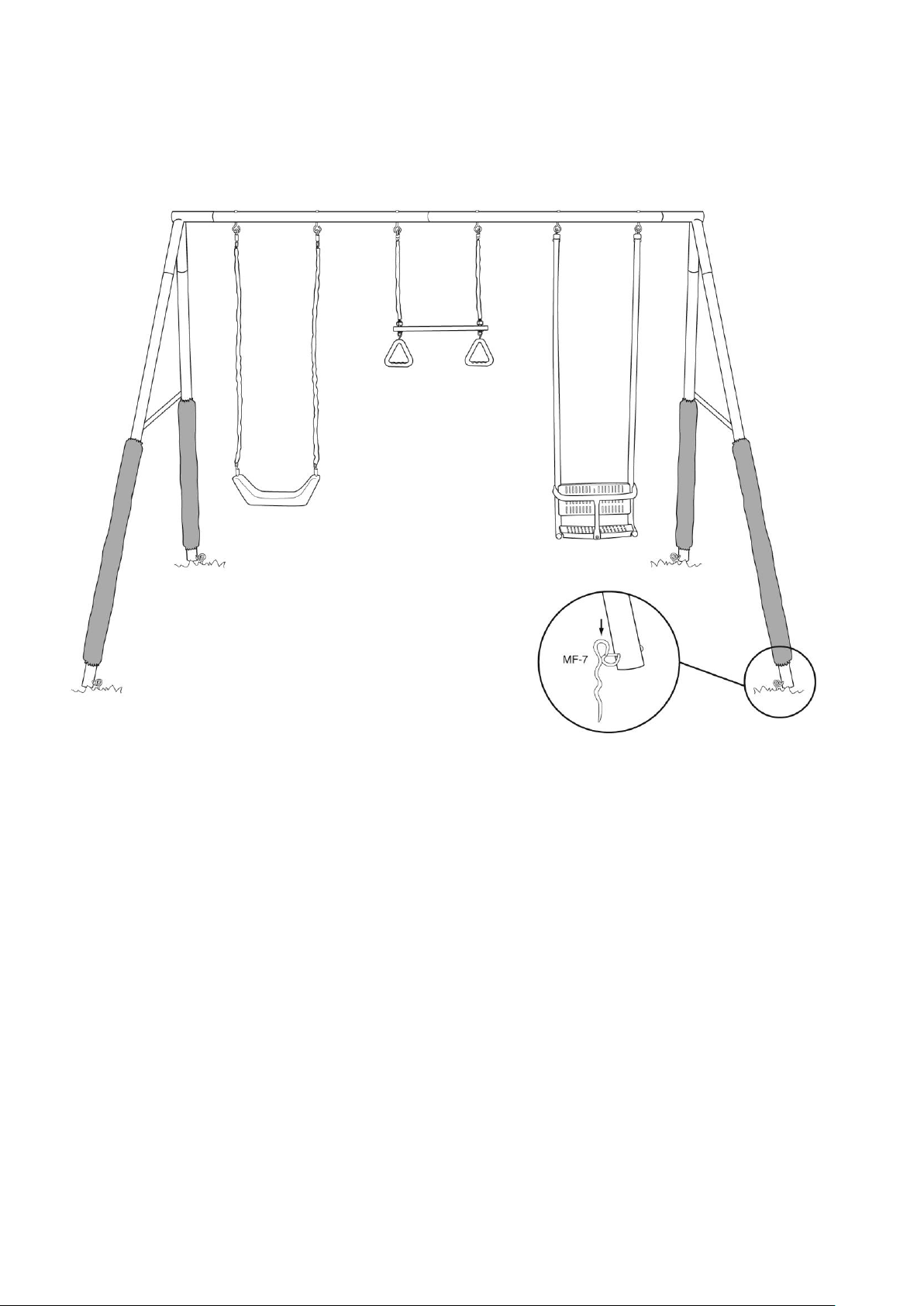

Secure the 4 Anchor Pegs (MF-7) to the Swing Set legs, using the A4 Nuts. Push the whole peg into the
ground as shown in Figure 9.
Figure 9

@ACTION SPORTS EQUIPMENT PTY LTD –www.actionsports.com.au Page: 16
MAINTENANCE INSTRUCTION
To maximise the life of your swing set, make sure your children enjoy your swing
sets safely. It is important to check and inspect the following regularly before
each use of the swing set, and carry out necessary maintenance immediately.
Nuts and Bolts: Check before each use for tightness and tighten if required. Replace any damaged,
distorted or missing fasteners immediately.
Plastic components: Check before each use for deterioration.
Replace immediately if cracked or damaged. Use only genuine Action’s replacement parts.
Metal components: Check before each use for corrosion, cracking, tears, distortion or other damage.
Replace immediately if these conditions exist. In particular, check the Braces on the top tubes, as these
can be damaged through improper use / or excessive lateral movement.
Oil all metallic moving parts at least one time a month.
CAUTION
Do not allow children to use the swing set until the maintenance has been carried out. The
use of swing set not in first class condition exposes the child to the risk of injury. As a
parent, supervisor, owner or guardian, it is your responsibility to ensure that the swing
set is properly maintained. Spare parts are available through ACTION SPORTS
Customer Service centre. Please call 1800 465 070 (Australia) or 09 477 6020 (New
Zealand).

@ACTION SPORTS EQUIPMENT PTY LTD –www.actionsports.com.au Page: 17
Swing Sets Limited Warranty
ACTION SPORTS warrants its swing set products to be free from defects in material and
workmanship under normal use and service conditions.
The various components of the swing set are warranted against defects and workmanship for
6 months.
All warranty coverage extends only to the original retail purchaser from the date of purchase.
ACTION SPORTS’ obligation under this Warranty is limited to replacing or repairing, at
ACTION’s option, the product or parts therein. Any enquiries relating to warranties or spare
parts must be directed to our Freecall 1800 465 070 (Australia) or Standard call 09 477
6020 (New Zealand). For efficient processing of your enquiry please have relevant date of
purchase, retailer name you purchased the item from and the brand on the product. This
warranty does not extend to any damage to a product caused by abuse, improper or abnormal
usage (as detailed in this instruction manual), or repairs not provided byACTION. Nor does
this warranty extend to products used for commercial or rental purposes. This warranty does
not cover ordinary wear, tear and weathering, failure to follow directions, improper
installation, improper maintenance or acts of God (such as damage caused by storms,
lightning and by snow or ice). No other Warranty beyond that specifically set forth above is
authorised by ACTION.
Our sales and service centre has been set up to provide assembly assistance, replacement parts
and accessories, and to efficiently handle all warranty related matters.
Freecall 1800 465 070 (Australia) or email [email protected].au
Standard Call 09 477 6020 (New Zealand) or email [email protected]
Opening hours: 9am –4:30pm Monday to Friday (excluding Public Holidays)
9am –3pm Saturday
www.actionsports.com.au
