Backyard Discovery 55006 User manual

Made in China
Features the fastening system.
Save this assembly manual for future reference in the event that
you need to order replacement parts.
• Owner's Manual
• Frequently Asked Questions
• Assembly Instructions
• Warranty Information
PRAIRIE RIDGE
Wooden Swing Set
Model: #55006

GENERAL SAFETY INSTRUCTIONS
PURPOSE
This product is intended for outdoor, domestic use only. It is not suitable for commercial or medical use.
DANGER FOR CHILDREN
WARNING! No eating while using the product
This product may only be used with adult supervision at all times.
The packaging material is not suitable for children due to choking and suffocation hazards.
RISK OF INJURIES
Do not use the product if it is damaged or defective. If it is damaged or defective, please contact a
qualified technician.
Check the product before each use. Defective parts must be changed immediately as they can impair
the function and the safety of the product.
No more than one person per swing or per attachment.
Use the product only on even and non-slipping surfaces. Never use it near water and keep sufficient
space around for safety.
PRODUCT DAMAGE
Do not make alterations to the product. Only use original spare parts. Qualified technicians should only
carry out repairs –improper repairs can lead to danger for the user. Use this product only as described
in this manual.
Protect the product against splashes, humidity, high temperature and direct sunlight.
ASSEMBLY ADVICE
The assembly of the product must be done carefully and by an able-bodied adult. If in any doubt, ask a
technically qualified person.
Before you start with the assembly, read the instructions carefully.
Remove all packaging materials and lay down all parts on an open space. This gives you an overview
and simplifies the assembly procedure.
Check with the parts list that all parts are available. Dispose of the packaging material when the
assembly is completed.
Beware that when using tools or doing technical work, there is always a risk of injuries. Assemble the
product with care.
Create a danger free environment; for example, do not let tools lay around the workspace. Store the
packaging material in a way that cannot cause any danger.
After installing the product according to the instruction manual, ensure all screws, bolts and nuts are
correctly installed and tightened and that all joints are secure.
Reasonable space must be kept between the product and possible sources of danger, such as other
equipment swimming pools and fences.
The product must be assembled correctly before use.
Place the product on a level surface at least 2 m from any structure or obstruction such as a fence,
garage or house.
No modifications are to be made to the original product.
The product must always be used in a well-lit area.
Do not place anything under the product.
Use gloves during assembly and disassembly.
Outdoor products should be equipped with a device that in strong wind conditions avoid displacement
due to wind (e.g. steel bars in the ground or loads like sand bag or water bags).

In certain areas during winter, snow buildup and the low temperatures can damage the product. It is
recommended to remove snow buildup and to store the product indoor.
We strongly recommend visual inspections every 3 months to insure the integrity of the entire product.
Replace any parts as necessary.
SAFETY INSTRUCTIONS
The safety instructions of the product should always be considered and obeyed.
Using the product may result in permanent injury such as paralysis, or even death. Falling off the
product may lead to injuries, particularly to the back, neck or head.
No clothes with hooks or lose parts should be worn or carried during product usage in order to avoid
hooks getting caught and causing injury.
Moving the product whilst assembled may affect the integrity of the frame. Should it be necessary to
move the product, please consider the following:
1.) Force to be evenly spaced around the frame to lift the product off the ground
2.) The product must be carried horizontally
3.) Use caution whilst moving as it could bend the product frame.
Users should be familiar with the assembly manual. This manual contains assembly guidance; selected
precautionary measures as well as recommendations for servicing and maintenance of the product, in
order to ensure safe and fun usage.
It is the responsibility of the owner or the supervisor to guarantee that all users of the product are
informed sufficiently of all warning references and safety instructions.
For the supervisor:
The supervisor’s role is to make sure users are aware of all safety precautions and that these precautions are
enforced. When a supervisor is not available, the product may be disassembled or covered to limit access.
The product can be only used if it is in good condition, worn or damaged parts should be replaced.
Objects, which could be dangerous to the user, should be away from the product
Avoid unauthorized and unsupervised use of the product.
Do not use the product under influence of alcohol or drugs (incl. medicines).
Do not use the product or its attachments as a jumping platform.

Consumer Information Sheet for Playground Surfacing Materials
The US Consumer Product Safety Commission (CPSC) estimates that about 100 000 playground equipment-
related injuries resulting from falls to the ground surface are treated annually in US hospital emergency rooms.
Injuries involving this hazard pattern tend to be among the most serious of all playground injuries, and have the
potential to be fatal, particularly when the injury is to the head. The surface under and around playground
equipment can be a major factor in determining the injury-causing potential of a fall. It is self-evident that a fall
on to a shock-absorbing surface is less likely to cause a serious injury than a fall onto a hard surface. Playground
equipment should never be placed on hard surfaces, such as concrete or asphalt, and while grass may appear
to be acceptable, it may quickly turn to hard-packed earth in areas of high traffic. Shredded bark mulch, wood
chips, tine sand or the gravel are considered to be acceptable shock absorbing surfaces when installed and
maintained at a sufficient depth under and around playground equipment.
Table B.1 lists the maximum height from which a child would not be expected to sustain a life-threatening head
injury in a fall on to four different loose-fill surfacing materials if they are Installed and maintained at depths of
150 mm, 225 mm and 300 mm.
Table B.1: Fall height in millimetres from which a life-threatening head injury would not be expected
However, it should be recognised that all injuries due to falls cannot be prevented, no matter what surfacing
material is used.
It is recommended that a shock absorbing material extend a minimum of 1 800 mm in all directions from the
perimeter of stationary equipment such as climbing frames and slides. However, because children may
deliberately jump from a moving swing, the shock absorbing material should extend in the front and rear of a
swing a minimum distance of twice the height of the pivot point measured from a point directly beneath the pivot
on the supporting structure.
This information is intended to assist in comparing the relative shock-absorbing properties of various materials.
No particular material is recommended over another. However, each material is only effective when properly
maintained. Materials should be checked periodically and replenished to maintain correct depth as determined
necessary for the equipment in question. The choice of a material depends on the type and height of the
playground equipment, the availability of the material in a particular area, and its cost.
Type of Material
Depth of surfacing material
150mm
225mm
300mm
Double Shredded Bark
Mulch
1800
3000
3300
Wood Chips
1800
2100
3600
Fine Sand
1500
1500
2700
Fine Gravel
1800
2100
3000

Play Set Assembly Manual FAQs:
1. Does the area for the playset need to be level?
Yes. we recommend the playset be positioned on a flat level area for maximum safety and durability. The stakes provided should be used
to secure it firmly to the ground.
2. What age range is appropriate for the playsets?
The playsets are recommended for children ages 3 – 10 years.
3. Is the wood treated with chemicals?
We use 100% Chinese Cedar wood which is naturally bug resistant, decay and rot resistant. To help ensure your child’s
safety, our wood is completely chemical free and we do not use pressure-treated wood. The stain we use is a top coat using a water-
based product that is for appearance only.
4. How often should the playset be stained?
We recommend the playset be stained once each year. A water or oil based stain can be used at the customer’s discretion.
5. Why does it seemthat my swing set is developing cracks?
Wood is a natural material; no two pieces are exactly alike. Each piece has its own characteristics and personality and reacts differently
to climate changes. When any wood product is exposed to the elements, it develops “wood checks”. A check is the radial separation of
the wood fibers running with the grain of the wood. These are caused by the varying temperature and moisture conditions. A check is
not a crack – it does not affect the strength or durability of the wood or structural integrity of the play set.
6. Do the playsets come with a warranty?
Yes. All Lifespan Kids products carry replacement warranty on all parts for manufacturer’s defect.
Please see warranty detailsfor more information.
7. What is the best way to get started assembling the playset?
We recommend taking all the parts out of the boxes and arranging them by part number before you begin any assembly.
This will not only allow faster assembly, but will also identify any parts that may be missing or damaged so they can be
replaced before assembly.
8. The playset seems to rock or sway too much. What’s wrong?
Rocking is caused by uneven ground or obstructions such as rocks, roots, etc. under the ground rails. These should be removed and
the groundunderneath re-leveled to prevent rocking. Also ensure the playset is securely staked to the ground using the anchors
provided.
9. The 2”x4” boards do not measure 2”x 4”. Why not?
In it is common practice to describe lumber dimensions using the rough cut sizes from the sawmill and not the finished dimensions.
Retailers, home stores, etc. all use this accepted practice for describing lumber dimensions. However, the playset is designed and
constructed using the actual dimensions so everything fits properly and remains so during the life of the playset.
10. The end beam is not straight up and down. Why not?
This is normal. Backyard Discovery designs playsets this way to ensure the strongest structure possible. The slight angle adds strength
and reduces rocking and twisting.
11. The S-hooks for the swings won’t close. What is wrong?
We recommend placing them on a hard surface such as concrete (don’t do this on anything that will dent such as
metal or finished wood or glass which will break!). It will take quite a few strokes, but the hooks will close.

(Level 24")
(Open End Wrenches 1/2")
(Square)
(Tape Measure)
(3/8" Drive Ratchet, 1/2" STD
Sockets 1/2" Deep Sockets)
(Claw Hammer)
(Cordless Drill or Electric Drill)
(An Adult w/ an Adult Helper)
(Rubber Mallet - Optional)
(Ladder)
(Phillips Screw Driver)
(Drill Attachments:
Phillips Head)
(3/16" & 3/8" Drill Bits)
Tools Required for Installation:
(These are the tools that are generally required for assembly of our outdoor products. These tools
are not included with the outdoor product purchase.)

Important Assembly Notes
1) While assembling unit, take time before and after each phase to make sure fort is level. If fort is
not level, assembly will be difficult and improper assembly may result. Extra care must be taken to
insure the fort is square.
2) Tighten bolts securely, tighten nuts on bolts flush to the tube or member, and place caps over
exposed bolts snug to the nut.
3) Pay close attention to the ITEMS NEEDED FOR EACH PHASE. They can be a valuable aid when
sorting your wood and hardware. Assembly will be made easier if items are sorted by phase.
4) Pay close attention to make sure you are using the correct hardware in the correct phases. Using
incorrect hardware may result in improper assembly.
5) Whenever a T-nut is used, follow these directions. Place T-nut in pre-drilled hole. Tap in with hammer.
Place bolt with washers in the opposite side. Hand tighten to make sure the bolt is in the T-nut.
DO NOT over tighten.
6) Read the steps of each phase thoroughly. The written steps may include important information not
shown in the illustrations.

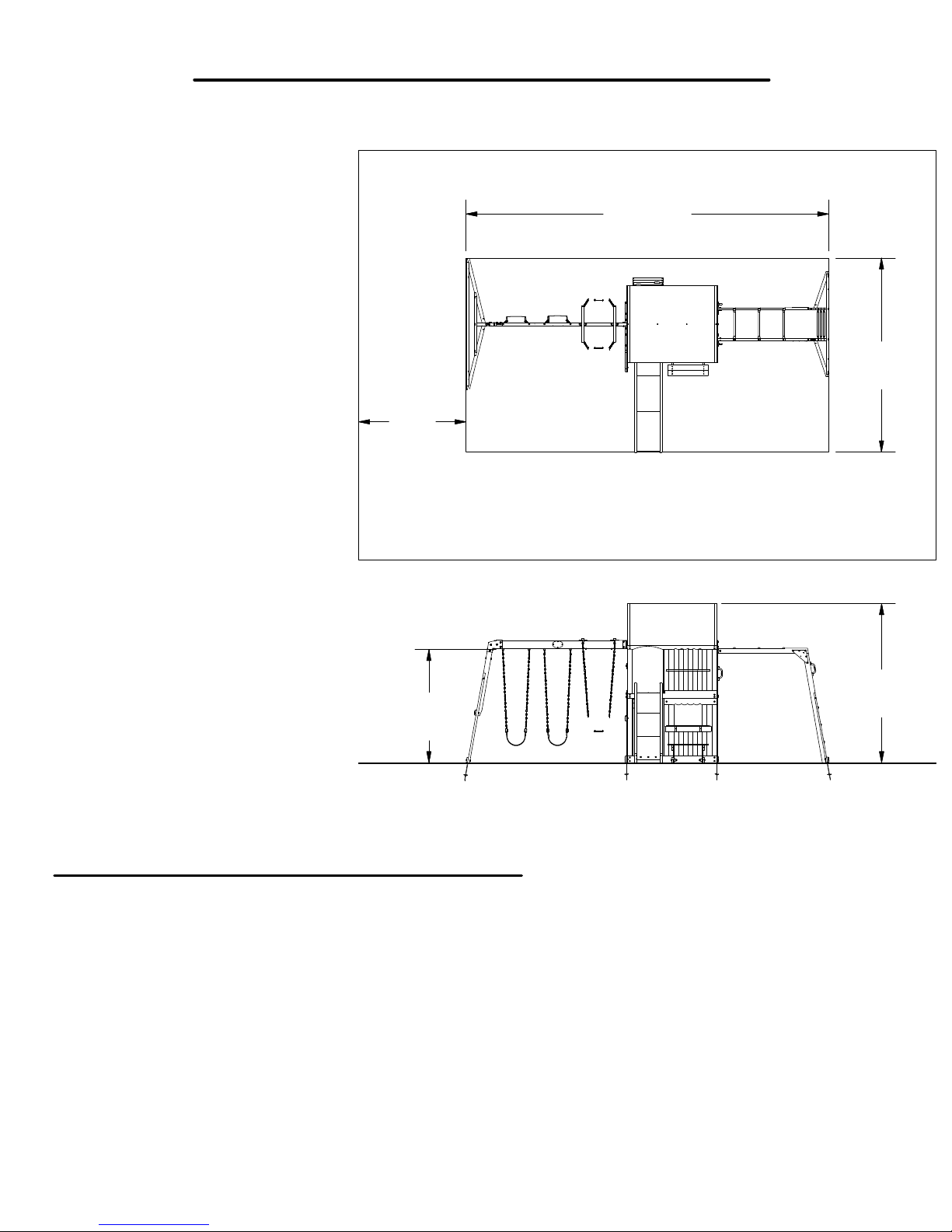

Basic Setup Dimensions
Place the set on level ground, not less than 6 ft [2 m] from any structure or obstruction such
as a fence, garage, house, overhanging branches, laundry lines, or electrical wires.
Safe Play Zone
Safe play height: 14'-10 5/16" [2.7 m]
Maximum fall height: 6'-3 5/8" [1.9 m]
General Information:
Your set has been designed and engineered
for chi dren on y and for residentia use on y.
A maximum of 150 bs. per chi d is
recommended for p ay activities designed for
individua use.
A maximum of 120 bs. per chi d is
recommended for p ay activities designed for
mu tip e chi d use.
A maximum of 9 chi dren is recommended for
this swing set.
6'-0"
[1.8]
10'-9 5/8"
[3.3]
20'-3 1/8"
[6.2]
8'-10 5/16"
[2.7]
6'-3 5/8"
[1.9]

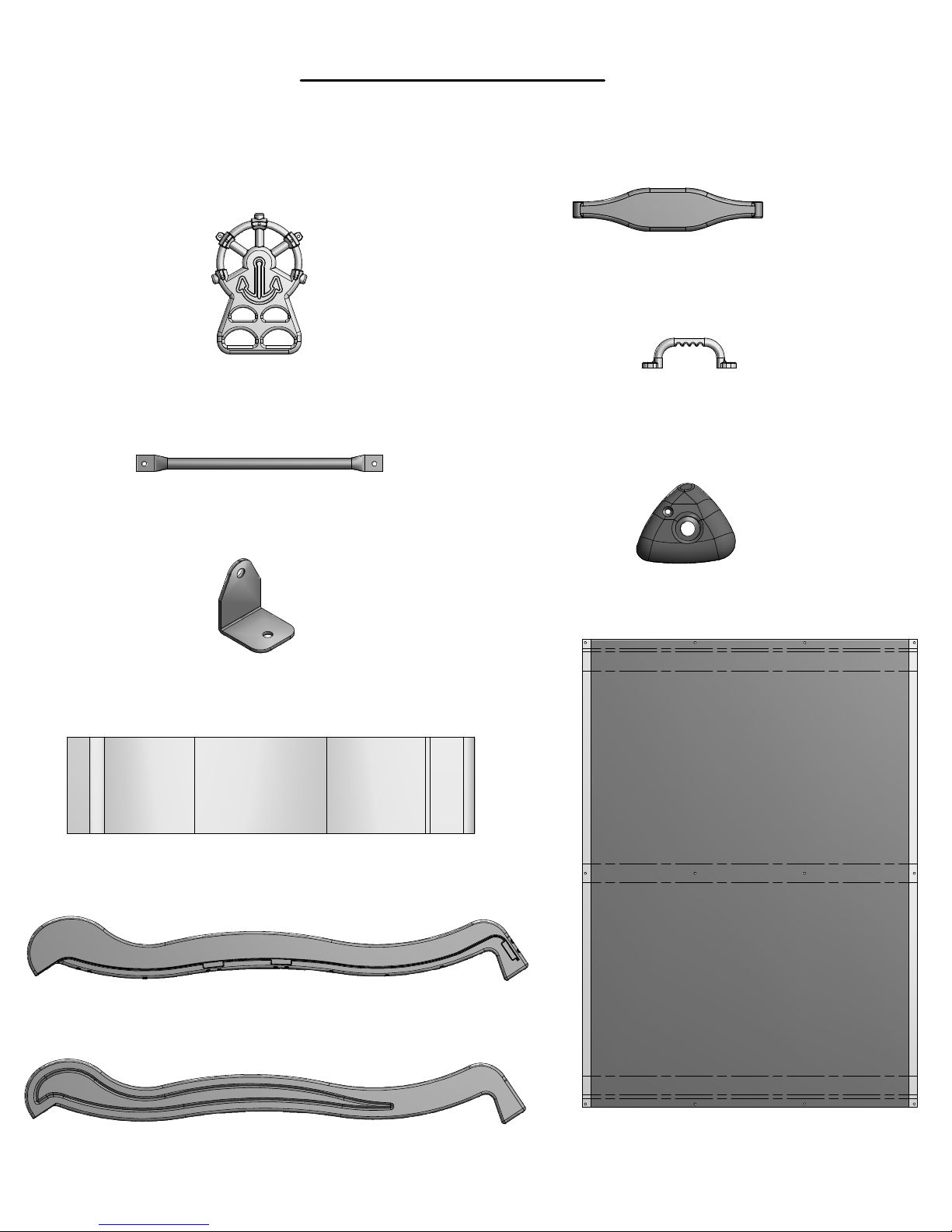

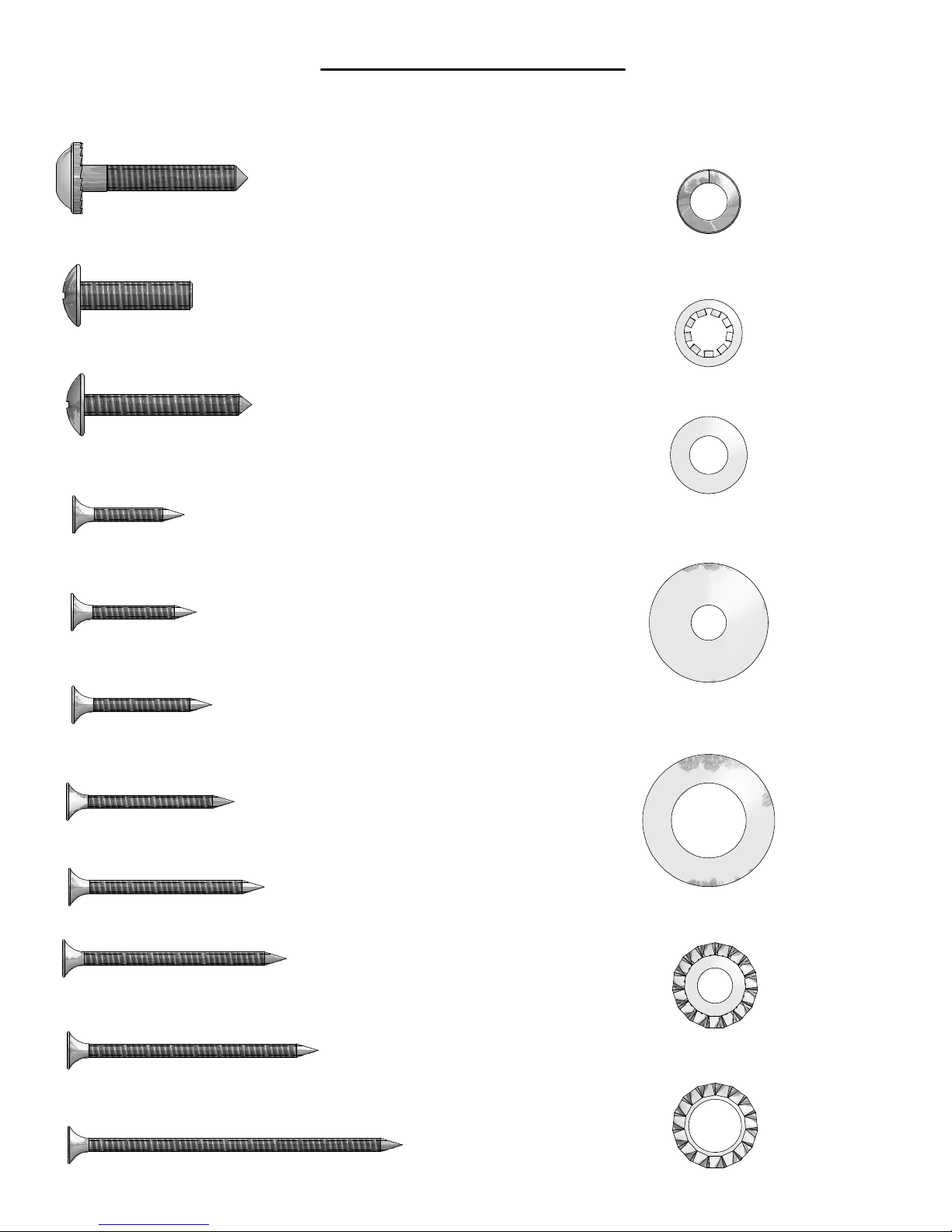

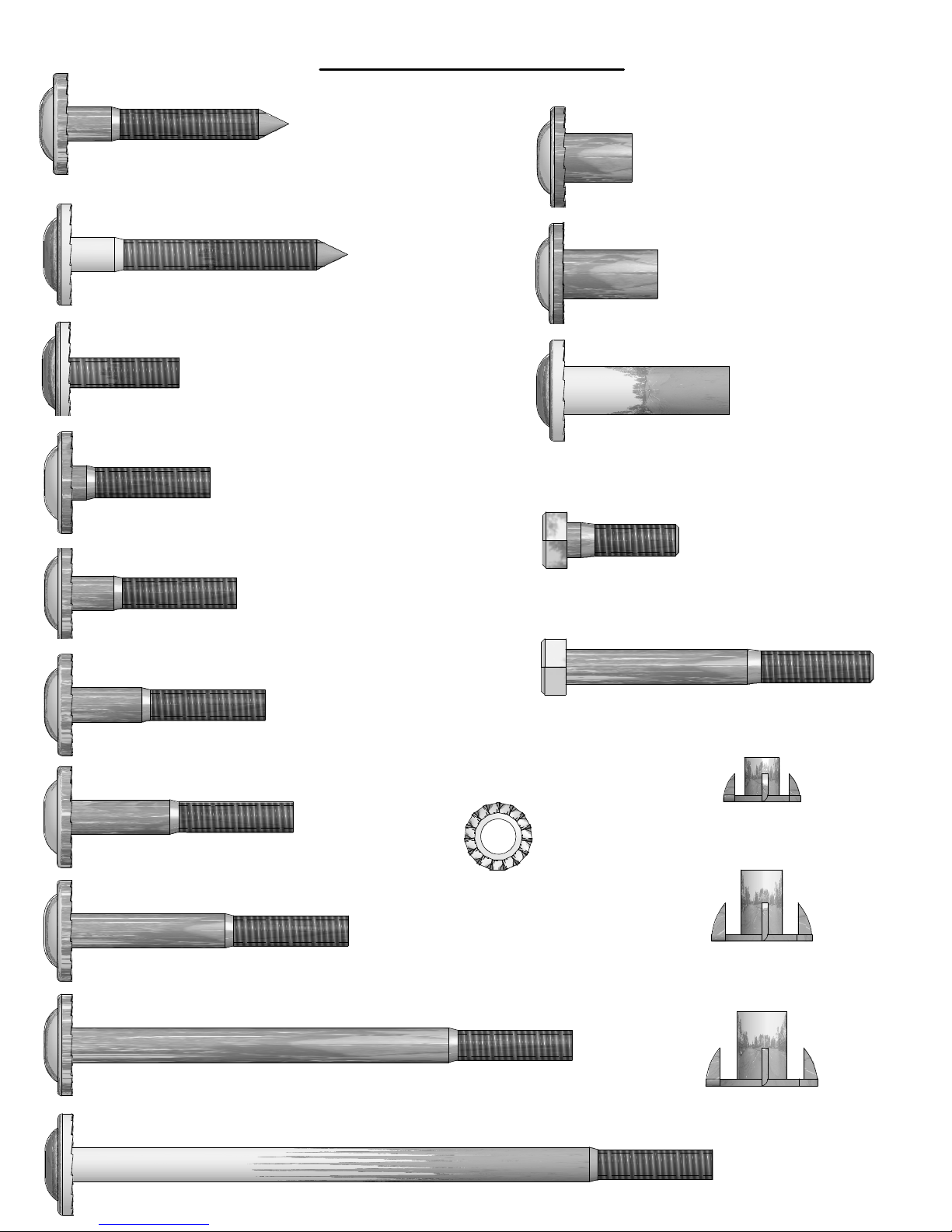

Parts Identification

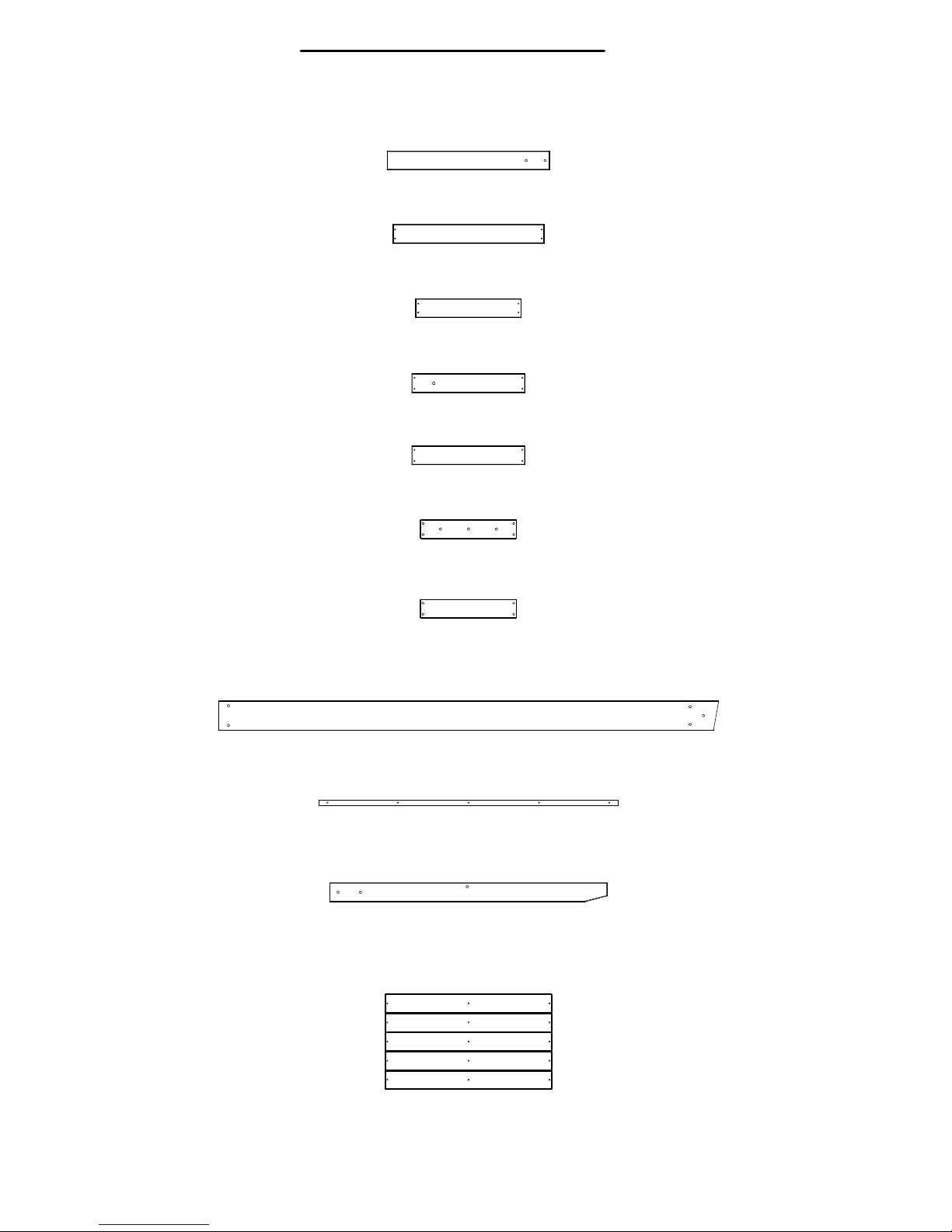

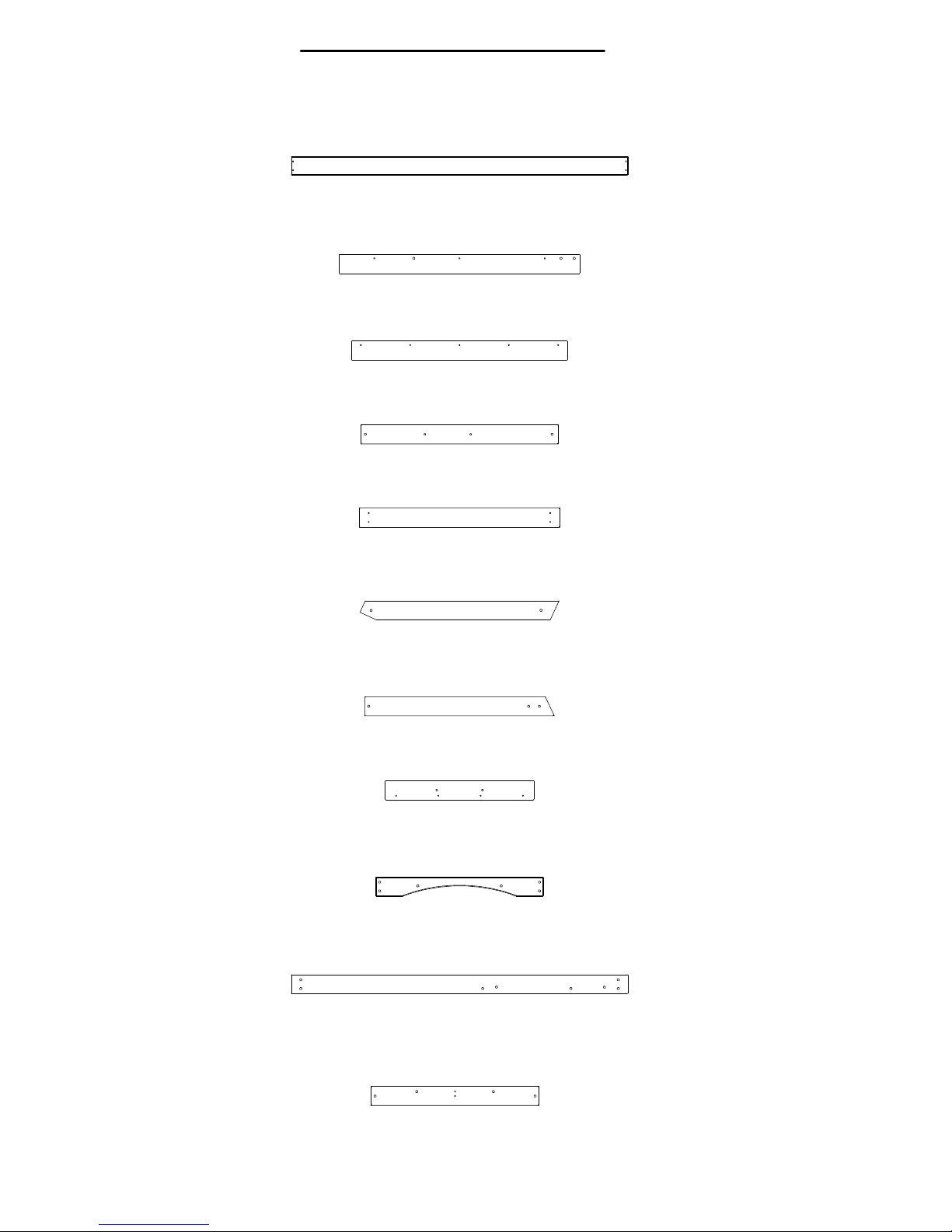

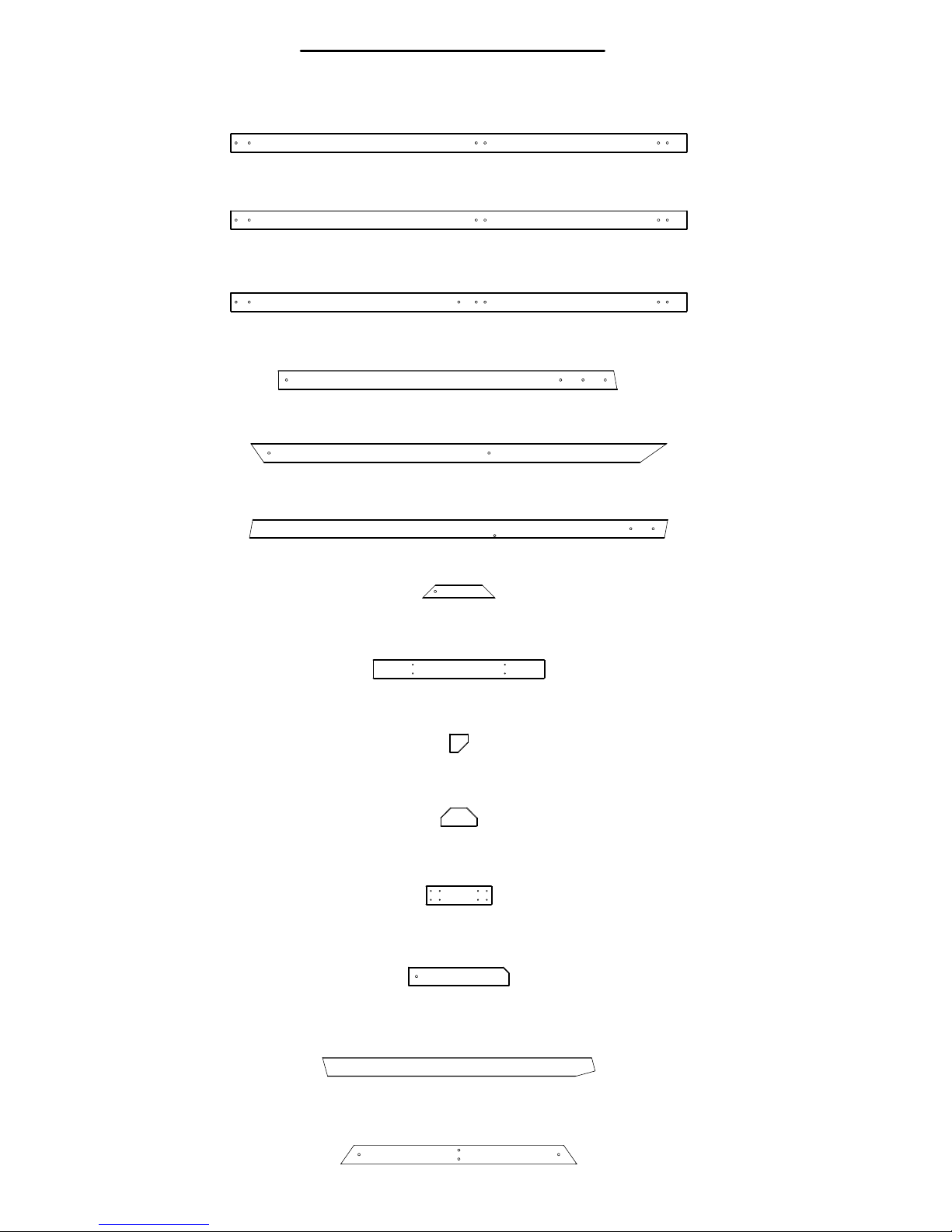

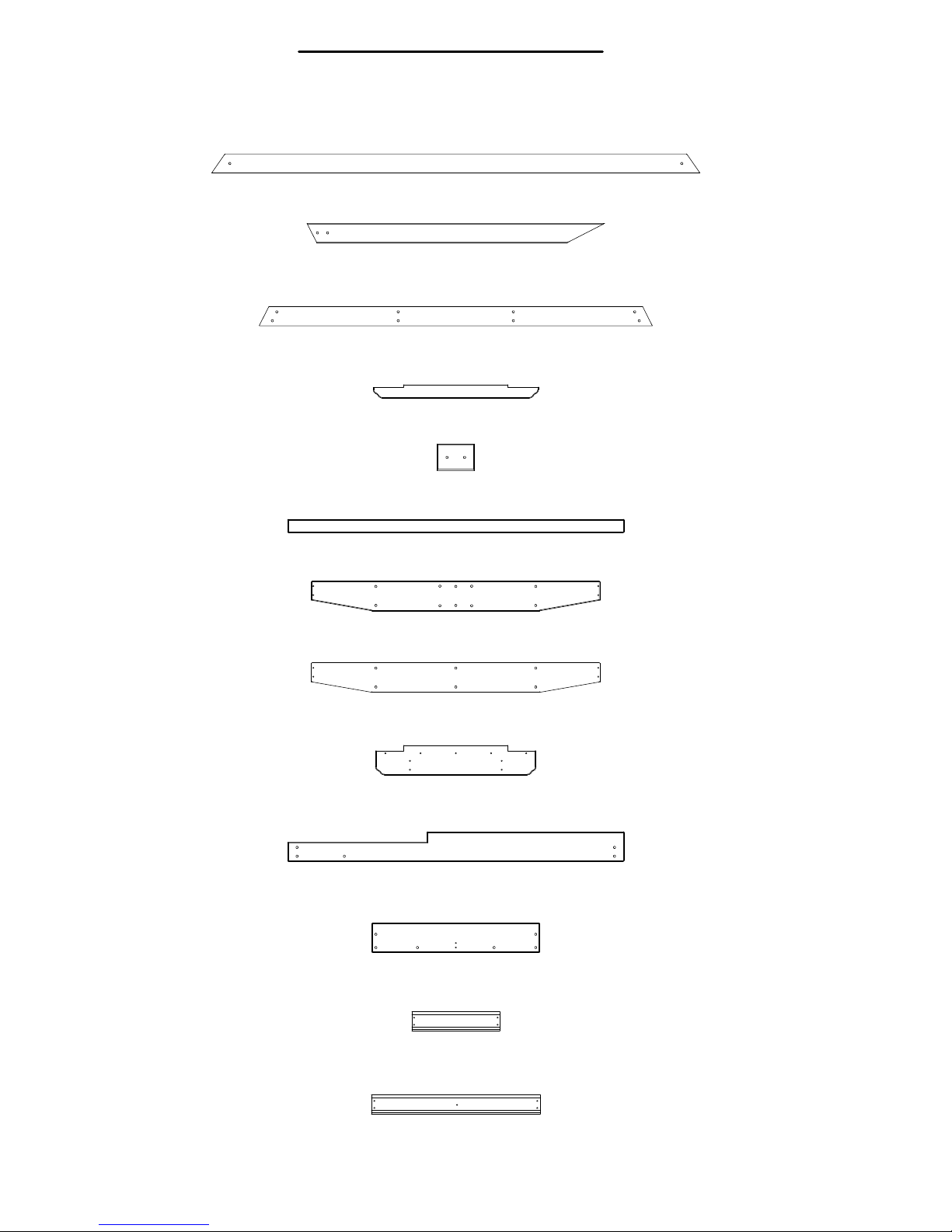

Wood Components
(NOT TO SCALE)
E1 - UPRIGHT - W101261
1 3/8"x3 3/8"x81 3/4" (36x86x2076)
(1)
E77 - ANGLE BRACE - W100991
1 3/8"x3 3/8"x74 3/8" (36x86x1890)
(2)
E3 - UPRIGHT - W101256
1 3/8"x3 3/8"x81 3/4" (36x86x2076)
(1)
F71 - STANDARD ANGLE BRACE - W100689
1 3/8"x2 3/8"x13" (36x60x330)
(6)
H1 - SERVING SHELF SUPPORT - W101604
1"x3 3/8"x30 3/4" (24x86x780)
(1)
H3 - SERVING BOARD SUPPORT - W101606
1"x3 3/8"x3 3/8" (24x86x86)
(2)
E2 - UPRIGHT - W103773
1 3/8"x3 3/8"x81 3/4" (36x86x2076)
(2)
E71 - MONKEY BAR RAIL - W102369
1 3/8"x3 3/8"x60 5/8" (36x86x1539)
(2)
E78 - MONKEY BAR UPRIGHT - W100975
1 3/8"x3 3/8"x74 3/4" (36x86x1900)
(2)
H73 - ROCK WALL RAIL - W100024
24"x86"x1238" (24x86x1238)
(2)
H79 - END SUPPORT - W100992
1"x3 1/2"x42" (24x86x1072)
(1)
H4 - BENCH SEAT SUPPORT - W104040
1"x3 3/8"x6 1/2" (24x86x166)
(2)
H5 - BENCH UPRIGHT - W104041
1"x3 3/8"x11 3/4" (24x86x300)
(2)
H6 - BENCH GROUND BOARD - W104042
1"x3 3/8"x18 1/8" (24x86x460)
(2)

Parts Identification
Wood Components
(NOT TO SCALE)
J1 - WINDOW LEDGE - W100709
1"x2 3/8"x29 1/2" (24x60x750)
(1)
J2 - END FLOOR CLEAT - W100710
1"x2 3/8"x3 3/8" (24x60x86)
(4)
J3 - FLOOR JOIST - W100984
1"x2 3/8"x60 1/8" (24x60x1528)
(1)
K3 - SERVING BOARD - W101605
5/8"x5 1/4"x28 3/4" (16x134x729)
(1)
K4 - FLOOR RAIL - W103700
5/8"x5 1/4"x60 1/8" (16x134x1528)
(1)
K5 - FLOOR RAIL - W103768
5/8"x5 1/4"x30" (16x134x762)
(1)
K1 - ROOF SWING BEAM SUPPORT - W100682
5/8"x5 1/4"x51 5/8" (16x134x1310)
(1)
K2 - ROOF SUPPORT - W100683
5/8"x5 1/4"x51 5/8" (16x134x1310)
(1)
K9-2 - WALL BOARD - W100712
3/8"x3 3/8"x30 1/4" (11x86x768)
(4)
K9-1 - WALL BOARD - W100713
3/8"x3 3/8"x15 3/4" (11x86x400)
(6)
H82 - MONKEY BAR GROUND BOARD - W100994
1"x3 3/8"x70 3/8" (24x86x1786)
(1)
H80 - GROUND BOARD - W100990
1"x3 3/8"x87 3/8" (24x86x2218)
(1)
H81 - MONKEY BAR BRACE - W100993
1"x3 3/8"x53 1/4" (24x86x1352)
(2)

Parts Identification
Wood Components
(NOT TO SCALE)
L3 - GROUND BOARD - W101602
5/8"x4 3/8"x46 7/8" (16x112x1191)
(1)
L5 - GROUND BOARD - W100686
5/8"x4 3/8"x30" (16x112x762)
(1)
L6 - ARCHED RAIL - W100694
5/8"x4 3/8"x60 1/8" (16x112x1528)
(1)
L7 - ARCHED SCULPTURED RAIL - W100695
5/8"x4 3/8"x60 1/8" (16x112x1528)
(1)
L8 - SCULPTURED RAIL - W101240
5/8"x4 3/8"x35 1/2" (16x112x902)
(1)
L9 - END FLOOR BOARD - W102863
5/8"x4 3/8"x29 7/8" (16x112x760)
(2)
M3 - TARP SUPPORT - W100692
5/8"x3 3/8"x60 1/8" (16x86x1528)
(2)
M1 - PICKET RAIL - W103760
5/8"x3 3/8"x30" (16x86x762)
(1)
K9-5 - WALL BOARD - W101259
3/8"x3 3/8"x21 3/8" (11x86x544)
(6)
L2 - GROUND BOARD - W100684
5/8"x4 3/8"x60 1/8" (16x112x1528)
(2)
K9-3 - WALL BOARD - W101257
3/8"x3 3/8"x42" (11x86x1068)
(2)
K9-4 - WALL BOARD - W101239
3/8"x3 3/8"x37 3/8" (11x86x950)
(2)
M2 - BENCH SEAT - W104044
5/8"x3 3/8"x27 3/8" (16x86x694)
(2)

Parts Identification
Wood Components
(NOT TO SCALE)
M10 - SAFETY BOARD - W100701
5/8"x3 3/8"x33 7/8" (16x86x860)
(1)
M11 - UPPER FACE BOARD - W102866
5/8"x3 3/8"x26 5/8" (16x86x676)
(2)
M12 - MONKEY BAR ARCH BOARD - W103775
5/8"x3 3/8"x30" (16x86x762)
(1)
M13 - FLOOR RAIL - W103774
5/8"x3 3/8"x60 1/8" (16x86x1528)
(1)
M9 - ANGLE BRACE - W100696
5/8"x3 3/8"x35 5/8" (16x86x904)
(1)
M8 - WALL RAIL - W100700
5/8"x3 3/8"x35 7/8" (16x86x910)
(1)
M5 - FACE BOARD - W101599
5/8"x3 3/8"x43 1/8" (16x86x1094)
(2)
M6 - LOWER FACE BOARD - W101598
5/8"x3 3/8"x38 5/8" (16x86x982)
(2)
M7 - WALL BOARD - W100708
5/8"x3 3/8"x35 1/4" (16x86x895)
(1)
M4 - TARP TOP SUPPORT - W100693
5/8"x3 3/8"x60 1/8" (16x86x1528)
(1)
M14 - FLOOR SUPPORT BOARD - W103944
5/8"x3 3/8"x30" (16x86x762)
(1)

Parts Identification
Wood Components
(NOT TO SCALE)
SB74 - SWING BEAM EXTENDED - W102419
2"x5 1/4"x89 1/2" (50x134x2274)
(1)
SP1 - FLOOR SUPPORT CLEAT - W100711
1"x1"x53 3/8" (24x24x1356)
(2)
W71 - SWING BEAM SUPPORT - W102420
2"x3 3/8"x49 5/8" (50x86x1260)
(1)
(3) FP1 - FLOOR PANEL - W102861
M16 - TARP SUPPORT - W101237
5/8"x3 3/8"x29 1/8" (16x86x740)
(2)
M18 - PICKET - W103761
5/8"x3 3/8"x18 7/8" (16x86x480)
(4)
M71 - ROCK BOARD - W100022
5/8"x3 3/8"x20 1/4" (16x86x514)
(6)
M72 - ROCK WALL SLAT - W100023
5/8"x3 3/8"x20 1/4" (16x86x514)
(2)
M77 - SLIDE BRACE - W100544
5/8"x3 3/8"x17 1/4" (16x86x438)
(1)
M78 - CENTER SLIDE BRACE - W100545
5/8"x3 3/8"x17 1/4" (16x86x438)
(2)
M17 - PICKET - W100705
5/8"x3 3/8"x27 1/8" (16x86x690)
(4)

Parts Identification
Hardware
B - NUT BARREL WH 5/16x5/8 - H100004
(18)
D - NUT BARREL WH 5/16x7/8 - H100005
(45)
C - NUT BARREL WH 5/16x1 1/2 - H100006
(2)
F - BOLT WH 5/16x1 - H100008
(10)
H - BOLT WH 5/16x1 1/2 - H100010
(39)
J - BOLT WH 5/16x1 3/4 - H100011
(6)
K - BOLT WH 5/16x2 - H100012
(13)
M - BOLT WH 5/16x2 1/2 - H100014
(2)
KA - BOLT WH 5/16x4 1/2 - H100021
(1)
AE - BOLT WH 5/16x5 3/4 - H100032
(4)
BG - T-NUT 5/16 - H100074
(28)
BE - T-NUT 1/4 - H100072
(7)
AN - BOLT HEX 5/16x2-3/4 - H100047
(4)
AG - BOLT HEX 5/16x1 - H100040
(4)
AA - LAG SCREW WH 5/16x2 1/2 - H100028
(13)
Z - LAG SCREW WH 5/16x2 - H100027
(36)
BF - T-NUT 3/8 - H100073
(7)
G - BOLT WH 5/16x1 1/4 - H100009
(2)
KV - WASHER LOCK EXT 6x15 - H100138
(4)

Parts Identification
Hardware
AY - BOLT PTH 1/4x1 - H100061
(7)
CH - SCREW TAPPING 14x1-1/2 - H100109
(15)
BN - SCREW PFH 8x1 - H100085
(61)
BR - SCREW PFH 8x1 1/8 - H100088
(44)
BQ - SCREW PFH 8x1 1/4 - H100087
(24)
BP - SCREW PFH 8x1 1/2 - H100086
(160)
BS - SCREW PFH 8x1 3/4 - H100089
(28)
CK - SCREW PFH 8x2 - H100111
(17)
BV - SCREW PFH 8x2 1/4 - H100091
(9)
BW - SCREW PFH 8x3 - H100092
(26)
CB - WASHER SAFETY 17x30 - H100103
(4)
CD - WASHER FLAT 8x27 - H100105
(22)
CE - WASHER FLAT 9x18 - H100106
(19)
CG - WASHER LOCK INT 8x15 - H100108
(11)
AC - WASHER LOCK EXT 8x19 - H100030
(104)
AD - WASHER LOCK EXT 12x19 - H100031
(60)
LC - LAG SCREW WH 1/4x1-1/2 - H100145
(4)
BX - WASHER SPLIT 5/16 - H100095
(4)

Parts Identification
Hardware
CY - SCREW PWH 8x5/8 - H100128
(7)
CM - BOLT WH 5/16x1/2 - H100115
(13)
KS - NUT BARREL WH 1/4x5/8 - H100136
(9)
KY - BOLT WH 1/4x1/2" - H100141
(4)
KW - WASHER LOCK EXT 8x15 - H100139
(9)
- T-30 Torx Bit - H100147
(2) - T-40 Torx Bit - A100042
(2)
-T-40TorxWrench-A100041
(2)
-T-30TorxWrench-H100114
(2)
BY-SWINGHANGERQUICKLINK-H100097
(4)
BZ-SWINGHANGERQUICKLINK-H100099
(4)
CT - SCREW TAPPING 8x1/2 - H100123
(13)
A - BOLT FA 3/8x1 1/2 - H100001
(7)
CJ - NUT LOCK 5/16 - H100110
(15)
KT - BOLT WH 1/4x1 - H100137
(4)

Parts Identification
Accessories
(NOT TO SCALE)
EJ - L BRACKET 54x67 - A100053
(4)
EA - HAND GRIP YELLOW PLASTIC - A100043
(6)
EK - SLIDE RAIL 8' GREEN RIGHT - A100054
(1)
EL - SLIDE RAIL 8' GREEN LEFT - A100055
(1)
EM - SLIDE BED 8' YELLOW - A100056
(1)
DO - CAPTAINS GLIDER ARM YELLOW - A100026
(2)
DN - GLIDER SEAT DARK GREEN - A100025
(1)
EC - METAL RUNG 559 - A100045
(6)
ER - CLIMBING ROCK GREEN SMALL - A100060
(6)
HY - TARP 1522x2119 - A100062
(1)

Parts Identification
A
AA
Ac
cc
cc
cc
ce
ee
es
ss
ss
ss
so
oo
or
rr
ri
ii
ie
ee
es
ss
s
(NOT TO SCALE)
HC - BYD ID TAG (LARGE) 2011 WITH AGES - A100164(1)
EW - GLIDER SUPPORT BYD GREEN - A100065
(2)
EX - GLIDER BUSHING BYD GREEN - A100066
(4)
SR - "B" REVISION TAG - A100315
(1)
TC - SWING BEAM EXTENSION BRACKET-RIGHT - A100326
(1)
EY - TUBING CAP GLIDER SUPPORT - A100067
(4)
GD - L BRACKET 66x66x127 - A100140
(2)
FB - SWING SEAT YELLOW - A100070
(2)
TB - SWING BEAM EXTENSION BRACKET-LEFT - A100325
(1)
EZ - CHAIN GREEN 51.25" - A100068
(4)
KC - METAL GROUND STAKE BROWN - A100178
(8)
FA - QUICK LINK - A100069
(8)
JD - CHAIN GREEN 45" - A100092
(4)
QZ - TRIANGLE PLATE 100°5 HOLE - A100294
(2)

4' Rock Ladder
Phase 1
Phase Notes
• Assemble slats to rails as shown.
• Note oreintation of slats, be sure to arrange as shown.
• See drawing below for slat spacing on rails.
• Using slats as a guide, pre-drill top edges of rails
with a 1/8" drill bit. Failure to pre-drill may result in
board splitting.
TOP
TOP
M72
M71
SCREW PFH 8x1-1/2
H73
THESE SURFACES FLUSH BOTH SIDES
PRE-DRILL TOP EDGE OF RAILS
2 15/16
TYPICAL SLAT SPACING
7 SPACES
ALIGN FRONT EDGE OF SLAT WITH TOP OF RAIL
QTY. DESCRIPTION
2 ROCK WALL RAIL
6 ROCK BOARD
2 ROCK WALL SLAT
32 SCREW PFH 8x1-1/2

4' Rock Ladder
Phase 2 & 3
P
PP
Ph
hh
ha
aa
as
ss
se
ee
e N
NN
No
oo
ot
tt
te
ee
es
ss
s

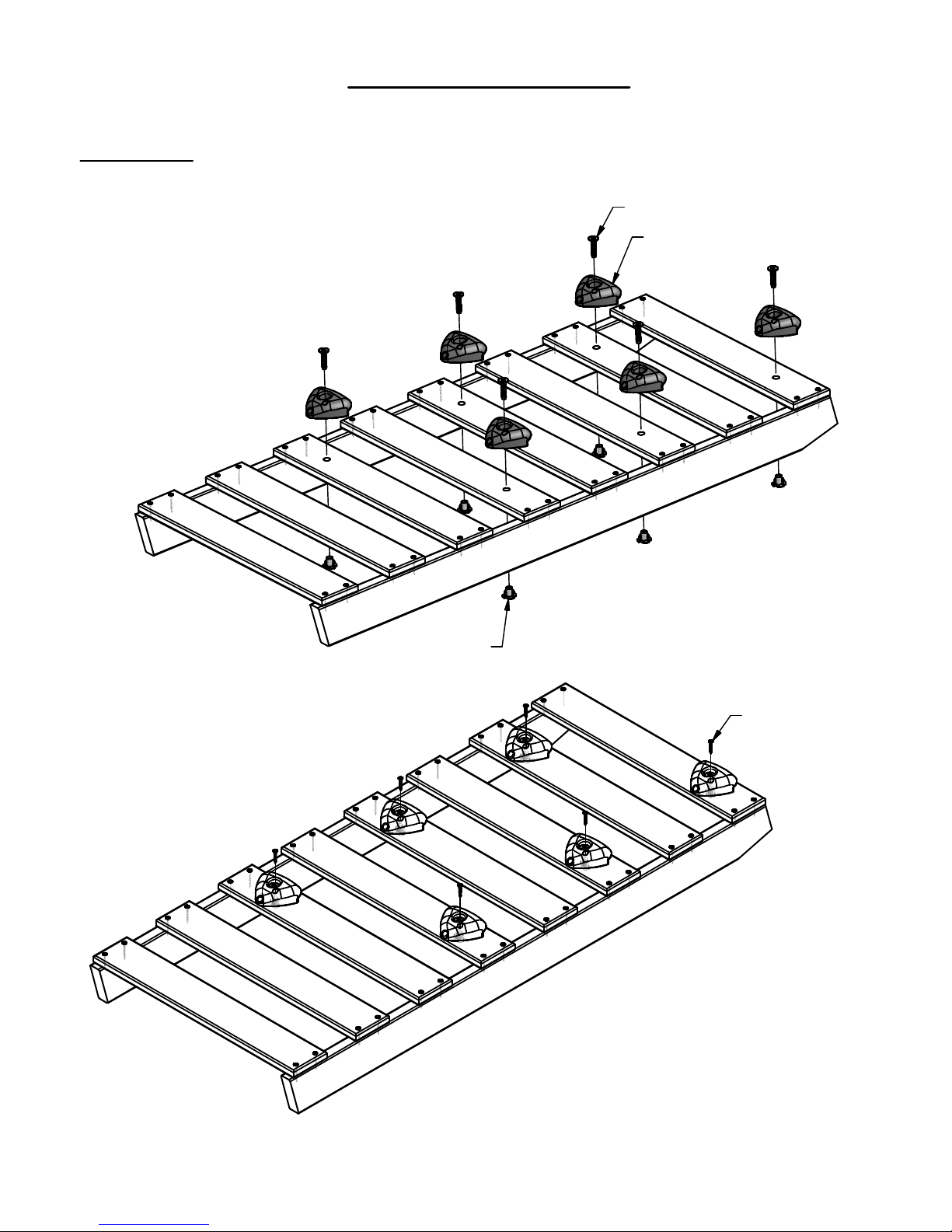

• Oreint top edge of rocks with top edge of slats.
• Fasten rocks as shown.
BOLT FA 3/8x1-1/2
CLIMBING ROCK GREEN SMALL
T-NUT 3/8
SCREW PFH 8x1-1/8
QTY. DESCRIPTION
6 CLIMBING ROCK GREEN SMALL
6 BOLT FA 3/8x1-1/2
6 T-NUT 3/8
QTY. DESCRIPTION
6 SCREW PFH 8x1-1/8

GD - L BRACKET 66x66x127 - A100140
(2)
TC - SWING BEAM EXTENSION BRACKET-RIGHT - A100326
(1)
TB - SWING BEAM EXTENSION BRACKET-LEFT - A100325
(1)
SB74 - SWING BEAM EXTENDED - W102419
2"x5 1/4"x89 1/2" (50x134x2274)
(1)
TB
TC
GD
SB74
STEP 1
ATTACH (2) GD BRACKETS TO SB74 SWING BEAM
USING (2) 2-3/4" BOLTS, FLAT WASHERS AND 5/16"
LOCK NUT, AS SHOWN.
ATTACH TB AND TC SWING BEAM EXTENSION
BRACKETS TO SB74 SWING BEAM USING (3) 1-3/4"
BOLTS AND 7/8" BARREL NUTS, AS SHOWN.
4 FT GREEN EXTENDED
SWING BEAM WITH GLIDER
BOLT WH
5/16x1-3/4
(3)
BOLT HEX
5/16x2-3/4
(2)
NUT BARREL
WH 5/16x7/8
(3)
WASHER
FLAT 8x27
(4)
NUT LOCK
5/16
(2)
