Bin warehouse 65001/jan21 User manual

#1 #2

#4#3

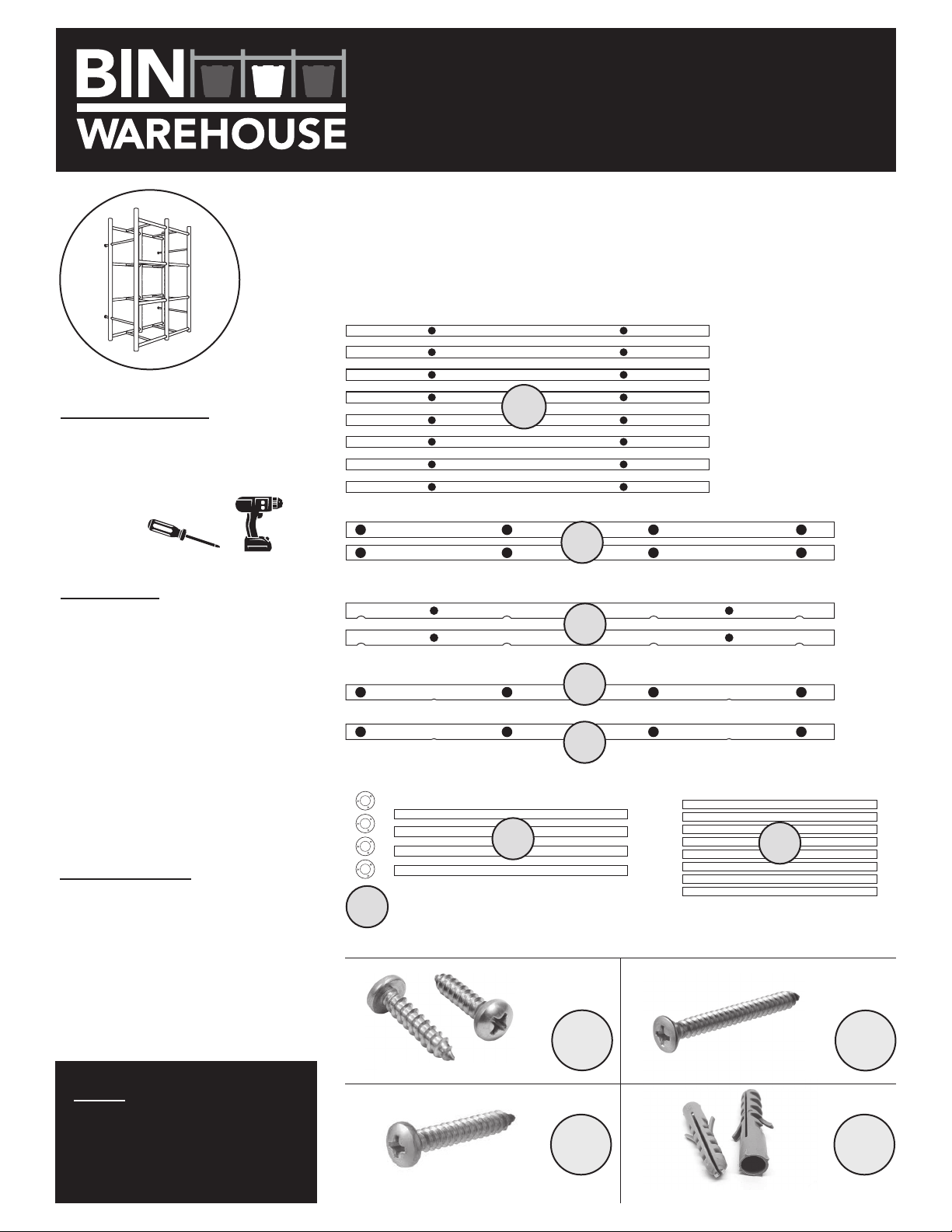

PARTS LIST

1. 8 x Horizontal crossbars

2. 2 x Center verticals

3. 2 x Left & right rear corner verticals

4. 1 x Left front corner vertical

5. 1 x Right front corner vertical

6. 4 x Wall mount ﬂanges

7. 4 x Wall mount extensions tubes

8. 8 x Horizontal slide rails

FASTENER LIST

1. 44 x #08 x 3/4 in. Fastening screws

2. 8 x #08 x 1-½ in. Wall mount

Extension tube fastening screws

3. 12 x #10 x 1-½ in. Wall mount

flange screws

4. 12 x Plastic wall anchors

NOTE

Separate all parts into groups

(as shown) and familiarize. Read

all instructions before beginning

assembly.

Solutions Murales PROSLAT inc.

225 Industriel blvd, Chateauguay (QC) J6J 4Z2

1 888 691-2944

Model # 65001 / JAN21

8 TOTE STORAGE RACK

Assembly instructions

TOOLS REQUIRED

1. Drill with #2

Phillips-Head Tip

2. #2 Philips head

Screwdriver

#4 #5

#1 #2 #4 #5

#1 #2 #3

#3 #3

STEP 2

Fastening horizontal slide rails (#8) in rear grid

using 8 – #08 x ¾ in. fastening screws (#1).

Note: Start at top row and work down.

Use only one fastener – bottom hole only.

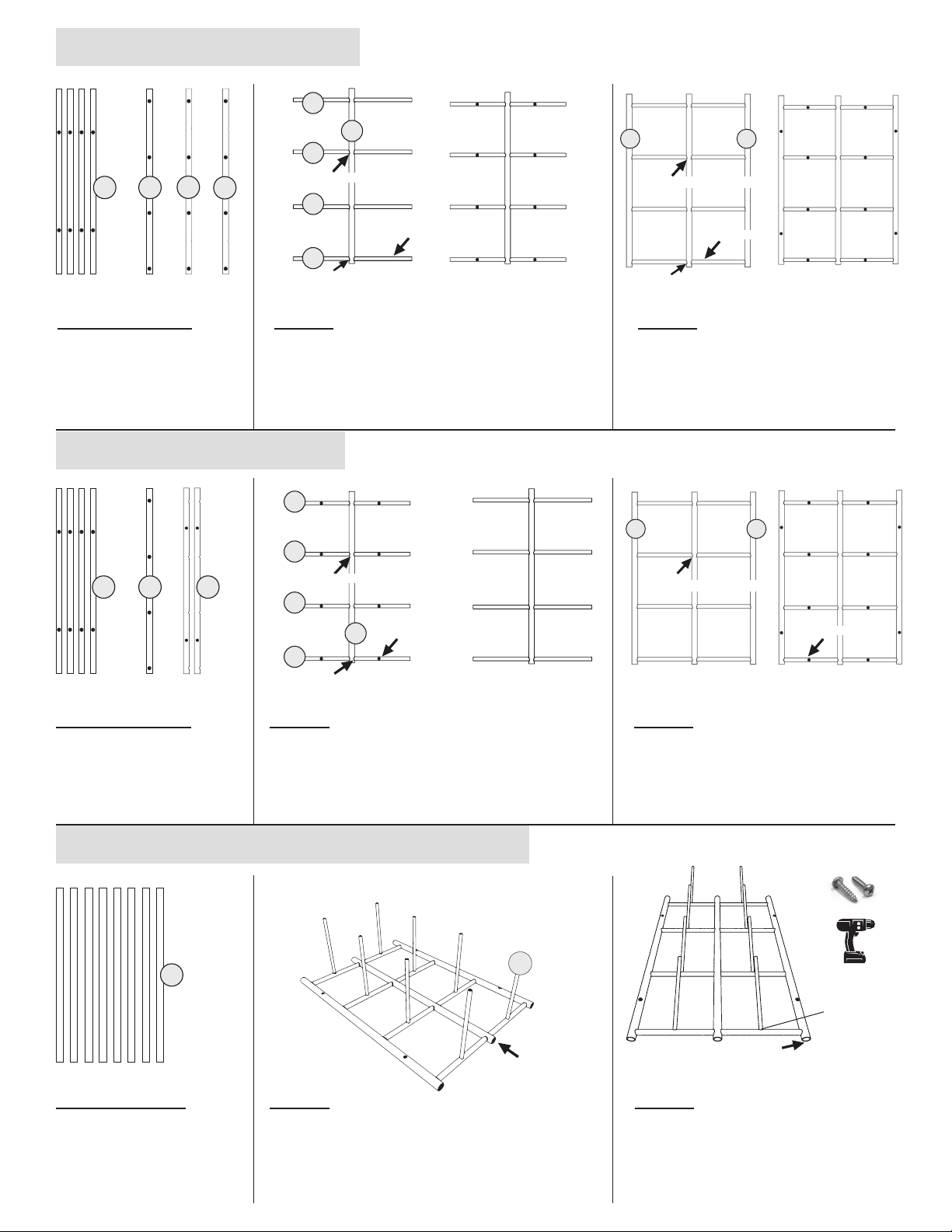

FRONT GRID ASSEMBLY

PARTS NEEDED:

4 of #1 1 of #2

1 of #4 1 of #5

STEP 1

4 Horizontal crossbars (#1) inserted through 1 Center Vertical

(#2) Note: Slide horizontal crossbar into left side of center

vertical following direction of arrow until alignment dimple

meets center vertical.

STEP 2

1 Left front corner vertical (#4) and 1 right front

corner vertical (#5) Placed on horizontal crossbar.

REAR GRID ASSEMBLY

PARTS NEEDED:

4 of #1 1 of #2

2 of #3

STEP 1

4 Horizontal Crossbars (#1) inserted through 2 center

vertical (#2) Note: Slide horizontal crossbar into right

side of center vertical following direction of arrow until

alignment dimple meets center vertical.

STEP 2

2 Left and right rear corner verticals (#3) placed

on horizontal crossbars.

SLIDE RAIL ASSEMBLY TO REAR GRID

STEP 1

8 Horizontal slide rails (#8) inserted in rear grid.

Tip: If necessary, tap horizontal slide rails to be sure

slide rails are fully inserted.

PARTS NEEDED

8 of #8

Alignment dimples Alignment dimples down

Holes down Holes down

Short side to ﬂoor

Top Top

Other side Other side

Top

Alignment dimples

Holes up Holes up

Short side to ﬂoor

Top

Short side to ﬂoor

Fasten from

bottom hole only

Alignment dimples down

Other side Other side

#7 #6

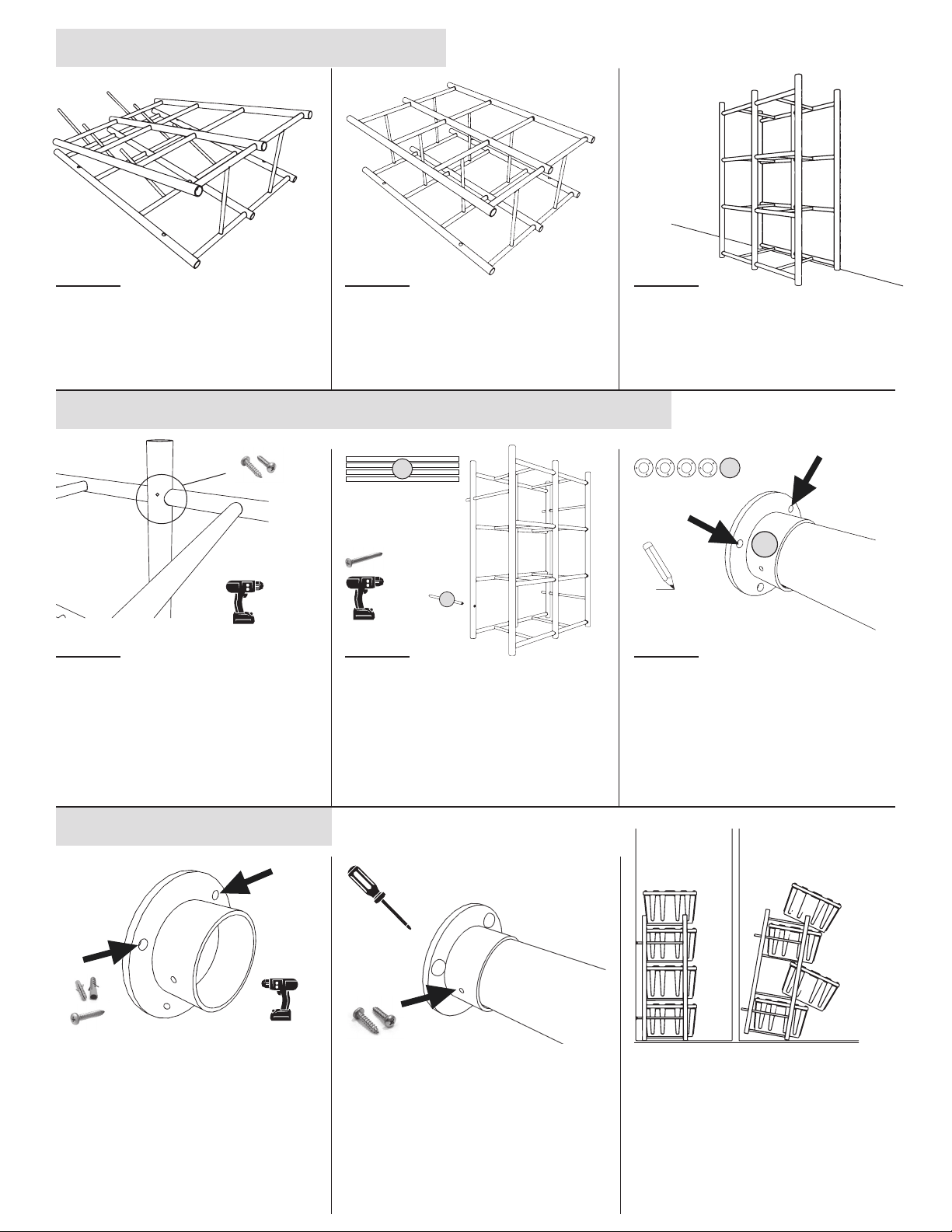

JOINING FRONT TO REAR GRID

STEP 1:

Insert bottom slide rails (#8) into front grid

assembly and fasten (making sure fully inserted)

using 2 – #08 x ¾ in. fastening screws (#1)

Note: Fasteners in bottom hole only

STEP 2:

Insert and fasten next 3 rows of slide rails to

front grid using 6 – #08 x 3/4 in. fastening

screws (#1)

Note: Fasteners in bottom hole only.

STEP 3:

Turn unit upright and place ﬁrmly against

wall where unit is to be mounted.

FASTENING VERTICALS AND WALL MOUNT TUBES

FASTENING TO WALL

STEP 1:

Fasten all verticals to horizontals. Make sure

all joints are pressed ﬁrmly together, tigh

and against alignment dimples using 24 –

#08 x ¾ in. fastening screws (#1).

Note: 1 fastener per joint, each grid, front

side only

Move unit away from wall and remove wall

ﬂange from tube and mount ﬂange to wall

using 12 #10 x 1½in. wall mount flange

screws (#3) and plastic wall anchors (#4) if

needed. Note: If mounted into masonry or

drywall, drill three ¼ in. holes to accept

plastic wall anchors.

STEP 2:

Move unit away from wall and insert 4 wall

mount extensions tubes (#7) in 4 locations.

Fasten with 8 – #08 x 1-½ in. extension tube

fastening screws (#2).

Note: 1 fastener per joint front side only.

Slide unit back against wall while inserting

all 4 wall mount extension tubes (#7) into

wall mount ﬂanges (#6) and fasten with 4 –

#08 x ¾ in. fastening screws. (#1).

Note: Use a screwdriver,

one screw per ﬂange.

STEP 3:

Slide wall mount ﬂanges (#6) into wall mount

tubes (#7). Place unit against wall where it is

to be mounted and mark wall ﬂange holes.

Note: Do NOT fasten at this time. Make

sure unit remains in position at all

4 ﬂange locations while marking holes.

Unit must be attached to wall

to keep from tipping over!

Congratulations! We hope you

enjoy your Bin Warehouse tote

storage rack!

Mark holes

on wall
