Overview
The information in this document is subject to change without notice and
should not be construed as a commitment by the manufacturer.
The manufacturer assumes no responsibility for any errors that might appear
in this document.
The software described in this document is furnished under a license and may
be used or copied only in accordance with the terms of such license. No responsibility
is assumed for the use or reliability of software or equipment that is not supplied by the
manufacturer or its affiliated companies.
Copyright Notice
No part of this manual may be reproduced or transmitted in any form or by any
means, electronic or mechanical, photocopying, recording or otherwise, stored in any
retrieval system of any nature without the prior written permission of the manufacturer.
Trademark
Other product and company names mentioned herein may be trademarks and/
or service marks of their respective owners.
Intel and Pentium are registered trademarks of Intel Corporation.
Nvidia and nforce is registered trademark of Nvidia.
Sis is registered trademark of Silicon Integrated Systems Corporation.
PS/2 is registered trademark of International Business Machines Corporation.
VIA is registered trademark of VIA Technologies, Inc.
ATI is registered trademark of ATI Technologies, Inc.
AMD is registered trademark of Advanced Micro Devices, Inc.

33
33
3EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
Important Safety Information
1. Please read these safety instructions carefully.
2. Please keep this User’s Manual for later reference.
3. Please disconnect this equipment from AC outlet before cleaning. Don‘t use
liquid or sprayed detergent for cleaning. Use moisture sheet or clothe for
cleaning.
4. For pluggable equipment, the socket-outlet shall be installed near the equip-
ment and shall be easily accessible.
5. Please keep this equipment from humidity.
6. Lay this equipment on a reliable surface when install. A drop or fall could cause
injury.
7. Do not leave this equipment in an environment unconditioned, storage
temperature above 40°C, it may damage the equipment.
8. The openings on the enclosure are for air convection hence protect the equipment
from overheating. DO NOT COVER THE OPENINGS.
9. Make sure the voltage of the power source when connect the equipment to the
power outlet.
10. Place the power cord such a way that people can not step on it. Do not place
anything over the power cord. The power cord must be rated for the product
and for the voltage and current marked on the product’s electrical ratings label.
The voltage and current rating of the cord should be greater than the voltage and
current rating marked on the product.
11. All cautions and warnings on the equipment should be noted.
12. If the equipment is not use for long time, disconnect the equipment from mains
to avoid being damaged by transient over-voltage.
13. Never pour any liquid into ventilation openings, this could cause fire or electrical
shock.
14. Never open the equipment. For safety reason, qualified service personnel
should only open the equipment.
15. If one of the following situations arises, get the equipment checked by service
personnel:
a. The Power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment has not work well or you can not get it work according to
user‘s manual.
e. The equipment has dropped and damaged.
f. If the equipment has obvious sign of breakage

44
44
4
EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
Table of Contents
FCC Statement..............................................1
Overview .......................................................2
Section 1. Layout of K8NHA-M ...............5
Section 2. Component Index......................6
Section 3. K8NHA-M Features ..................7
Section 4. Package contents......................10
Section 5. Installation and Setup ............11
Section 6. Trouble Shooting.....................19
WarpSpeederTM ........................................................................ 21

55
55
5EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard

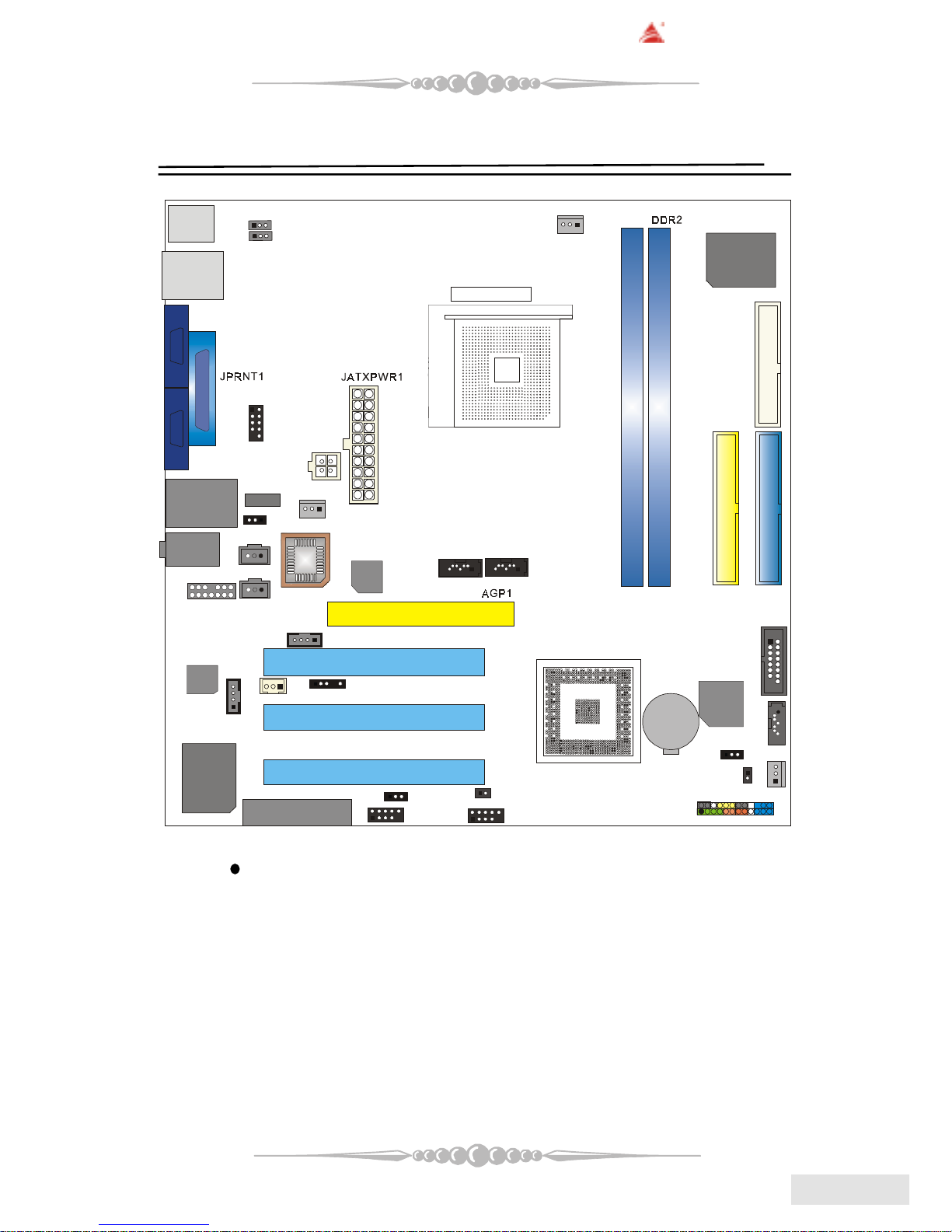

Section 1. Layout of K8NHA-M
NOTE: “ ” represents the first pin.
BIOS
BAT1
IDE1
IDE2
FDD1
DDR1
1
15
JGAME1
JCOM2
JCOM1
J1394_USB1
JUSBLAN1
JKBMS1
JAUDIO
JSPDIF_OUT
JATXPWR2
JUSBV3
JUSB2
JUSB1
1
1
1
JCMOS1 1
JUSBV1
1
JWOL1
1
JSFAN1
1
JSFAN2
1
Socket 754 CPU1
NVIDIA CK 8
JPANEL1
123
242
CNR1
PCI1
PCI2
PCI3
CODEC
1
JSATA1
1
J1394A1
JCDIN1
1
JCDIN2
JCFAN1
1
JSPDIF_IN
1
JAUDIO1
1
JUSBV2
1
JSATA3 JSATA2
11
1 JKBMSV1
JDJ1
1
JCI1 1
1J3
SATA
Bridge
JCOM3
1
Super I/O
IT8712F
VIA
VT 6307
RTL8201BL
1
1

66
66
6
EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
Section 2. Component Index
This section helps you to locate the components in the motherboard and to find
the details about them easily according to the mentioned pages.
A BackPanelConnectors (p.18) B JKBMSV1:5V/5VSBSelectionforKeyboard/Mouse (p.16)
C JUSBV1:5V/5VSBSelectionforJ1394_USB1 (p.14) D JCOM3:COM3Header(p.18)
E JATXPWR2:ATXPowerConnector (p.16) F JATXPWR2:ATXPowerConnector (p.16)
G J1394A1:Front1394AHeader (p.16) H JSFAN2:SystemFanHeader (p.12)
I JUSBV2:5V/5VSBSelectionforJUSBLAN1 (p.14) J JAUDIO1:FrontAudioHeader (p.17)
K JSPDIF_IN:DigitalAudioConnector (p.17) L JSATA2-3:SerialATAConnectors (p.13)
M AGP1:AcceleratedGraphicsPortSlot (p.13) N JCDIN1-2:CD-RomAudio-InHeaders (p.15)
O JSPDIF_OUT:DigitalAudioConnector (p.17) P JWOL1:WakeOnLANHeader (p.14)
Q JDJ1:AudioDJConnector (p.17) R PCI1-3:PeripheralComponentInterconnectSlots (p.13)
S CNR1:CommunicationNetworkRiserSlot (p.13) T JUSBV3:5V/5VSBSelectionforJUSB1/2 (p.14)
U JUSB1-2:FrontUSBHeaders (p.14) V J3:FlashRomRead/WriteEnable(optional) (p.17)
W JPANEL1:FrontPanelConnector (p.15) X JCI1:CaseOpenConnector (p.14)
Y JSFAN1:SystemFanHeader (p.12) Z JCMOS1:ClearCMOSJumper (p.13)
A1 JSATA1:SerialATAConnector (p.13) B1 JGAME1:GameHeader (p.15)
C1 IDE1-2:HardDiskConnectors (p.13) D1 DDR1-2:DDRDIMMModules (p.8)
E1 FDD1:FloppyDiskConnector (p.12) F1 JCFAN1:CPUFanConnector (p.11)
BAT1
Socket 754 CPU1
NVIDIA
CK
8
CODEC
1
SATA
Bridge
Super
I/O
IT 8712F
VIA
VT 6307
RTL8201BL
A
B
C
E
D
F
GH
JK
L
M
N
O
PQR
STUVWXY
ZA1
B1
C1
D1
E1
F1
N

77
77
7EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
Section 3. K8NHA-M Features
In this section, you shall find all the information about the
motherboard in your computer, including its features, layout,
component index, various jumpers, headers, connectors, and also
the installation guide to help you a quick and correct installation
of your system.
A. Hardware
CPUCPU
CPUCPU
CPU* Supports Socket 754.
* Supports the AMD Athlon 64®Socket-754 processor start from 3200+/2.0GHz.
* Running at 200/400/600/800 MHz Front Side Bus.
ChipsetChipset
ChipsetChipset
Chipset
* NVIDIA®CrushK8
- HyperTransport link to the AMD K8 CPU.
- Supports AGP3.0 8X interface.
- Running at 200/400/600/800 MHz Front Side Bus.
- Single USB 2.0 EHCI/Dual USB 1.1 OHCI, 6 ports.
- Fast ATA/133 IDE controllers.
- PCI 2.3 interface supporting.
- Supports system and power management.
- AC’97 2.1 interface.
Super I/OSuper I/O
Super I/OSuper I/O
Super I/O
* Chip: ITE IT8712F.
* Low Pin Count Interface.
* Provides the most commonly used legacy Super I/O functionality.
* Environment Control initiatives,
- H/W Monitor
- Fan Speed Controller
- ITE's “Smart Guardian” function
SlotsSlots
SlotsSlots
Slots* Three 32-bit PCI bus master slots.
* One AGP 4X/8X slot.
* One CNR slot.

88
88
8
EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
Main MemoryMain Memory
Main MemoryMain Memory
Main Memory
* Supports up to two DDR devices.
* Supports 200/266/333/400MHz (with ECC) DDR devices.
* Maximum memory size is 2GB.
TotalMemorySizewithUnbufferedDIMMs
***only for your reference***
On Board IDEOn Board IDE
On Board IDEOn Board IDE
On Board IDE
* Supports four IDE disk drives.
* Supports PIO Mode 5, Bride Mode and Ultra DMA 33/66/100/133 Bus Master
Mode.
* Supports 1 Serial ATA (SATA) ports. (optional: when using SATA Bridge)
- Compliant with SATA 1.0 specification
- Data transfer rates up to 150 MB/s
1394 Chip (optional)1394 Chip (optional)
1394 Chip (optional)1394 Chip (optional)
1394 Chip (optional)
* Chip: VIA VT6307.
* Supports 2 ports with transfer up to 400Mb/s.
LAN PHYLAN PHY
LAN PHYLAN PHY
LAN PHY
* Chip: Realtek RTL8201BL.
* Supports 10/100 Mb/s operation.
* Half/Full duplex operation.
* Supports MII interface.
Serial ATA Bridge (optional)Serial ATA Bridge (optional)
Serial ATA Bridge (optional)Serial ATA Bridge (optional)
Serial ATA Bridge (optional)
* Chips: 88I8030 Serial ATA Bridge
* Supports both host and device operation.
* Selectable maximum speeds of 66/100/133/150 Mb/s.
* Ultra low power consumption.
* Employs teh latest SATA transceiver (PHY) technology.
* Supports SSC.
tekcoSMMID noitacoL eludoMRDD eziSyromeMlatoT )BM(
1RDD -1/BM215/BM652/BM821/BM46 1*BG BG2sixaM
2RDD -1/BM215/BM652/BM821/BM46 1*BG

99
99
9EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
On Board ACOn Board AC
On Board ACOn Board AC
On Board AC’97 Sound Codec97 Sound Codec
97 Sound Codec97 Sound Codec
97 Sound Codec
* Chip: ALC655/CMI9761.
* Compliant with AC’97 specification.
* AC’97 2.2 interface.
* Supports S/PDIF-In (optional), S/PDIF-Out.
* Supports 6 channels.
On Board PeripheralsOn Board Peripherals
On Board PeripheralsOn Board Peripherals
On Board Peripherals
a. Rear side
- 2 x serial ports. (COM1/COM2)
- 1 x Parallel Port
- Supports Audio ports in vertical.
- 1 x RJ-45 LAN jack.
- Supports PS/2 mouse and PS/2 keyboard.
- Supports 4 USB2.0 ports.
- 1 x IEEE 1394A connector (optional)
b. Front Side
- Supports 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M
and 2.88Mbytes.
- Supports 2 USB2.0 ports.
- 1 x game port
- Supports 1 S/PDIF-Out and 1 S/PDIF-In connector (optional).
- 1 x IEEE 1394 port (optional)
B. BIOS & Software
BIOSBIOS
BIOSBIOS
BIOS* Award legal BIOS.
* Supports APM1.2.
* Supports ACPI.
* Supports USB Function.
* The setup procedures can be found in the Setup Driver CD.
SoftwareSoftware
SoftwareSoftware
Software
* Supports WarpspeederTM, 9th TouchTM, FLASHERTM, WatchdogTM,
WinFlasherTM and StudioFun!
* Offers the highest performance for Windows 98 SE, Windows 2000, Windows
Me, Windows XP, Linux, SCO UNIX, etc.

1010
1010
10
EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
Section 4. Package contents
Checkwhat you have bought before youstart your DIY action.
If there are anything missing, please contact your dealer
immediately.
* HDD Cable X 1
* FDD Cable X 1
* User's Manual X1
* USB 2.0 Cable X1 (optional)
* Rear I/O Panel for ATX Case X1 (optional)
* Fully Setup Driver CD X1
* StudioFun! Application CD X1 (optional)
* S/PDIF Cable X 1 (optional)
* Serial ATA Cable X 1 (optional)

1111
1111
11 EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
Section 5. Installation and Setup
In this section, you will learn how to install the CPU, DDR
Module, and also how to set up jumpers and all the information
about the components on the motherboard. Not only can you find
the installation steps, but also the details and locations of the
components on the motherboard.
1. CPU Installation1. CPU Installation
1. CPU Installation1. CPU Installation
1. CPU Installation
The motherboard supports the AMD Athlon 64®Socket-754 processor. When
you are installing the CPU, make sure the CPU has a cooling fan attached on the right
to prevent overheating. If you do not find the cooling fan, contact your dealer and make
sure to install them before turning on the computer.

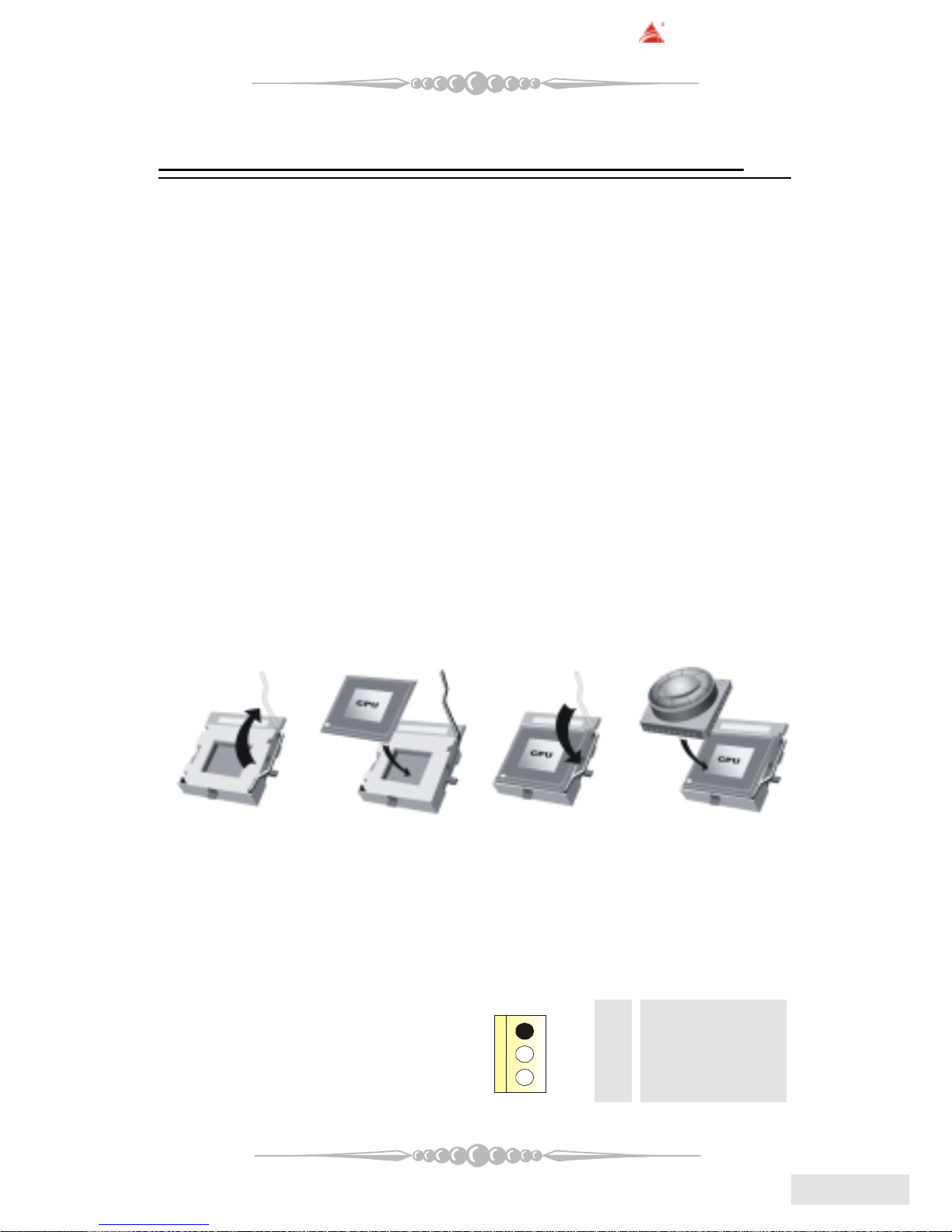

Step1: Pull the lever sideways away from the socket and then raise the
lever up to a 90-degree angle.
Step2: Look for the white dot/cut edge. The white dot/cut edge should
point towards the lever pivot. The CPU will fit only in the cor-
rect orientation.
Step3: Hold the CPU down firmly, and then close the lever.
Step4: Put the CPU fan on the CPU and buckle it. Connect the CPU fan
power cable to the JCFAN1. This completes the installation.
Step 1 Step 2 Step 3 Step 4
2 Central Processing Unit: CPU2 Central Processing Unit: CPU
2 Central Processing Unit: CPU2 Central Processing Unit: CPU
2 Central Processing Unit: CPU
These fan headers support cooling fans built in the computer. Orient the fans to
make the heat sink fins to allow air flow to go across the onboard heat sinks instead of
the expansion slots. The fan wiring and plug may be different according to the fan
manufacturer. Connect the fan fable to the connector while matching the black wire to
the ground pin.
(1) CPU Fan Headers: JCFAN1
1
Pin Assignment
1 Ground
2 +12V
3 FAN RPM Sense

1212
1212
12
EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
(2) System Fan Headers: JSFAN1/JSFAN2
Pin Assignment
1 Ground
2 +12V
3 FAN RPM Sense
3. Installing DDR Module3. Installing DDR Module
3. Installing DDR Module3. Installing DDR Module
3. Installing DDR Module
1. Unlock a DIMM slot by
pressing the retaining clips
outward. Align a DIMM on the
slot such that the notch on the
DIMM matches the break on
the slot.
2. Insert the DIMM firmly and
vertically into the slot until the
retainingchipsnap back inplace
and the Dimm is properly
seated.
7. How to set up Jumpers?7. How to set up Jumpers?
7. How to set up Jumpers?7. How to set up Jumpers?
7. How to set up Jumpers?
The illustration shows how to set up jumpers. When the Jumper cap is placed
on pins, the jumper is “close”. IF no jumper cap is placed on the pins, the jumper is
”open”. The illustration shows a 3-pin jumper whose pin1and 2 are “close” when
jumper cap is placed on these 2 pins.
Jumper open Jumper close Pin1-2 close
8. Jumpers, Headers, Connectors & Slots:8. Jumpers, Headers, Connectors & Slots:
8. Jumpers, Headers, Connectors & Slots:8. Jumpers, Headers, Connectors & Slots:
8. Jumpers, Headers, Connectors & Slots:
(1) Floppy Disk Connector: FDD1
The motherboard provides a standard floppy disk connector that supports
360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector
supports the provided floppy drive ribbon cables.
1

1313
1313
13 EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
1
23
4
56
7
1
1
(2) Hard Disk Connectors: IDE1/ IDE2
The motherboard has a 32-bit Enhanced PCI IDE Controller that provides PIO
Mode 0~4, Bus Master, and Ultra DMA 33/ 66/ 100/ 133 functionality. It has
two HDD connectors IDE1 (primary) and IDE2 (secondary).
The IDE connectors can connect a master and a slave drive, so you can connect
up to four hard disk drives. The first hard drive should always be connected to
IDE1.
(3) Peripheral Component Interconnect Slots: PCI1-3
This motherboard is equipped with 3 standard PCI slots. PCI stands for
Peripheral Component Interconnect, and it is a bus standard for expansion
cards. This PCI slot is designed as 32 bits.
(4) Accelerated Graphics Port Slot: AGP1
Your monitor will attach directly to that video card. This motherboard sup-
ports video cards for PCI slots, but it is also equipped with an Accelerated
Graphics Port (AGP). An AGP card will take advantage of AGP technology to
improve video efficiency and performance, especially with 3D graphics.
(5) Communication Network Riser Slot: CNR1
The CNR specification is an open Industry Standard Architecture, and it de-
fines a hardware scalable riser card interface, which supports modem only.
(6) Serial ATA Connector: (JSATA1/JSATA2/JSATA3: optional)
The motherboard has a PCI to SATA Controller with 2 channels STAT interface.
It satisfies the SATA 1.0 spec and can transfer data with 1.5GHz speed.
Pin Assignment Pin Assignment
1 Ground 2 TX+
3 TX- 4 Ground
5 RX- 6 RX+
7 Ground

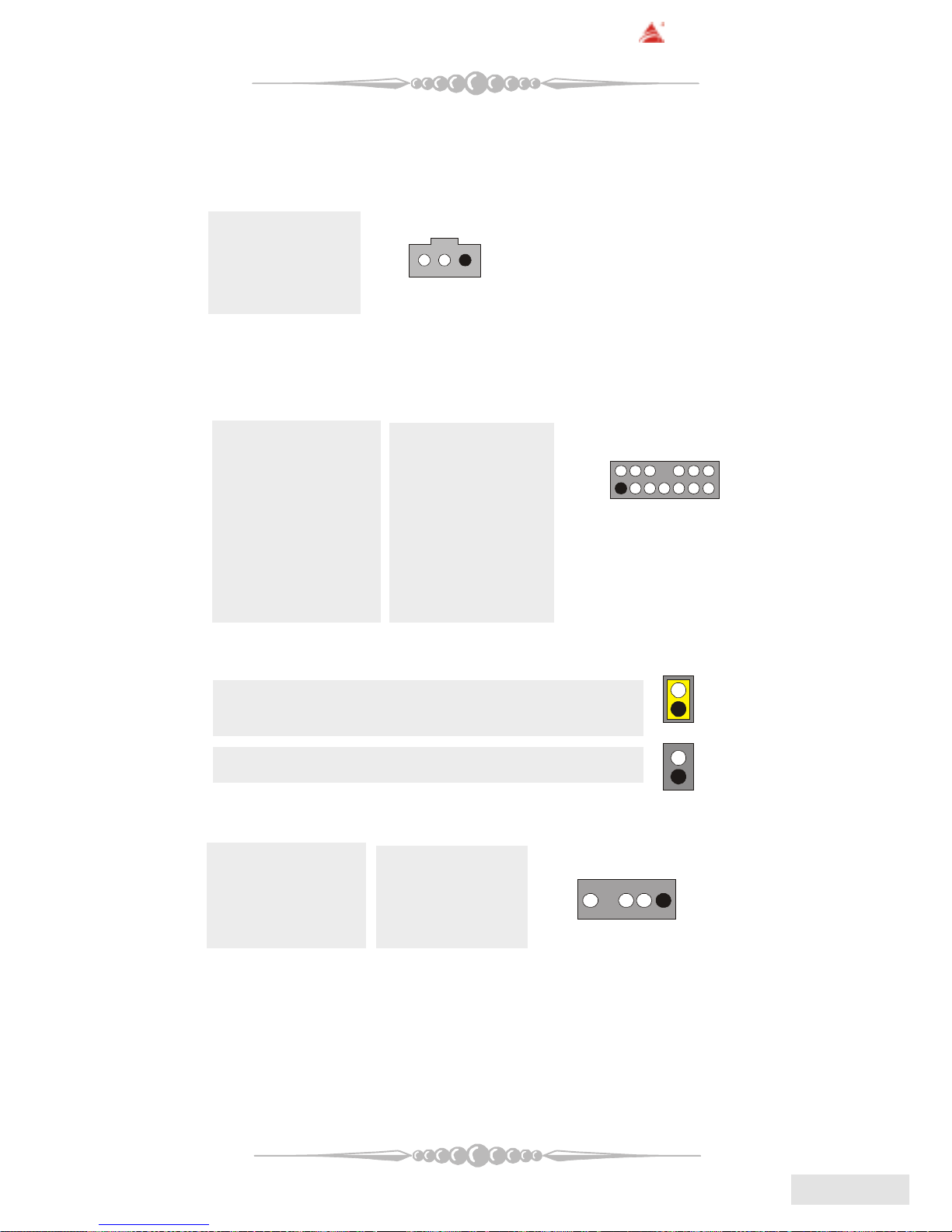

(7) Clear CMOS Jumper: JCMOS1
This jumper helps you to clear the Real Time Clock (RTC) Ram in CMOS. You
can erase the CMOS RTC Ram data to clear the CMOS memory of date, time,
and system setup parameters.
JCMOS1 Assignment
Pin 1-2 Close Normal Operation (default)
Pin 2-3 Close Clear CMOS Data
* Clear CMOS Procedures:
1. Remove AC power line.
2. Set the jumper to "Pin 2-3 Close".
3. Wait for five seconds.
4. Set the jumper to "Pin 1-2 Close".
5. Power on the AC.
6. Reset your desired password or clear the CMOS data.

1414
1414
14
EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
2
1
1
1 3
13

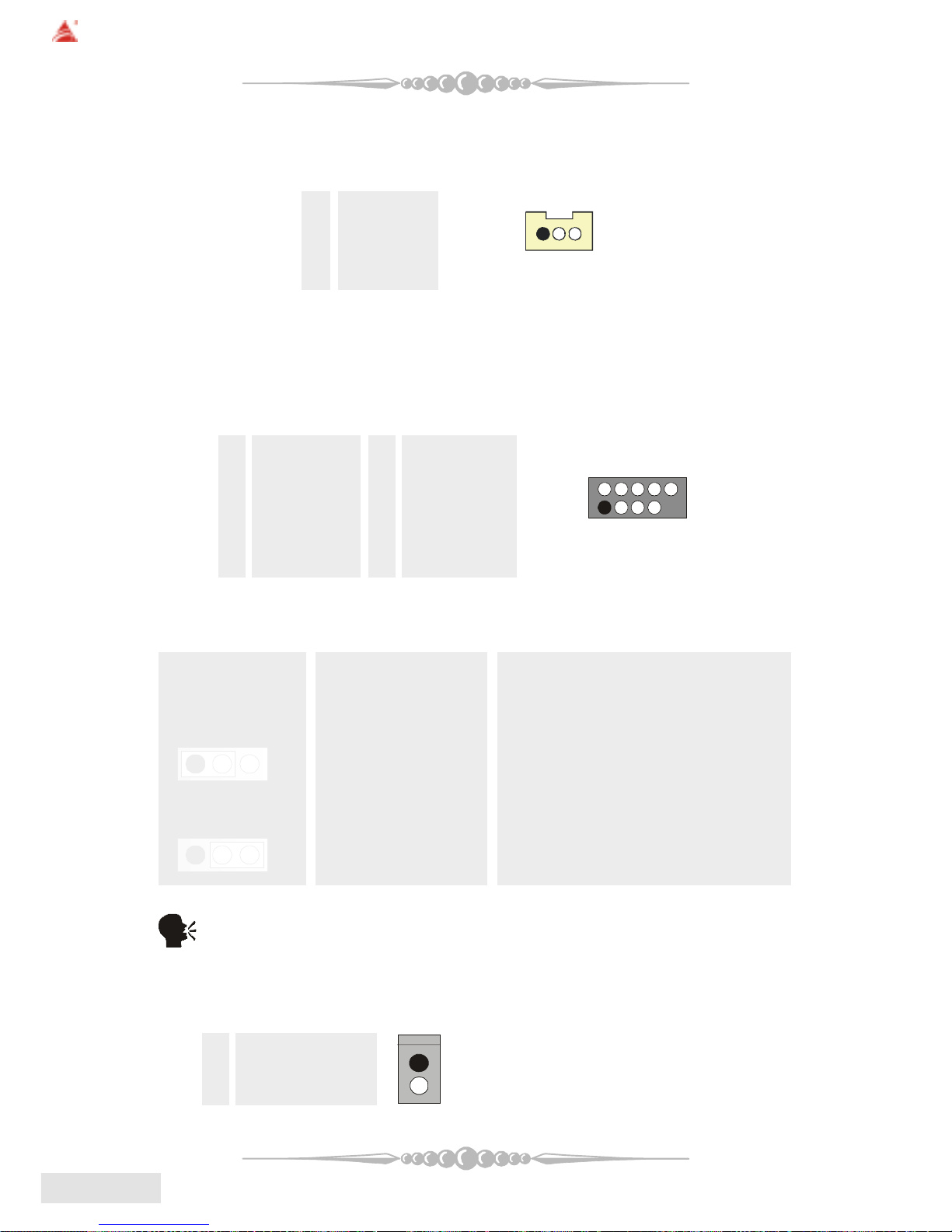

(8) Wake On LAN Header: JWOL1 (optional)
This connector allows you to connect to a LAN card with Wake On LAN
function. You can wake up the computer by remote control through a local area
network.
(9) Front USB Header: JUSB1/ (JUSB2: optional)
The motherboard provides one/(two) USB 2.0 Pin Header. USB 2.0 technology
increases Data transfer rate up to a maximum throughput of 480 Mbps, which
is 40 times faster than USB 1.1, and is ideal for connecting high-speed USB
interface peripherals such as USB HDD, digital cameras, MP3 players, printers,
modems, etc.
Pin Assignment Pin Assignment
1 +5V(fused) 2 +5V(fused)
3 USBP-0/(-6) 4 USBP-1/(-7)
5 USBP+0/(+6) 6 USBP+1/(+7)
7 Ground 8 Ground
9 KEY 10 NC
(10) Power Source Selection for USB: JUSBV1/JUSBV2/JUSBV3v (optional)
JUSBV1/JUSBV2 Assignment Description
JUSBV3
Pin 1-2 close +5V JUSBV1: 5V for J1394_USB1
JUSBV2: 5V for JUSBLAN1
JUSBV3: 5V for JUSB1 port.
Pin 2-3 close +5V Standby Voltage 5V standby to power on.
Note: In order to power-on USB devices function, "JUSBV1/JUSBV2/
JUSBV3" jumper cap should be placed on pin 2-3 respectively.
(11) Case Open Connector: JCI1 (optional)
Pin Assignment
1 Ground
2 Case Open Signal
JWOL1
1
Pin Assignment
1 +5V_SB
2 Ground
3 Wake up

1515
1515
15 EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
12
SPK
PWR_LED
HLED
SLP
RST
2
24
IR
1
23
IR
ON/OFF
(+) (-)
(+) (-)(+)
1
JCDIN1/JCDIN2
(12) CD-ROM Audio-In Header: JCDIN1/JCDIN2
This header allows you to receive stereo audio input from sound sources, such
as CD-ROM, TV Tuner, MPEG card, etc.
Pin Assignment
1 Left Channel Input
2 Ground
3 Ground
4 Right Channel Input
(13) Game Header: JGAME1 (optional)
Pin Assignment Pin Assignment
1 +5V 2 +5V
3 Joystick B Button 1 4 Joystick A Button 1
5 Joystick B Coordinate X 6 Joystick A Coordinate X
7 MIDI Output 8 Ground
9 Joystick B Coordinate Y 10 Ground
11 Joystick B Button 2 12 Joystick A Coordinate Y
13 MIDI Input 14 Joystick A Button 2
15 NA 16 +5V
(14) Front Panel Connector: JPANEL1
The connector is for electrical connection to the front panel switches and
LEDs.
Pin Assignment Function Pin Assignment Function
1 +5V Speaker 2 Sleep Control SleepButton
3 NA Connector 4 Ground
5 NA 6 NA NA
7 Speaker 8 Power LED (+) POWER LED
9 HDD LED (+) Hard DriveLED 10 Power LED (+)
11 HDD LED (-) 12 Power LED (-)
13 Ground ResetButton 14 Power Button Power-on Button
15 Reset Control 16 Ground
17 NA 18 KEY
19 NA IrDA 20 KEY IrDA
21 +5V Connector 22 Ground Connector
23 IRTX 24 IRRX

1616
1616
16
EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
1
2
3
4
1
10
1
1
2
0
2
9
10
1
1
1
(15) 5V / 5VSB Selection for KB: JKBMSV1 (optional)
JKBMSV1 Assignment Description
Pin 1-2 close +5V 5V for keyboard and mouse
Pin 2-3 close +5V_SB 5V standby for keyboard and
mouse to power on your system

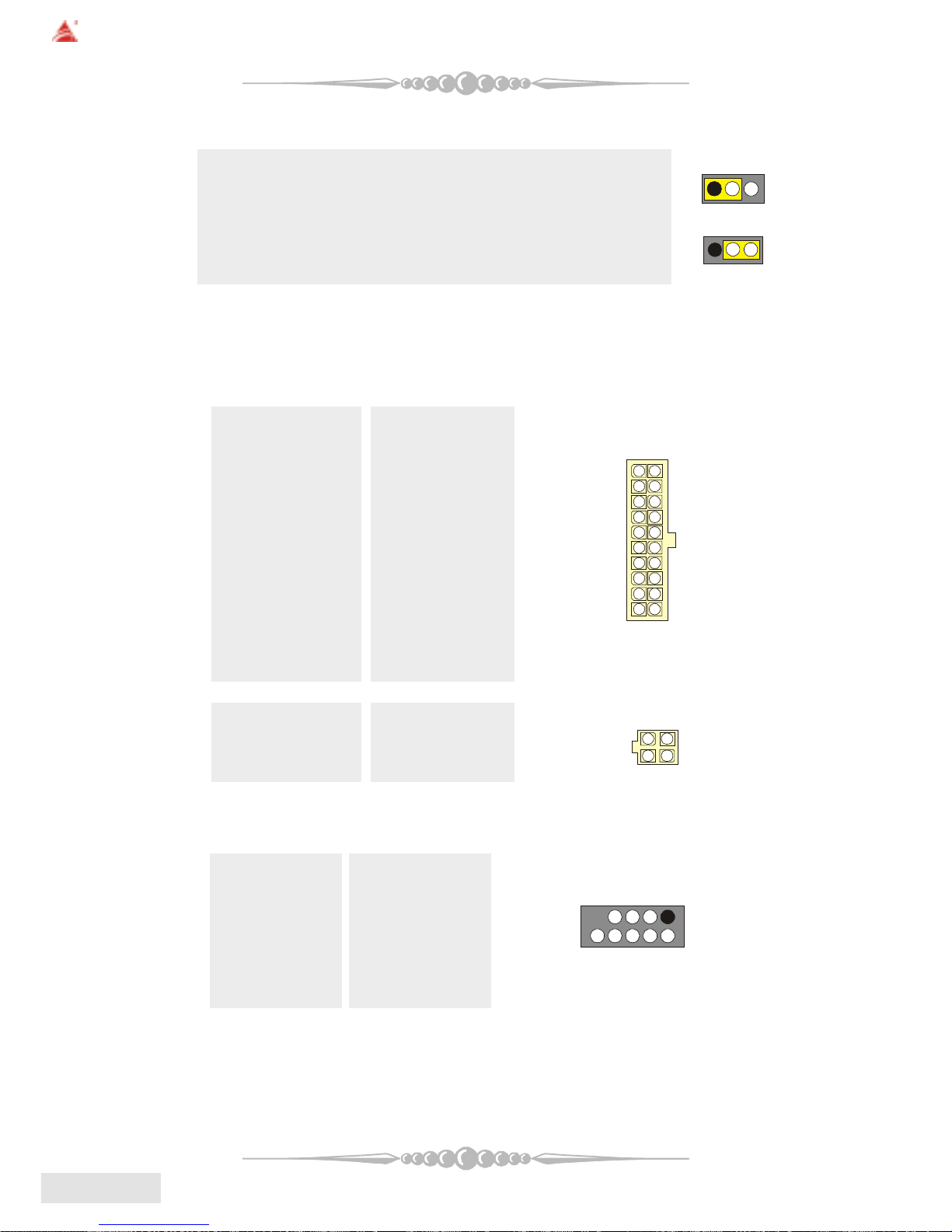

(16) Power Connectors: JATXPWER1/ JATXPWR2
The motherboard supports ATX power supply for the power system. Before
installing the power supply connector, please make sure that all components are
installed properly.
PIN Assignment PIN Assignment
1 +3.3V 11 +3.3V
2 +3.3V 12 -12V
3 Ground 13 Ground
4 +5V 14 PS_ON
5 Ground 15 Ground
6 +5V 16 Ground
7 Ground 17 Ground
8 PW_OK 18 -5V
9 +5V_SB 19 +5V
10 +12V 20 +5V
PIN Assignment PIN Assignment
1 +12V 3 Ground
2 +12V 4 Ground

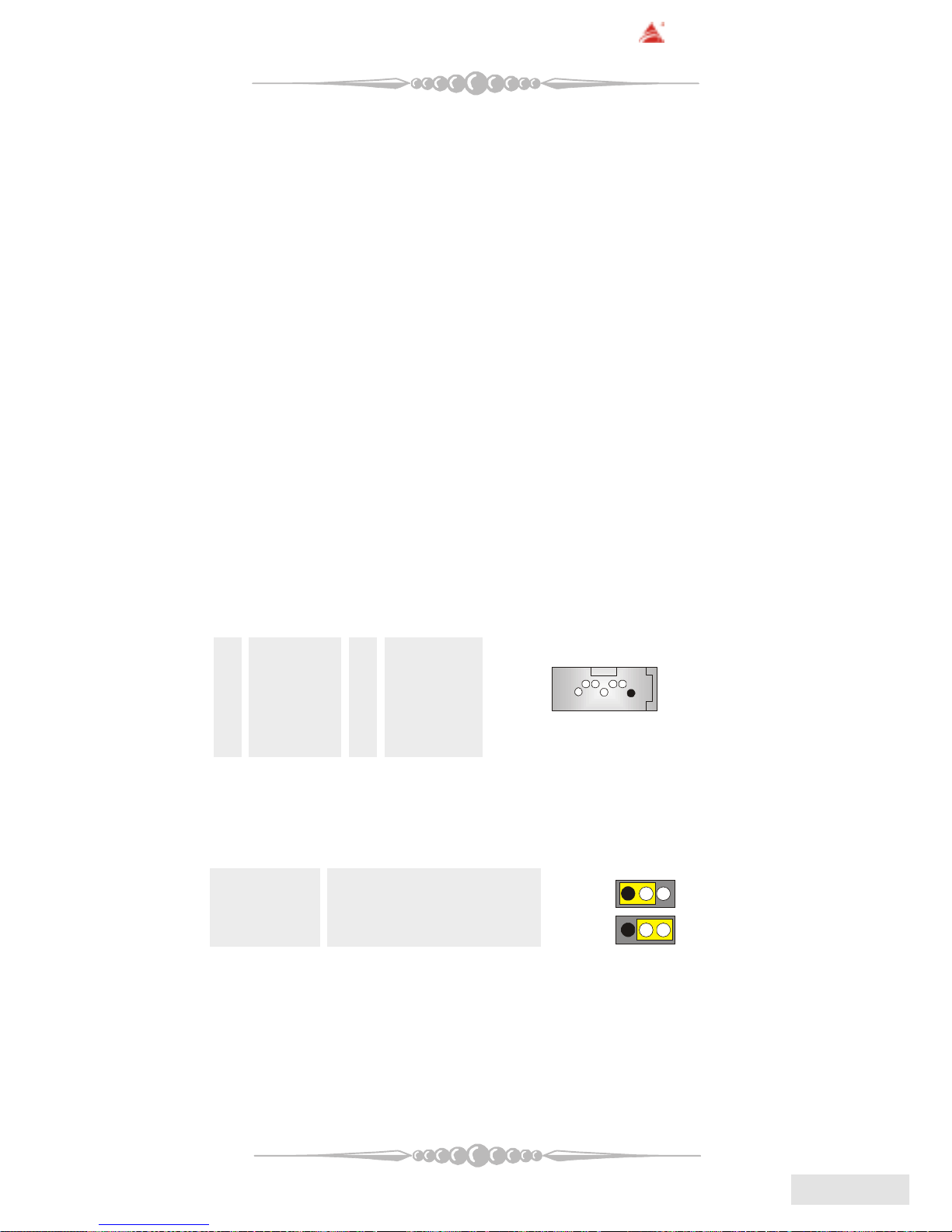

(17) Front 1394 Header: J1394A1 (optional)
Pin Assignment Pin Assignment
1 A1+ 2 A1-
3 Ground 4 Ground
5 B1+ 6 B1-
7 +12V 8 +12V
9 KEY 10 NA

1717
1717
17 EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
1
2
14
13
1
5
1
1
(18) Digital Audio Connector: JSPDIF_OUT/ (JSPDIF_IN: optional)
The connector is used to connect SPDIF (Sony & Philips Digital Interconnect
Format) interface for digital audio transmission.
Pin Assignment
1 +5V
2 SPDIF_OUT
3 Ground

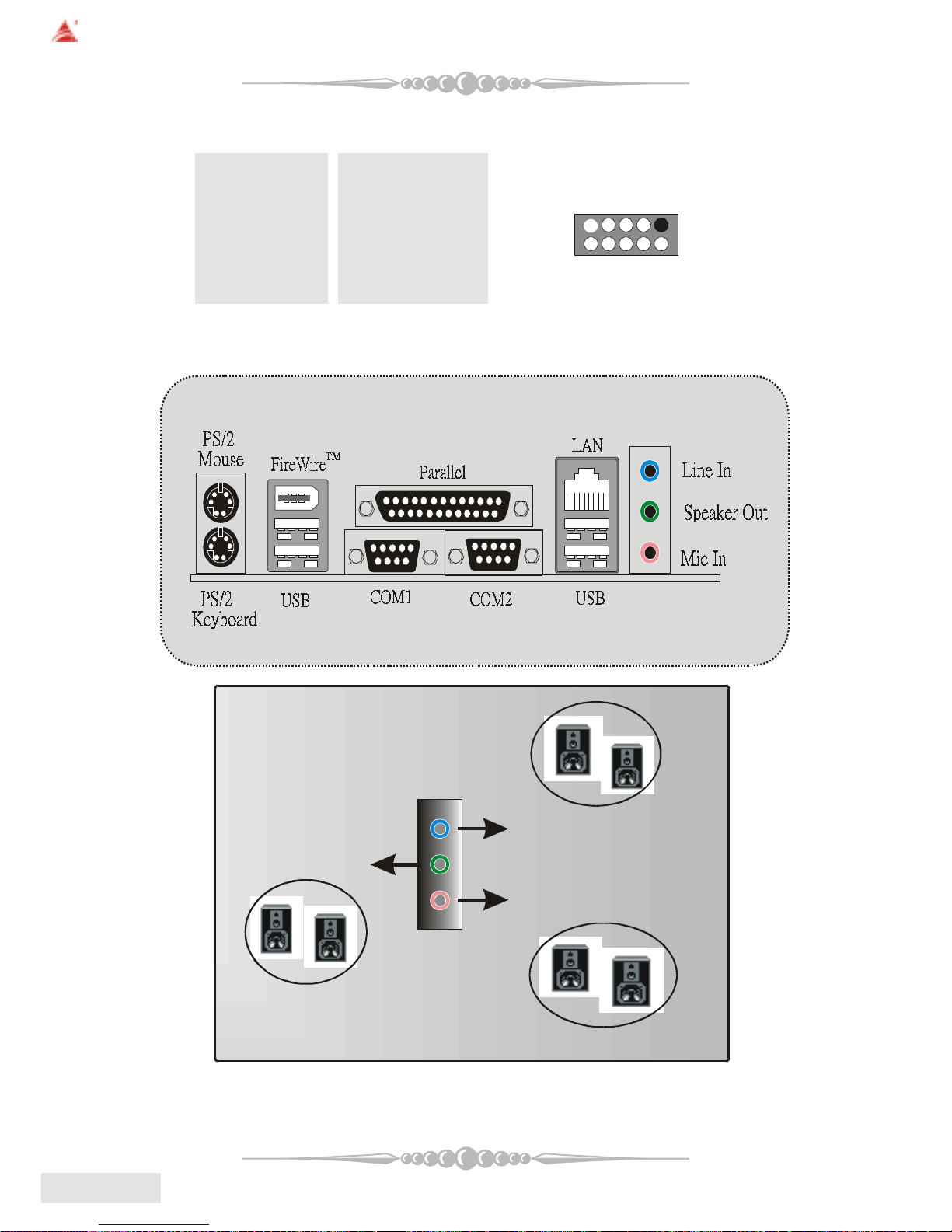

(19) Front Panel Audio Header: JAUDIO1
The connector allows you to connect to the front panel audio.
Pin Assignment Pin Assignment
1 Mic In 2 Ground
3 Mic Power 4 Audio Power
5 RT Line Out 6 RT Line Out
7 Reserved 8 Key
9 LFT Line Out 10 LFT Line Out
11 RT Line In 12 RT Line In
13 LFT Line In 14 LFT Line In
(20) Flash Rom Read/Write Enable : J3 (optional)
J3 Assignment
Pin1-2 on Enable the flash Rom to read and write.
Pin 1-2 off Disable the flash Rom to read and write.
(21) AUDIO DJ Connector: JDJ1 (optional)
Pin Assignment Pin Assignment
1 SMBDATA 2 SMBCLK
3 INT_B 4 KEY
5 ATX_PWROK

1818
1818
18
EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
6 Channel Speakers
Speaker Out
Line In/ Rear Speaker
Mic In/ Center & Bass
(22) COM3 Header: JCOM3 (optional)
Pin Assignment Pin Assignment
1 RIN1 2 RIN3
3 DOUT2 4 ROUT3
5 Ground 6 RIN2
7 DOUT1 8 RIN4
9 -XRI1 10 NA
(23) Back Panel Connectors
2
9
10
1

1919
1919
19 EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
Section 6. Trouble Shooting
PROBABLE
No power to the system at all; power light
doesn't illuminate; fan inside power supply
does not turn on. Indicator light on keyboard
does not turn on.
System inoperative. Keyboard lights are on,
power indicator lights are lit, and hard drive
is spinning.
System does not boot from hard disk drive,
but it can be booted from CD-ROM drive.
System only boots from CD-ROM. Hard
disk can be read and applications can be
used but booting from hard disk is
impossible.
Screen message says "Invalid
Configuration" or "CMOS Failure."
Cannot boot system after installing second
hard drive.
Error message reading "SECTOR NOT
FOUND" or other error messages not
allowing certain data to be retrieved.
SOLUTION
* Make sure power cable is securely
plugged in.* Replace cable.
* Contact technical support.
* Using even pressure on both ends of
the DIMM, press down firmly until the
module snaps back in places.
* Check cable running from disk to disk
controller board. Make sure both ends
are securely plugged in; check the drive
type in the standard CMOS setup.
* Backing up the hard drive is extremely
important. All hard disks are capable
of breaking down at any time.
* Back up data and applications files.
Reformat the hard drive. Re-install
applications and data using backup
disks.
* Review system's equipment. Make sure
correct information is in setup.
* Set master/slave jumpers correctly.
* Run SETUP program and select correct
drive types. Call drive manufacturers
for compatibility with other drives.
* Back up any salvageable data. Then,
low-level format, partition, and high-
level format the hard drive. Re-install
all saved data when completed.

2020
2020
20
EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
SOLUTION
* Check the power connectors to monitor
and to system. Make sure monitor is
connected to display card.
* Disable screen saver.
* Reboot computer. Reinstall memory,
andmake sure thatallmemory modules
are installed in correct sockets.
* Use anti-virus programs to detect and
clean viruses.
* Reconnect keyborad. Check keys
again. If no improvement, replace
keyboard.
* If possible, connect monitor to another
system. If no color still, replace
monitor.
* Check hard drive cable.
* Run setup and select correct drive type.
* Replace keyboard.
* Unlock keyboard.
PROBABLE
Scree is blank.
Screen goes blank periodically.
Memory problem.
Computer virus.
Keyboard failure.
No display on screen.
C: drive failure.
Missing operating system on hard drive.
Certain keys do not function.
Keyboard is locked, no keys function.
