Biostar K8T890-A7 User manual

K8T89-A7
i
FCC Information and Copyright
This equipment has been tested and found to comply withthe limits of a Class
B digital device,pursuant toPart15 oftheFCC Rules.These limits are designed
to provide reasonable protection against harmful interference in a residential
installation.This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions,may
cause harmful interference to radio communications.There is no guarantee
that interference will not occur in a particular installation.
The vendor makes no representations or warranties with respect to the
contents here andspecially disclaims any implied warranties ofmerchantability
or fitness for any purpose. Further the vendor reserves the right to revise this
publication and to make changes to the contents here without obligation to
notify any party beforehand.
Duplication of this publication, in part or in whole, is not allowed without first
obtaining the vendor’s approval in writing.
The content of this user’s manual is subjectto be changed without notice and
we will not be responsible for any mistakes found in this user’s manual. All the
brand and product names are trademarks of their respective companies.

Table of Contents
ii
Chapter 1: Introduction.......................................................................1
1.1 Features............................................................................... 1
A. Hardware.........................................................................................................................1
B. BIOS & Software..........................................................................................................3
1.2 Package List......................................................................... 4
1.3 Layout................................................................................. 5
Chapter 2: Hardware Installation...................................................6
2.1 Central Processing Unit (CPU)..............................................6
2.2 FAN Headers....................................................................... 8
2.3 Memory Module Installation................................................. 8
2.4 Connectors and Slots ............................................................ 9
Chapter 3: Headers & Jumpers Setup........................................11
3.1 How to Setup Jumpers.........................................................11
3.2 Detail Settings.....................................................................11
Chapter 4: Useful Help..................................................................16
4.1 Award BIOS Beep Code.......................................................16
4.2 Extra Information................................................................16
A. BIOS Update...............................................................................................................16
B. CPU Overheated.........................................................................................................17
4.3 Troubleshooting..................................................................18
Chapter 5: WarpSpeeder™....................................................19
5.1 Introduction........................................................................19
5.2 System Requirement............................................................19
5.3 Installation..........................................................................20
5.4 [WarpSpeeder™] includes 1 tray icon and 5panels................21

K8T89-A7
1
CHAPTER 1: INTRODUCTION
1.1 FEATURES
AA..HHaarrddwwaarree
CPU
SupportsSocket 754.
SupportsAMDAthlon 64processor up to3700+.
SupportsAMD Sempron processor.
Supports200/400/600/800 clockrateswith Double Data Rate
style operation for 400/800/1200/1600MT/sin both directions
simultaneously for HyperTransportlink.
Chipset
North Bridge:VIA K8T890.
South Bridge:VIAVT8237R.
Dimension
ATX Form Factor: 21.99cm (W) x 29.31cm (L)
Main Memory
Supports up to 2 DDR devices.
Supports 266/333/400MHz DDR devices.
Maximum memory sizeisup to2GB. (Following table isonly for
reference.)
DIMM Socket
Location DDR Module Total Memory Size
DIMM1 128MB/256MB/512MB/1GB *1
DIMM2 128MB/256MB/512MB/1GB *1
Max is 2GB.
Slot
Three PCI bus master slots.
Two PCI-EX1 slots.
One PCI-EX16 slot.
One XGPslot (Xtreme Graphic Port). (See p.10 fordetail
information)
Onboard IDE
Two IDE connectorssupport 4 harddiskdrives.
SupportsPIOmode5,BusMaster, and Ultra DMA66/100/133
function.

K8T89-A7
2
Super I/O
Chip: ITE IT8705AF GX.
Low Pin Count Interface.
Integrate hardware monitor functions.
Onboard Serial ATA
Integrated in VT8237R.
Two serial ATAconnectorssupport 2SATAdevices.
SupportsRAID 0and RAID1 functions.
Supports2 serial ATA (SATA) ports.
-Data transfer ratesup to 150 MB/s.
-Complaintswith SATAVersion 1.0 specification.
10/100 LAN
Chip: RTL8100C.
Supports10/100Mb/sauto-negotiation operation.
Half/Full duplex capability.
SupportsACPI, PCIpower management.
Onboard AC’97 Sound Codec
Chip: ALC655
Support6 channels.
SupportsS/PDIFoutand S/PDIF-in (optional) function.
Compliant withAC’97 Version 2.3 specification.
Internal On-board I/O Connectors and Headers
1 front panel header supportsfrontpanel facilities.
1 CD-in connector supports1 CD-ROMaudio-in device.
1 front audio header supportsfrontpanel audio function.
1 S/PDIF-Out connector supportsdigital audio-outfunction.
1 S/PDIF-In connectorsupportsdigital audio-in function
(optional).
1 chassisopenheader supportsPC case-opened warning
function.
1 FDD connector supports2 Floppydriveswith360K,720K,
1.2M, 1.44M and 2.88Mbytes.
2 USBheaders support4 USB2.0 portsat frontpanel.
1 audio-DJ header (optional).
1 Wake-up onLANheader (optional).

K8T89-A7
3
Back Panel I/O Connectors
4 USB2.0ports.
1 Serial port (COM2 isoptional).
1 Parallel port.
1 RJ-45 LANjack.
1 PS/2Mouse & Keyboardport.
1 Vertical audio port including 1 line-in connector, 1 Line out
connector,and1 MICin connector.
Line In/
Surround
Line Out
Mi c In 1/
Base/Center
PS/2
Keyboard
PS/2
Mouse
LAN
USB x2COM1
Printer port
USB x2COM2
(optional)
BB..BBIIOOSS&&SSooffttwwaarree
BIOS
Awardlegal BIOS.
SupportsAPM1.2,ACPI,and USBfunctions.
Software
Supports9thTouchTM , FlasherTM , WinFlasherTM ,and
WarpspeederTM .
Offersthe highest performancefor Windows98SE, WindowsNT,
Windows2000, WindowsME, WindowsXP, Linux Fedora,and
UNIX series.

K8T89-A7
4
1.2 PACKAGE LIST
FDD cable x1
HDD cable x1
User’s Manual x1
Fully Setup Driver CD x1
Rear I/Opanel forATX case x1
USB 2.0 cable x1 (optional)
Serial ATAcable x2 (optional)
S/PDIF out cable x1 (optional)

K8T89-A7
5

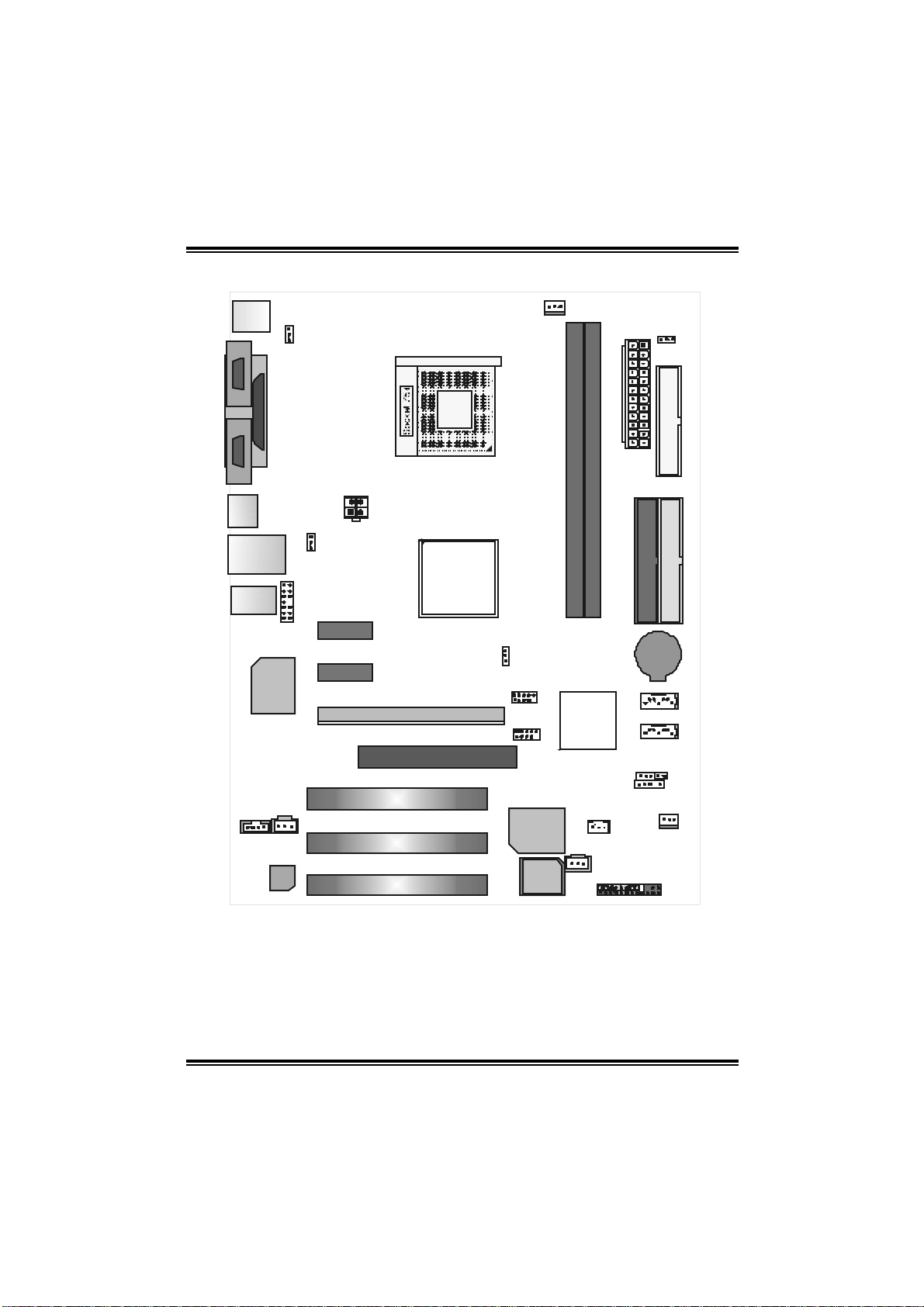

1.3 LAYOUT
JKBMS1
J1394_USB1
JAUDIO1
JUSBLAN1
JKBV1
1
JUSBV1
JAUDIO2
PCI 1
PCI 3
PCI 2
J CDIN1 JSPDIF_OUT1
Codec
CPU1
K8T890
JATXPWR2
JUSBV2
JUSB2
JUSB1
BIOS
JCFAN 1
DIMM1 DIMM2
V
T8237R
JSATA2
JSATA1
BAT1
JCMOS1 JCI1
JSFAN1
JPANEL 1
JWOL1
( op tiona l)
FDD1
JATXPWR1
IDE1
PCI-EX 16
PCI-EX1_2
PCI-EX 1_1
XGP1
JSPDI F_IN1
(optional)
JDJ 1(o ptio nal)
J1( opt iona l)
JPRNT1
JCOM1JCOM2
(optional)
LA N
Super I/O
IDE2
Note: ■representsthe1st pin.

K8T89-A7
6
CHAPTER 2: HARDWARE INSTALLATION
2.1 CENTRAL PROCESSING UNIT (CPU)
Step 1: Pull the lever sidewaysawayfrom the socket and thenraise the
lever up toa90-degree angle.
Step 2:Lookfortheblackcutedgeon socket, and the white dotonCPU
should pointforwardsthisblackcutedge.The CPU will fit only
inthe correctorientation.

K8T89-A7
7

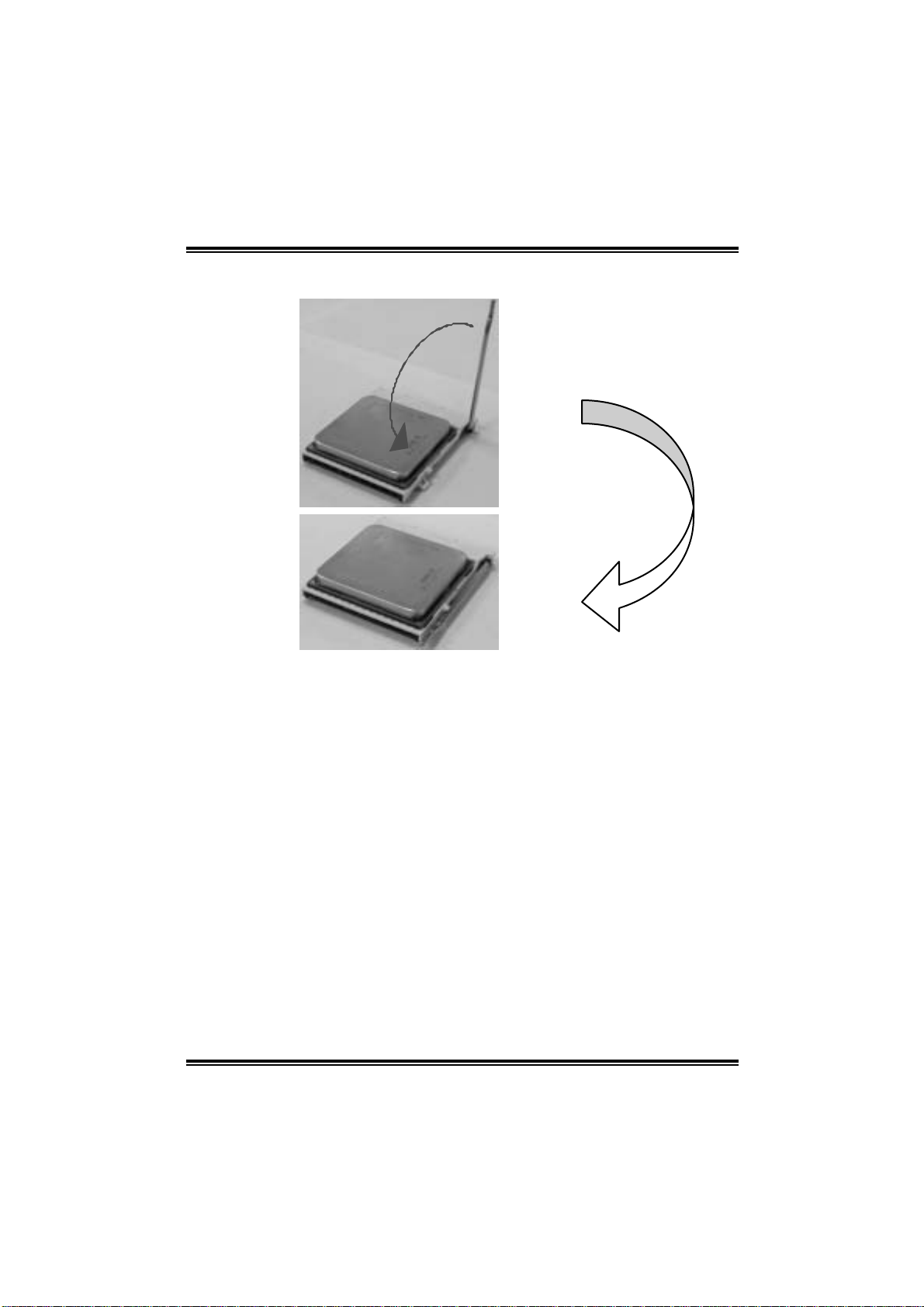

Step 3: Holdthe CPUdown firmly, and then close thelever tocomplete
theinstallation.
Step 4: Put the CPU Fan on the CPUand buckle it. Connect the CPU
FAN power cable to the JCFAN1.Thiscompletesthe
installation.

K8T89-A7
8
2.2 FAN HEADERS
These fan headerssupport cooling-fansbuiltinthecomputer.The fan
wiring and plugmaybedifferentaccordingtothefanmanufacturer.
Connect thefancable to the connector while matching the blackwire to
pin#1.

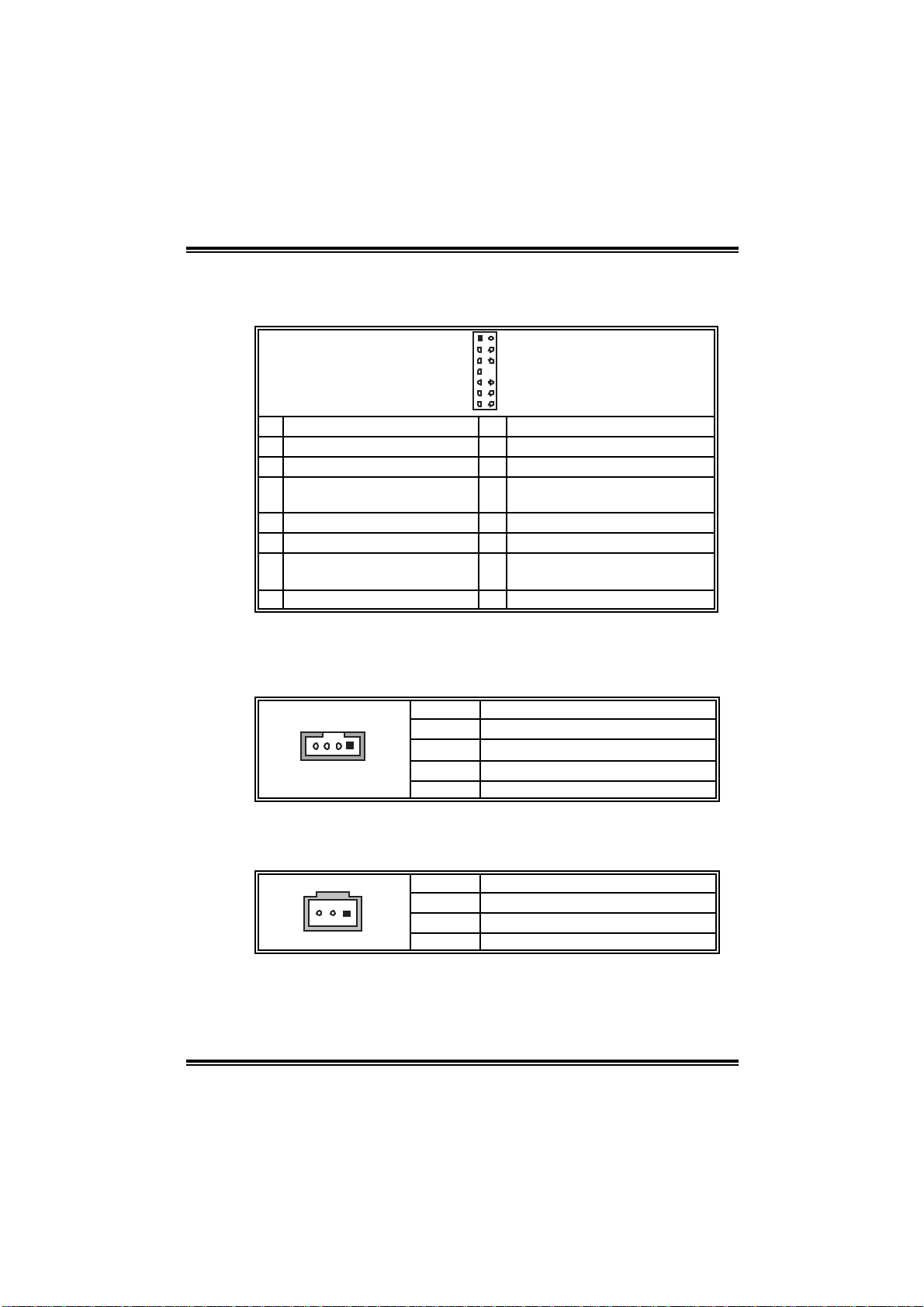

CPU FAN Header: JCFAN1
Pin Assignment
1 Ground
2 +12V
1
JCFAN1 3 FAN RPM ratesense
System Fan Header: JSFAN1
Pin Assignment
1 Ground
2 +12V
1
JSFAN1 3 FAN RPM ratesense
Note:
The JCFAN1 andJSFAN1 support 3-pin head connector. When
connecting withwiresonto connectors, please note thatthe red wire is
thepositiveand should be connected to pin#2, andthe blackwireis
Ground and should be connectedto GND.
2.3 MEMORY MODULE INSTALLATION
1. Unlocka DIMM slotbypressing the retaining clipsoutward.Aligna
DIMM on the slotsuch thatthenotchon the DIMM matchesthe
breakontheSlot.
2. Insert theDIMM verticallyand firmlyintotheslotuntil theretaining
chip snapbackin placeand the DIMM isproperly seated.

K8T89-A7
9
2.4 CONNECTORS AND SLOTS
FFDDDD11::FFllooppppyyDDiisskkCCoonnnneeccttoorr
The motherboardprovidesa standard floppydiskconnectorthat
supports360K,720K,1.2M,1.44M and2.88M floppydisktypes. This
connector supportstheprovided floppy driveribbon cables.
IIDDEE11//IIDDEE22::HHaarrddDDiisskkCCoonnnneeccttoorrss
The motherboardhasa 32-bitEnhanced PCI IDE Controller that
providesPIOMode0~5, BusMaster, and Ultra DMA66/ 100/ 133
functionality. It has two HDD connectors IDE1 (primary) and IDE2
(secondary).
The IDEconnectorscan connectamaster anda slave drive, so you can
connectup tofourharddiskdrives. The first harddrive should alwaysbe
connected to IDE1.
PPCCII11~~PPCCII33::PPeerriipphheerraallCCoommppoonneennttIInntteerrccoonnnneeccttSSlloottss
Thismotherboardisequipped with3 standard PCI slots. PCI standsfor
Peripheral Component Interconnect,and itisa busstandard for
expansion cards.ThisPCI slotisdesignated as32bits.

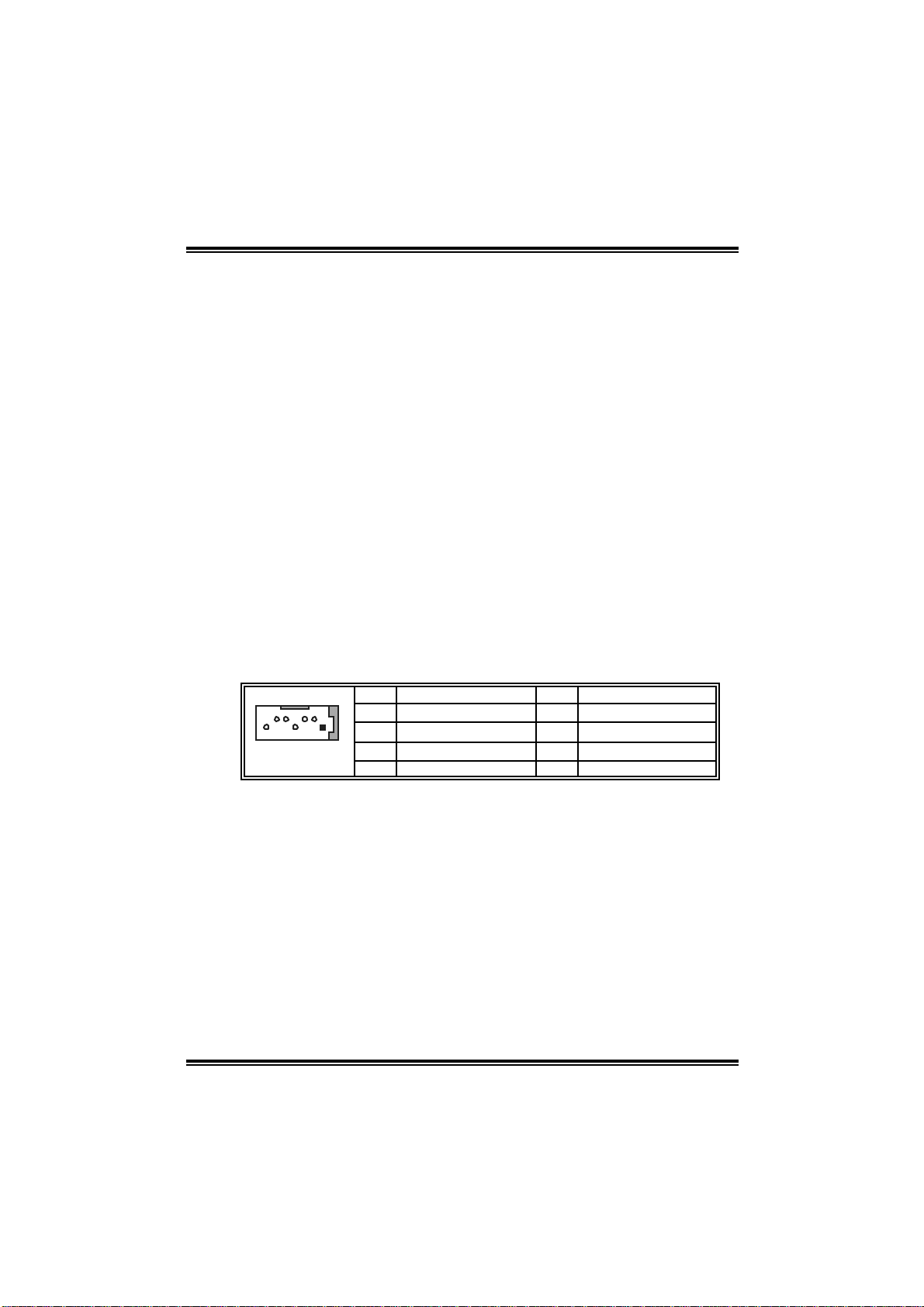

JJSSAATTAA11//JJSSAATTAA22::SSeerriiaallAATTAACCoonnnneeccttoorrss
The motherboard hasa PCI toSATAController with 2 channelsSATA
interface,itsatisfiestheSATA1.0 specand withtransfer rateof1.5Gb/s.
Pin Assignment Pin Assignment
1 Ground 2 TX+
3 TX- 4 Ground
5 RX- 6 RX+
147
7 Ground

K8T89-A7
10
XXttrreemmeeGGrraapphhiiccssPPoorrttSSlloott::XXGGPP11
ThisXGP (Extreme GraphicsPort)slotisa special design thatonly
supportscompatible AGP VGA cards.
To install thesystem withan add-onAGP VGA card, please make sure
toinstall the driverof add-on AGPVGA card before onboard VGAdriver
installation. If the onboardVGA driverhasalreadybeeninstalled before
you install the add-on AGPVGA card,thesystem will automatically set
theonboard VGA asthe primary graphicsadapter.
For the onboard VGAdriver can’tberemoved completely,and to solve
thisproblem, please followthestepsbelow,
1. Disable onboardVGA utility under the operating system,and reboot
PC. After PC restarts, the system will automatically set theAGP
VGA card asthe graphicsadapter.
2. Or, re-install your operating system toensure theAGPVGA card
function canbeused.
Note:
Please go to “http://www.biostar.com.tw” for more detailed information
aboutXGP compatible AGP cards.

K8T89-A7
11
CHAPTER 3: HEADERS & JUMPERS SETUP
3.1 HOW TO SETUPJUMPERS
The illustration showshow to set upjumpers. When thejumper cap is
placed on pins, thejumperis“close”, ifnot, thatmeansthejumperis
“open”.
Pin opened Pin closed Pin1-2 closed
3.2 DETAILSETTINGS
JATXPWR1/JATXPWR2: ATX Power Source Connectors
JATXPWR1:Thisconnector allowsuser to connect with24-pin power
connectoron the ATX power supply.
JATXPWR2: By connecting thisconnector,it will provide +12Vto CPU
power circuit.
Pin Assignment Pin Assignment
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 Ground 15 Ground
4 +5V 16 PS_ON
5 Ground 17 Ground
6 +5V 18 Ground
7 Ground 19 Ground
8 PW_ON 20 -5V
9 Standby Voltage +5V 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
1
24
13
12
JATXPWR1 12 DETEC
T
24 Ground
Pin Assignment Pin Assignment
1 +12V 3 Ground
12
34
JATXPWR2 2 +12V 4 Ground

K8T89-A7
12
JKBV1: Power Source Header for PS/2 Keyboard and Mouse
Assignment Description
1
3
Pin 1-2 close +5V +5V for PS/2 keyboard and mouse
1
3
Pin 2-3 close
+5V Standby
Voltage PS/2 mouse and keyboard are powered with +5V standby voltage.
Note:
In order tosupportthisfunction “Power-on system via keyboard and
mouse”, “JKBV1”jumper cap should be placed onPin 2-3.

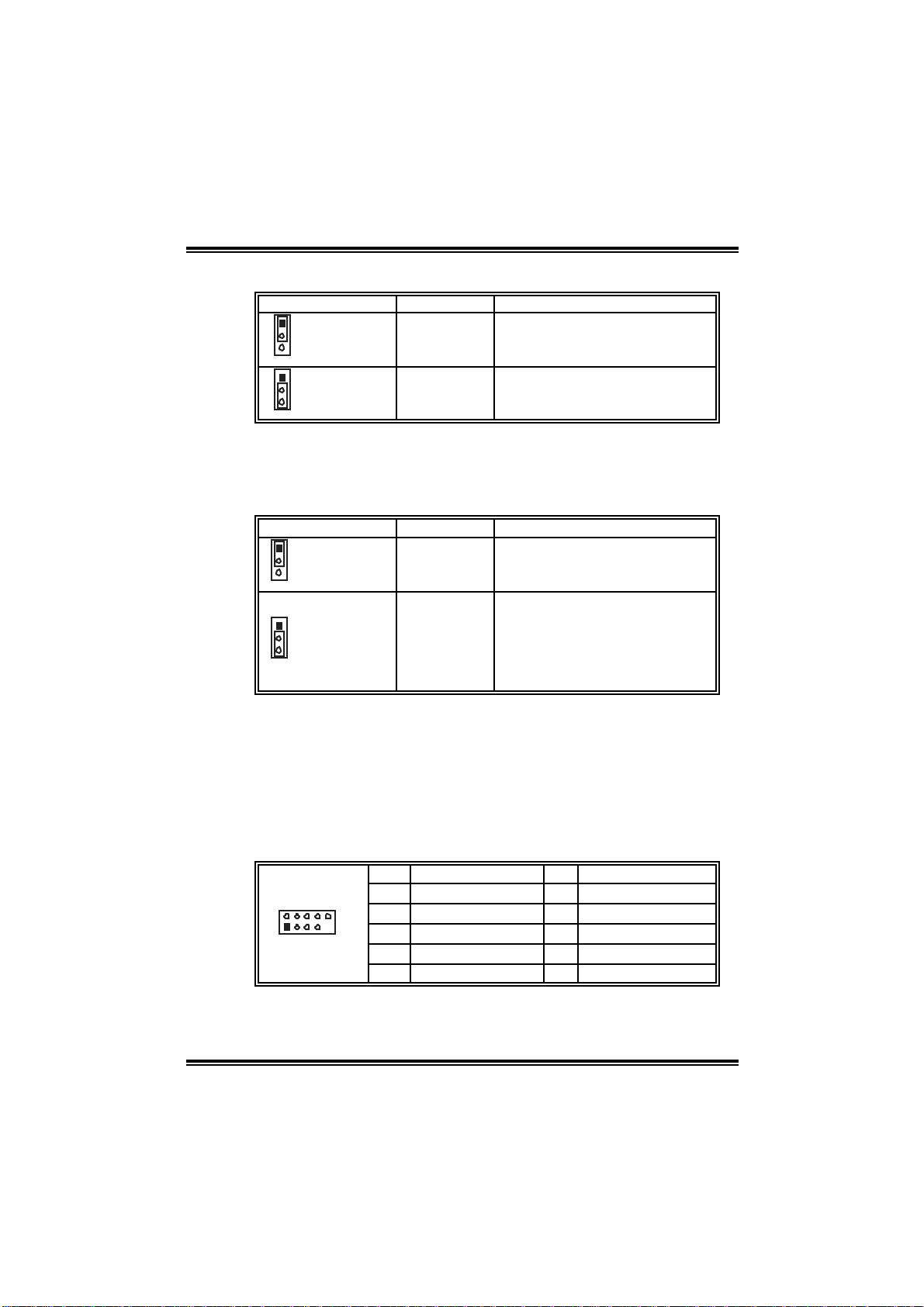

JUSBV1/JUSBV2: Power Source Header for USB Ports
Assignment Description
1
3
Pin 1-2 close +5V JUSBV1: +5V for J1394_USB1 an
d
JUSBLAN1.
JUSBV2: +5V for JUSB1/JUSB2.
1
3
Pin 2-3 close
+5V standby
Voltage
JUSBV1: J1394_USB1 and
JUSBLAN1 are powered by
+5V standby voltage.
JUSBV2: JUSB1/JUSB2 are
powered by +5Vstandby
voltage.
Note:
In order tosupportthisfunction “Power-on system via USBdevice,”
“JUSBV1/ JUSBV2” jumper cap should be placed on Pin 2-3
individually.
JUSB1/JUSB2: Headers for USB 2.0 Ports atFront Panel
Thisheader allowsuser to connectadditional USB cable on the PC
frontpanel,and also can be connected withinternal USBdevices, like
USB card reader.
Pin Assignment Pin Assignment
1 +5V (fused) 2 +5V (fused)
3 USB- 4 USB-
5 USB+ 6 USB+
7 Ground 8 Ground
1
210
9 Key 10 NC

K8T89-A7
13
JAUDIO1: Front Panel Audio Header
Thisheader allowsuser to connect the frontaudio output cable withthe
PC front panel. It will disable the output on back panel audio connectors.
12
13 14
Pin Assignment Pin Assignment
1 Mic in/center 2 Ground
3 Mic power/Bass 4 Audio power
5 Right line out/Speaker out
Right 6 Right line out/Speaker out Right
7 Reserved 8 Key
9 Left line out/Speaker out Left 10 Left line out/Speaker out Left
11 Right line in/Rear speaker
Right 12 Right line in/Rear speaker Right
13 Left line in/Rear speaker Left 14 Left line in/Rear speaker Left
JCDIN1: CD-ROM Audio-in Connector
Thisconnector allowsuser to connect theaudio source from the veriaty
devices, like CD-ROM, DVD-ROM, PCI sound card, PCITV turner card
etc..
Pin Assignment
1 Left channel input
2 Ground
3 Ground
14
4 Right channel input
JSPDIF_OUT1: Digital Audio-out Connector
Thisconnector allowsuser to connect thePCI bracketSPDIF output
header.
Pin Assignment
1 +5V
2 SPDIF_OUT
13
3 Ground

K8T89-A7
14

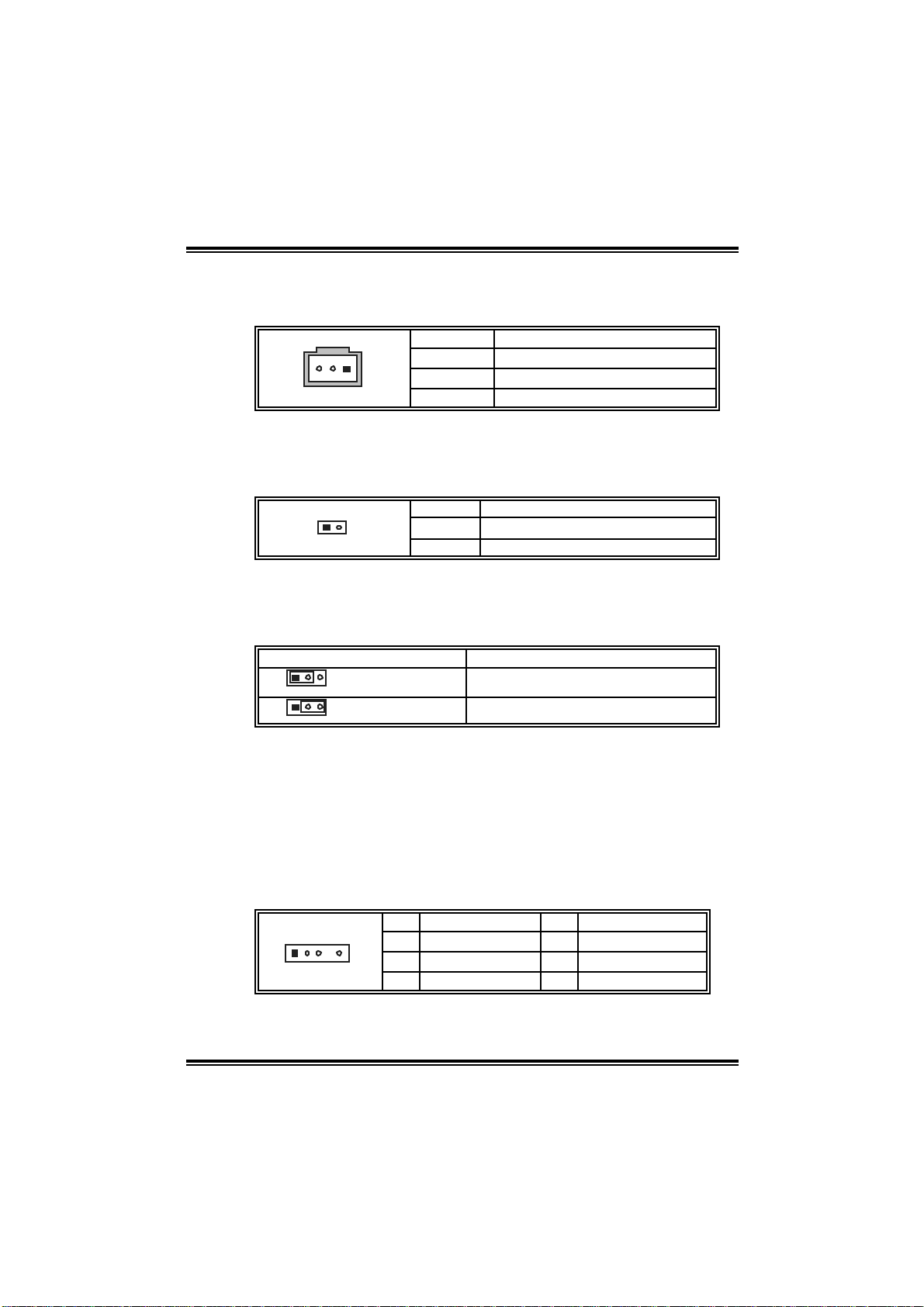

JSPDIF_IN1: Digital Audio-in Connector (optional)
Thisconnector allowsuser to connect the PCI bracketSPDIFinput
header.
Pin Assignment
1 +5V
2 SPDIF_IN
13
3 Ground
JCI1: Chassis Open Header
Thisconnector allowssystem to monitorPC case open status. If the
signal hasbeen triggered,it will record to the CMOS and show the
message on nextboot-up.
Pin Assignment
1 Case open signal
12
2 Ground
JCMOS1: Clear CMOS Header
By placing the jumper on pin2-3,it allowsuser to restore the BIOS safe
setting and theCMOS data, please carefullyfollowtheproceduresto
avoid damagingthemotherboard.
Assignment
13
Pin 1-2 close Normal Operation (Default).
13
Pin 2-3 close Clear CMOS data.
※Clear CMOS Procedures:
1. Remove AC powerline.
2. Set the jumper to “Pin 2-3 close”.
3. Wait for five seconds.
4. Set the jumper to “Pin 1-2 close”.
5. Power on the AC.
6. Reset your desired password or clear the CMOSdata.
JDJ1: AUDIO DJ Connector (optional)
Pin Assignment Pin Assignment
1 SMBDATA 2 SMBCLK
3 INT_B 4 Key
135
5 AXT_PWROK

K8T89-A7
15
JWOL1: Wake on LAN Header (optional)
The connectorpowersupthesystem whena wakeup packet or signal
isreceivedfrom the network. Thisfeature requiresthe Wake up on
LAN functioninBIOSisset to Enabled and that your system hasan
ATX power supply withatleast 720mA +5V standbypower.
Pin Assignment
1 +5V_SB
2 Ground
13
3 Wake-up signal

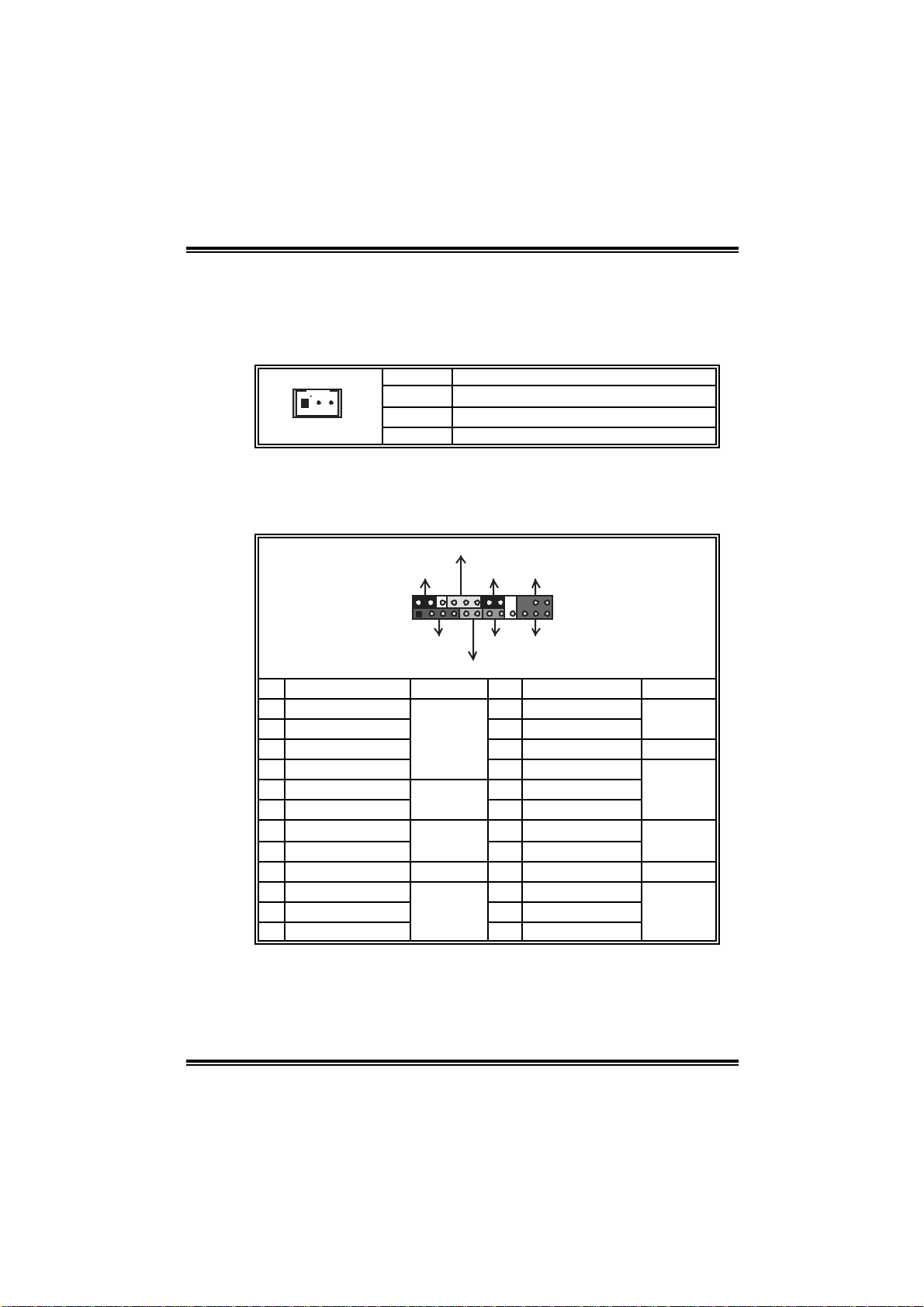

JPANEL1: Front Panel Header
This24-pin connectorincludesPower-on, Reset, HDD LED, PowerLED,
Sleep button, speaker and IrDAConnection. It allowsuser to connect
thePC case’sfront panel switch functions.
SLP
PWR_LED
On/Off IR
+- +
IR
SPK
HLED
RST
1
223
24
+-
Pin Assignment Function Pin Assignment Function
1 +5V 2 Sleep control
3 N/A 4 Ground Sleep
button
5 N/A 6 N/A N/A
7 Speaker
Speaker
Connector 8 Power LED (+)
9 HDD LED (+) 10 Power LED (+)
11 HDD LED (-) Hard drive
LED 12 Power LED (-) Power LED
13 Ground 14 Power button
15 Reset control Reset
button 16 Ground Power-on
button
17 N/A 18 Key
19 N/A 20 Key
21 +5V 22 Ground
23 IRTX
IrDA
Connector 24 IRRX
IrDA
Connector

K8T89-A7
16
CHAPTER 4: USEFUL HELP
4.1 AWARDBIOS BEEP CODE
Beep Sound Meaning
One long beep followed by two short
beeps Video card not found orvideo card memory bad
High-low siren sound CPU overheated
System will shut down automatically
One Short beep when system boot-up No error found during POST
Long beeps every other second No DRAM detected or install
4.2 EXTRA INFORMATION
AA..BBIIOOSSUUppddaattee
After you fail to update BIOS or BIOS isinvaded by virus, the
Boot-Blockfunction will help torestore BIOS. If the followingmessage
isshown after boot-up the system,itmeansthe BIOS contentsare
corrupted.
In thisCase, please follow the procedurebelow torestore the BIOS:
1. Make abootablefloppy disk.
2. Download the Flash Utility“AWDFLASH.exe” from the Biostar
website:www.biostar.com.tw
3. Confirm motherboard model and download the respectivelyBIOS
from Biostar website.
4. Copy “AWDFLASH.exe”and respectivelyBIOS into floppydisk.
5. Insert thebootablediskinto floppydrive andpressEnter.
6. System will boot-up to DOS prompt.
7. Type“Awdflash xxxx.bf/sn/py/r”in DOS prompt.
(xxxx meansBIOSname.)
8. System will update BIOS automatically and restart.
9. The BIOS has been recovered and will work properly.

K8T89-A7
17
BB..CCPPUUOOvveerrhheeaatteedd
If the system shutdownautomatically afterpoweron system for
seconds, that meansthe CPUprotectionfunction hasbeen activated.
When the CPU isoverheated, the motherboard will shutdown
automatically to avoid a damage ofthe CPU,and the system maynot
power on again.
In thiscase, please double check:
1. The CPU cooler surfaceisplacedevenlywith the CPU surface.
2. CPU fan is rotated normally.
3. CPU fan speed isfulfilling withthe CPU speed.
Afterconfirmed, please follow stepsbelow torelief theCPU protection
function.
1. Remove the power cord from power supplyfor seconds.
2. Wait for seconds.
3. Plug in the power cord andboot up the system.
Or you can:
1. CleartheCMOS data.
(See “Close CMOSHeader: JCMOS1” section)
2. Wait for seconds.
3. Power on the system again.

K8T89-A7
18
4.3 TROUBLESHOOTING
Probable Solution
1. No power to the system at all
Power light don’t illuminate,fan
inside power supply does not turn
on.
2. Indicator light on keyboard does
not turn on.
1. Make sure power cable is
securely plugged in.
2. Replace cable.
3. Contact technical support.
System inoperative. Keyboard lights
are on, power indicator lights are lit,
and hard drive is spinning.
Using even pressure on both ends of
the DIMM, press down firmly until the
module snaps into place.
System does not boot from hard disk
drive, can be bootedfrom optical drive. 1. Check cable running from disk to disk controller board. Make sure
both ends are securely plugged
in; check the driv e type in the
standard CMOS setup.
2. Backing up the hard drive is
extremely important. All hard
disks are capable of breaking
down at any time.
System only bootsfrom optical drive.
Hard disk can be read and applications
can be used but booting from hard disk
is impossible.
1. Back up data and applications
files.
2. Reformat the hard drive.
Re-install applications and data
using backup disks.
Screen message says “Invalid
Configuration” or “CMOS Failure.” Reviewsystem’s equipment. Make sur
e
correct information is in setup.
Cannot boot system after installing
second hard drive. 1. Set master/slave jumpers correctly.
2. Run SETUP program and select
correct drive types. Call the drive
manufacturersfor compatibility
with other drives.
