Biostar P4 SFA User guide

P4SFA BIOS Setup
i
BIOS Setup....................................................................................... 1
1 Main Menu....................................................................................................3
2 Standard CMOS Features..............................................................................6
3 Advanced BIOS Features..............................................................................9
4 Advanced Chipset Features.........................................................................13
5 Integrated Peripherals .................................................................................15
6 Power Management Setup...........................................................................20
7 PnP/PCI Configurations..............................................................................24
8 PC Health Status .........................................................................................26
9 Frequency Control.......................................................................................28

P4SFA BIOS Setup
1
BIOS Setup
Introduction
This manual discussed Award™ Setup program built into the ROM BIOS. The Setup
program allows users to modify the basic system configuration. This special information is
then stored in battery-backed RAM so that it retains the Setup information when the power
is turned off.
The Award BIOS™ installed in your computer system’s ROM (Read Only Memory) is a
custom version of an industry standard BIOS. This means that it supports Intel Pentium ®4
processor input/output system. The BIOS provides critical low-level support for standard
devices such as disk drives and serial and parallel ports.
Adding important has customized the Award BIOS™, but nonstandard, features such as
virus and password protection as well as special support for detailed fine-tuning of the
chipset controlling the entire system.
The rest of this manual is intended to guide you through the process of configuring your
system using Setup.
Plug and Play Support
These AWARD BIOS supports the Plug and Play Version 1.0A specification. ESCD
(Extended System Configuration Data) write is supported.
EPA Green PC Support
This AWARD BIOS supports Version 1.03 of the EPA Green PC specification.
APM Support
These AWARD BIOS supports Version 1.1&1.2 of the Advanced Power Management
(APM) specification. Power management features are implemented via the System
Management Interrupt (SMI). Sleep and Suspend power management modes are supported.
Power to the hard disk drives and video monitors can be managed by this AWARD BIOS.

P4SFA BIOS Setup
2
PCI Bus Support
This AWARD BIOS also supports Version 2.1 of the Intel PCI (Peripheral Component
Interconnect) local bus specification.
DRAM Support
DDR SDRAM (Double Data Rate Synchronous DRAM) are supported.
Supported CPUs
This AWARD BIOS supports the Intel Pentium ®4 CPU.
Using Setup
In general, you use the arrow keys to highlight items, press <Enter> to select, use the
<PgUp> and <PgDn> keys to change entries, press <F1> for help and press <Esc> to quit.
The following table provides more detail about how to navigate in the Setup program by
using the keyboard.
Keystroke Function
Up arrow Move to previous item
Down arrow Move to next item
Left arrow Move to the item on the left (menu bar)
Right arrow Move to the item on the right (menu bar)
Move Enter Move to the item you desired
PgUp key Increase the numeric value or make changes
PgDn key Decrease the numeric value or make changes
+ Key Increase the numeric value or make changes
- Key Decrease the numeric value or make changes
Esc key Main Menu – Quit and not save changes into CMOS
Status Page Setup Menu and Option Page Setup Menu – Exit
Current page and return to Main Menu
F1 key General help on Setup navigation keys
F5 key Load previous values from CMOS
F6 key Load the fail-safe defaults from BIOS default table
F7 key Load the optimized defaults
F10 key Save all the CMOS changes and exit

P4SFA BIOS Setup
3
1 Main Menu
Once you enter Award BIOS™ CMOS Setup Utility, the Main Menu will appear on the
screen. The Main Menu allows you to select from several setup functions. Use the arrow
keys to select among the items and press <Enter> to accept and enter the sub-menu.

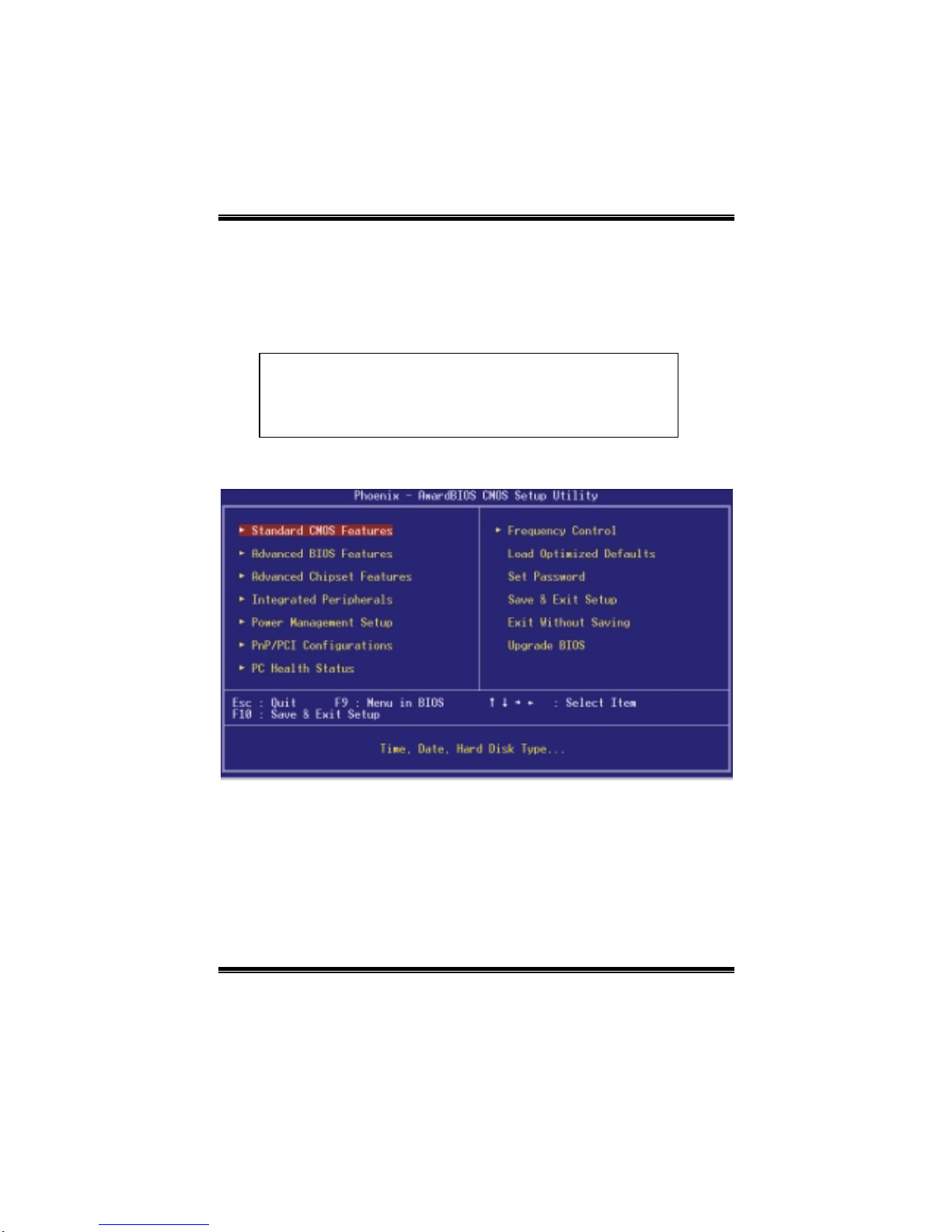

 Figure 1. Main Menu
Standard CMOS Features
This submenu contains industry standard configurable options.
Advanced BIOS Features
This submenu allows you to configure enhanced features of the BIOS.
Advanced Chipset Features
This submenu allows you to configure special chipset features.
!! WARNING !!
The information about BIOS defaults on manual (Figure
1,2,3,4,5,6,7,8,9) is just for reference, please refer to the BIOS
installed on board, for update information.

P4SFA BIOS Setup
4
Integrated Peripherals
This submenu allows you to configure certain IDE hard drive options and Programmed
Input/ Output features.
Power Management Setup
This submenu allows you to configure the power management features.
PnP/PCI Configurations
This submenu allows you to configure certain “Plug and Play” and PCI options.
PC Health Status
This submenu allows you to monitor thehardware of your system.
Frequency Control
This submenu allows you to change CPU Vcore Voltage and CPU/PCI clock. (However,
this function is strongly recommended not to use. Not properly change the voltage and
clock may cause CPU or M/B damage!)
Load Optimized Defaults
This selection allows you to reload the BIOS when the system is having problems
particularly with the boot sequence. These configurations are factory settings optimized
for this system. A confirmation message will be displayed before defaults are set.
Set Password
Setting the password will prohibit everyone except the supervisor from making changes
using the CMOS Setup Utility. You will be prompted with to enter a password.

P4SFA BIOS Setup
5

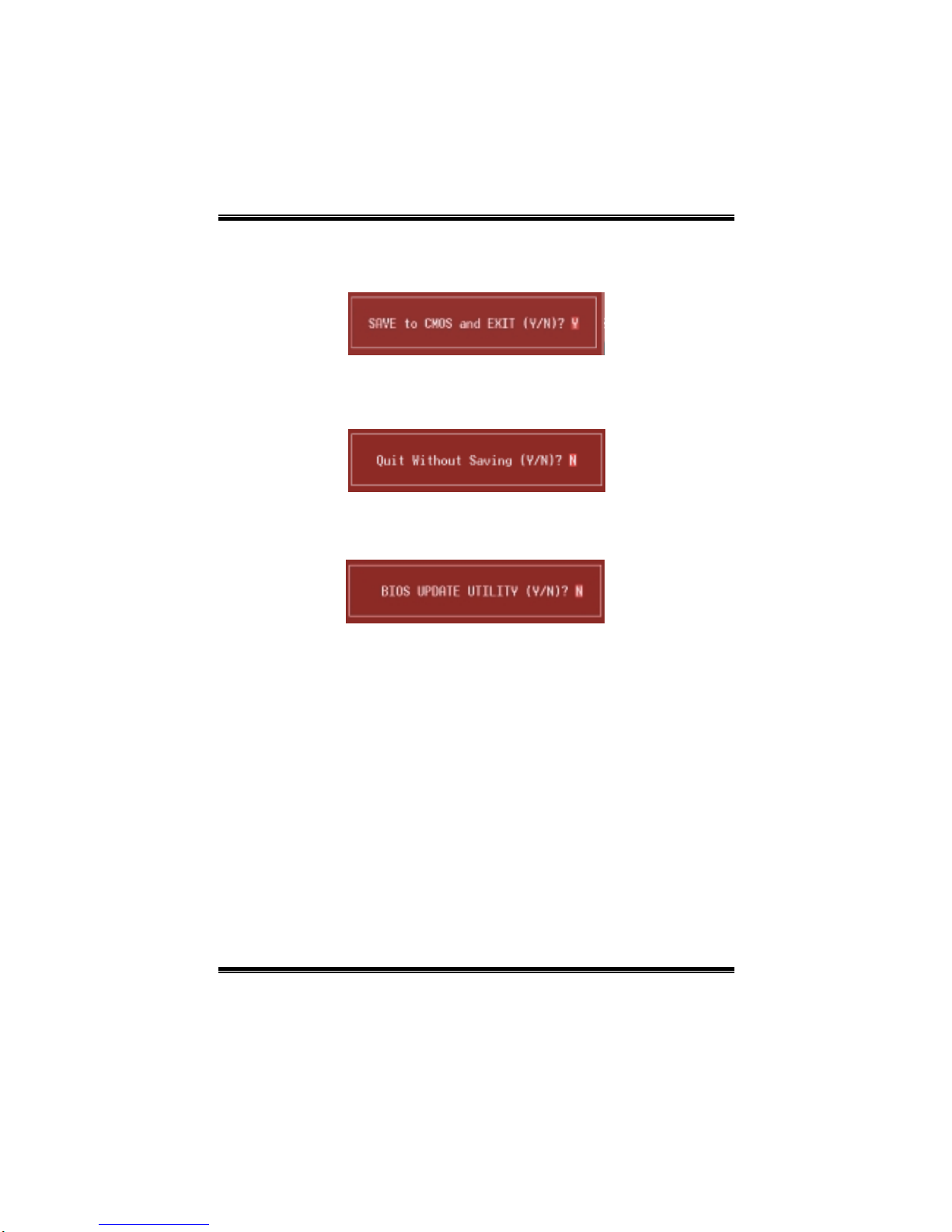

Save & Exit Setup
Save all configuration changes to CMOS(memory) and exit setup. Confirmation message
will be displayed before proceeding.
Exit Without Saving
Abandon all changes made during the current session and exit setup. confirmation
message will be displayed before proceeding.
Upgrade BIOS
This submenu allows you to upgrade bios.

P4SFA BIOS Setup
6
2 Standard CMOS Features
The items in Standard CMOS Setup Menu are divided into 10 categories. Each category
includes no, one or more than one setup items. Use the arrow keys to highlight the item and
then use the<PgUp> or <PgDn> keys to select the value you want in each item.


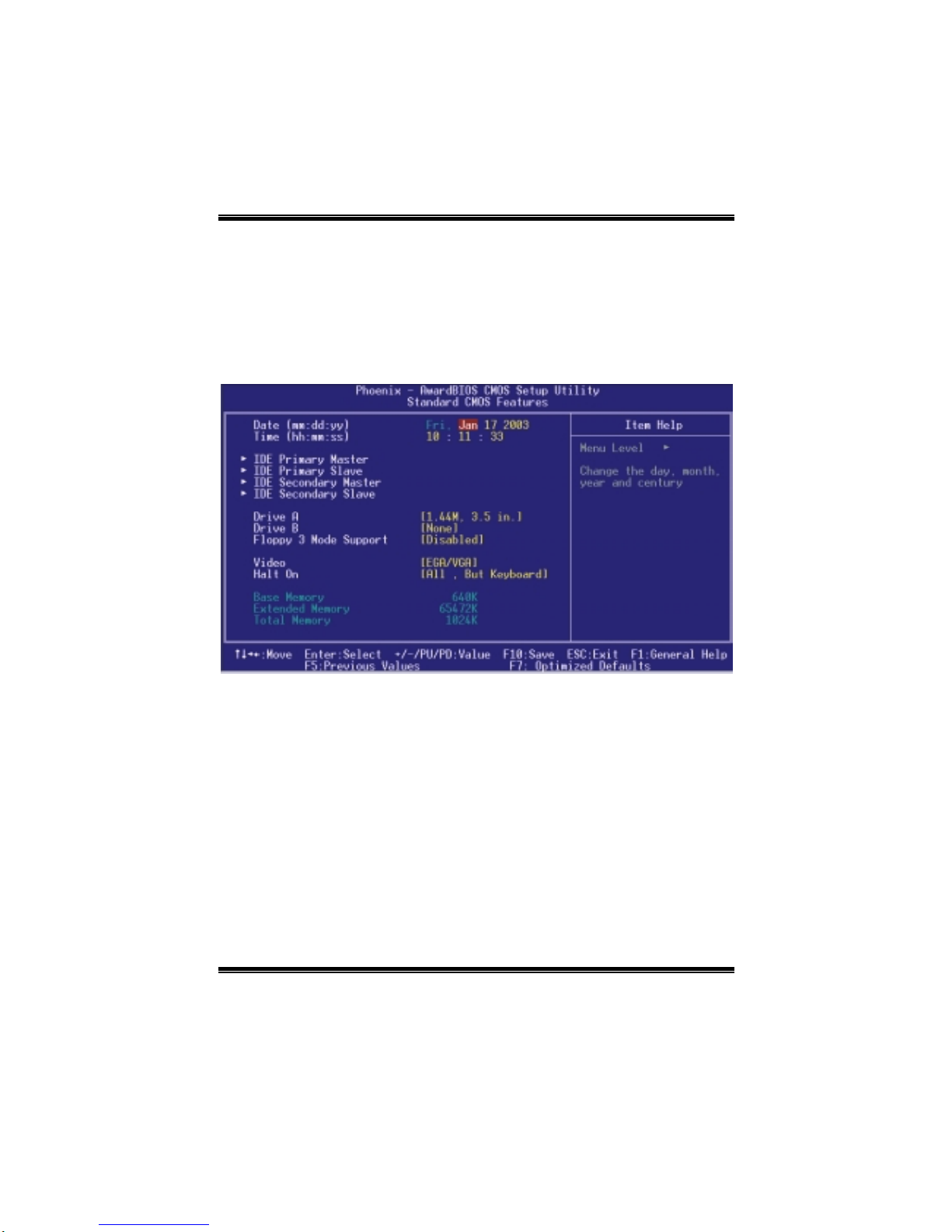

Figure 2. Standard CMOS Setup

P4SFA BIOS Setup
7
Main Menu Selections
This table shows the selections that you can make on the Main Menu.
Item Options Description
Date mm : dd : yy Set the system date. Note
that the ‘Day’ automatically
changes when you set the
date.
Time hh : mm : ss Set the system internal
clock.
IDE Primary Master Options are in its sub
menu. Press <Enter> to enter the sub menu of detailed
options
IDE Primary Slave Options are in its sub
menu. Press <Enter> to enter the sub menu of detailed
options.
IDE Secondary Master Options are in its sub
menu. Press <Enter> to enter the sub menu of detailed
options.
IDE Secondary Slave Options are in its sub
menu. Press <Enter> to enter the sub menu of detailed
options.
Drive A
Drive B 360K, 5.25 in 1.2M, 5.25 in
720K, 3.5 in
1.44M, 3.5 in
2.88M, 3.5 in
None
Select the type of floppy
disk drive installed in your
system.
Video EGA/VGA
CGA 40
CGA 80
MONO
Select the default video
device.

P4SFA BIOS Setup
8
Item Options Description
Halt On All Errors
No Errors
All, but Keyboard
All, but Diskette
All, but Disk/ Key
Select the situation in which
you want the BIOS to stop
the POST process and
notify you.
Base Memory N/A Displays the amount of
conventional memory
detected during boot up.
Extended Memory N/A Displays the amount of
extended memory detected
during boot up.
Total Memory N/A Displays the total memory
available in the system.

P4SFA BIOS Setup
9
3 Advanced BIOS Features
 Figure 3. Advanced BIOS Setup
Virus Warning
This option allows you to choose the Virus Warning feature that is used to protect the IDE
Hard Disk boot sector. If this function is enabled and an attempt is made to write to the
boot sector, BIOS will display a warning message on the screen and sound an alarm beep.
Disabled (default) Virus protection is disabled.
Enabled Virus protection is activated.
CPU L1 & L2 Cache
The option allows you to enable/ disable CPU Cache to speed up the system performance.
Enabled (default) Enable cache.
Disabled Disable cache.
CPU Hyper-Threading
This option allows you to enable or disabled CPU Hyper-Threading.
The Choices: Enabled (Default), Disabled.

P4SFA BIOS Setup
10
CPU L2 Cache ECC Checking
This item allows you to enable/disable CPU L2 Cache ECC Checking.
The Choices: Enabled (default), Disabled.
Quick Power On Self Test
Enabling this option will cause an abridged version of the Power On Self-Test (POST) to
execute after you power up the computer.
Enabled (default) Enable quick POST.
Disabled Normal POST.
First /Second/Third/ Boot Other Device
These BIOS attempts to load the operating system from the devices in the sequence
selected in these items.
The Choices: Floppy, LS120, HDD-0, SCSI, CDROM, HDD-1, HDD-2, HDD-3,
ZIP100, LAN, HPT370, Enabled, Disabled.
Swap Floppy Drive
For systems with two floppy drives, this option allows you to swap logical drive
assignments.
The Choices: Enabled, Disabled (default).
Boot Up Floppy Seek
Enabling this option will test the floppy drives to determine if they have 40 or 80 tracks.
Disabling this option reduces the time it takes to boot-up.
The Choices: Enabled (default), Disabled.
Boot Up NumLock Status
Selects the NumLock. State after power on.
On (default) Numpad is number keys.
Off Numpad is arrow keys.
Gate A20 Option
Select if chipset or keyboard controller should control Gate A20.
Normal A pin in the keyboard controller
controls Gate A20.
Fast (default) Lets chipset control Gate A20.
Typematic Rate Setting
When a key is held down, the keystroke will repeat at a rate determined by the keyboard
controller. When enabled, the typematic rate and typematic delay can be configured.
Disabled (default)
Enabled

P4SFA BIOS Setup
11
Typematic Rate (Chars/Sec)
Sets the rate at which a keystroke is repeated when you hold the key down.
The Choices: 6 (default),8,10,12,15,20,24,30.
Typematic Delay (Msec)
Sets the delay time after the key is held down before it begins to repeat the keystroke.
The Choices: 250 (default),500,750,1000.
Security Option
This option will enable only individuals with passwords to bring the system online and/or
to use the CMOS Setup Utility.
System A password is required for the system to boot and is
also required to access the Setup Utility.
Setup (default) A password is required to access the Setup Utility
only.
This will only apply if passwords are set from the Setup main menu.
APIC Mode
This option allows you to enable or disable the APIC (Advanced Programmable Interrupt
Control).
The Choices: Enabled (default), Disabled.
MPS Version Control For OS
The BIOS supports version 1.1 and 1.4 of the Intel Multi-Processor Specification.
Select version supported by the operation system running on this computer.
The Choices: 1.4 (default), 1.1.
OS Select For DRAM > 64MB
A choice other than Non-OS2 is only used for OS2 systems with memory exceeding 64MB.
The Choices: Non-OS2 (default), OS2.
HDD S.M.A.R.T. Capability
This item allows you to enable/disable the S.M.A.R.T. function of the hard disk.
The Choices: Disabled (default), Enabled.
Report No FDD For WIN 95
Whether report no FDD for WIN 95 or not.
The Choices: No (default), Yes.
Video BIOS Shadow
Determines whether video BIOS will be copied to RAM for faster execution.
Enabled (default) Optional ROM is enabled.
Disabled Optional ROM is disabled.

P4SFA BIOS Setup
12
Summary Screen Show
This item allows you to enable/ disable display the Summary Screen Show.
The Choices: Disabled (default), Enabled.

P4SFA BIOS Setup
13
4 Advanced Chipset Features
This submenu allows you to configure the specific features of the chipset installed on your
system. This chipset manage bus speeds and access to system memory resources, such as
DRAM. It also coordinates communications with the PCI bus. The default settings that came
with your system have been optimized and therefore should not be changed unless you are
suspicious that the settings have been changed incorrectly.

Figure 4. Advanced Chipset Setup
Advanced DRAM Control 1
To control the DDR SDRAM. If you highlight the literal “Press Enter” next to the
“Advanced DRAM Control” label and then press the enter key, it will take you a submenu
with the following options:
DRAM Timing Control
This item determines DRAM clock/ timing follow SPD or not.
The Choices: By SPD(default), Manual.
RAS Precharge Time (tRP)
This items allows you to specify the delay from precharge command to activate
command.
The Choices: 2T, 3T (default).

P4SFA BIOS Setup
14
RAS Active Time (tRAS)
This items allows you to specify the minimum bank active time.
The Choices: 6T (default), 5T.
RAS to CAS Delay (tRCD)
Use this item to specify the delay from the activation of a bank to the time that a
read or write command is accepted.
The Choices: 2T, 3T (default).
CAS Latency Setting
When synchronous DRAM is installed, the number of clock cycles of CAS
latency depends on the DRAM timing.
The Choices: By SPD (default), 2T, 2.5T, 3T.
DRAM Addr/ Cmd Rate
The Choices: Auto (default), 1T, 2T.
Prefetch Caching
This item allows you enable/disable Prefetch Caching.
The Choices: Enabled, Disabled (default).
Memory Hole at 15M-16M
When enabled, you can reserve an area of system memory for ISA adapter ROM. When
this area is reserved , it cannot be cached. Refer to the user documentation of the peripheral
you are installing for more information.
The Choices: Disabled (default), Enabled.
AGP Aperture Size
Select the size of the Accelerated Graphics Port (AGP) aperture. The aperture is a portion
of the PCI memory address range dedicated for graphics memory address space. Host
cycles that hit the aperture range are forwarded to the AGP without any translation.
The Choices: 4M, 8M,16M, 32M, 64M (default), 128M, 256M.
Graphic Window WR Combin
This item allows you enable/disable Graphic Window write-combine.
The Choices: Enabled, Disabled (default).

P4SFA BIOS Setup
15
5 Integrated Peripherals

Figure 5. Integrated Peripherals
SIS OnChip IDE Device
If you highlight the literal “Press Enter” next to the “SIS OnChip IDE Device” label and
then press the enter key, it will take you a submenu with the following options:
Internal PCI/IDE
This item allows you select Internal PCI/IDE.
The Choices: Both (default), Disabled, Primary, Secondary.
IDE Primary / Secondary Master / Slave PIO
The IDE PIO (Programmed Input / Output) fields let you set a PIO mode (0-4)
for each of the IDE devices that the onboard IDE interface supports. Modes 0
through 4 provide successively increased performance. In Auto mode, the system
automatically determines the best mode for each device.
The Choices: Auto (default), Mode0, Mode1, Mode2, Mode3, Mode4.
Primary / Secondary Master / Slave UltraUDMA
Ultra DMA/133 functionality can be implemented if it is supported by the IDE
hard drives in your system. As well, your operating environment requires a DMA
driver (Windows 95 OSR2 or a third party IDE bus master driver). If your hard
drive and your system software both support Ultra DMA/133, select Auto to
enable BIOS support.
The Choices: Auto (default), Disabled.

P4SFA BIOS Setup
16
IDE Burst Mode
This item allows you enable/disable IDE Burst Mode.
The Choices: Enabled (default), Disabled.
SIS OnChip PCI Device
If you highlight the literal “Press Enter” next to the “SIS OnChip PCI Device” label and
then press the enter key, it will take you a submenu with the following options:
SIS USB Controller
This option allows you to control SIS USB Controlller.
The Choices: Enabled (default), Disabled.
USB Ports Number
This option allows you to control USB Ports Number.
The Choices: 6 (default), 5, 4, 3.
USB 2.0 Supports
This option allows you to enabled or disabled USB2.0 Supports.
The Choices: Disabled, Enabled (default).
USB Keyboard Support
Enables support for USB attached keyboards.
The Choices: Disabled (default), Enabled.
SIS AC97 Audio
This option allows you to control the onboard AC97 Audio.
The Choices: Auto (default), Disabled.
SIS S/W Modem
This option allows you to control the onboard S/W Modem.
The Choices: Auto (default), Disabled.
SIS 10/100M ETHERNET
This option allows you to control the 10/100M Ethernet.
The Choices: Auto (default), Disabled.
SIS MAC Address Input
Onboard SuperIO Device
If you highlight the literal “Press Enter” next to the “Onboard Super IO Device” label and
then press the enter key, it will take you a submenu with the following options:
Onboard FDC Controller
Select Enabled if your system has a floppy disk controller (FDC) installed on the
system board and you wish to use it. If install and FDC or the system has no
floppy drive, select Disabled in this field.
The Choices: Enabled (default), Disabled.

P4SFA BIOS Setup
17
Onboard Serial Port 1
Select an address and corresponding interrupt for the first and second serial ports.
The Choices: Disabled, 3F8/IRQ4 (default), 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3,
Auto.
Onboard Serial Port 2
Select an address and corresponding interrupt for the first and second serial ports.
The Choices: Disabled (default), 2F8/IRQ3, 3F8/IRQ4, 3E8/IRQ4,
2E8/IRQ3, Auto.
UART Mode Select
This item allows you to determine which Infra Red (IR) function of onboard I/O
chip.
The Choices: Normal, AS KIR, IrDA (default).
UR2 Duplex Mode
Select the value required by the IR device connected to the IR port. Full-duplex
mode permits simultaneous two-direction transmission. Half-duplex mode
permits transmission in one direction only at a time.
The Choices: Half (default), Full.
Onboard Parallel Port
This item allows you to determine access onboard parallel port controller with
which I/O Address.
The Choices: 378/IRQ7 (default), 278/IRQ5, 3BC/IRQ7, Disabled.
Parallel Port Mode
The default value is SPP.
SPP(default) Using Parallel port as Standard Printer Port.
EPP Using Parallel Port as Enhanced Parallel Port.
ECP Using Parallel port as Extended Capabilities Port.
ECP+EPP Using Parallel port as ECP & EPP mode.
ECP Mode Use DMA
Select a DMA Channel for the port.
The Choices: 3(default), 1.
Game Port Address
Game Port I/O Address.
The Choices: 201 (default), 209, Disabled.
Midi Port Address
Midi Port Base I/O Address.
The Choices: 330 (default),300, 290,Disabled.

P4SFA BIOS Setup
18
Midi Port IRQ
This determines the IRQ in which the Midi Port can use.
The Choices: 5, 10 (default).
IDE HDD Block Mode
Block mode is otherwise known as block transfer, multiple commands, or multiple sector
read/write. Select the “Enabled” option if your IDE hard drive supports block mode (most
new drives do). The system will automatically determine the optimal number of blocks to
read and write per sector.
The Choices: Enabled (default), Disabled.
Init Display First
With systems that have multiple video cards, this option determines whether the primary
display uses a PCI Slot or an AGP Slot.
The Choices: PCI Slot (default), AGP.
AGP Auto Calibration
This item allows you enable/disable AGP Auto Calibration.
The Choices: Enabled (default), Disabled.
System Share Memory Size
This item allows you to select the system share memory size.
The Choices: 32MB (default), 64MB, 16MB, 8MB, 4MB.
IDECH0/1 Access Interface
This item allows you to select the IDECH0/1 Access Interface.
The Choices: EDB Bus (default), PCI Bus.
USB0 Access Interface
This item allows you select the USB0 Access Interface.
The Choices: EDB Bus (default), PCI Bus.
USB1 Access Interface
This item allows you select the USB1 Access Interface.
The Choices: EDB Bus (default), PCI Bus.
USB2 Access Interface
This item allows you select the USB2 Access Interface.
The Choices: EDB Bus (default), PCI Bus.

P4SFA BIOS Setup
19
USB2.0 Access Interface
This item allows you select the USB2.0 Access Interface.
The Choices: EDB Bus (default), PCI Bus.
MAC Access Interface
This item allows you select the MAC Access Interface.
The Choices: Embedded Bus (default), PCI Bus.
Audio Access Interface
This item allows you select the Audio Access Interface
The Choices: Embedded Bus (default), PCI Bus.
