English
P4TGV Features
 Use Intel 845GV/ 82801DB Chipset, ITE IT8712, LAN Chip (optional).
 Contains on board I/O facilities, which include one serial port, one VGA port,
a parallel port, a PS/2 mouse port, a PS/2 keyboard port, audio ports, USB
ports, a LAN port (optional) and a game port.
 Supports the Intel Pentium 4®(Socket 478) processor up to 2.8GHz.
 Supports Ultra 100/66/33, BMIDE and PIO modes.
 Supports USB2.0 High Speed Device, 2 ports in rear pannel and 4 ports in
front panel.
 Supports up to 2 DDR 200/266 MHz (without ECC) devices, running at 533
MHz Front Side Bus frequency.
 Support a maximun memory size up tp 2GB.
 Supports one CNR Slot (Type A only), and three 32-bit PCI Bus slots.
 Complies with PC Micro-ATX form factor specifications.
 Supports popular operating systems such as Windows NT, Windows 2000,
Windows ME, Windows XP, LINUX and SCO UNIX.
 Intel®AC’97 2.2 compatible.
 High S/N ratio meets PC 99 requirements.
 6CH , applicable for leading motherboard chipsets.
 Line-in phone-jack share with rear out .
 Mic-in phone-jack share with Bass and Center.
 Support front audio pin head functions.

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
2
Package contents
 HDD Cable X 1, FDD Cable X 1, Fully Setup Driver CD X 1
 Flash Memory Writer for BIOS update X 1
 USB Cable X 2 (Optional)
 Rear I/O Panel for Micro-ATX Case X 1 (Optional)
Layout of P4TGV
JATXPWR2
JKBMS1
JPRNT1
JGAME_USB1
K/B
&
Mouse
JRJ45USB1
USB & LAN
DDR1
DDR2
JAUDIO1
JATXPWR1
LAN
CHIP
JCDIN1
JCOM1
JVGA1
COM1
JTAD1
CNR1
WOL1
JUSB1
JCMOS1
JPANEL1
JSFAN1
JCFAN1
FDD1
Parallel Port
JUSBV4
JUSBV1
JUSB2
GAME Port
SP-OUTMIC-IN LINE-IN
JUSBV3
Socket 478
INTEL
845GV
INTEL
82801DB
(ICH4)
PCI1
PCI2
PCI3
IDE1
BAT1
IDE2
Codec
VGA1

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
3

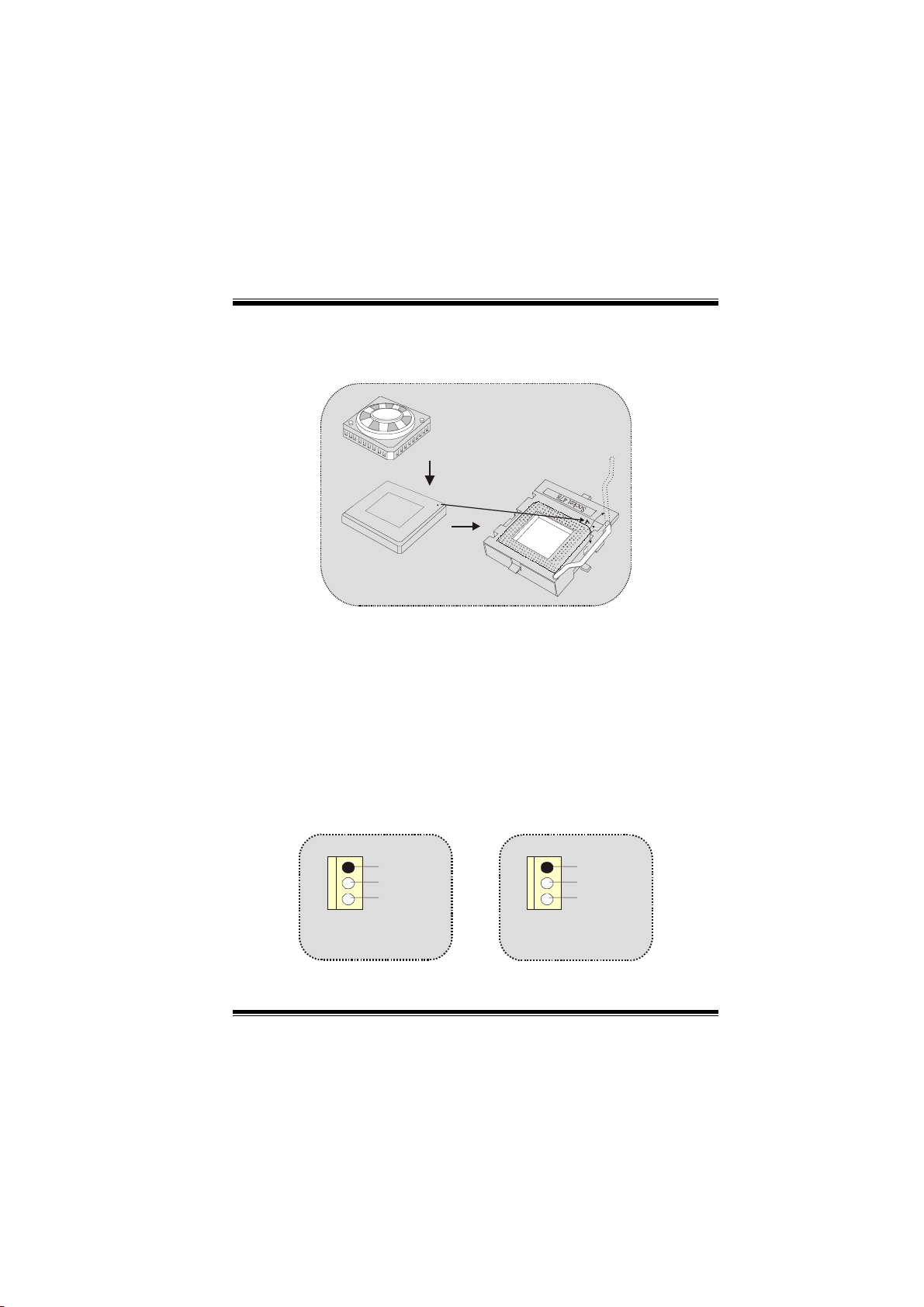

CPU Installation
1. Pull the lever sideways away from the socket then raise the lever up
to 90-degree angle.
2. Locate Pin A in the socket and lock for the white dot or cut edge in
the CPU. Match Pin A with the white dot/cut edge then insert the
CPU.
3. Press the lever down. Then Put the fan on the CPU and buckle it
and put the fan’s power port into the JCFAN1, then to complete the
installation.
CPU/ System Fan Headers: JCFAN1/ JSFAN1
CPU
JCFAN1 JSFAN1
Ground
12V
Sense
1
Ground
12V
Sense
1

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
4
DDR DIMM Modules: DDR1-2
DRAM Access Time: 2.5V Unbuffered DDR 200/266 MHz Type
required.
DRAM Type: 64MB/ 128MB/ 256MB/ 512MB/ 1GB DIMM Module (184
pin)
DIMM Socket
Location DDR Module Total Memory Size (MB)
DDR 1 64MB/128MB/256MB/512MB/1GB
*1
DDR 2 64MB/128MB/256MB/512MB/1GB
*1
Max is
2GB
* The list shown above for DRAM configuration is only for reference.

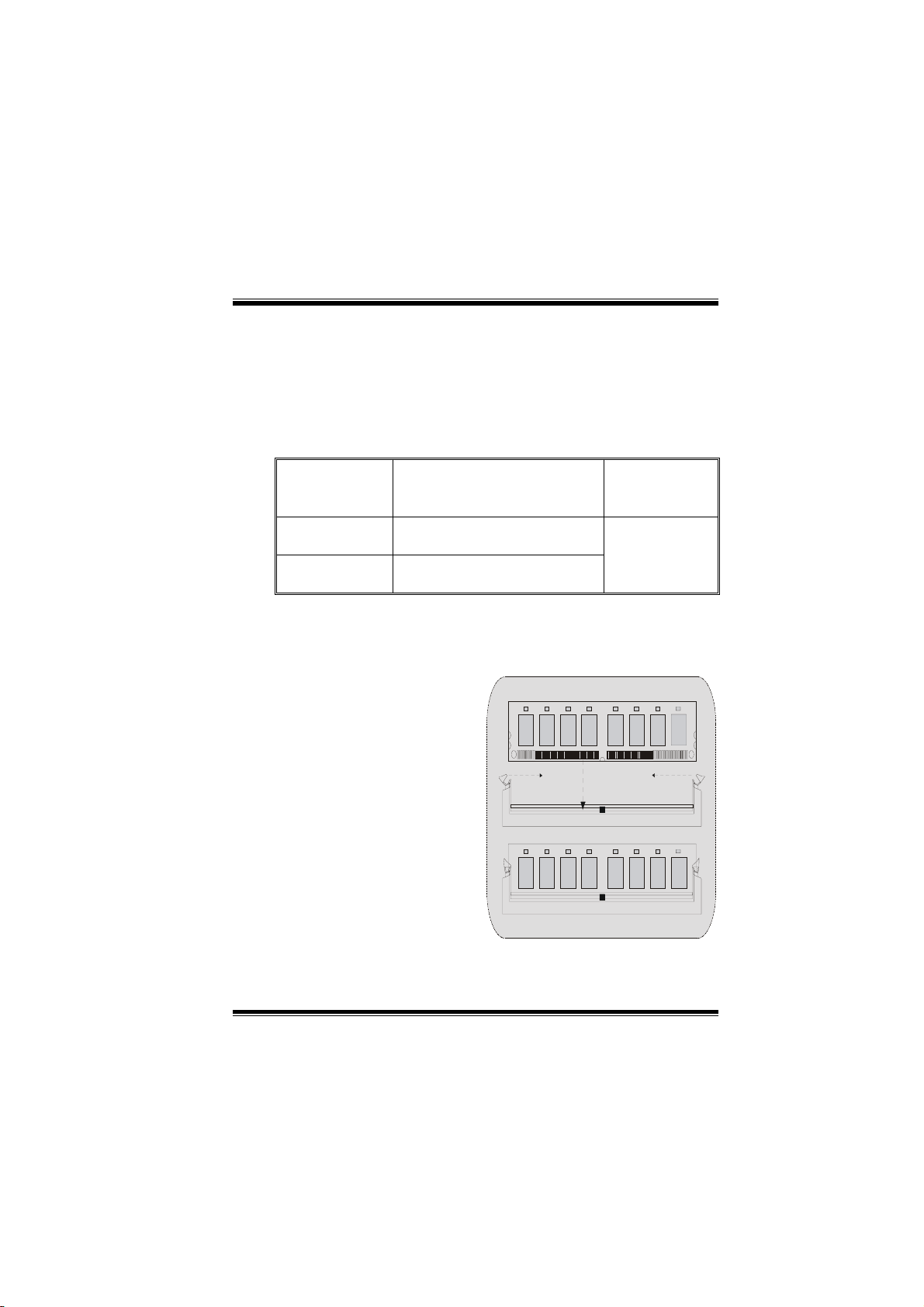

How to install a DIMM Module
1. The DIMM socket has a
“ Plastic Safety Tab”, and the
DIMM memory module has an
“Asymmetrical notch”, so the
DIMM memory module can only
fit into the slot in one direction.
2. Push the tabs out. Insert the
DIMM memory modules into the
socket at a 90-degree angle, then
push down vertically so that it will
fit into the place.
3. The Mounting Holes and plastic
tabs should fit over the edge and
hold the DIMM memory modules
in place.

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
5
Jumpers, Headers, Connectors & Slots
Hard Disk Connectors: IDE1/ IDE2
The motherboard has a 32-bit Enhanced PCI IDE Controller that
provides PIO Mode 0~4, Bus Master, and Ultra DMA / 33/ 66/ 100
functionality. It has two HDD connectors IDE1 (primary) and IDE2
(secondary).
The IDE connectors can connect a master and a slave drive, so you can
connect up to four hard disk drives. The first hard drive should always be
connected to IDE1.
Floppy Disk Connector: FDD1
The motherboard provides a standard floppy disk connector that
supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This
connector supports the provided floppy drive ribbon cables.
Communication Network Riser Slot: CNR1
The CNR specification is an open Industry Standard Architecture, and it
defines a hardware scalable riser card interface, which supports audio,
network and modem only.
Peripheral Component Interconnect Slots: PCI1-3
This motherboard is equipped with 3 standard PCI slots. PCI stands for
Peripheral Component Interconnect, and it is a bus standard for
expansion cards, which has, supplanted the older ISA bus standard in
most ports. This PCI slot is designated as 32 bits.

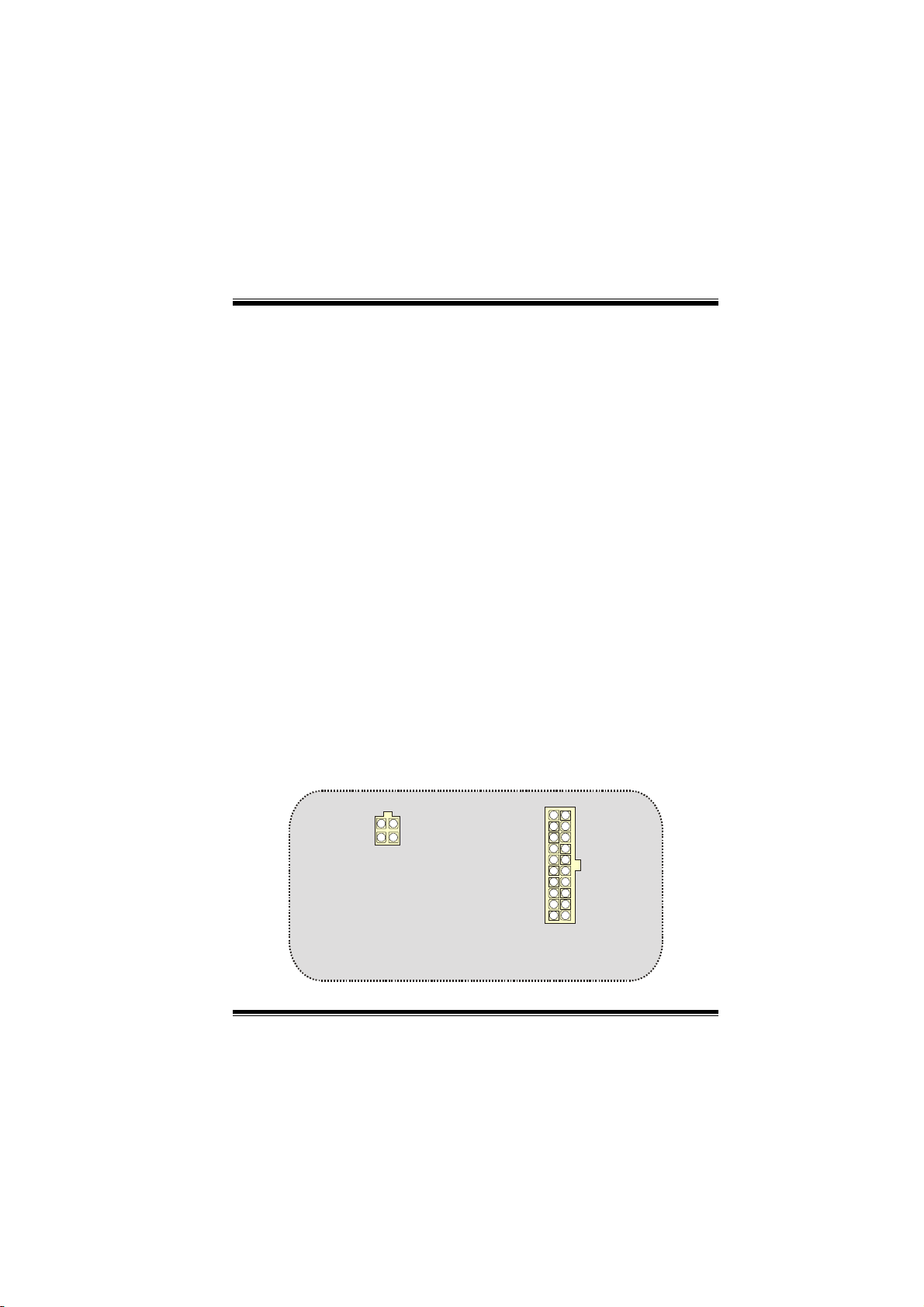

Power Connectors: JATXPWR1/ JATXPWR2
JATXPWR1
(ATX Main Power Connector)
JATXPWR2
(ATX 12V Power Connector)

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
6
Wake On LAN Header: WOL1
Front USB Header: JUSB1/ JUSB2
5V/ 5VSB Selection for USB: JUSBV1/3/4
WOL1
1
5V_SB Wake up
Ground
JUSB1/2
2
1
Pin1,2 ==> +5V
Pin3,4 ==> Data(-)
Pin5,6 ==> Data(+)
Pin7,8 ==> Ground
Pin9 ==> KEY
Pin10 ==> NA
1
JUSBV1/3/4
Pin 1-2 on ==> 5V
Pin 2-3 on ==> 5V_SB

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
7

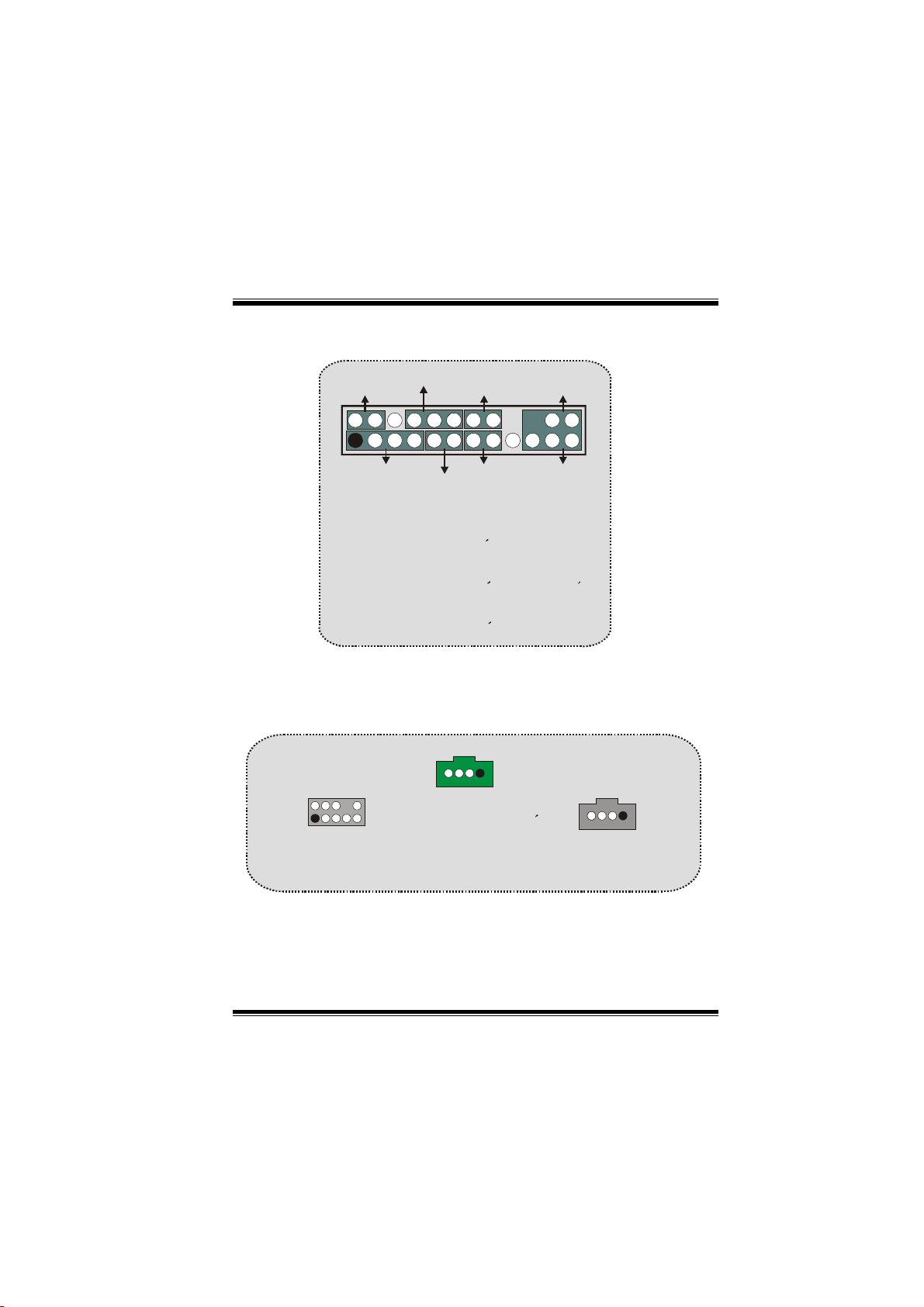

Front Panel Connector: JPANEL1
Audio Subsystem: JAUDIO1/ JTAD1(Optional)/JCDIN1
1
2
JAUDIO1
(Front Audio Header)
JTAD1(Optional)
(Telephony Audio Header)
1
1
JCDIN1
(CD-ROM Audio-In Header)
SPK
PWR_LED
HLED
SLP
RST
224
IR
123
IRON/OFF
SPK ==> Speaker Conn.
HLED ==> Hard Driver LED
RST ==> Reset Button
IR ==> Infrared Conn.
SLP ==> Sleep Button
PWR_LED ==> Power LED
ON/ OFF ==> Power-on Button
(+) (-)
(+) (-)(+)
1
2Pin1 ==> Mic In Pin2 ==> Ground
Pin3 ==> Mic Power Pin4 ==> Audio Power
Pin5 ==> RT Line Out Pin6 ==> RT Line Out
Pin7 ==> Reserved Pin8 ==> KEY
Pin9 ==> LFT Line Out Pin10 ==> LFT Line Out
JAUDIO1

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
8

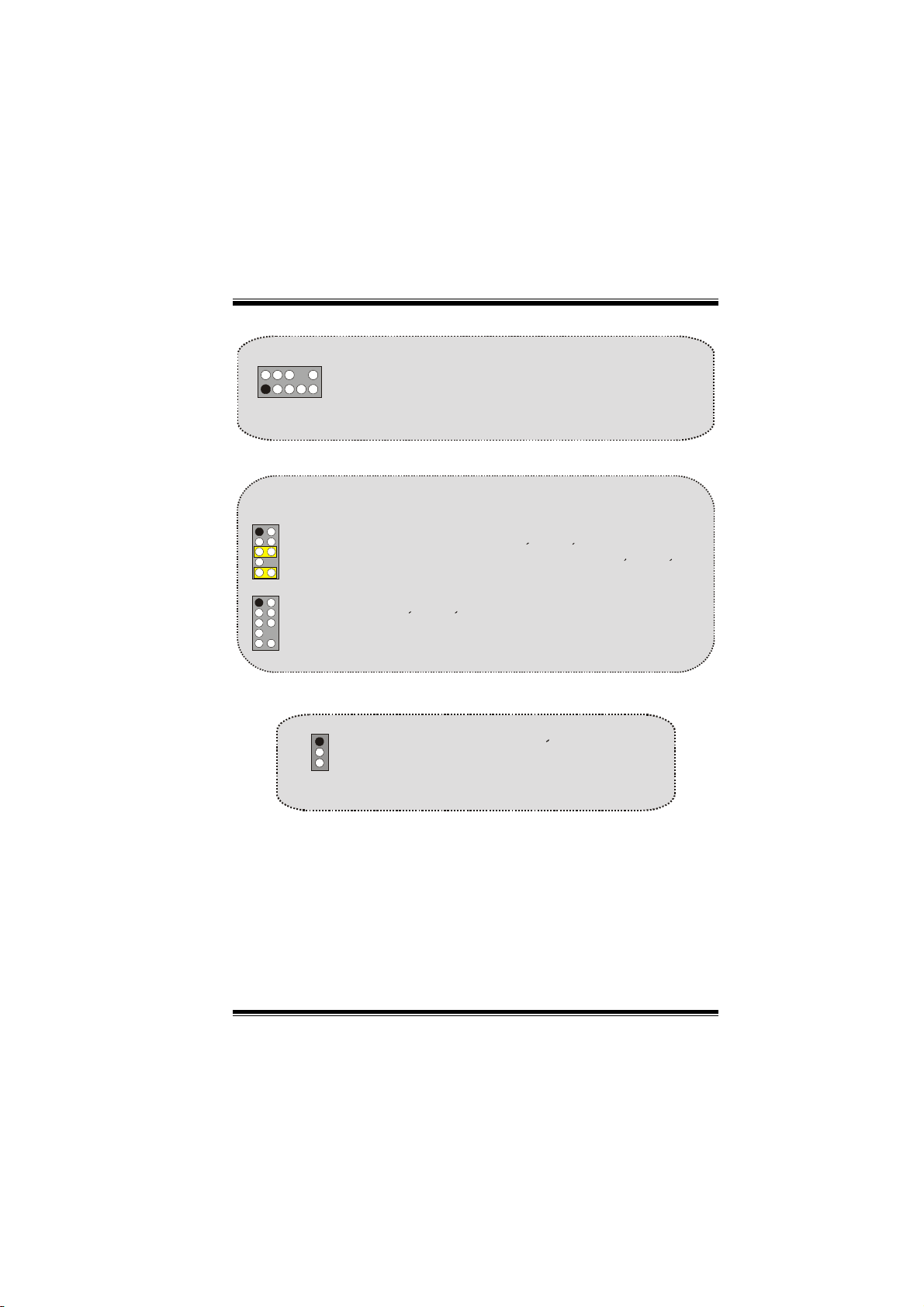

Clear CMOS Jumper: JCMOS1
Back Panel Connectors
1
JCMOS1
Pin 1-2 on ==> Normal Operation
(default)
Pin 2-3 on ==> Clear CMOS Data
PS/2
Keyboard
PS/2
Mouse
COM1
Parallel Game Port
JPRNT1 JGAME1_USB1
JCOM1
JKBMS1
USB
LAN(Optional)
RJ45USB1
COM1 Speaker
Out Line In Mic
In
JVGA1
VGA1
12
Front Panel Audio Connector/ Jumper Block
910
Audio line out signalsare routed
to the back panel audioline outconnector.
Pin 5 and 6
==>
Pin 9 and 10
12
910
Audio line out and mic in signals are
available for front panel audio connectors.

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
9
6 Channel Speakers
Speaker Out Line In/
Rear Speaker Mic In/ Center & Bass

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
10
Español
Características del P4TGV
 Usa Chipset Intel 845GV/ 82801DB, ITE IT8712, LAN Chip (opcional).
 Contiene facilidades I/O integrados en la placa madre en el que incluye un
puerto en serie paralelo, un puerto VGA, un puerto paralelo, un puerto para
el ratón PS/2, un puerto para teclado PS/2, puertos de audio, puertos USB,
puerto LAN (opcional) y un puerto para juegos.
 Soporta procesador Intel Pentium 4®(Socket 478) hasta 2.8GHz.
 Soporta Ultra 100/66/33, BMIDE y modo PIO.
 Soporta Dispositivo de Alta Velocidad USB2.0, 2 puertos en el panel
trasero y 4 puertos en el panel frontal.
 Soporta hasta 2 DDR 200/266 MHz (no incluye ECC) dispositivos,
corriendo a 533 MHz frecuencia Front Side Bus.
 Soporta una memoria máxima de hasta 2GB.
 Soporta una ranura CNR (solamente de tipo A), y tres ranuras PCI Bus de
32-bit.
 Compatible con la forma de PC Micro-ATX.
 Soporta sistemas operativos populares tales como Windows NT, Windows
2000, Windows ME, Windows XP, LINUX y SCO UNIX.
 Intel®AC’97 2.2 compatible.
 High S/N ratio meets PC 99 requirements.
 6CH , aplicable para chipsets de principales placas madres.
 Entrada de Línea phone-jack compartido con el rear out.
 Micrófono phone-jack compartido con Bass y Center.
 Soporta funciones de cabezal del audio frontal.

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
11
Contenido del Paquete
 Cable HDD X 1, Cable FDD X 1,Completa Configuración del Driver CD X 1
 Memoria Flash Writer para actualización del BIOS X 1
 Cable USB X 2 (Opcional)
 Panel trasero I/O para caja Micro-ATX X 1 (Opcional)
Disposición del P4TGV
JATXPWR2
JKBMS1
JPRNT1
JGAME_USB1
Teclado
&
Raton
JRJ45USB1
USB & LAN
DDR1
DDR2
JAUDIO1
JATXPWR1
LAN
CHIP
JCDIN1
JCOM1
JVGA1
COM1
JTAD1
CNR1
WOL1
JUSB1
JCMOS1
JPANEL1
JSFAN1
JCFAN1
FDD1
Puerto Paralelo
JUSBV4
JUSBV1
JUSB2
Puerto de Juego
Salida del Altavoz
Entrada del MIC Entrada
de Linea
JUSBV3
Socket 478
INTEL
845GV
INTEL
82801DB
(ICH4)
PCI1
PCI2
PCI3
IDE1
BAT1
IDE2
Codec
VGA1

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
12
Instalación de la CPU
1. Tire de la palanca del lado del zócalo, luego levante la palanca
hasta un ángulo de 90 grados.
2. Sitúe el contacto A del zócalo y busque el punto blanco o corte el
borde en la CPU. Empareje el contacto A con el punto blanco/
corte del borde, luego inserte la CPU.
3. Presione la palanca para abajo. Ponga el ventilador en la CPU y
abróchelo. Luego ponga el puerto de corriente del ventilador en el
JCFAN1. Y ya habrá completado su instalación.
CPU/ Cabezales del Sistemas de Ventilación: JCFAN1/
JSFAN1
CPU
JCFAN1 JSFAN1
Tierra
12V
Sense
1
Tierra
12V
Sense
1

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
13
Módulos DDR DIMM: DDR1-2
DRAM Tiempo de Acceso: 2.5V Unbuffered DDR 200/266MHz Tipo
requerido.
DRAM Tipo: 64MB/ 128MB/ 256MB/ 512MB/ 1GB Módulo DIMM (184
Contactos)
Localización
del Zócalo
DIMM
Módulo DDR Total del
Tamaño de
Memoria (MB)
DDR 1 64MB/128MB/256MB/512MB/1GB
*1
DDR 2 64MB/128MB/256MB/512MB/1GB
*1
Máxima es
2GB
* La lista de arriba para la configuarción DRAM es solamente para
referencia.
Cómo instalar un módulo DIMM
1. El zócalo DIMM tiene una
lengüeta plástica de seguridad y
el módulo de memoria DIMM
tiene una muesca asimétrica, así
el módulo de memoria DIMM
puede caber solamente en la
ranura de una sóla dirección.
2. Tire la lengüeta hacia afuera.
Inserte los módulos de memoria
DIMM en el zócalo a los 90
grados, luego empuje hacia abajo
verticalmente de modo que
encaje en el lugar.
3. Los agujeros de montaje y las
lengüetas plásticas deben caber
por sobre el borde y sostenga los
módulos de memoria DIMM en el lugar.

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
14
Conectores, Cabezales, Puentes y Ranuras
Conectores del Disco Duro: IDE1/ IDE2
La placa madre tiene un controlador de 32-bit PCI IDE que proporciona
Modo PIO 0~4, Bus Master, y funcionalida Ultra DMA / 33/ 66/ 100.
Tiene dos conectores HDD IDE1 (primario) y IDE2 (secundario).
El conector IDE puede conectar a un master y un drive esclavo, así
puede conectar hasta cuatro discos rígidos. El primer disco duro debe
estar siempre conectado al IDE1.
Conector para el Disquete: FDD1
La placa madre proporciona un conector estándar del disquete (FDC)
que soporta 360K, 720K, 1.2M, 1.44M y 2.88M tipos de disquete. Éste
conector utiliza los cables de cinta proporcionados por el disquete.
Ranura de Canalización de la Red de Comunicación:
CNR1
La especificación CNR es una abierta Industria Estándar de Arquitectura,
y define una tarjeta hardware escalable de interface en el que soporta
audio, red y módem.
Ranura de Interconexión del Componente Periférico:
PCI1-3
Ésta placa madre está equipado con 3 ranuras PCI. PCI es la sigla para
Interconexión del Componente Periférico, y es un estándar bus para la
tarjeta de expansión en el que reemplaza, en su mayoría de las partes,
al antiguo estándar ISA bus. Las ranuras de PCI están desiñados con
32 bits
Conectores de Encendido: JATXPWR1/ JATXPWR2
JATXPWR1
(ATX Main Power Connector)
JATXPWR2
(ATX 12V Power Connector)

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
15
Cabezal Wake On LAN: WOL1
Cabezal Frontal USB: JUSB1/ JUSB2
5V/ 5VSB Selección para USB: JUSBV1/3/4
Tierra
WOL1
1
5V_SB Wake up
JUSB1/2
2
1
Pin1,2 ==> +5V
Pin3,4 ==> Data(-)
Pin5,6 ==> Data(+)
Pin7,8 ==> Ground
Pin9 ==> KEY
Pin10 ==> NA
1
JUSBV1/3/4
Contacto 1-2 on ==> 5V
Contacto 2-3 on ==> 5V_SB

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
16
Conector del Panel Frontal: JPANEL1
Subsistema de Audio: JAUDIO1/
JTAD1(Opcional)/JCDIN1
1
2
JAUDIO1
(Cabezal de Audio Frontal)
JTAD1(Opcional)
(Cabezal de Audio Telefonico)
1
1
(Cabezal de Entrada de Audio CD-ROM)
JCDIN1
SPK ==> Conector de Altavoz
HLED ==> LED del Disco Duro
RST ==> Boton de Reinicio
IR ==> Conector Infrarojo
SLP ==> Boton de Suspension
PWR_LED ==> Corriente LED
ON/ OFF ==> Boton de Encendido
SPK
PWR_LED
HLED
SLP
RST
224
IR
123
IRON/OFF
(+) (-)
(+) (-)(+)

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
17
Puente de Borrar CMOS: JCMOS1
1
JCMOS1
Contacto 1-2 on ==> Operacion Normal (default)
Contacto 2-3 on ==> Borrar Datos CMOS
1
2Pin1 ==> Entrada del Mic Pin2 ==> Tierra
Pin3 ==> Corriente del Mic Pin4 ==> Corriente del Audio
Pin5 ==> RT Salida de Linea Pin6 ==> RT Salida de Linea
Pin7 ==> Reservado Pin8 ==> KEY
Pin9 ==> LFT Salida de Linea Pin10 ==> LFT Salida de Linea
JAUDIO1
12
Conector del Panel Frontal deAudio/ Jumper Block
910
La senal de salida de linea del Audio
encamina al conectorde la salida delinea
del Audio ubicadoen el panel trasero.
Pin 5 y 6
==>
Pin 9 y 10
12
910
La senalde salida de linea del Audioy la senalde Entrada
del Mic estan disponibles desde elconector deAudio
del panel frontal.
~
~ ~

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
18
Conectores del Panel Trasero
Teclado
PS/2
Raton
PS/2
COM1
Paralelo Puerto de Juego
JPRNT1 JGAME1_USB1
JCOM1
JKBMS1
USB
LAN(Opcional)
RJ45USB1
COM1 Salida del
Altavoz Entrada de LineaEntrada de
Mic
JVGA1
VGA1
Altavoz de 6 Canales
Salida del
Altavoz
Entrada
de Linea/
Rear Speaker
Entrada del Mic/
Center & Bass
