Biostar P4TSE Pro Operating and installation instructions

P
P
P4
4
4T
T
TS
S
SE
E
E P
P
Pr
r
ro
o
o
i

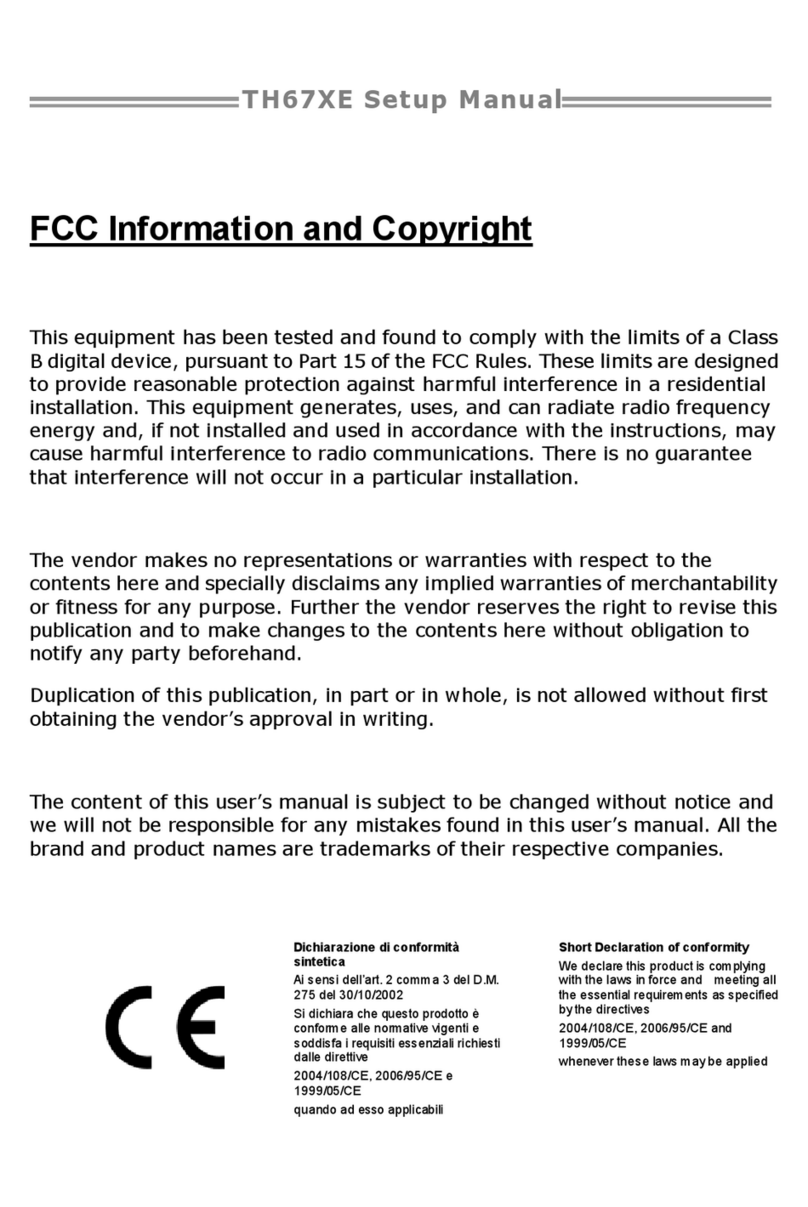

FCC Information and Copyright
This equipment has been tested and found to comply with the limits of a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. There is no guarantee that interference will not occur in
a particular installation.
The vendor makes no representations or warranties with respect to the
contents here of and specially disclaims any implied warranties of
merchantability or fitness for any purpose. Further the vendor reserves
the right to revise this publication and to make changes to the contents
here of without obligation to notify any party beforehand.
Duplication of this publication, in part or in whole, is not allowed without
first obtaining the vendor’s approval in writing.
The content of this user’s manual is subject to be changed without notice
and we will not be responsible for any mistakes found in this user’s
manual. All the brand and product names are trademarks of their
respective companies.

C
C
Co
o
on
n
nt
t
te
e
en
n
nt
t
t
ii
LAYOUT OF P4TSE PRO........................................................................1
COMPONENT INDEX.............................................................................2
ENGLISH...................................................................................................3
P4TSE Pro Features .................................................................................................. 3
Package contents......................................................................................................5
How to set up Jumper............................................................................................... 6
CPU Installation.........................................................................................................6
DDR DIMM Modules: DDRA1-2, DDRB1-2................................................................ 7
Installing DDR Module............................................................................................... 8
Jumpers, Headers, Connectors & Slots...................................................................8
STUDIOFUN! ..........................................................................................16
Introduction.............................................................................................................. 16
Hardware Requirements.......................................................................................... 16
Installation Procedure............................................................................................. 16
Booting to StudioFun!............................................................................................. 18
Media control ........................................................................................................... 19
Control Panel ........................................................................................................... 20
Software Details....................................................................................................... 22
Select Region........................................................................................................... 24
Screensaver ............................................................................................................. 25
Display Settings....................................................................................................... 26
File Manager............................................................................................................. 27
WARPSPEEDER.....................................................................................29
Introduction.............................................................................................................. 29
System Requirement............................................................................................... 29
Installation................................................................................................................ 30
Usage........................................................................................................................ 31
TROUBLE SHOOTING.........................................................................39

1
Layout of P4TSE Pro
NOTE: ●represents the first pin.

2
Component Index
A. JKBV1: Power Source Selection for
Keyboard/ Mouse Q. JPANEL1: Front Panel Connector
B. JUSBV1: Power Source Selection for USB R. JSFAN1: System Fan Header
C. Back Panel Connectors S. JGAME1: Game Header
D. JAUDIO1: Front Audio Header T. RAID1-2: Raid Connectors
E. PCI1-5: Peripheral Component
Interconnect Slots U. JCL1: Case Open Connector
F. JCDIN1: CD-ROM Audio-In Header V. JCMOS1: Clear CMOS Jumper
G. U43: Wireless Audio Connector W. JDJ1: Audio DJ Connector
H. CNR1: Communication Network Riser Slot X. SATA1-2: Serial ATA Connectors
I. U33: Wireless LAN Connector (optional) Y. AGP1: Accelerated Graphic Port Slot
J. JWOL1: Wake On LAN Header Z. IDE1-2: Hard Disk Connectors
K. JSPDIF_OUT1: Digital Audio Connector A1. FDD1: Floppy Disk Connector
L. JUSB2: Front USB Header A2. DDRA1-2/ DDRB1-2: DDR DIMM Modules
M. JUSBV3_4: Power Source Selection for
USB A3. JCFAN1: CPU Fan Connector
N. JUSB3: Front USB Header A4. JATXPWR2: ATX Power Connector
O. J1394A1: Front 1394 Header A5. JATXPWR1: ATX Power Connector
P. J1394B1: Front 1394 Header A6. JUSBV2: 5V/5VSB Selection for USB

3
English
P4TSE Pro Features
A. Hardware
CPU
Provides Socket-478.
Supports the Intel Pentium 4 processor to 3.6 GHz+.
Front Side Bus at 400/533/800MHz.
Supports Hyper-Threading.
Supports Northwood and Prescott CPU. (Willamette not supported)
Chipset
North Bridge: Intel 865PE.
South Bridge: Intel ICH5R.
Main Memory
Supports one or two 64-bit wide DDR data channels with 1 or 2 DIMMs
per-channel.
Available bandwidth up to 3.2GB/s(DDR400) for single-channel mode and 6.4GB/s
(DDR 400) in dual channel mode.
Supports 128-MB, 256-Mb, 512-Mb DDR technologies.
Supports only x8, x16, DDR devices.( Does not support registered DIMMs)
Supports four bank devices.
Maximum memory size is 4GB.
Super I/O
Chip: ITE IT8712.
Low Pin Count Interface.
Provides the most commonly used legacy Super I/O functionality.
Environment Control initiatives,
- H/W Monitor
- Fan Speed Controller
- ITE's "Smart Guardian" function
Slots
Five 32-bit PCI bus master slots.
One CNR slot.
One AGP 4X/8X slot.
On Board IDE
Supports four IDE disk drives.
Supports PIO Mode 5, Bride Mode and Ultra DMA 33/66/100 Bus Master Mode.
Supports 2 Serial ATA (SATA) ports.
- Compliant with SATA 1.0 specification

4
- Data transfer rates up to 1.5 Gb/s
LAN
Chip: RTL8100B.
Supports 10 Mb/s and 100 Mb/s auto-negotiation
Half/Full duplex capability.
Supports ACPI power management
IEEE 1394A Chip
Chip: VIA VT6307.
Support 2 ports with transfer up to 400Mb/s.
Serial ATA/RAID
Chip: ICH5R with Intel® RAID Technology.
Support RAID 0 (striping).
Optimize data transfer rates for disk-intensive application.
Features Benefits
Intel ® 82801ER I/O Controller
Hub Industry’s first desktop RAID controller integrated directly into the chipset
Dual Serial ATA Controllers with
RAID 0 Support Exceptional storage performance utilizing the next-generation hard disk interface technology
RAID BIOS ROM Integrated into system BIOS, enables pre-OS
RAID creation, naming and deletion
RID Migration Capability Seamless migration from a single hard drive to
a RAID 0 array with no OS reinstallation
required
Intel Application Accelerator RAID
Edition Driver with full management and status reporting of your RAID array including detailed
reporting of storage devices
On Board AC’97 Sound Codec
Chip: CMI9739A/ 9760.
Compliant with AC’97 specification.
AC97 2.2 interface.
Supports 6 channels.
On Board Peripherals
a.Rearside
2 serial ports.
1 parallel port. (SPP/EPP/ECP mode)
Audio ports in vertical position.
1 RJ-45 LAN jack.
Supports PS/2 mouse and PS/2 keyboard.
4 USB2.0 ports.
1 1394A Firewire ports.

5
b.FrontSide
1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.
4 USB2.0 ports.
1 front audio header.
1 S/PDIF header.
1 1394A Firewire ports.
Dimensions
ATX Form Factor: 24.4 X 30.5cm (W X L)
B. BIOS & Software
BIOS
Award legal BIOS.
Supports APM1.2.
Supports ACPI.
Supports USB Function.
Software
Supports Warpspeeder™, 9th Touch™, FLASHER™ and StudioFun! ™ (optional).
Offers the highest performance for Windows 98 SE, Windows 2000, Windows Me,
Windows XP, SCO UNIX etc.
Package contents
HDD Round Cable X 1
FDD Round Cable X 1
User’s Manual X 1
Fully Setup Driver CD X 1
StudioFun! Application CD X 1 (optional)
USB 2.0 Cable X 1 (optional)
S/PDIF Cable X 1
Rear I/O Panel for Micro ATX Case X 1
Serial ATA Cable X 1
Serial ATA Power Switch Cable X 1
IEEE 1394 Cable X 1 (optional)

6
How to set up Jumper
The illustration shows to how set up jumper. When the Jumper cap is placed on pins, the
jumper is “close”. IF no jumper cap is placed on the pins, the jumper is ”open”. The
illustration shows a 3-pin jumper whose pin1and 2 are “close” when jumper cap is placed
on these 2 pins.
Jumperopen Jumperclose Pin1-2close
CPU Installation
Step1: Pull the lever sideways away from the socket and then raise the lever up to a
90-degree angle.
Step2: Look for the white dot/cut edge. The white dot/cut edge should point wards the lever
pivot. The CPU will fit only in the correct orientation.
Step3: Hold the CPU down firmly, and then close the lever to complete the installation.
Step4: Put the CPU Fan on the CPU and buckle it. Connect the CPU fan power cable to
the JCFAN1. This completes the installation.
Step1 Step2 Step3 Step4

7
CPU Fan Headers: JCFAN1
Pin Assignment
1 Ground
2 +12V
1
JCFAN1 3 FAN RPM rate Sense
System Fan Headers: JSFAN1
Pin Assignment
1 Ground
2 +12V
1
JSFAN1
3 FAN RPM rate Sense
DDR DIMM Modules: DDRA1-2, DDRB1-2
Supports up to four DDR DIMMs(two DIMMs per channel), single-sided and/ or
double-sided.
For Dual Channel Operation, DIMMs must be populated in identical pairs. It
has to be the combination of DDRA1+DDRB1 (Blue DIMMs) or DDRA2+DDRB2
(white DIMMs).
Dual Channel Guidelines
Matched DIMM configuration in each channel
 Same Density (128MB, 256MB, 512MB, 1GB, etc.)
 Same DRAM technology (128M-bit, 256M-bit, or 512M-bit)
 Same DRAM bus width (x8 or x16)
 Both either single-sided or dual-sided
Matched in both Channel A and Channel B memory channels
 Populate symmetrical memory slots
Optimal platform performance with Dual Channel, DDR400, matched DIMMs
 Fully loaded configurations can be single or double sided DIMMs
 Lightly loaded configurations need to be double sided DIMMs
When not using DDR400, best performance obtained with

8
 Symmetrical DIMM population and matched double-sided DIMMs
 Lightly loaded configuration
Dual Channel Configuration Table
•Dual Channel Configuration Table
DIMM Slot DDRA1 DDRA2 DDRB1 DDRB2 System
Density
Lightly
Loaded
Config
128MB --
1GB
128MB --
1GB
256MB --
2GB
Lightly
Loaded
Config
128MB --
1GB
128MB --
1GB
256MB --
2GB
Fully Loaded
Config
128MB --
1GB
128MB --
1GB
128MB --
1GB
128MB --
1GB
512MB --
4GB
DRAM Access Time: 2.5V Unbuffered/ no registered (without ECC) DDR SDRAM
PC2100/ PC2700/ PC3200 Type required.
DRAM Type: 128MB/ 256MB/ 512MB/ 1GB DIMM Module (184 pin)
Installing DDR Module
1. Unlock a DIMM slot by pressing the retaining clips
outward. Align a DIMM on the slot such that the
notch on the DIMM matches the break on the slot.
2. Insert the DIMM vertically and firmly into the slot
until the retaining chip snap back in place and the
DIMM is properly seated.
Jumpers, Headers, Connectors & Slots
Floppy Disk Connector: FDD1
The motherboard provides a standard floppy disk connector that supports 360K,
720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector supports the
provided floppy drive ribbon cables.

9
Hard Disk Connectors: IDE1/ IDE2
The motherboard has a 32-bit Enhanced PCI IDE Controller that provides PIO
Mode 0~5, Bus Master, and Ultra DMA 33/ 66/ 100 functionality. It has two HDD
connectors IDE1 (primary) and IDE2 (secondary).
The IDE connectors can connect a master and a slave drive, so you can connect
up to four hard disk drives. The first hard drive should always be connected to
IDE1.
Peripheral Component Interconnect Slots: PCI1-5
This motherboard is equipped with 5 standard PCI slots. PCI stands for Peripheral
Component Interconnect, and it is a bus standard for expansion cards. This PCI
slot is designated as 32 bits.
Accelerated Graphics Port Slot: AGP1
Your monitor will attach directly to that video card. This motherboard supports
video cards for PCI slots, but it is also equipped with an Accelerated Graphics Port
(AGP). An AGP card will take advantage of AGP technology for improved video
efficiency and performance, especially with 3D graphics.
Communication Network Riser Slot: CNR1
The CNR specification is an open Industry Standard Architecture, and it defines a
hardware scalable riser card interface, which supports modem only.
Serial ATA Connector: JSATA1/JSATA2
The motherboard has a PCI to SATA Controller with 2 channels SATA interface, it
satisfies the SATA 1.0 spec and can transfer data with 1.5GHz speed.

10
Front Panel Connector: JPANEL1
Power Connectors: JATXPWR1/ JATXPWR2
PIN Assignment PIN Assignment
1 +3.3V 11 +3.3V
2 +3.3V 12 -12V
3 Ground 13 Ground
4 +5V 14 PS_ON
5 Ground 15 Ground
6 +5V 16 Ground
7 Ground 17 Ground
8 PW_OK 18 -5V
9 Standby Voltage
+5V 19 +5V
20
11
10
1
JATXPWR1
10 +12V 20 +5V
SPK
PWR_LED
HLED
SLP
RST
224
IR
123
IRON/OFF
Pin Assignment Function Pin Assignment Function
1 +5V 2 Sleep Control
3 NA 4 Ground Sleep
Button
5 NA 6 NA NA
7 Speaker
Speaker
Connector
8 Power LED (+)
9 HDD LED (+) 10 Power LED (+)
11 HDD LED (-) Hard Drive
LED 12 Power LED (-)
POWER
LED
13 Ground 14 Power Button
15 Reset Control Reset
Button 16 Ground Power-on Button
17 NA 18 KEY
19 NA 20 KEY
21 +5V 22 Ground
23 IRTX
IrDA
Connector
24 IRRX
IrDA
Connector
JPANEL1

11
PIN Assignment PIN Assignment
1 +12V 3 Ground
1
2
3
JATXPWR2 2 +12V 4 Ground
Power Source Selection for Keyboard/ Mouse: JKBV1
JKBV1 Assignment Description
1
3
Pin 1-2 close
+5V
+5V for keyboard and mouse
1
3
Pin 2-3 close
+5V Standby
Voltage
PS/2 Mouse and PS/2 Keyboard are
powered with +5V standby voltage
Note: In order to power-on keyboard and mouse function, “JKBV1” jumper
cap should be placed on pin 2-3.
Power Source Selection for USB: JUSBV1/ JUSBV2/ JUSBV3_4
JUSBV1/JUSBV2/
JUSBV3_4 Assignment Description
1 3
Pin 1-2 close
+5V JUSBV1: 5V for JUSB1 port
JUSBV2: 5V for JRJ45USB1 port
JUSBV3_4: 5V for JUSB2/3 ports
1 3
Pin 2-3 close
+5V Standby
Voltage JUSBV1: JUSB1 port powered with
standby voltage of 5V
JUSBV2: JRJ45USB1 port powered
with standby voltage of 5V
JUSBV3_4: JUSB2/3 ports powered
with standby voltage of 5V
Note: In order to power-on USB devices function, “JUSBV1/JUSBV2/
JUSBV3_4” jumper cap should be placed on pin 2-3 individually.

12
Clear CMOS Jumper: JCMOS1
JCMOS1 Assignment
1 3
Pin 1-2 Close Normal Operation (default)
1 3
Pin 2-3 Close Clear CMOS Data
※Clear CMOS Procedures:
1. Remove AC power line.
2. Set the jumper to “Pin 2-3 Close”.
3. Wait for five seconds.
4. Set the jumper to “Pin 1-2 Close”.
5. Power on the AC.
6. Reset your desired password or clear the CMOS data.
Case Open Connector: JCL1
Pin Assignment
1 Case Open Signal
12
JCL1 2 Ground
Serial ATA Connector: JSATA1/ JSATA2
Pin Assignment Pin Assignment
1 Ground 2 TX+
4 TX- 4 Ground
5 RX- 6 RX+
1
23
4
56
7
JSATA1/ JSATA2 7 Ground
AUDIO DJ Connector: JDJ1
Pin Assignment Pin Assignment
1 SMBDATA 2 SMBCLK
3 INT_B 4 KEY
15
JDJ1
5 ATX_PWROK

13
Game Header: JGAME1
1
216
15
JGAME1
Pin Assignment Pin Assignment
1 +5V 2 +5V
3 GPSB1 4 GPSA1
5 GPX2 6 GPX1
7 MIDI-OUT 8 Ground
9 GPY2 10 Ground
11 GPSB2 12 GPY1
13 MIDI-IN 14 GPSA2
15 NA 16 +5V
CD-ROM Audio-In Header: JCDIN1
Pin Assignment
1 Left Channel Input
2 Ground
3 Ground
1
JCDIN1 4 Right Channel Input
Front Panel Audio Header: JAUDIO1
1
213 14
JAUDIO1
Pin Assignment Pin Assignment
1 Mic In 2 Ground
3 Mic Power 4 Audio Power
5 RT Line Out 6 RT Line Out
7 Reserved 8 Key
9 LFT Line Out 10 LFT Line Out
11 RT Line In 12 RT Line In
13 LET Line In 14 LET Line In

14
Digital Audio Connector: JSPDIF_OUT1
Pin Assignment
1 +5V
2 SPDIF_OUT
1
JSPDIF_OUT1 3 Ground
Wake On LAN Header: JWOL1
Pin Assignment
1 +5V_SB
2 Ground
1
JWOL1 3 Wake up
Front USB Header: JUSB2/3
Pin Assignment Pin Assignment
1 +5V(fused) 2 +5V(fused)
3 USB- 4 USB-
5 USB+ 6 USB+
7 Ground 8 Ground
2
1
10
9
JUSB2/3
9 KEY 10 NC
Front 1394 Header: J1394A1/ J1394B1
Pin Assignment Pin Assignment
1 A+ 2 A-
3 Ground 4 Ground
5 B+ 6 B-
7 +12V 8 +12V
2
1
10
9
J1394A1/ B1
9 KEY 10 Ground

15
Back Panel Connectors
PS/2
Keyboard
PS/2
Mouse
COM1
Parallel
JPRNT1
JCOM1
JKBMS1
USB
J1394_USB1 JCOM2
COM2 USB
JRJ45USB1
Speaker Out
Line In
Mic In
JAUDIO
LAN
1394
6 Channel Speakers
Speaker Out
Line In/ Rear Speaker
Mic In/ Center & Bass

16
StudioFun!
Introduction
StudioFun! is a media-player based on optimized GNU/Linux distribution. It plays DVD,
VCD, MP3, Audio CD and various other known file formats. You can take snapshots of
video and customize the saved images as screensavers. You can also store the images
on USB mass storage devices like flash disks and USB floppy disks.
Hardware Requirements
The supported hardware list of StudioFun! grows up every day. So please check the
hwreq.txt located in the root of StudioFun! Installation CD to get the most updated
information.
Installation Procedure
Insert the StudioFun! Installation CD in a CD/DVD ROM drive and let the system boot
through the CD. The disk will boot and bring up the grub boot loader installation menu.
Two options are specified.

17
Installation
This option will do the basic installation of the distribution. The installation works on
pre-installed windows or GNU/Linux distribution.
On selecting the ’installation’ option the installer boots and displays a dialog box indicating
the space required and waits for a confirmation. Selecting Ok will continue the installation
while selecting Cancel will terminate the installation and reboot the machine.
If Windows or GNU/Linux is the only OS installed on the hard disk with no free space, it
will resize the partition, either NTFS or FAT32 or ext2, and install StudioFun!. In case the
hard disk has a 128MB of free space available, the installation will use the free space.
After installing the base system you will be prompted to select the resolution from the
following choices
1. 1024x768 (recommended)
2. 800x600
3. 640x480
Select the desired resolution. The default is 1024x768 for high-end graphics.
Next you will be prompted to choose the DVD area/region selection code. Choose this
based on the type of DVDs you will be playing.
The installation procedure will then probe for the type of mouse installed. The distribution
currently supports PS/2, USB and Serial mice. In case of serial mouse you will have to
move the mouse when prompted. The other two are probed and installed automatically.
The installation procedure will now finish, the CD is ejected and a dialog box prompting to
reboot the machine is displayed. Press OK button and enjoy StudioFun!.
3.1.1 Error Messages
1. Media corrupted!! Please check the media! The CD-ROM is corrupted.
2. Extraction of base system failed!! Please try again later!! The CD-ROM is corrupted.
3. Unsupported hardware found, Aborting... If you try to install StudioFun! on an
unsupported and undocumented hardware the above error message is popped.
4. No device found! This error message is given if there is no hard disk in the system.

18
Recovery
In case of a MBR corruption, this option should be used. It will automatically probe the
hard disk master boot record and find out the installed operating system(s). On success it
will re-install the boot loader with correct options in the MBR. Any custom boot loader
option specified from other GNU/Linux installations will get over written by the newly
probed one.
Booting to StudioFun!
After Installation is over, remove the CD from the CD-ROM and restart the machine. After
the machine reboots, you will get the GRUB boot loader menu screen. Select the
StudioFun option to boot to the StudioFun! partition.
