Please Read and Save this Use and Care Book.
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always
be followed, including the following:
❑ Read all instructions.
❑ Do not touch hot surfaces. Use handles or knobs.
❑ To protect against risk of electrical shock, do not immerse cord, plug
or any non-removable parts of this oven in water or other liquid.
❑ Close supervision is necessary when any appliance is used by or near
children.
❑ Unplug from outlet when not in use and before cleaning. Allow to cool
before putting on or taking off parts.
❑ Do not operate any appliance with a damaged cord or plug or after
the appliance malfunctions or is dropped or damaged in any manner.
Return the appliance to the nearest authorized service facility for
examination, repair, or electrical or mechanical adjustment. Or, call
the appropriate toll-free number listed on the cover of this manual.
❑ The use of accessory attachments not recommended by the appliance
manufacturer may cause injuries.
❑ Do not use outdoors.
❑ Do not let cord hang over edge of table or counter, or touch hot
surfaces.
❑ Do not place on or near a hot gas or electrical burner, or in a heated
oven.
❑ Extreme caution must be used when moving an appliance containing
hot oil or other hot liquid.
❑ To disconnect, turn any control to OFF (0), then remove plug from wall
outlet.
❑ Do not use appliance for other than intended use.
❑ Oversize foods or metal utensils must not be inserted in this appliance,
as they may create a fire or risk of electric shock.
❑ A fire may occur if the toaster oven is covered or touching flammable
material including curtains, draperies, walls and the like, when in
operation. Do not store any item on top of unit when in operation.
❑ Do not clean with metal scouring pads. Pieces can break off the pad
and touch electrical parts resulting in a risk of electric shock.
❑ Extreme caution should be used when using containers constructed of
other than metal or glass.
❑ Do not store any material, other than manufacturer's recommended
accessories, in this oven when not in use.

3
❑ Do not place any of the following materials in the oven: paper,
cardboard, plastic wrap and the like.
❑ Do not cover crumb tray or any parts of the oven with metal foil. This
will cause overheating of the oven.
❑ To stop toasting, broiling or baking turn the controls to OFF.
❑ Use extreme caution when removing tray or disposing of hot grease.
SAVE THESE INSTRUCTIONS.
This product is for household use only.
GROUNDED PLUG
As a safety feature, this product is equipped with a grounded plug, which will only
fit into a three-prong outlet. Do not attempt to defeat this safety feature. Improper
connection of the grounding conductor may result in the risk of electric shock.
Consult a qualified electrician if you are in doubt as to whether the outlet is properly
grounded.
ELECTRICAL CORD
a) A short power-supply cord is provided to reduce the risk resulting from
becoming entangled in or tripping over a longer cord.
b) Longer extension cords are available and may be used if care is exercised in
their use.
c) If an extension cord is used,
1) The marked electrical rating of the cord set or extension cord should be
at least as great as the electrical rating of the appliance, and
2) The cord should be arranged so that it will not drape over the countertop
or tabletop where it can be pulled on by children or tripped over
unintentionally.
If the appliance is of the grounded type, the extension cord should be a
grounding-type 3-wire cord.
TAMPER-RESISTANT SCREW
Warning: This appliance is equipped with a tamper-resistant screw to prevent
removal of the outer cover. To reduce the risk of fire or electric shock, do not
attempt to remove the outer cover. There are no user-serviceable parts inside.
Repair should be done only by authorized service personnel.
Note: If the power supply cord is damaged, it should be replaced by qualified
personnel; in Latin America, by an authorized service center.

4
Product may vary slightly from what is illustrated.
1. Power indicator light
† 2. Temperature selector (Part #TRO420C-01)
† 3. TIMER/TOAST ( ) selector with Stay On setting ( ) (Part #TRO420C-02)

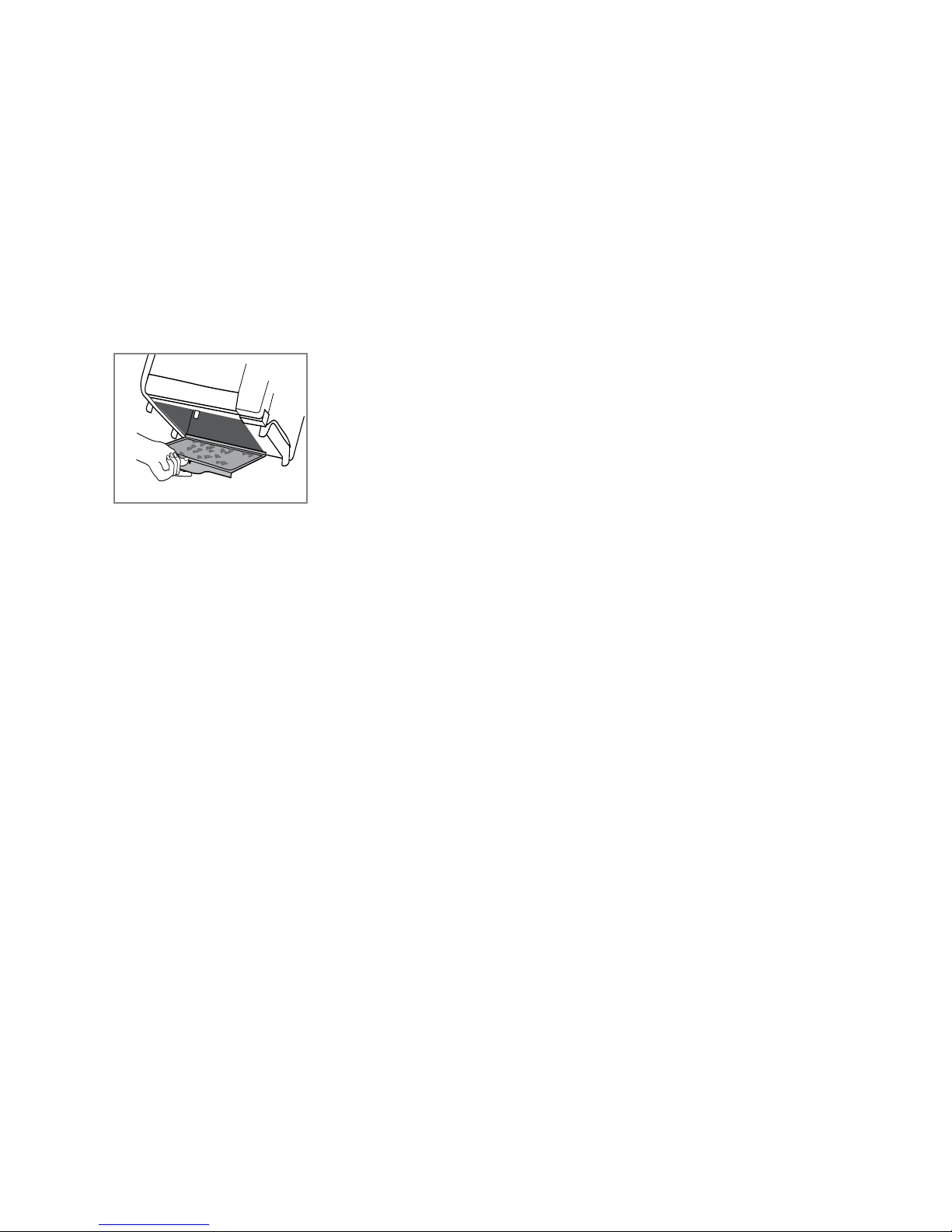

4. Swing-down crumb tray (under unit)
† 5. Bake pan/drip tray (Part #TRO420C-03)
† 6. Slide rack (Part #TRO420C-04)
7. Rack support rails
Note: † indicates consumer replaceable/removable parts
CONTROL PANEL
1. Power indicator light
2. Temperature selector
3. TOAST/TIMER ( ) selector with
Stay On setting ( )



B







A
Important:
When using the TIMER/
TOAST function,
always turn the dial past
10 and then turn back or
forward to desired setting.

5
How to Use
This product is for household use only.
GETTING STARTED
• Remove packing materials and any stickers.
• Remove the slide rack and bake pan/drip tray from oven.
• Wash in sudsy water, rinse and dry with a cloth or paper towel.
• Replace slide rack in oven.
• Select a location for the unit. Do not place unit under cabinets or too close to the wall
to allow heat to flow without damaging counter space.
• Plug unit into electrical outlet.
TOAST FUNCTION
Note: It is not necessary to preheat the oven for toasting.
1. Set temperature selector to TOAST position.
2. Open oven door.
3. Insert slide rack.
4. Place the toast directly on the slide rack and close the door.
5. Set the toast selector as desired. For best results, select the medium setting for your
first cycle, then adjust lighter or darker to suit your taste. The Power indicator light
comes on and stays on during the toasting cycle. When toasting is done, the signal
bell sounds, the oven automatically shuts off and the indicator light goes off.
Important: When using the TIMER/TOAST function, always turn the dial past
10 and then turn back or forward to desired setting.
6. Open oven door and using oven mitt or pot holder, slide out rack to remove toast.
Useful Tips:
• You must turn off ( ) the toast shade selector if you want to discontinue toasting.
• When making more toast immediately after one toasting cycle, set the toast shade
selector to a slightly lighter setting.
• For best results, when making consecutive batches of toast, allow a short cool down
period between toasting cycles.
BAKE FUNCTION
1. Consult the Baking Guide (page 6) for the type of food you want to cook.
Note: For best results, when baking or cooking, always preheat the oven for at least
8 minutes at the desired temperature setting.

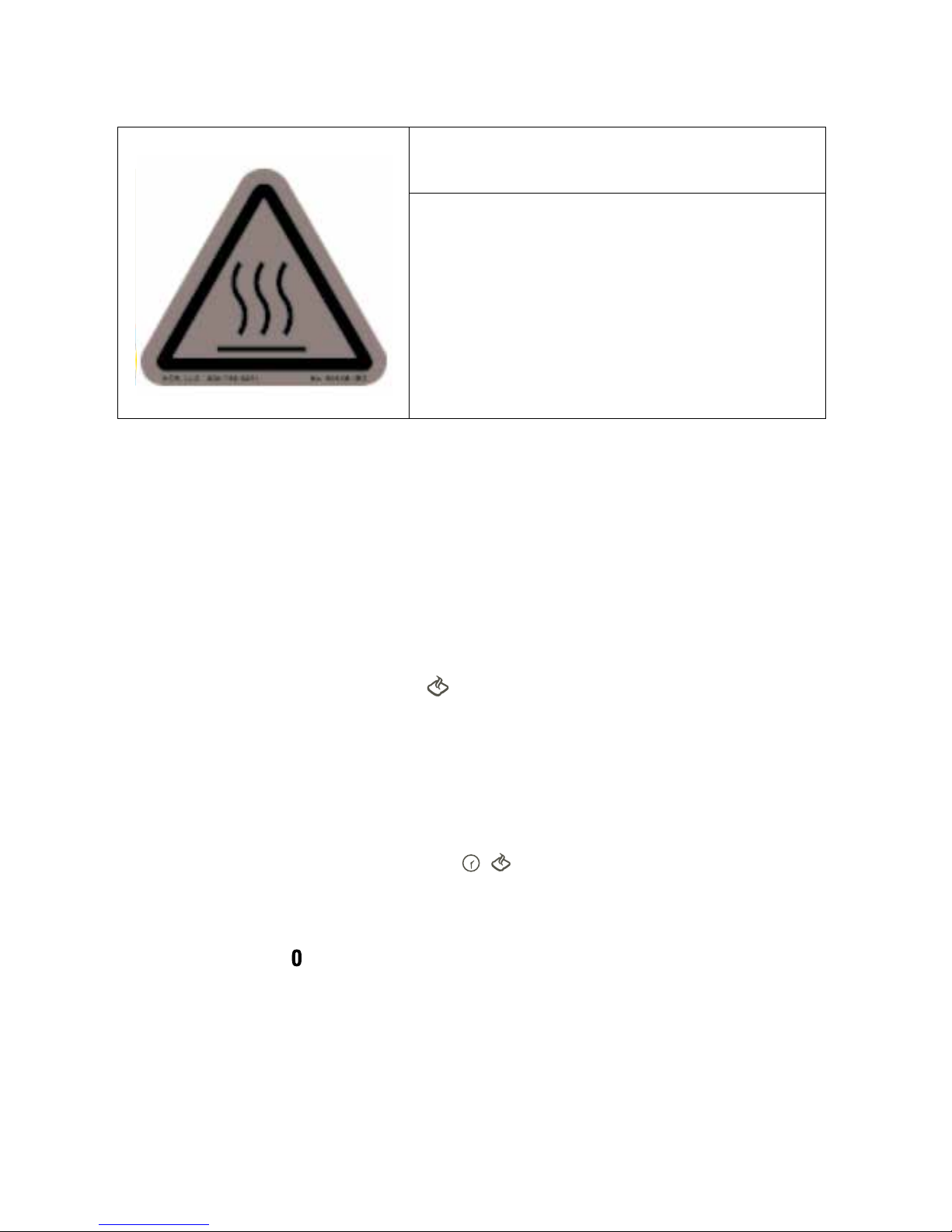

C A UT IO N
THIS OVEN GETS HOT. WHEN
IN USE, ALWAYS USE OVEN
MITTS OR POT HOLDERS
WHEN TOUCHING ANY OUTER
OR INNER SURFACE OF THE
OVEN
THIS OVEN GETS HOT.
WHEN IN USE, ALWAYS USE OVEN MITTS
OR POT HOLDERS WHEN TOUCHING
ANY OUTER OR INNER SURFACE OF THE
OVEN.
CAUTION

6
2. Turn the temperature selector to the desired temperature setting.
Important: You must set the timer or select Stay On ( ) for the oven to function.
3. Set the timer to desired number of minutes, including preheat
time, or to Stay On ( ) (C).
Important: When using the TIMER/TOAST function,
always turn the dial past 10 and then turn back or forward
to desired setting.
Tip: Set the timer to the Stay On ( ) setting, if you want to control
cooking time or need to cook your food longer than 30 minutes.
• The power indicator light comes on and stays on during
cooking cycle.
• The heating elements cycle on and off to maintain the temperature.
4.
You can cook your food two ways:

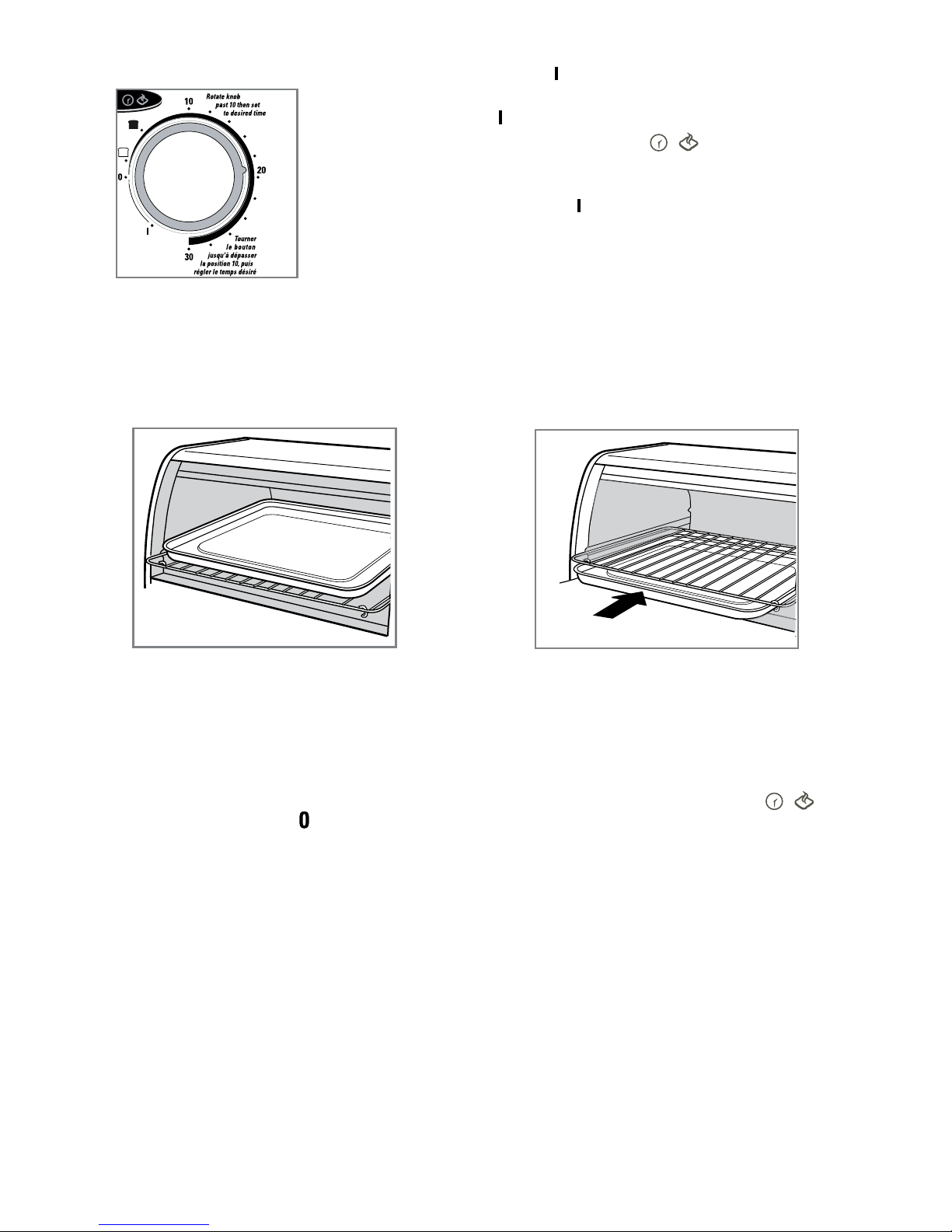

• In the bake pan placed on the slide rack (Da), OR
• Directly on the slide rack with the bake pan inserted on the rack support rails underneath
the slide rack (Db) to catch drippings.
Note: Be sure the top edge of the food or container is at least 1½” (3.81 cm) away from
the upper heating elements.
5. Close oven door.
6. Cook food according to recipe or package instructions and check at minimum time to
see if it is done.
7. Once cooking cycle is finished, the signal bell sounds. Turn the TIMER/TOAST
selector to the off ( ) position. The power indicator light goes off.
8. Open oven door and using oven mitt or pot holder, slide out rack to remove food.
OR
Db
Da
C

7
FOOD AMOUNT TEMPERATURE/ TIME PROCEDURE
Chicken pieces to fit bake pan 375 °F (191 °C) Bake until
(1- 4 pieces)
40-55 minutes chicken registers
180 °F (82 °C)
on meat
thermometer.
Ham, lamb to fit bake pan 325 °F (163 °C) Bake until
or pork chops, (1-4 chops or follow favorite done as desired.
Fish fillet or steak or steaks) recipe
Cookies (recipe 4-6 cookies Follow package or Arrange in bake
or refrigerated recipe directions pan and place
slice & bake, on top of slide
drop or pre-cut) rack. Bake until
done and
browned as
desired.
Biscuits, to fit bake pan Follow package or Arrange in bake
dinner rolls recipe directions pan and place
(recipe or on top of slide
refrigerated) rack. Bake until
done and
browned as
desired.
White or 1-6 400 °F (204 °C) Wash and pierce
sweet potatoes medium 1- 1-1/4 hours potatoes. Place
potatoes directly on slide
rack.
Frozen French single layer Follow package Arrange in bake
fries, onion to fit bake pan directions pan and place
rings, other frozen on top of slide
(breaded and fried) rack. Turn once
foods during baking.
Check frequently
to prevent over
browning.
Individual Follow package Place pizza
frozen pizza directions directly on slide
rack for a crispy
crust, or in bake
pan for a softer
crust.
BAKING GUIDE

8
BROIL FUNCTION
Note: When broiling, preheat oven for 5 minutes.
1. Use the Broiling Guide for cooking times.
2. Turn the temperature selector to Broil .
3. Open oven door and using the bake pan as a drip tray, insert it
under the slide rack on the rack support rails (E).
Important: You must set the timer or select Stay On for the
oven to function.
4. Set the timer to desired number of minutes including preheat
time or to Stay On ( ) if you want to control cooking time or
need to cook your food longer than 30 minutes.
Important: When using the TIMER/TOAST function,
always turn the dial past 10 and then turn back or forward
to desired setting.
5. Place food on the slide rack.
Note: Be sure the top edge of the food or container is at least 1½" (3.81 cm) away from
the upper heating elements.
Important: Food should not extend beyond the edges of the bake pan/drip tray to avoid
drippings from falling onto the heating elements.
6. Cook food according to recipe or package instructions and check at minimum time
to see if it is done.
7. When finished broiling, the signal bell sounds. Turn the TIMER/ TOAST
selector to the off ( ) position. The power indicator light goes off.
8. Using an oven mitt or pot holder, slide out broiling rack together with bake pan to
remove food.
E

9
BROILING GUIDE
Important: Preheat for 5 minutes.
Note: When broiling foods, slide the bake pan tray underneath the slide rack using
the rack support rails. Turn temperature selector to Broil . Broiling times are
approximate. For best results do not undercook ground beef, fish or poultry.
FOOD AMOUNT TIME PROCEDURE
Chicken pieces 1-6 pieces 30-40 minutes Arrange pieces skin-side
down; turn after
15-25 minutes.
Continue broiling until
180 °F (82 °C) on meat
thermometer, or juices
run clear.
Frankfurters 1-8 frankfurters 8-12 minutes For uniform browning,
turn frequently.
Hamburgers 1-6 (1/4 lb. 12-18 minutes Turn after 8 minutes;
(0,11 kg) each) continue broiling until
160 °F (71 °C) on meat
thermometer, or done
as desired.
Beef steaks 1-2 (3/4" 18-25 minutes Turn after 10 minutes;
(19mm) thick) continue broiling until
160 °F (71 °C) on meat
thermometer, or done
as desired.
Pork chops 1-6 (3/4" 20-30 minutes Turn after 12 minutes;
(19mm) thick) continue broiling until
160 °F (71 °C) on meat
thermometer.
Fish steaks 1-6 (1" 10-18 minutes Broil until fish flakes
(26mm) thick) easily with a fork
or 145 °F ( 63 °C) on
meat thermometer.
Open-faced 1-4 slices 7-10 minutes For crispier sandwich,
cheese sandwich toast bread first. Top
bread with tomato
and sliced cheese,
if desired. Broil until
tomato is hot and
cheese is melted.

10
Care and Cleaning
This product contains no user serviceable parts. Refer service to qualified service
personnel.
CLEANING YOUR OVEN
Important: Before cleaning any part, be sure the oven is off, unplugged and cool.
Always dry parts thoroughly before using oven after cleaning.
1. Clean the glass door with a sponge, soft cloth or nylon pad and sudsy water. Do not
use a spray glass cleaner.
2. To remove the slide rack, open the door, pull the rack forward and out. Wash the slide
rack in sudsy water or in a dishwasher. To remove stubborn spots, use a polyester or
nylon pad.
3. Wash the bake pan in sudsy water. To minimize scratching, use a polyester or
nylon pad.
CRUMB TRAY
1. To open crumb tray, tip back oven, pull the crumb tray knob
forward then down (F).
2. Wipe with a dampened cloth or paper toweling and dry
thoroughly.
3. To close, pull the crumb tray knob forward, swing the crumb
tray closed, and then push knob in to lock into place before
operating the oven.
EXTERIOR SURFACES
Important: The oven top surface gets hot, be sure the oven has cooled completely
before cleaning.
Wipe the top and exterior walls with a damp cloth or sponge. Dry thoroughly.
COOKING CONTAINERS
Metal, ovenproof glass or ceramic bakeware without glass lids can be used in your oven.
Follow manufacturer’s instructions. Be sure the top edge of the container is at least
1½" (3.81 cm) away from the upper heating elements.
F
