Please Read and Save this Use & Care Book
Por favor lea este instructivo antes de usar el producto
Veuillez lire et conserver ce guide d'entretien et d'utilisation
Models
Modelos
Modéles
❏ BCF46
❏ BCF46B
❏ BCF46S
Refrigerado / Congelador
Modelos
Modéles
❏ BCE46
❏ BCE46B
❏ BCE46S

GENERAL SAFETY RULES
WARNING: Read all of the instructions before using this appli-
ance. When using this appliance, always exercise
basic safety precautions, including the following:
NOTE: If the refrigerator has been placed in a horizontal or tilted
position for any period of time wait 24 hours before
plugging the unit in.
1) Use this appliance only for its intended purpose as described in this use
and care guide.
2) This refrigerator must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions in
the installation section.
3) This refrigerator should not be recessed or built-in an enclosed cabinet.
It is designed for freestanding installation only.
4) Never unplug your refrigerator by pulling on the power cord. Always
grasp the plug firmly and pull straight out from the outlet.
5) Repair or replace immediately, all electric service cords that have
become frayed or otherwise damaged. Do not use a cord that shows
cracks or abrasion damage along its length, the plug or the connector
end.
6) If your old refrigerator is not being used, we recommend that you
remove the doors. This will reduce the possibility of danger to children.
7) WARNING: After your refrigerator is in operation, do not
touch the cold surfaces in the freezer compart-
ment, particularly when hands are damp or wet.
Skin may adhere to these extremely cold surfaces.
8) Do not refreeze foods, which have been thawed completely. The United
States Department of Agriculture in Home and Garden Bulletin No. 69
reads: "…You may safely refreeze frozen foods that have thawed if
they still contain ice crystals or if they are still cold-below 40°F".
"…Thawed ground meats, poultry, or fish that have any off-odor or
offcolor should not be refrozen and should not be eaten. Thawed ice
cream should be discarded. If the odor or color of any food is poor or
questionable, discard it. The food may be dangerous to eat."
"…Even partial thawing and re-freezing reduce the eating quality of
foods, particularly fruits, vegetables, and prepared foods. The eating
quality of red meats is affected less than that of many other foods. Use
refrozen foods as soon as possible, to save as much of they’re
eating quality as you can."
1
English

2
9) Do not use any electrical device or any sharp instrument in defrosting
your refrigerator.
10) Unplug your refrigerator before cleaning or before making any repairs.
Note: If for any reason this product requires service, we strongly recom
mend that a certified technician perform service.
11) Do not operate your refrigerator in the presence of explosive fumes.
SAVE THESE INSTRUCTIONS
DANGER
Risk of child entrapment. Before you throw away your old
refrigerator or freezer, take off the doors. Leave the shelves
in place so that children may not easily climb inside.
English
Staple your receipt to your manual.
You will need it to obtain warranty service.

3
1. Half Width Freezer Compartment
2. "Dispense-A-Can™" Can Storage
3. 3 Glass Shelves
4. Adjustable Temperature Control
5. Tall Bottle Storage
6. Full Width Door Shelves
7. Adjustable Front Levelings Legs
(Not shown)
8. Storage / Drip Tray
9. Ice Cube Tray
English
Parts And Features
0
3
4
5
6
7
3
25
6
1
7
4
8
9

4
English
1. Remove all packaging material. This includes the foam base and all
adhesive tape holding the refrigerator accessories inside and outside.
2. Inspect and remove any remains of packing, tape or printed materials
before powering on the refrigerator.
• Your refrigerator has two leveling legs which are located in the front
bottom corners of your refrigerator. After properly placing your
refrigerator in its final position, you can level your refrigerator.
• Leveling legs can be adjusted by turning them counterclockwise to raise
your refrigerator or by turning them clockwise to lower your refrigerator.
The refrigerator door will close easier when the leveling legs are
extended.
• To ensure your refrigerator works at the maximum efficiency it was
designed for, you should install it in a location where there is proper air
circulation, plumbing and electrical connections.
• The following are recommended clearances around the refrigerator:
Sides……………3/4" (19mm)
Top....................2" (50mm)
Back..................2" (50mm)
Installing Your Refrigerator
Unpacking Your Refrigerator
Proper Air Circulation
Leveling Your Refrigerator

5
English
• Make sure there is a suitable power outlet (120 volts, 15 amps outlet)
with proper grounding to power the refrigerator.
• Avoid the use of three prong adapters or cutting off the third grounding
prong in order to accommodate a two prong outlet. This is a dangerous
practice since it provides no effective grounding for the refrigerator and
may result in shock hazard.
• Avoid the use of an extension cord because of potential safety hazards
under certain conditions. If it is necessary to use an extension cord, use
only a 3-wire extension cord that has a 3-blade grounding plug and a
3-slot outlet that will accept the plug. The marked rating of the extension
cord must be equal to or greater than the electrical rating of
the appliance. DO NOT USE EXTENSION CORD LONGER THAN
12 FT.
• Do not install your refrigerator in any location not properly insulated or
heated, e.g. garage, etc. Your refrigerator was not designed to operate in
temperature settings below 55˚ Fahrenheit.
• Select a suitable location for the refrigerator on a hard even surface away
from direct sunlight or heat source, e.g. radiators, baseboard heaters,
cooking appliances, etc. Any floor unevenness should be corrected with
the leveling legs located on the front bottom corners of the refrigerator.
Electrical Requirement
Installation Limitations
Use of Extension Cords
WARNING: ELECTRICAL REQUIREMENT - SHOCK HAZARD
WARNING: USE OF EXTENSION CORDS- POTENTIAL SAFETY HAZARD

1
0
2
3
4
5
6
7
Reversing the Door Hinge
1. Remove the top hinge cover.
2. Using Phillips Head Screwdriver, loosen and remove the screws holding the
top hinge in place.
3. Remove top hinge and carefully lift off the door.
4. Remove the screw hole plugs from the opposite side and insert the plugs in
the screw hole openings of the just removed screws.
5. Remove any loose items in the refrigerator and carefully turn refrigerator on
its back, remove both leveling legs and place in a secure area.
6. Loosen the screws holding the lower hinge bracket to the refrigerator and
remove screws and bracket.
7. Remove (2) screws from the other side and insert in the previously removed
screw holes.
8. Remove door pin by turning counter clockwise and reinsert to the underside
of the bracket and tighten.
9. Align bracket and insert (2) remaining screws into the holes provided .
10. Align hole in the door with the door pin and washer and gently push down
until firm.
11. Align upper hinge bracket with screw holes insert screws and partially
secure, check that door and cabinet are properly aligned and then secure
tightly.
12. Replace hinge cap.
6
English
WARNING: USE OF EXTENSION CORDS- POTENTIAL SAFETY HAZARD
1. Remove the top hinge cover.
2. Loosen the top hinge screws using a phillips head screwdriver.
3. Adjust the door or put a spacer in between and then tighten the screws.
4. Replace the top hinge cover.
Door Alignment
NOTE: As the door gets pressed in during shipping, after reversing the
door, the gasket may have to be reset. This is done to prevent the
cool refrigerated air from escaping. If there is a gap between the
door gasket and the cabinet, set the gasket by gently pulling it out
to seal the gap.

7
English
Refrigerator Features And Use

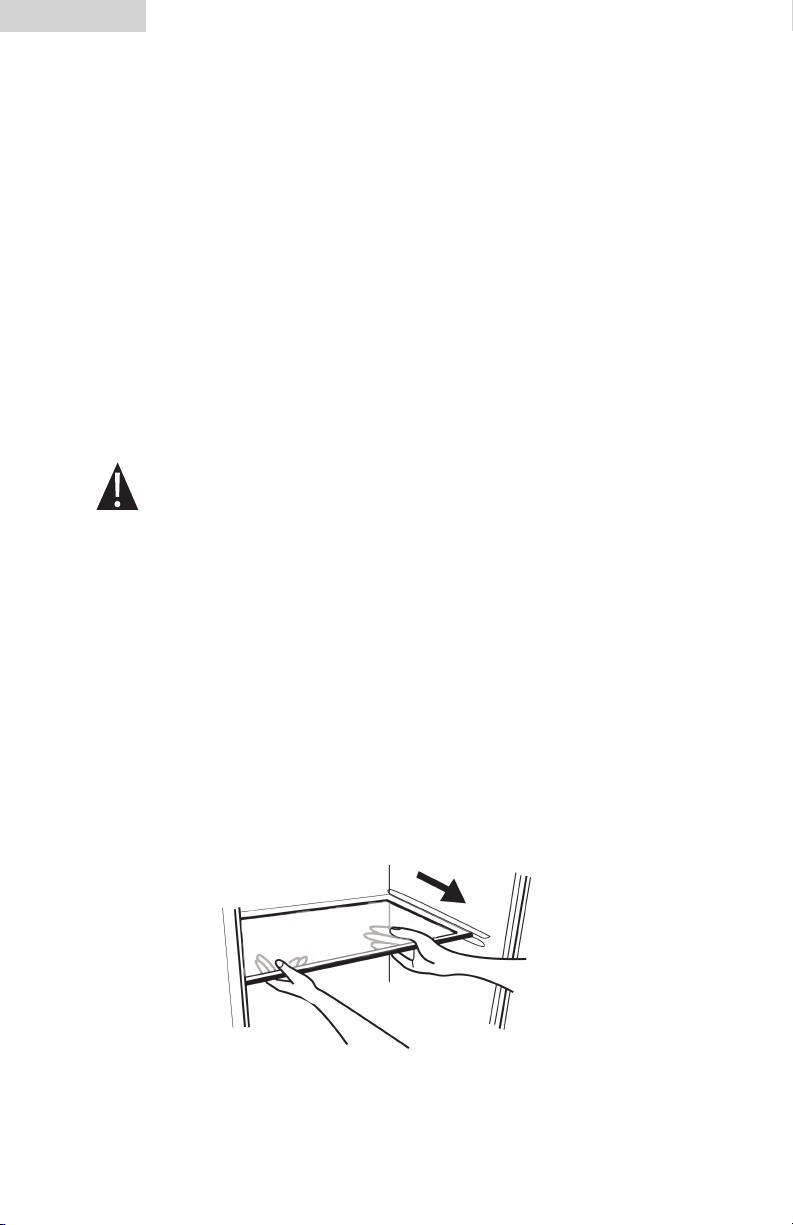

To remove or replace a full-width slide-out shelf:
(see fig. # 1)
1. Gently tilt the shelf up and slide forward until the shelf has been
completely removed.
2. To replace the shelf, gently slide the shelf back.
General Features
Adjustable temperature dial:
Your refrigerator will automatically maintain the temperature level you select.
The temperature control dial has 7 settings plus 0. 1 is the warmest. 7 is the
coldest. At first, set the dial to 4 and allow 24 hours to pass before adjusting the
temperature to your needs.
(Note: If the refrigerator has been placed in a horizontal or
tilted position for any period of time wait 24 hours before
plugging the unit in.)
Refrigerator Interior Shelves
fig. # 1
This compartment is designed for making ice cubes and for short-term
food storage (a few days at most).
WARNING: This compartment is not cold enough to freeze foods
safely for more than 5 days.
• If ice cube tray freezes to the bottom of the compartment, pour a little
warm water around it to loosen it. Do not use boiling water, which
can damage plastic parts, or sharp metal objects such as a knife or
screwdriver, which can damage the cooling system tubing. Wash the
ice cube tray in lukewarm water only. Do not wash in the dishwasher.
Freezer Compartment / Use of the Ice Cube Trays

English
Using the Dispense-A-Can™
• Your refrigerator is equipped with the
convenient “Dispense-A-Can™” compartment.
Each compartment will hold up to four cans.
Simply load the cans from the top. To dispense
a can, simply draw one out from the bottom. It
is that easy.
fig. # 2
Fresh Food
• When storing fresh food that is not prepackaged, be sure to wrap
or store food in airtight and moisture proof material unless otherwise
noted. This will ensure proper shelf life and prevent the transfer of
odors and tastes.
• Wipe containers before storing to avoid needless spills.
• Eggs should be stored in an upright position in their original carton to
maximize shelf life.
• Fruit should be washed and dried, then stored in sealed plastic bags
before storing in the refrigerator.
• Vegetables with skins should be stored in plastic bags or containers.
• Leafy vegetables should be washed and drained and then stored in
plastic bags or containers.
• Hot food should be allowed to cool before storing in the refrigeration.
This will prevent unnecessary energy use.
• Fresh seafood should be used the same day as purchased.
• When storing meats in the fresh food section, keep in the original
packaging or rewrap as necessary. Follow the suggestions below for
safe storage:
• Chicken 1-2 Days
• Ground Beef 1-2 Days
• Cold Cuts 3-5 Days
• Steaks/Roasts 3-5 Days
• Smoked/Cured Meats 7-10 Days
For detailed storage chart visit FDA website:
www.cfsan.fda.gov/~dms/fttstore.html
Food Storage Information
8

9
English
Normal Operating Sounds You May Hear
• Boiling water, gurgling sounds or slight vibrations that are the result of
the refrigerant circulating through the cooling coils.
• The thermostat control will click when it cycles on and off.
WARNING: To avoid electric shock, always unplug your
refrigerator before cleaning. Ignoring this warning
may result in death or injury.
CAUTION: Before using cleaning products, always read and
follow manufacturer’s instructions and warnings to
avoid personal injury or product damage.
General: Prepare a cleaning solution of 3-4 tablespoons of baking soda
mixed with warm water. Use sponge or soft cloth, dampened
with the cleaning solution, to wipe down your refrigerator.
• Rinse with clean warm water and dry with a soft cloth.
• Do not use harsh chemicals, abrasives, ammonia, chlorine
bleach, concentrated detergents, solvents or metal scouring
pads. Some of these chemicals may dissolve, damage and/or
discolor your refrigerator.
Door Gaskets: Clean door gaskets every three months according to general
instructions. Gaskets must be kept clean and pliable to assure a
proper seal
• Petroleum jelly applied lightly on the hinge side of gaskets will
keep the gasket pliable and ensure a good seal.
Proper Refrigerator Care and Cleaning
Cleaning and Maintenance

10
English
Defrosting
Defrost whenever frost on the wall of the freezer compartment becomes
1/8" thick. Never us a sharp or metallic instrument to remove frost
as it may damage the cooling coils. (A punctured cooling coil will
cause serious damage to the product and will void the warranty). We
recommend using a plastic scraper. To defrost, remove foods and ice
cube tray from the freezer compartment. Make sure the drip tray is
in place and unplug the unit. Defrosting usually takes a few hours. To
defrost faster, keep the door open and place a bowl of warm water in
the refrigerator. After defrosting, empty water from the drip tray and
wash the drip tray in warm water.
WARNING: IF OUTAGE IS FOR A PROLONGED PERIOD, INSPECT
AND DISCARD SPOILED OR THAWED FOOD IN
FREEZER AND REFRIGERATOR. CLEAN REFRIGERATOR
BEFORE REUSING.
Power Interruptions
• Occasionally there may be power interruptions due to thunderstorms
or other causes. Remove the power cord from AC outlet when a power
outage occurs. When power has been restored, replug power cord
to AC outlet. If outage is for a prolonged period, inspect and discard
spoiled or thawed food in freezer and refrigerator. Clean refrigerator
before reusing.
1
0
2
3
4
5
6
7

11
English
Vacation and Moving Care
• For long vacations or absences, empty food from refrigerator and
freezer, move the temperature dial to the OFF position and clean the
refrigerator and door gaskets according to "General Cleaning" section.
Prop doors open, so air can circulate inside.When moving, always move
the refrigerator vertically. Do not move with the unit lying down. Possible
damage to the sealed system could occur.
Energy Saving Tips
• The refrigerater should be located in the coolest area of the room, away
from heat-producing appliances or heating ducts, and out of direct
sunlight.
• Let hot foods cool to room temperature before placing in the refrigerator.
Overloading the refrigerator forces the compressor to run longer and
thus increases energy consumption. Foods that refrigerate too slowly
may lose quality or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing
in the refrigerator.
• The wire shelves should not be lined with aluminum foil, wax paper,
or paper towels. Liners interfere with cold air circulation, making the
refrigerator less efficient.
• Organize food to reduce door openings and extended searches. Remove
as many items as needed at one time, and close the door as soon as
possible.

Refrigerator does not operate:
• Check if thermostat control is not in the “0” position.
• Check if refrigerator is plugged in.
• Check if there is power at the AC outlet, by checking the circuit breaker.
Food temperature appears too warm:
• Frequent door openings.
• Allow time for recently added warm food to reach fresh food temperature.
• Check gaskets for proper seal.
• Adjust temperature control to colder setting.
Food temperature is too cold:
• If temperature control setting is too cold, adjust to a warmer setting and allow
several hours for temperature to adjust.
Refrigerator runs too frequently:
• This may be normal to maintain constant temperature during high temperature
and humid days.
• Doors may have been opened frequently or for an extended period of time.
• Check gasket for proper seal.
• Check to see if doors are completely closed.
Moisture build up on interior or exterior of the refrigerator:
• This is normal during high humidity periods.
• Prolonged or frequent door openings.
• Check door gaskets for proper seal.
Refrigerator has an odor:
• Interior needs cleaning.
• Foods improperly wrapped or sealed are giving off odors.
Refrigerator door does not shut properly:
• Level the refrigerator.
• Re-align refrigerator door.
• Check for blockages, e.g. food containers, crisper cover,shelves, bins, etc.
Popping or cracking sound when the compressor comes on:
• Check to ensure the refrigerator is level.
• The floor may be uneven or weak. The refrigerator rocks on the floor when it is
moved slightly. Be sure the floor can adequately support the refrigerator. Level the
refrigerator by putting wood or metal shims under part of the refrigerator.
• The refrigerator is touching the wall. re-level the refrigerator and move it from the
wall. See the “Installing Your Refrigerator” section.
12
English
Troubleshooting

English
Limited Warranty
13
What is covered and for how long?
This warranty covers all defects in
workmanship or materials for a period of:
1 year parts (carry in only)
1 year labor (carry in only)
5 years sealed system
(carry in only)
The warranty commences on the date
the item was purchased and the original
purchase receipt must be presented to the
authorized service center before warranty
repairs are rendered.
EXCEPTION: Commercial or Rental
Use Warranty
90 days labor (carry-in only)
90 days parts
No other warranty applies
What is covered.
1. The mechanical and electrical parts,
which serve as a functional, purpose of
this appliance for a period of 1 year.
This includes all parts except finish, and
trim.
2. The components of the sealed system
e.g. hermetic compressor, condenser
and evaporator from manufacturing
defects for a period of 5 years from the
date of purchase. Any damages to such
components caused by mechanical abuse
or improper handling or shipping will not
be covered.
What will be done?
1. We will repair or replace, at our
discretion any mechanical or electrical
part which proves to be defective in
normal usage during the warranty period
so specified.
2. There will be no charge to the
purchaser for parts and labor on any
covered items during the initial 1 year
period. Beyond this period only parts are
covered in the remaining warranty. Labor
is not provided and must be paid by
the customer.
3. Contact customer service:
1-866-927-4833.
THIS WARRANTY COVERS
APPLIANCES WITHIN THE
CONTINENTAL UNITED STATES,
PUERTO RICO AND CANADA.
IT DOES NOT COVER
THE FOLLOWING:
Damages from improper installation.
Damages in shipping.
Defects other than manufacturing.
Damage from misuse, abuse, accident,
alteration, lack of proper care and
maintenance or incorrect current or
voltage.
Damage from other than household use.
Damage from service by other than an
authorized dealer or service center.
Decorative trims or replaceable
light bulbs.
Transportation and shipping.
Labor (after the initial 1 year).
THIS LIMITED WARRANTY IS GIVEN
IN LIEU OF ALL OTHER WARRANTIES,
EXPRESSED OR, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE
The remedy provided in this warranty is
exclusive and is granted in lieu of all other
remedies.
This warranty does not cover incidental
or consequential damages, so the above
limitations may not apply to you. Some
States do not allow limitations on how long
an implied warranty lasts, so the above
limitations may not apply to you.
This warranty gives you specific legal rights,
and you may have other rights, which vary,
from state to state.
New York, NY 10018

14
Français
CONSIGNES GÉNÉRALES DE SECURITÉ
ATTENTION: Lire l’ensemble des instructions avant d’utiliser
l’appareil. Lors de l’utilisation de cet appareil,
prendre toutes les mesures de sécurité de base, y
compris les suivantes:
REMARQUE: Si le réfrigérateur a été placé en position horizontale ou
en position inclinée, que ce soit pour longtemps ou non,
attendez 24 heures avant de brancher l’appareil.
1) N’utiliser cet appareil que pour l’usage prévu, tel que décrit dans ce
guide d’utilisation et d’entretien.
2) Ce réfrigérateur doit être correctement installé, conformément aux
instructions d’installation avant d’être utilisé. Voir les instructions de
mise à la terre dans la section Installation.
3) Ce réfrigérateur ne doit être ni encastré, ni enclos dans un placard. Il
est uniquement conçu pour être installé tel qu’il se présente.
4) Ne jamais tirer sur le cordon d’alimentation pour débrancher le réfri-
gérateur. Toujours saisir fermement la fiche et la tirer tout droit hors de
la prise.
5) Réparer ou remplacer immédiatement tout cordon électrique effiloché
ou autrement endommagé. Ne pas utiliser un cordon fissuré, abrasé
ou dont la prise ou le connecteur est endommagé.
6) Si un ancien réfrigérateur n’est pas utilisé, nous recommandons d’en
retirer les portes afin de réduire le danger qu’il peut représenter pour
les enfants.
7) ATTENTION: Une fois le réfrigérateur en fonctionnement, ne pas
toucher les surfaces froides du congélateur,
particulièrement avec des mains mouillées ou
humides. La peau peut adhérer à ces surfaces
extrêmement froides.
8) Ne pas recongeler les aliments qui ont été complètement décongelés.
Le bulletin maisons et jardins du ministère de l’agriculture des États-
Unis no. 69 stipule : « ..Les aliments congelés peuvent être recongelés
en toute sécurité s’ils contiennent toujours des cristaux de glace ou si
leur température est toujours inférieure à 4,5 °C (40 °F) ».
« …Les viandes hachées, la volaille et le poison présentant une odeur
ou une couleur suspecte ne doivent être ni recongelés, ni mangés.
La crème glacée dégelée doit être jetée. Tout aliment présentant une
odeur ou couleur douteuse doit être jeté cas son ingestion pourrait être
dangereuse.»

« …La décongélation ou la recongélation, même partielle réduit la quali
é gustative des aliments, en particulier des fruits, légumes et plats pré-
parés. La qualité gustative des viandes rouge est beaucoup moins affec-
tée que celle de nombreux autres aliments. Utiliser les aliments recongelés
dès que possible, afin de conserver un maximum de leur qualité gustat-
ive. »
9) Ne pas utiliser d’appareils électriques ou d’objets acérés pour dégivrer le
réfrigérateur.
10) Débrancher le réfrigérateur avant de le nettoyer ou d’effectuer toute
réparation. Remarque: si, pour une raison quelconque, ce produit devait
être dépanné, nous recommandons vivement de confier le travail à un
technicien certifié.
11) Ne pas utiliser le réfrigérateur en présence d’émanations explosives.
VEUILLEZ CONSERVER CES
INSTRUCTIONS
DANGER
Les enfants pourraient se retrouver coincés dans votre
réfrigérateur ou congélateur usagé avant que vous ne
puissiez vous en débarrasser. Retirer les portes. Laisser les
étagères en place de manière à ce que les enfants ne
puissent pas grimper facilement à l’intérieur.
Français
Agrafer le ticket de caisse au guide. Il devra être présenté pour tout
service après-vente sous garantie.
15

Français
1. Demi De Congélateur De Largeur
2. Compartiment pour cannettes
"Dispense-A-Can™"
3. 3 étagères en verre
4. Commande de Réglage de
Température
5. Rangement pour Grandes Bouteilles
6. Pleine largeur de porte Etagère
7. Pieds de réglage avant ajustables
(Non montrés)
8. Stockage / Plateau D'Égouttement
9. Bac à glaçons
Piéces et Caractéristiques
16
0
3
4
5
6
7
3
25
6
1
7
4
8
9

17
Français
1. Retirer l’ensemble du matériel d’emballage. Ceci comprend la base
en mousse ainsi que l’ensemble du matériel adhésif qui maintient les
accessoires du réfrigérateur à l’intérieur tout comme à l’extérieur.
2. Inspecter et enlever tout restant d’emballage, de scotch ou de
matériaux imprimés avant de brancher le réfrigérateur.
• Le réfrigérateur possède deux pieds de mise à niveau qui sont situés sur
les coins avant du réfrigérateur. Après avoir convenablement installé le
réfrigérateur à la place qu’il occupera, procéder à la mise à niveau.
• Pour régler les pieds de mise à niveau, les tourner dans le sens des
aiguilles d’une montre afin de surélever le réfrigérateur et dans le sens
inverse des aiguilles d’une montre pour l’abaisser. La porte du
réfrigérateur se ferme plus facilement lorsque les pieds de mise à
niveau sont surélevés.
• Pour être sûr que le réfrigérateur fonctionne à son maximum d’efficacité,
l’installer dans un environnement favorable à une bonne circulation
d’air et possédant des connexions de plomberie et d’électricité saines.
• Les indications suivantes concernent l’espace recommandé autour du
réfrigérateur:
Latéralement...................19mm (3/4")
Partie supérieure.............50mm (2")
Arrière...........................50 mm (2")
Installation du Réfrigérateur
Désemballage du Réfrigérateur
Mise á Niveau du Réfrigérateur
Circulation d’Air Adéquate

18
Français
• Pour l’alimentation du réfrigérateur, veiller à utiliser une prise
de courant convenable (prise de 120 volts,15 amp) raccordée à
la terre.
• Eviter d’utiliser des adaptateurs à trois fiches ou de sectionner la
troisième fiche reliée à la terre dans le but d’utiliser un branchement à
deux fiches. Cette pratique pourrait s’avérer dangereuse dans la mesure
où le réfrigérateur n’est pas relié convenablement à la terre, et risquerait
de causer des risques d’électrocution.
• Éviter d’utiliser une rallonge électrique car, dans certains cas, cela peut
entraîner des risques pour la santé. S’il est nécessaire d’utiliser une
rallonge, utiliser uniquement une rallonge possédant une fiche male à
deux broches plus terre à une extrémité et une prise femelle de même
type à l’autre extrémité. La capacité électrique de la rallonge doit être
égale ou supérieure à la capacité de l’appareil. N’UTILISEZ PAS DE
RALLONGES D’UNE LONGUEUR SUPÉRIEURE À
12 PIEDS/3,65 MÈTRES.
• Ne pas installer le réfrigérateur dans un endroit qui n’est pas
convenablement isolé ou chauffé; comme par exemple un garage, etc.
Le réfrigérateur n’est pas conçu pour fonctionner à des températures
inférieures à 12°C.
• Choisir un endroit convenable et placer le réfrigérateur sur une surface
solide et plane, loin de sources de chaleur telles que: les radiateurs, les
éléments chauffants à plinthes, les cuisinières, etc. Toute irrégularité au
sol doit être corrigée à l’aide des pieds de mise à niveau situés sur les
coins avant de la partie inférieure
du réfrigérateur.
Limitations relatives à l’Installation
ATTENTION: EXIGENCES ÉLECTRIQUES – RISQUE DE
CHOC ÉLECTRIQUE
ATTENTION: UTILISATION DE RALLONGES – RISQUE DE
DANGER POTENTIEL
Caractéristiques Electriques
Utilisation de Rallonges

19
Français
Placer la Charnière de Porte sur le Côté Opposé
du Réfrigérateur
1. Enlevez la couverture superieure de la charniere
2. Desserrez et enlevez a l'aide d'un tournevis Phillips, les vis qui soutiennent la
charniere en place.
3. Enlevez la charniere et retirez la porte soigneusement
4. Enlevez les bouchons des trous des vis du cote oppose et inserrez les dans
les ouvertures des trous des vis que vous venez de retirer
5. Enlevez tous les articles qui ne sont pas attaches du refrigerateur, tournez le
sur son dos soigneusement et retirez les 2 pieds qui le stabilisent et mettez
les de cote .
6. Desserez les vis qui soutiennent l'equerre de la charniere inferieure du refrig
erateur et enlevez les vis et l'equerre
7. Enlevez les 2 vis du cote oppose et inserrezles dans les trous des vis pre
cedemment enleves .
8. Enlevez la goupille de la porte and tournant le compteur dans le sens
des aiguilles d'une montre et reinserrez au dessous de l'equerre et serrez.
9. Alignez l'equerre et inserrez les 2 vis dans les trous fournis
10. Alignez le trou dans la porte avec la goupille et la rondelle de la porteet
abaissez doucement jusqu'a ce qu'elle soit ferme.
11. Alignez l'equerre de la charniere superieure avec les trous des vis, inserrez
les vis et serrez fermement.
12. Replacez la couverture de la charniere
1
0
2
3
4
5
6
7
REMARQUE: Comme le joint recoit aoouyé-dans pendant l’expédition,
aprés avoir renversé la porte le joint peut devoir étre remet
á l’état initial. Ceci est fait pour empécher le refroidit l’air
réfrigéré d’échapper. Si lá-bas est un écart entre la porte
et le placard, régle le joint en tirant doucement il hors
sceller l’écart.
