Black & Decker BDXHTSL1 User manual

Please read before returning this product for any reason.
BDXHTSL1 Smart Thermostat
Installation & Operation Manual

i
USING THIS MANUAL
BEFORE INSTALLING AND USING THE BDXHTSL1 SMART THERMOSTAT,
please read these instructions carefully. This manual is intended as a reference
guide for the installation, conguration, and operation of your device. Save all
instructions in a safe place for future reference.
SAFETY ALERT SYMBOLS
This instruction manual uses the following safety alert symbols and text to
alert installers or users to hazards and risks of personal injury or property
damage.
DANGER: Indicates an imminently hazardous situation which, if
not avoided, will result in death or serious injury.
WARNING: Indicates an imminently hazardous situation which, if
not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury.
(Used without one of the words above) indicates a safety related
message.
NOTICE: Indicates a practice not related to personal injury which, if not
avoided, may result in property damage.

ii
IMPORTANT SAFETY INSTRUCTIONS
WARNING: Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock,
re and/or serious injury.
WARNING: Never modify this product. Damage or personal injury could
result.
WARNING:
• Follow all applicable electrical codes and regulations regarding the
installation or replacement of a thermostat in the local jurisdiction.
In the absence of local requirements, follow ANSI/NFPA 70, National
Electric Code. In some cases, an authorized installer may be required.
Consult a qualied electrician or HVAC technician with any questions
about the installation of this product.
• DO NOT connect any of the terminals to voltage above 30 VAC.
The Thermostat uses 24 VAC nominal power.
• DO NOT cover any of the vents on the thermostat.
• DO NOT install this unit at an altitude of over 6550 feet (2000 meters).
• DO NOT install this unit in a bathroom or area of excessive moisture.
• DO NOT allow the unit to get wet. This temperature control device is
intended only for dry, closed living and ofce spaces.
• DO NOT expose this device to temperatures below 14°F (-10°C) or
above 140°F (60°C).
• DO NOT operate or store this thermostat in areas where the relative
humidity exceeds 90%.
• DO NOT expose the unit to voltage uctuations more than +/- 10%.
• DO NOT use solvents or aggressive cleaning agents. A dry, soft cloth is
recommended.
The manufacturer does not accept responsibility for any damage caused by
not following these instructions.

iii
CONTENTS
USING THIS MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
CUSTOMER ASSISTANCE & SUPPORT . . . . . . . . . . . . . . . . . . . . . . . . . . 1
IN THE BOX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
INSTALLING THE BDXHTSL1 SMART THERMOSTAT . . . . . . . . . . . . . . . . . 2
DEVICE OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
DISPLAY ELEMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
SMART DEVICE APPLICATION – DOWNLOAD . . . . . . . . . . . . . . . . . . 12
THERMOSTAT PARAMETERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
MANUAL OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
APPENDIX A – THERMOSTAT WIRING SCHEMATICS . . . . . . . . . . . A-1
APPENDIX B – WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
APPENDIX C – COMPLIANCE: FCC/INDUSTRY CANADA . . . . . . . . C-1
APPENDIX D – THERMOSTAT SPECIFICATIONS . . . . . . . . . . . . . . . . D-1
TRADEMARK ACKNOWLEDGEMENT

1
CUSTOMER SERVICE & SUPPORT
For any questions about operating this new BLACK+DECKER branded product, PLEASE CON-
TACT US FIRST… do not return this product to the retail store. The contact information for
support will vary depending on the country in which you purchased and utilize the product.
To obtain warranty service or other information for products purchased from CT Nova itself
or through its authorized reseller or agent and utilized in the U.S.A., please visit www.ctnovat-
ech.com. You will receive instructions on how to ship the products at your expense to an our
Authorized Service Center. To obtain service, you must include: (a) a copy of your receipt, bill
of sale or other comparable proof of purchase; (b) a written description of the problem; and,
most importantly; (c) your address and telephone number.
For further information needed on its features, please visit www.ctnovatech.com for frequently
asked questions and the electronic manual.
©2021 CT Nova US LLC
4700 Duke Drive Suite 200, Mason, OH 45040, USA

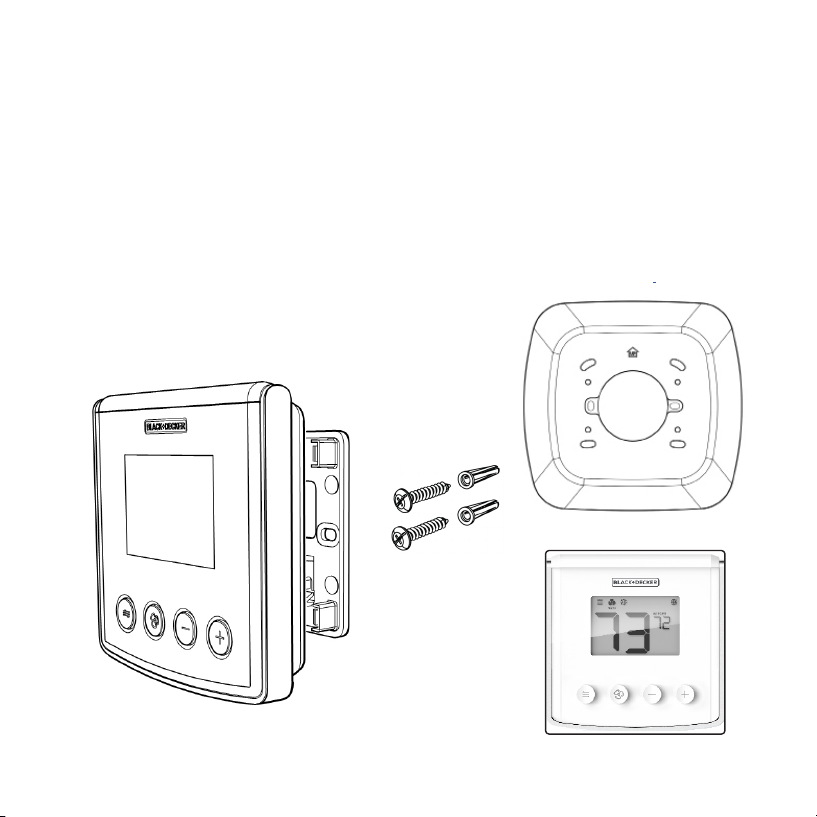

IN THE BOX
Installation & Operation Manual
BDXHTSL1 Smart Thermostat
with Mounting Plate
Mounting
Hardware
Wall Plate (if required)

2
INSTALLING THE THERMOSTAT
There are 5 steps to install the BDXHTSL1 Smart Thermostat.
1. Determine Wiring Conguration
2. Remove Old Thermostat
3. Install Thermostat Mounting Base
4. Connect Wires
5. Attach Display
TOOLS REQUIRED (Not included)
The following tools may be required for installation:
• #1 Phillips or athead screwdriver
• Power drill with 3/16” bit
• Level
• Smartphone/camera to photograph existing wiring (optional)
• Screwdriver to disconnect wires from existing thermostat.
• Pencil TURN OFF POWER TO HVAC
SYSTEM
Locate the HVAC panel breaker
and turn OFF the system. Before
removing the old thermostat,
initiate heating or cooling by
changing the temperature setting.
Ensure the HVAC system does not
respond.

3
NON-HP HP WIRE COLOR/DESCRIPTION
RC RC
RH RH
C C
G G
Y1 Y1
N/A N/A
W1 OB
N/A L
INSTALLING THE THERMOSTAT
DETERMINE WIRING CONFIGURATION
If the BDXHTSL1 Smart Thermostat is being installed in a new system or if wiring
changes are required, refer to Appendix A for the wiring congurations and
skip to “Install Mounting Plate”.
When replacing a thermostat and replication of the existing wiring is desired on
the BDXHTSL1 Thermostat, the following applies:
• Remove old thermostat to expose the wiring terminals
• Photograph the wiring for reference or,
• Use the Wire Color Record to note the wire color and function of each wire.
If the terminals of the existing thermostat are unmarked, determine the
wire functions for each color wire at the appliance.
Wire Color Record

4
WARNING:
The BDXHTSL1 Thermostat IS NOT COMPATIBLE with supply
voltages above 30 VAC. If the old thermostat is connected
with thick wire and wire nuts or is labeled for voltages
higher than 30 VAC, DO NOT INSTALL the Thermostat.

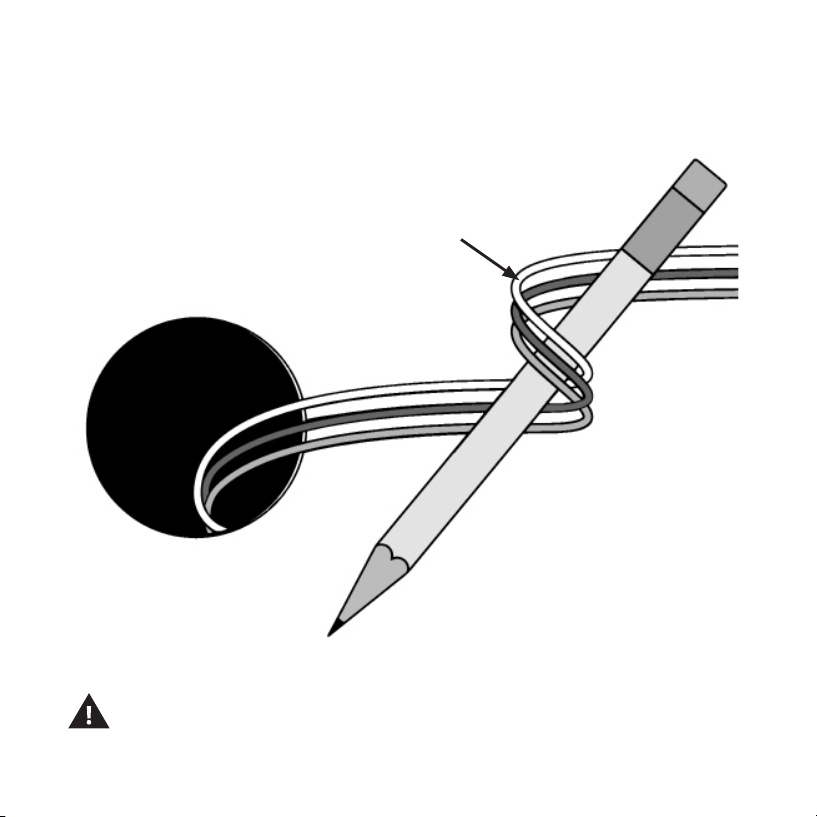

Wrap wires around a pencil or similar object
to prevent them from falling into the wall void.
INSTALLING THE THERMOSTAT
REMOVE OLD THERMOSTAT
Remove the old thermostat from the wall, taking care not to allow the wires
to fall inside the void.

5
INSTALLING THE THERMOSTAT
INSTALL MOUNTING PLATE (with WALL PLATE if required)
To cover paint or screw holes on the wall behind the thermostat, insert the
Wall Plate between the Mounting Plate and the wall as shown. Both plates
are secured with the same screws.
Use the included screws and wall anchors
(if required) to attach the Mounting Plate
to the wall, making sure the wires go
through the center opening. Note the
correct position indicated by the UP
arrows molded into the plastic.
Note: Use 3/16” drill for wall
anchors if no stud is present.

6
INSTALLING THE THERMOSTAT

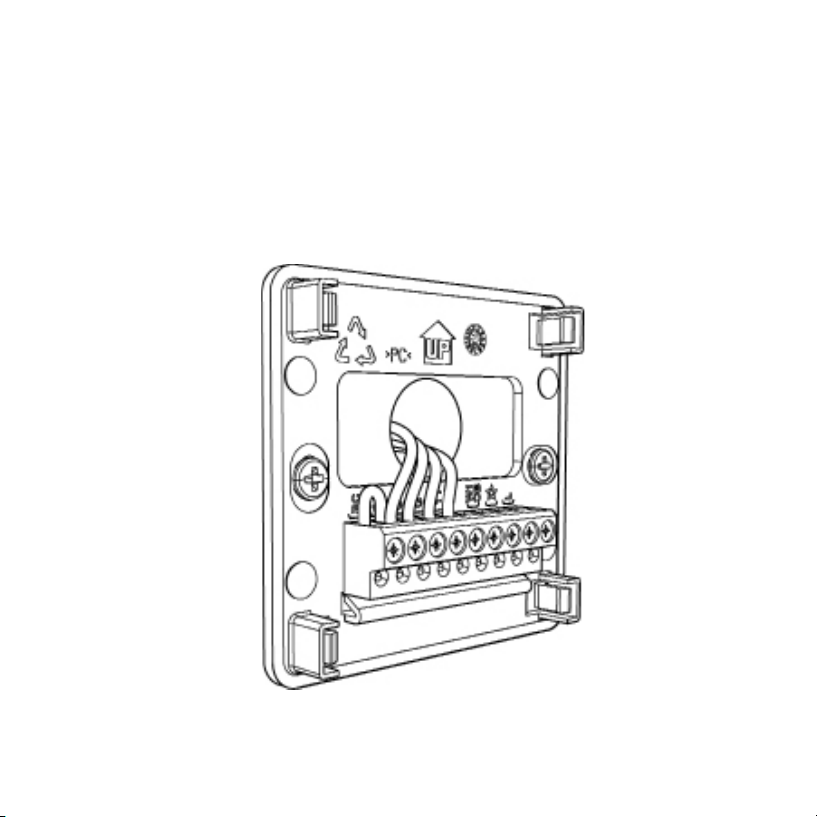

ATTACH WIRING
To insert a wire, loosen the screw corresponding to the labeled
socket and slide the wire into the socket. Once the wire is inserted,
tighten the screw snugly. DO NOT OVERTIGHTEN the screws. Pull
gently on each wire after the screw is snug to make sure it is secure.
Inspect the wires for oxidation and integrity.
NOTICE: A factory supplied jumper is provided between RC and RH.
This should be removed in two transformer systems (See Appendix A).

7
INSTALLING THE THERMOSTAT

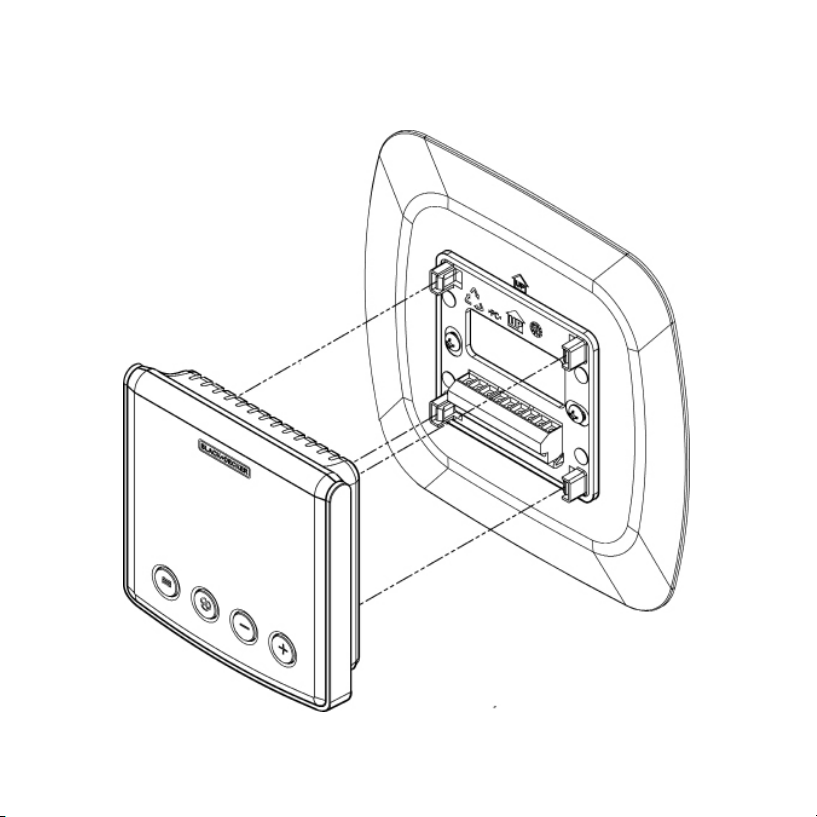

ATTACH DISPLAY TO MOUNTING PLATE
Slide the display over the Mounting plate and the LCD display will illuminate.

8
DEVICE OVERVIEW

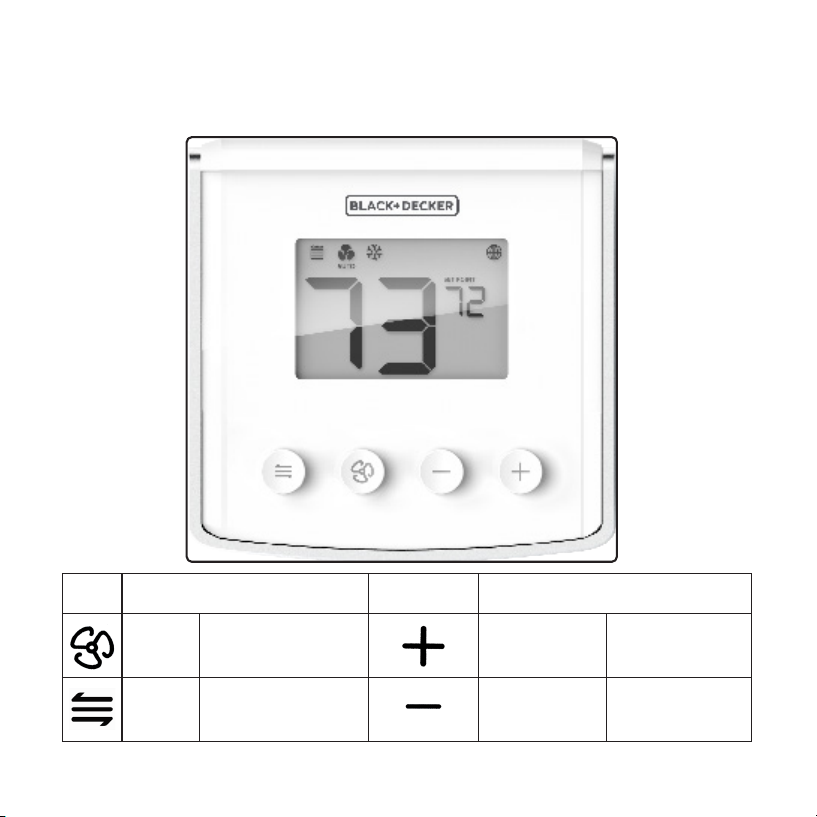

BDXHTSL1 SMART THERMOSTAT KEYS
KEY DESCRIPTION BUTTON DESCRIPTION
FAN Change
Fan Speed INCREASE Increase Set Point
MODE Change
System Mode DECREASE Decrease Set Point

9
DEVICE OVERVIEW

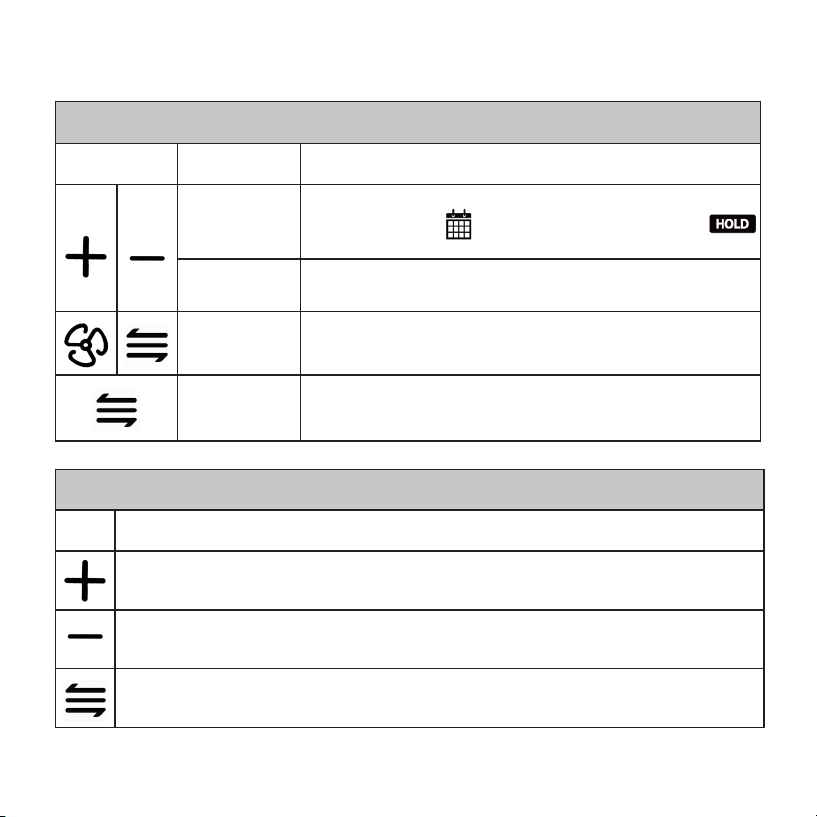

SPECIAL KEY FUNCTIONS
KEYS TIME RESULT
< 3 seconds
Briey press + and - keys to switch between
Programmable and Non-programmable
Thermostat.
3 seconds Hold + and – keys for 3 seconds to lock or unlock
key pad.
3 seconds Hold the Fan and Mode keys for 3 seconds to enter
or exit the Parameter Menu.
5 seconds
Hold the Mode button for 5 seconds to
initiate pairing with a Wi-Fi network and the
Black+Decker Application.
PARAMETERS AND MENU KEY FUNCTIONS
KEY DESCRIPTION
Scroll forward through the Parameter Menu
Scroll backward through the Parameter Menu
Select parameter value in the Parameter Menu

10

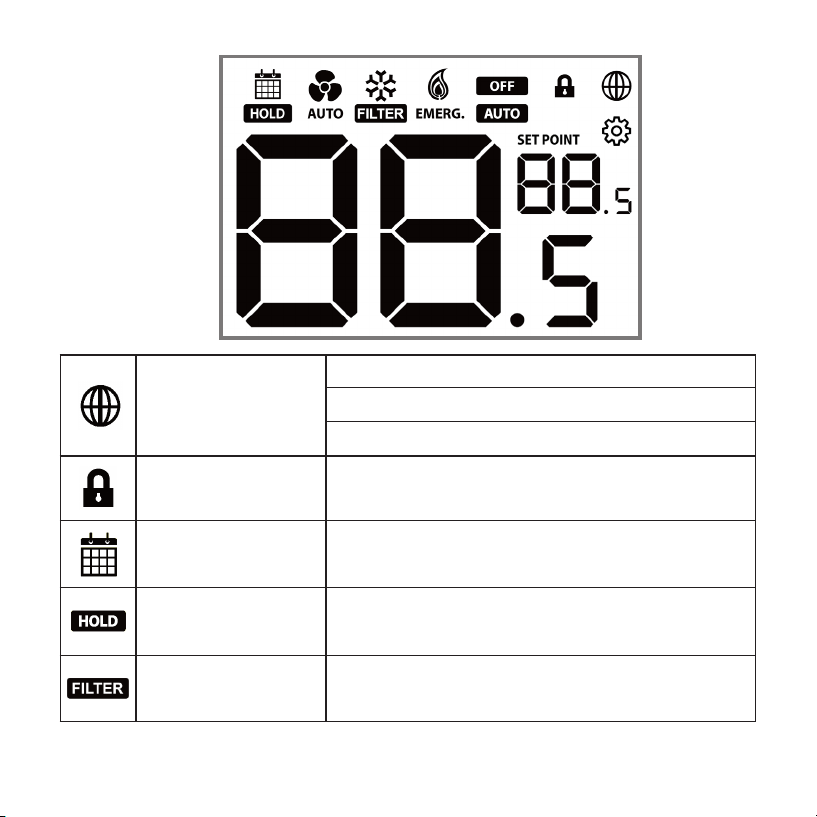

Cloud Server/
Internet Connection
Steady = Wi-Fi and Cloud Server connected
1 Flash = Wi-Fi connected, No Cloud connection
2 Flashes = No Wi-Fi or Cloud Server connection
Thermostat Lock
Indicator Displayed when thermostat keys are disabled
Schedule Indicator Displayed when thermostat schedule
is enabled.
Override Indicator Displayed when scheduled temperature
override is active.
Filter Warning
Indicator Displayed when air lter is clogged.
DISPLAY
ELEMENTS

11
Heating/Cooling Modes – Press to change
OFF – The SMARTSTAT
will not activate heating or
cooling*
AUTOMATIC CHANGEOVER
– The SMARTSTAT will activate
heating or cooling appliance based
on the room temperature.
HEAT – The SMARTSTAT
will activate heating
appliance based on the
room temperature.
EMERGENCY HEAT – The SMARTSTAT
displays this with the element to
indicate that emergency heat is active.
COOL – The SMART-
STAT will activate cooling
appliance based on room
temperature.
* If freeze protection is active, the heating
appliance will be activated to maintain a
minimum temperature.
Fan Mode
FAN – Press to change between automatic mode and manual.
Temperature Displays
SET POINT – Displays the current
target set point temperature.
Displays the current room temperature.

12
SMART DEVICE APPLICATION
Before setting up the thermostat, download the BLACK+DECKER
HOME application on your IOS or Android device. After download-
ing the application, follow the steps in the BLACK+DECKER Home
Application Guide to connect the thermostat.
The BDXHTSL1 Thermostat is designed for remote operation
using a smart device application.

13
THERMOSTAT PARAMETERS
To access the BDXHTSL1 Smart
Thermostat menu parameters
manually, hold down the Mode
and Fan buttons for 3 seconds.
When a Menu Code is displayed,
use the + and – buttons to
choose the desired value.
Press Mode ( ) to display
Option Values. Once the desired
Menu Code and Option Code are
displayed, press Mode to accept
the value.

14
THERMOSTAT PARAMETERS
To access the BDXHTSL1 Smart Thermostat menu parameters manually,
hold down the Mode and Fan buttons for 3 seconds. The following is a
list of the available parameters.
PARAMETER CODE DESCRIPTION
HVAC
Type
01 1Conventional 1H 1-Stage Heating
01 2Conventional 2H 2-Stage Heating
01 3Conventional 1H 1C 1-Stage Heating & 1-Stage Cooling
01 4Conventional 2H 1C 2-Stage Heating & 1-Stage Cooling
01 5Conventional 1H 2C 1-Stage Heating & 2 Stage Cooling
01 6Conventional 1C 1-Stage Cooling
01 7Conventional 2C 2-Stage Cooling
01 8Heat Pump 1H 1-Stage Heating
01 9Heat Pump 1C 1-Stage Cooling
01 10 Heat Pump 1H1C 1-Stage Heating & 1-Stage Cooling
01 11 Heat Pump 2H 2-Stage Heating
01 12 Heat Pump 2H 1C 2-Stage Heating & 1-Stage Cooling
01 13 Dual Fuel 2H 1C 2-Stage Heating & 1-Stage Cooling
FAN
Type
03 1Gas (Gas-red) Gas-red Equipment
03 2Electric (Electric Powered) Electric Powered Equipment
This setting is only available for HVAC Type Conventional (01 1 to 01 8) and
Dual Fuel (01 16)

15
PARAMETER CODE DESCRIPTION
HP
Type
04 1HP o Changeover valve defaults to Cooling
04 2HP b Changeover valve defaults to Heating
Temp
Unit
07 1Fahrenheit US Customary System of Temperature Units
07 2Celsius Système international Metric Temperature Units
Frost
Protection
09 1Disable When enabled, call for heat will be initiated if
room temperature drops below 41.0°F (5.0°C)
09 2Enable
Temp
Cal.
10 -6 -6.0°F (-3.0°C)
Calibrate temperature reading by offsetting
the display by -6.0°F to 6.0°F (-3.0°C to 3.0°C)
in 1.0°F (0.5°C) increments. Default = 0
10 -5 -5.0°F (-2.5°C)
10 -4 -4.0°F (-2.0°C)
10 -3 -3.0°F (-1.5°C)
10 -2 -2.0°F (-1.0°C)
10 -1 -1.0°F (-0.5°C)
10 00.0°F (0.0°C)
10 11.0°F (0.5°C)
10 22.0°F (1.0°C)
10 33.0°F (1.5°C)
10 44.0°F (2.0°C)
10 5 5.0°F (2.5°C)
10 66.0°F (3.0°C)
THERMOSTAT PARAMETERS

16
PARAMETER CODE DESCRIPTION
Span
11 05 0.5°F (0.25°C)
Control variable that affects thermostat
response time. A larger number slows
response time.
11 10 1.0°F (0.5°C)
11 15 1.5°F (0.75°C)
11 20 2.0°F (1.0°C)
11 25 2.5°F (1.25°C)
11 30 3.0°F (1.5°C)
Deadband
12 22.0°F (1.0°C)
Allowable temperature difference, in Auto
Mode, between heating and cooling set points.
Default = 4.0°F (2.0°C)
12 33.0°F (1.5°C)
12 44.0°F (2.0°C)
Setback
Offset
13 44.0°F (2.0°C)
Difference between the non-programmable set
point and the setback temperature.
13 88.0°F (4.0°C)
13 12 12.0°F (6.0°C)
Reduces energy usage when the space is not occupied.
Backlight
Timeout
14 1Disable Backlight always on
14 2 Enable Backlight timeout after 20 seconds
THERMOSTAT PARAMETERS
