Black & Decker GL20 User manual

1
GL20

2
Copyright Black & Decker
3
21

3
3
A
BC
1
4
3
6
5
2
9
8
7
4

4
D
E
20°
1113 12
10 5

1. Steek een uiteinde van een nieuw stuk
snijdraad in het gat.
2. Voer de snijdraad onder de borgclip en
trek totdat de draad vastklikt.
3. Voor de snijdraad zoals afgebeeld in
de twee gleuven en steek de draad
door de opening.
1. Introduzca un extremo del hilo de corte
en el agujero.
2. Guíe el hilo por debajo del clip de
retención y tire del hilo hasta que se
coloque en posición con un clic.
3. Guíe el hilo hacia el interior de las dos
ranuras tal y como se muestra y páselo
por el orificio de salida.
1. Insira no orifício uma das extremidades
do novo fio de nylon.
2. Guie o fio por baixo do grampo
retentor e puxe-o até encaixar no
lugar.
3. Coloque o fio nas duas ranhuras
conforme o indicado e passe-o pelo
orifício de saída.
1. Stick in ena ändan av en ny bit trimtråd
i hålet.
2. För in tråden under fasthållarklämman
och dra i den tills den fastnar med ett
knäpp.
3. För in tråden i de två skårorna enligt
bilden och trä ut den genom hålet.
1. Før enden av en ny trimmertråd inn i
hullet.
2. Før tråden under holderklemmen, og
trekk tråden ut til den klikker på plass.
3. Før tråden inn i de to sporene som vist,
og træ den gjennom utmatingshullet.
1. Indsæt den ene ende af et nyt stykke
trimmertråd i hullet.
2. Før tråden under holdeclipsen og træk
i tråden, til den klikker på plads.
3. Før tråden ind i de to riller som vist, og
put den gennem udgangshullet.
1. Aseta uuden leikkuulangan palan
toinen pää reikään.
2. Vie lanka kiinnityspidikkeen alta ja vedä
lankaa, kunnes se napsahtaa paikalleen.
3. Aseta lanka kahteen uraan kuvan
mukaisesti ja vie se ulostuloreiän läpi.
1. ∆ÔÔıÂÙ‹ÛÙ ÙÔ ¤Ó· ¿ÎÚÔ ÂÓfi˜ Ó¤Ô˘
ÎÔÌÌ·ÙÈÔ‡ Ó‹Ì·ÙÔ˜ ÎÔ‹˜ ÛÙËÓ ÙÚ‡·.
2. √‰ËÁ‹ÛÙ ÙÔ Ó‹Ì· οو ·fi ÙÔ ÎÏÈ
Û˘ÁÎÚ¿ÙËÛ˘ Î·È ÙÚ·‚‹ÍÙ ÙË ÁÚ·ÌÌ‹
̤¯ÚÈ Ó· ÎÔ˘ÌÒÛÂÈ ÛÙË ı¤ÛË Ù˘.
3. √‰ËÁ‹ÛÙ ÙÔ Ó‹Ì· ̤۷ ÛÙȘ ‰‡Ô
ÂÁÎÔ¤˜ fiˆ˜ ÂÈÎÔÓ›˙ÂÙ·È, ηÈ
ÂÚ¿ÛÙ ÙÔ Ó‹Ì· ̤۷ ·fi ÙËÓ Ô‹
ÂÍfi‰Ô˘.
ENGLISH NEDERLANDS NORSK
DEUTSCH ESPAÑOL DANSK
ENGLISH
FRANÇAIS PORTUGUÊS SUOMI
ITALIANO

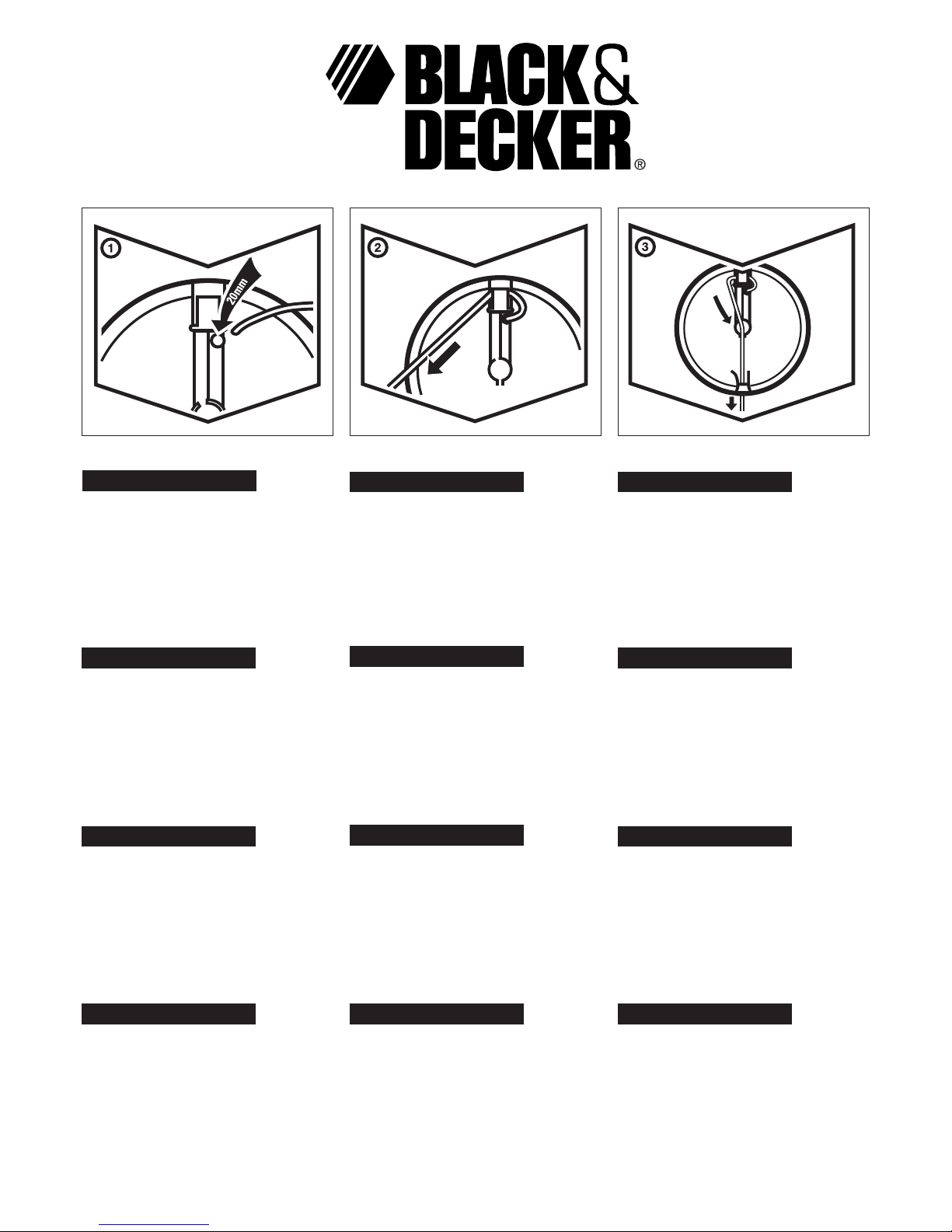

1. Insert one end of a new piece of
cutting line into the hole.
2. Guide the line under the retaining clip
and pull the line until it clicks into
place.
3. Guide the line into the two slots as
shown and thread the line through the
exit hole.
1. Stecken Sie das eine Ende des neuen
Schneidfadens in die Bohrung.
2. Führen Sie den Faden unter den Haken
und ziehen Sie am Faden, bis er
einrastet.
3. Führen Sie den Faden wie abgebildet
in die beiden Nuten und stecken Sie
den Faden durch die Öffnung.
1. Insérez un des extrémités d’un nouveau
morceau de fil de coupe dans le trou.
2. Faites glisser le fil sous le clip de
blocage et tirez-le jusqu’à ce qu’il se
mette en place.
3. Faites glisser le fil dans les deux
encoches comme indiqué et passez-le
dans l’orifice de sortie.
1. Inserire l’estremità di un nuovo pezzo
di filo di taglio nel foro.
2. Guidare il filo sotto il fermo e tirarlo
fino a che non si inserisce a scatto.
3. Guidare il filo nelle due fessure, come
illustrato, e farlo passare attraverso il
foro di uscita.
SVENSKA ∂§§∏¡π∫∞
578175-00

5
ENGLISH
STRIMMER GL20
CONGRATULATIONS!
You have chosen a Black & Decker tool. Our aim is
to provide quality tools at an affordable price.
We hope that you will enjoy using this tool for
many years.
EC DECLARATION OF CONFORMITY
GL20 family
Black & Decker declares that these
products conform to: 98/37/EC,
89/336/EEC, 73/23/EEC, EN 60335,
EN 55014, EN 61000,
2000/14/EC, Lawn trimmer, L ≤50 cm
Annex VIII, No. 00086
B.S.I., HP2 4SQ, United Kingdom
Level of sound pressure, measured according to
2000/14/EC:
GL20 family
L
pA
(sound pressure) dB(A) 81
L
WA
(acoustic power) dB(A) 94
L
WA
(guaranteed) dB(A) 96
Always wear ear protection if the sound
pressure exceeds 85 dB(A).
Hand/arm weighted vibration value according to
98/37/EC:
GL20 family
< 2.5 m/s
2
Brian Cooke
Director of Engineering
Spennymoor, County Durham DL16 6JG,
United Kingdom
1-12-2001
INTENDED USE
Your Black & Decker strimmer has been designed
for trimming lawn edges and to cut grass in
confined spaces. This tool is intended for
consumer use only.
SAFETY INSTRUCTIONS
Warning symbols
The following symbols are used in this manual:
Denotes risk of personal injury, loss of life
or damage to the tool in case of non-
observance of the instructions in this
manual.
Denotes risk of electric shock.
Read the manual prior to operation.
Know your appliance
◆Warning! When using mains-powered
appliances, basic safety precautions,
including the following, should always
be followed to reduce the risk of fire,
electric shock and personal injury.
◆Read all of this manual carefully before
operating the appliance.
◆Before operating the appliance, make
sure that you know how to switch it off
in an emergency.
◆The intended use is described in this
manual. The use of any accessory or
attachment or performance of any
operation with this appliance other than
those recommended in this instruction
manual may present a risk of personal
injury.
◆Retain this manual for future reference.

6
ENGLISH
Work area
◆Do not expose the appliance to rain. Do not
use the appliance in damp or wet conditions.
◆Only use the appliance in daylight or good
artificial light.
Personal protection
◆Wear stout shoes or boots to protect your feet.
Do not operate the appliance wearing open-
toed sandals or when barefoot.
◆Wear long trousers to protect your legs.
Using your appliance
◆Be sure that the appliance is switched off when
plugging in.
◆Stay alert. Watch what you are doing.
Use common sense.
◆Do not operate the appliance when you are tired.
◆If the appliance begins to vibrate abnormally,
switch it off and remove the plug from the
socket. Allow rotating parts to stop and inspect
the appliance for damage and loose parts.
◆Never pull the cord to disconnect the plug
from the socket. Keep the cord away from
heat, oil and sharp edges.
◆If the mains cable is damaged during use,
switch the appliance off and disconnect the
plug from the mains immediately. Do not
touch the mains cable before disconnecting
from the mains.
Safety of others
◆Do not allow children or any person unfamiliar
with these instructions to operate the appliance.
◆Do not allow children, visitors or animals to
come near the work area or to touch the
appliance or mains cable.
◆Remember that the operator may be held
responsible for accidents or hazards occurring
to other people or their property.
After use
◆Switch off, remove the plug from the socket
and ensure that moving parts have stopped
rotating before leaving the appliance
unattended and before changing, cleaning or
inspecting any parts of the appliance.
◆When not in use, the appliance should be
stored in a dry place. Children should not have
access to stored appliances.
Inspection and repairs
◆Before use, check the appliance for damaged
or defective parts. Check for misalignment and
seizure of moving parts, breakage of parts,
damage to guards and switches and any other
conditions that may affect its operation.
◆Do not use the appliance if any part is damaged
or defective. Do not use the appliance if the
switch does not turn it on and off.
◆Never use the appliance when any guard or
enclosure is damaged or not in place.
◆Ensure that the appliance will operate properly
and perform its intended function.
◆Have any damaged or defective parts repaired
or replaced by an authorised repair agent.
◆Before use, check the mains cable for signs of
damage, ageing and wear.
◆Do not use the appliance if the mains cable is
damaged or defective.
◆If the mains cable is damaged or defective it
must be repaired by an authorised repair agent
to avoid a hazard.
◆Never attempt to remove or replace any parts
other than those specified in this manual.
Additional safety instructions for grass trimmers
The following warning symbols are found on the
appliance:
Wear safety glasses or goggles when
operating this tool.
The cutting line will continue to run for a
few seconds after switching the appliance
off. Never attempt to force the line to
come to a standstill.
360˚
6m/20ft
Keep people and animals at least 6 m
away from the cutting area.
Do not expose the appliance to rain or
high humidity.

7
ENGLISH
Switch off, remove the plug from the socket
and ensure that moving parts have stopped
rotating before leaving the appliance
unattended and before changing, cleaning
or inspecting any parts of the appliance.
◆Before using the appliance, check that your
cutting path is free from sticks, stones, wire
and any other objects.
◆Only use the appliance in the correct position,
with the cutting line near the ground, as shown
in the illustrations. Never switch the appliance
on in any other position.
◆Switch on the appliance only when hands and
feet are away from the cutting line.
◆Avoid body contact with the cutting line while
the appliance is running.
◆Do not work on steep slopes. Be sure of your
footing. Be aware that freshly cut grass is
damp and slippery.
◆Take care when trimming near borders and
gravel paths or roads, as stones and soil may
be moved by the cutting line.
◆Do not put the appliance down until the
cutting line has come to a complete standstill.
◆Use only the appropriate type of Black & Decker
cutting line. Never use metal cutting line or
fishing line.
◆After extending new cutting line, always return
the appliance to its normal operating position
before switching on.
◆Take care to keep the mains cable away from
the cutting line. Always be aware of the
position of the cable.
ELECTRICAL SAFETY
The appliance has been designed for one voltage
only. Always check that the power supply
corresponds to the voltage on the rating plate.
This appliance is designed for use on AC
(mains) power supplies only. Do not
attempt to use on any other supply.
This appliance is double insulated in
accordance with EN 60335; therefore no
earth wire is required.
◆Prevent body contact with earthed or
grounded surfaces (e.g. metal railings,
lamp-posts etc.).
◆Electric safety can be further improved by
using a high-sensitivity (30 mA / 30 mS)
residual current device (RCD).
Mains plug replacement (U.K. & Ireland only)
◆Should your mains plug need replacing and you
are competent to do this, proceed as instructed
below. If you are in doubt, contact an authorised
repair agent or a qualified electrician.
◆Disconnect the plug from the supply and
remove the fuse from the plug.
◆Cut off the plug and dispose of it safely; a plug
with bared copper conductors is dangerous if
engaged in a live socket outlet.
◆Only fit 13 Amperes BS1363A approved plugs
fitted with the correctly rated fuse (1).
Use 5 Amperes fuses.
◆The cable wire colours, or a letter, will be
marked at the connection points of most good
quality plugs. Attach the wires to their
respective points in the plug (see above).
Brown is for Live (L) (2), blue is for Neutral (N) (4).
◆Before replacing the top cover of the mains
plug ensure that the cable restraint (3) is
holding the outer sheath of the cable firmly
and that the leads are correctly fixed at the
terminal screws.
◆If the plug has a fuse cover, make sure that the
fuse cover is fitted. Do not use the plug if the
fuse cover is missing or damaged.

8
ENGLISH
Never use a light socket.
Using an extension cable
Always use an approved extension cable suitable
for the power input of this appliance (see rating
plate). The extension cable must be suitable for
outdoor use.
◆Before use, inspect the cable for signs of
damage, wear and ageing. Replace the
extension cable if damaged or defective.
◆When using a cable reel, always unwind the
cable completely.
◆Take care to keep the cable away from the
cutting line. Always be aware of the position of
the cable.
CARTON CONTENTS
The carton contains:
1 Grass trimmer
1 Guard with mounting screw
1 Pack with pieces of cutting line
1 Instruction manual
◆Carefully unpack all parts.

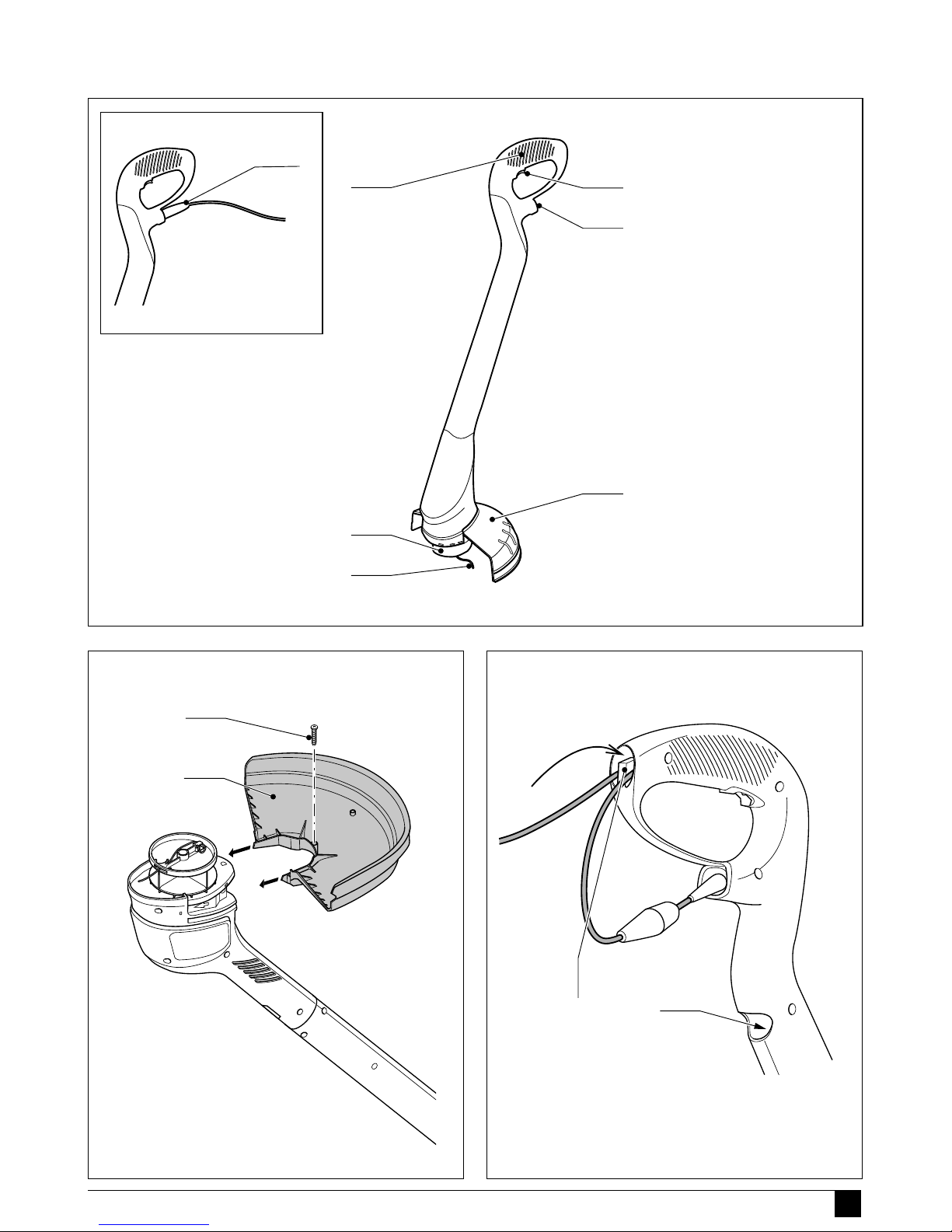

OVERVIEW (fig. A)
1. On/off switch
2. Handle
3. Power inlet (not for UK)
3. Mains cable (UK)
4. Guard
5. Line retainer
6. Cutting line
ASSEMBLY
Before assembly, make sure that the tool
is switched off and unplugged.
Fitting the guard (fig. B)
◆Unplug the tool.
◆Remove the screw (7) from the guard (4).
◆Place the guard (4) onto the tool as shown.
◆Firmly press the guard until it snaps into place.
◆Secure the guard with the screw (7).
Never use the tool unless the guard is
properly fitted.
Fitting a new piece of cutting line (fig. C & D)
Replacement packs containing pieces of pre-cut
cutting line are available from your Black & Decker
dealer (cat. no. A5995). Alternatively, you can
purchase a pack containing 25 or 40 m of cutting
line (A6170/A6171) and cut the line into pieces of
177 mm each. The tool is equipped with a storage
compartment (9) for pieces of cutting line (fig. C).
◆Unplug the tool.
◆Remove any remaining cutting line from the
line retainer.
◆Remove any dirt and grass from the line retainer.
1. Insert one end of a new piece of cutting line
into the hole (10).
2. Guide the line under the retaining clip (11) and
pull the line until it clicks into place.
3. Guide the line into the two slots (12) as shown
and thread the line through the exit hole (13).
◆Make sure the line is securely fitted.
Only use 1.5 mm diameter Black & Decker
cutting line.
Connecting the tool to the mains (fig. A & C)
Unless the tool is fitted with a mains cable, you will
need to connect an extension cable to the power
inlet (3).
◆Connect the female socket of a suitable
extension cable to the power inlet (3).
◆Loop the cable through the cable restraint (8)
as shown to prevent the extension cable from
becoming detached during use.
◆Insert the mains plug into a mains outlet.
The extension cable must be suitable for
outdoor use.
USE
Let the tool work at its own pace.
Do not overload.
Switching on and off (fig. A)
◆To switch the tool on, push the on/off switch (1).

9
ENGLISH
◆To switch the tool off, release the the
on/off switch.
Never attempt to lock a switch in the on
position.
Hints for optimum use
◆Hold the tool as shown in fig. E.
◆Gently swing the trimmer from side to side as
shown in fig. E.
◆When cutting long grass, work in stages from
the top.
◆Keep the tool away from hard objects and
delicate plants.
◆If the tool starts running slowly, reduce the load.
◆In order to achieve optimum cutting results,
only cut dry grass.
◆Replace the cutting line when worn.
MAINTENANCE
Your Black & Decker tool has been designed to
operate over a long period of time with a
minimum of maintenance. Continuous satisfactory
operation depends upon proper tool care and
regular cleaning.
◆Before performing any maintenance,
switch off and unplug the tool.
◆Do not use any abrasive or solvent-
based cleaner.
◆Regularly clean the ventilation slots in your tool
using a soft brush or dry cloth.
◆Regularly clean the cutting line and line
retainer using a soft brush or dry cloth.
◆Regularly use a blunt scraper to remove grass
and dirt from the underneath of the guard.
◆Regularly check the cutting line for wear.
TROUBLESHOOTING
If your tool seems not to operate properly, follow
the instructions below. If this does not solve the
problem, please contact your local Black & Decker
repair agent.
Before proceeding, unplug the tool.
Tool does not start
◆Check that the power cables are properly
connected.
◆Check the mains fuses.
Tool vibrates strongly
◆Carefully clean the line retainer.
◆Check that the line retainer is firmly attached
and that it is not damaged. Have it repaired or
replaced if necessary.
◆Check that the cutting line is present and
properly fitted.
◆Check the cutting line for damage. Replace if
necessary.
PROTECTING THE ENVIRONMENT
Black & Decker provides a facility for
recycling Black & Decker products once
they have reached the end of their
working life. This service is provided free
of charge. To take advantage of this
service please return your product to any
authorised repair agent who will collect
them on our behalf.
You can check the location of your nearest
authorised repair agent by contacting your local
Black & Decker office at the address indicated in
this manual. Alternatively, a list of authorised
Black & Decker repair agents and full details of our
after-sales service and contacts are available on
the Internet at: www.2helpU.com.
GUARANTEE
Black & Decker is confident of the quality of its
products and offers an outstanding guarantee.
This guarantee statement is in addition to and in
no way prejudices your statutory rights.
The guarantee is valid within the territories of the
Member States of the European Union and the
European Free Trade Area.

10
ENGLISH
If a Black & Decker product becomes defective
due to faulty materials, workmanship or lack of
conformity, within 24 months from the date of
purchase, Black & Decker guarantees to replace
defective parts, repair products subjected to fair
wear and tear or replace such products to ensure
minimum inconvenience to the customer unless:
◆The product has been used for trade,
professional or hire purposes;
◆The product has been subjected to misuse or
neglect;
◆The product has sustained damage through
foreign objects, substances or accidents;
◆Repairs have been attempted by other persons
than authorised repair agents or Black & Decker
service staff.
To claim on the guarantee, you will need to
submit proof of purchase to the seller or an
authorised repair agent. You can check the
location of your nearest authorised repair agent by
contacting your local Black & Decker office at the
address indicated in this manual. Alternatively, a
list of authorised Black & Decker repair agents and
full details of our after-sales service and contacts
are available on the Internet at:
www.2helpU.com.
OTHER OUTDOOR TOOLS
Black & Decker has a full range of outdoor power
tools that make life in the garden easy. If you would
like further information on the following products,
please contact our Service and Information Centre
(see the address page towards the end of this
manual) or your local Black & Decker retailer.
String trimmers Chainsaws
Cordless shear Hedgetrimmers
Lawnmowers Lawnrakers
Leafbusters Shredders
Not all products are available in all countries.

11

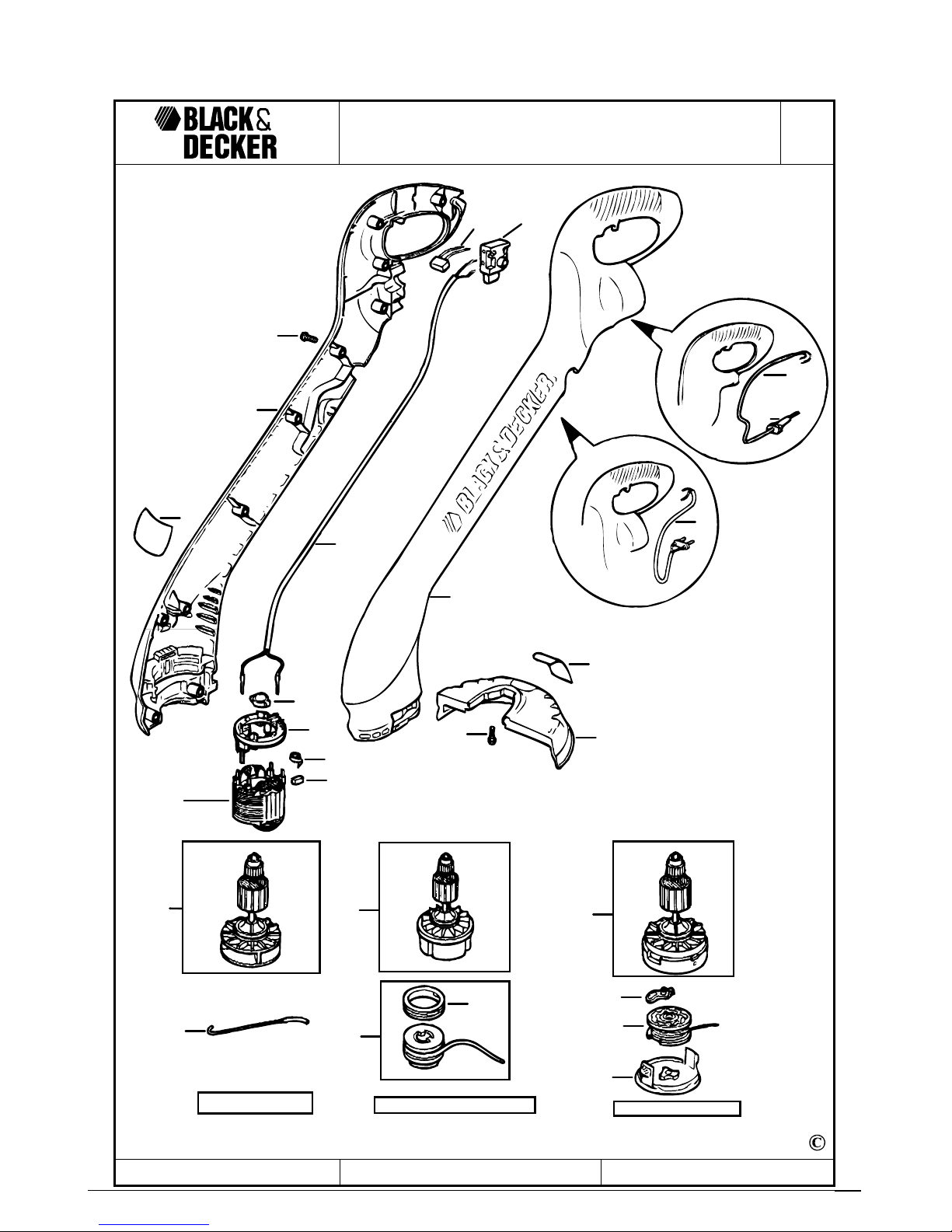

TYP.
E13003 24 - 07 - 2000
1
GL20S/ GL225/ GL425
GL20S GL20SC GL225/225S/225SC/225C GL425/425S/425SC
2
3
4
5
6
7
8
9
10
11
12
15
16
23
17
18
22
1
19
20
21
11
13
14
www.2helpU.com
6
13

12

13

14
Australia DEWALT Industrial Power Tool Company Tel. [phone]
7 Clarice Road Fax [phone]
Box Hill, Victoria 3128
New Zealand Black & Decker Tel. [phone]
81 Hugo Johnson Drive Fax [phone]
Penrose, Auckland, New Zealand
South Africa Black & Decker South Africa (Pty) Ltd Tel. [phone]
Physical address: Fax [phone]
146 Lechwe Street
Corporate park
Randjiesfontein, Midrand
Postal address:
Postnet Suite 107, Private Bag X65
Halfway House 1685
United Kingdom Black & Decker Tel. [phone]
210 Bath Road Fax [phone]
Slough, Berkshire SL1 3YD Helpline 01753 574277
574792-11

15
Dealer address Date of purchase
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
✁
Name: ......................................................................................................
Address: ...................................................................................................
Town: .......................................................................................................
Postal code: .............................................................................................
Was this tool a gift?
Yes
No
Was this tool your first purchase?
Yes
No
Was this tool bought as a replacement?
Yes
No
Dealer address: ........................................................................................
.................................................................................................................
.................................................................................................................
Data protection act:
Tick the box if you prefer not to receive further information.

16
GUARANTEE CARD
Please complete this section immediately after the purchase of your tool and send it to Black & Decker in your
country. If you live in Australia or New Zealand, please register by using the alternative guarantee card
supplied.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
✁
574792-11
