Gardenline 43671/HTKS26 User manual

26cc 2-Stroke Petrol Hedge Trimmer
User Guide
After Sales Support
Now you have purchased a Gardenline®
product you can rest assured in the
knowledge that as well as your
3 year parts and labour guarantee
you have the added peace of
mind of dedicated helplines
and web support
AFTER SALES SUPPORT
MODEL: HTKS26 PRODUCT CODE: 43671 10/2014
YEAR WARRANTY
2
1800 909 909
www.powertoolsupport.com
AUS

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43671
2
Contents
03 Warranty
03 Introduction
03 Environmental protection
04 Description of symbols
05 Specifications
06 Safety instructions
08 Additional safety rules for petrol Hedge trimmers
10 Parts list
11 Getting Started
11 Unpacking
11 Contents of carton
11 Assembly
12 Fuel and Lubrication
12 Mixing the fuel
13 Filling the tank
14 Starting a cold engine
15 Operation of the throttle trigger
16 Stopping the engine
17 Operation of the rotary handle
17 Use of hedge trimmer
18 Using the Hedge Trimmer with the Trimmer on its side
19 Trimming instructions
20 Blade maintenance
21 Blade lubrication
22 Air Filter
22 Spark plug
22 Storage and maintenance after use
22 Removing a unit from storage
22 Service Support & Accessories
23 Troubleshooting

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43671
3
Introduction
Your new Gardenline®hedge trimmer will more than satisfy
your expectations. It has been manufactured under stringent
Gardenline®Quality Standards to meet superior performance
criteria.
You will find your new hedge trimmer easy and safe to operate, and, with proper
care, it will give you many years of dependable service.
CAUTION. Carefully read through this entire instruction manual before using
your new Gardenline®hedge trimmer. Take special care to heed the Cautions and
Warnings.
Your Gardenline®hedge trimmer has many features that will make your job faster
and easier. Safety, performance, and dependability have been given top priority in
the development of this hedge trimmer, making it easy to maintain and operate.
Environmental protection
Recycle unwanted materials instead of disposing of them as waste.
All tools, hoses and packaging should be sorted, taken to the local
recycling centre and disposed of in an environmentally safe way.
1
What your 3 year warranty means
Great care has gone into the manufacture of this product and it should
therefore provide you with years of good service when used properly.
In the event of product failure within its intended use over the
course of the first 3 years after the date of purchase, we will remedy
the problem as quickly as possible once it has been brought to our
attention. In the unlikely event of such an occurrence, or if you require
any information about the product please contact us via our after sales
support services, details of which can be found in this manual and on
the product itself.
After Sales Support TEL: [phone]
YEAR WARRANTY

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43671
4
Description of symbols
The rating plate on your tool may show symbols. These represent important
information about the product or instructions on its use.
Conforms to relevant standards for electromagnetic compatibility.
Wear hearing protection. Wear eye protection.
Wear breathing protection.
Wear safety footwear.
Wear safety gloves.
Warning.
Read these instructions for use carefully.
Choke control
Start position (choke closed).
Run position (choke open).
Use at a distance of at least 15m from other people.
Thrown objects and rotating line can cause severe injury. Do not operate
the unit without the safety guard in place. Keep away from rotating cutter.
Explosive material.
Extremely hot surface. Do not touch a hot muffler, gear box or cylinder,
you may get burned. These parts get extremely hot from operation and
remain hot for a short time after the unit is turned off.
Noise label rating 80dBA (taken at 7.5 metres) you must wear ear
protection at all times.
Keep out of the rain/wet.
General Information & Safety Instructions
NOISE dB
A
80
2

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43671
5
2
General Information & Safety Instructions
Specifications
Engine: 26cc, 2 stroke
Max. speed: 9000min-1
Blade cutting length: 670mm
Bar length: 510mm
Maximum Cutting capacity Ø : 24mm
Fuel tank capacity: 500ml
Fuel type: Unleaded petrol
Fuel mixture: Unleaded petrol: 2-Stroke oil (40:1)
Spark Plug: Torch L7RTC
Equivalent spark plugs: NGK BPMR7A
CHAMPION RCJ6Y
Net Weight: 5.2kg
Noise label rating 80dBA (taken at 7.5 metres) you must wear ear protection
at all times.

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43671
6
2
Safety instructions
WARNING Read and understand all instructions. Failure to follow all instructions
listed below may result in electric shock, fire and/or serious injury. The term “power
tool” in all of the warnings below refers to your mains-operated (corded) power
tool, battery-operated (cordless) power tool, or petrol operated power tool.
Save these instructions
Work area
• Keepworkareacleanandwelllit.Clutteredanddarkareasinviteaccidents.
• Donotoperatepowertoolsinexplosiveatmospheres,suchasinthepresenceof
flammable liquids, gases, or dust. Power tools create sparks which may ignite the
dust or fumes.
• Keepchildrenandbystandersawaywhileoperatingapowertool.Distractions
can cause you to lose control.
Personal safety
• Stayalert,watchwhatyouaredoingandusecommonsensewhenoperatinga
power tool. Do not use a power tool while you are tired or under the influence
of drugs, alcohol, or medication. A moment of inattention while operating power
tools may result in serious personal injury.
• Usesafetyequipment.Alwaysweareyeprotection.Safetyequipmentsuchas
a dust mask, non-skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
• Removeanyadjustingkeyorwrenchbeforeturningthetoolon.Awrenchor
a key that is left attached to a rotating part of the power tool may result in
personal injury.
• Donotoverreach.Keepproperfootingandbalanceatalltimes.Thisenables
better control of the power tool in unexpected situations.
• Dressproperly.Donotwearlooseclothingorjewellery.Keepyourhair,clothing
and gloves away from moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
• Ifdevicesareprovidedfortheconnectionofdustextractionandcollection
facilities ensure that these are connected and properly used. Use of these devices
can reduce dust-related hazards.
General Information & Safety Instructions

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43671
7
2
Power tool use and care
• Donotforcethepowertool.Usethecorrectpowertoolforyourapplication.
The correct power tool will do the job better and safer at the rate for which it was
designed.
•Donotusethepowertooliftheswitchdoesnotturnitonandoff.Anypowertool
that cannot be controlled with the switch is dangerous and must be repaired.
• Turntooloffcompletelybeforemakinganyadjustments,changingaccessories,or
storing power tools. Such preventive safety measures reduce the risk of starting
the power tool accidentally.
• Storeidlepowertoolsoutofthereachofchildrenanddonotallowpersons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
• Maintainpowertools.Checkformisalignmentorbindingofmovingparts,
breakage of parts and any other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
• Keepcuttingtoolssharpandclean.Properlymaintainedcuttingtoolswithsharp
cutting edges are less likely to bind and are easier to control.
• Usethepowertool,accessoriesandtoolbitsetc.,inaccordancewiththese
instructions and in the manner intended for the particular type of power tool, taking
into account the working conditions and the work to be performed. Use of the power
tool for operations different from intended could result in a hazardous situation.
Service
• Haveyourpowertoolservicedbyaqualiedrepairpersonnelusingonlyidentical
replacement parts. This will ensure that the safety of the power tool is maintained.
General Information & Safety Instructions

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43671
8
2
Additional safety rules for petrol hedge trimmers
•Donotoperateinahazardouslocation.Suchareasincludewherethereisariskof
explosion of petrol fumes, leaking gas or explosive dust.
•Donotoperateinaconnedarea.Exhaustgases,smokeorfumescouldreach
dangerous concentrations.
•Protectyourtool.ThishedgetrimmerisNOTWEATHERPROOFandshouldnot
be exposed to direct sunlight, high ambient temperature and damp, wet or high
humidity conditions.
•Donotsmokewhilerefuelling.Thisispotentiallydangerousasitmayignitethe
fuel and cause an explosion.
•Takecarenottospillfuel.Whenrefuellingthehedgetrimmerensurethatthe
motor has been switched off. Prevent the spilling of fuel as this may also ignite
with the hot motor. Never refuel whilst the engine is running.
•Becarefulwhereyoustorethehedgetrimmer.Storethehedgetrimmerinadry
area away from flammable liquids.
•Keepyourdistance.Thehedgetrimmeremitsexhaustfumes.Ensurebystanders
keep a safe distance.
•Ensureyouuseoil-mixfuel.Ensurethatyoumix40partsunleadedfuelto1part
2-stroke oil. If not, the engine will overheat and cause damage to your hedge
trimmer.
•Neverllfueltankindoors.Neverllfueltankwhenengineisrunningorhot.Do
not smoke when filling fuel tank.
•Useonlyforpruning.Thisproductisdesignedonlyforuseintrimmingleavesand
small branches. It must never be used for any other purpose as doing so could
result in unforeseen accidents and injuries.
•Keephandsandngerswellawayfromtheblade.
•Wearworkgloves,eyeprotection,earprotection,solidshoesandtrouserswhen
using this hedge trimmer.
•Alwaysgraspbothhandleswhenoperatingtheunit.
General Information & Safety Instructions

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43671
9
2
General Information & Safety Instructions
• Ensurethehedgetrimmerisswitchedoffandiscoolbeforecleaningand
maintenance.
•Ifyouareinterruptedwhenoperatingthetrimmer,switchoffbefore
looking up.
•Neverallowuntrainedusersorchildrentousethetrimmer.
• Usegoodqualityaircooled2-strokeengineoil.
• Neverllfueltankindoors.Neverllfueltankwhenengineisrunningorhot.
Do not smoke when filling fuel tank.
• Weargoggles
• Wearearmuffs
• Wearabreathingmask
• Keepallpartsofyourbodyawayfromthecuttingblade.DoNotremovecut
material or hold material to be cut when blades are moving. Make sure the
switch is off and the motor is NOT running when clearing jammed material.
A moment of inattention while operating the hedge trimmer may result in
serious personal injury.
• Carrythehedgetrimmerbythehandlewiththecutterbladeandmotor
stopped. When transporting or storing the hedge trimmer, always fit the
cutter device cover. Proper handling of the hedge trimmer will reduce possible
personal injury from the cutter blade.
• Priortocuttingwiththehedgetrimmer,alwayschecktheareatobecutfor
hidden objects. Be observant for fencing wire, Garden stakes, or electrical
cables. Ensure to remove any of these objects prior to starting.
• Donotusethehedgetrimmerinpoorweatherconditions.
• Donotusethehedgetrimmerinpoorlight.
• Alwaysusebothhandswhenoperatingthehedgetrimmer,oneontherear
handle and the other on the front handle.

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43671
10
3

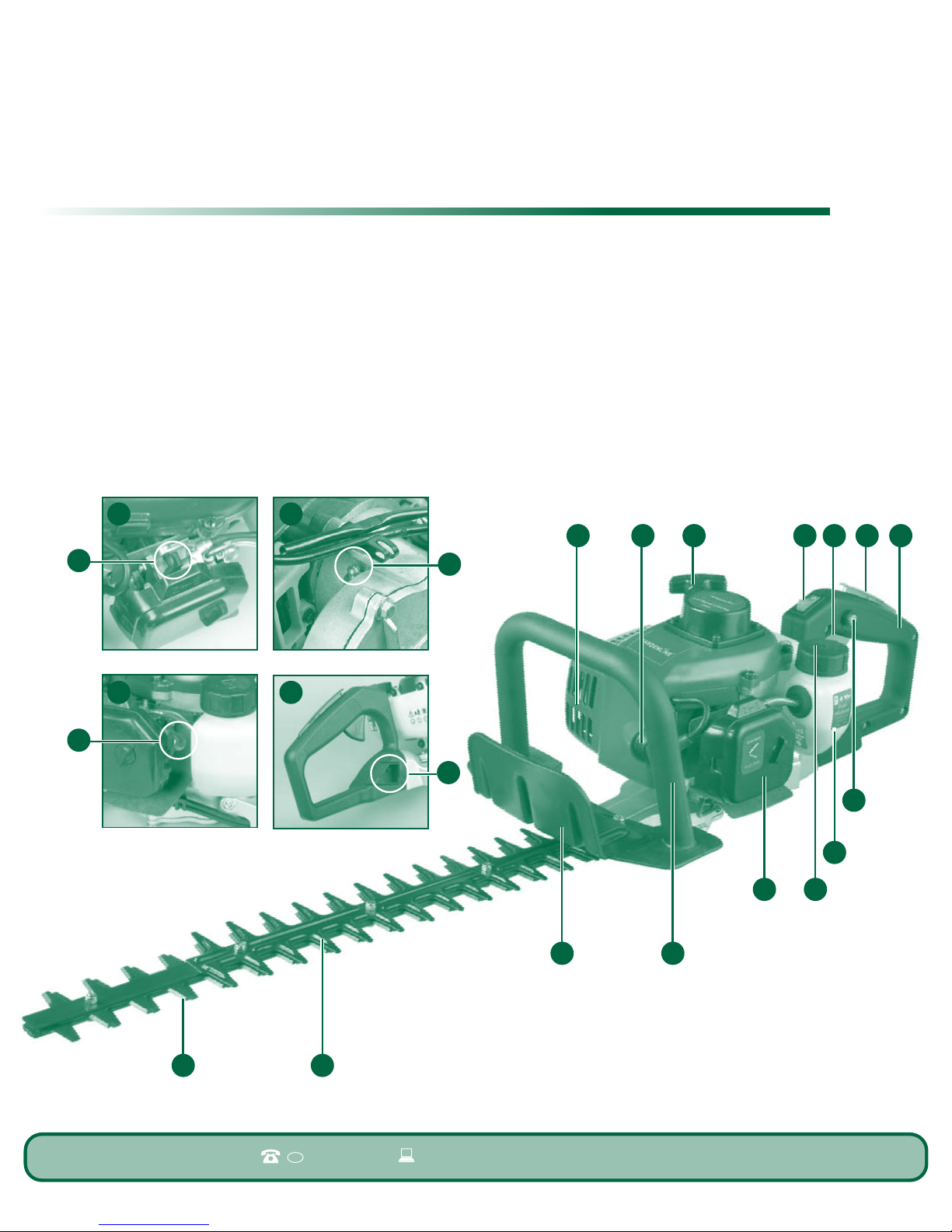

Parts List
320 10 124 56
115
2 8
911
7
16
13
14 18
17
1. Blades 9. Air Filter Cover 16. Throttle Starting Button
2. Protective Guard 10. Recoil Starter 17. Rotating Handle Lock lever
3. Silencer Cover 11. Fuel Cap 18. Grease Nipple
4. On/Off Switch 12. Rear Handle 19. Spark plug (not shown)
5. Safety Lever 13. Primer Bulb 20. Spark plug cover
6. Throttle Trigger 14. Choke Lever (red)
7. Fuel Tank 15. Blunt Plate
8. Front Handle
A
C
B
D

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43671
11
Getting Started 3
Unpacking
Due to modern mass production techniques, it is unlikely that your petrol hedge
trimmer is faulty or that a part is missing. If you find anything wrong, do not
operate the tool until the parts have been replaced or the fault has been rectified.
Failure to do so could result in serious personal injury.
Contents of carton
1 x 26cc 2 Stroke Hedge Trimmer 1 x Tube Spanner / Screw driver
1 x Mixing Bottle with 40:1 markings 1 x Blade Cover
1 x Instruction Manual 1 x Warranty Card & Details
Assembly
This hedge trimmer does not require any pre-assembly before use, however the
hedge trrimmer is required to be filled with 500ml of Unleaded petrol: 2-Stroke oil
(40:1) before operation.

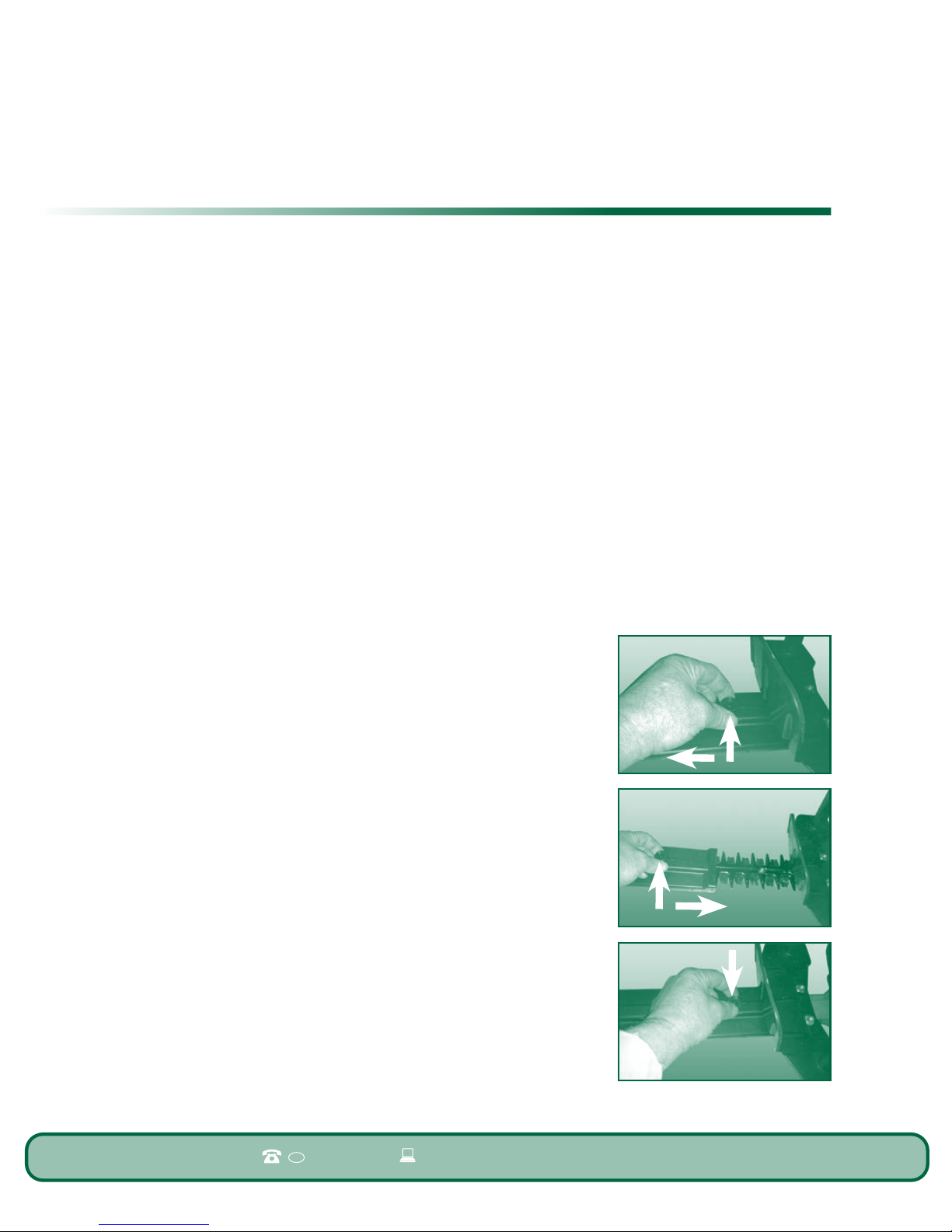

Removing / Replacing the cover
1. To remove the blade cover lift the locking
knob and slide the cover off the blade. (Fig. A)
2. To replace the blade cover, ensure the locking
knob is lifted and slide the blade cover full
onto the blade. (Fig. B)
3. To lock secure the blade cover on the blade,
depress the locking knob. (Fig. C)
Fig. A
Fig. B
Fig. C

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43671
12
Fuel
Use regular grade unleaded petrol mixed with 2-stroke air-cooled engine oil (40:1)
for best results. Use mixing ratios in Section Fuel Mixing Table below.
WARNING. Never use straight petrol in your unit. This will cause permanent
engine damage and void the manufacturer’s warranty for that product. Never use
a fuel mixture that has been stored for over 30 days.
WARNING. 2-stroke lubricant must be a premium grade oil for 2-stroke air cooled
engines mixed at a 40:1 ratio. It is recommended NOT to use pre mixed fuels from
service stations as these are often for water cooled 2 stroke engines. If insufficient
lubrication is the cause of engine damage, it voids the manufacturer’s engine
warranty.
Mixing Fuel
MOTOR FUEL: MIX AT 40:1 ONLY
Note. The mixing bottle provided is NOT for the storage of fuel. This container
is solely for mixing of fuel only. Ensure to keep this container in a safe storage
location, empty of fuel and out of reach of children.
WARNING. Lack of lubrication voids engine warranty.
Petrol and oil must be mixed at 40:1.
Fuel and Lubrication Symbols
Fuel Mixing Table
Mixing procedure:
40 parts petrol to 1 part oil
Petrol 1 Litre to 25ml of 2 stroke oil - 5 Litres to 125ml of 2 stroke oil
Recommended Fuels
Only use 91 Octane rated fuel with this Hedge trimmer fuel mix.
Do Not use Ethanol based fuels.
Fill the Fuel
Mixing bottle with
unleaded fuel to the
500 petrol mark, top
up to the 40.1 mark
with 2-stroke oil.
40:1
Fuel and Lubrication

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43671
13
Filling the tank
WARNING. Always shut off the engine before fuelling. Never add fuel to a
machine with a running or hot engine. Move at least 9 m (30 ft.) away from the
refuelling site before starting engine. Do not smoke when refuelling or operating
the hedge trimmer.
Note. It is normal for smoke to be emitted from a new engine during and after
first use.
1. Place the hedge trimmer upright on the ground or on a sturdy bench and wipe
any debris from around the fuel cap.
2. Unscrew the fuel tank cap and pour the mixture into the tank with the aid of
a funnel.
3. Be careful not to spill any mixture. If this happens, wipe the spill with a
clean rag.
4. Start the engine at least nine metres (30ft) away from the area where the fuel
tank has been filled up in order to avoid any risk of fire.
•Alwaysuseextremecarewhenhandlingfuel!Fuelishighlyammable.
•Neverattempttofuelthehedgetrimmerifthefuelsystemcomponentsare
damaged or are leaking.
•Neverattempttherefueltheenginewhileitisrunningorstillwarm,allowitto
cool before fuelling.
•Neversmokeorlightanyresnearthehedgetrimmerorfuels.
•Alwaystransportandstorefuelsinanapprovedcontainer.
•Neverplaceammablematerialclosetotheenginemufer.
•Neveroperatethehedgetrimmerunlessitisproperlyassembledandingood
working condition.
•Donotusepetrolwhichcontainsethanolormethanolasitmaydamagethefuel
lines and other engine parts.
•Mixonlyenoughfuelforyourimmediateneeds.Donotstorepre-mixedfuel.
Fuel and Lubrication

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43671
14

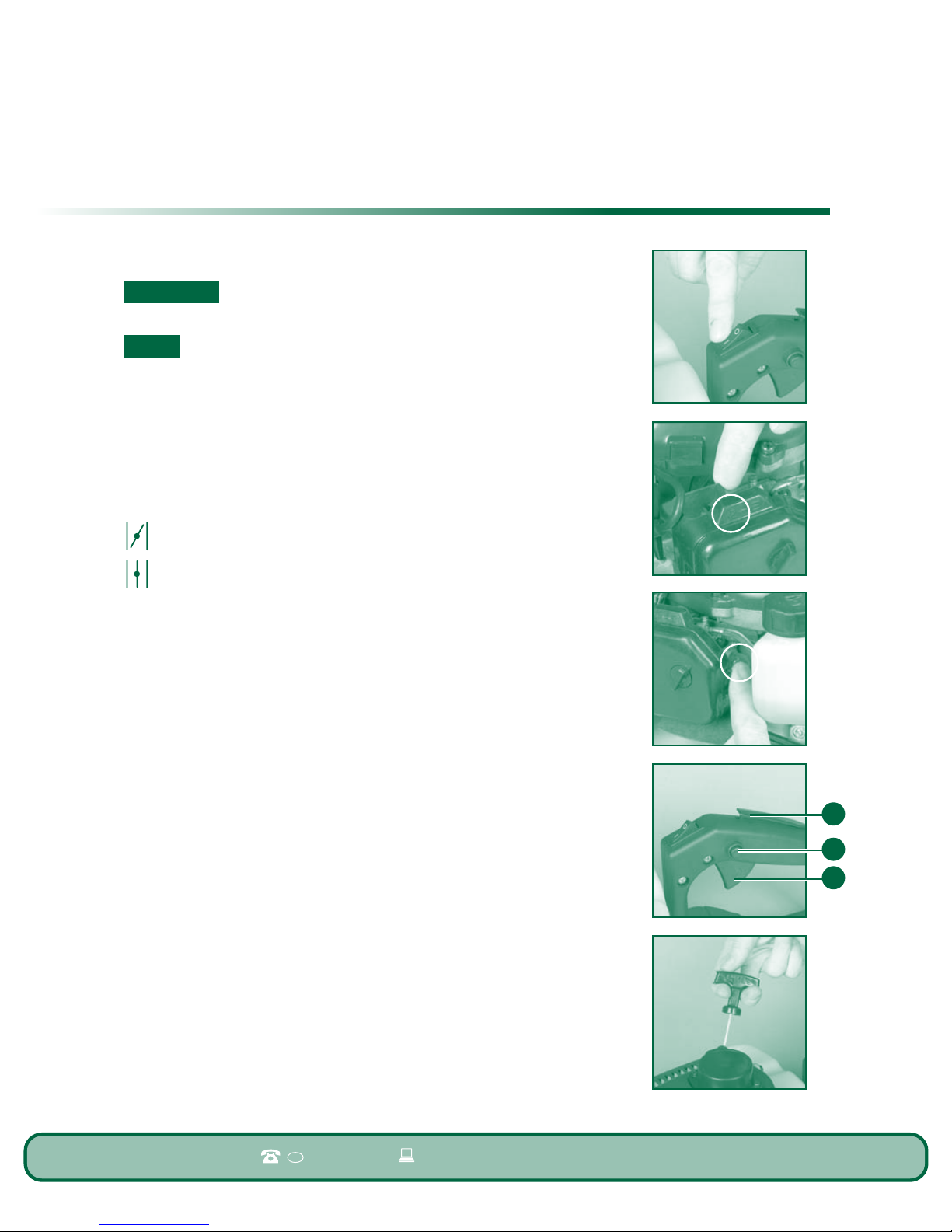

Starting A Cold Engine
CAUTION. Ensure the blade cover is removed before
attempting to start the hedge trimmer.
Note. Ensure the hedge trimmer has been filled with the
relevant fuel:oil 40:1 mixture before proceeding with
operation of the hedge trimmer.
1. Place the hedge trimmer on a firm flat surface.
2. Move the ignition switch to the run position marked
with a “I”. (Fig 1)
3. Your unit is designed with a 2 position choke:
Full Choke
and
No Choke.
Move the red choke lever (14) to the Full Choke position (Fig 2).
4. Prime the carburettor. Pump the prime bulb
(13) 6 times (Fig 3).
5. Set the throttle trigger to the “START POSITION”. Grip the
rear handle (12) of the hedge trimmer and at the same
time pressing down the safety lever (5). Squeeze FULLY
the throttle Trigger (6) and hold in the full on position.
Depress the Throttle Start Button (16) on the side of the
handle. Whilst holding the button (16) depressed. Slowly
release the throttle trigger (6). The throttle trigger will
engage on the throttle start button, locking the throttle
trigger in a part on condition.
The throttle trigger, the Safety lever and the throttle
starting button can now be released.
6. Pull the recoil starter out a short way until resistance is
felt (approximately pull: 4”) (Fig 4a). A smooth rapid
pull is required for a strong spark.
Pull the recoil starter briskly 4 times.
5
Operating Instructions
Fig. 1
Fig. 4a
Fig. 3
Fig. 4
5
16
6
Fig. 2

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43671
15
Operating Instructions 5
7. Once the engine starts allow to run for 10 seconds.
Note. If the engine starts at all and then stops, even for 1 sec,
move the choke lever to the mid way position between the full
choke and no choke position and pull the recoiler to re start.
WARNING. On start up the oscillating blades may be
operational due to the setting of the starting throttle. Be well
aware of this condition
8. Move the red choke lever (14) to the no choke position
(Fig 4b) and allow to run for a further 10 sec.
9. After the motor is operating and partly warmed after point 8 above, Grip the
rear handle (12) of the hedge trimmer and at the same time pressing down the
safety lever (5). Squeeze slightly the throttle Trigger (6) and then release the trigger.
This will disengage the starting trigger lock and allow the motor to idle correctly and
disengaging the oscillating blades.
10. If the engine fails to start, repeat steps 1 through 8.
WARNING. On start up the oscillating blades may be operational due to the
setting of the starting throttle. Be well aware of this condition.
Note. If the engine fails to start after repeated attempts,
refer to Troubleshooting section.
Note. Always pull the starter cord straight out. Pulling the starter cord at an
angle will cause it to rub against the eyelet. This friction will cause the cord to
fray and wear more quickly. Do not pull the end of the cord, this can damage the
starter. Always hold the starter handle when the cord retracts. Never allow the
cord to snap back from the extended position. This could cause the cord to snag or
fray and also damage the starter assembly.
Fig. 4b

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43671
16
5
Stopping The Engine
Emergency Stopping Procedure
When it is completely necessary to stop the engine immediately, PRESS the
ignition/stop switch to the OFF position (position “O”) until the engine stops.
Normal Stopping Method
For normal stopping, release the trigger and allow the engine to return to its idle
speed. Press the ignition/stop switch to the OFF position, marked with an “O”,
until the engine stops completely.
Operation of the Throttle Trigger
The operation of the hedge trimmer is fully controlled from the rear handle (12).
The Throttle trigger (6) fully controls the hedge trimmer as follows.
1. With the motor running and the throttle trigger (6) not being pressed or lock in for
starting, the speed of the motor is at idle and at idle, the blades are NOT engaged.
2. To engage the blades, the motor needs to accelerate.
To increase the speed of the motor, press the safety lever (5) down first and then
squeeze the throttle lever (6). The further you squeeze the throttle trigger, the faster
the motor will run. During the increase in motor speed, the blades will engage.
3. To slow the hedge trimmer, release the throttle trigger to obtain the desired
speed. To return the motor to the idle speed and completely disengage the blades,
release the throttle trigger completely.
4. Note, Before you can operate the throttle trigger (6), you MUST depress the
safety lever (5)
Starting a warm engine
(Engine has been stopped for no more than 15-20 minutes)
1. Move the ignition switch to the run position and pull the recoil starter cord again.
The engine should start with one or two pulls. If the engine fails to start after 6
pulls, repeat steps 2 through 9 of the “Starting a cold engine” instructions.
Operating Instructions

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43671
17
5
Operating Instructions
The operation of the rear rotating handle
1. The rotating handle can turn left or right up to 90°.
2. The rotating handle can only be adjusted when the machine is running at idling
speed or in the off position however, it is recommended to adjust the rotating
handle while the hedge trimer is off.
3. Slightly pull out the Rotating Handle Lock lever (17), turn slightly, then release,
and continue to turn the rotating handle in your desired direction until the Rotating
Handle Lock lever snaps back into position at the +- 90 Degree point.
NOTE. The hedge trimmer can only be used in the 3 preset positions of the rear handle.
Use of the petrol hedge trimmer
•Usesafetyequipment.Alwaysweareyeprotection.Safetyequipmentsuchas
a dust mask, non-skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
•Thisproductrequirestheuseoftwohandstoensuresafeoperation.Rotatethe
rear handle to the most comfortable operating position.
•Ifunfamiliarwithtrimmingtechniques,practicetheprocedureswiththeenginein
the “OFF” position.
•Alwaysclearyourworkareaofdebrissuchascans,bottles,rocks,etc.Striking
objects can cause serious injury to the operator or bystanders and also damage
equipment. If an object is accidentally hit, immediately turn off the engine and
examine the equipment. Never operate the unit with damaged or defective parts.
•DonotoperatetheHedgeTrimmerwithotherpeopleoranimalsintheimmediate
vicinity.
• Ifyouareoperatingitonaslope,standbelowthecuttingattachment.Donotoperate
on a slope or hill if there is the slightest chance of slipping or losing your footing.

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43671
18
5
Operating Instructions
•Donotusethisequipmentforpurposesotherthantrimmingshrubs,hedges,
or bushes.
•Neveroperatethehedgetrimmerwithoutaproperlyfunctioningmuferand
spark plug cover installed.
•Ensurethatthebladecoverisremovedbeforestartingthehedgetrimmer.
•Neveroperatethehedgetrimmerunlessitisproperlyassembledandingood
working condition.
•Starttheengineonlywhenyouareclosetotheworkingarea.
•Alwaystrimorcutathighenginespeeds.Donotruntheengineslowlyatthe
start or during trimming operations.
•Placeyourselfinawellbalancedposition,stableonbothfeet.
•Avoidcuttingthickbranches(largerthan24mm),asthiswilldamagetheblades
and shorten the life of the drive system.
•Alwayskeepyourbodytothecarburetorsideofyourtrimmer,neveronthe
muffler side.
•Maintainasteady,evenposturewhileoperating.Donotover-reach.
•Ifthebladesjamwhenoperating,switchtheengineoffandclearany
obstruction.
WARNING. Wear gloves whenever touching the blades.
•Ifthebladesconnectwithahardobjectduringoperationstoptheengineand
check the blade for damage.
•Neverworktowardspeopleorsolidobjectssuchaswalls,treesorvehiclesetc.
•Alwaysreleasethethrottletriggerandallowtheenginetoreturntoidlespeed
when not cutting.
Using the Hedge Trimmer with the Trimmer on its side.
Often, when either of the rotating handle positions, ie 90 deg to the left or the
right is selected, the hedge trimmer will be orientated with the blade in a vertical
position. Please note the following tips.
1. Practice a little with the new orientation of the tool. The balance and feel is
slightly different than in the horizontal position.

19
SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43671
5
Maintenance
2. FILL the fuel tank fully when the the tool is positioned with the blade vertical. The
fuel pick up tube will not reach the bottom of the tank with these orientations.
3. Ensure the handle lock is fully engaged.
Note. All protective devices of the machine as well as protective equipment
must be maintained in good operating condition during the period of use.
Petrol hedge trimmers transmit vibrations to the operator during use. These
vibrations can generate increased fatigue. For this reason, we recommend taking
regular breaks during work. We also recommend taking a break after a few hours
of work to rest the engine. If abnormal noise or vibration occurs during operation,
turn the hedge trimmer off immediately and have the problem corrected.
Trimming instructions
Before operating your unit, review
ALL SAFETY PRECAUTIONS in this manual.
1. WORKING POSITION. Maintain proper footing and balance
and do not overreach.Wear safety goggles, ear muffs,
non-skid footwear and rubber gloves when trimming.
Hold the tool firmly in both hands and turn the tool ON.
Always hold the trimmer, as shown in the illustrations,
with one hand on the rear handle and one hand on the
front handle. NEVER hold the tool by the protective guard.
2. TRIMMING NEW GROWTH. A wide, sweeping motion,
feeding the blade teeth through the twigs is most
effective. A slight downward tilt of the blade, in the
direction of motion gives the best cutting. (Fig 5A)
3. LEVEL HEDGES. To obtain level hedges, a piece of string
can be stretched along the length of the hedge as a guide.
CAUTION: Do not use the trimmer for cutting stems
greater than 24mm. Use the trimmer only for cutting
normal shrubbery found around houses and buildings.
4. SIDE-TRIMMING HEDGES.
Hold the trimmer as shown and begin at the bottom
and sweep up. (Fig 5B)
Fig. 5A
Fig. 5B

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43671
20
5
Maintenance
Blade Maintenance
Your trimmer should be stopped and oiled occasionally during use.
1. The cutting blades are made from high quality, hardened steel and with normal usage,
they will not require resharpening. However, if you accidentally hit a wire fence, stones,
glass or other hard objects, you may put a nick in the blade. There is no need to remove
this nick as long as it does not interfere with the movement of the blade. If it does
interfere, stop the engine and use a fine toothed file or sharpening stone to remove
the nick.
2.
If you drop the trimmer, carefully inspect it for damage. If the blade is bent, the housing
cracked, or handles broken or if you see any other condition that may affect the trimmer’s
operation contact an authorised service centre for repairs before using again.
3. Fertilisers and other garden chemicals contain agents which greatly accelerate the
corrosion of metals. Do not store the tool on or adjacent to fertilisers or chemicals.
4. With the unit stopped, use only mild soap and a damp cloth to clean the the outside of
the trimmer. Never let any liquid get inside the tool; never immerse any part of the tool
into a liquid.

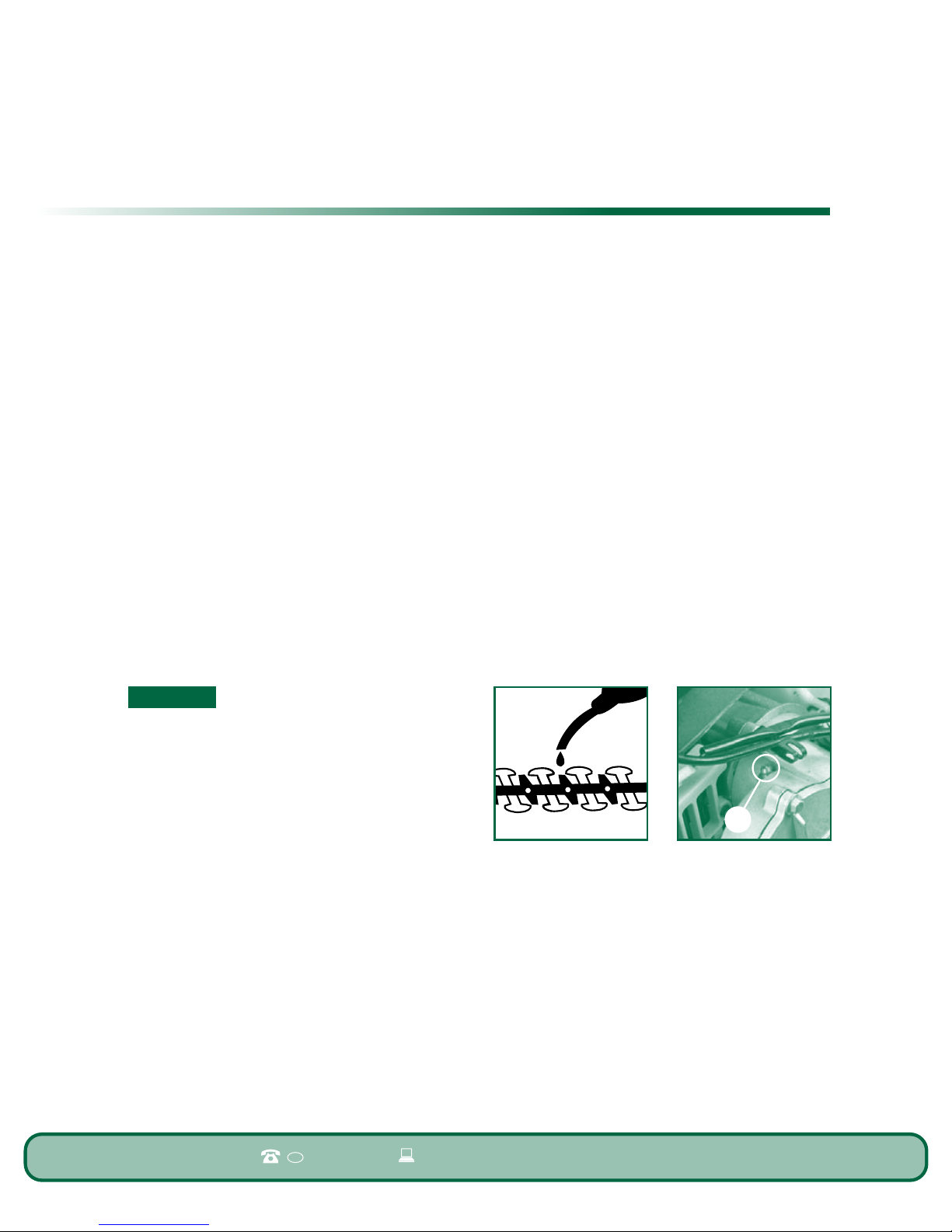

Blade lubrication
Warning. Before lubricating, be sure
your unit is switched off and blades
have come to a complete stop. For easier
operation and longer blade life, lubricate
the blade before and after each use.
Apply light machine oil along the edge
of the blade bar (Fig 6A).
Greasing
The engine requires re-greasing after approximately every 25 hours of operation.
•Applylithiumgreaseintothegearboxthroughthegreasettingafter25hours
running (Fig 6B) (A).
Fig. 6BFig. 6A
A
