Welcome
Thank you for purchasing Blackmagic Studio Camera!
We are extremely excited to have designed the Blackmagic Studio Camera.
Ever since I was a teenager I have loved live production, it’s so exciting!
Traditionally cameras with talkback and tally were very expensive and
physically large, so hard to manage. We really wanted to solve this problem
by designing a more compact camera that included all the talkback, tally
and camera control features of physically much larger cameras.
That’s why the Blackmagic Studio Camera was developed. We wanted to
build a much smaller camera for portability, however normally small cameras
have small tiny screens. We did not want that. What we really wanted was a
much larger viewfinder! The result is Blackmagic Studio Camera, the smallest
broadcast camera but with a very large viewfinder that’s wonderful to use!
Precise focus and framing are so easy with a viewfinder this large!
Of course you get tally indicators, talkback, massive built in battery and of
course a fantastic quality camera with flexible MFT lens mount. It’s everything
you need in a complete package! You can plug in larger wind protected
microphones even with phantom power and the optical fiber is built in so you
can run your camera miles away from your switcher! If you need, you can even
add a HyperDeck Shuttle and use the camera for general production use!
We hope you use your new camera for some amazing live productions and
produce some fantastic looking work! We are extremely excited to see what
creative work you produce!
Grant Petty
CEO Blackmagic Design
Contents
Blackmagic Studio Camera
5 Getting Started
Introducing Blackmagic Studio Camera 5
Attaching a Lens 7
Turning Your Camera On 7
8 Connections
Blackmagic Studio Camera - Left Side 8
Blackmagic Studio Camera - Right Side 9
10 Studio Camera Settings
Camera Settings 10
Audio Settings 11
Monitoring Settings 12
Studio Settings 13
Adjusting Settings 14
Additional Settings 15
16 Camera Video Output
Connecting to Video Switchers 16
Connecting to Recorders 16
17 Blackmagic Camera Utility
18 Attaching Accessories
Sun Shade 18
Other Accessories 18
19 Using ATEM Software Control
Introducing Camera Control 19
Using Camera Control 20
DaVinci Resolve Primary Color Corrector 22
Synchronizing Settings 24
25 Developer Information
Blackmagic Video Device Embedded Control Protocol 25
Overview 25
Assumptions 25
Blanking Encoding 25
Message Grouping 25
33 Help
34 Warranty
Getting Started
5
Introducing Blackmagic Studio Camera
Features
1. FRONT TALLY LIGHT
Indicates to the on-air talent which camera is currently "live". See page 12.
2. LANC REMOTE
2.5mm stereo jack for LANC remote control supports iris, zoom and focus control. See page 8.
3. AVIATION HEADPHONES
0.25" TRS connector for monitoring PGM and control room audio with aviation style headsets. See page 8.
4. HEADPHONES MICROPHONE INPUT
0.206" TRS connector for talking to the control room with aviation style headsets. See page 8.
5. AUDIO INPUTS
2 x 1/4" balanced XLR connectors for audio input. See page 8.
6. OPTICAL INPUT/OUTPUT
Optical input and output allows cable runs of up to 28 miles. See page 9.
7. SDI OUT
SDI output for connecting to a switcher or other device. See page 9.
8. SDI IN
SDI input allows the camera operator to view the Program (PGM) output. See page 9.
9. REFERENCE INPUT
Allows multiple cameras to be genlocked to a blackburst or tri-level reference signal. See page 9.
10. POWER
12 – 24V power input for power supply and battery charging. See page 9.
Getting Started
1
PUSH
2
PUSH
FOCUS
SDI OUT
OPTICAL OUT
OPTICAL IN
SDI IN
REF
12V
IRIS PTT PGM LUT SET DISPLAY MENU
1
PUSH
2
PUSH
FOCUS
SDI OUT
OPTICAL OUT
OPTICAL IN
SDI IN
REF
12V
IRIS PTT PGM LUT SET DISPLAY MENU
1
2
4
5
6
7
8
10
9
3
1
PUSH
2
PUSH
FOCUS
SDI OUT
OPTICAL OUT
OPTICAL IN
SDI IN
REF
12V
IRIS PTT PGM LUT SET DISPLAY MENU
Getting Started
6
1
PUSH
2
PUSH
FOCUS
SDI OUT
OPTICAL OUT
OPTICAL IN
SDI IN
REF
12V
IRIS PTT PGM LUT SET DISPLAY MENU
1
PUSH
2
PUSH
FOCUS
SDI OUT
OPTICAL OUT
OPTICAL IN
SDI IN
REF
12V
IRIS PTT PGM LUT SET DISPLAY MENU
11. 10" LCD
Monitor live camera output or program output, or view the menu. See page 12.
12. REAR TALLY LIGHT
When lit it indicates to the camera operator that their camera is currently "live".
13. FOCUS BUTTON
Press once to auto focus or twice to display focus peaking on the LCD. See page 14.
14. IRIS BUTTON
Press once for auto exposure. See page 14.
15. PUSH TO TALK BUTTON (PTT)
Press and HOLD to talk. Press twice in quick succession for hands free communication. Press again to
revert to the default behavior. See page 15.
16. PROGRAM (PGM) BUTTON
Press to toggle between live camera output and program output from a switcher control room. See page 15.
17. LOOK UP TABLE (LUT) BUTTON
Currently not implemented.
18. MENU NAVIGATION BUTTONS
Navigate the menu on the LCD. See page 15.
19. SET BUTTON
Use this button to confirm your menu selections. See page 15.
20. DISPLAY BUTTON
Press this button to toggle overlays on and off. See page 15.
21. MENU BUTTON
Access the menu on the LCD. See page 15.
22. POWER BUTTON
Press the power button to turn on the Blackmagic Studio Camera. Press and hold the button to turn the
camera off. See pages 7 and 15.
23. USB CONNECTOR
USB Mini-B port for camera firmware updates. See page 17.
11 12
13 14 15 16 17 18 19 212018 22
23
Getting Started
7

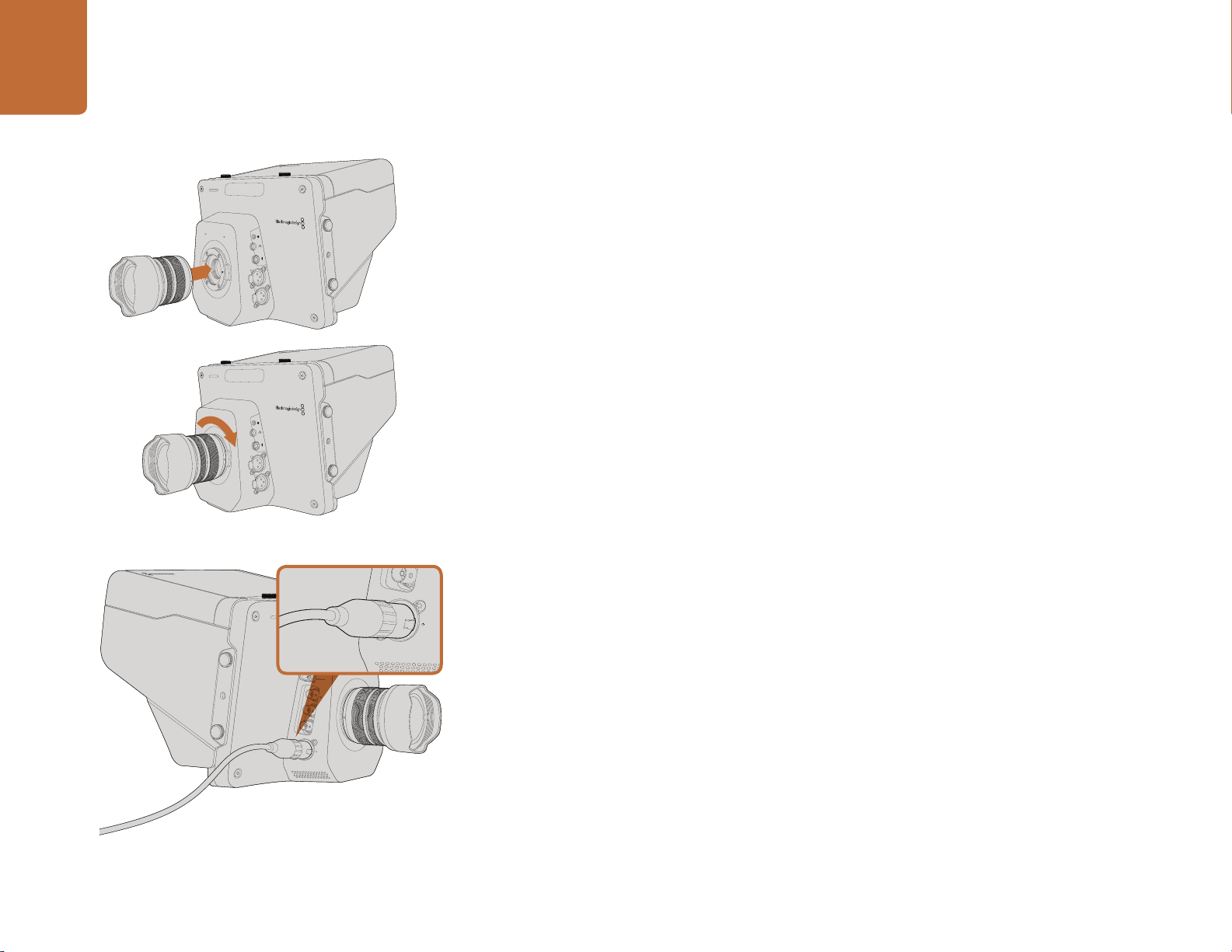

Attaching a Lens
Getting started with your Blackmagic Studio Camera is as simple as attaching a lens and turning the
camera on. To remove the protective dust cap from the lens mount, hold down the locking button and
rotate the cap counterclockwise until it is released. We recommend you always turn off your Blackmagic
Camera prior to attaching or removing a lens.
To attach a lens:
Step 1. Align the dot on your lens with the dot on the camera mount. Many lenses have either a blue,
red or white dot or some other indicator.
Step 2. Twist the lens clockwise until it locks into place.
Step 3. To remove the lens, hold down the locking button, rotate the lens counterclockwise until its
dot or indicator reaches the 12 o’clock position and gently remove.
When no lens is attached to the camera, the lens mount is exposed to dust and other debris so you'll
want to keep the dust cap on whenever possible.
Turning Your Camera On
The Studio Camera has an internal battery that can be charged using the supplied power adapter.
The camera can be charged and operated while connected via external power and will switch between
power sources without any interruption.
Step 1. Press the power button below the LCD. The live camera image will appear on the LCD.
Step 2. Press and hold the power button to switch off the camera.
Attaching and removing a lens on Studio Camera.
1
1
3
PUSH
2
2
1
3
PUSH
2
1
1
3
PUSH
2
2
1
3
PUSH
2
OPTICAL OUT
OPTICAL IN
SDI OUT
SDI IN
REF
12V
Use the supplied power adapter to charge the internal battery
and power the camera.
OPTICAL OUT
OPTICAL IN
SDI OUT
SDI IN
REF
12V
Connections
8
Blackmagic Studio Camera - Left Side
LANC Remote Control
The remote port on your camera is used to remotely control lens focus, iris and zoom adjustments when
using a compatible lens. The port is a 2.5 mm stereo jack using the standard LANC protocol.
Active MFT lenses allow you to control the zoom servo with a LANC controller. The following lenses are
currently supported:
Panasonic Lumix G X Vario PZ 14-42mm f/3.5-5.6 Power O.I.S. Lens
Panasonic Lumix G X Vario PZ 45-175mm f/4.0-5.6 Zoom O.I.S. Lens
Olympus M.Zuiko Digital ED 12-50mm f/3.5-6.3 EZ Micro 4/3 Lens
Olympus M.Zuiko Digital ED 14-42mm f/3.5-5.6 EZ Micro 4/3 Lens
Headphones Output
For monitoring program and control room audio with aviation style headsets with "fixed wing" connectors.
Aviation headsets range from single ear models for use in studio environments to full size noise cancelling
models which are suitable for loud concerts or sporting events. Audio is taken from channel 15 and 16 of
the incoming SDI and optical fiber video. Channels 15 and 16 are rarely if ever used during production
and so are very suitable to serve for the audio talkback.
Headphones Microphone Input
For talking to the control room with aviation style headsets. Audio is embedded into channel 15 and 16
of the SDI and optical fiber output.
Audio Inputs
Two channels of professional balanced analog audio is supported via XLR connectors. Use the audio menu
to set the input levels for each channel. The inputs support both Mic level inputs and line level inputs
and the input type is also selected from the audio menu. Audio is embedded into Channel 1 and 2 of the
SDI stream.
1
1
3
PUSH
2
2
1
3
PUSH
2
Connections
Connections
9

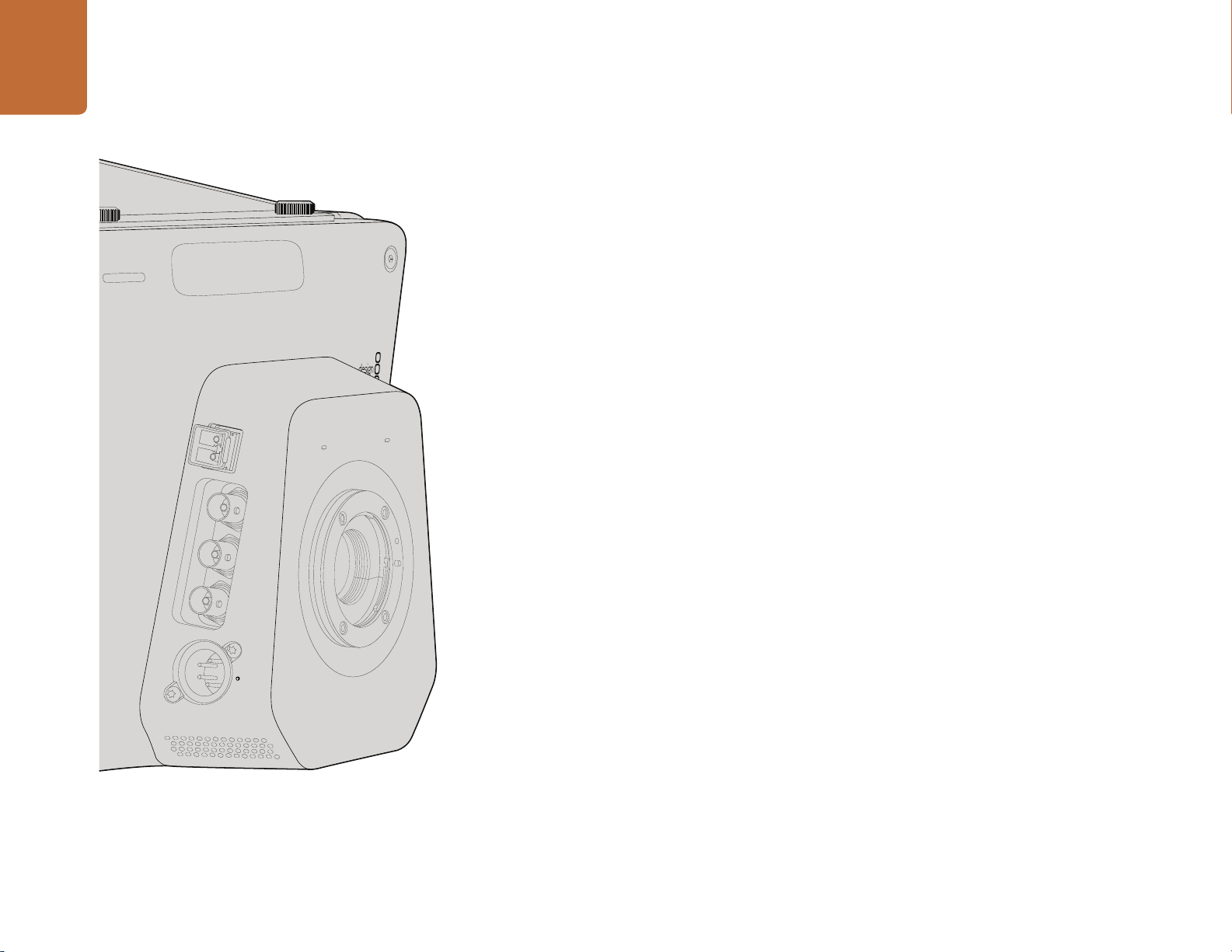

Blackmagic Studio Camera - Right Side
Optical Input/Output
The optical fiber input and output uses industry standard LC connectors, supporting 3G-SDI on Studio
Camera HD, and 6G-SDI on Studio Camera 4K. Optical fiber cable is widely available because it's the
same cable used in computer networking. Optical fiber allows cable runs of up to 28 miles which is more
than enough for even the most demanding outside broadcast event. If both optical and SDI inputs are
connected, the output from the device which was connected first will be used.

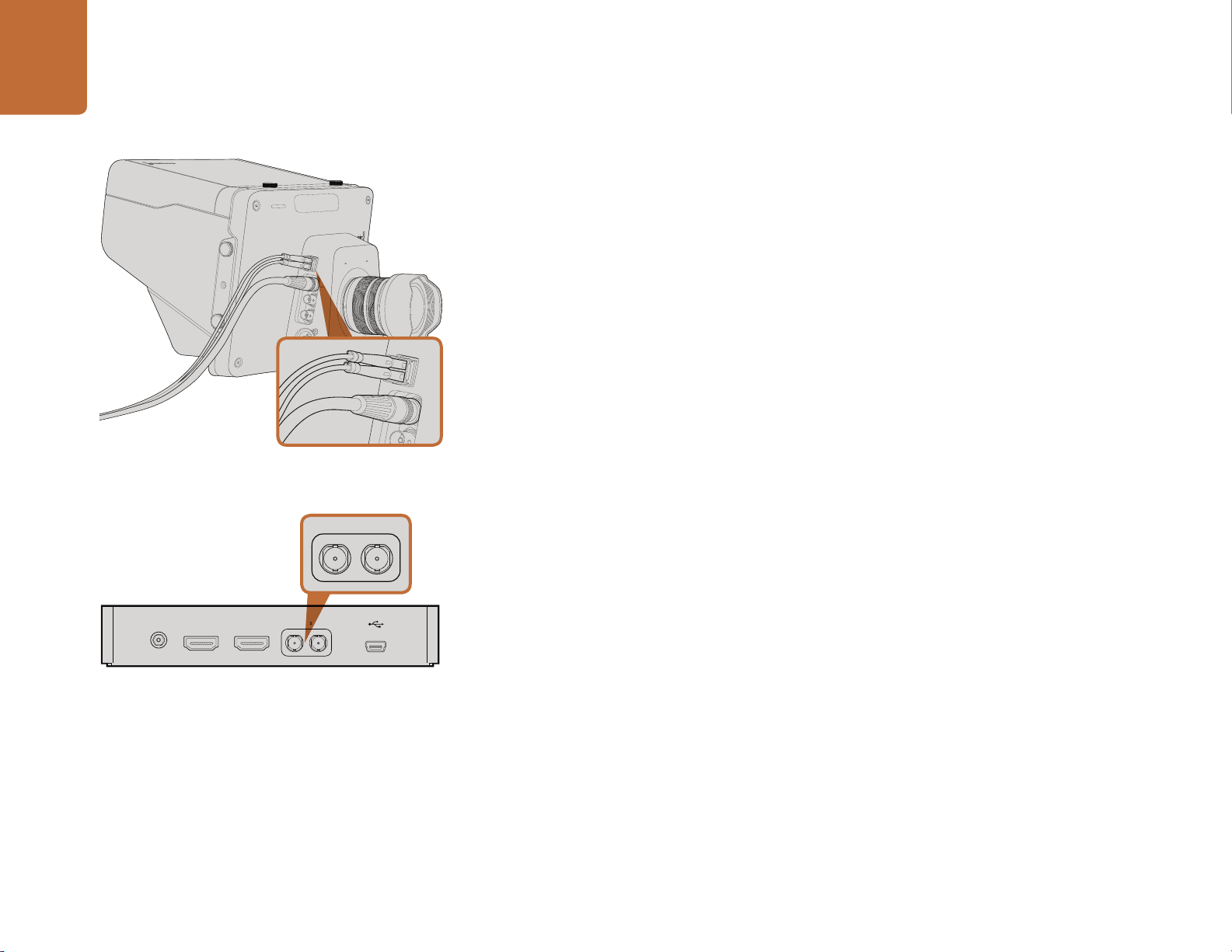

SDI Out
Use the SDI Out connector to output 10-bit 4:2:2 video to professional SDI video equipment such as
routers, monitors, SDI capture devices and broadcast switchers. Blackmagic Studio Camera HD supports
3G-SDI, and Studio Camera 4K supports 12G-SDI.
SDI In
The SDI input allows the camera operator to view the Program (PGM) output. Simply press the PGM
button to toggle between live camera output and Program output from a switcher control room. If
both optical and SDI inputs are connected, the output from the device which was connected first will
be used. If you're using the Studio Camera to record to a device such as the Blackmagic Hyperdeck
Shuttle, the output from the Hyperdeck can be connected to the SDI input so you can playback what
you have just recorded.
Reference Input
This allows multiple cameras to be genlocked to a blackburst or tri-level reference signal. Genlocking
cameras to an external reference signal helps to prevent timing errors which may result in the picture
jumping when switching between different cameras.
Power
Use the 12 – 24V power input for connecting your power supply and to charge the internal battery. When
the battery is fully charged it will power the camera for up to 4 hours on Studio Camera HD, and up to
3 hours on Studio Camera 4K .
OPTICAL OUT
OPTICAL IN
SDI OUT
SDI IN
REF
12V
Camera Settings
10
Camera Settings
To configure settings on your Blackmagic Studio Camera, press the MENU button.
Use the navigation buttons to highlight menus and use the SET button to confirm your selection.
Video Format
Select the video format you wish to output. A list of supported formats is on the left of the page.
Gain
Gain settings are helpful when you are shooting in low light conditions. The default setting is 0dB and
gain can be increased in 6dB increments up to 18dB.
White Balance
Six white balance presets are selectable for a variety of color temperature conditions.
3200K for tungsten light
4500K for fluorescent light
5000K, 5600K, 6500K and 7500K for a variety of daylight conditions.
Shutter Speed
Shutter Speed complements the ISO setting by regulating the amount of light on the sensor. There are
15 different shutter speeds available ranging from 1/50 sec to 1/2000 sec.
Dynamic Range
Film
The film dynamic range setting on Studio Camera HD uses a log gamma curve to maximize the information
in your video signal. This helps you get the most out of color grading software, such as DaVinci Resolve.
Video
The video setting on Studio Camera HD and Studio Camera 4K uses the REC709 standard for high
definition video which is compatible with modern studio equipment.
Language
English is the default language. Additional languages such as Japanese, French, German, Russian,
Spanish, Chinese and Korean will be supported in the future.
Camera settings.
Studio Camera Settings
Studio Camera HD
and Studio Camera 4K
Studio Camera 4K
1920 x 1080p23.98 3840x2160p23.98
1920 x 1080p24 3840x2160p24
1920 x 1080p25 3840x2160p25
1920 x 1080p29.97 3840x2160p29.97
1920 x 1080p30 3840x2160p30
1920 x 1080p50 3840x2160p50
1920 x 1080p59.94 3840x2160p59.94
1920 x 1080p60 3840x2160p60
1920 x 1080i50
1920 x 1080i59.94
1920 x 1080i60
Supported Video Formats
Camera Settings
11
Audio Settings
To adjust audio input and audio monitoring settings on your Blackmagic Studio Camera, press the MENU
button and select the microphone icon to the left of the display.
Audio Input
Switches audio between using the camera's internal microphone and the XLR audio connectors.
Microphone Level
Microphone input adjusts the recording levels of the built in microphone. Move the audio slider left
or right to increase or decrease levels. Studio Camera has a built in stereo microphone. The built in
microphone records to audio channels 1 and 2 when no external audio source is connected.
Input Level
External audio connectors support audio at microphone level or line level. Select Line when connecting
external audio equipment such as an audio mixer or amplifier. Select the Mic Low or Mic High setting
depending on the signal strength of your microphone. It's important to select the appropriate level to
avoid your external audio sounding almost inaudible or too hot and distorted.
Set the external audio input levels by using the left and right arrows.
Ch 1 Input
Move the audio slider icon left or right to increase or decrease levels for channel 1. The external audio
input overrides the built in microphone and is output to audio channel 1.
Ch 2 Input
Move the audio slider icon left or right to increase or decrease levels for channel 2. The external audio
input overrides the built in microphone and is output to audio channel 2.
Phantom Power
Enable or disable phantom power for both external XLR inputs by navigating to the Audio menu and
selecting On or Off using the arrow buttons. Phantom power is a method for transmitting power through
microphone cables and it is best known as a convenient power source for condenser microphones.
Be sure to wait at least 10 seconds for Phantom power to discharge after disconnecting before plugging
in a self powered microphone. Older ribbon type microphones are not suitable for phantom power usage.
When the Line setting is selected, Phantom Power is disabled.
Audio settings.
Camera Settings
12
Monitoring Settings
To adjust the display settings for the LCD, press the MENU button and select the monitor icon.
Brightness
Move the slider icon left or right to adjust brightness settings for the LCD. The default setting is 60%.
Zebra
Blackmagic Cameras have a zebra feature which gives an indication of exposure levels. Diagonal lines
will appear across any part of the video that exceeds the zebra exposure level.
Turn zebra on and select the desired zebra warning level by using the left and right arrows. The default
setting is medium.
Focus Peaking
Allows you to change the level of focus peaking. The settings include: off, low, medium and high. Adjust
this setting when you are using a very sharp lens and the whole image is peaking. The default setting
is medium.
Tally Brightness
Changes the brightness of the front tally light. Settings include: low, medium and high. The default
setting is medium.
Monitoring settings.
Camera Settings
13
Studio Settings
To adjust the display settings for the LCD, press the MENU button and select the headphones icon.
Camera Number
If you want your Studio Camera to receive tally signals from an ATEM switcher, you'll need to set the
camera number on your camera. This ensures the switcher sends the tally signal to the correct camera.
The camera number can be set to a value of 1-99. Default setting is 1.
Reference Source
Used to select the genlock source. The Studio Camera can lock to program SDI input or external genlock
source. If using an external genlock source, be aware that changing that source will most likely cause a
glitch as the camera locks to the new source.
Reference Timing
Allows you to manually adjust the reference timing on a line or pixel basis.
Headset Level
Move the volume slider left or right to increase or decrease audio monitoring levels. The default setting
is 50%.
Headset Mic Level
Move the volume slider left or right to increase or decrease audio microphone input levels. The default
setting is 50%.
Program Mix
Changes the balance of camera sound to talkback sound. The headphones will output audio following
what is displayed on the LCD. For instance, if you are in camera view, camera audio is heard. And if you
are in program view, program audio is heard. The default setting is 0%.
Studio settings.
Camera Settings
14
Adjusting Settings
Blackmagic Studio Camera supports electronic lens control, which allows you to adjust lens settings
such as aperture and auto focus. The focus peaking feature creates a green edge around the sharpest
parts of the image so you can easily confirm your focus. Focus peaking is only visible on the LCD and
does not affect the SDI output.
Focus Button
When using the Studio Camera with an auto focus lens press the FOCUS button for focus peaking or
auto focus. Press the FOCUS button once to auto focus. A quick double press of the FOCUS button
activates focus peaking.
When using a manual lens, press the FOCUS button once for focus peaking.
Iris Button
When using video dynamic range settings, a single press of the IRIS button will set an average exposure
based on the highlights and shadows in your shot. When using film dynamic range settings, pressing
the IRIS button sets your exposure to accommodate the brightest highlight in your shot.
To set your aperture manually on Studio Camera press the up and down navigation buttons.
Press the IRIS button for auto exposure or use the up and
down navigation controls for manual exposure.
Press the FOCUS button once to auto focus. A quick double
press of the FOCUS button activates focus peaking.
1
PUSH
2
PUSH
FOCUS
SDI OUT
OPTICAL OUT
OPTICAL IN
SDI IN
REF
12V
IRIS PTT PGM LUT SET DISPLAY MENU
1
PUSH
2
PUSH
FOCUS
SDI OUT
OPTICAL OUT
OPTICAL IN
SDI IN
REF
12V
IRIS PTT PGM LUT SET DISPLAY MENU
1
PUSH
2
PUSH
FOCUS
SDI OUT
OPTICAL OUT
OPTICAL IN
SDI IN
REF
12V
IRIS PTT PGM LUT SET DISPLAY MENU
1
PUSH
2
PUSH
FOCUS
SDI OUT
OPTICAL OUT
OPTICAL IN
SDI IN
REF
12V
IRIS PTT PGM LUT SET DISPLAY MENU
Camera Settings
15
Additional Settings
Push to Talk (PTT)
When doing live production it's vital that camera operators can talk to the director and others within
the control room. Simply press and HOLD the button to begin talking. Press twice in quick succession
for hands free communication. Press again to revert to the default behavior.
Program (PGM)
It's sometimes important for camera operators to see the program output, rather than just the view from
their own camera. Press the button to toggle between live camera output and the program output from a
switcher control room. You can use either the SDI or optical input to connect your external video source.
Look Up Table (LUT)
Currently not implemented.
Left, Up, Down, Right
Use these buttons to navigate the menus.
Set
Use this button to confirm your menu selections.
Display
Toggles framing guides and battery remaining indicator overlays on and off on the LCD. Overlays are
not present on the SDI output.
Menu
Press this button to bring up the Menu and then use the arrow buttons to navigate.
Power
Press the power button to turn on the Blackmagic Studio Camera. Press and hold the button to turn
the camera off.
The Studio Camera features settings like PTT and PGM which
are essential for live production.
1
PUSH
2
PUSH
FOCUS
SDI OUT
OPTICAL OUT
OPTICAL IN
SDI IN
REF
12V
IRIS PTT PGM LUT SET DISPLAY MENU
1
PUSH
2
PUSH
FOCUS
SDI OUT
OPTICAL OUT
OPTICAL IN
SDI IN
REF
12V
IRIS PTT PGM LUT SET DISPLAY MENU
Camera Video Output
16
Connect the camera's SDI output to the HyperDeck's SDI
input and connect the HyperDeck's SDI output to the
camera's SDI input to view your recordings.
+12V POWER HDMI IN HDMI OUT SDI IN SDI OUT
Connecting to Video Switchers
Blackmagic Studio Cameras output 10-bit 4:2:2 video so you can connect to broadcast switchers and
other SDI video equipment. Optical input and output means ATEM Camera Converters are not required
at the camera end.
You can easily view the Program (PGM) output from the switcher by connecting it to your Studio Camera's
SDI or optical fiber input.
Blackmagic Studio Camera also features a reference input which allows multiple cameras to be genlocked
to a blackburst or tri-level reference signal. Genlocking cameras, VTRs and other devices to an external
reference signal helps to eliminate timing errors which may result in the picture jumping when switching
between different sources.
Connecting to Recorders
If you simply wish to record your Studio Camera's output, you can connect the SDI output to the SDI input
of an SSD recorder such as the Blackmagic HyperDeck Shuttle. The SDI output from the HyperDeck can
then be connected to the Studio Camera's SDI input, so you can view your recordings on the camera's LCD.
Connect either SDI or optical cables from your Studio Camera
to a production switcher or other device.
OPTICAL OUT
OPTICAL IN
SDI OUT
SDI IN
REF
12V
OPTICAL OUT
OPTICAL IN
SDI OUT
SDI IN
REF
12V
+12V POWER HDMI IN HDMI OUT SDI IN SDI OUT
Camera Video Output
Blackmagic Camera Utility
17
How to Update Your Camera Software on Mac OS X
After downloading the Blackmagic Camera Utility software and unzipping the downloaded file, open
the resulting disk image to reveal its contents.
Launch the Blackmagic Camera Installer and follow the on screen instructions.
How to Update Your Camera Software on Windows
After downloading the Blackmagic Camera Utility software and unzipping the downloaded file,
you should see a Blackmagic Camera Utility folder containing this PDF manual and the Blackmagic
Camera Utility installer.
Double-click the installer and follow the on screen prompts to complete the installation.
How to Update the Camera Software
After installing the latest Blackmagic Camera Utility on your computer, connect a USB cable between
the computer and the camera. The Mini-B USB 2.0 port is located on the underside of the camera.
Launch the Blackmagic Camera Utility and follow any on screen prompt to update the camera software.
Blackmagic Camera Utility
1
PUSH
2
PUSH
FOCUS
SDI OUT
OPTICAL OUT
OPTICAL IN
SDI IN
REF
12V
IRIS PTT PGM LUT SET DISPLAY MENU
1
PUSH
2
PUSH
FOCUS
SDI OUT
OPTICAL OUT
OPTICAL IN
SDI IN
REF
12V
IRIS PTT PGM LUT SET DISPLAY MENU
The Mini-B USB 2.0 port is located on the underside
of the camera.
Blackmagic Camera Utility software.
Attaching Accessories
18
Sun Shade
The Studio Cameras include a foldable sun shade to shade the LCD in bright conditions and ensure
optimum viewing is possible at all times.
Step 1. Locate the 6 thumbscrews that are included with your Studio Camera.
Step 2. Align the holes in the sun shade with the camera's mounting points and screw in 2 thumbscrews
to the top and each side of the camera to firmly secure the sun shade.
Other Accessories
For studio use you might want to mount the camera on a pedestal and add rails for large broadcast lenses
and teleprompters. For outside broadcast your may want to attach microphones, external batteries, or
LANC remote controllers. The camera includes two 3/8” mounting points on the bottom, and ten 1/4”
mounting points on the sides and the top. This means you have the flexibility to customize your rig for
any size production.
Attaching Accessories
1
1
3
PUSH
2
2
1
3
PUSH
2
Using ATEM Software Control
19
Introducing Camera Control
Your Blackmagic Studio Camera can be controlled from an ATEM switcher using the Camera Control
feature in ATEM Software Control. Clicking on the Camera button opens the camera control feature.
Settings such as iris, gain and focus are easily adjusted using compatible lenses, plus you can color
balance cameras and create unique looks using the DaVinci Resolve primary color corrector.
The ATEM switcher control works by broadcasting camera control packets via all the non down converted
SDI outputs of an ATEM switcher. So this means you can connect an SDI output of an ATEM switcher to your
camera's video input, your camera will detect the control packets in the SDI link and allow you to control
features in the camera itself. You can control your camera via both regular SDI or optical fiber SDI connections.
Connecting via SDI
Step 1. Connect your Blackmagic Studio Camera's SDI Out to any SDI In on the ATEM switcher.
Step 2. Connect any one of the ATEM switcher's SDI outputs, except down converted or multi view
outputs, to your Studio Camera's SDI In. Camera control signals are not sent via the multi view
and down converted SDI outputs.
Step 3. On your Blackmagic Studio Camera, press Menu. Navigate to Studio Settings>Camera
Number and set it to match the switcher input. For example, if studio camera 1 is connected to
Cam 1 on the ATEM switcher, the camera number must also be set to 1. This ensures tally is
sent to the correct camera.
Connecting via Optical Fiber
Step 1. Connect your Blackmagic Studio Camera's Optical Out/In to the Optical Out/In on an ATEM
Studio Converter.
Step 2. Connect a suitable SDI out from ATEM Studio Converter to any SDI In on the ATEM switcher.
Step 3. Connect any one of the ATEM switcher's SDI outputs, except down converted or multi view
outputs to ATEM Studio Converter's SDI In. Camera control signals are not sent via the multi view
and down converted SDI outputs.
Step 4. On your Blackmagic Studio Camera, press Menu. Navigate to Studio Settings>Camera Number
and set it to match the switcher input. For example, if studio camera 1 is connected to Cam 1
on the ATEM switcher, your camera number must also be set to 1. This ensures tally is sent to
the correct camera.
Open ATEM Software Control Preferences and set the switcher's button mapping to make sure you are
switching the right camera with correct tally. Now you have a video connection from the switcher to your
Blackmagic Studio Camera, you can also get the advantage of live tally indicators on your camera, as well as
being able to view the program feed of the switcher by pressing your camera’s PGM button.
ATEM Camera Control
Connect your Blackmagic Studio Camera
to any of the ATEM switcher's SDI inputs.
Connect multiple Blackmagic Studio Cameras
via optical fiber using an ATEM Studio Converter
PUSH PUSH
CONTROL
USB 2.0 HDMI IN SDI INPUTS REFIN AUX1-3 PREVIEW PROGRAM OUTPUTS MULTI-VIEW ANALOGAUDIO IN
STEREO IN
REMOTE
ANALOG AUDIO OUT
CH 1
AllSDI and HDMI video connections are
SD,HD and Ultra HD switchable unless indicated
CH 2CH 1 CH2
IN
1
IN
2
IN
1
IN
3
IN
4
IN
5
IN
6
IN
7
IN
8
IN
9
IN
10
2
1 3
2
1
HD HD HD
PUSH PUSH
CONTROL
USB 2.0 HDMI IN SDI INPUTS REF IN AUX 1-3 PREVIEW PROGRAM OUTPUTS MULTI-VIEW ANALOG AUDIO IN
STEREO IN
REMOTE
ANALOG AUDIO OUT
CH 1
All SDI and HDMI video connections are
SD, HD and Ultra HD switchable unless indicated
CH 2CH 1 CH 2
IN
1
IN
2
IN
1
IN
3
IN
4
IN
5
IN
6
IN
7
IN
8
IN
9
IN
10
2
1 3
2
1
HD HD HD
PUSH PUSH
CONTROL
USB 2.0 HDMI IN SDI INPUTS REF IN AUX 1-3 PREVIEW PROGRAM OUTPUTS MULTI-VIEW ANALOG AUDIO IN
STEREO IN
REMOTE
ANALOG AUDIO OUT
CH 1
All SDI and HDMI video connections are
SD, HD and Ultra HD switchable unless indicated
CH 2CH 1 CH 2
IN
1
IN
2
IN
1
IN
3
IN
4
IN
5
IN
6
IN
7
IN
8
IN
9
IN
10
2
1 3
2
1
HD HD HD
4321
OPTICAL OUT/IN
SDI OUT
L R
RL
USB 2.0
+12V BACKUP
POWER OPTICAL OUT/IN
SDI OUT
L R
ANALOG AUDIO OUT OPTICAL OUT/IN
SDI OUT
L R
ANALOG AUDIO OUT OPTICAL OUT/IN
SDI OUT
L
OUT
R
ANALOG AUDIO OUTANALOG AUDIO OUT
IN
PGM SDI
OUT
IN
MIC
OUT
IN
H/PHONE
AES/EBUTALKBACK LOOPS
PUSH
LOCK TO TALK
PRESS TO TALK
4321
OPTICAL OUT/IN
SDI OUT
L R
RL
USB 2.0
+12V BACKUP
POWER OPTICAL OUT/IN
SDI OUT
L R
ANALOG AUDIO OUT OPTICAL OUT/IN
SDI OUT
L R
ANALOG AUDIO OUT OPTICAL OUT/IN
SDI OUT
L
OUT
R
ANALOG AUDIO OUTANALOG AUDIO OUT
IN
PGM SDI
OUT
IN
MIC
OUT
IN
H/PHONE
AES/EBU TALKBACK LOOPS
PUSH
LOCK TO TALK
PRESS TO TALK
4321
OPTICAL OUT/IN
SDI OUT
L R
RL
USB 2.0
+12V BACKUP
POWER OPTICAL OUT/IN
SDI OUT
L R
ANALOG AUDIO OUT OPTICAL OUT/IN
SDI OUT
L R
ANALOG AUDIO OUT OPTICAL OUT/IN
SDI OUT
L
OUT
R
ANALOG AUDIO OUTANALOG AUDIO OUT
IN
PGM SDI
OUT
IN
MIC
OUT
IN
H/PHONE
AES/EBU TALKBACK LOOPS
PUSH
LOCK TO TALK
PRESS TO TALK
Using ATEM Software Control
Using ATEM Software Control
20
Using Camera Control
Launch ATEM Software Control and click on the Camera button located at the bottom of the software
window. You’ll see a row of labeled camera controllers containing tools to adjust and refine each
camera’s image. The controllers are easy to use. Simply click the buttons using your mouse, or click
and drag to adjust.
Camera Control Selection
The button row at the top of the camera control page lets you select the camera number you would like
to control. If you have more cameras that fit onto the window size, or you are running the color corrector
window, then you can use these buttons to select between which camera you would like to control. If you
are using an Aux output for monitoring your camera control, pushing these buttons to change the camera
to control will also send that camera's video output to the Aux output setup in the switcher preferences.
Channel Status
The channel status at the top of each camera controller displays the camera label, On Air indicator and
lock button. Press the lock button to lock all the controls for a specific camera. When on air, the channel
status illuminates red and displays the On Air alert.
Color Wheel
The color wheel is a powerful feature of the DaVinci Resolve color corrector and used to make color
adjustments to each YRGB channel’s lift, gamma and gain settings. You can select which setting to adjust
by clicking on the three selection buttons above the color wheel.
Master Wheel
Use the master wheel below the color wheel to make contrast adjustments to all YRGB channels at once,
or luminance only for each lift, gamma or gain setting.
Reset Buttons
The reset button near the top right of each camera controller lets you easily choose color correction
settings to reset, copy or paste. Each color wheel also has its own reset button. Press to restore a setting
to its default state, or copy/paste a setting. Locked controllers are not affected by the Paste feature.
The master reset button on the top right corner of the color corrector panel lets you reset lift, gamma and
gain color wheels plus Contrast, Hue, Saturation and Lum Mix settings. You can paste color correction
settings to camera controllers individually, or all cameras at once for a unified look. Iris, focus, coarse and
pedestal settings are not affected by the Paste feature. When applying Paste to all, a warning message
will appear asking you to confirm your action. This is so you don’t accidentally paste new settings to any
unlocked cameras that are currently on air.
Click on the settings icon to select
the Aux output for camera control.
Each camera controller displays the channel status so you
know which camera is on air. Use the color wheels to adjust
each YRGB channel's lift, gamma and gain settings.
When applying Paste to all, a warning message will appear
asking you to confirm your action. This is so you don’t
accidentally paste new settings to any unlocked cameras
that are currently on air.
Other manuals for Blackmagic Cinema Camera
4
Table of contents
Languages:
Other Blackmagicdesign Camcorder manuals
Blackmagicdesign
Blackmagicdesign Blackmagic URSA User manual
Blackmagicdesign
Blackmagicdesign Blackmagic Cinema Camera User manual
Blackmagicdesign
Blackmagicdesign Studio Camera User manual
Blackmagicdesign
Blackmagicdesign URSA BROADCAST User manual
Blackmagicdesign
Blackmagicdesign Blackmagic URSA User manual
Blackmagicdesign
Blackmagicdesign Intensity Pro User manual
Blackmagicdesign
Blackmagicdesign Cameras User manual
Blackmagicdesign
Blackmagicdesign Pocket Cinema Camera 4K Operating instructions
Blackmagicdesign
Blackmagicdesign URSA Setup guide
Blackmagicdesign
Blackmagicdesign Blackmagic Cinema Camera User manual
