BlackSys CAMMSYS CH-100B User manual

USER MANUAL
BlackSys CH-100B
Blackbox
CAMMSYS
※ BlackSys Application may vary in function depending on mobile product and OS version.

Thank you for choosing BlackSys.
This manual is based on the CH-100B model.
The latest firmware & manual can be found at our website
www.blacksys.co.kr/en
■ Please read carefully before using this product.
※ This manual should be reviewed and retained for future reference.
※ CAMMSYS Corp. reserves all rights to this manual in accordance with the copyright law.
※ Content of this manual is subject to change without notice to ensure quality control.
※ Differences in product functionality may differ depending on firmware.
※ This product was designed as an accessory for safe driving. In the event of an accident, all responsibility is borne
by the vehicle operator. Please use this product responsibly.
■ Scope of guarantee and responsibility
※ This product is a vehicle-accessory for recording video image and sound for the simulation of an accident
and recorded data may be used as evidence and reference purposes. We cannot guarantee this product to capture
all accident related video image and sound. Quality may differ due to weather condition(s).
※ We will not be held responsible for any damages and/or data corruptions or loss caused by a malfunction of this product.
※ In general, the memory card lifespan for this product is ~ 6 months and may be subject to data corruption or loss due to static
electricity and/or external voltage. For this reason, we highly recommend the user to copy and save important data to external
media (hard disc, CD, portable memory, etc.).
※ Memory card may contain corrupt images (image recording omissions, image cuts, frame change and omission, other defect in image recording)
due to a decrease in reading/writing speed and other defects. For the best results, please use the authorized SD memory cards
and format periodically. (Once a month for 16G micro SD memory card)

contents
Contents
01 Instruction for Use
1-1. Product Precautions …………………… 04
1-2. Installation caution …………………… 07
1-3. GPS caution …………………… 07
1-4. Memory Card …………………… 08
02 Features …………………… 09
03 Package & Part Names
3-1. Package Guide …………………… 12
3-2. Front & Rear …………………… 13
3-3. Left & Right …………………… 14
04 Installation
4-1. Front Camera (Main Unit) …………………… 15
4-2. Rear Camera …………………… 17
4-3. Memory Card Usage …………………… 18
05 Product Usage
5-1. Standard Operation Guide ………………… 19
5-2. LED indicator & Voice Guide ……………… 22
5-3. LED indicator & Voice Guide ………… 25
5-4. Connecting to the BlackSys App …… 25
5-5. Upgrading the App Firmware …………… 29
5-6. BlackSys Viewer Program ………………… 30
06 Firmware Update
6-1. Firmware Update …………………… 34
6-2. Download firmware …………………… 34
07 SD Card Format
7-1. SD Card format …………………… 35
7-2. Automatic format …………………… 35
08 Product Specification …………………… 36
09 Customer Service & AS …………………… 37
10 Quality Assurances …………………… 38
11 Product Warranty …………………… 39

04
CAMMSYS BLACKBOX
01 Product Precaution
1-1 Caution
1. Do not expose product to direct sunlight or cold weather for extended periods of time.
Product exposure to direct sunlight and extreme temperatures may cause damage to the product.
2. Do not dismantle or alter the product.
Do not disassemble, modify, or attempt to repair the product. Any alterations to the product can void the manufacturer’s warranty.
Please contact your local dealer or the C/S Centre for more information.
3. Do not dismantle or alter the product accessories.
Do not disassemble, modify, or attempt to repair any accessories for this product (Cigar Jack Cable, Mount, etc.). This may cause damage
to the vehicle and/or product. Any resulting damage shall be the responsibility of the user and is not covered under manufactures warranty.
4. Do not allow liquid to come into contact with product.
Please note this product is not waterproof and exposure to liquid and foreign substances may cause a product malfunction, short circuit,
and/or fire. Use caution when cleaning the product and clean with a soft and dry cloth.
5. Do not expose the product to heavy impacts.
Excessive impacts to this product can cause a malfunction. Handle the product with care.
6. Only use manufacture approved power cable and accessories.
Any damages or loss to product/vehicle as a result of accessory incompatibility will not be covered under manufactures warranty.
7. Any accessory or peripheral which manufacturer doesn’t supply will not be covered by warranty.
We will not warranty any accessory or peripheral if these are not authorized by us. User will be responsible for the damage caused by using
unauthorized accessory or peripheral.
8. Do not operate the product for extended periods of time while the vehicle is not running.
Excessive use of the product while vehicle is off can cause drainage to the vehicle’s battery

05
USER MANUAL
9. Video quality may vary depending on extreme lighting conditions.
Quality is subject to alterations in extreme dark/light areas and conditions. Most notability when entering/exiting a tunnel or parking garage.
10. Data may not be recorded if accident impact is lower than a predetermined threshold.
In extreme cases the product may not record data during an accident due to low impact forces. In addition, during a high force impact
accident power may be cut off to the product and data may be lost.
11. Do not disconnect the power source while the product is turned-on.
Disconnecting the power source may cause the product to malfunction. Please use only the recommended voltage for power connection.
12. Some PCs may not support BlackSys Viewer or there may be some disconnections in voice/image depending
on the PC’s specifications.
13. AE operations at night may vary depending on vehicle (black, red) low light reflection.
14. There may be frame omissions due to rapid AE operational changes in low light areas.
Please reset the installation angle of the product if AE operation malfunctions.
15. There may be noise in the video when recording in poor lighting environments.
16. In the event of a sudden frame change or switching between parking & driving modes, there may be a loss of data.
17. Motion detectors may malfunction in the event of an extreme increase/decrease to the surrounding lighting
conditions of the vehicle.
18. The motion detection function may not operate properly in environments with poor lighting conditions
due to noise and vehicle security LED(s).
*AE : Automatic Exposure

06
CAMMSYS BLACKBOX
19. The left/right side image quality of this product may vary due to characteristics of the wide-angle lens.
21. Please ensure all accessories are connected to product(s) to avoid data loss.
22. The interworking draft using Wi-Fi between smartphone and product cannot be connected simultaneously,
also when it is connected with product you cannot access internet.
23. Playing video or any other functions may not operate properly on specific kind of smart phone.
24. Using internet is restricted on the status of connecting product.
25. Do not continue to use this product if a malfunction is apparent. Please contact our C/S center
or your local distributor with any questions and/or concerns about this product.

07
USER MANUAL
1-2 Installation caution
1. Keep product clear of clutter.
Please ensure the surrounding area is clutter free to avoid reflections/vibrations that may reduce the image/audio quality.
2. Ensure camera lens is clean at all times.
Allowing the camera lens to collect dust/oils will reduce the quality of the image.
3. Do not attempt to operate or install the product while driving.
For your safety, do not attempt to operate or install the product while driving to avoid a traffic accident.
4. Please keep the product is securely fixed to mount.
Please check that the product is secured before operating the vehicle. This will ensure the best image quality and avoid distractions
to the driver while in motion.
5. Please avoid excessive window tints, as this may distort image quality.
6. Install this product at the point furthest away from the antenna or receiver as possible.
The electromagnetic waves produced by the product may distort receiving sensitivity.
7. Installing camera on the tinted window is not recommended and be careful on damage of tinted window while
uninstalling camera for service or other reason. We don’t take any responsibility for the damage and so please
be careful while uninstalling camera.
1-3 GPS caution
1. There is an error range of over 15m in a normal commercial GPS. There may be situation where the GPS signals
cannot be received depending on the environment such as buildings, underground, and tress. This can make the
error range bigger.
2. A combination of factors including weather can delay the time to receive the first GPS signal after power is
connected to the product.

08
CAMMSYS BLACKBOX
1-4 Memory Card
1. Do not remove the memory card by force while the product is in recording mode.
Please turn off the product before removing the memory card(s). Removing the memory card(s) while the product is turned on may damage
the video file or cause an internal operational error.
2. Be sure to periodically reformat the memory cards using the BlackSys Viewer or the product itself.
Repetitive data creation and deletion by the product can cause damage to the memory card(s) and their file. 16G micro SD card should be
formatted once a month. The warranty period of a memory card is 6 months, and we are not held responsible for any recording errors due
to prolonged usage of a memory card after the 6 month period.
3. After reformatting a memory card, it can be used without configuration files such as firmware.
The latest set value is contained within the product, and will be automatically applied to the SD card(s).
4. Please use Authorized memory cards to ensure the best quality.
We will not be held responsible for any problems related to the usage of memory cards not provided by us.
5. Handle with care when inserting and removing the memory card(s) to avoid burns.
6. The memory card(s) operate at high temperatures, and we recommend you use caution when inserting and removing.
7. Please backup your recorded videos using an external storage product (PC, HDD, etc.).
8. Be sure to insert the micro SD card into the product.
Without the micro SD card, event recordings are not saved.
3. External electronic products and window tinting may affect the GPS reception.
4. Vehicle speed accuracy may vary between 1-30km/h depending on the reception area when stopping the car.
5. GPS may be operated when switching off the product.

09
USER MANUAL
02 Features
+ Clear image with CMOS Sensor
Front: Full HD Sony CMOS Sensor / Rear: HD Image Sensor
+ Distortion-free recording with Wide-angle lens
Front: 1920x1080p Full HD, 30fps / 16:9 wide screen with 135° angle of view
Rear: 1280x720p HD, 30fps with 130° angle of view
+ Wi-Fi Support (802.11b/g/n (2.4~2/4835FHz))
+ Low Voltage Cut-off function
Under 100uA Leakage current.
+ Supports a variety of recording functions
- Continuous recording : Generates recording files at three-minute or five-minute intervals continuously.
- Event recording : Generates 30sec recording files before and after the event.
- Parking recording : Generates 30sec recording files before and after the motion is detected.

10
CAMMSYS BLACKBOX
+ 8GB~128GB Memory Support
+ Multi Language Support
Korean, English, Chinese (Mandarin, Cantonese), Arabic, Russian, French, Spanish (Europe, South America), Japanese,
Thai language, Bahasa Indonesia, Vietnamese, German, Turkish, Italian, Czech, Portuguese, Bahasa Malaysia
+ Security LED Support
+ GPS Dual Band (GPS+GLONASS)
+ Built-in microphone
Product records audio simultaneously with video.

11
USER MANUAL
+ Direct memory card format
Product formats memory card without connection to PC.
+ Built-in super capacitor
Internal battery replacements are not necessary due to a built-in semi-permanent super capacitor.
When the vehicle is turned off, the product will save all data before terminating.
+ Playing
You can check the recorded video and driving information by BlackSys PC viewer and smartphone and
also you can use other video player such as Windows media player.

12
CAMMSYS BLACKBOX

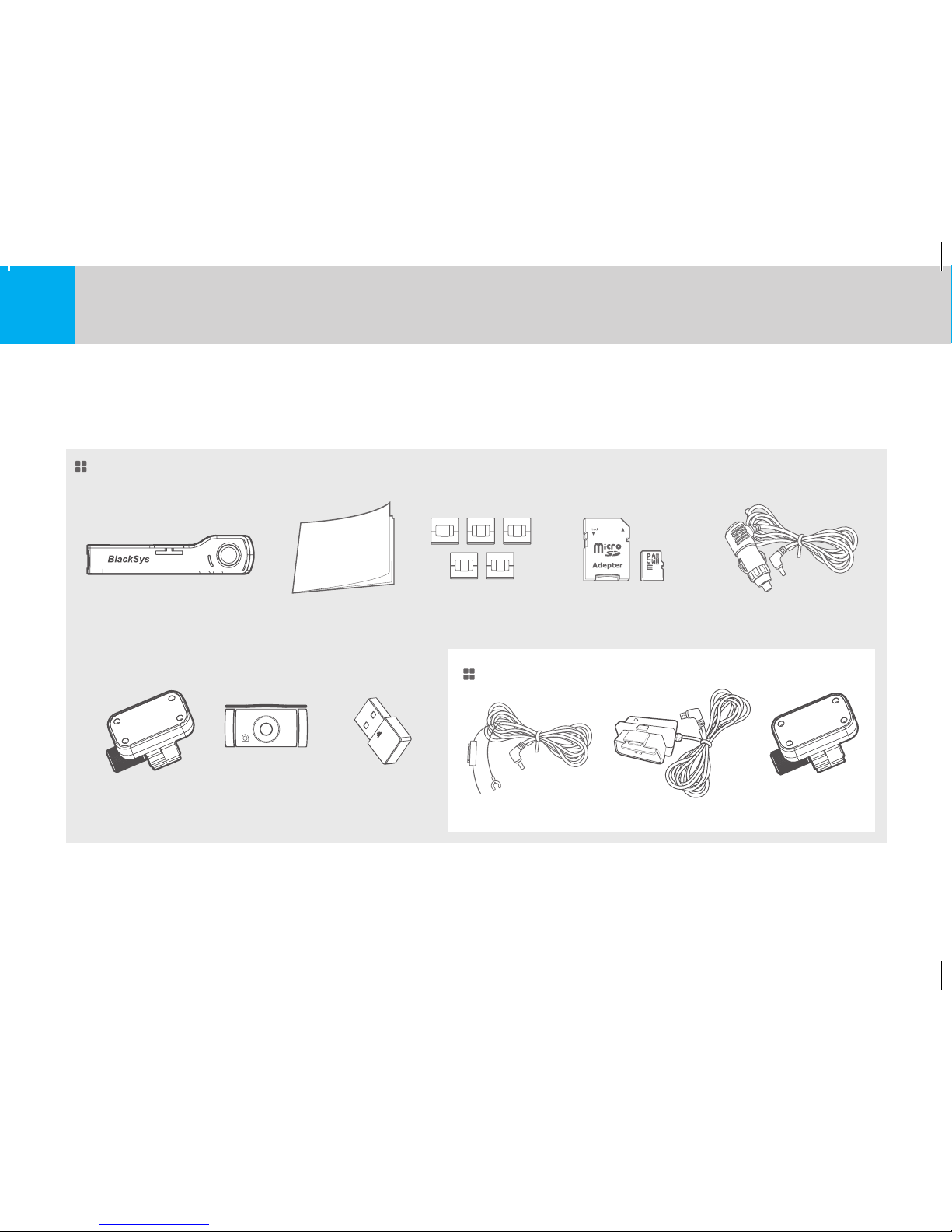

※ Actual components may be different from pictures and some components can be changed in case.
If package doesn’t include below components, please contact a retail shop or company where product was sold.
Standard Components
Main Unit (Product)
DC Fuse Power Cable
Option
Cigar Jack Cable
OBD Terminal
Wi-Fi DongleRear CameraBracket Bracket type GPS
User Manual Cable Holder Micro SD Memory
03 Package & Part Names
3-1 Package Guide

13
USER MANUAL
MICRO SD
Emergency Recording Button
For manual recording
Wi-Fi
Wi-Fi ON/OFF
Volume Control
Speaker volume control (+)
Volume Control
Speaker volume control (-)
Camera Lens
For video recording
Security LED
LED indicator for parking
or video recording Micro SD card slot
External Micro SD card port
3-2 Front & Rear

14
CAMMSYS BLACKBOX
Wi-Fi Port
Wi-Fi Connecting port
OBD Terminal
Check driving information
by using OBD cable
Rear Camera Connecting Port
Connecting HD rear camera
Power cable port
Cigar jack power cable port
GPS Port
Check location
and speed of vehicle
through BlackSys Viewer program
① GND
② AV OUT
③ GPS Data
④ Power
3-3 Left & Right

15
USER MANUAL
1. Attaching double-sided adhesive tape 2. Installing unit
Wipe up the foreign matters or moisture completely
from the location of installation. Remove the
release paper on double sided tape and attach it
to the cradle part of holder and remove the red
adhesive protector.
Installation is recommended on the left/right of room mirror.
Tightly fasten the adhesive of holder to the windshield by
pushing it. Adjust the angle of camera to record forward and
unit to be vertically installed. Finally, tighten the clamping
lever.
※ If a video from navigation system or dashboard reflect in windshield,
it could affect video quality.
04 Installation
4-1 Front Camera (Main product)

16
CAMMSYS BLACKBOX
3. Power cable arrangement and connection 4. Power cable connection and check the LED state
By using the cable holder, arrange the Cigar jack cable
and connect it to the DC IN port.
After inserting the Cigar jack cable into cigar jack, turn on the
car ignition. If all LEDs of power status are on, installation is
completed.
4-1 Front Camera (Main product)

17
USER MANUAL
1. Rear Camera Installation 2. Installation
Connect rear camera to the rear camera connector.
Clean up the cable of rear camera from the location
of installation.
Wipe up the foreign matters or moisture completely from the
location of installation. Remove the red adhesive on double
sided tape and attach it to the rear windshield. Installation is
recommended on the middle of rear windshield.
※ Tinted windows may cause unclear image of video from rear camera.
Avoid tinted window.
4-2 Rear Camera

18
CAMMSYS BLACKBOX
4-3 Memory Card Usage
- Video is recorded in 3 or 5 minute intervals for continuous recording. 30 second intervals for motion and event recording.
- The number of files and usage times below is standard when set at 70% continuous, recording, 20% motion recording and 10% event recording.
1. Micro SD Card Usage Time
※ Front 6M/sec, Rear 4M/sec (High quality standard)
※ The number of files and usage times may be different from actual usage time.
※ Total recording time means sum of front and rear recorded videos. (It saves front and rear videos separately)
※ The number of files and usage times may be changed according to the quality of video.
SD Continuous Motion Event
Front Rear Front Rear Front Rear
8G 22 files 22 files 36 files 36 files 18 files 18 files
66 min (1h 6min) 18 min 9 min
16G 45 files 45 files 76 files 76 files 38 files 38 files
135 min (2h 15min) 78 min (1h 18min) 39 min
32G 91 files 91 files 156 files 156 files 78 files 78 files
273 min (4h 33min) 79 min (1h 18min) 39 min
64G 184 files 184 files 316 files 316 files 158 files 158 files
552 min (9h 12min) 158 min (2h 38min) 79 min (1h 19min)
128G
368 files 368 files 632 files 632 files 316 files 316 files
1104 min (18h 24min) 316 min (6h 16min) 158min (2h 38min)

19
USER MANUAL
05 Product Usage
5-1 Standard Operation Guide
1. Recording start and end
- Once connecting power, CH-100B gives voice guide, “Start recording” and then it starts recording.
- Once disconnecting power, CH-100B gives voice guide, “Car DVR is ending”.
※ Please check whether the SD card is inserted into the main unit or not before connecting power.
2. Recording Mode & Time usage
※ While Event recording and manual recording mode, other event or manual mode will not be operated.
3. Video Playback
- Playback the recorded video: To playback the recorded video, touch “SD Card” or “BLACKSYS” (When connecting Wi-Fi)
of CammSys application. Also you can check the video on BlackSys Viewer on PC with Micro SD card.
Mode Recording Time Save location
Normal Recording
Normal 3/5 min AlwaysMovie folder
Event 10 sec before / 20sec after EventMovie folder
Manual 10 sec before / 20sec after EventMovie folder
Parking Recording
Motion 10 sec before / 20sec after MotionMovie folder
Parking 10 sec before / 20sec after EventMovide folder

20
CAMMSYS BLACKBOX
4. Normal Recording
- Normal recording : Recording starts when vehicle power is turned on and recorded data are stored in SD card. (“AlwaysMovie” folder)
- Event recording : Recording starts if acceleration sensor(G-sensor) detects impact, sudden unintended acceleration and quick braking,
it records 30 sec. of video to the (“EventMovie” folder)(10 sec. before and 20 sec. after the event)
- Manual recording : Recording starts if user manually pressed the vent button during the car runs, it records 30 sec. of video
to the (“EventMovie” folder).
※ While Event Recording, Manual recording function cannot be operated and during Manual recording, Event recording also cannot be operated.
5. Parking Mode Recording
- Paring mode is active when the product power is ON.
※ Note that recording and the product itself will terminate power if the vehicles’ battery drops below a predetermined voltage.
- Parking Mode Setting : The product can be programed with a set time to initiate the ‘auto conversation to parking mode’ function.
When the product converts to parking mode, a voice segment (“Switched to parking mode”) is announced.
※ Automatic conversation to parking mode can be programed in the Configuration Setting >> Basic Functions of the BlackSys viewer,
or on the BlackSys mobile app : BlackSys Settings >> Basic Function.
※ As recording stops and converts to parking or driving mode, less than 5 seconds of video may be lost.
- Recording in Parking model “Motion LED segment will be displayed on lower part of the screen when saved video playing.
※ When converting from normal, event, or manual recording mode to parking mode, each recorded file is terminate and converted into parking mode.
For this reason, video loss can occur.
- When selecting ‘Use motion detection’ in the configuration settings, video will be recorded for 30 seconds in total when motion is
detected - 10 sec. before / 20 sec. after. Files will be saved in the “MotionMovie” folder.
※ For efficient memory management only the rear/front camera that detects the motion will activate.
