Panasonic HDC-HS700PC User manual

Pa.aso.ic _
Operating Instructions
High Definition Video Camera
Model .o.HDC-TM 700 P/PC
HDC-HS700P/PC
Before connecting, operating or adjusting this product, please read the instructions completely.
Spanish Quick Use Guide is included.
Guia para r&pida consulta en espaSol esta incluida.
AVCH_ TM m DOLBY LEICA _M
DIGITAL I DICOMAR _l_'_C
5=1 CREATOR
H_rnl Vl t_Li_K_
VQT2M75

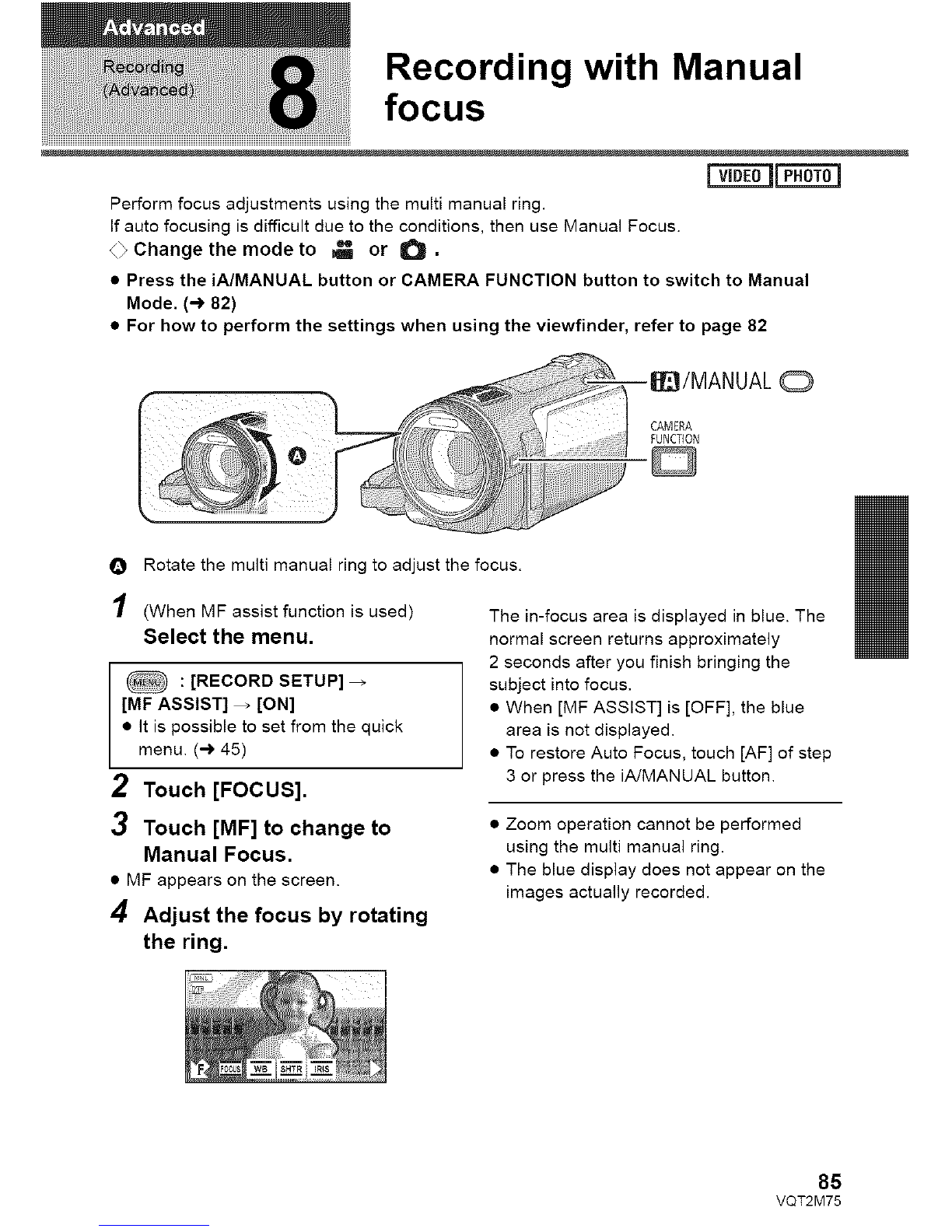

Recording with Manual
focus
mm
vIDL_JL_
Perform focus adjustments using the multi manual ring.
If auto focusing is difficult due to the conditions, then use Manual Focus.
4_ Change the mode to _ or O.
•Press the iA/MANUAL button or CAMERA FUNCTION button to switch to Manual
Mode. (-_ 82)
•For how to perform the settings when using the viewfinder, refer to page 82
/MANUALO
CAMERA
FUNCTION
O Rotate the multi manual ring to adjust the focus.
!(When MF assist function is used)
Select the menu.
:[RECORD SETUP]
[MF ASSIST] _[ON]
• it is possible to set from the quick
menu. (-) 45)
2Touch [FOCUS].
3Touch [MF] to change to
Manual Focus.
• MF appears on the screen.
4Adjust the focus by rotating
the ring.
The in-focus area is displayed in blue. The
normal screen returns approximately
2 seconds after you finish bringing the
subject into focus.
• When [MF ASSIST] is [OFF], the blue
area is not displayed.
• To restore Auto Focus, touch [AF] of step
3 or press the iA/MANUAL button.
• Zoom operation cannot be performed
using the multi manual ring.
• The blue display does not appear on the
images actually recorded.
85
VQT2M75

Playback Operations
For details on the basic playback operations, refer to page 41.
Fast forward/
rewind playback
Skip playback
(to the start of a
scene)
Slow-motion
playback
Frame-by-frame
playback
The motion picture
is advanced one
frame at a time.
During Playback
During Pause
•When the operation
icon disappears,
touch the screen to
display the icon again
Touch I_1_ during playback to fast
forward.
(Touch 4< to rewind.)
• The fast forward/rewind speed
increases if you touch 1_1_-/,_1 again.
(The display on the screen changes
from I_1_ to _.)
• Normal playback is restored when you
touch _-/lll.
Press the 14_ or I_1_1button during
playback.
(Operation is possible _ _
with the remote _ _
control only.)
With the playback paused, continue
touching ||_.
(4B| is for slow rewind playback)
Playback is slow while touching.
• Normal playback is restored when you
touch I_HR.
• When slow-motion pictures are piayed back
in reverse, they will be shown continuously
at approximately 213rd the speed of normal
playback (intervals of 0.5 seconds).
With the playback paused, touch |J!_.
(Touch "qliJto advance the frames one
at a time in the reverse direction.)
• Normal playback is restored when you
touch b,-/R.
• When the frames are advanced one at a
time in the reverse direction, they will be
shown in intervals of 0.5 seconds.
86
VQT2M75

Direct playback
1) Touch 1_ to display the direct playback
bar O.
2) Touch the direct playback bar.
• The playback is paused and the image
is skipped until the position you
touched.
• Playback starts again when you release
the touch screen.
• Touch _1 to display the operation icon,
• Direct playback bar cannot be operated
with the remote control.
A single frame from the recorded motion picture can be saved as a still picture.
Picture size of the still picture to be recorded is _ (1920× 1080).
1Pause at the scene you want to save as a still picture during
playback.
• It is convenient to use slow-motion playback and frame-by-frame playback.
2Press the 0button fully.
• Date the motion picture was recorded will be registered as date of the still picture.
• Quality will be different from the normal still picture.
87
VQT2M75

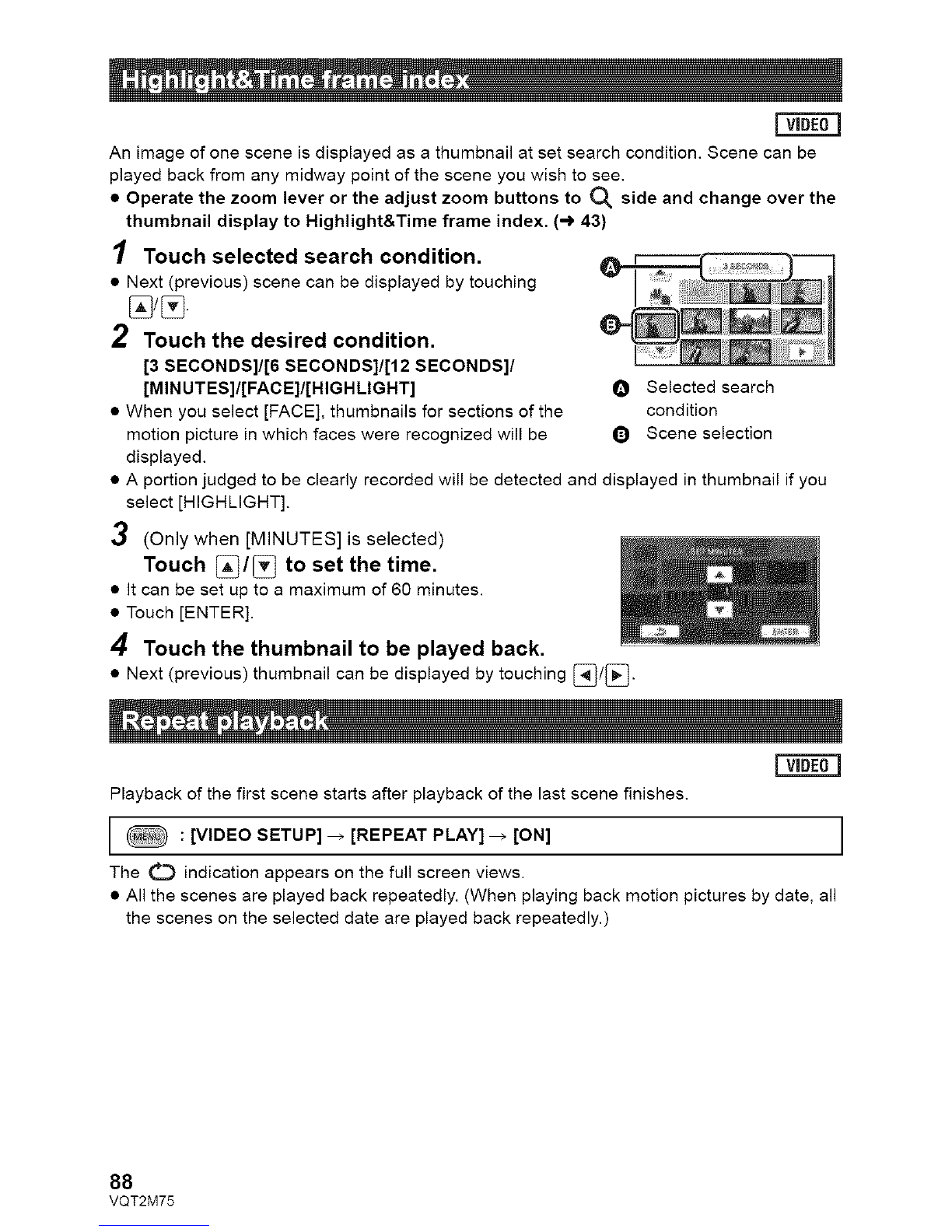

Animageofonesceneisdisplayedasathumbnailatsetsearchcondition.Scenecanbe
playedbackfromanymidwaypointofthesceneyouwishtosee.
• OperatethezoomleverortheadjustzoombuttonstoO_sideandchangeoverthe
thumbnaildisplaytoHighlight&Timeframeindex.(-)43)
/Touch selected search condition.
• Next (previous) scene can be displayed by touching
2Touch the desired condition.
[3 SECONDS]I[6 SECONDS]I[12 SECONDS]/
[MINUTES]/[FACE]/[HIGHLIGHT] O Selected search
• When you select [FACE], thumbnails for sections of the condition
motion picture in which faces were recognized will be Q Scene selection
displayed.
• A portion judged to be clearly recorded will be detected and displayed in thumbnail if you
select [HIGHLIGHT].
3(Only when [MINUTES] is selected)
Touch _]/[_ to set the time.
• It can be set up to a maximum of 60 minutes.
• Touch [ENTER].
4Touch the thumbnail to be played back.
• Next (previous) thumbnail can be displayed by touching [_/[_.
Playback of the first scene starts after playback of the last scene finishes.
:[VIDEO SETUP] _[REPEAT PLAY] _[ON] I
i
The O indication appears on the full screen views.
• All the scenes are played back repeatedly. (When playing back motion pictures by date, all
the scenes on the selected date are played back repeatedly.)
88
VQT2M75

Ifplaybackofascenewasstoppedhalfway,theplaybackcanberesumedfromwhereitwas
stopped.
:[VIDEO SETUP] _[RESUME PLAY] _[ON] I
If playback of a motion picture is stopped, N¢ appears on the thumbnail view of the stopped
scene.
• The memorized resume position is cleared if you turn off the power or change the mode.
(The setting of [RESUME PLAY] does not change.)
You can zoom in by touching a still picture during playback.
1Touch the part you wish to zoom in on during still picture playback.
• The still picture is zoomed in on, centering on the part you touched. With each touch, you
zoom in further. (x 1 _ x2 _ x4)
2Move your position on the zoomed still
picture by touching A/I'/_I/I_.
• The location of the zoom displays for about 1 second when
zooming in (zooming out) or moving the displayed location.
• The more picture is enlarged, the more its quality
deteriorates. O Displayed location of
the zoom
Zooming out from the zoomed still picture
Touch _, tozoom out. (x4_ x2_ xl)
• Touch _ to return to normal playback (x 1).
• You can also perform zoom operations using the zoom lever or the adjust zoom buttons.
89
VQT2M75

Various playback
functions
The scenes or the still pictures recorded on the same day can be played back in succession.
1Touch the date select icon.
O Date select icon
2Touch the playback date.
The scenes or the still pictures recorded on the date selected are displayed as thumbnails.
3Touch the scene or the still picture to be played back.
• Playing back of all the scenes or the still pictures returns if the power is turned off or the
mode is changed.
• Even if scenes are recorded on the same day, they are grouped separately in the following
cases. -1, -2... is added after the recording date displayed on the screen.
When the number of scenes exceeds 99
When the media is repaired
When the Interval recording is used
• Even if still pictures are recorded on the same day, they are grouped separately in the
following cases.
When the number of still pictures exceeds 999
When pictures are recorded in Hi-Speed Burst Shooting mode ( [_ is indicated after the
date in the list by date).
• r__ is displayed after the date in the list by date for the still pictures created from the motion
picture. (-) 87)
9O
VQT2M75

Apartcanbeextractedandplayedbackevenwhennotsettonormalplayback.
1Touch E_.
2Touch the desired playback mode.
[FACE HIGHLIGHT]: Giving priority to the parts with detected faces, the part that was
recognized as clearly recorded is extracted from a long recording,
and it can be played back in a short time with music added.
[HIGHLIGHT]: Part that was recognized as clearly recorded is extracted from a
long recording, and it can be played back in a short time with
music added.
lINTEL. SCENE]: Scenes can be played back with music, excluding a portion of
the scene judged to have failed to shoot due to fast movement
of this unit, camera shake, or focus error.
3Touch the desired item.
• When [FACE HIGHLIGHT]/[HIGHLIGHT] is selected
[PRIORITY SETUP]*: Select the person registered for face recognition to be played
back. (-)92)
[PLAYBACK TIME]: select the tirnet o play baCk;i,-) 931
[MUSIC SELECT]: Select the music to be played on playback. (-,) 93)
* This appears only when [FACE HIGHLIGHT] is selected.
• When [INTEL. SCENE] is selected
[DATE SETUP]: Select the dateto be played back, (-') 93)
[MUSIC SELECT]: Select the music to be played on playback. (-.)93)
4Touch [START].
• When Face Highlight Playback/Highlight Playback is selected, the playback time is
displayed and playback is paused.
5Select the playback operation. (-) 41, 86)
• When the playback is finished or stopped, the screen to select [REPLAY],
[SELECTAGAIN] or [EXIT] is displayed. Touch the desired item.
91
VQT2M75

• Playingbackofallthescenesreturnsifthepoweristurnedofforthemodeischanged.
(Highlightplayback)
• Highlightplaybackcannotbeperformedwithinterval-recordedmotionpictures.(-)67)
(intelligentsceneselection)
• Upto9sectionscanbeskippedforasinglescene.
• Whenmotionpicturesareskipped,theimagestopsmomentarily.
• Dividedscenewillnotbeskipped.
• FordatathatareeditedwiththeeditingfunctionofHDWriterAE2.1,theIntelligentscene
selectionisdisabled.
•Scene setting
1 Touch [SELECT SCENES] or [SELECT DATE].
2(When [SELECT SCENES] is selected)
Touch the scenes to be played back.
• Up to 99 scenes can be selected in succession.
• When touched, the scene is selected and *,/ is
displayed. Touch the scene again to cancel the
operation.
(When [SELECT DATE] is selected)
Touch the date to be played back.
• A maximum of 7 days can be selected.
• When touched, the date is selected and surrounded
by red. Touch the date again to cancel the operation.
3 Touch [Enter]/[ENTER].
•Priority setting
1 Touch [SELECTED FACE].
• If you touch [NONE], any detected face, including the face of person registered for Face
Recognition, is given priority on playback.
2 (When [SELECTED FACE] is selected)
Touch a face to specify.
• You can specify up to 6 faces, which are to be played
back in priority.
• When touched, the registered face is selected and
surrounded by red. Touch the registered face again to
cancel the operation.
• Touch [ENTER]. When a single face is specified, the name registered for that face is
displayed. When multiple faces are specified, the number of faces is displayed.
92
VQT2M75

•Playback time setting
Touch the playback time to set.
•The playback time of [AUTO] is a maximum of
approx. 5 minutes.
• Playback time may become shorter than the setting,
or it may not even play back if the part recognized as
clearly recorded is short.
•Date setting
Touch the playback date.
•Music setting
1 Touch your favorite music.
• When [NO MUSIC] is selected, the audio recorded at
the time of shooting is played back.
• To adjust the volume of music during playback or
audio testing, operate the volume lever or the adjust
zoom buttons. (-_ 43)
2 Touch [ENTER].
To test the music audio
Touch [START].
• Touch the other music option to change the music to be tested.
• When you touch [STOP], the music playback stops.
93
VQT2M75

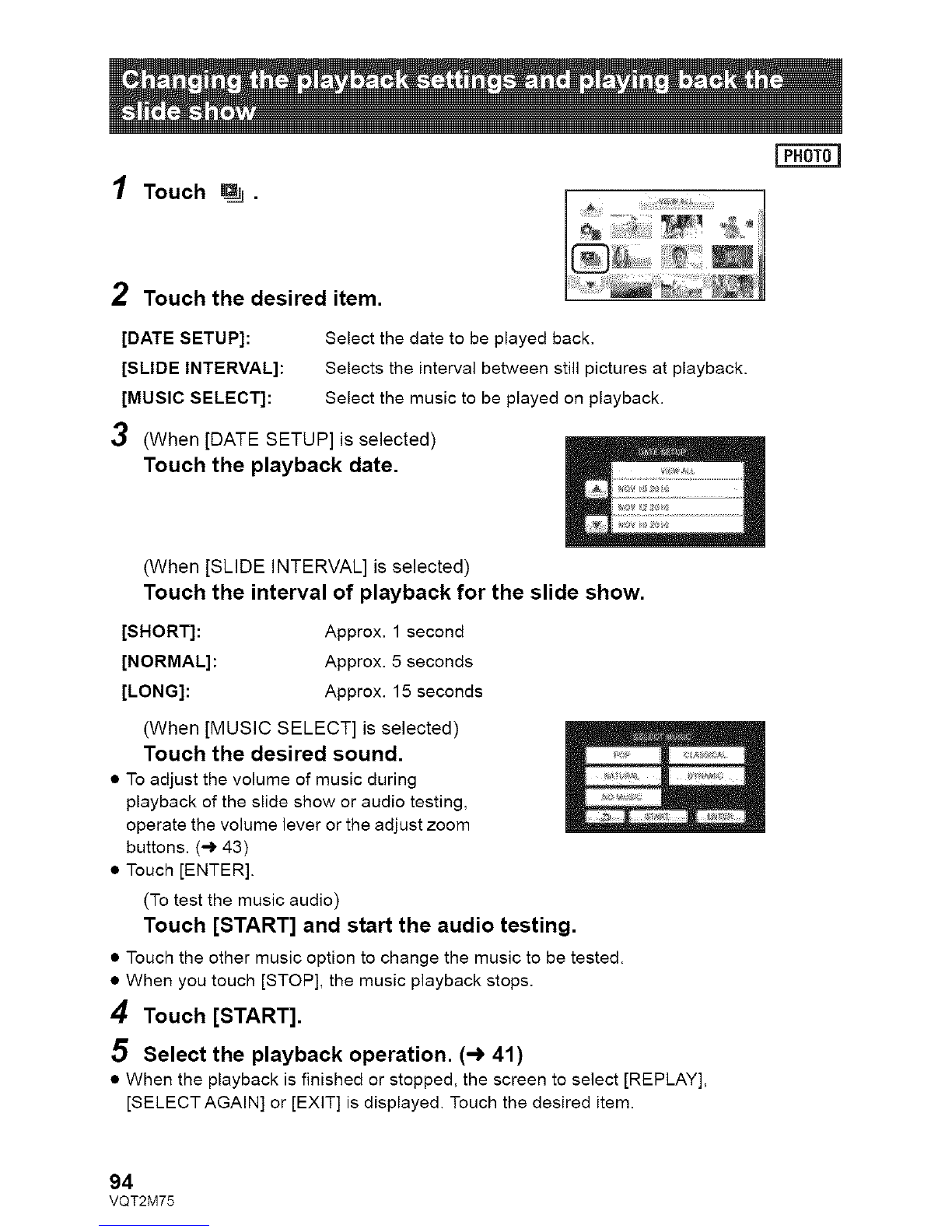

1Touch _.
2Touch the desired item.
[DATE SETUP]: Select the date to be played back.
[SLIDE INTERVAL]: Selects the interval between still pictures at playback.
[MUSIC SELECT]: Select the music to be played on playback.
3(When [DATE SETUP] is selected)
Touch the playback date.
(When [SLIDE INTERVAL]isselected)
Touch the interval of playback for the slide show.
[SHORT]: Approx. 1 second
[NORMAL]: Approx. 5 seconds
[LONG]: Approx. 15 seconds
(When [MUSIC SELECT] is selected)
Touch the desired sound.
• To adjust the volume of music during
playback of the slide show or audio testing,
operate the volume lever or the adjust zoom
buttons. (-_ 43)
• Touch [ENTER].
(To test the music audio)
Touch [START] and start the audio testing.
• Touch the other music option to change the music to be tested.
• When you touch [STOP], the music playback stops.
4Touch [START].
5Select the playback operation. (-3, 41)
• When the playback is finished or stopped, the screen to select [REPLAY],
[SELECTAGAIN] or [EXIT] is displayed. Touch the desired item.
94
VQT2M75

Deleting scenes/still
pictures
Deleted scenes/still pictures cannot be restored, so perform appropriate
confirmation of the contents before proceeding with deletion.
<> Change the mode to [].
_ TO delete by confirming images
................. being played back
Press the _ button While scenes or sti!!
! Piotu[es to be deleted are being played
back.
•Deleting multiple scenes/still pictures from the thumbnail display
1Press the _button while the thumbnail view screen is displayed.
2Touch [ALL SCENES] or [SELECT].
•When [ALL SCENES] is selected, all the scenes or still
pictures on the selected media will be deleted.
(In case of playing back scenes or still pictures by date, all the
scenes or still pictures on the selected date will be deleted.)
• Protected scenes/still pictures cannot be deleted.
3(Only when [SELECT] is selected in step 2)
Touch the scene/still picture to be deleted.
• When touched, the scene/still picture is selected and the _ indication appears on the
thumbnail. Touch the scene/still picture again to cancel the operation.
• Up to 99 scenes can be selected to be deleted.
4(Only when [SELECT] is selected in step 2)
Touch [Delete] or press the _button.
• To continuously delete other scenes/still pictures, repeat steps 3-4
When you stop deleting halfway
Touch [CANCEL] or press the MENU button while deleting.
• The scenes or still pictures that have already been deleted when the deletion is canceled
cannot be restored.
To complete editing
Press the MENU button.
95
VQT2M75

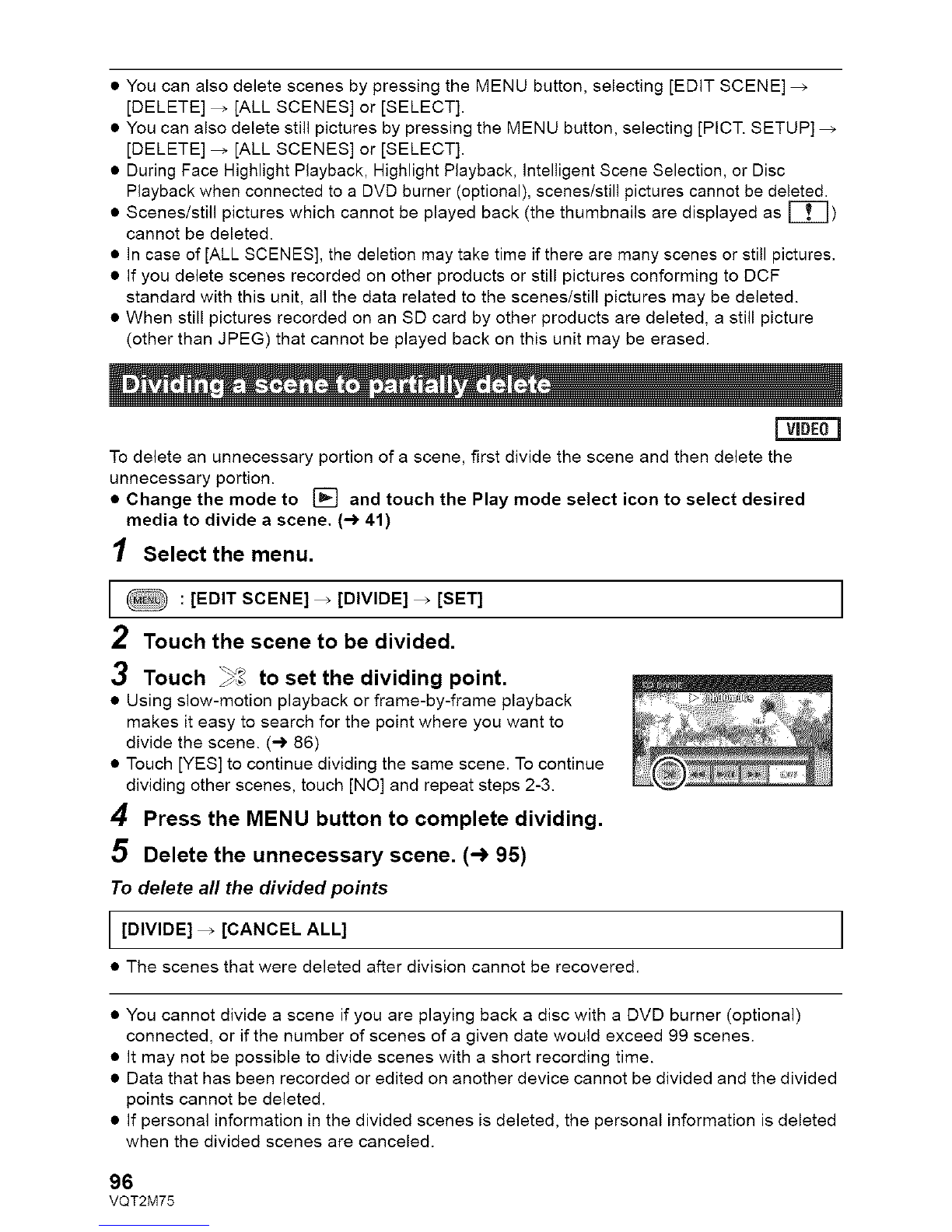

•You can also delete scenes by pressing the MENU button, selecting [EDIT SCENE]
[DELETE] _ [ALL SCENES] or [SELECT].
• You can also delete still pictures by pressing the MENU button, selecting [PICT. SETUP]
[DELETE] _ [ALL SCENES] or [SELECT].
• During Face Highlight Playback, Highlight Playback, Intelligent Scene Selection, or Disc
Playback when connected to a DVD burner (optional), scenes/still pictures cannot be deleted.
• Scenes/still pictures which cannot be played back (the thumbnails are displayed as r-_)
cannot be deleted.
• In case of [ALL SCENES], the deletion may take time if there are many scenes or still pictures.
• If you delete scenes recorded on other products or still pictures conforming to DCF
standard with this unit, all the data related to the scenes/still pictures may be deleted.
• When still pictures recorded on an SD card by other products are deleted, a still picture
(other than JPEG) that cannot be played back on this unit may be erased.
To delete an unnecessary portion of a scene, first divide the scene and then delete the
unnecessary portion.
•Change the mode to _and touch the Play mode select icon to select desired
media to divide a scene. (-> 41)
1Select the menu.
:[EDIT SCENE] _[DIVIDE] _[SET]
2Touch the scene to be divided.
3Touch _'_
_._ to set the dividing point.
• Using slow-motion playback or frame-by-frame playback
makes it easy to search for the point where you want to
divide the scene. (-,) 86)
• Touch [YES] to continue dividing the same scene. To continue
dividing other scenes, touch [NO] and repeat steps 2-3.
4Press the MENU button to complete dividing.
5Delete the unnecessary scene. (-_ 95)
To delete all the divided points
[DIVIDE] _[CANCEL ALL]
• The scenes that were deleted after division cannot be recovered.
I
I
• You cannot divide a scene if you are playing back a disc with a DVD burner (optional)
connected, or if the number of scenes of a given date would exceed 99 scenes.
• It may not be possible to divide scenes with a short recording time.
• Data that has been recorded or edited on another device cannot be divided and the divided
points cannot be deleted.
• If personal information in the divided scenes is deleted, the personal information is deleted
when the divided scenes are canceled.
96
VQT2M75

Deletesfacerecognitioninformationfromscenesinwhichfaceswererecognized.
• Changethemodeto
1Select the menu.
I
:[VIDEO SETUP] _ [DELETE PERSONAL INFO] I
i
2Touch the desired scenes with personal information to be deleted.
• _===appears at scenes for which faces were recognized. Touch one of the scenes where
_===appears.
• _===will change to _ (red) when touched. Touch the _ (red) again to cancel the operation.
• Up to 99 scenes can be selected in succession.
3Touch [Delete],
•To continuously delete other personal information, repeat steps 2-3.
•Press the MENU button to complete the settings.
When you stop deleting halfway
Touch [CANCEL] or press the MENU button while deleting personal information.
• The personal information that has already been deleted when the deletion is canceled
cannot be restored.
• During Face Highlight Playback, Highlight Playback, Intelligent Scene Selection, or disc
playback when connected to a DVD burner (optional), scenes/still pictures cannot be deleted.
mm
_ LEUALOJ
Scenes/still pictures can be protected so that they are not deleted by mistake.
(Even if you protect some scenes/still pictures, formatting the media will delete them.
• Change the mode to {_.
1Select the menu.
: [VIDEO SETUP] or [PICT. SETUP] _ [SCENE PROTECT]
2Touch the scene/still picture to be protected.
• When touched, the scene/still picture is selected and the O_ indication appears on the
thumbnail. Touch the scene/still picture again to cancel the operation.
• Press the MENU button to complete the settings.
• When the disc playback is selected while a DVD burner (optional) is connected, scenes/
still pictures cannot be protected.
97
VQT2M75

DPOF setting
You can write the data selecting still pictures to be printed and the number of prints (DPOF
data) onto the SD card. (Copy still pictures recorded to the built-in memory or HDD to the SD
card before setting DPOF.)
_} Change the mode to [] and touch the play mode select icon to select
[PICTURE/SO CARD]. (-) 41)
• What is DPOF?
DPOF (Digital Print Order Format) is a format which allows the user of a digital camera to
define which captured images on the SD card are to be printed, together with information on
the number of copies they wish to print. (Please note: Not all commercial printing services
support this feature at this time.)
1Select the menu.
:[PICT. SETUP] _[DPOF SET] _[SET]
2Touch the still picture to be set.
3Touch []/_ to set the number of
prints.
•Up to 999 prints can be selected. (Prints for set
number can be printed with a printer that supports
DPOF.)
• To cancel the setting, set the number of prints to [0].
4Touch [ENTER].
• To continuously set other still pictures, repeat steps 2-4.
• Press the MENU button to complete the settings.
To cancel all DPOF settings
[DPOF SET] _ [CANCEL ALL]
I
I
• When the disc playback is selected while a DVD burner (optional) is connected, scenes/
still pictures cannot be set DPOF.
• You cannot add the recording date to pictures to be printed with the DPOF settings.
98
VQT2M75

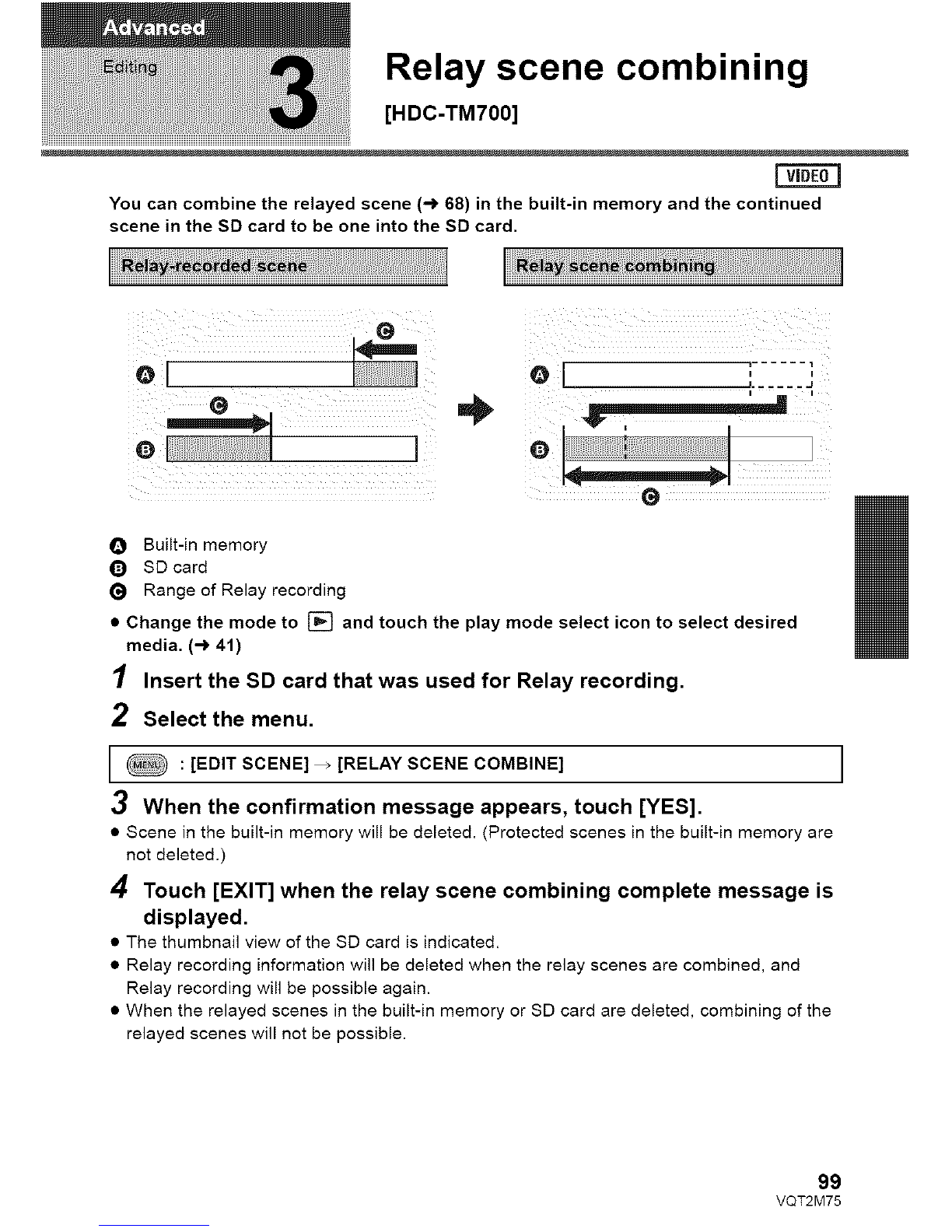

Relay scene combining
[HDC-TM700]
You can combine the relayed scene (-> 68) in the built-in memory and the continued
scene in the SD card to be one into the SD card.
e[ el ,__'-,.....,',
o0
O Built-in memory
Q SD card
Range of Relay recording
• Change the mode to [] and touch the play mode select icon to select desired
media. (-) 41)
1Insert the SD card that was used for Relay recording.
2Select the menu.
:[EDIT SCENE] _ [RELAY SCENE COMBINE]
3When the confirmation message appears, touch [YES].
• Scene in the built-in memory will be deleted. (Protected scenes in the built-in memory are
not deleted.)
4Touch [EXIT] when the relay scene combining complete message is
displayed.
• The thumbnail view of the SD card is indicated.
• Relay recording information will be deleted when the relay scenes are combined, and
Relay recording will be possible again.
• When the relayed scenes in the built-in memory or SD card are deleted, combining of the
relayed scenes will not be possible.
I
99
VQT2M75

To cancel relay information
[EDIT SCENE] _ [RELAY INFO CANCEL] I
•When the relay information is canceled, combining of the relayed scenes will not be
possible anymore.
Combining of the relay scene cannot be performed if the available space on the SD card
is less than the volume of the relayed scene in the built-in memory. It is recommended to
combine the relay scene using a DVD burner or the HD Writer AE 2.1.
• When the disc playback is selected while a DVD burner (optional) is connected, you cannot
combine relay scenes or cancel relay information.
• The personal information of the relayed scene in the built-in memory or SD card is deleted,
the personal information of the combined relay scene is not recorded.
100
VQT2M75

Watching Video/Pictures
on your TV
Confirm the terminals on your TV and use a Cable compatible with the terminals.
Image quality may vary with the connected terminals.
0 High qUalitY _ e
HDM! terminal
_) ComPonent
terminal
• Use the supplied AV multi cable. Check the output settings when connecting the
component terminal or the video terminal with the AV multi cable. (-_ 104)
• Use of the following Panasonic HDMI mini cables is recommended to connect the unit to
the HDMI terminal.
• HDMI is the interface for digital devices. If you connect this unit to a HDMI compatible high
definition TV and then play back the recorded high definition images, you can enjoy them
in high resolution with high quality sound.
1Connect this unit to a TV.
O HDMI mini cable
(optional)
• Be sure to connect to the
HDMI terminal.
Q AV multi cable
HDMIIN (supplied)
O _ _" Picture quality
OHigh definition images
when connecting to
HDMI terminal
High definition images
when connecting to
component terminal
compatible with 1080i
Standard images
when connecting to
1_ component terminal
compatible with 480i
VIDEOIN Q_@_'_ _ Standard images
_A @=_"_ when connecting to
UDION video terminal
101
VQT2M75

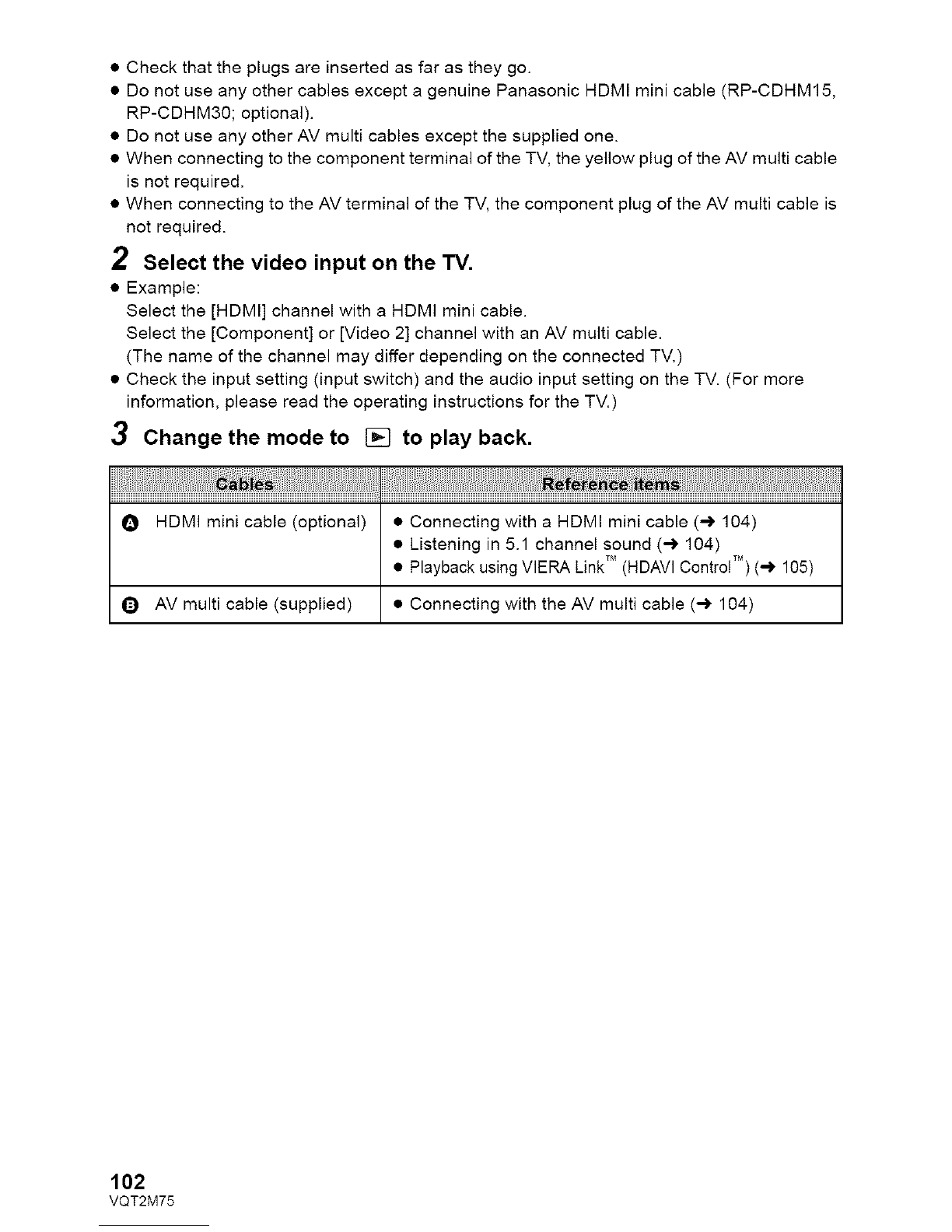

•Check that the plugs are inserted as far as they go.
• Do not use any other cables except a genuine Panasonic HDMI mini cable (RP-CDHM15,
RP-CDHM30; optional).
• Do not use any other AV multi cables except the supplied one.
• When connecting to the component terminal of the TV, the yellow plug of the AV multi cable
is not required.
• When connecting to the AV terminal of the TV, the component plug of the AV multi cable is
not required.
2Select the video input on the TV.
• Example:
Select the [HDMI] channel with a HDMI mini cable.
Select the [Component] or [Video 2] channel with an AV multi cable.
(The name of the channel may differ depending on the connected TV.)
• Check the input setting (input switch) and the audio input setting on the TV. (For more
information, please read the operating instructions for the TV.)
3Change the mode to [] to play back.
!!!!!IHli!!ii!!iiiiiii!iii!i!i!ili !i!!i!! iiii!iiii!iiiii!iiiii!iiiii!iiiii!iiiii!iiiii!iiiii!iiiiiil
O HDMI mini cable (optional) • Connecting with a HDMI mini cable (-) 104)
• Listening in 5.1 channel sound (-) 104)
• Playback using VIERA LinkTM (HDAVI Contro! TM) (-) 105)
Q AV multi cable (supplied) •Connecting with the AV multi cable (-) 104)
102
VQT2M75

•To watch images on a regular
TV (4:3) or when both sides of
the images do not appear on
the screen
Change the menu setting to display the
images correctly. (Check the TV setting.)
: [SETUP] _[TV ASPECT]
[4:3]
Example of images with a 16:9 aspect
ratio on a regular TV (4:3)
•To display the on-screen
information on the TV
When the EXT DISPLAY button on the
remote control is pressed, the information
displayed on the screen (operation icon and
time code etc.) can be displayed/not
displayed on the TV,
•It will not dispiay when the power is turned off.
iiiiilHliiiiil!iiii!ii!ii!iiii ii iiiliiiiii iii!iiii!iii!ii!iiiii iiiiii!iiii!i i! ii!ii!il
If a wide-screen TV is connected, adjust
the aspect setting on the TV. (Refer to the
operating instructions of the TV for
details.)
• If the HDMI mini cable and AV multi cable
are connected at the same time, output
will be prioritized in order of the HDMI mini
cable, AV multi cable.
Refer to the following support site for information about Panasonic TVs with an SD
card slot for playing back your pictures.
http:llpanasonic.netl
• It may not be possible to play back scenes on the TV depending on the recording mode.
• For details on how to play back, please read the operating instructions for the TV.
103
VQT2M75
