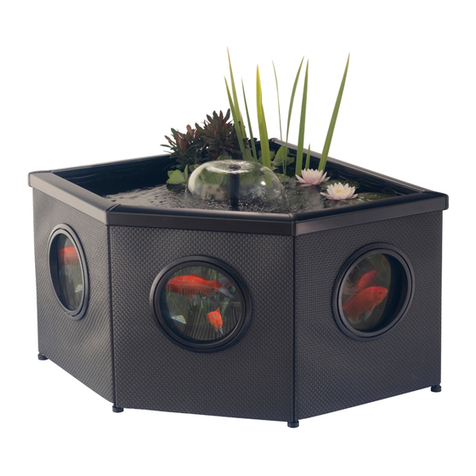

Blagdon affinity View Corner User manual

view corner
mocha weave & black aluminium
instructions
IMPORTANT: PLEASE ATTACH PROOF OF PURCHASE TO THIS MANUAL AND FILE IN A SAFE PLACE.
HOW TO
BUILD YOUR
AFFINITY VIEW
SEE WEBSITE
www.blagdonwatergardening.co.uk
www.pondaquariumproblemsolver.co.uk/blagdon

Step 1
Clear chosen area of debris and any sharp
objects which could puncture the liner.
Step 2
Place down the supplied underlay and layout
the all parts – check the quantities against the
parts table.
Step 3
Connect the two A rails to a 90otrident
connector.
Step 4
Insert a 90oleg and lock in place with the
supplied keys - ensure the end with the sticker
is pointing up on every leg.
View Corner Assembly Instructions
Getting to know your Affinity living feature pool
Step by Step Guide
Part 22
Part 21
Part 20
Part 19
Part 3
Part 18
Part 17
Part 16
Part 15
Part 14
Part 13 Part 12
Part 11
Part 10
Part 9
Part 8
Part 7
Part 2
Part 6
Part 5
Part 4
Part Description Quantity Part No.
Tool 1 1
Plastic Keys 20 2
Plant Basket Fixing Pins 4 3
Plastic Feet 5 4
90oTrident Connector 3 5
A Top Rail (90o-90o) 2 6
A Mocha Weave Panel 2 7
90oLeg 3 8
B Top Rail (90o-135o) 2 9
B Mocha Weave Window
Panel
210
C Top Rail (135o -135o) 1 11
C Mocha Weave Window Panel 112
135oLeg 2 13
B Leg Cross Brace Bar 3 14
135oTrident Connector 215
Underlay 1 16
Liner Bag 1 17
A Leg Cross Brace Bar 2 18
Plant Basket 1 19
Waterfall Clip 2 20
Waterfall Bracket 1 21
Waterfall 1 22
Product Code Product Name
1054690 Inpond 2000 Annual Maintenance Kit
1052245 Affinity Planting Basket
1051309 Inpond 5w UV Clarifier
Part List
Also Available
2
Step 5
Connect a 90otrident to one of the A rails and
attach a B rail – insert a 90oleg and lock into
place with the keys.
Step 6
Connect a 135otrident to this B rail, attach the
C rail – insert a 135oleg and lock into place
with the keys.
Step 7
Connect the last 135otrident to the C rail,
connect the last 90otrident to the last B rail.
Step 8
Insert the B rail into the remaining gap –
connecting the 90otrident to the A rail. Insert
the 90oand 135olegs into the appropriate
positions and lock into place with the keys.
White sticker end of leg
Line up and push fit together
1
1
2
3
4
Line up and push fit together
1
2
Part 1 Part 4 Part 2Part 3

Step 19
Using plant basket fixing pins, pin up the rest
of the liner eyelets onto the vertical face of the
top rails.
Step 20
Using the plant basket fixing pins attach the
plant baskets to the underside of the top rail.
Step 21
Place the Inpond filter into the pool and run the
cables out of the back corner.
Step 22
Attach the waterfall bracket to the waterfall
clips.
Step 23
Clip the waterfall bracket onto the top rail
across the back corner (ensuring the cables
for the filter are in between the clips. Attach the
supplied waterfall.
Step 24
Connect the waterfall hose to the Inpond
outlet, fill the pond with dechlorinated water
and enjoy.
Step 9
Insert the A panels (without windows) across the
legs on the A rails.
Step 10
Insert the B panels (with windows) across the
legs on the B rails.
Step 11
Insert the C panel (with window) across the
legs on the C rail.
Step 12
Insert the leg cross braces labelled A across the
gaps between the legs of the A rails – lock in
place with the keys.
Step 13
Insert the leg cross braces labelled B across the
gaps between the legs of the B rails – lock in
place with the keys.
Step 14
Insert the leg cross brace labelled C across the
gap between the legs of the C rail – lock in
place with the keys.
B
B B
BA
B
Insert this way
Step 15
Push the supplied feet onto the bottom of
the legs.
Step 16
Between two people turn the frame over.
Step 17
Place the liner bag inside the frame and open
it up – turn the liner to align the clear windows
with the portholes on the weave panels.
Step 18
Working around the liner hook the eyelets onto
the hooks on the trident connectors.
1
1
2
1
1
2
Tip: To make installation of the leg cross
braces easier, allow the weave panels to
warm up prior to use - place in direct sunlight
for 20-30 minutes, or place them in an airing
cupboard overnight if building the pool during
the winter.
2
Tip: Use the flat face of the provided tool to
make it easier to push in the plant fixing pins.
2
1
2

Anity feature pools have been designed by a leading British water
gardening company. Over half a century of sh keeping and water
gardening knowledge is brought together in this product, so you
can be assured of a successful, creative water feature.
DESIGN
INNOVATIVE
IMPORTANT: PLEASE ATTACH PROOF OF PURCHASE TO THIS MANUAL AND FILE IN A SAFE PLACE.
Consumer Advice Contact Information
Interpet (Blagdon) Consumer Advice Department,
Vincent Lane, Dorking, Surrey RH4 3YX
E-mail: customercar[email protected]
www.blagdonwatergardening.co.uk
This product is guaranteed against defects in material and workmanship for 3 years from the date
of purchase, under normal usage. The guarantee DOES NOT APPLY in case of improper use,
negligence, lack of maintenance or accidental damage to the Affinity Pool. If the Affinity Pool fails
due to a manufacturing fault within this period it will be either repaired or replaced free of charge.
Liability is limited to replacement of the faulty product only; no other costs will be reimbursed.
This guarantee is not transferable and does not affect your statutory rights. This guarantee does
not confer any rights other than those expressly set out above. Excludes consumable parts (pump
Impellor, LED light). If any parts are needed, spares are available from your retailer. Please see the
Inpond 5 in 1 2000 instructions for more information and part descriptions.
Guarantee
Environment Friendly Disposal
You can help protect the environment! Please remember to
respect the local regulations and hand in any non-working
electrical equipment to an appropriate waste disposal centre.
To keep your Affinity Pool windows clean, use ONLY the Affinity
anti-scratch window cleaning pads code 1051200. Any other
material may scratch or damage the windows. Polymer wool pads
supplied are for the Inpond 5 in 1 filter, (see instruction manual).
All these items are available as replacements from your retailer.
For further information, see our website:
www.blagdonwatergardening.co.uk
Product code: 1057622
