Blagdon Pond Monsta User manual

Established over 40 years ago, Blagdon are
committed to producing a comprehensive
range of high quality, easy to use, pond
equipment. An ongoing programme of
research and development ensures
excellent performance and value for all
their customers. This product excellence is
demonstrated by Blagdon’s award winning
range of water gardening equipment. As
a result Blagdon’s reputation for quality is
unrivalled amongst experienced pond
gardeners and retailers alike.
Blagdon -The Pond Masters
The name you can rely on
www.blagdonthepondmasters.co.uk
Interpet, Dorking, Surrey, RH4 3YX
Leaflet Code: POS 0001
THE POND MASTERS GUIDE TO
POND MONSTA COMPLETE
POND MONSTA
MONSTA COLLECTOR
GUARANTEE
This product is guaranteed against defects in material and workmanship for 2 years
from the date of purchase, under normal usage. The guarantee DOES NOT APPLY
in case of improper use, negligence, lack of maintenance or accidental damage to
either the Pond Monsta or the Pond Monsta collector. If the Pond Monsta or the
Pond Monsta collector fails due to a manufacturing fault within this period it will
be either repaired or replaced free of charge. Liability is limited to replacement
of the faulty product only; no other costs will be reimbursed.
The guarantee is not transferable and does not affect your statutory rights.
This guarantee does not confer any rights other than those expressly set out above.
Excludes consumable parts (batteries, filter mesh, impellers and hose). If any parts
are needed, spares are available from your retailer. Please see getting to know your
Pond Monsta on pages 2 to 5 for spares codes and part descriptions.
Monsta_Instructions_AW.qxd 12/5/09 12:22 Page 1

1
Page
Getting to know your Pond Monsta .............................................................. 2-3
Parts Description ............................................................................................. 2-3
Spares Codes .................................................................................................. 2-3
Getting to know your Monsta Collector ....................................................... 4-5
Parts Description ............................................................................................. 4-5
Spares Codes ................................................................................................... 4-5
Technical Specification ........................................................................................ 5
Installation ..................................................................................................... 6-7
Electrical Installation ........................................................................................ 6-7
Radio Frequency Receiver ................................................................................... 7
How to use Pond Monsta ............................................................................ 8-11
Minimum Start Depth ......................................................................................... 8
Handle Activation and Battery Installation .......................................................... 9
Clearing Blockages ............................................................................................10
Monsta Collector Recycling Water Options ...................................................... 10
Cleaning Collected Waste ................................................................................. 11
Storage ..............................................................................................................11
Maintenance .....................................................................................................12
Removing and Fitting Impeller .......................................................................... 12
Troubleshooting ................................................................................................ 13
Faults and Problems Procedure .........................................................................13
Consumer Advice Contact Details .................................................................... 13
Guarantee ........................................................................................... Back Cover
CONTENTS
Congratulations on buying a Blagdon Pond Monsta
Cleaning System. Manufactured to the highest
quality with leading market technology to create
a clean and healthy pond for your fish.
IMPORTANT
Please attach proof of purchase to this manual
and file in a safe place.
THE POND MASTERS GUIDE TO
POND MONSTA COMPLETE
POND MONSTA
MONSTA COLLECTOR
Monsta_Instructions_AW.qxd 12/5/09 12:23 Page 3

GETTING TO KNOW YOUR
POND MONSTA
GETTING TO KNOW YOUR
POND MONSTA
Part Description Spare Code
1. Handle 1050524
2. Extendable pole, top section N/A
3. Pole cap N/A
4. Extendable pole base section N/A
5. Locking nut, hose / cable clip
6. Hose/cable clip 1050401
(includes part no. 9)
7. Fixed pole section N/A
8. Optional 1.2m extension pole section 1050289
9. Hose guide See parts 5 & 6
10. Carry handle N/A
11. Rubber cable guide N/A
12. 10m rubber cable N/A
13. Motor housing N/A
14. Air outlet
15. Air outlet cleaning spike 1050418
16. Clear impeller housing N/A
17. Impeller cover clip spacers
18. Impeller cover clips 1050425
19. Impeller cover clips screws
20. Stainless’ steel clip spacer retainer
21. Outlet O ring seal
22. Outlet clear elbow 1050432
23. Outlet clear hosetail
24. Outlet locking nut
25. Optional hose clip fixing point N/A
26. 6m 11/2” Hose supplied N/A
27. Impeller shaft N/A
28. Large pond, 90mm Impeller (fitted)
29. Medium pond, 80mm impeller
30. Small pond, 70mm impeller 1050449
31. Impeller washer
32. Impeller lock nut
33. Impeller cover N/A
34. Monsta head clip, spacer & screws
35. Monsta head clip, spacer retainer
36. Monsta head clip See parts no. 17, 18, 19 & 20
37. Monsta head back clip
38. 10cm Power brush head 1050456
39. 20cm wheeled brush head 1050463
40. 30cm Optional wheeled brush head 1050289
41. Power connecter plug 1050081
42. Red power on standby indicator light
43. Green Power on indicator light Complete with encoded handle only
44. Radio frequency receiver See part no. 1
45. 3m rubber cable N/A
46. Three pin plug N/A
47. Remote control handle battery 1050470
CODE
POND MONSTA 1050197
POND MONSTA COMPLETE 1050203
POND MONSTA COLLECTOR 1050210
36 35 34
38 39 40
37
33
28 29 30
31
32
18
17
19
14
15
16
20
17 18
19
27
22
23
24
25
21
13
11
12
9
10
7
6
5
4
3
47
8 2
1
26
41
42
43 44
46
45
2 3
Monsta_Instructions_AW.qxd 12/5/09 12:23 Page 5

GETTING TO KNOW YOUR
POND MONSTA COLLECTOR
GETTING TO KNOW YOUR
POND MONSTA COLLECTOR
TECHNICAL SPECIFICATION & PERFORMANCE
Part Description Spare Code
1. Filter net handles 1050487
2. Collector water tight body N/A
3. Monsta waste inlet locater, support clip N/A
4. Filter mesh 1050494
5. Top left Collector pole N/A
6. Bottom right Collector pole N/A
7. Bottom left Collector pole N/A
8. Top right Collector pole N/A
9. Hose reel N/A
10. Centre screw N/A
11. Centre washer N/A
12. Centre back washer N/A
13. Centre nut N/A
14. Hose reel screws N/A
15. Hose reel washers N/A
16. Hose reel nuts N/A
17. Collector outlets N/A
18. Rubber outlet washer N/A
19. Outlet back nuts N/A
16
10
11
14
15
16
12
13
17
17
18
18
5
15
14
16
15
14
10
11
6
7
9
16
15
14
2
19
8
19
13
12
1
4
1
3
Voltage ................................................. 230V
Hertz ..................................................... 50Hz
Watts ..................................................... 350
Safety rating ......................................... IP68 CE
Cable fitted .......................................... 10m + 3m
Remote control handle battery ........... GA 23A Alkaline Battery
Maximum submerged depth ............... 5 metres
Maximum flow large impeller ............. 7800 lt/hr (1716 gal/hr)
Maximum flow medium impeller ....... 6500 lt/hr (1430 gal/hr)
Maximum flow small impeller ............ 5400 lt/hr (1188 gal/hr)
Maximum lift large impeller ............... 4.5m (14.7 ft)
Maximum lift medium impeller .......... 3.6m (11.8 ft)
Maximum lift small impeller .............. 2.9m (9.5 ft)
4 5
Monsta_Instructions_AW.qxd 12/5/09 12:23 Page 7

INSTALLATION INSTALLATION

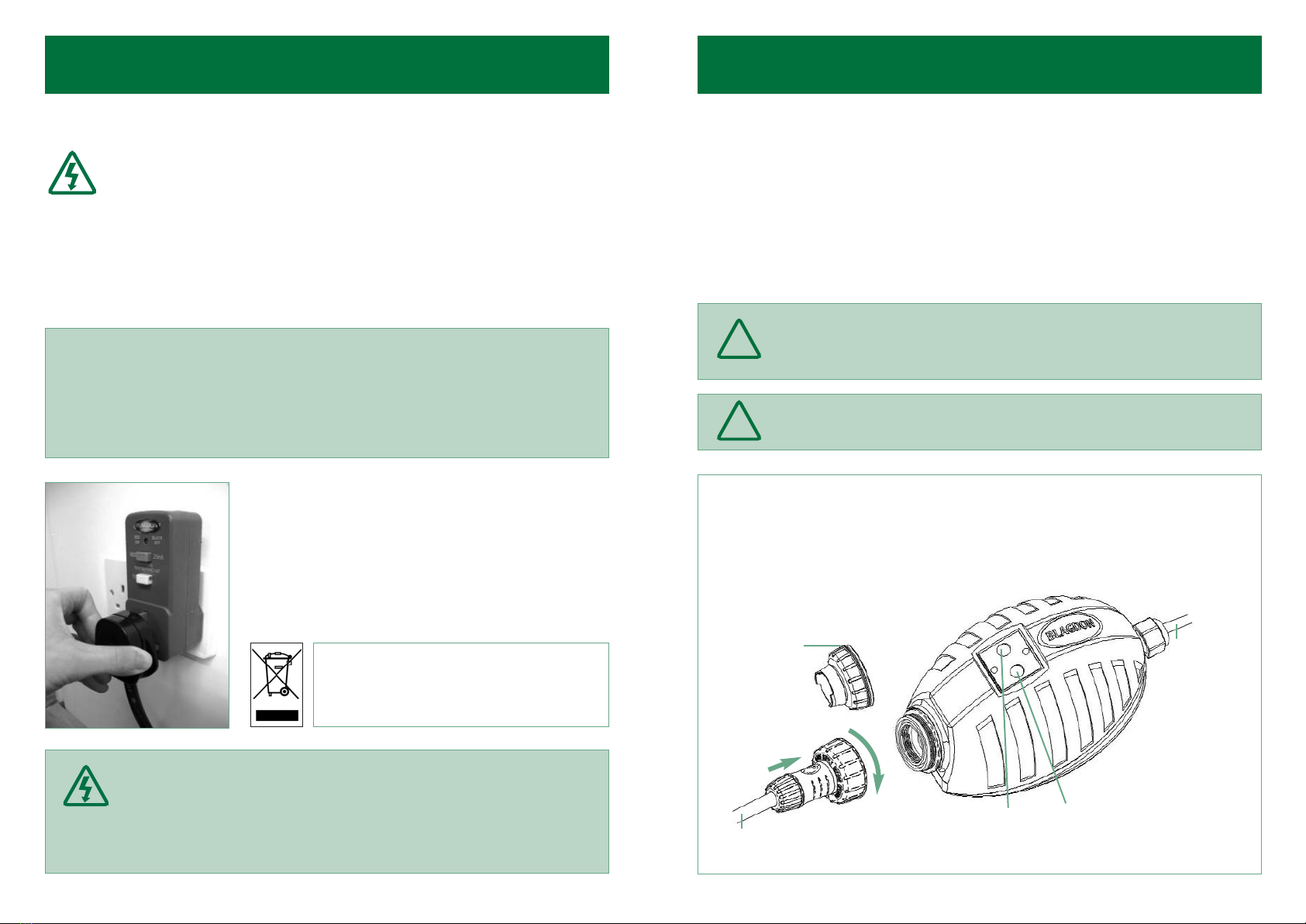

Electrical installation
The power supply must meet the specifications on the product.
Monsta pump is intended to be used with either a weather-proof cable connector or
permanently connected to the fixed wiring in the main system by means of a plug
and socket.
The cores in the supply cable are coloured in accordance with the following code:
Brown = Live, Blue = Neutral, Green/Yellow = Earth.
The electric cable is permanently connected and sealed in the motor body.
If the supply cable is damaged the pump must not be used.
Do not use the supply cable to lift the Monsta pump as this may cause damage.
For permanent installations to the mains supply, it is necessary to conform to the regulations of
the local electricity authority and this would include the use of a metal or plastic conduit to
protect the cable.
Attention has been drawn to the fact that special rules may exist concerning the installation of
your pond Monsta (i.e. local building regulations).
Blagdon Pond Monsta must not be used in swimming pools, or areas where people are in contact
with the water.
Always disconnect the mains electricity supply whilst the equipment is being installed, repaired or
maintained. Consult a qualified electrician if in any doubt about wiring this product to the main
supply.
IMPORTANT: Please note all electrical work on garden lighting and power installations must
comply with part P of the building regulations. Failure to comply is a criminal offence. If the
installation of this product is not carried out by a competent electrician who is registered
under the Part P self-certification scheme then you must notify the local building control
department before work begins. For further information and guidance on this matter and
other electrical installations in your home that might be covered by the relevant legislation,
contact your local authorities building control department.
WARNING - MONSTA PUMP MUST BE EARTHED
A Residual Current Device (RCD), also know as the Residual Current Circuit
Breaker (RCCB), with a tripping current not exceeding 30mA must be installed
in the supply circuit.
A means of disconnection from the supply having a contact separation of at least
3mm in all poles must be incorporated in the fixed wiring.
WATERGARDEN
CIRCUIT BREAKER
We recommend use of a Blagdon Powersafe
Water garden Circuit Breaker code 1040181,
ask your retailer for details.
An RCD is a legal requirement for outdoor
power supplies.
Warning - The Monsta pump is provided with a thermal cut out that
temporarily switches off the pump in case of overheating and the pump
may automatically restart.
!
!
Never run the Monsta out of water for prolonged periods
as this may cause irreparable damage.
1. NO LIGHTS - Mains plug is not switched on or plug fuse/RCD has activated.
2. RED LIGHT - Receiver is on stand-by. Power is received. Handle lever not compressed.
3. GREEN LIGHT - Power on. Monsta motor receiving power. Handle lever compressed.
RADIO FREQUENCY RECEIVER
2. RED
POWER TO
MONSTA MOTOR
POWER IN
FROM PLUG
SAFETY CAP
SHOULD BE
REPLACED
WHEN PLUG
CONNECTOR
IS REMOVED
TURN
TO SEAL
PLUG IN
3. GREEN
WARNING: NOT TO BE
USED BY CHILDREN
6 7
Monsta_Instructions_AW.qxd 12/5/09 12:23 Page 9

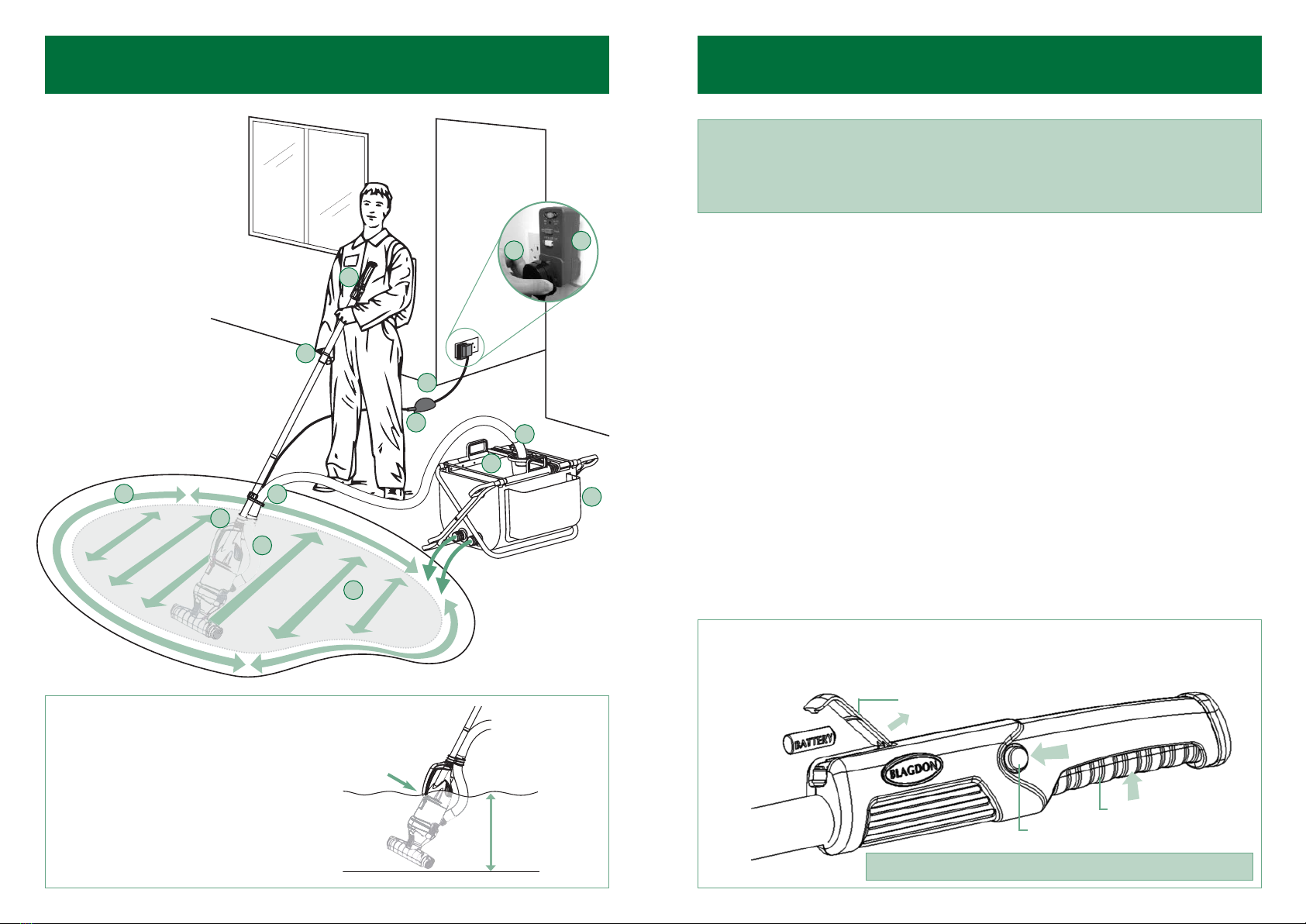

Ensure that the remote control handle battery is installed. (see diagram below)
NOTE: Remove large objects over 32mm in size with a net to prevent excessive blocking of Pondmonsta
during operation. It is normal for Pondmonsta to block and require clearing occasionally. Pond Monsta
has been designed so that this requires a minimum of time and effort (see ‘Clearing Blockages’ page 10)
1. Plug in RCD (not supplied).
2. Plug in fitted three pin RF receiver plug.
3. Plug in RF receiver connecter plug.
4. Connect hose to outlet hosetail firmly (a hose clip may be used to secure not supplied)
5. Choose Collector recycling option / position for Collector outlet returns. (see page 10)
6. Place hose in Collector locater
7. Connect hose and cable to hose cable clips. Adjust so that the hose is level with the
water surface when the Monsta is fully submerged.
8. Adjust pole by twisting and locking to a comfortable height.
9. Switch on mains supply, standby light will show red on the RF receiver.
10. Submerge Monsta fully until air stops releasing from air outlet (the Monsta will not
pump effectively until all air is released)
11. Compress safety button and squeeze lever to activate pumping
12. Waste will now start to flow into the Collector, it is recommended that the higher shelf
areas are cleaned first. Always move the Pond Monsta in a slow back and forth action to
prevent disturbing the sediment and waste.
13. Secondly clean the base of the pond, again in a slow back and forth motion using the
clear hose as a visual guide to indicate which areas have been cleared.
14. When the Collector basket is full / overflowing, turn of the Pondmonsta by releasing
the handle and remove the collected debris to waste or compost.
HOW TO USE POND MONSTA HOW TO USE POND MONSTA
11
4
13
8
7
12
6
5
14
3
9
10
1
2
Water level MUST submerge the
Air Outlet before starting Monsta.
Minimum water depth = 30cm
Maximum water depth = 5 metres
MINIMUM START DEPTH
HANDLE ACTIVATION & BATTERY INSTALLATION
1. DEPRESS SAFETY BUTTON
2. SQUEEZE LEVER
HANDLE REMOTE CONTROL
BATTERY LOCATION
MIN: 30cm
MAX: 5 metres
AIR OUTLET
WARNING: DO NOT SUBMERGE THE HANDLE IN THE POND
8 9
Monsta_Instructions_AW.qxd 12/5/09 12:23 Page 11

HOW TO USE POND MONSTA
14
2
3

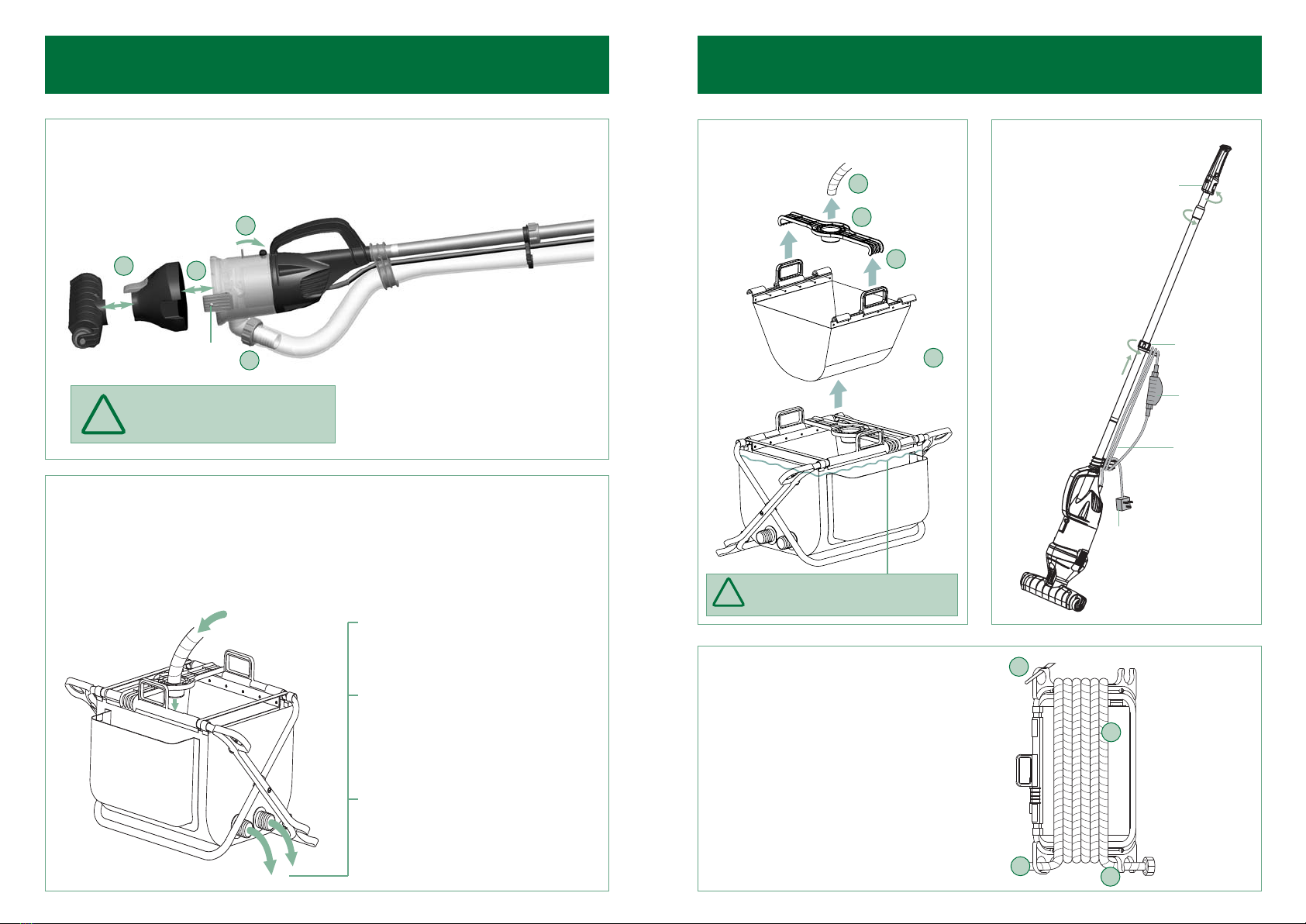

1. Check head and unclip if required
2. Insert cleaning spike into outlet
to clear air blockage
3. Remove outlet blocking nut to
access outlet elbow if blocked
4. Remove impeller cover clip screws,
open both clips and remove impeller
cover to access impeller chamber.
CLEARING BLOCKAGES
It is normal for your Pond Monsta to require clearing occasionally during operation.
Pond Monsta has been designed so that this will require a minimum of time and effort.
REMOVE
SCREWS
MONSTA COLLECTOR RECYCLING WATER OPTIONS
With the use of the Monsta collector you can either recycle your pond water back into the
pond, or it can go directly into your plant beds as pond water is an excellent feed source for
your plants to grow tall and healthy, or the waste water can go directly into a drain.
Pond Monsta is completely safe to all adult healthy pond fish.
TO POND
If there is a low sludge content -
recycle water back into pond.
TO GARDEN
If there is a high sludge content or
a beneficial partial water change is
required- pump water into garden
border.
TO DRAIN
If there is an excessively high sludge
content - water can be filtered of large
solids and pumped into waste or drain.
ALWAYS TURN POND MONSTA
OFF AT THE MAINS BEFORE
OPENING IMPELLER COVER.
!
HOW TO USE POND MONSTA
WATER IN
WATER OUT
STORAGE Adjust Handle
Counter Turn handle
pole & Monsta pole
to lock/unlock
1/4 Turn
1/4 Turn
1
2
4
CLEANING COLLECTED
WASTE
STORAGE
MAX FILL LEVEL
Empty Collector Filter when required
!
Remove hose
Recycle waste
to compost
Remove hose
locator
3Lift
handles
vertically
Cable storage
Wind Cable between
Hose Guide &
Adjustable
Hose/Cable
Plug
R.F. Receiver
Unscrew
hose/cable
locking nut to
adjust height
4
2
1
3
1. Clip in hose locking nut to start
2. Wind hose around reel
3. Insert hose to finish
4. Hanging hook
10 11
Monsta_Instructions_AW.qxd 12/5/09 12:23 Page 13

POOR FLOW FROM THE POND MONSTA
•Follow clearing blockages procedure page 10 Check the hose attachment, the motor housing
and the brush head inlet for blockages like large clumps of blanket weed, large stones, sticks
or any other large pond debris.
• If the impeller has been changed, check it has been correctly fitted. (see page 12)
• Ensure the outlet hose is not kinked or crushed.
• Only use smooth bore hose as hose with edges on the inside will restrict flow massively.
• Check all air is released from air outlet.
NO POWER TO THE MOTOR
•The LED is glowing red on the RF receiver but there is no action when activating the handle
lever? Check the batteries are correctly fitted in the remote control handle and the handle
hasn’t got any water inside the casing. If so place inside a warm area to let the water evaporate.
If the Monsta has been in used for prolonged periods, the battery will need replacing.
•The Led’s on the receiver are not glowing when plugged into the mains. Also check your
Plug in RCD and house fuse box RCD. Check fuse in three pin plug if so replace and test again.
• The Led’s are glowing red on the receiver and turning green when the trigger on the handle
is compressed but still no action from the motor? This may mean the motor has overheated,
the motor will reset when cooled after 15 minutes.
FAULTS - PROBLEMS PROCEDURE
Before returning your Pond Monsta to your dealer or contacting our Consumer Advice Department,
please carry out the following steps. This will solve most problems quickly and easily.
1. Ensure electrical procedure has been followed fully. Check fuse and any cable connectors/
switch boxes.
NOTE: If the pump has overheated the thermal overload will temporarily switch off the pump.
2. (a) Follow ‘Clearing Blockages’ on page 10. (b) Follow ‘Troubleshooting’ guide above.
3. Return pump to point of purchase for inspection and advice (You may need proof of purchase).
CONSUMER ADVICE CONTACT DETAILS
Interpet (Blagdon) Consumer Advice Department Vincent Lane, Dorking, Surrey RH4 3YX
Telephone: [phone]
(Monday to Friday 10am to 1pm except Bank Holidays - Times may vary)
Fax: [phone] E-mail: [email protected]
www.blagdonthepondmasters.co.uk
MAINTENANCE
REMOVING AND FITTING IMPELLER
Step 1. Remove impeller cover.
Step 2. Place flat-head screwdriver into centre of the impeller.
Step 3. Using your other hand, twist the impeller anti-clockwise.
Step 4. After twisting the impeller six times anti-clockwise, the impeller will be free
from the shaft.
Step 5. Select small, medium or large impeller.
Step 6. Place impeller onto shaft with the grooves facing towards you.
Step 7. Turn the impeller clockwise six times and it will be fitted correctly.
TROUBLESHOOTING
IMPORTANT
ALWAYS ENSURE THE MAINS
PLUG IS DISCONNECTED BEFORE
OPENING IMPELLER COVER.
!
LOCK
RELEASE
12 13
Monsta_Instructions_AW.qxd 12/5/09 12:23 Page 15
