BLAUBERG CIVIC EC LB 1200 V.2 User manual

EN
CIVIC EC LB 1200 V.2
CIVIC EC LBE 1200 V.2
CIVIC EC LBE2 1200 V.2
Single-room air handling unit
USER'S MANUAL

CONTENTS
This user’s manual is a main operating document intended for technical, maintenance, and operating staff.
The manual contains information about purpose, technical details, operating principle, design, and installation of the
CIVIC EC LB(E)(2) 1200 V.2 unit and all its modifications.
Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to
work in accordance with workplace safety rules as well as construction norms and standards applicable in the territory of the country.
Safety requirements..................................................................................................................................................................... 2
Purpose................................................................................................................................................................................................ 4
Delivery set........................................................................................................................................................................................ 4
Designation key.............................................................................................................................................................................. 4
Technical data.................................................................................................................................................................................. 5
Design and operating principle ........................................................................................................................................... 7
Mounting and set-up.................................................................................................................................................................. 9
Connection to power mains .................................................................................................................................................. 15
Control ................................................................................................................................................................................................. 16
Technical maintenance.............................................................................................................................................................. 17
Troubleshooting............................................................................................................................................................................. 18
Storage and transportation regulations.......................................................................................................................... 18
Manufacturer’s warranty........................................................................................................................................................... 19
Certificate of acceptance.......................................................................................................................................................... 23
Seller information.......................................................................................................................................................................... 23
Installation certificate.................................................................................................................................................................. 23
Warranty card................................................................................................................................................................................... 23
SAFETY REQUIREMENTS
This unit is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the unit by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the unit.
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved.
Cleaning and user maintenance shall not be made by children without supervision.
Children shall not play with the appliance.
Ensure that the unit is switched off from the supply mains before removing the guard.
Precautions must be taken to avoid the back-flow of gases into the room from the open flue of
gas or other fuel-burning appliances.
Do not attach the product to the support using glue or adhesives. Use only the fastening
method specified in the «User’s manual».
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or
similarly qualified persons in order to avoid a safety hazard.
CIVIC EC LB(E)(2) 1200 V.2
2
www.blaubergventilatoren.de

THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS
SERVICE LIFE.
DO NOT DISPOSE THE UNIT AS UNSORTED DOMESTIC WASTE
All operations described in this manual must be performed by qualified personnel only, properly
trained and qualified to install, make electrical connections and maintain ventilation units.
Do not attempt to install the product, connect it to the mains, or perform maintenance yourself.
This is unsafe and impossible without special knowledge.
Disconnect the power supply prior to any operations with the unit.
All user’s manual requirements as well as the provisions of all the applicable local and national
construction, electrical, and technical norms and standards must be observed when installing
and operating the unit.
Disconnect the unit from the power supply prior to any connection, servicing, maintenance, and
repair operations.
Connection of the unit to power mains is allowed by a qualified electrician with a work permit
for the electric units up to 1000 V after careful reading of the present user’s manual.
Check the unit for any visible damage of the impeller, the casing, and the grille before starting
installation. The casing internals must be free of any foreign objects that can damage the
impeller blades.
While mounting the unit, avoid compression of the casing! Deformation of the casing may result
in motor jam and excessive noise.
Misuse of the unit and any unauthorised modifications are not allowed.
Do not expose the unit to adverse atmospheric agents (rain, sun, etc.).
Transported air must not contain any dust or other solid impurities, sticky substances, or fibrous
materials.
Do not use the unit in a hazardous or explosive environment containing spirits, gasoline,
insecticides, etc.
Do not close or block the intake or extract vents in order to ensure the efficient air flow.
Do not sit on the unit and do not put objects on it.
The information in this user’s manual was correct at the time of the document’s preparation.
The Company reserves the right to modify the technical characteristics, design, or configuration
of its products at any time in order to incorporate the latest technological developments.
Never touch the unit with wet or damp hands.
Never touch the unit when barefoot.
BEFORE INSTALLING ADDITIONAL EXTERNAL DEVICES, READ THE RELEVANT USER MANUALS.
www.blaubergventilatoren.de
CIVIC EC LB(E)(2) 1200 V.2
3

DELIVERY SET
DESIGNATION KEY
NAME NUMBER
Unit section 2
L-shaped bend 2
Set of fixing screws 1
Decorative panel 1
User’s manual 1
Packing box 2
PURPOSE
The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility
and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream
of intake air.
The unit is not intended for organizing ventilation in swimming pools, saunas, greenhouses, summer gardens, and other spaces with
high humidity.
Due to the ability to save heating energy by means of energy recovery, the unit is an important element of energy-efficient premises.
The unit is a component part and is not designed for stand-alone operation. It is rated for continuous operation.
Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous materials,
coarse dust, soot and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust,
pathogenic germs).
CIVIC EC L B E CP 1200 LV.2 S21
Control
Modernization
V.2 – second modernized generation
Modication
L – left-hand
R – right-hand
Rated air ow [m/h]
Drain pump
_ – without a drain pump
CP – equipped with a drain pump
Electric heaters
_ – without a heater
E – equipped with a preheater
E2 – equipped with a preheater and a reheater
Bypass damper
B – equipped with a bypass damper
Mounting features
L – floor-mounted with horizontal spigots
Motor type
EC – electronically commutated
Unit series
CIVIC EC LB(E)(2) 1200 V.2
4
www.blaubergventilatoren.de

CIVIC EC LB 1200 V.2 CIVIC EC LBE 1200 V.2 CIVIC EC LBE2 1200 V.2
Supply voltage [V/50 (60) Hz] 1~230 3~400
Maximum power consumption without electric heaters [W] 345
Preheater power [W] - 3150
Reheater power [W] - - 2110
Maximum unit current without electric heaters [A] 2.3
Maximum unit current with electric heaters [A] - 12 18.7
Nominal air flow [m3/h] 1240
Nominal power consumption without electric heater [W] 315
Nominal current without electric heater [A] 2.2
Sound pressure level at 3 m distance [dBA] 24
Transported air temperature [°C] -25...+40
Casing material painted steel
Insulation 40 mm mineral wool
Extract filter ISO Coarse > 60%
Supply filter ISO ePM1 60% + optional F7
Connected air duct diameter [mm] 400
Weight [kg] 394 398 400
Heat recovery efficiency [%] 84...96
Heat exchanger type counter-flow
Heat exchanger material polystyrene
SEC class A+
Units without a drain pump are designed to operate in an electrical supply network with a frequency of 50(60) Hz,
with a drain pump — 50 Hz only.
TECHNICAL DATA
The unit is designed for indoor application with the ambient temperature ranging from +1 °C up to +40 °C and relative humidity up to
60 % without condensation. In cold, damp rooms, there is a possibility of freezing or condensation inside and outside the casing.
In order to prevent condensation on the internal walls of the unit, it is necessary that the surface temperature of the casing is 2-3 °C above
the dew point temperature of the transported air.
The unit should be operated continuously, and in cases where ventilation is not necessary, reduce the air flow of the fans to a
minimum (20%). This will ensure a favorable indoor climate and reduce the amount of condensation inside the unit, which can damage
electronic components. Never use the unit for dehumidification, for example, of new buildings.
The unit is rated as a Class I electrical appliance.
Hazardous parts access and water ingress protection rating:
IP20 for the unit connected to the air ducts.
IP44 for the unit motors.
The unit design is constantly being improved, thus some models may be slightly different from those described in this manual.
www.blaubergventilatoren.de
CIVIC EC LB(E)(2) 1200 V.2
5

OVERALL DIMENSIONS mm
H H1
H3H4H5
ØD
L1
LL3
L2
H H1 D H3 H4 H5 L L1 L2 L3
2106 2000 400 545 1110 70 1900 1951 265 535
CIVIC EC LB(E)(2) 1200 V.2
6
www.blaubergventilatoren.de

DESIGN AND OPERATING PRINCIPLE
UNIT OPERATION LOGIC
Heat Recovery mode: warm stale extract air from the room flows into the unit, where it is filtered by the extract filters, then air flows
through the heat exchanger and is exhausted outside by the extract fan. Cold fresh air from the outside flows into the unit, where it is
cleaned by the supply filters. Then the air flows through the heat exchangers and is directed to the room with the supply fan. Heat energy
of warm extract air is transferred to clean intake fresh air from the outside and warms it up. The air flows are fully separated while flowing
through the heat exchanger. Heat recovery minimizes heat losses, which reduces the cost of space heating in the cold season.
Summer Cooling mode: the bypass damper is opened, the intake air that is supplied to the premises bypasses the heat exchanger and
its temperature doesn’t change.
The units have three frost protection modes (danger of freezing appears when the exhaust air temperature downstream of the heat
exchanger is lower than +5 °C and intake air temperature upstream of the heat exchanger is lower than -3 °C):
— periodically the supply fan is turned off
— with the bypass
— with the electric preheater (if the unit is equipped with a preheater)
Mode selection and settings are described in the control system user’s manual.
Extract air
Exhaust air
Intake air
Supply air
UNIT DESIGN
The units are available in left-hand and right-hand design. Choosing the right arrangement can improve the ease of installation, shorten
the length of the ducts and reduce the number of air duct bends.
Extract air
Exhaust air
Intake air
Supply air
Extract air
Exhaust air
Intake air
Supply air
Right-handed modification Left-handed modification
www.blaubergventilatoren.de
CIVIC EC LB(E)(2) 1200 V.2
7

CIVIC EC LBE2 1200 V.2 unit design
2
3
4
5
9
10
11
12
13 14 15 16
6 7
1
8
1 – air dampers; 2 – G4 supply filter; 3 – F7 supply filter (option); 4 – preheater; 5 – supply fan; 6 – SETUP MODE button; 7 – louver shutters
for adjusting supply air direction; 8 – extract fan; 9 – reheater; 10 – control unit; 11 – differential pressure switch of the extract filter;
12 – ISO Coarse > 60% extract filter; 13 – differential pressure switch of the supply filter; 14 – terminal block for internal connections;
15 – bypass damper; 16 – counter-flow heat exchanger.
The unit is equipped with a service door for technical and maintenance operations. Opening the service door while the unit is running
will lead to its shut down. The unit design enables installation of a bypass duct with a bypass damper to route the intake air stream
without contacting the heat exchanger.
The unit is equipped with differential pressure switches to control filter clogging.
Additional equipment for the unit is available on a separate order.
• Humidity sensor. The unit with an installed humidity sensor maintains a set indoor humidity level. As the extract air humidity rises
above the set point, the system automatically switches to the maximum speed. As the humidity drops down below the set point the
unit returns to the previous mode.
• CO2sensor. Measures the level of concentration of carbon dioxide in the room and generates a signal that controls the performance
of the fan. Air flow control based on CO2concentration is an efficient energy saving solution.
• VOC sensor. Qualitative assessment of air saturation with contaminants (cigarette smoke, exhaled air, solvent and detergent vapours).
• The sensor sensitivity can be adjusted with regards to the expected maximum level of air pollution. Enables on-demand ventilation
which results in considerable energy savings as air is exchanged only upon reaching the preset level of pollution.
CIVIC EC LB(E)(2) 1200 V.2
8
www.blaubergventilatoren.de

MOUNTING AND SETUP
READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT.
While choosing the mounting location provide enough access for maintenance or repair work.
min 950
min 3°
Ø 425-450
The unit is designed for mounting to a horizontal surface adjacent to the wall with the ready-made holes for the air ducts. Lower the
supports on the feet of the unit. During operation, the unit must stand on supports. By adjusting the height of the supports, achieve a
strictly horizontal unit position.
To get the best performance of the unit and to minimize turbulence-induced air pressure losses, connect the straight air duct section to
the unit spigots.
Minimum straight air duct length:
• equal to 1 air duct diameter on the intake side
• equal to 3 air duct diameters on outlet side
If the air ducts are too short or not connected, protect the unit parts from ingress of foreign objects. To prevent uncontrollable access to
the fan, the spigots may be covered with a protecting grille or other protecting device with mesh width not more than 12.5 mm. The unit
sections are equipped with feet with rollers and supports.
By turning the adjusting screw head, the unit can be mounted on rollers or on supports.
1
2
3
1 – adjusting screw head
2 – roller
3 – support
Open the service door. Connect the sections of the unit.
www.blaubergventilatoren.de
CIVIC EC LB(E)(2) 1200 V.2
9

A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
AA
A
A
A
A
A
A
A
B
B
B
B
B
B
B
B
B
Layout of holes for mounting screws (A – M6, B – M8)
Remove the protective panels to access the bottom of the unit. At the end of the installation, install the panels in reverse order.
Caution: Do not operate the unit with the panels removed.
CIVIC EC LB(E)(2) 1200 V.2
10
www.blaubergventilatoren.de

Secure the sections with screw connections (mounting screws are included in the delivery set).
Close the door and install the decorative panel.
www.blaubergventilatoren.de
CIVIC EC LB(E)(2) 1200 V.2
11

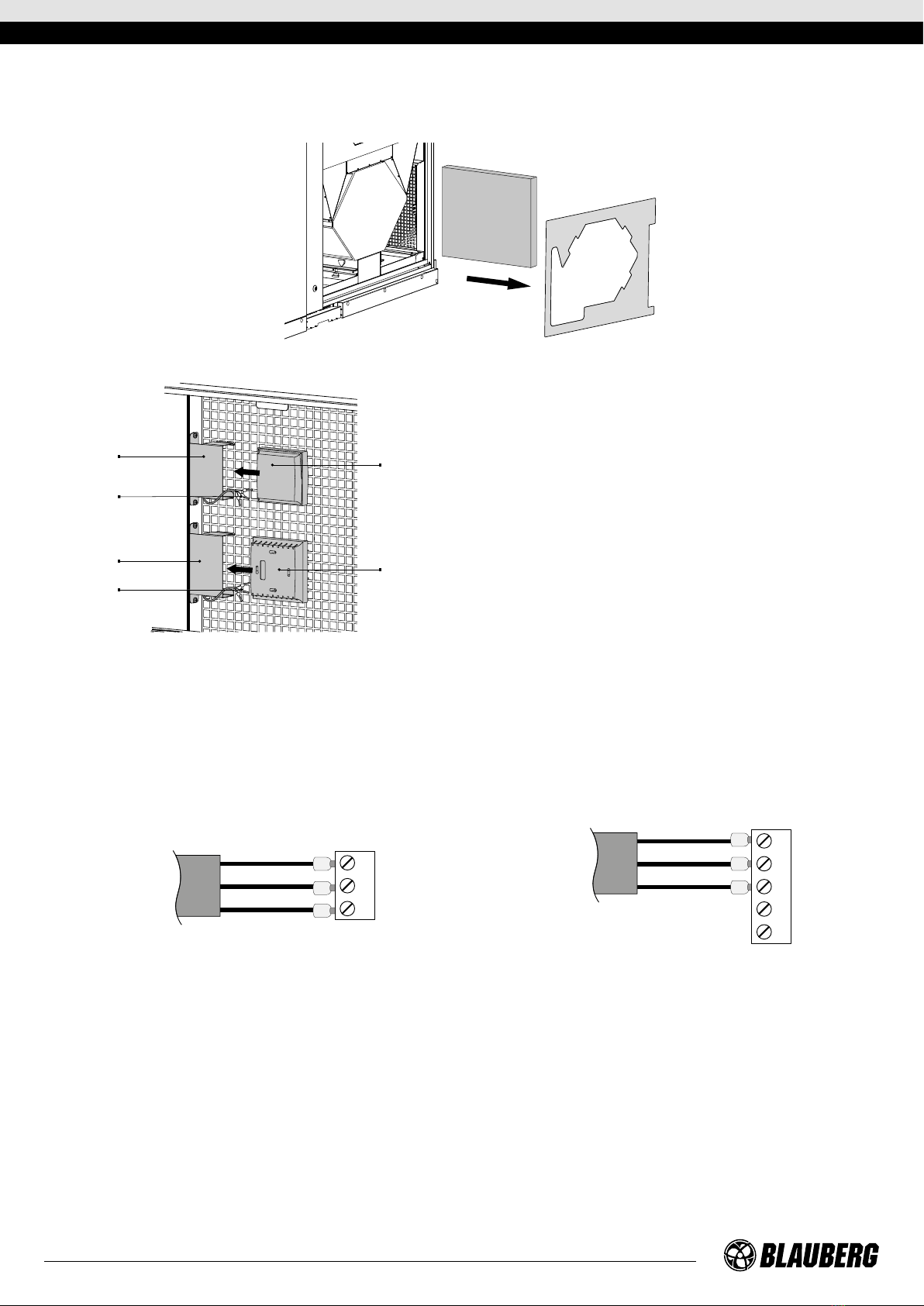

CO2, VOC, HUMIDITY SENSOR MOUNTING NOT INCLUDED IN THE DELIVERY SET
The sensors are installed in the exhaust air duct upstream of the heat exchanger. Before installation, remove the protection plate and
remove the extract filter.
Install the CO and VOC sensors in the respective brackets and connect the connectors to them.
12
5
4
6
3
1 – mounting bracket for the VOC sensor
2 – VOC sensor
3 – VOC sensor cable
4 – mounting bracket for the CO2sensor
5 – CO2sensor
6 – connector of the CO2sensor
Connecting the CODPWQ402000
sensor and VOC AERASGARD-6120 RLQ-W_BD1 and DPWQ306000
sensors
Connecting the CO F2000TSM-CO2-S110-V/A-02-SP sensor
1
3
2
+U (+24 V)
OUT (0-10 V)
GND
Brown
White
Green
From the unit controller
1
3
2
5
4
+U (+24 V)
GND
OUT (0-10 V)
Brown
White
Green
From the unit controller
CIVIC EC LB(E)(2) 1200 V.2
12
www.blaubergventilatoren.de

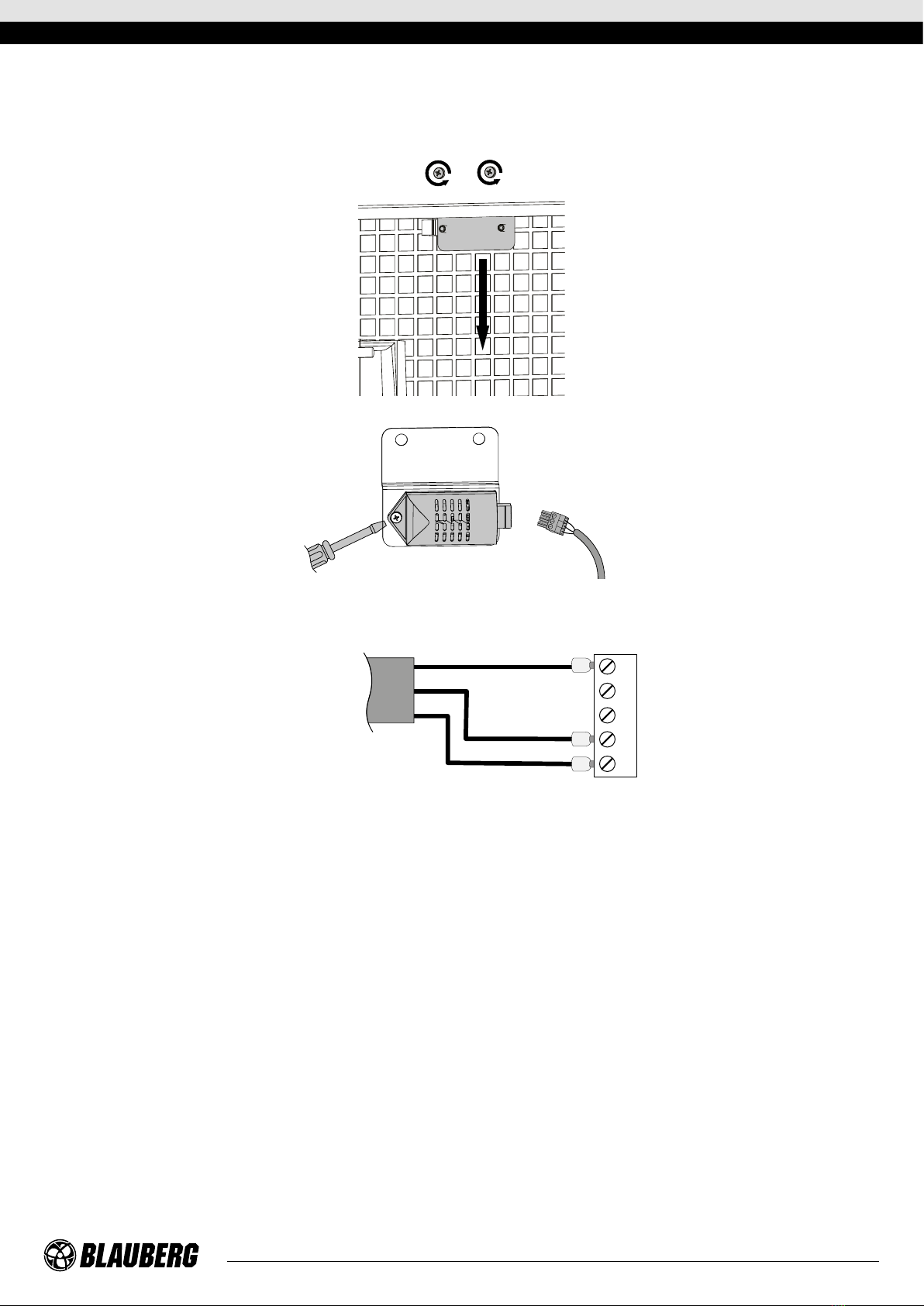

To connect the FS2 humidity sensor, unscrew the screws securing the bracket and remove it.
Fix the FS2 humidity sensor with a screw on the bracket and connect the connector.
Install the bracket with the sensor to the unit.
To connect the DPWC112000 sensor, remove the connector from the cable and connect the cable to the sensor terminal according to
the diagram.
1
3
2
5
4
+(G)
OUT H
M-G0
Brown
White
Green
From the unit controller
www.blaubergventilatoren.de
CIVIC EC LB(E)(2) 1200 V.2
13

THE CONDENSATE DRAINAGE SYSTEM IS DESIGNED FOR NORMAL OPERATION IN
PREMISES WITH AIR TEMPERATURES ABOVE 0 °C!
IF THE EXPECTED AMBIENT AIR TEMPERATURES ARE BELOW 0 °C, THE CONDENSATE
DRAINAGE SYSTEM MUST BE EQUIPPED WITH HEAT INSULATION AND PREHEATING
FACILITIES.
CONDENSATE DRAINAGE
The models without a drain pump are equipped with condensate drain pipes.
Connect the drain system to the spigots.
2
3
4
5
6
7
min 3 mm
1
1 – drain pipe (Ø 20 mm); 2 – coupling; 3 – L-shaped bend (Ø 20 mm); 4, 6 – connection pipe; 5 – U-trap; 7 – sewage system.
A separate drainage system must be connected to each drain pipe. Connect the drain pipe, bend, U-trap and the sewage system with
metal, plastic or rubber connection pipes.
While laying the connection pipes provide the slope of minimum 3° downwards. Before starting operation, provide free drainage for the
condensed water, otherwise it is accumulated inside the unit that may cause the equipment damage and condensate outflow to the
room. Fill up the U-trap with water before using it.
For the units with a drain pump make sure that the flexible hose (Ø 6 mm) from the pump is connected to the sewage system.
The drain pump provides timely pumping of the condensed water from the unit.
CIVIC EC LB(E)(2) 1200 V.2
14
www.blaubergventilatoren.de

CONNECTION TO POWER MAINS
POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT.
THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN.
THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE
MANUFACTURER’S LABEL.
ANY TAMPERING WITH THE INTERNAL CONNECTIONS IS PROHIBITED
AND WILL VOID THE WARRANTY.
DO NOT LAY THE CABLE IN CLOSE PROXIMITY TOTHE CONTROL PANEL CABLE!
WHILE ROUTING THE CONTROL PANEL CABLE DO NOT COIL THE EXTRA LENGTH.
After mounting the unit, make internal connections according to the label on the casing.
To access the terminal block, remove the fixing screws and remove the cover.
The unit with a drain pump is designed to be connected to 1~230 V/50 Hz or 3~400 V/50 Hz power mains, without a drain pump —
1~230 V/50(60) Hz or 3~400 V/50(60) Hz.
The drain pump is not included in the delivery set and must be ordered separately.
The unit is rated for connection to 3~400 V/50 (60) Hz power mains according to the wiring diagram.
The connection must be made using durable, insulated and heat-resistant conductors (cables, wires). The actual wire cross section
selection must be based on the maximum load current, maximum conductor temperature depending on the wire type, insulation,
length and installation method. The external power input must be equipped with an automatic circuit breaker built into the stationary
wiring to open the circuit in the event of overload or short-circuit. The position of the external circuit breaker must ensure free access for
quick unit power-off.
The trip current of the automatic circuit breaker must exceed the maximum current consumption of the unit (refer to the“Technical data”
section or to the unit label). It is recommended to select the rated current of the circuit breaker from the standard series, following the
maximum current of the connected unit. The circuit breaker is not included in the delivery set and can be ordered separately.
To access the terminal block, remove the fixing screws and remove the cover.
Route the cables to the terminal block unit through the sealed cable glands in the unit.
Complete the electrical connections as shown in the external connections diagram.
www.blaubergventilatoren.de
CIVIC EC LB(E)(2) 1200 V.2
15

EXTERNAL CONNECTION DIAGRAM FOR CIVIC EC LB 1200 V.2
N
N
L1
L1
5A
F1
PE
X1
NO
6
NC
4
C
5
C
3 10
C
8
GND
9
NO
7
+24VA
B
GND
21
Boost* P1*
2 1
PK1*
CCU*
1211
A B 24V
1 2 3 4
Brown Yello White Green
EXTERNAL CONNECTION DIAGRAM FOR CIVIC EC LBE 1200 V.2, CIVIC EC LBE2 1200 V.2
N
N
L3
L3
L2
L2
L1
L1 F1PE
X1
NO
6
NC
4
C
5
C
3 10
C
8
GND
9
NO
7
+24VA
B
GND
2 1
Boost* P1*
2 1
PK1*
CCU*
1211
AB24V
5A
1 2 3 4
Brown Yello White Green
Designation Name Wire type Note
PK1* Contact from a fire alarm panel 2 x 0.75 mm2Remove the jumper.
CCU* Cooler control 2 x 0.75 mm23 A, 30 V DC/~250 AC
P1* External control panel 4 x 0.25 mm2Maximum cable length from the
controller to the control panel — 10 m.
Boost On/Off contacts of the Boost mode 2 x 0.75 mm2
F1 Fuse 5A 5x20, slow
*Is not included in the delivery set.
— ELECTRIC SHOCK HAZARD!
The unit can be controlled using a wired wall control panel (S22, S25) and a mobile app (S21).
Control panels and the application can be used together or separately.
The control panel functions and operation of the mobile application are described in the respective user's manuals.
CONTROL
3~400 V/50 Hz
(unit with a drain pump)
3~400 V/50 (60) Hz
(unit without a drain pump)
1~230 V/50 Hz
(unit with a drain pump)
1~230 V/50(60) Hz
(unit without a drain pump)
CIVIC EC LB(E)(2) 1200 V.2
16
www.blaubergventilatoren.de

TECHNICAL MAINTENANCE
Maintenance operations of the unit are required 3-4 times per year. They include general cleaning of the unit and the following operations:
1. Filter maintenance.
Dirty filters increase air resistance in the system and reduce supply
air volume. The filters require cleaning not less than 3-4 times per
year. Clean the filter with a vacuum cleaner or replace it with a new
one. To clean the filters, remove them from the unit. For new filters,
contact the Seller.
2. Heat exchanger maintenance (once per year).
Some dust may accumulate on the heat exchanger even in case
of regular maintenance of the filters. To maintain the high heat
recovery efficiency, regular cleaning is required. To clean the heat
exchanger, remove it from the unit and clean the heat exchanger
by using compressed air or a vacuum cleaner. After cleaning, re-
install the heat exchanger into the unit.
3. Fan maintenance (once per year).
Even in case of regular maintenance of the filters, some dust may
accumulate inside the fans and reduce the fan performance and
supply air flow.
To access the fans, remove the protection plates (secured with the
screws).
Clean the fans with a soft cloth, brush, or using compressed air.
Do not use water, aggressive solvents, or sharp objects as they
may damage the impeller.
4. Ductwork system maintenance (once in 5 years).
Even regular fulfilling of all the maintenance operations prescribed above may not completely prevent dirt accumulation in the air ducts,
which leads to air pollution and reduces the unit capacity. Duct maintenance means regular cleaning or replacement.
www.blaubergventilatoren.de
CIVIC EC LB(E)(2) 1200 V.2
17

STORAGE AND TRANSPORTATION REGULATIONS
• Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range +5 ˚C...+40 ˚C
and relative humidity up to 70 %.
• Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion, insulation, and sealing
deformation.
• Use suitable hoist machinery for handling and storage operations to prevent possible damage to the unit.
• Follow the handling requirements applicable for the particular type of cargo.
• The unit can be carried in the original packaging by any mode of transport provided proper protection against precipitation and
mechanical damage. The unit must be transported only in the working position.
• Avoid sharp blows, scratches, or rough handling during loading and unloading.
• Prior to the initial power-up after transportation at low temperatures, allow the unit to warm up at operating temperature for at least
3-4 hours.
Problem Possible reasons Troubleshooting
The fan(s) does (do) not start
when the unit is on.
No power supply. Make sure the power supply line is connected correctly,
otherwise troubleshoot the connection error.
The motor is jammed, the impeller
blades are soiled.
Turn the unit off. Troubleshoot the motor jam and the
impeller clogging. Clean the blades. Restart the unit.
Alarm in the system. Turn the unit off. Contact the Seller.
Automatic circuit breaker
trips following the unit
turning on.
Overcurrent as a result of short circuit in
the electric line. Turn the unit off. Contact the Seller.
Low air flow.
Low set fan speed. Set higher speed.
The filters and the fans are clogged, the
heat exchanger is clogged.
Clean or replace the filters, clean the fans and the heat
exchanger.
Ventilation system elements (air ducts,
diffusers, louver shutters, grilles) are
clogged, damaged or closed.
Clean or replace the ventilation system elements, such as air
ducts, diffusers, louver shutters, grilles.
Cold supply air. The extract filter is soiled. Clean or replace the extract filter.
Noise, vibration.
The impeller(s) is soiled. Clean the impeller(s).
The fan or casing screw connection is
loose.
Tighten the screw connection of the fans or the casing all
the way.
No anti-vibration connectors on air duct
pipe flanges. Install anti-vibration connectors.
Water leakage. The drainage system is soiled, damaged,
or installed incorrectly.
Clean the drain line. Check the drain line slope angle. Make
sure that the U-trap is filled with water and the drain pipes
are frost protected.
If troubleshooting steps have failed, contact the Seller of the product.
In case of faults not described in the table, contact the Seller for further information.
TROUBLESHOOTING
IF UNIDENTIFIED NOISES OR ODOURS SHOULD ARISE AND IN CASE OF DEFORMATION
OF ELEMENTS, VIBRATION, TERMINATION OF AIR SUPPLY/EXTRACTION OR REDUCED
SYSTEM PERFORMANCE, IMMEDIATELY DISCONNECT THE UNIT FROM POWER SUPPLY
AND CONTACT THE SELLER FOR THE UNIT DIAGNOSTICS
DIAGNOSTICS MUST BE CARRIED OUT BY QUALIFIED SPECIALISTS
CIVIC EC LB(E)(2) 1200 V.2
18
www.blaubergventilatoren.de

MANUFACTURER’S WARRANTY
The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby
declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European
Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking
Council Directive 93/68/EEC. This certificate is issued following test carried out on samples of the product referred to above.
The manufacturer hereby warrants normal operation of the unit for 24 months after the retail sale date provided the user's observance
of the transportation, storage, installation, and operation regulations. Should any malfunctions occur in the course of the unit operation
through the Manufacturer's fault during the guaranteed period of operation, the user is entitled to get all the faults eliminated by the
manufacturer by means of warranty repair at the factory free of charge. The warranty repair includes work specific to elimination of faults
in the unit operation to ensure its intended use by the user within the guaranteed period of operation. The faults are eliminated by means
of replacement or repair of the unit components or a specific part of such unit component.
The warranty repair does not include:
• routine technical maintenance
• unit installation/dismantling
• unit setup
To benefit from warranty repair, the user must provide the unit, the user's manual with the purchase date stamp, and the payment
paperwork certifying the purchase. The unit model must comply with the one stated in the user’s manual. Contact the Seller for warranty
service.
The manufacturer’s warranty does not apply to the following cases:
• User’s failure to submit the unit with the entire delivery package as stated in the user’s manual including submission with missing
component parts previously dismounted by the user.
• Mismatch of the unit model and the brand name with the information stated on the unit packaging and in the user's manual.
• User’s failure to ensure timely technical maintenance of the unit.
• External damage to the unit casing (excluding external modifications as required for installation) and internal components caused
by the user.
• Redesign or engineering changes to the unit.
• Replacement and use of any assemblies, parts and components not approved by the manufacturer.
• Unit misuse.
• Violation of the unit installation regulations by the user.
• Violation of the unit control regulations by the user.
• Unit connection to power mains with a voltage different from the one stated in the user's manual.
• Unit breakdown due to voltage surges in power mains.
• Discretionary repair of the unit by the user.
• Unit repair by any persons without the manufacturer’s authorization.
• Expiration of the unit warranty period.
• Violation of the unit transportation regulations by the user.
• Violation of the unit storage regulations by the user.
• Wrongful actions against the unit committed by third parties.
• Unit breakdown due to circumstances of insuperable force (fire, flood, earthquake, war, hostilities of any kind, blockades).
• Missing seals if provided by the user’s manual.
• Failure to submit the user’s manual with the unit purchase date stamp.
• Missing payment paperwork certifying the unit purchase.
FOLLOWING THE REGULATIONS STIPULATED HEREIN WILL ENSURE A LONG AND
TROUBLEFREE OPERATION OF THE UNIT
USER’S WARRANTY CLAIMS SHALL BE SUBJECT TO REVIEW ONLY UPON
PRESENTATION OF THE UNIT, THE PAYMENT DOCUMENT AND THE USER’S MANUAL
WITH THE PURCHASE DATE STAMP
www.blaubergventilatoren.de
CIVIC EC LB(E)(2) 1200 V.2
19

CIVIC EC LB(E)(2) 1200 V.2
20
www.blaubergventilatoren.de
